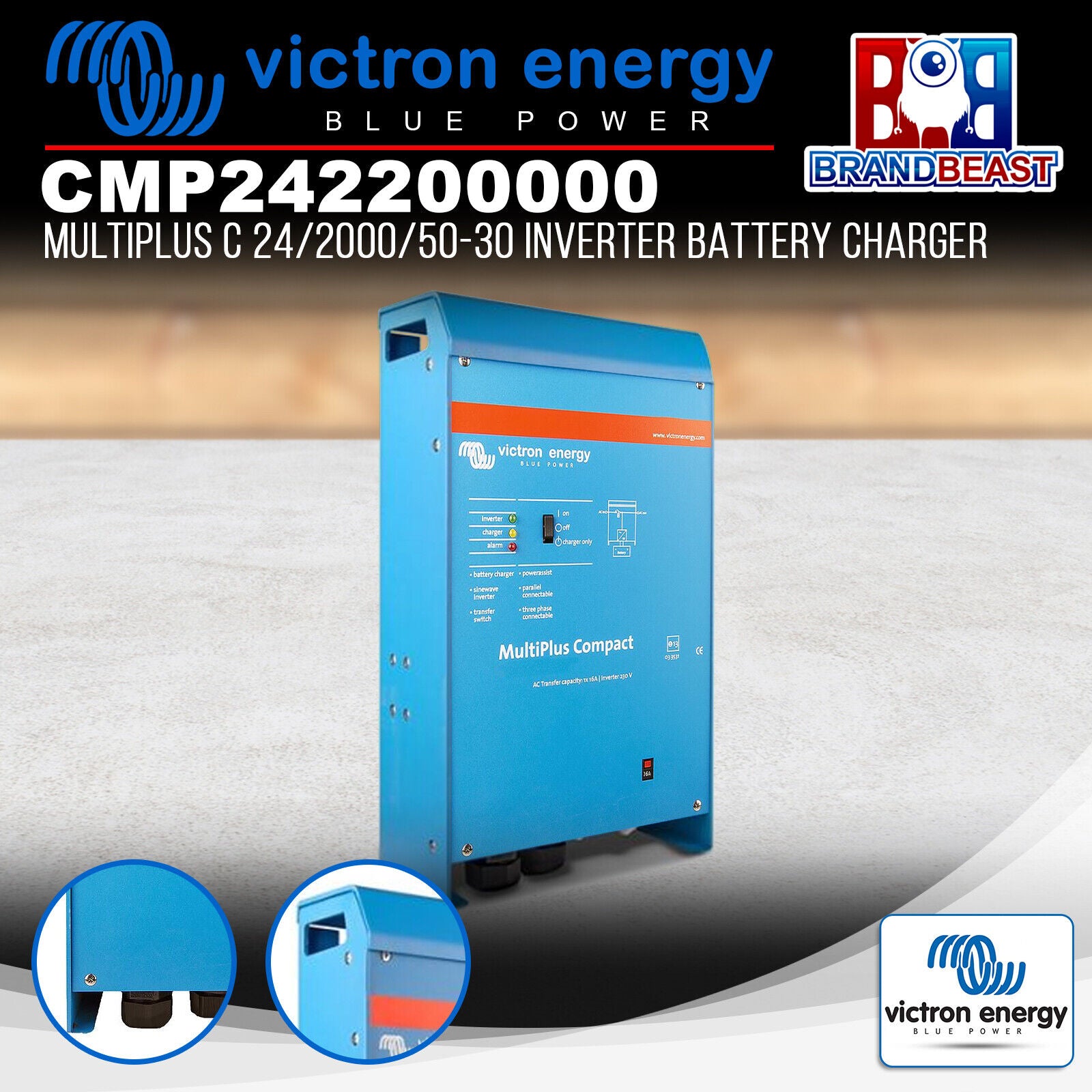

Victron Energy CMP242200000 MultiPlus C 24/2000/50-30 Inverter Battery Charger

Description












Victron Energy MultiPlus C 24/2000/50-30 Inverter Battery Charger: The Inverter Chargers From Victron Energy Have Been Designed to Be a True World-wide Product


Two AC Outputs
The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more).
Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will
provide 25 kW / 30 kVA output power with 720 Amps charging capacity.
Three phase capability
In addition to parallel connection, three units of the same model can be configured for three phase output. But that's not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.
PowerControl - Dealing with limited generator, shore side or grid power
The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure
The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems.
Loss of mains detection software is available.
System configuring

  • In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.

  • Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.

  • Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).


On-site Monitoring and control
Several options are available: Battery Monitor, Multi Control Panel, Color Control GX or other GX devices, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control
Color Control GX or other GX devices.
Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
Remote configuring
When connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed and settings can be changed remotely
Victron Energy CMP242200000 Specifications:
Inverter

  • Input voltage range (V DC): 19 – 33 V

  • Output:

    • Output voltage: 230 VAC ¬± 2%

    • Frequency: 50 Hz ¬± 0,1%



  • Cont. output power at 25¬∞C (VA): 2000

  • Cont. output power at 25¬∞C (W): 1600

  • Cont. output power at 40¬∞C (W): 1400

  • Cont. output power at 65¬∞C (W): 1000

  • Peak power (W): 4000

  • Maximum efficiency (%): 93 / 94

  • Zero load power (W): 9 / 11

  • Zero load power in AES mode (W): 7 / 9

  • Zero load power in Search mode (W): 3 / 4


Charger:

  • AC Input:

    • Input voltage range: 187-265

    • VAC Input frequency: 45 – 65

    • Hz Power factor: 1



  • Charge voltage 'absorption' (V DC): 28,8

  • Charge voltage 'float' (V DC): 27,6

  • Storage mode (V DC): 26,4

  • Charge current house battery (A): 80 / 50

  • Charge current starter battery (A): 4

  • Battery temperature sensor: yes



Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy CMP242200000 MultiPlus C 24/2000/50-30 Inverter Battery Charger

Product form

Victron Energy MultiPlus C 24/2000/50-30 Inverter Battery Charger: The Inverter Chargers From Victron Energy Have Been Designed to Be a... Read more

SKU: CMP242200000

  • In Stock

$2,064.70 Incl. VAT

    Description












    Victron Energy MultiPlus C 24/2000/50-30 Inverter Battery Charger: The Inverter Chargers From Victron Energy Have Been Designed to Be a True World-wide Product


    Two AC Outputs
    The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
    The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more).
    Virtually unlimited power thanks to parallel operation
    Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will
    provide 25 kW / 30 kVA output power with 720 Amps charging capacity.
    Three phase capability
    In addition to parallel connection, three units of the same model can be configured for three phase output. But that's not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.
    PowerControl - Dealing with limited generator, shore side or grid power
    The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
    PowerAssist - Boosting the capacity of shore or generator power
    This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
    Solar energy: AC power available even during a grid failure
    The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems.
    Loss of mains detection software is available.
    System configuring

    • In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.

    • Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.

    • Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).


    On-site Monitoring and control
    Several options are available: Battery Monitor, Multi Control Panel, Color Control GX or other GX devices, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
    Remote Monitoring and control
    Color Control GX or other GX devices.
    Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
    Remote configuring
    When connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed and settings can be changed remotely
    Victron Energy CMP242200000 Specifications:
    Inverter

    • Input voltage range (V DC): 19 – 33 V

    • Output:

      • Output voltage: 230 VAC ¬± 2%

      • Frequency: 50 Hz ¬± 0,1%



    • Cont. output power at 25¬∞C (VA): 2000

    • Cont. output power at 25¬∞C (W): 1600

    • Cont. output power at 40¬∞C (W): 1400

    • Cont. output power at 65¬∞C (W): 1000

    • Peak power (W): 4000

    • Maximum efficiency (%): 93 / 94

    • Zero load power (W): 9 / 11

    • Zero load power in AES mode (W): 7 / 9

    • Zero load power in Search mode (W): 3 / 4


    Charger:

    • AC Input:

      • Input voltage range: 187-265

      • VAC Input frequency: 45 – 65

      • Hz Power factor: 1



    • Charge voltage 'absorption' (V DC): 28,8

    • Charge voltage 'float' (V DC): 27,6

    • Storage mode (V DC): 26,4

    • Charge current house battery (A): 80 / 50

    • Charge current starter battery (A): 4

    • Battery temperature sensor: yes
