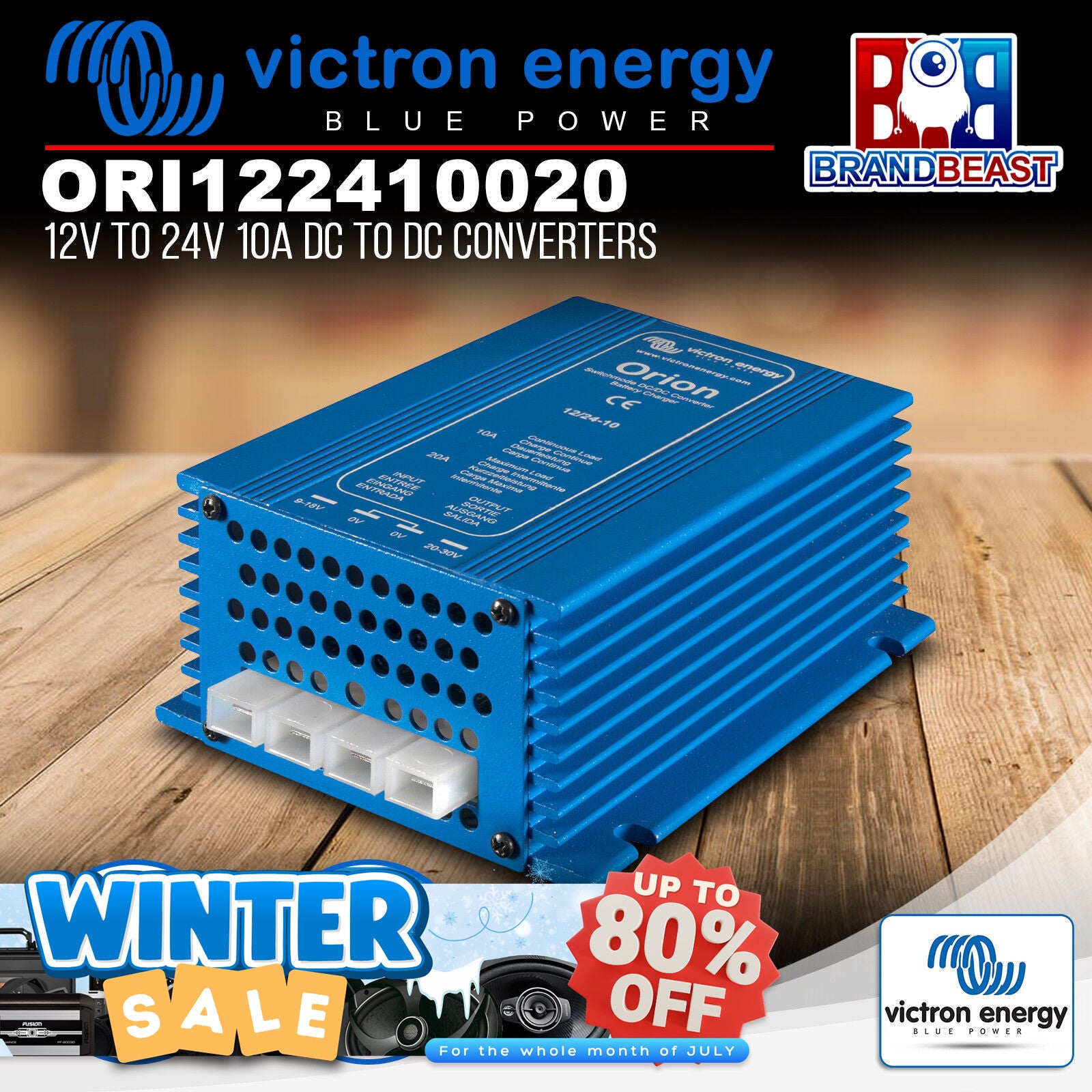

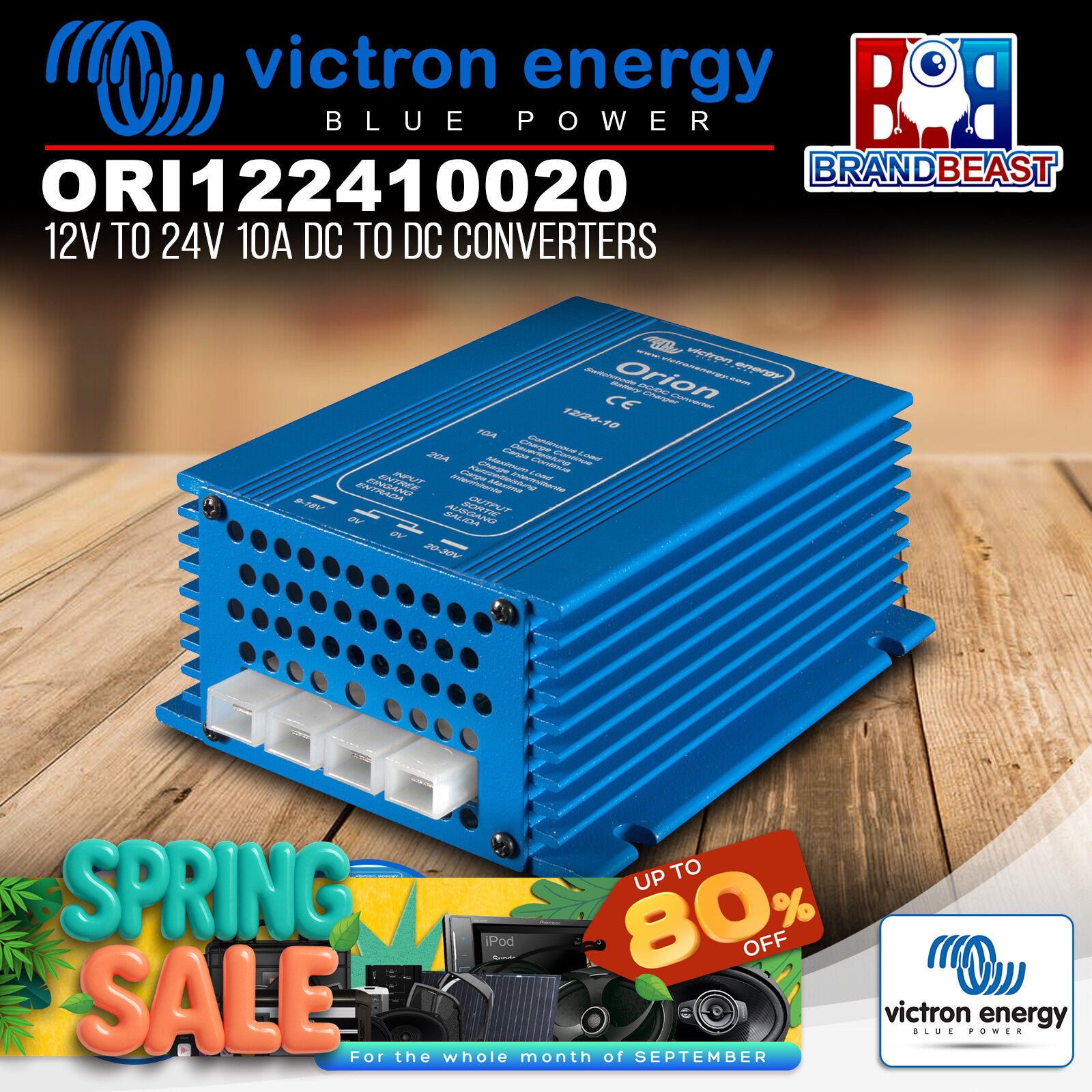

Victron Energy ORI122410020 12V to 24V 10A DC to DC Converters

Description

Victron Energy 12V to 24V 10A DC to DC Converters: The Orion Converters From Victron Energy Have Been Designed to Be a True World-wide Product

An ever-increasing amount of electric equipment is being used on vehicles and boats. Because most low-voltage equipment, such as navigation and radio equipment, mobile telephones or car hi-fi systems, is designed for 12 Volts, Victron Energy supplies DC/DC converters which deliver a stable 12 Volt supply from a 24 Volt system. These products are also distinguished by high efficiency, together with absolute safety. An inferior supply can cause irreparable damage to your 12 Volt system, but the use of an Orion voltage converter prevents problems of that type. Next to converters from 24 V to 12 V, a wide range of other models is available. Victron Energy ORI122410020 Specifications:
  • Input voltage range: 15-40VDC
  • Under voltage shutdown: 13V
  • Under voltage restart: 14V
  • No load current at 24V: 20mA
  • DC output voltage: 12V +/- 3%
  • Maximum continuous output current: 10A
  • Efficiency: 93%
  • Ripple & Noise: 75mV pp
  • Operating temperature range (derate 3% per ¬∞C above 40¬∞C): -20 to +70¬∞C (full rated output up to 40¬∞C)
  • Overload protection: Hiccup mode, recovers automatically after the fault condition is removed
  • Short circuit proof: Yes
  • Protection against reverse polarity: Connection With external fuse or circuit breaker (not included)

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy ORI122410020 12V to 24V 10A DC to DC Converters

Product form

Victron Energy 12V to 24V 10A DC to DC Converters: The Orion Converters From Victron Energy Have Been Designed to... Read more

SKU: ORI122410020

  • In Stock

$126.50 $103.96 Incl. VAT

    Description

    Victron Energy 12V to 24V 10A DC to DC Converters: The Orion Converters From Victron Energy Have Been Designed to Be a True World-wide Product

    An ever-increasing amount of electric equipment is being used on vehicles and boats. Because most low-voltage equipment, such as navigation and radio equipment, mobile telephones or car hi-fi systems, is designed for 12 Volts, Victron Energy supplies DC/DC converters which deliver a stable 12 Volt supply from a 24 Volt system. These products are also distinguished by high efficiency, together with absolute safety. An inferior supply can cause irreparable damage to your 12 Volt system, but the use of an Orion voltage converter prevents problems of that type. Next to converters from 24 V to 12 V, a wide range of other models is available. Victron Energy ORI122410020 Specifications:
    • Input voltage range: 15-40VDC
    • Under voltage shutdown: 13V
    • Under voltage restart: 14V
    • No load current at 24V: 20mA
    • DC output voltage: 12V +/- 3%
    • Maximum continuous output current: 10A
    • Efficiency: 93%
    • Ripple & Noise: 75mV pp
    • Operating temperature range (derate 3% per ¬∞C above 40¬∞C): -20 to +70¬∞C (full rated output up to 40¬∞C)
    • Overload protection: Hiccup mode, recovers automatically after the fault condition is removed
    • Short circuit proof: Yes
    • Protection against reverse polarity: Connection With external fuse or circuit breaker (not included)

    Legendary Products & Support From Authorized Dealers

    When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized Victron Energy dealer today!
