Description

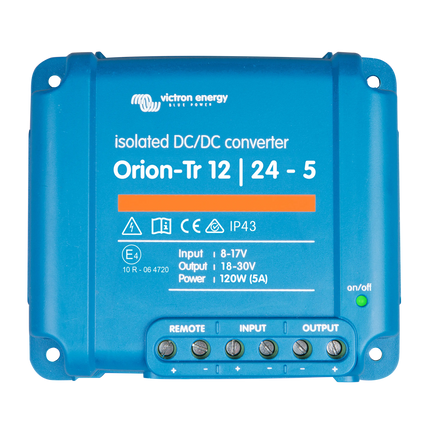

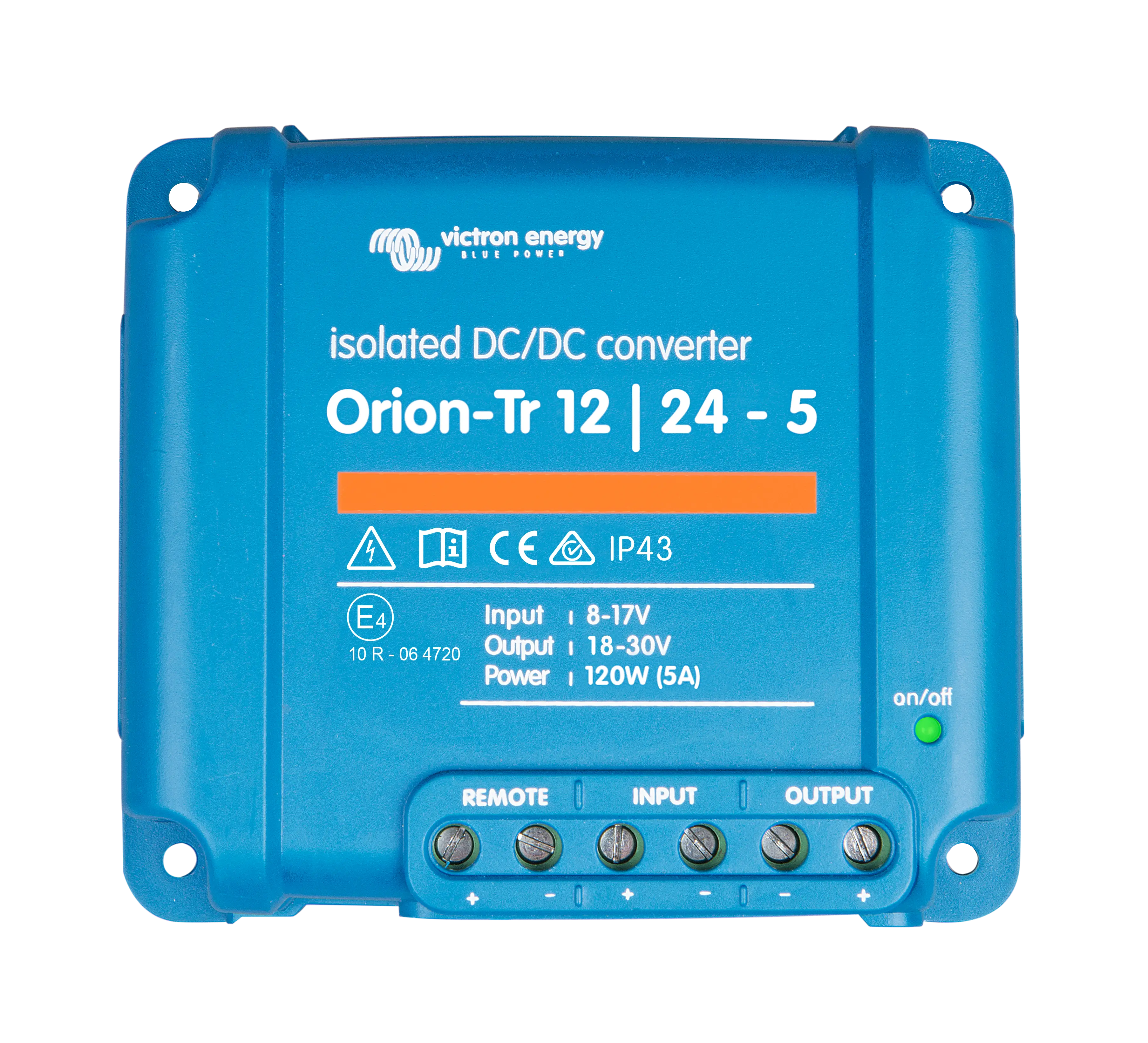

Victron Energy Orion-Tr DC-DC Converter - Professional Power Conversion
Transform your electrical system with the Victron Energy Orion-Tr 120W Isolated DC-DC Converter. This premium converter efficiently steps up 12V DC power to 24V DC at 5 amps, making it ideal for marine, RV, and off-grid applications requiring reliable voltage conversion with complete galvanic isolation.
Galvanic Isolation Protection The Orion-Tr series features complete galvanic isolation between input and output, protecting sensitive electronics from ground loops, voltage spikes, and electrical interference. This isolation ensures your expensive equipment stays safe while maintaining optimal performance in challenging environments.
Professional-Grade Performance Engineered with Victron's renowned build quality, this converter delivers consistent 120W output power with high efficiency and low heat generation. The robust construction withstands harsh marine and mobile environments, making it perfect for boats, RVs, and remote installations.
Versatile Applications Perfect for powering 24V equipment from 12V battery banks, charging 24V batteries from 12V alternators, or creating isolated power supplies for sensitive electronics. The converter's compact design allows for flexible installation in tight spaces while maintaining professional performance standards.
Key Features & Benefits
-
Complete Galvanic Isolation - Protects against ground loops and electrical interference
-
High Efficiency Design - Minimizes power loss and heat generation
-
Compact Form Factor - Space-saving installation in marine and mobile applications
-
Robust Construction - Built to withstand harsh environmental conditions
-
Reliable Operation - Proven Victron reliability for mission-critical applications
-
Easy Installation - Simple wiring with clear terminal markings
Technical Specifications
- Model: Victron Energy ORI122410110
- Input Voltage: 12V DC (10-16V operating range)
- Output Voltage: 24V DC (regulated)
- Output Current: 5A maximum
- Power Output: 120W continuous
- Efficiency: >90% typical
- Isolation: Complete galvanic isolation
- Protection: Over-temperature, over-current, short-circuit
- Operating Temperature: -20°C to +50°C
- Dimensions: Compact enclosure for space-conscious installations
- Mounting: Standard mounting tabs for secure installation
- Connections: Screw terminals for reliable connections
- Certifications: CE marked for European compliance
Applications & Use Cases
-
Marine Electronics - Power 24V navigation equipment from 12V house batteries
-
RV Systems - Run 24V appliances from 12V battery banks
-
Off-Grid Solar - Create 24V supply for specific equipment requirements
-
Industrial Equipment - Provide isolated 24V power for sensitive electronics
-
Battery Charging - Charge 24V battery banks from 12V alternator systems
-
Emergency Power - Reliable backup power conversion for critical systems
Installation & Integration The Orion-Tr converter features straightforward installation with clearly marked input and output terminals. The compact design allows mounting in equipment bays, engine rooms, or electrical panels. Complete galvanic isolation eliminates the need for common ground connections, simplifying system design.
Quality & Reliability Victron Energy's reputation for quality and reliability makes the Orion-Tr series the preferred choice for professional installers and demanding applications. Each converter undergoes rigorous testing to ensure long-term performance in challenging environments.
Protection Features
- Over-temperature protection with automatic shutdown
- Output over-current protection
- Short-circuit protection on output
- Input under-voltage lockout
- LED status indicators for operational feedback
Compatible With / Goes Well With
- Victron Energy battery monitors and controllers
- 12V deep cycle batteries and battery banks
- 24V marine electronics and navigation equipment
- Solar charge controllers and inverters
- Battery management systems
- DC distribution panels and fuses
