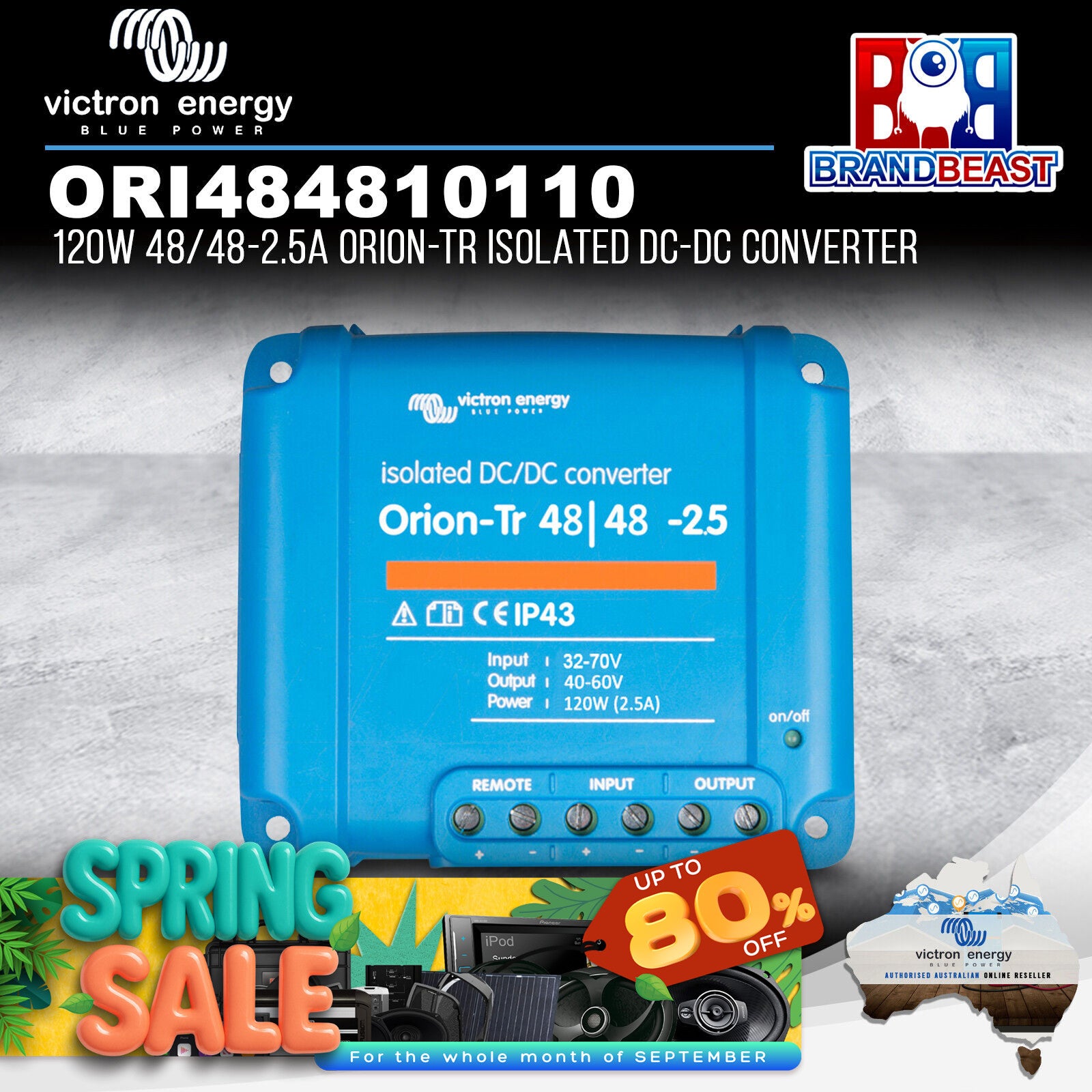

Victron Energy ORI484810110 120W 48/48-2.5A Orion-Tr Isolated DC-DC Converter

Description

Victron Energy 120W 48/48-2.5A Orion-Tr Isolated DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product

Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) On 12V and 24V input models only Victron Energy ORI484810110 Specifications:
    • Input voltage range: 32-70V
    • Under voltage shut down: 28V
    • Under voltage restart: 30V
    • Nominal output voltage: 48,2V
    • Output voltage adjust range: 40-60V
    • Output voltage tolerance: +/- 0,2V
    • Output noise: 2mV rms
    • Cont. output current at nominal output voltage and 25¬∞C: 2,5A
    • Maximum output current (10 s) at nominal output voltage: 3,0A
    • Short circuit output current: 17A
    • Cont. output power at 25¬∞C: 120W
    • Cont. output power at 40¬∞C: 85W
    • Efficiency: 89%
    • Off load current: < 80mA
    • Galvanic isolation: 200V dc between input, output and case
    • Operating temperature range: -20 to +55¬∞C (derate 3% per ¬∞C above 40¬∞C)
    • Humidity: Max. 95% non-condensing
    • DC connection: Screw terminals
    • Maximum cable cross-section: 6 mm¬≤ AWG10

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy ORI484810110 120W 48/48-2.5A Orion-Tr Isolated DC-DC Converter

Product form

Victron Energy 120W 48/48-2.5A Orion-Tr Isolated DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a... Read more

SKU: ORI484810110

  • In Stock

$115.50 $102.96 Incl. VAT

    Description

    Victron Energy 120W 48/48-2.5A Orion-Tr Isolated DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product

    Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) On 12V and 24V input models only Victron Energy ORI484810110 Specifications:
      • Input voltage range: 32-70V
      • Under voltage shut down: 28V
      • Under voltage restart: 30V
      • Nominal output voltage: 48,2V
      • Output voltage adjust range: 40-60V
      • Output voltage tolerance: +/- 0,2V
      • Output noise: 2mV rms
      • Cont. output current at nominal output voltage and 25¬∞C: 2,5A
      • Maximum output current (10 s) at nominal output voltage: 3,0A
      • Short circuit output current: 17A
      • Cont. output power at 25¬∞C: 120W
      • Cont. output power at 40¬∞C: 85W
      • Efficiency: 89%
      • Off load current: < 80mA
      • Galvanic isolation: 200V dc between input, output and case
      • Operating temperature range: -20 to +55¬∞C (derate 3% per ¬∞C above 40¬∞C)
      • Humidity: Max. 95% non-condensing
      • DC connection: Screw terminals
      • Maximum cable cross-section: 6 mm¬≤ AWG10

    Legendary Products & Support From Authorized Dealers

    When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized Victron Energy dealer today!
