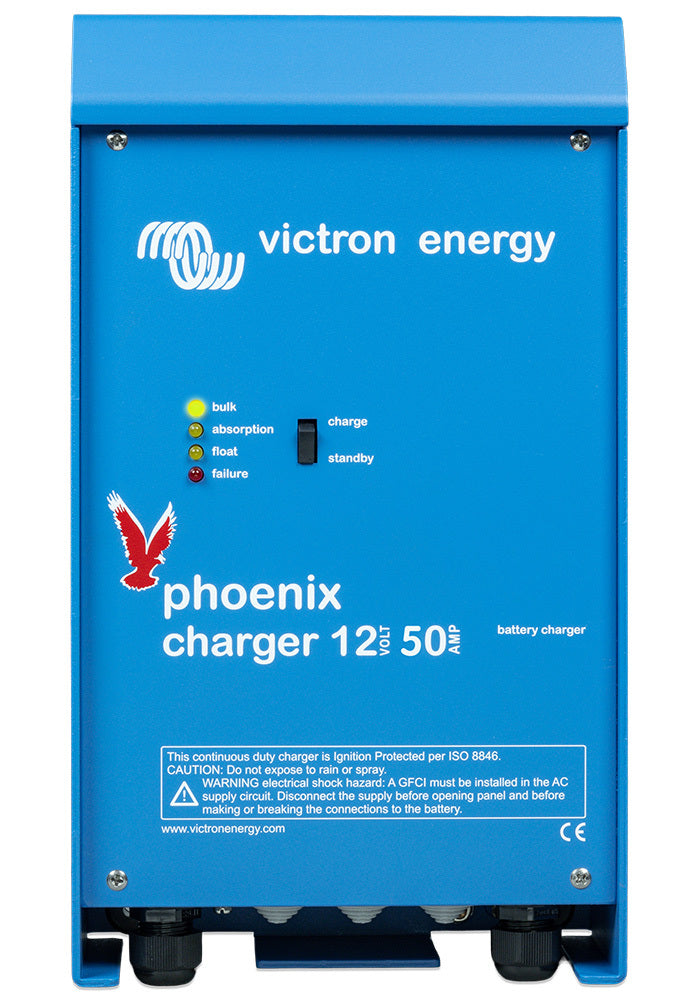

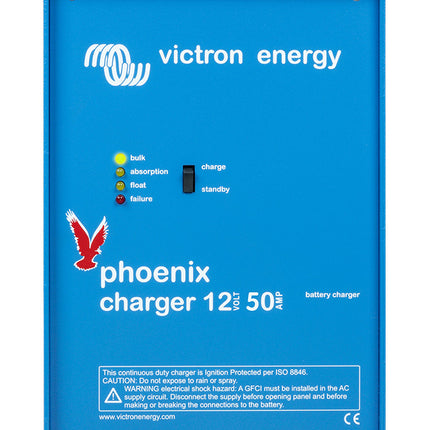

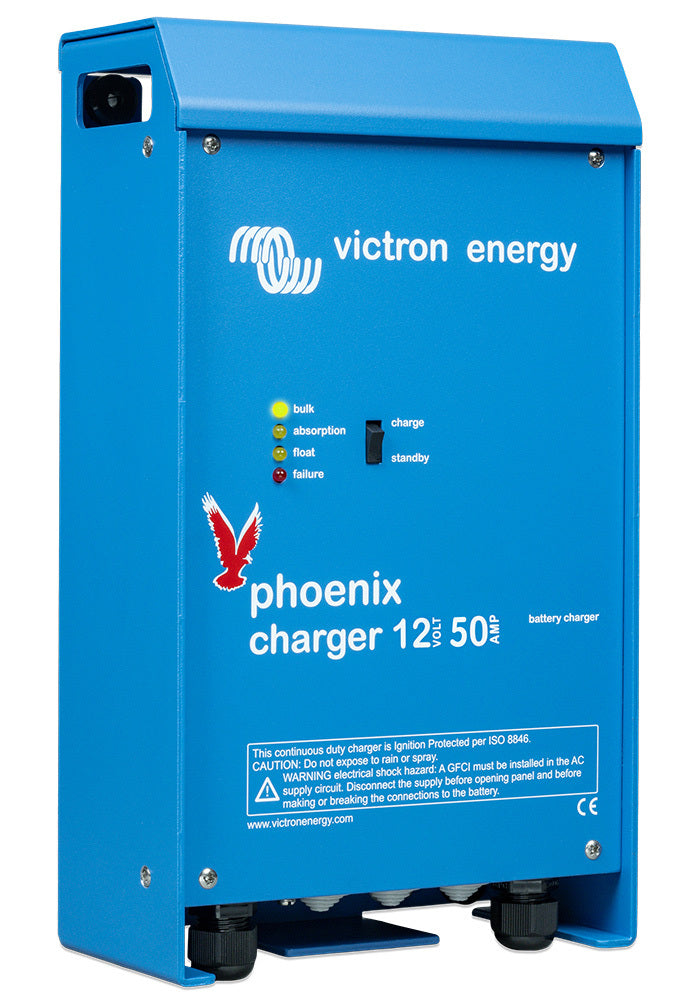

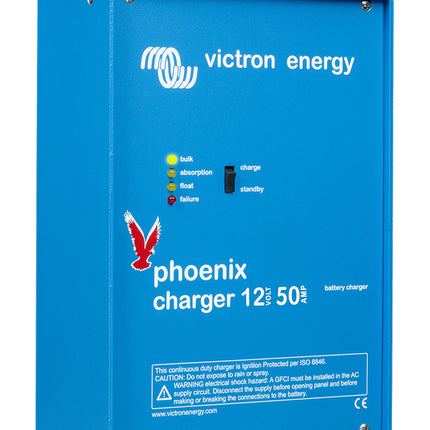

Victron Energy PCH012050001 Phoenix Battery Charger 12/50(2+1) 120-240V

Description

Victron Energy Phoenix Battery Charger 12/50(2+1) 120-240V: The Battery Charger From Victron Energy Have Been Designed to Be a True Worldwide Product

Adaptive 4-stage charge characteristic: bulk Рabsorption Рfloat Рstorage The Phoenix Charger features a microprocessor controlled ‘adaptive' battery management system that can be preset to suit different types of batteries. The ‘adaptive' feature will automatically optimise the process relative to the way the battery is being used. The right amount of charge: variable absorption time When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. Preventing damage due to excessive gassing: the BatterySafe mode If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use: the Storage mode The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize' the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure. To increase battery life: temperature compensation Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected. Battery voltage sense In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage. Universal 90-265 V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) The chargers will accept a 90-400 V DC supply. Computer interface Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Victron Energy PCH012050001 Specifications:
    • Input voltage range (V AC): 90-265
    • Input voltage range (V DC): 90-400
    • Frequency (Hz): 45-65
    • Power factor: 1
    • Charge voltage 'absorption' (V DC): 14,4
    • Charge voltage 'float' (V DC): 13,8
    • Storage mode (V DC): 13,2
    • Charge current house battery (A): 50
    • Charge current starter battery: 4
    • Charge characteristic: 4 stage adaptive
    • Battery capacity (Ah): 200-800
    • Temperature sensor: Yes
    • Can be used as power supply: Yes
    • Forced cooling: Yes
    • Protection: a,b,c,d
    • Operating temp. range: -20 to 60¬∞C (0 - 140¬∞F)
    • Humidity (non-condensing): max 95%

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy PCH012050001 Phoenix Battery Charger 12/50(2+1) 120-240V

Product form

Victron Energy Phoenix Battery Charger 12/50(2+1) 120-240V: The Battery Charger From Victron Energy Have Been Designed to Be a True... Read more

SKU: PCH012050001

  • In Stock

$1,135.20 $1,064.95 Incl. VAT

    Description

    Victron Energy Phoenix Battery Charger 12/50(2+1) 120-240V: The Battery Charger From Victron Energy Have Been Designed to Be a True Worldwide Product

    Adaptive 4-stage charge characteristic: bulk Рabsorption Рfloat Рstorage The Phoenix Charger features a microprocessor controlled ‘adaptive' battery management system that can be preset to suit different types of batteries. The ‘adaptive' feature will automatically optimise the process relative to the way the battery is being used. The right amount of charge: variable absorption time When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. Preventing damage due to excessive gassing: the BatterySafe mode If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use: the Storage mode The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize' the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure. To increase battery life: temperature compensation Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected. Battery voltage sense In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage. Universal 90-265 V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) The chargers will accept a 90-400 V DC supply. Computer interface Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Victron Energy PCH012050001 Specifications:
      • Input voltage range (V AC): 90-265
      • Input voltage range (V DC): 90-400
      • Frequency (Hz): 45-65
      • Power factor: 1
      • Charge voltage 'absorption' (V DC): 14,4
      • Charge voltage 'float' (V DC): 13,8
      • Storage mode (V DC): 13,2
      • Charge current house battery (A): 50
      • Charge current starter battery: 4
      • Charge characteristic: 4 stage adaptive
      • Battery capacity (Ah): 200-800
      • Temperature sensor: Yes
      • Can be used as power supply: Yes
      • Forced cooling: Yes
      • Protection: a,b,c,d
      • Operating temp. range: -20 to 60¬∞C (0 - 140¬∞F)
      • Humidity (non-condensing): max 95%

    Legendary Products & Support From Authorized Dealers

    When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized Victron Energy dealer today!
