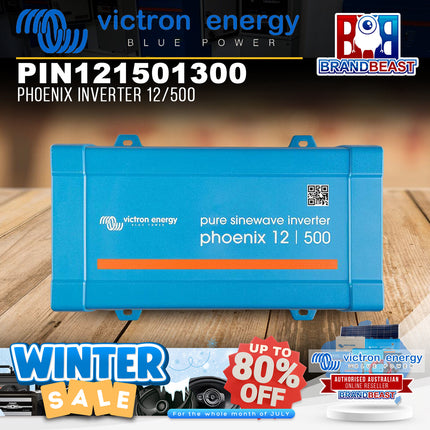

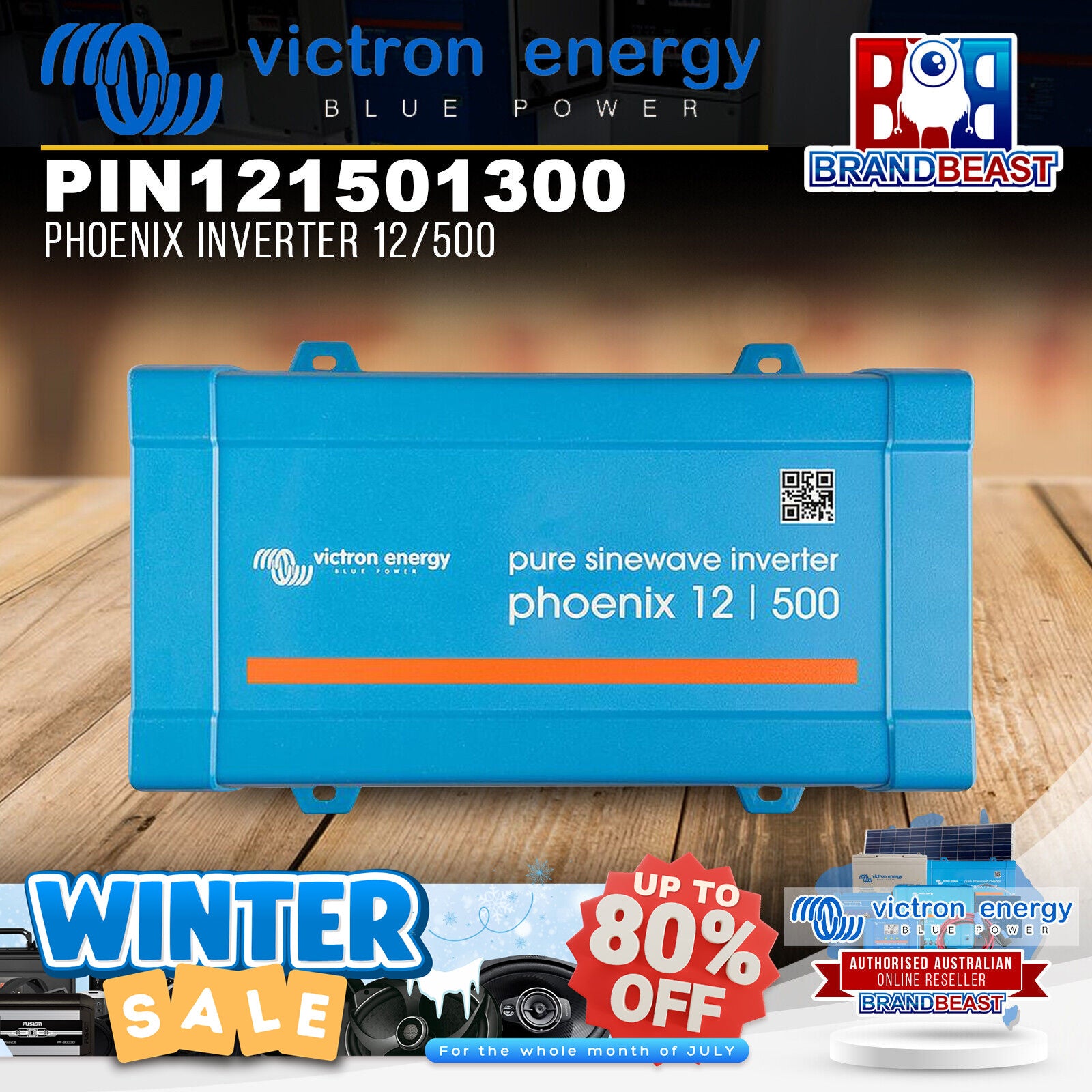

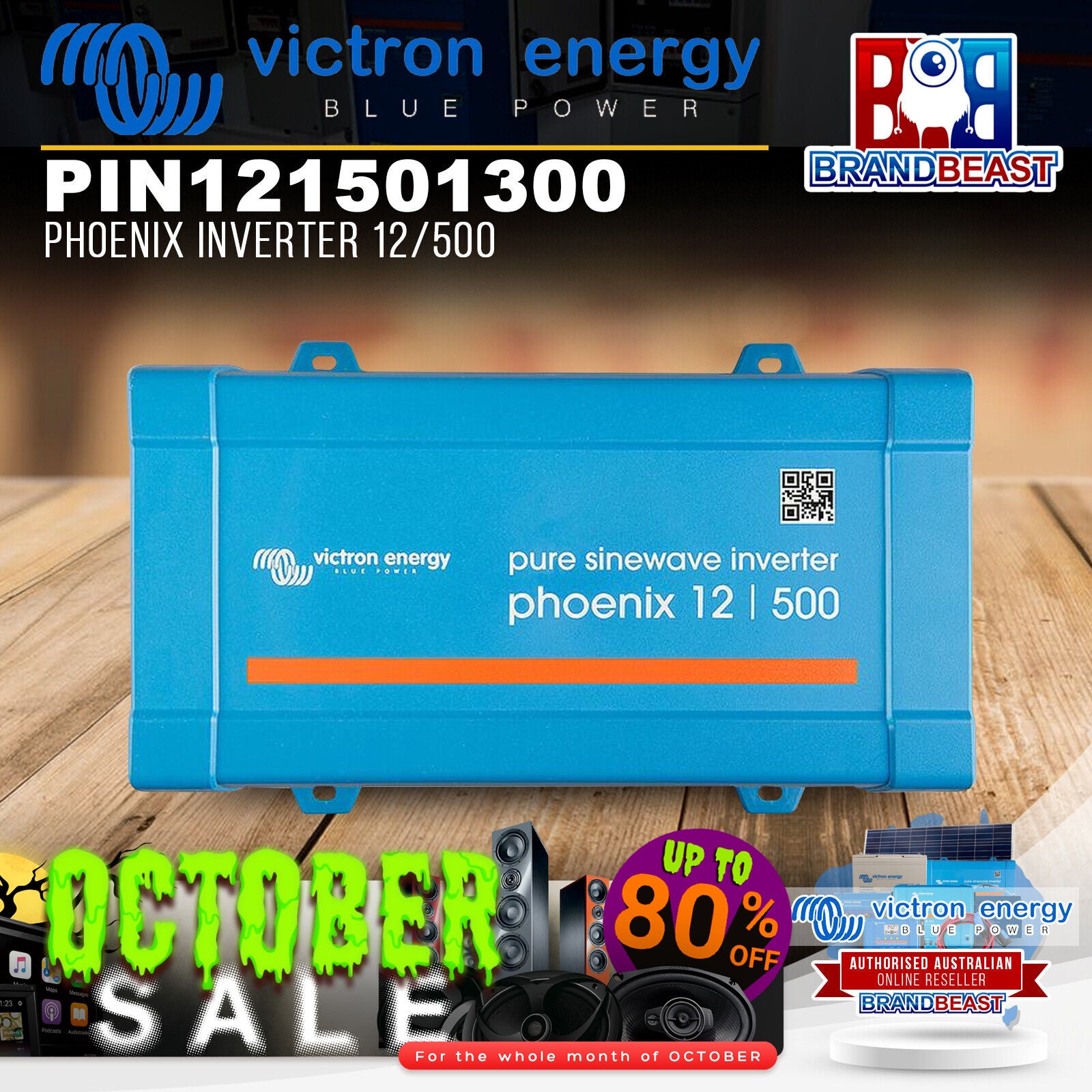

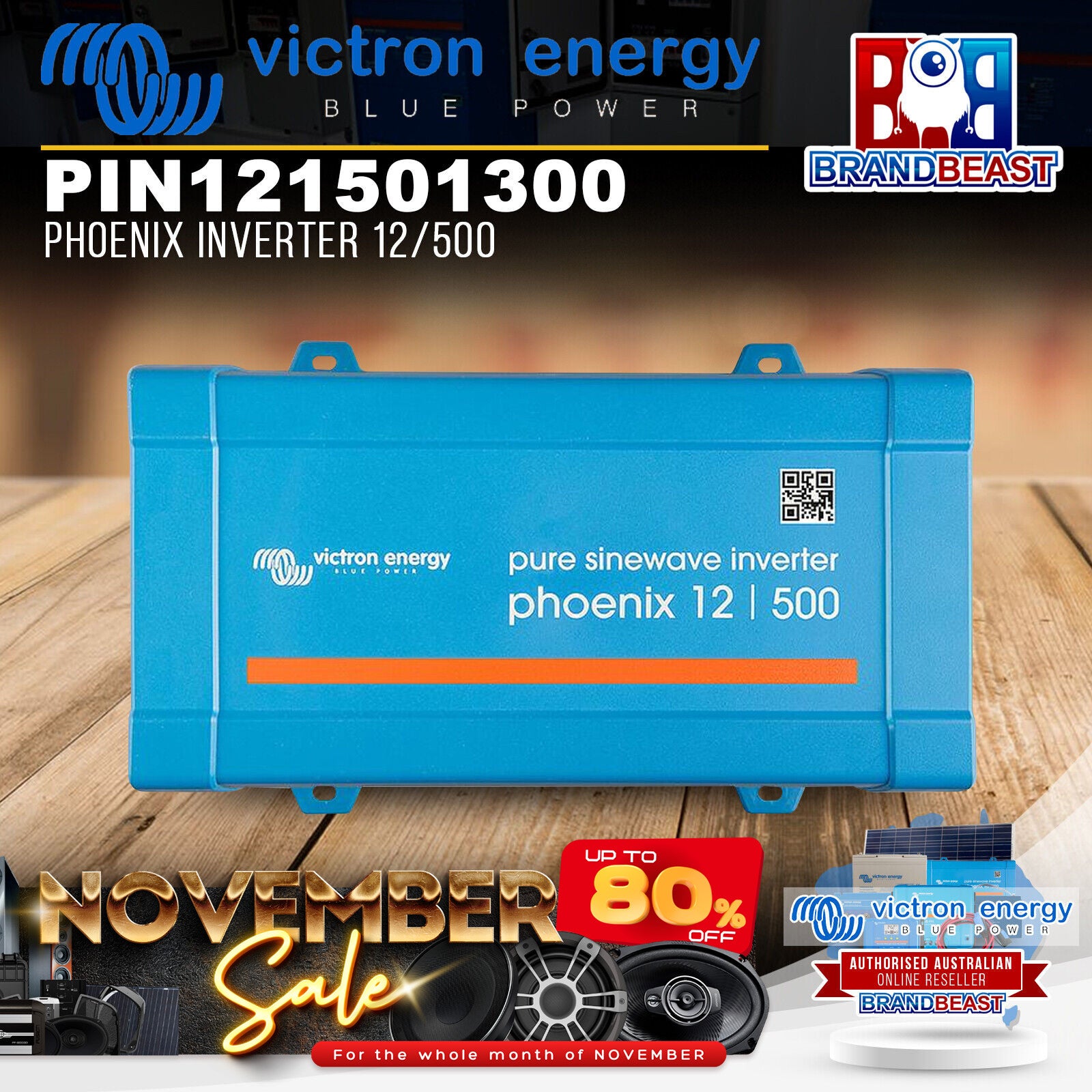

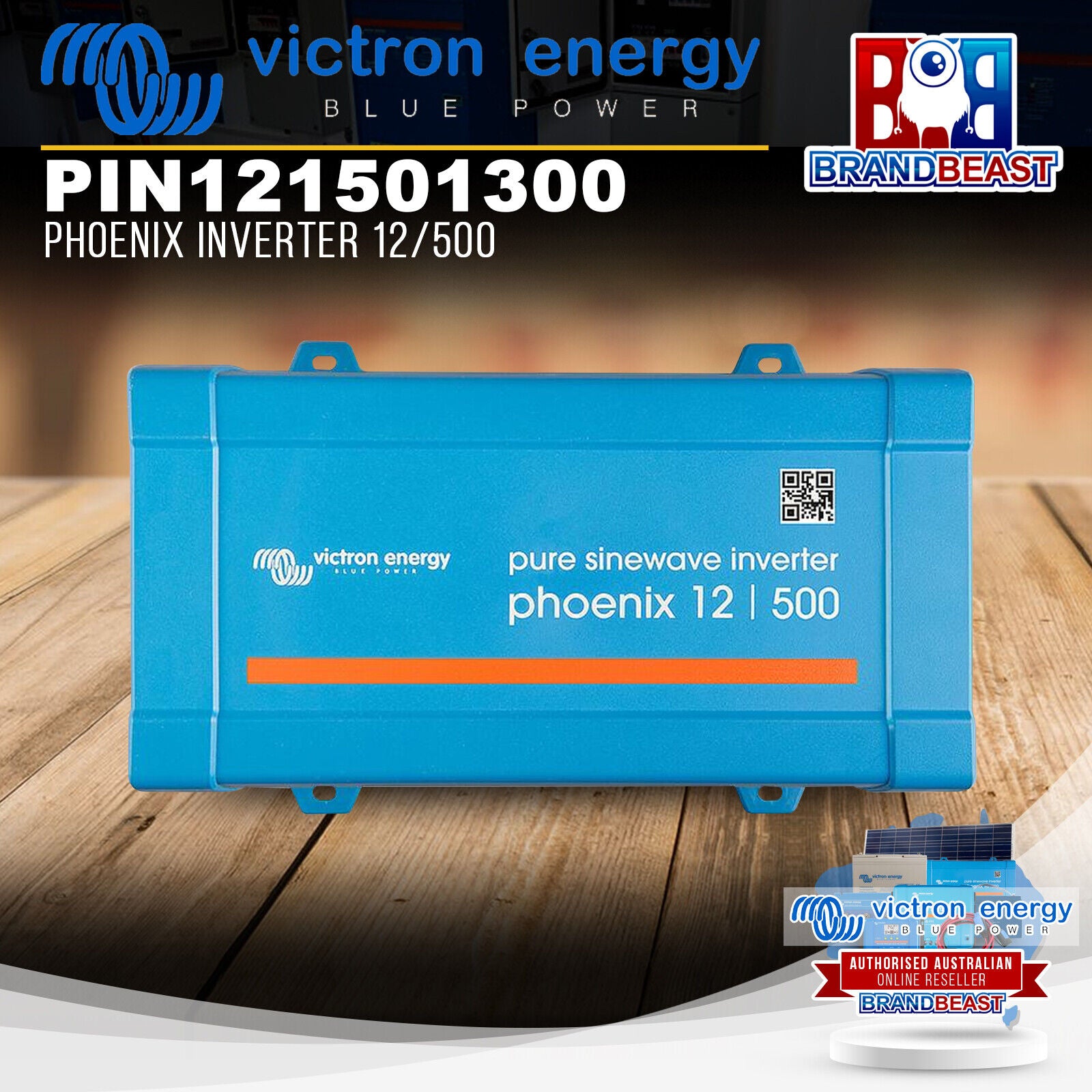

Victron Energy PIN121501300 Phoenix Inverter 12/500

Description

Victron Energy Phoenix Inverter 12/500: Victron Phoenix Pure Sine Wave Inverters

Inverters convert stored direct current(DC) power in your batteries into alternating power (AC) power, like the kind you get in your home, so you can run your electrical appliances wherever you are. There are two types of inverters pure sine wave and modified sine wave. Modified sine wave inverters are a more basic form of technology than pure sine wave inverters, they produce power that is perfectly adequate for powering simple electronics. Use modified sine wave inverters to provide power for your less sensitive appliances like phone chargers, heaters, and air conditioners. Modified inverters are best suited for resistive loads which don't have a start-up surge. Pure sine wave inverters use more sophisticated technology to protect even the most sensitive electronics. Pure sine wave inverters produce power that equals – or is better than – the power in your home. Appliances that may not function properly, or which may be permanently damaged, without pure, smooth power will be safe with pure sine inverters. Use these inverters for televisions, laptops, digital microwaves, fridges, and other sensitive electronic equipment. Pure Sine inverters can power just about any AC appliance without risk of damage. Victron Energy PIN121501300 Features:
  • Ve.direct Communication Port:
  • The Ve. Direct Port Can Be Connected To:
  • A Computer (Ve.direct To Usb Interface Cable Needed)
  • Apple And Android Smartphones, Tablets, Macbook's And Other Devices (Ve.direct Bluetooth Smart Dongle Needed)
  • Fully Configurable:
  • Low Battery Voltage Alarm Trip And Reset Levels
  • Low Battery Voltage Cut-off And Restart Levels
  • Dynamic Cut-off: Load Dependent Cut-off Level
  • Output Voltage 210 - 245v
  • Frequency 50 Hz Or 60 Hz
  • - Eco Mode On/off And Eco Mode Sense Level
  • Monitoring:
  • - In- And Output Voltage, % Load, And Alarms
  • Proven Reliability:
  • The Full Bridge Plus Toroidal Transformer Topology Has Proven Its Reliability Over Many Years. The Inverters Are Short Circuit Proof And Protected Against Overheating, Whether Due To Overload Or High Ambient Temperature.
  • High Start-up Power:
  • Needed To Start Loads Such As Power Converters For Led Lamps, Halogen Lamps, Or Electric Tools.
  • When In Eco Mode, The Inverter Will Switch To Standby When The Load Decreases Below A Preset Value (Min Load: 15w). Once In Standby, The Inverter Will Switch On For A Short Period (Adjustable, Default: Every 2,5 Seconds). If The Load Exceeds A Preset Level, The Inverter Will Remain On.
  • A Remote On/off Switch Can Be Connected To A Two-pole Connector, Or Between Battery Plus And The Left-hand Contact Of The Two-pole Connector.
  • Led Diagnosis:
  • Please See The Manual For A Description.
  • To Transfer The Load To Another Ac Source: The Automatic Transfer Switch:
  • For Our Low-power Inverters We Recommend Our Filax Automatic Transfer Switch. The Filax Features A Very Short Switchover Time (Less Than 20 Milliseconds) So That Computers And Other Electronic Equipment Will Continue To Operate Without Disruption.
Victron Energy PIN121501300 Specifications:
    • 12 Volt Phoenix Inverter: 12/500
    • Cont. Power At 25¬∞c: 500va
    • Cont. Power At 25¬∞c: / 40¬∞c 400/350w
    • Peak Power: 900w
    • Output Ac Voltage / Frequency (Adjustable): 230vac Or 120vac +/- 3% 50hz Or 60hz +/- 0,1%
    • Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0v
    • Dc Low Shut Down (Adjustable) : 9,3 / 18,6 / 37,2v
    • Dc Low Restart And Alarm (Adjustable): 10,9 / 21,8 / 43,6v
    • Battery Charged Detect (Adjustable): 14,0 / 28,0 / 56,0v
    • Max. Efficiency: 90%
    • Zero-load Power: 6w
    • Default Zero-load Power In Eco Mode: 1
    • Eco Mode Stop And Start Power Setting: Adjustable
    • Protection: A - F
    • Operating Temperature Range: -40 To +65¬∞c (Fan Assisted Cooling)derate 1,25% Per ¬∞c Above40¬∞c
    • Humidity (Non-condensing): Max 95%
    • Material & Colour: Steel Chassis And Plastic Cover (Blue Ral 5012)
    • Battery Connection: Screw Terminals
    • Maximum Cable Cross-section: 10 Mm2 / Awg8
    • Standard Ac Outlets: 230v: Schuko (Cee 7/4), Iec-320 (Male Plug Included)120v: NEMA 5-15r
    • Protection Category: Ip 21
    • Weight: 3.9kg
    • Dimensions (H X W X D): 86 X 172 X 275mm
    • Remote On-off: Yes
    • Automatic Transfer Switch: Filax
    • Safety: EN-IEC 60335-1 / EN-IEC 62109-1
    • EMC: EN 55014-1 / En 55014-2 / Iec 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
    • Automotive Directive: ECE R10-4

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!
