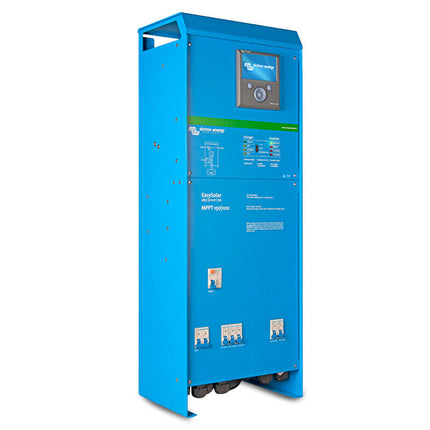

Victron Energy PMP485027010 48/5000/70 MPPT 150/100 Color Control Inverter Charger

Description

Victron Energy 48/5000/70 MPPT 150/100 Color Control Inverter Charger: The EasySolar Inverter From Victron Energy Have Been Designed to Be a True World-wide Product

The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring. Inverter/Charger
  • Transfer switch: 1000A
Inverter
  • Input voltage range: 38 – 66V
  • ‚ÄòHeavy duty' output AC 2: 16 A
  • Output AC1, 2, 3: Output voltage: 230 VAC ¬± 2%, Frequency: 50 Hz ¬± 0,1% (1)
  • Cont. output power at 25¬∞C (3): 5000VA / 4000W
  • Cont. output power at 40¬∞C: 3700W
  • Cont. output power at 65¬∞C: 3000W
  • Peak power: 10000W
  • Maximum efficiency: 95%
  • Zero load power: 35W
  • Zero load power in search mode: 15W
Charger
  • AC Input
    • Input voltage range: 187-265 VAC
    • Input frequency: 45 – 65 Hz
    • Power factor: 1
  • Charge voltage 'absorption': 57,6V
  • Charge voltage 'float': 55,2V
  • Storage mode: 52,8V
  • Charge current: 70A
  • Battery temperature sensor: yes
  • Programmable relay: yes
  • Protection: a - g
Solar Charge Controller
  • Model: MPPT 150/100-MC4
  • Maximum output current: 100A
  • Maximum PV power: 5800W
  • Maximum PV open circuit voltage: 150V
  • Maximum efficiency: 98%
  • Self-consumption: 10mA
  • Charge voltage 'absorption', default setting: 57,6V
  • Charge voltage 'float', default setting: 55,2V
  • Charge algorithm: multi-stage adaptive
  • Temperature compensation: -64 mV / ¬∞C
  • Protection: a – g
Enclosure
    • Material & Colour: aluminium (blue RAL 5012)
    • Protection category: IP 21
    • Battery-connection: Four M8 bolts (2 plus and 2 minus connections)
    • PV connection: Three sets of MC4 PV connectors
    • 230 V AC-connection: Screw terminals 13 mm2 (6 AWG)
    • Weight: 48kg
    • Dimensions (hxwxd): 877 x 328 x 241

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!
