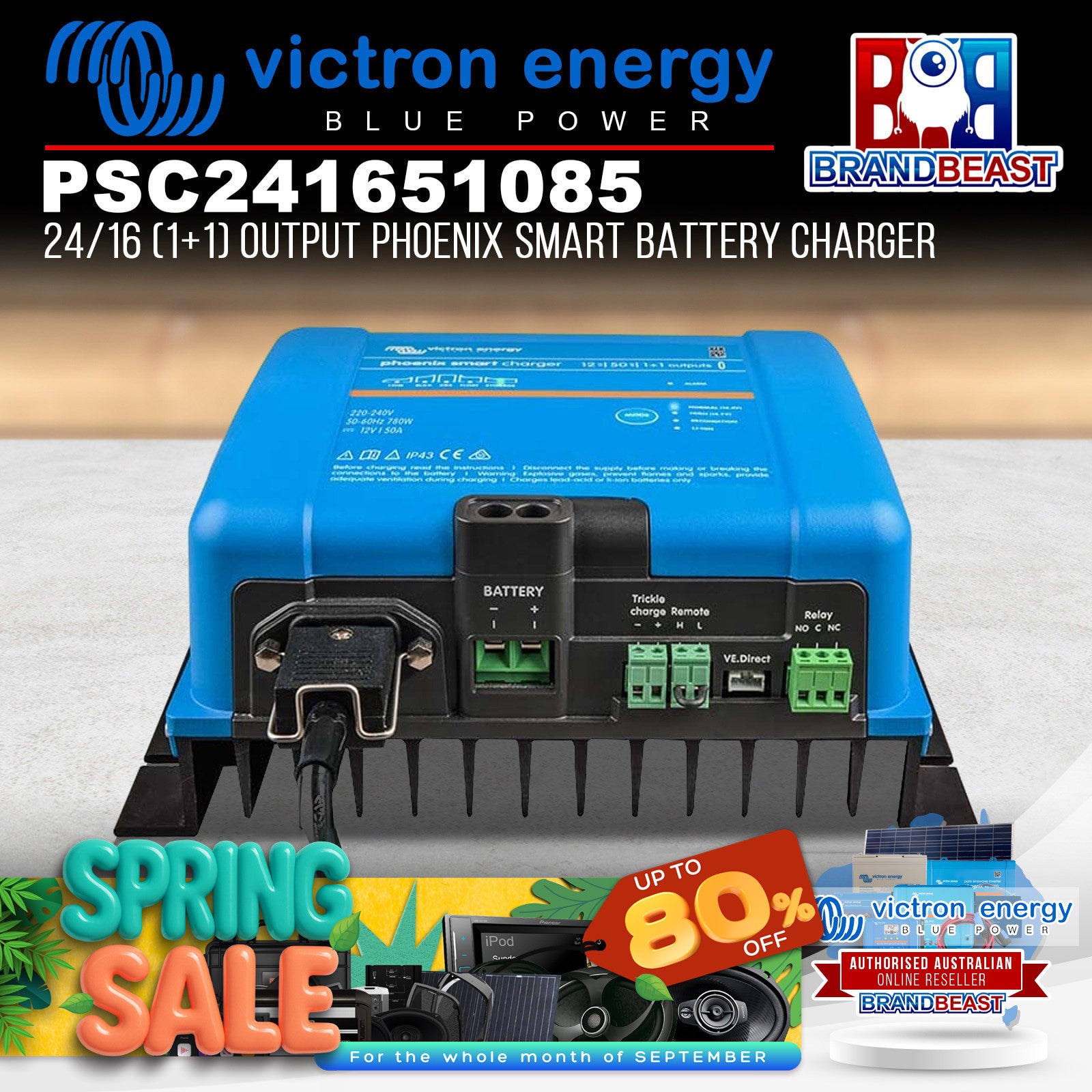

Victron Energy PSC241651085 24/16 (1+1) Output Phoenix Smart Battery Charger

Description

Victron Energy 24/16 (1+1) Output Phoenix Smart Battery Charger: The Battery Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product

Bluetooth Smart enabled Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available. Phoenix Smart (1+1): two outputs to charge 2 battery banks The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery. Phoenix Smart (3): three full current outputs to charge 3 battery banks All outputs can supply the full rated output current. Automatic voltage compensation The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details. Adaptive 5-stage charge algorithm: bulk Рabsorption Рrecondition Рfloat Рstorage The Phoenix Smart Charger features our well-known ‘adaptive' battery management system that can be preset to suit different types of batteries. The ‘adaptive' feature will automatically optimise the charge process relative to the way the battery is being used. The right amount of charge: variable absorption time When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged. Preventing damage due to excessive gassing: the BatterySafe mode If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached. Less maintenance and aging when the battery is not in use: the Storage Mode The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize' the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure. Also charges Li-ion (LiFePO₄) batteries Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth. Fully programmable charge algorithm The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button (see specifications). Remote on-off The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low. VE.Direct interface For a wired data connection to a Color Control panel, PC or other devices. Programmable relay Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events. Victron Energy PSC241651085 Specifications:
    • Input voltage: 230 VAC (range: 210 – 250 V)
    • DC input voltage range: 290 – 355 VDC
    • Frequency: 45-65 Hz
    • Power factor: 0,7
    • Back current drain:
      • AC disconnected: < 0,1 mA
      • AC connected and charger remote off: < 6 mA
    • Efficiency: 12/50: 94%
    • Charge voltage 'absorption': Normal: 28,8V ; High: 29,4V ; Li-ion: 28,4V
    • Charge voltage 'float': Normal: Normal: 27,6V ; High: 27,6V ; Li-ion: 27,0V
    • Storage mode: Normal: 26,4V ; High: 26,4V ; Li-ion: 27,0V
    • Fully programmable: Yes, with Bluetooth and/or VE.Direct
    • Charge current house battery: 16 / 25 A
    • Low current mode: 8 / 12,5 A
    • Charge current starter battery: 3 A (1+1 output models only)
    • Charge algorithm: 5 stage adaptive
    • Protection: Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature
    • Can be used as power supply: Yes, output voltage can be set with Bluetooth and/or VE.Direct
    • Operating temp. range: -20 to 60¬∞C (0 - 140¬∞F) ; Rated output current up to 40¬∞C, derate linearly to 20% at 60¬∞C
    • Humidity (non-condensing): max 95%
    • Relay (programmable): DC rating: 5 A up to 28 VDC

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

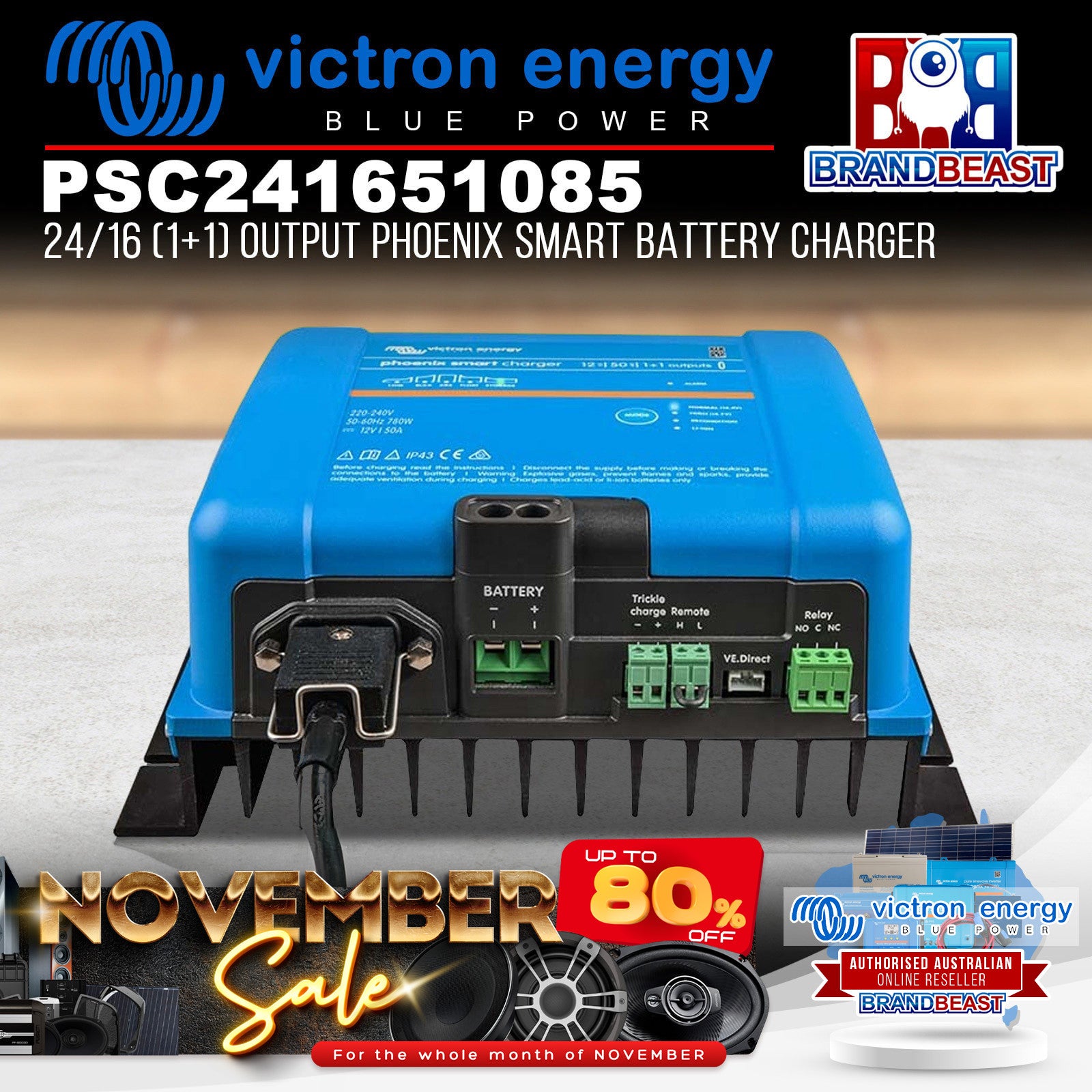

Victron Energy PSC241651085 24/16 (1+1) Output Phoenix Smart Battery Charger
