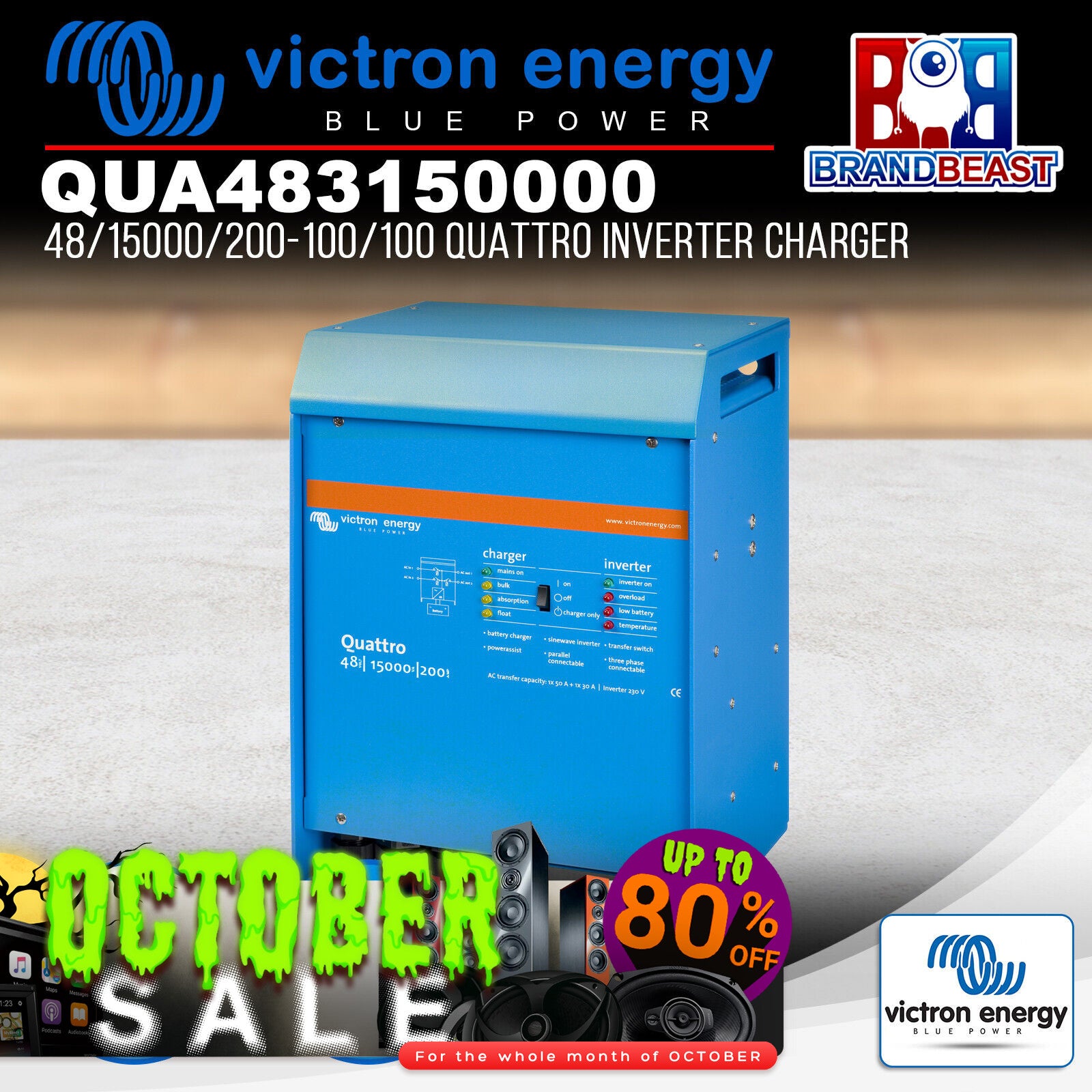

Victron Energy QUA483150000 48/15000/200-100/100 Quattro Inverter Charger

Description

Victron Quattro Inverter Charger 48/15000/200-100/100 230V: Designed to Be a True Worldwide Product

Two AC Inputs & two AC Outputs The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output. Unique PowerAssist feature The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery. Virtually unlimited power thanks to parallel operation Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities. Remote Monitoring and Control Monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for hire vehicles and more... Victron Energy QUA483150000 Specifications:
  • Input voltage range (V DC): 38 – 66V
  • Output:
    • Output voltage: 230 VAC ¬± 2%
    • Frequency: 50 Hz ¬± 0,1%
  • Cont. output power at 25¬∞C (VA): 15000
  • Cont. output power at 25¬∞C (W): 12000
  • Cont. output power at 40¬∞C (W): 10000
  • Cont. output power at 65¬∞C (W): 7000
  • Peak power (W): 25000
  • Maximum efficiency (%): 96
  • Zero load power (W): 110
  • Zero load power in AES mode (W): 75
  • Zero load power in Search mode (W): 20

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy QUA483150000 48/15000/200-100/100 Quattro Inverter Charger

Product form

Victron Quattro Inverter Charger 48/15000/200-100/100 230V: Designed to Be a True Worldwide Product Two AC Inputs & two AC Outputs... Read more

SKU: QUA483150000

  • In Stock

$8,707.60 $8,533.38 Incl. VAT
