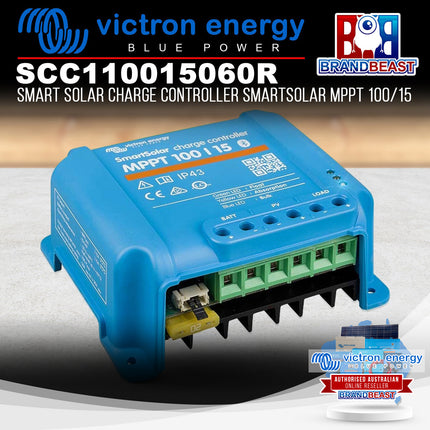

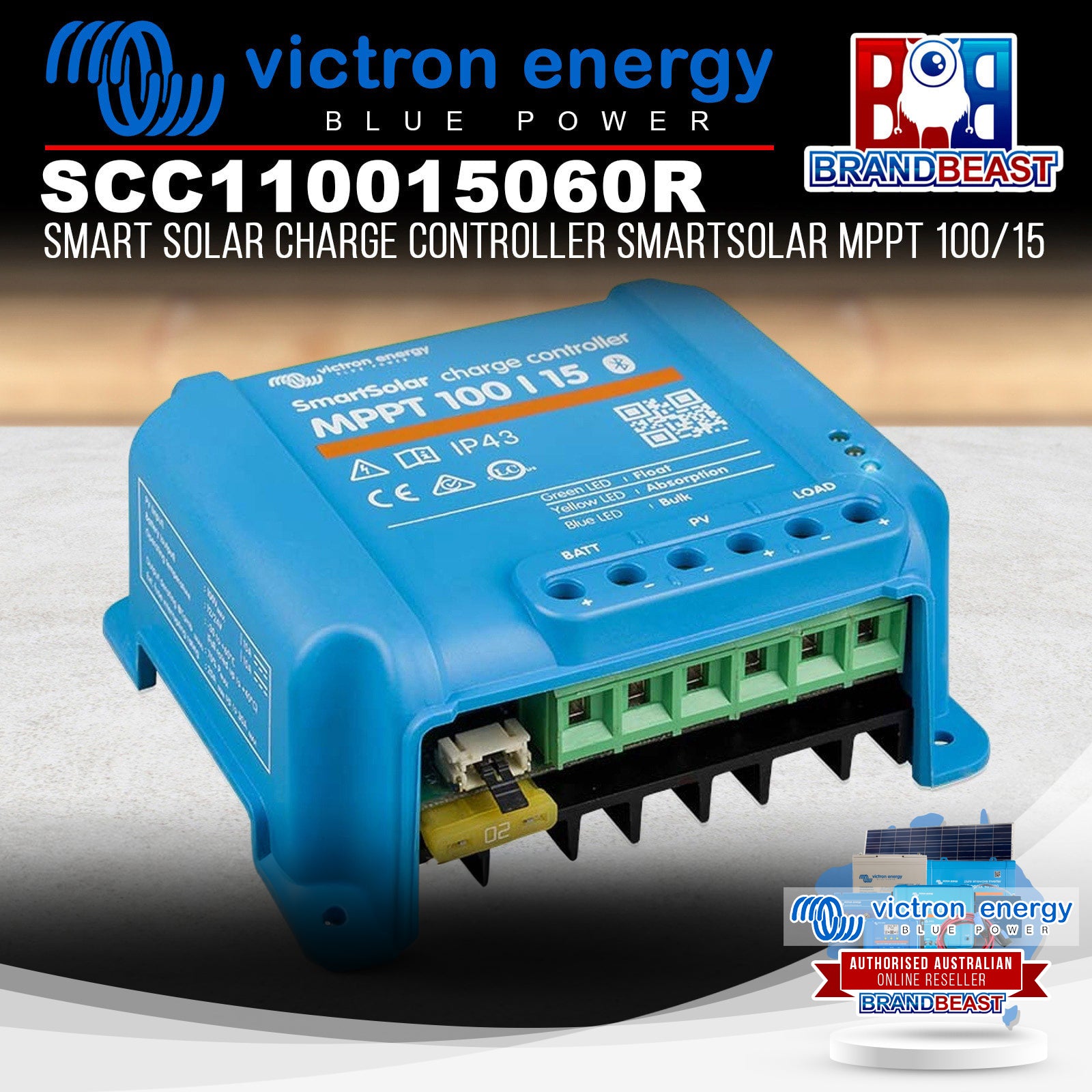

Victron Energy SCC110015060R Smart Solar Charge Controller SmartSolar MPPT 100/15

Description

Victron Energy Smart Solar Charge Controller SmartSolar MPPT 100/15: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged' state and the ‘end of discharge' state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Victron Energy SCC110015060R Specification:
    • Battery voltage: 12/24V Auto Select
    • Rated charge current: 15A
    • Nominal PV power, 12V: 220W
    • Nominal PV power, 24V: 440W
    • Nominal PV power, 48V: n. a.
    • Max. PV short circuit current: 15A
    • Automatic load disconnect: Yes
    • Max. PV open circuit voltage: 100V
    • Peak efficiency: 98%
    • Self-consumption: 12V: 25 mA , 24V: 15 mA
    • Charge voltage 'absorption': 14,4V / 28,8V (adjustable)
    • Charge voltage 'float': 13,8V / 27,6V (adjustable)
    • Charge algorithm: multi-stage adaptive
    • Temperature compensation: -16 mV / ¬∞C resp. -32 mV / ¬∞C
    • Max. continuous load current: 15A
    • Protection: Battery reverse polarity (fuse) / Output short circuit / Over temperature
    • Operating temperature: -30 to +60¬∞C (full rated output up to 40¬∞C)
    • Humidity: 95%, non-condensing

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!
