Description

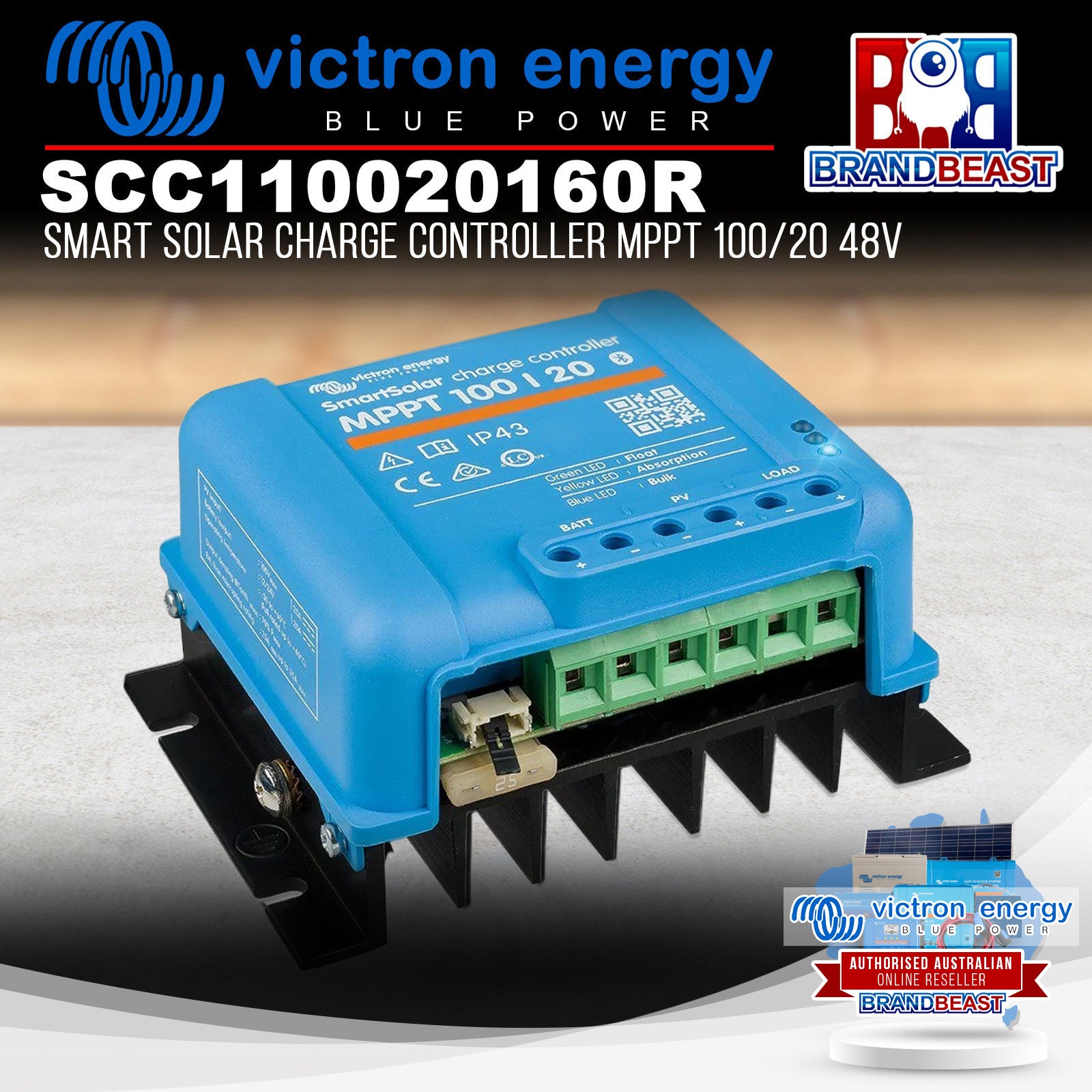

Victron Energy Smart Solar Charge Controller MPPT 100/20 48V: Victron SCC110020160R: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product
Bluetooth Smart built-in
The wireless solution to set up, monitor, update, and synchronise SmartSolar Charge Controllers.
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller of Victron SCC110020160R will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay).
Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short-circuit proof.
Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Victron Energy SCC110020160R Specifications:
- Battery voltage: 48V
- Rated charge current: 20A
- Nominal PV power, 12V: n. a.
- Nominal PV power, 24V: n. a.
- Nominal PV power, 48V: 1160W
- Max. PV short circuit current: 20A
- Automatic load disconnect: Yes
- Max. PV open circuit voltage: 100V
- Peak efficiency: 98%
- Self-consumption: 12V: 25 mA , 24V: 15 mA
- Charge voltage 'absorption': 14,4V / 28,8V (adjustable)
- Charge voltage 'float': 13,8V / 27,6V (adjustable)
- Charge algorithm: multi-stage adaptive
- Temperature compensation: -16 mV / °C resp. -32 mV / °C
- Max. continuous load current: 1A
- Protection: Battery reverse polarity (fuse) / Output short circuit / Over temperature
- Operating temperature: -30 to +60°C (full rated output up to 40°C)
- Humidity: 95%, non-condensing
