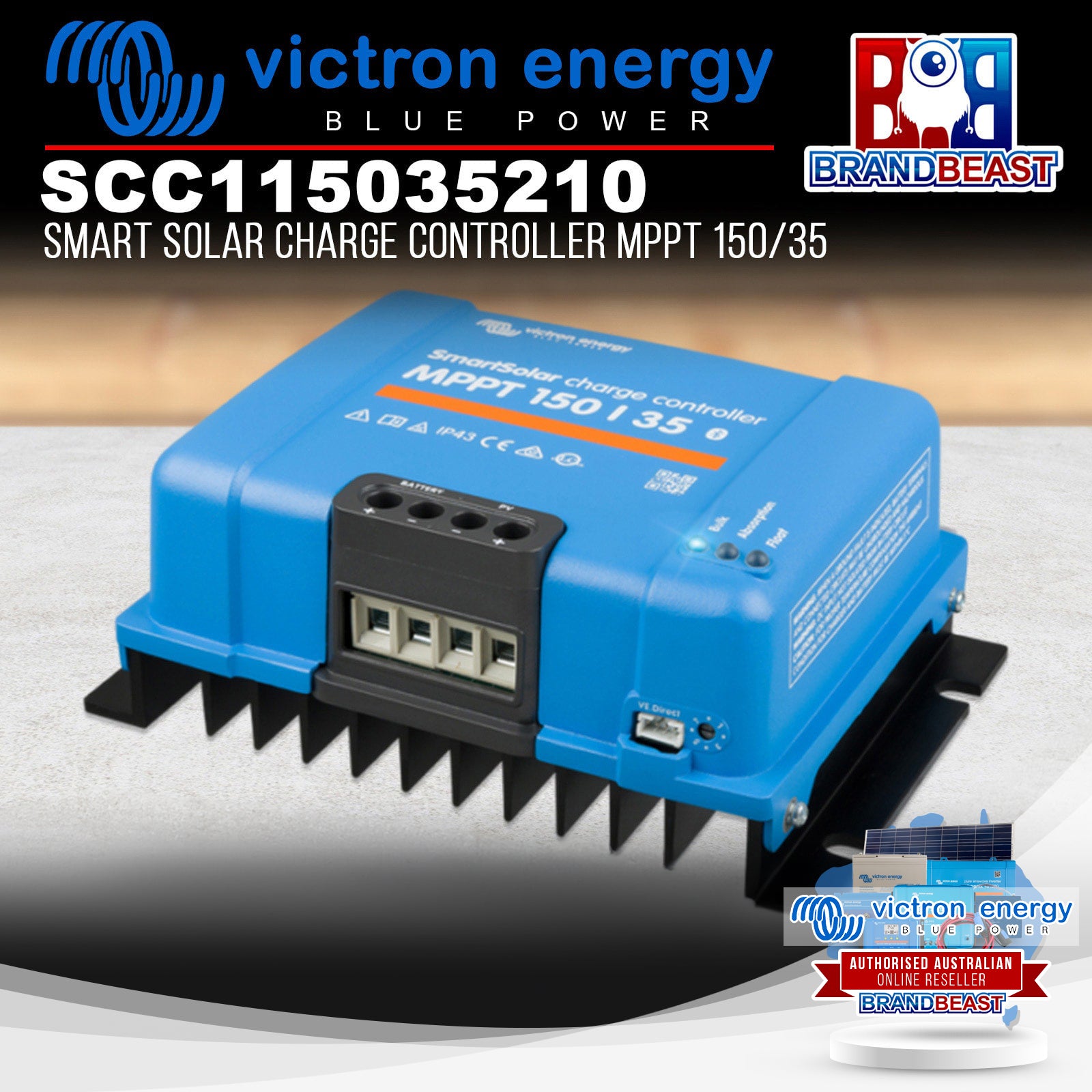

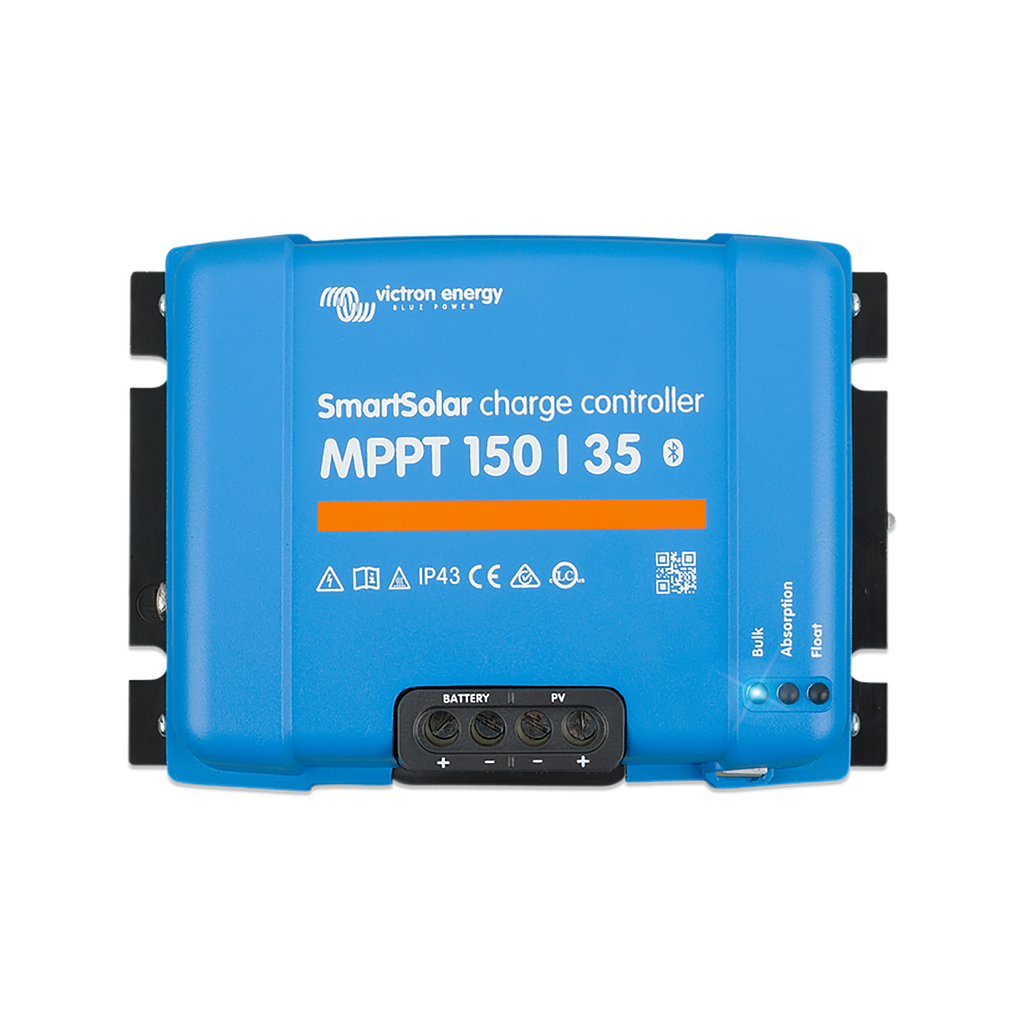

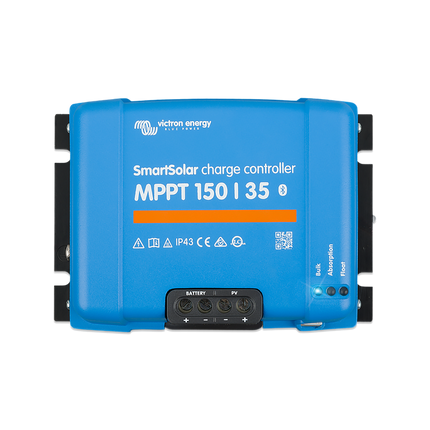

Victron Energy SCC115035210 Smart Solar Charge Controller MPPT 150/35

Description

Victron Energy Smart Solar Charge Controller MPPT 150/35: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Victron Energy SCC115035210 Specification:
    • Battery voltage: 12 / 24 / 48V Auto Select
    • Rated charge current: 35A
    • Nominal PV power: 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W
    • Max. PV short circuit current: 40A
    • Maximum efficiency: 98%
    • Self-consumption: 12V: 20mA 24V: 15mA 48V: 10mA
    • Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable)
    • Charge voltage 'float': Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable)
    • Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms)
    • Temperature compensation: -16 mV / -32 mV / -64 mV / ¬∞C
    • Protection: Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit, Over-temperature
    • Operating temperature: -30 to +60¬∞C (full rated output up to 40¬∞C)
    • Humidity: 95%, non-condensing

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy SCC115035210 Smart Solar Charge Controller MPPT 150/35

Product form

Victron Energy Smart Solar Charge Controller MPPT 150/35: The Solar Charge Controller from Victron Energy Have Been Designed to Be... Read more

SKU: SCC115035210

  • In Stock

$497.02 $285.05 Incl. VAT

    Description

    Victron Energy Smart Solar Charge Controller MPPT 150/35: The Solar Charge Controller from Victron Energy Have Been Designed to Be a True Worldwide Product

    Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Victron Energy SCC115035210 Specification:
      • Battery voltage: 12 / 24 / 48V Auto Select
      • Rated charge current: 35A
      • Nominal PV power: 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W
      • Max. PV short circuit current: 40A
      • Maximum efficiency: 98%
      • Self-consumption: 12V: 20mA 24V: 15mA 48V: 10mA
      • Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable)
      • Charge voltage 'float': Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable)
      • Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms)
      • Temperature compensation: -16 mV / -32 mV / -64 mV / ¬∞C
      • Protection: Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit, Over-temperature
      • Operating temperature: -30 to +60¬∞C (full rated output up to 40¬∞C)
      • Humidity: 95%, non-condensing

    Legendary Products & Support From Authorized Dealers

    When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized Victron Energy dealer today!
