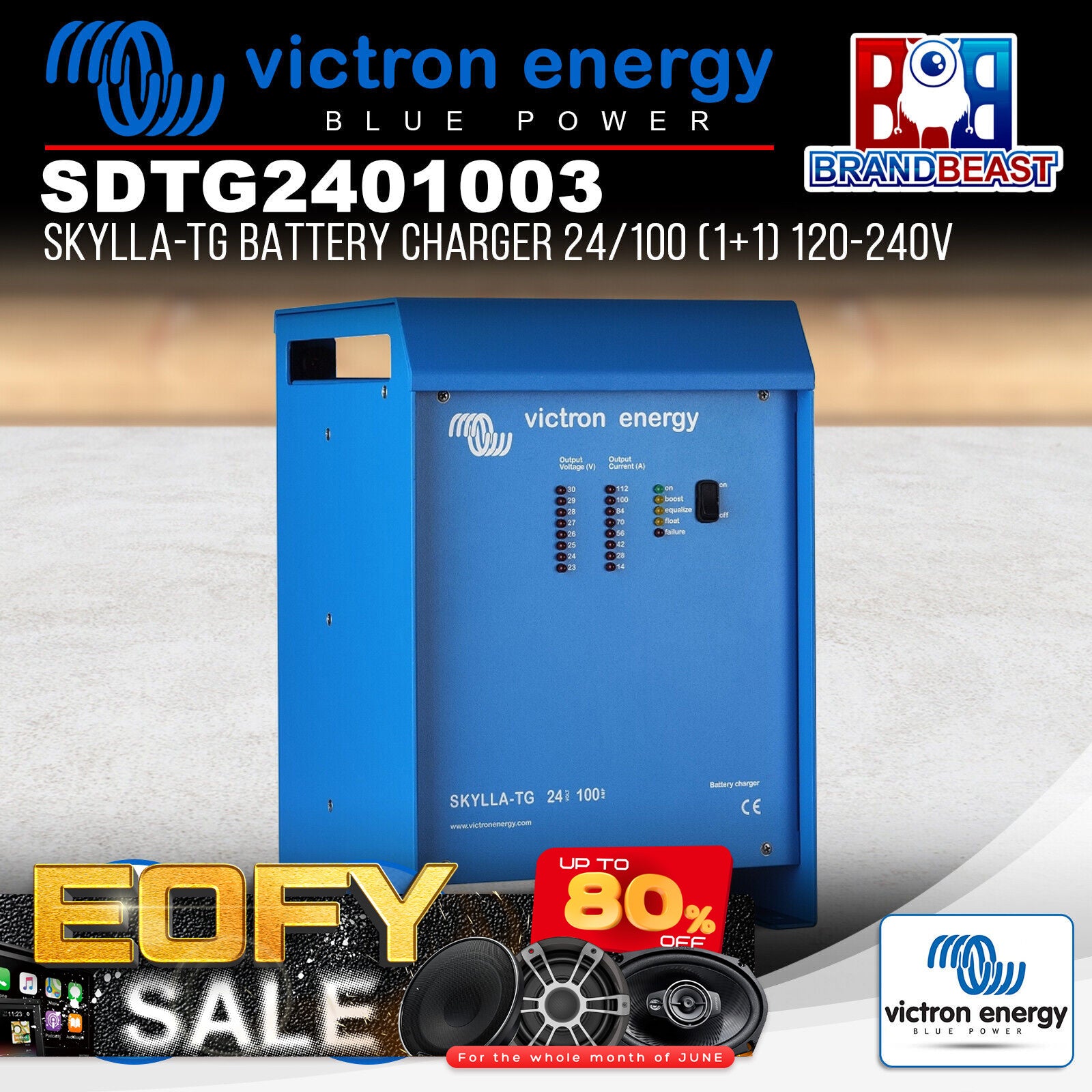

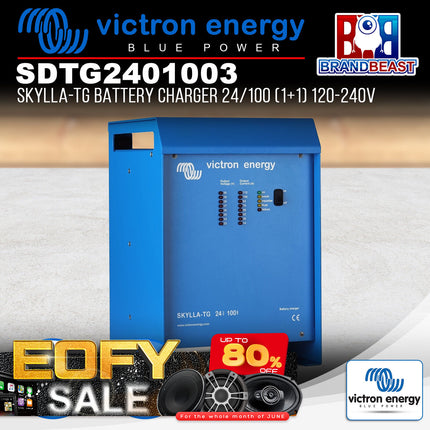

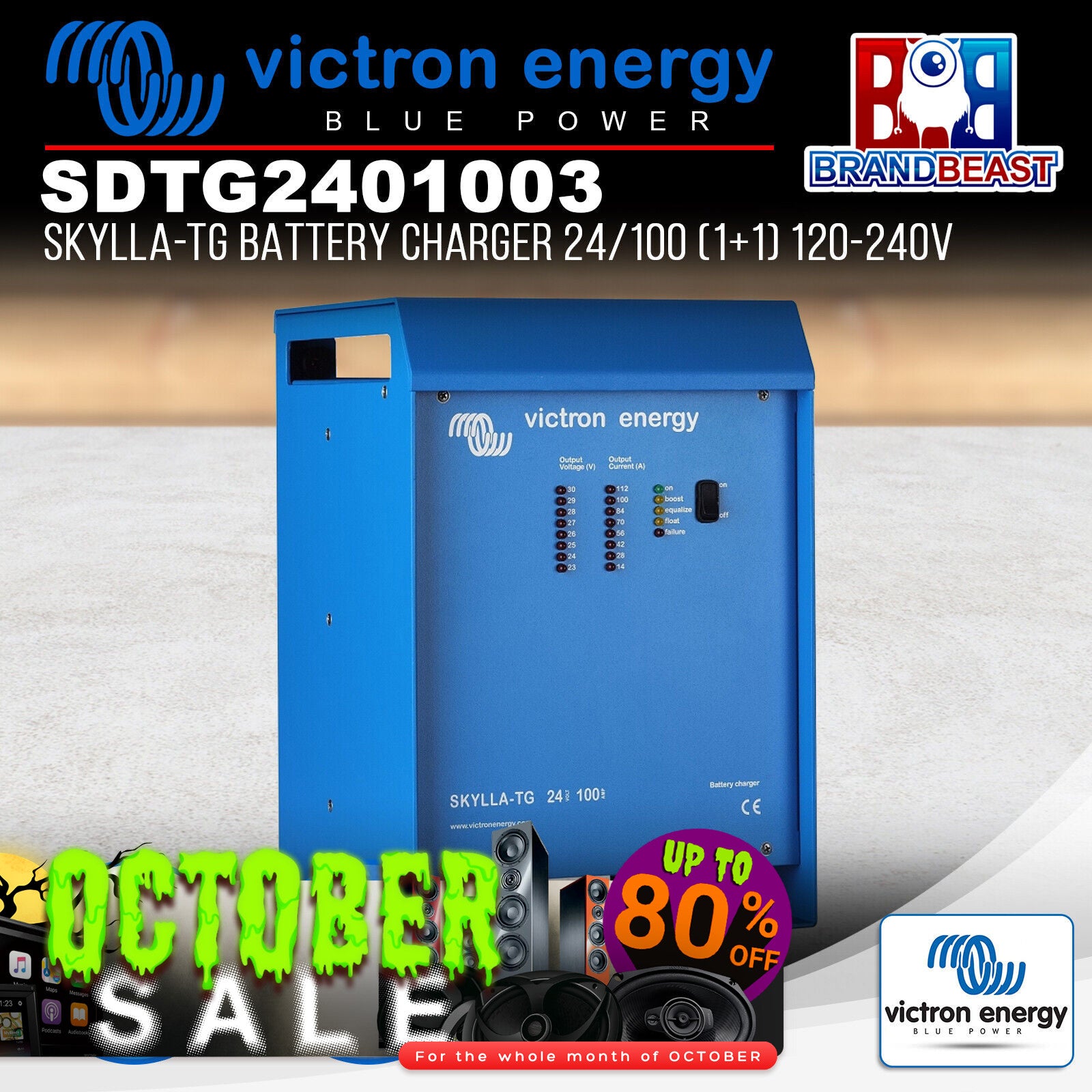

Victron Energy SDTG2401003 Skylla-TG Battery Charger 24/100 (1+1) 120-240V

Description

Victron Energy Skylla-TG Battery Charger 24/100 (1+1) 120-240V: The Battery Charger From Victron Energy Have Been Designed to Be a True Worldwide Product

Universal 90-265 V AC input voltage range and also suitable for DC supply All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers will also accept a 90-400 V DC supply. Germanischer Lloyd approval The Chargers have been approved by Germanischer Lloyd (GL) to environmental category C, EMC 1. Category C applies to equipment protected from the weather. EMC 1 applies to conducted and radiated emission limits for equipment installed on the bridge of a ship. The approval to GL C, EMC1 implies that the Chargers also complies to IEC 60945-2002, category ‘protected' and ‘equipment installed on the bridge of a ship'. The GL certification applies to 185-265 V AC supply. Victron Energy SDTG2401003 Features:
  • Microprocessor control
  • Can be used as power supply
  • Battery temperature sensor for temperature compensated charging
  • Battery voltage sensing to compensate for voltage loss due to cable resistance
Victron Energy SDTG2401003 Specifications:
    • Input voltage (V AC): 230
    • Input voltage range (V AC): 90-265
    • Input voltage range (V DC): 90-400
    • Frequency (Hz): 45-65 Hz or DC
    • Power factor: 1
    • Charge voltage 'absorption' (V DC): 28,5
    • Charge voltage 'float' (V DC): 26,5
    • Charge current house battery (A): 100
    • Charge current starter battery (A): 4
    • Charge characteristic: IUoUo (three step)
    • Battery capacity (Ah): 500-1000
    • Temperature sensor: Yes
    • Can be used as power supply: Yes
    • Remote alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
    • Forced cooling: Yes
    • Protection: a, b, c, d
    • Operating temp. range: -40 to +50¬∞C (-40 - 122¬∞F) Full output current up to 40¬∞C
    • Humidity (non-condensing): max 95%

Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy SDTG2401003 Skylla-TG Battery Charger 24/100 (1+1) 120-240V

Product form

Victron Energy Skylla-TG Battery Charger 24/100 (1+1) 120-240V: The Battery Charger From Victron Energy Have Been Designed to Be a... Read more

SKU: SDTG2401003

  • In Stock

$3,238.40 Incl. VAT
