Description
Vueroid D20-F2 Full HD Front and Rear 2-Channel Dash Cam with ADAS and HDR
A compact bar-shaped 2-channel Full HD dash cam from Vueroid, the D20-F2 captures front and rear footage at 1080p and 30fps with a 146-degree field of view, Sony STARVIS image sensor, adaptive HDR, night vision, ADAS safety alerts (FCWS, FVSA, RCWS, LDWS), Cyclops safety camera alerts, three parking surveillance modes, high-temperature cut-off, and battery discharge prevention. Compatible with 12V and 24V vehicles. Wi-Fi requires optional Wi-Fi dongle. GPS and Cyclops safety camera alerts require optional GPS antenna.
Product Overview
The Vueroid D20-F2 is a compact, lightweight, bar-shaped 2-channel dash cam with no LCD display, designed to install discreetly in any vehicle without obstructing the driver's view. Both the front and rear cameras record in Full HD 1080p at 30 frames per second with a 146-degree field of view, powered by Sony STARVIS image sensors for superior image quality across day and night driving conditions.
Adaptive HDR technology eliminates light blurring during day and night recording, preserving detail in challenging lighting including backlighting and tunnels. The automatic night vision function detects ambient brightness and adjusts accordingly for optimal video quality in low-light conditions. ADAS (Advanced Driver Assistance System) technology provides real-time safety alerts for Forward Collision Warning (FCWS), Front Vehicle Start Alarm (FVSA), Rear Collision Warning (RCWS), and Lane Departure Warning (LDWS). Cyclops safety camera alerts warn drivers of upcoming speed and red light cameras (optional GPS antenna required).
Three parking surveillance modes are available: Time Lapse (1fps for extended parking coverage), Sleep and Wake Up (standby with impact-triggered wake), and Motion Detection (G-sensor triggered recording). High-temperature cut-off at approximately 70°C protects the unit in extreme heat. Battery discharge prevention cuts power automatically when vehicle voltage drops below the preset threshold. Maximum power consumption is 5.4W at 12V. Compatible with 12V and 24V vehicles.
The D20-F2 won the iF Design Award in 2021 for its design excellence. The Vueroid App provides live footage viewing, video download, playback, and settings management via smartphone. The PC Viewer supports detailed video review including driving speed, G-sensor data, and location history.
All Vueroid D20-F2 units are supplied with both front and rear cameras and a memory card included. Note: Wi-Fi functionality requires an optional Wi-Fi dongle. GPS functionality and Cyclops safety camera alerts require an optional GPS antenna. Parking surveillance modes require hardwire installation (professional installation recommended).
Features & Benefits
Full HD 1080p Front and Rear Recording at 30fps: Both front and rear cameras record in Full HD 1080p at 30 frames per second with a 146-degree field of view, providing comprehensive coverage and high-definition footage of every journey from both directions.
Sony STARVIS Image Sensor - Superior Day and Night Quality: The Sony STARVIS image sensor delivers high sensitivity and image quality across all lighting conditions, providing clearer footage than standard CMOS sensors particularly in low-light and night driving scenarios.
Adaptive HDR Technology: Adaptive HDR processing eliminates light blurring caused by sudden changes in lighting during day and night driving, preserving detail in challenging conditions including tunnel entrances and exits, backlit scenes, and oncoming headlights.
Automatic Night Vision: The automatic night vision function detects ambient brightness and adjusts image processing for optimal clarity and detail in low-light conditions, ensuring useful footage is captured during night driving.
ADAS Safety Alerts - FCWS, FVSA, RCWS, and LDWS: The ADAS technology provides real-time safety alerts for Forward Collision Warning (FCWS) when the gap to the vehicle ahead becomes too small, Front Vehicle Start Alarm (FVSA) when the vehicle ahead moves off, Rear Collision Warning (RCWS) for approaching vehicles from behind, and Lane Departure Warning (LDWS) when the vehicle drifts from the lane without indicating.

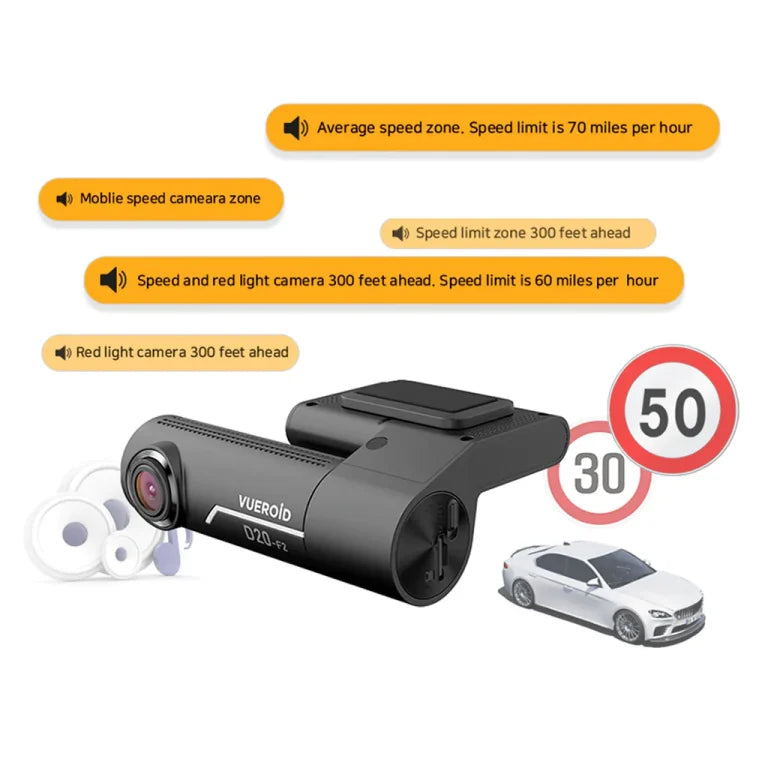

Cyclops Safety Camera Alert: The Cyclops safety camera alert system warns drivers of upcoming speed and red light cameras to encourage speed reduction and safer driving. Requires optional GPS antenna.
Three Parking Surveillance Modes: Time Lapse records at 1fps for extended parking coverage with minimal SD card usage, Sleep and Wake Up enters standby and wakes to record on impact detection, and Motion Detection captures footage triggered by movement around the vehicle. Requires hardwire installation.
High-Temperature Cut-Off and Battery Discharge Prevention: The high-temperature cut-off at approximately 70°C automatically powers off the unit to prevent heat damage. Battery discharge prevention cuts power when vehicle voltage drops below the preset threshold to protect the vehicle battery.

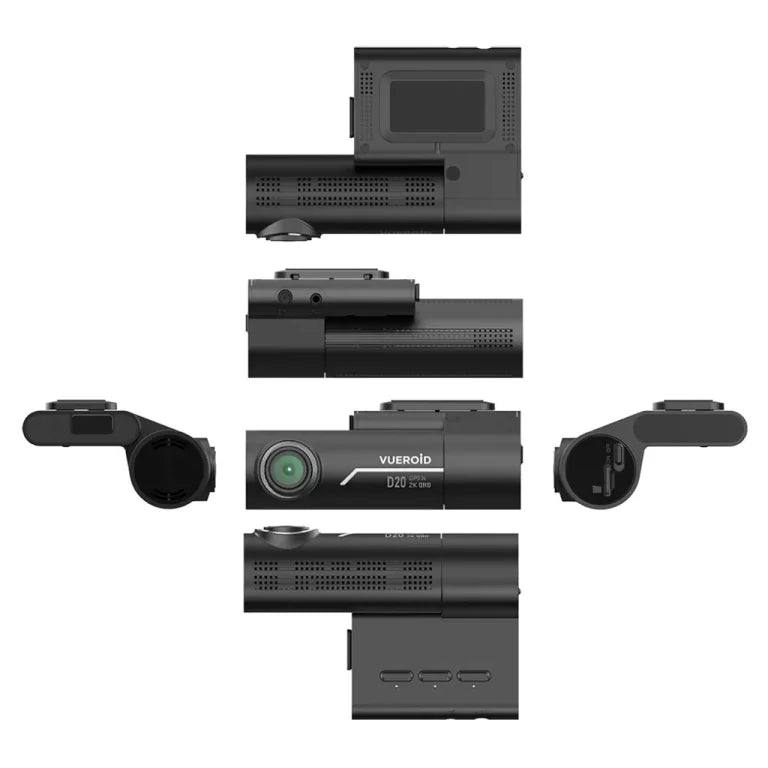

Compact Bar-Shaped Design with No LCD: The compact, lightweight bar-shaped design with no LCD display allows installation in any position without obstructing the driver's view.
Vueroid App and PC Viewer Connectivity: The Vueroid App enables live footage viewing, video download, playback, editing, and settings adjustment from a compatible smartphone. The PC Viewer provides detailed playback with driving speed, G-sensor data, and GPS location history review. Wi-Fi requires optional dongle.

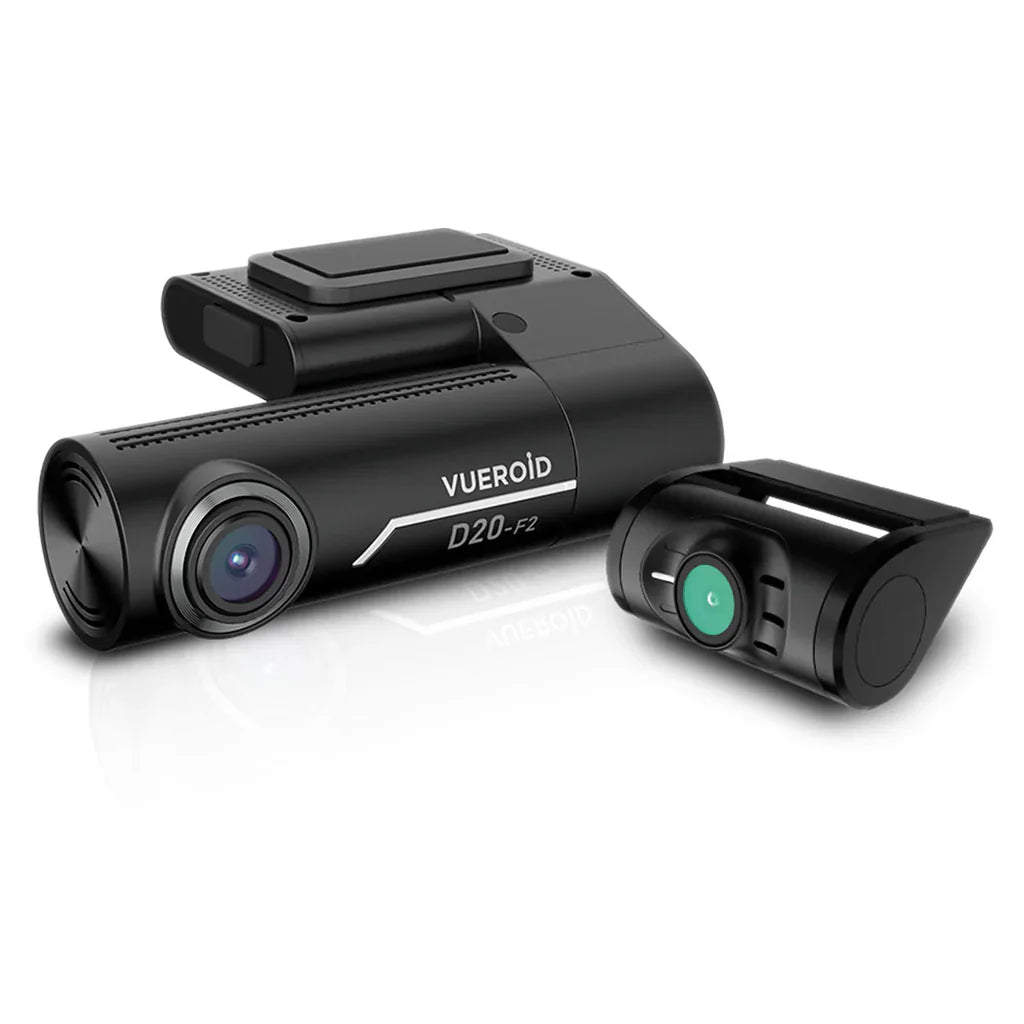

Includes Front Camera, Rear Camera, and Memory Card: All Vueroid D20-F2 units include both front and rear cameras and a memory card at no extra cost.
Technical Specs
| Specification |
Detail |
| SKU |
D20-F2 |
| Brand |
Vueroid |
| Model |
D20-F2 |
| Channels |
2 (front and rear) |
| Front Resolution |
Full HD 1080p at 30fps |
| Rear Resolution |
Full HD 1080p at 30fps |
| Field of View |
146 Degrees |
| Image Sensor |
Sony STARVIS |
| HDR |
Yes (adaptive HDR) |
| Night Vision |
Yes (automatic) |
| ADAS |
Yes (FCWS, FVSA, RCWS, LDWS) |
| Safety Camera Alert |
Cyclops (requires optional GPS antenna) |
| Wi-Fi |
Yes (requires optional Wi-Fi dongle) |
| GPS |
Requires optional GPS antenna |
| Parking Modes |
Time Lapse, Sleep and Wake Up, Motion Detection |
| High-Temp Cut-Off |
Approximately 70°C |
| Battery Discharge Prevention |
Yes |
| Max Power Consumption |
5.4W at 12V |
| Input Voltage |
12V and 24V |
| Display |
None (no LCD) |
| App |
Vueroid App (iOS and Android) |
| PC Viewer |
Yes |
| iF Design Award |
2021 |
| Includes |
Front Camera, Rear Camera, Hardwire Kit 3M, Rear Camera Cable 6M, Memory Card |
What's in the Box
- Vueroid D20-F2 Front Camera
- Vueroid D20-F2 Rear Camera
- Hardwire Kit 3m
- Rear Camera Cable 6m
- Memory Card
Compatible With
The D20-F2 is compatible with 12V and 24V vehicle electrical systems. Parking surveillance modes require hardwire installation (professional installation recommended). Wi-Fi functionality requires an optional Wi-Fi dongle. GPS and Cyclops safety camera alerts require an optional GPS antenna. Both optional accessories are sold separately.
Frequently Asked Questions
Does the D20-F2 include Wi-Fi and GPS built in?
The D20-F2 supports Wi-Fi connectivity and GPS functionality, however Wi-Fi requires an optional Wi-Fi dongle and GPS requires an optional GPS antenna, both sold separately. Cyclops safety camera alerts also require the optional GPS antenna.
Does the D20-F2 require professional installation?
The D20-F2 can be installed via the included cigarette lighter plug for standard operation. However, parking surveillance modes require hardwire installation, for which professional installation is recommended.
What ADAS features does the D20-F2 have?
The D20-F2 includes Forward Collision Warning (FCWS), Front Vehicle Start Alarm (FVSA), Rear Collision Warning (RCWS), and Lane Departure Warning (LDWS) as part of its ADAS system.
Is a memory card included with the D20-F2?
Yes. All Vueroid D20-F2 units include both front and rear cameras and a memory card at no extra cost.
Is the D20-F2 compatible with 24V vehicles?
Yes. The D20-F2 is compatible with both 12V and 24V vehicle electrical systems.
