Description

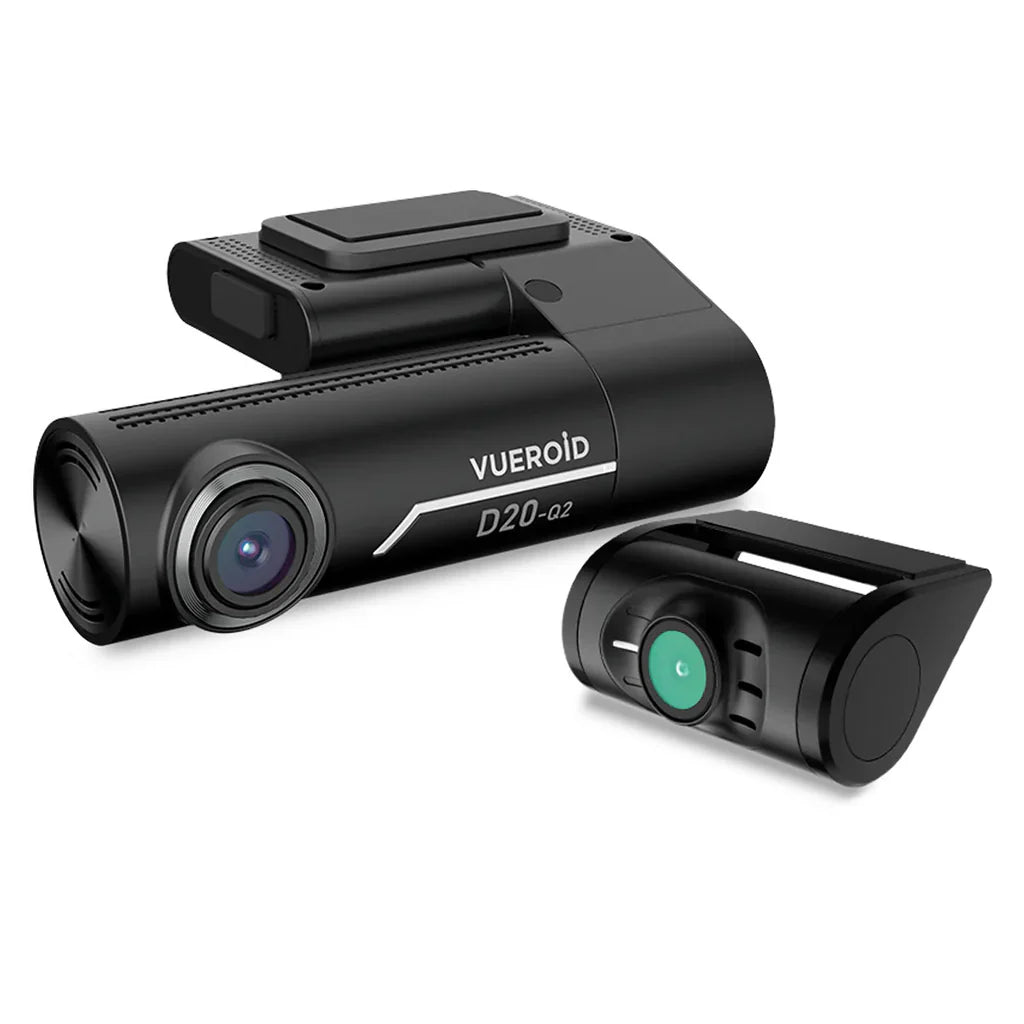

Vueroid D20-Q2 2K QHD Front and Rear 2-Channel Dash Cam with ADAS and HDR
A compact bar-shaped 2-channel 2K QHD dash cam from Vueroid, the D20-Q2 records both front and rear in 2560 x 1440 QHD at 30fps with a 145-degree field of view, 5-megapixel Sony STARVIS sensors, HDR, automatic night vision, ADAS (FCWS, FVSA, RCWS, LDWS), Cyclops safety camera alerts, built-in GPS, three parking surveillance modes, high-temperature cut-off, battery discharge prevention, and format-free FAT32 file system. All units include front and rear cameras and memory card. Wi-Fi requires optional Wi-Fi dongle.
Product Overview
The Vueroid D20-Q2 is a compact, lightweight, bar-shaped 2-channel dash cam with no LCD display, delivering 2560 x 1440 QHD recording for both the front and rear cameras at 30fps with a 145-degree field of view. Both cameras are powered by 5-megapixel Sony STARVIS image sensors, providing superior clarity and low-light performance. HDR technology delivers clear and vivid video in all driving environments, including high-brightness scenes, backlighting, and tunnel transitions. Automatic night vision adjusts brightness and contrast settings for optimal video quality in low-light conditions.
ADAS provides real-time safety alerts for Forward Collision Warning (FCWS), Front Vehicle Start Alarm (FVSA), Rear Collision Warning (RCWS), and Lane Departure Warning (LDWS). Cyclops safety camera alerts warn drivers of upcoming speed and red light cameras. Built-in GPS records location, speed, and time data with every journey. Wi-Fi connectivity requires an optional Wi-Fi dongle for smartphone app connection.
Three parking surveillance modes are available: Time Lapse (1fps), Sleep and Wake Up (impact-triggered wake), and Motion Detection. High-temperature cut-off at approximately 70°C automatically powers off the unit to prevent heat damage. Battery discharge prevention cuts power at the preset voltage threshold to protect the vehicle battery. The format-free FAT32 file system allows video playback, copying, and sharing via any standard viewer without requiring proprietary software for basic file access. Compatible with 12V and 24V vehicles. The D20-Q2 won the iF Design Award in Germany for design excellence.
Features & Benefits
2K QHD Front and Rear Recording - 2560 x 1440 at 30fps: Both the front and rear cameras record in 2560 x 1440 QHD at 30fps with a 145-degree field of view, providing a significant resolution improvement over Full HD with enhanced detail for licence plates, road signs, and incident documentation from both directions simultaneously.
5-Megapixel Sony STARVIS Sensors - Front and Rear: Both cameras use 5-megapixel Sony STARVIS back-illuminated image sensors, delivering superior low-light sensitivity and image quality across all driving conditions including night driving and poor weather.
HDR Technology - Clear Video in Any Lighting: HDR processing delivers clear and vivid footage in all driving environments, preserving detail in high-brightness scenes, backlighting, and sudden lighting transitions including tunnel entrances and exits.
Automatic Night Vision: The automatic night vision function detects ambient brightness and adjusts image settings for optimal clarity and detail in low-light and night driving conditions.
ADAS Safety Alerts - FCWS, FVSA, RCWS, and LDWS: ADAS provides real-time safety alerts covering Forward Collision Warning (FCWS) when the gap to the vehicle ahead is too small, Front Vehicle Start Alarm (FVSA) when the vehicle ahead moves off, Rear Collision Warning (RCWS) for approaching vehicles, and Lane Departure Warning (LDWS) when the vehicle drifts from its lane without indicating.

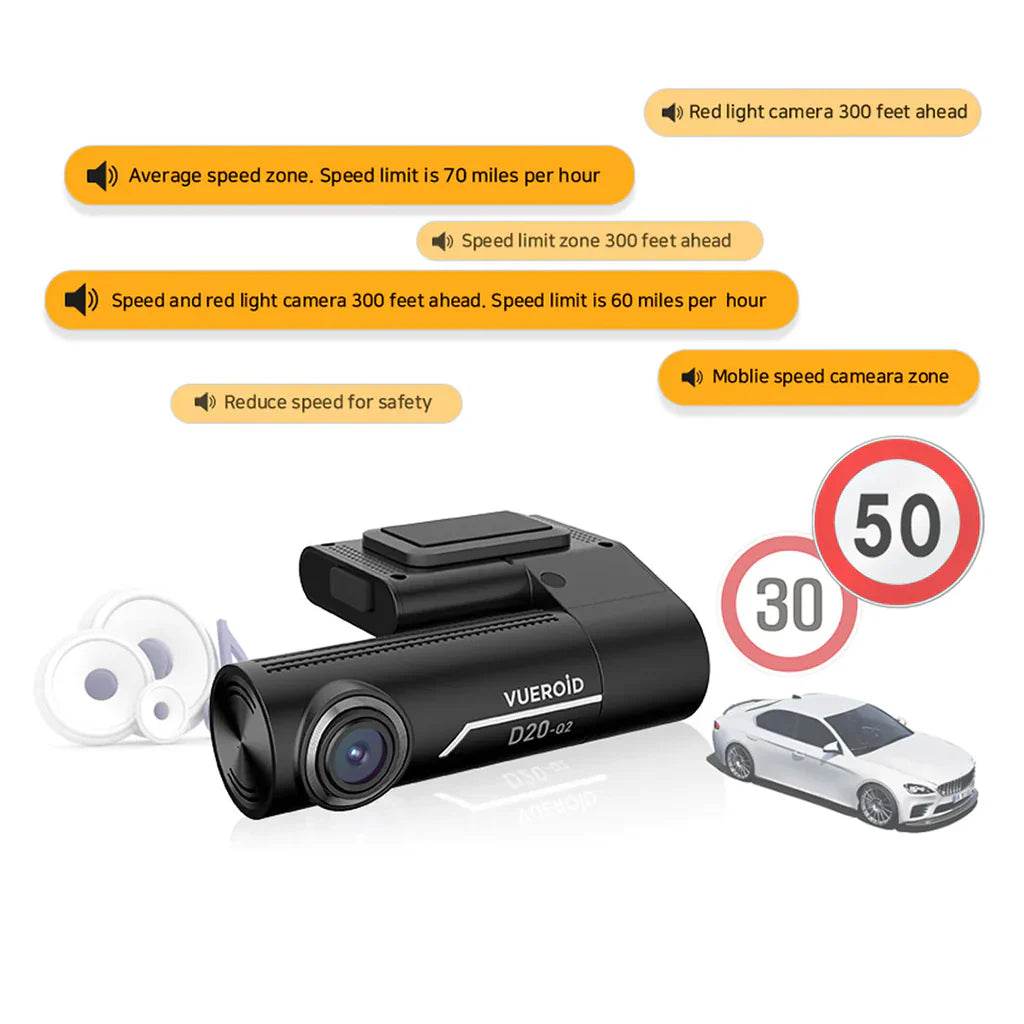

Cyclops Safety Camera Alert with Built-in GPS: Cyclops alerts warn drivers of upcoming speed cameras and red light cameras. Built-in GPS records location, speed, and time data with every journey and supports the Cyclops database for accurate camera zone detection in Australia.
Three Parking Surveillance Modes: Time Lapse records at 1fps for extended parking coverage with minimal SD card usage, Sleep and Wake Up enters standby and wakes on impact detection, and Motion Detection captures footage triggered by movement around the vehicle. Requires hardwire installation.
High-Temperature Cut-Off and Battery Discharge Prevention: High-temperature cut-off at approximately 70°C automatically powers off the unit to prevent heat damage to the sensor and SD card. Battery discharge prevention cuts power at the preset voltage threshold to protect the vehicle battery.
Format-Free FAT32 File System: The format-free FAT32 file system allows recorded videos to be played, copied, and shared via any standard video viewer without requiring proprietary software for basic file access.

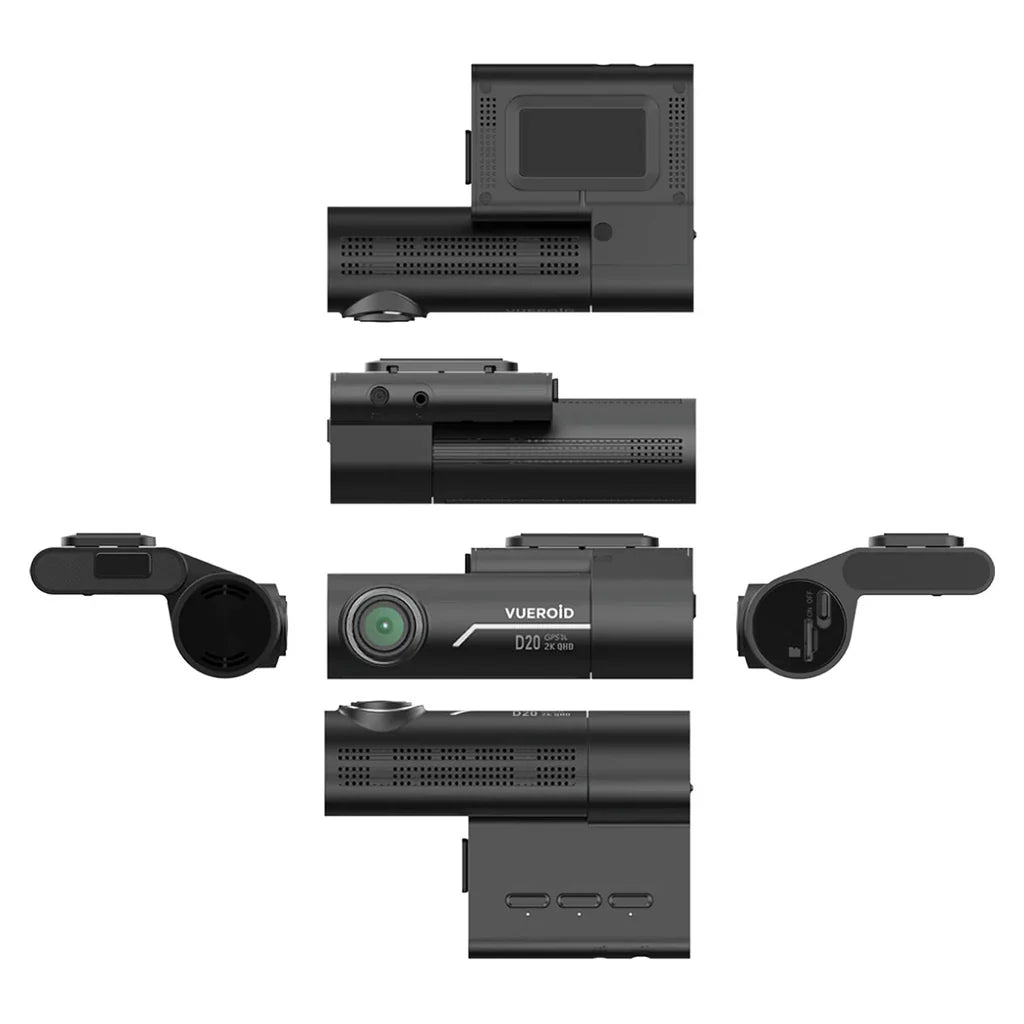

Compact Bar-Shaped Design with No LCD: The compact, lightweight bar-shaped design with no LCD display allows installation anywhere in the vehicle without obstructing the driver's view.
iF Design Award Winner: The D20-Q2 series won the iF Design Award in Germany, recognised globally as a symbol of design excellence.
Vueroid App and PC Viewer: The Vueroid App enables live footage viewing, video download, settings management, and driving record review. The PC Viewer supports detailed playback including driving speed, G-sensor data, and GPS location history. Wi-Fi requires optional dongle.
Technical Specs
| Specification |
Detail |
| SKU |
D20-Q2 |
| Brand |
Vueroid |
| Model |
D20-Q2 |
| Channels |
2 (front and rear) |
| Front and Rear Sensor |
5MP Sony STARVIS |
| Front and Rear Resolution |
2560 x 1440 QHD (2K) at 30fps |
| Field of View |
145 Degrees (front and rear) |
| HDR |
Yes |
| Night Vision |
Yes (automatic) |
| ADAS |
FCWS, FVSA, RCWS, LDWS |
| Safety Camera Alert |
Cyclops |
| Wi-Fi |
Yes (optional Wi-Fi dongle required) |
| GPS |
Built-in |
| File System |
Format-Free FAT32 |
| Parking Modes |
Time Lapse (1fps), Sleep and Wake Up, Motion Detection |
| High-Temp Cut-Off |
Approximately 70°C |
| Battery Discharge Prevention |
Yes |
| Front Dimensions |
107.8mm x 42.6mm x 75.4mm |
| Rear Dimensions |
52mm x 29mm x 42mm |
| Display |
None (no LCD) |
| Input Voltage |
12V and 24V |
| App |
Vueroid App (iOS and Android) |
| PC Viewer |
Yes |
| Design Award |
iF Design Award (Germany) |
| Includes |
Front Camera, Rear Camera, Memory Card, Installation Accessories |
What's in the Box
- Vueroid D20-Q2 Front Camera
- Vueroid D20-Q2 Rear Camera
- Memory Card
- Installation Accessories
Compatible With
The D20-Q2 is compatible with 12V and 24V vehicle electrical systems. Wi-Fi functionality requires an optional Wi-Fi dongle sold separately. Parking surveillance modes require hardwire installation (professional installation recommended). Cyclops safety camera database coverage includes Australia.
Frequently Asked Questions
What resolution does the D20-Q2 record at?
Both the front and rear cameras record in 2560 x 1440 QHD (2K) at 30fps with a 145-degree field of view, providing high-resolution coverage from both directions simultaneously.
Does the D20-Q2 include Wi-Fi?
Wi-Fi functionality is supported but requires an optional Wi-Fi dongle sold separately. Confirm with your supplier before purchase.
What ADAS features does the D20-Q2 have?
The D20-Q2 ADAS system provides four real-time safety alerts: Forward Collision Warning (FCWS), Front Vehicle Start Alarm (FVSA), Rear Collision Warning (RCWS), and Lane Departure Warning (LDWS).
Does the D20-Q2 have built-in GPS?
Yes. The D20-Q2 includes built-in GPS that records location, speed, and time data alongside the video footage, and supports the Cyclops safety camera alert system.
What is the difference between the D20-Q2 and the D20-F2?
Both are compact bar-shaped 2-channel dash cams with no LCD. The D20-Q2 records both front and rear in 2560 x 1440 QHD (2K) via 5MP Sony STARVIS sensors with built-in GPS. The D20-F2 records both cameras in Full HD 1080p via Sony STARVIS and requires an optional GPS antenna separately. Choose the D20-Q2 for 2K resolution on both channels and built-in GPS.
