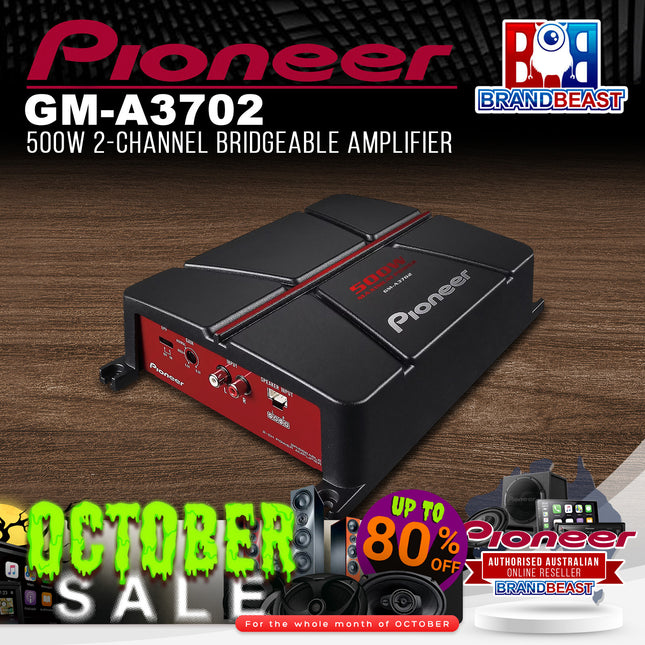

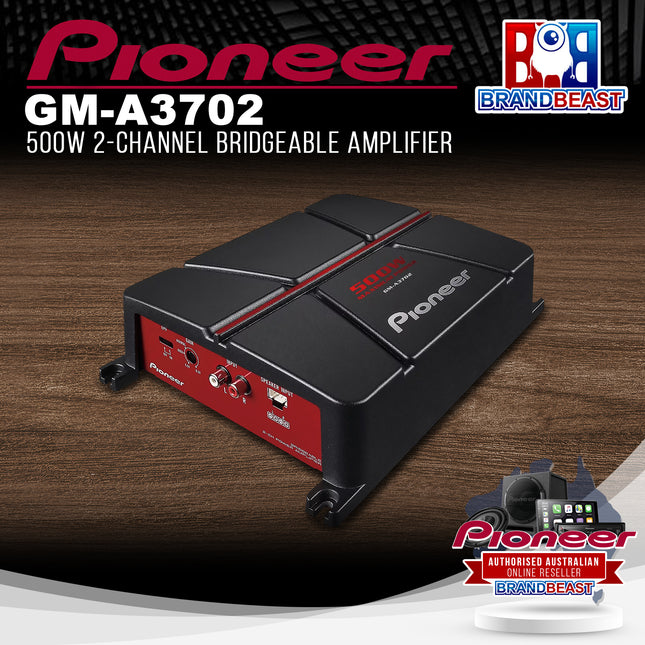

A Compact Yet Powerful 2-Channel Amplifier
Designed to enhance your in-car audio experience, the powerful GM-A3702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for.
The GM-A3702 offers support for 2 Ohm and 4 Ohm speakers, and can produce up to 500 W of power when bridged.
Growing Power, Shrinking SizeNew Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.
Automatic Signal Sensing & Turn OnPioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.
When connected to an OEM receiver or a receiver without RCA output using speaker wire, the amplifier is turned on at the same time as the receiver. Pioneer’s amplifiers automatically detect the input signal and select RCA level or speaker level.
Features:
500 Watts Max Power
Automatic signal sensing and Turn-ON
Hi-Volt input level control
Balanced isolator input circuit
Specifications:General
RCA Inputs: 2-CH
Amplifier Class: Class AB
Hi-Res Certified: No
Bridgeable: Yes
Warranty: 1 Year
Speaker Level Input: Yes
Fuse Rating: 25A x 1
Bass Boost Remote: No
Automatic Signal Sensing and Turn-On: Yes
Hi-Volt Input Level Control: 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in)
Terminal Type: Screw
Load Impedance Allowance (Ohms): 2 to 4
Protection Control System: Yes
Dimensions: 246(W) X 60(H) X 180(D) mm
Power
Continuous Power (RMS) Output @ 1Ω: N/A
Continuous Power (RMS) Output @ 2Ω: 95W x 2
Continuous Power (RMS) Output @ 4Ω: 60W x 2
Continuous Power (RMS) Output - Bridged @ 4Ω: 190W x 1
Audio Adjustments
Low-Pass Crossover Frequency: 80 Hz
Low-Pass Slope (dB/octave): -12db/oct (A/B CH)
High-Pass Crossover Frequency: N/A
Bass Boost Frequency: 50 Hz
Bass Boost Level: 0/6/12dB
Audio Specifications
Frequency Response: 10Hz ~ 70kHz
Total Harmonic Distortion (THD): <0.05 %
Signal-to-Noise (SN) Ratio: >95 dB
Legendary Products & Support From Authorized Dealers
When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Pioneer dealer today!

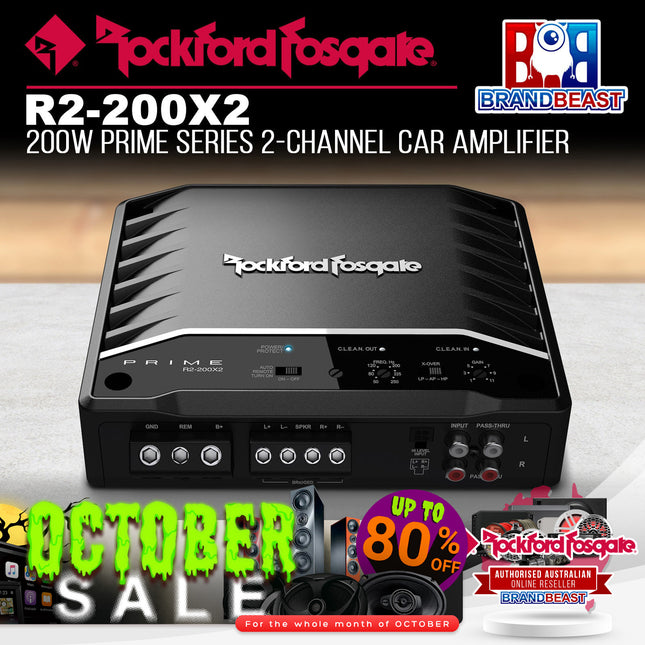

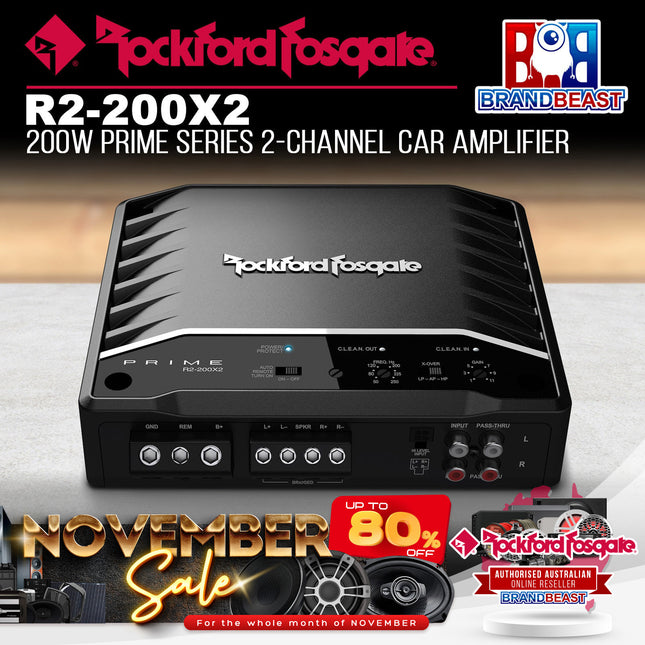

Rockford Fosgate R2-200X2 Prime 200 Watt 2-Channel Class D Amplifier
When two channels need real power without compromise, the R2-200X2 delivers 200 watts of clean, efficient Class D performance engineered by Rockford Fosgate.
Product Overview
The R2-200X2 is part of Rockford Fosgate's 3rd generation Prime Series, built for car audio enthusiasts who demand reliable, high-performance amplification at an accessible price. Operating as a full-range Class D 2-channel amplifier, it runs at 4 ohm or 2 ohm stereo and 4 ohm bridged/mono, giving it the flexibility to drive a front speaker pair in stereo or bridge down to a single channel to power a subwoofer. Class D topology maximises efficiency and reduces the electrical load on the vehicle's charging system, while MEHSA 4 (Maximum Efficiency Heat Sink Application) actively reduces MOSFET temperatures, lowers distortion, and prolongs output device lifespan. The top-mounted control panel keeps all adjustments within easy reach, and CTA-2006 compliant power ratings confirm that the 200W output is a real, tested figure. Designed and engineered in Tempe, Arizona, the R2-200X2 is built by fanatics, for fanatics.
Features & Benefits
C.L.E.A.N. Technology (Patent 8,712,066): Rockford Fosgate's patented Calibrated Level Eliminates Audible Noise circuit uses dedicated input and output clip LEDs (C.L.E.A.N. IN Red, C.L.E.A.N. OUT Blue/Red) to accurately match the source unit's output to the amplifier's input sensitivity, eliminating guesswork and reducing distortion at the source.
P.O.W.E.R. Supply: Onboard power supply design that continues to generate output above the rated RMS figure as vehicle voltage increases, so real-world performance scales beyond the spec sheet across the 9-16V operating range.
MEHSA 4 (Maximum Efficiency Heat Sink Application): Advanced thermal management system that reduces MOSFET operating temperatures, lowers distortion levels, increases overall durability, and extends the lifespan of output devices under sustained use.
NOMAD Protection: A real-time analogue computer that continuously monitors the amplifier's outputs and protects against shorting speaker wires and dangerously low speaker impedances, providing active fault management rather than passive fusing alone.
Balanced Differential Inputs: Differential input topology eliminates noise picked up by signal cables between the source unit and amplifier, delivering a cleaner signal into the amplifier stage.
Fully Adjustable Butterworth Crossovers: 12 dB/octave High-Pass and Low-Pass crossovers, continuously variable from 50 to 250 Hz, with an All-Pass option for full-range output when no filtering is needed.
High Level Input Capable: Accepts both low-level RCA (150mV-4V) and high-level speaker signals (450mV-12V), making integration with factory head units straightforward.
Auto-Sense RAP Bypass: Auto-Sense bypass switch supports vehicles with Retained Accessory Power (RAP), allowing the amplifier to power on and off correctly using speaker-level signal detection without requiring a dedicated remote turn-on wire.
RCA Pass-Through Outputs: 2-channel RCA pass-through remains active with both RCA and high-level inputs, allowing a downstream amplifier to be added without splitting cables at the head unit.
CTA-2006 and CE Compliant: All power ratings verified at 14.4V with 1% or less THD to CTA-2006 industry standards, with no inflated peak figures used anywhere in the specifications.
Technical Specs
Specification
Detail
SKU
R2-200X2
Series
Prime
Number of Channels
2
Amplifier Class
Class D, Full Range
Total RMS Power
200W
RMS Power @ 4 Ohm
50W x 2
RMS Power @ 2 Ohm
100W x 2
Bridged Power @ 4 Ohm
200W x 1
Dynamic Power @ 4 Ohm
60W x 2
Dynamic Power @ 2 Ohm
107W x 2
Dynamic Power Bridged @ 4 Ohm
215W x 1
Bridgeable
Yes
Minimum Impedance (Stereo)
2 Ohm
Minimum Impedance (Bridged)
4 Ohm
Frequency Response
20 Hz - 20 kHz
THD @ 4 Ohm
<1.0%
THD @ 2 Ohm
<1.0%
Input Sensitivity (Low-Level)
150 mV - 4V
Input Sensitivity (High-Level)
450 mV - 12V
Signal Input
2 x RCA low-level, 4-Pin Molex high-level
Signal Output
2 x RCA pass-through (active with RCA or high-level input)
Crossover
High-Pass / Low-Pass: 50-250 Hz @ 12 dB/octave Butterworth
All-Pass
Yes
Tone Controls
No
Remote Controls
No
Visual Indicators
POWER (Blue), PROTECT (Red), C.L.E.A.N. IN (Red), C.L.E.A.N. OUT (Blue/Red)
Operating Voltage
9-16V DC
Max Current Draw (13.8V Sinewave)
18A
Recommended Fuse
30A (not included)
Power Wire Gauge
4 AWG
Speaker Wire Gauge
8 AWG
Power Input Connector
Compression Terminal Block
Speaker Output Connector
Compression Terminal Block
Cooling
Convection / Heatsink (MEHSA 4)
Dimensions (H x W x D)
1.9" x 6.8" x 8.1" (4.9 cm x 17.3 cm x 20.5 cm)
Warranty
1 Year
Compliance
CTA-2006, CE
Goes Well With
The R2-200X2 pairs naturally with Rockford Fosgate Prime Series full-range speakers such as the R165X3, R168X2, R169X2, and R169X3 for a front stereo speaker setup. When bridged to mono at 4 ohms, it can also serve as a dedicated subwoofer channel, making it a compact single-amplifier solution for smaller builds. For systems requiring both speaker and dedicated subwoofer amplification, the R2-200X2 pairs directly with the R2-250X1 monoblock using the onboard RCA pass-through. A 4-gauge amplifier wiring kit is required for power and ground runs, and 8-gauge cable is needed for speaker outputs.
Frequently Asked Questions
Can the R2-200X2 power both front speakers and a subwoofer at the same time?
Not simultaneously through both channels. In stereo mode, the R2-200X2 powers two speakers independently. When bridged to mono, it delivers 200 watts into a single 4-ohm load, suitable for a subwoofer, but the stereo channels are no longer available in that configuration. For a system requiring both speaker and subwoofer amplification, pairing the R2-200X2 with a dedicated monoblock such as the R2-250X1 is the recommended approach.
Does the R2-200X2 require a remote turn-on wire?
When using RCA inputs, a remote turn-on wire must be connected to the head unit's remote output. When using high-level speaker inputs, the Auto-Sense bypass switch can be enabled to allow the amplifier to detect an incoming signal and power on automatically, making it compatible with factory head units and systems that lack a dedicated remote output, including those with Retained Accessory Power (RAP).
What does the NOMAD protection system do?
NOMAD is a real-time analogue computer built into the R2-200X2 that continuously monitors the amplifier's speaker outputs. It protects the amplifier from damage caused by shorted speaker wires and dangerously low speaker impedances, providing active, dynamic protection rather than relying solely on a fuse.
What gauge power, ground, and speaker wire does the R2-200X2 require?
Rockford Fosgate specifies 4 AWG for power and ground runs using the onboard compression terminal block connectors. Speaker output connections require 8 AWG wire. The recommended 30A fuse is not included in the box and must be sourced separately, installed as close to the battery as possible.
Can the R2-200X2 be bridged into a 2-ohm load for maximum power?
No. When bridging the R2-200X2, the minimum supported impedance is 4 ohms. Running a bridged output into a 2-ohm load is not supported and risks amplifier failure or NOMAD-triggered protection shutdown. In standard stereo mode, the minimum impedance per channel is 2 ohms.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Configure Your Perfect Audio SetupFeel the DifferenceFrom dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.The 2-channel GM-A3602 delivers 400 watts max in a compact design - plenty of juice to power your speakers. It's also got built-in high-pass crossover, speaker level inputs for easy connection to an OEM headunit, and oversized power terminals.CEA2006 Specifications Power Output: 60 Watts RMS x 2 Channels (4 ohms ≤ 1% THD+N) Signal-to-Noise Ratio: 95 dBA (Reference: 1 Watt into 4 ohms) Inspired By ExcellencePioneer is constantly finding ways to make amplifier technology better. Our new and improved GM-Series prove how you can add cutting edge technology and more power to your system without breaking the bank. Like all Pioneer products, these amps are fully tested to ensure that each is designed and built for performance.Higher PowerHaving more power isn't just about LOUD. It's also about CLEAN, getting the most out of your speakers and your music. Constant road noise makes it hard for the music to be heard clearly. But with 400 watts max. power, you'll get to hear all the words and all the notes.High Capacity Switching Power SupplyTo suppress power supply loss, GM-Series amplifiers incorporate a large toroidal transformer and are driven using a high-speed switching MOSFET. This stabilization of power supply maintains stable playback of all types of music.Gain ControlWhat is power without control? To accommodate the varying range of signal levels coming from today's factory and aftermarket radios, all of Pioneer's GM-series amplifiers feature adjustable gain controls. This means that no matter what kind of radio is connected to this amplifier, the appropriate gain control adjustment can be made to ensure loud, clear, distortion-free music. And even if the gain control level is set improperly, Pioneer's Gain Control Caution feature will automatically reduce the amplifier's output until the headunit volume is decreased to acceptable levels. This added layer of protection helps to prevent damage from occurring to the amplifier and the speakers connected to it due to improper gain control adjustments.Bringing the System TogetherWhat, you DON'T own a Pioneer headunit? Well, we won't hold it against you. In fact we'll even help you build onto your system. The GM-A3602's speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. SO, the install goes faster, you save money, and you've got a Pioneer amp in your vehicle.Features: Amplifier Class: AB Load Impedance Allowance (W): 2 to 8 Bridgeable: Yes RCA Inputs: 2-Ch. Speaker Level Input: Yes Speaker Line Input Turn-On Sensor: Yes Hi-Volt Input Level Control: 200 mV to 6.5 V Terminal Type: Screw-Type Crossover Type: LPF Crossover Frequency: 80 Hz Crossover Slope: -12 dB/oct. Specifications: Number of Channels: 2/1 Maximum Power Output: 400 W Continuous Power Output (2Ω, ≤ 1% THD+N): 90 W x 2 Continuous Power Output (4Ω, ≤ 1% THD+N): 60 W x 2 Continuous Power Output Bridged (4Ω): 180 W x 1 Frequency Response: 10 Hz to 70 kHz Total Harmonic Distortion (4Ω): < 0.05% (1 kHz) Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): > 95 dB Dimensions (WxHxD): 9-1/2" x 2-1/2" x 7"
Legendary Products & Support From Authorized Dealers
When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Pioneer dealer today!
Upgrade Your In-Car Listening Experience with a Pioneer GM Series Amplifier!Pioneer 2-channel bridgeable amplifier with 760 watts max. power.Only Accept the BestIs your system showing it's full potential? Amplifiers send a cleaner current to your car speakers. In layman's terms, this means that your stereo gets cleaner sound and frequency, ensuring a higher sound quality overall.A really good amp doesn't just provide power. It also offers options for customizing the sound in your vehicle. The 2-channel GM-5400T provides a selectable 50Hz bass boost and a built-in crossover for fine-tuning your tunes. Plus, it comes with speaker level inputs for easy connection to an OEM headunit.Have It Your WaySelectable 50Hz Bass Boost gives you more control over how your music sounds. It lets you set the optimal bass level for each speaker/sub connected to the GM-5400T, so the tone controls from your headunit can do what they do best. And because this is selectable bass boost, you can set the level at 0dB, 6dB, or 12dB, whichever sounds best to you.Inspired By ExcellencePioneer is constantly finding ways to make amplifier technology better. With added design features like the H-Shaped chassis, inherited from our top of the line PRS amplifiers, our improved GM-Series prove how you can add cutting edge technology and more power to your system without breaking the bank. Like all Pioneer products, these amps are fully tested to ensure that each is designed and built for performance.Superior Ground PartsHigh levels of electric current can easily create noise within an amplifier - especially ground noise. To avoid this, Pioneer made careful consideration when designing and selecting components for use within the amplifier. Only the best, most efficient parts were selected after repeated testing to provide a superior noise-free listening experience.Exclusive H-Shaped ChassisThe H-shaped bottom chassis utilizes Pioneer's expertise and exclusive technologies to eliminate resonant vibrations. Directly inspired from Pioneer's high-end PRS-A900 amplifier, the H-shaped bottom chassis ensures that the music is reproduced as intended - loud and clear.Efficient Sub-HeatsinkMOSFETs generate high power, and in many cases, high heat as well. When designing the amplifier chassis Pioneer utilized a main heatsink and a sub-heatsink to dissipate heat from the MOSFETs. These efficient heatsink structures ensure that the MOSFETs and the amplifier keep their optimal cool.Gain ControlWhat is power without control? To accommodate the varying range of signal levels coming from today's factory and aftermarket radios, all of Pioneer's GM-series amplifiers feature adjustable gain controls. This means that no matter what kind of radio is connected to this amplifier, the appropriate gain control adjustment can be made to ensure loud, clear, distortion-free music. And even if the gain control level is set improperly, Pioneer's Gain Control Caution feature will automatically reduce the amplifier's output until the headunit volume is decreased to acceptable levels. This added layer of protection helps to prevent damage from occurring to the amplifier and the speakers connected to it due to improper gain control adjustments.Making The Best Even BetterBuilt into the GM-5400T is a very smart crossover network. It works like a gateway, routing the big bass signals (80Hz or lower, at -12dB/octave) to the speaker that handles them best, filtering out higher-frequency signals to that speaker. This optimizes your system's efficiency and delivers the best possible sound quality.Bringing The System TogetherWhat, you DON'T own a Pioneer headunit? Well, we won't hold it against you. In fact we'll even help you build onto your system. The GM-5400T's speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. S0, the install goes faster, you save money, and you've got a Pioneer amp in your vehicle.Features: Built-in Crossover (80Hz, LPF) Selectable Bass Boost (50Hz, 0/6/12dB) Speaker Level Inputs Specifications:General Number of Channels 2/1 Maximum Power Output 760 W Continuous Power Output (2Ω, ≤ 1% THD+N) 190 W x 2 Continuous Power Output (4Ω, ≤ 1% THD+N) 125 W x 2 Continuous Power Output Bridged (4Ω) 380 W x 1 Frequency Response 10 Hz to 50 kHz Total Harmonic Distortion (4Ω) < 0.03% (1 kHz) Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz) > 95 dB Dimensions (WxHxD) 10-3/8" x 2-1/2" x 13-5/8" Main Features Amplifier Class - Load Impedance Allowance (W) 2 to 8 Bridgeable Yes PWM Regulated MOSFET Yes Balanced Isolator Input Circuit Yes RCA Inputs 2-Ch. Speaker Level Input Yes Hi-Volt Input Level Control Y Terminal Type Screw-Type Crossover Type LPF Crossover Frequency 80 Hz Crossover Slope -12 dB/oct. Bass Boost Frequency 50 Hz Bass Boost Level 0/6/12 dB
Legendary Products & Support From Authorized Dealers
When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Pioneer dealer today!

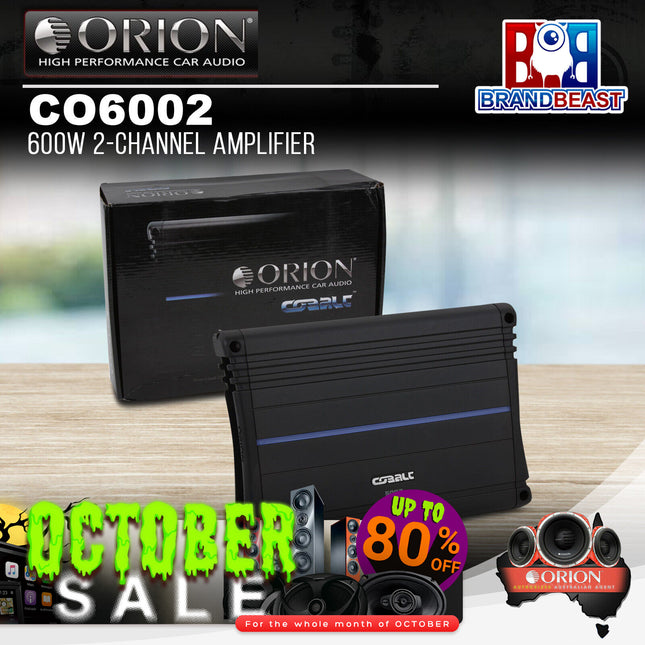

600W Max, 2-Channel Amplifier
Orion Cobalt 2-channel class A/B car amplifier.
Specifications:
RMS Power Rating: 4 ohms: 100 watts x 2 chan. / 2 ohms: 155 watts x 2 chan. / Bridged, 4 ohms: 310 watts x 1 chan.
Max power output: 600 watts
MOSFET power supply
Tri-mode and bridgeable operation
LED power and protect indicators
Illuminated blue LED stripe design
Selectable bass boost (0, 6, 12 dB)
2/1 channel operation
High-level inputs (signal sensing for automatic turn on)
3-Way system protection circuitry (thermal, short circuit, and overload)
Heavy duty aluminum alloy convection heatsink
Chrome-plated RCA level input
Chrome-plated screw terminals
Input sensitivity (175mV-8V)
Damping factor (>100)
Continuously variable high-pass filter (50-500 Hz)
Continuously variable low-pass filter (50-500 Hz, 2nd order 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-30,000 Hz
Dimensions: 11-7/16"L x 8-1/8"W x 2-1/8"H
4-gauge power and ground wiring is required for installation
Legendary Products & Support From Authorized Dealers
When you choose Orion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Orion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Orion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Orion dealer today!

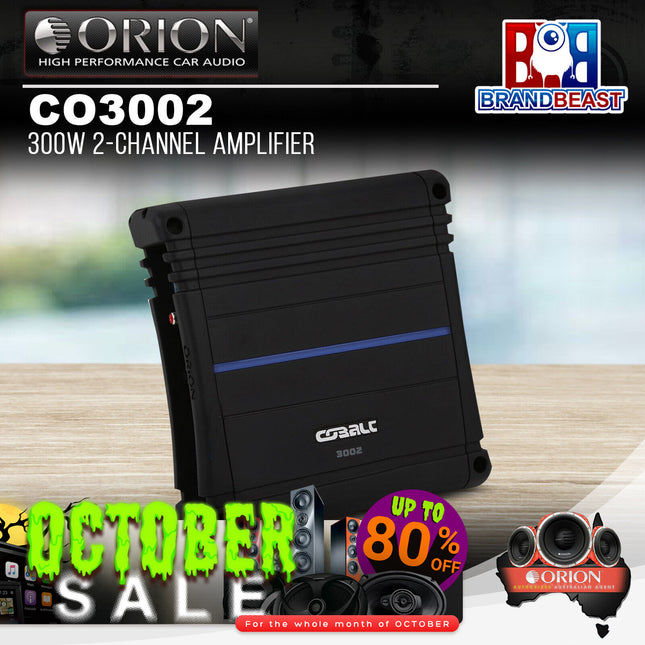

Offers More Power, More Quality and More Bang for Your Buck!
Cobalt series 2-channel class A/B car amplifier.
Specifications:
RMS Power Rating: 4 ohms: 60 watts x 2 chan. / 2 ohms: 80 watts x 2 chan. / Bridged, 4 ohms: 160 watts x 1 chan.
Max power output: 300 watts
MOSFET power supply
Tri-mode and bridgeable operation
LED power and protect indicators
Illuminated blue LED stripe design
Selectable bass boost (0, 6, 12 dB)
2/1 channel operation
High-level inputs (signal sensing for automatic turn on)
3-Way system protection circuitry (thermal, short circuit, and overload)
Heavy duty aluminum alloy convection heatsink
Chrome-plated RCA level input
Chrome-plated screw terminals
Input sensitivity (175mV-8V)
Damping factor (>100)
Continuously variable high-pass filter (50-500 Hz)
Continuously variable low-pass filter (50-500 Hz, 2nd order 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-30,000 Hz
Dimensions: 7-15/16"L x 8-1/8"W x 2-1/8"H
8-gauge power and ground wiring is required for installation
Legendary Products & Support From Authorized Dealers
When you choose Orion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Orion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Orion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Orion dealer today!

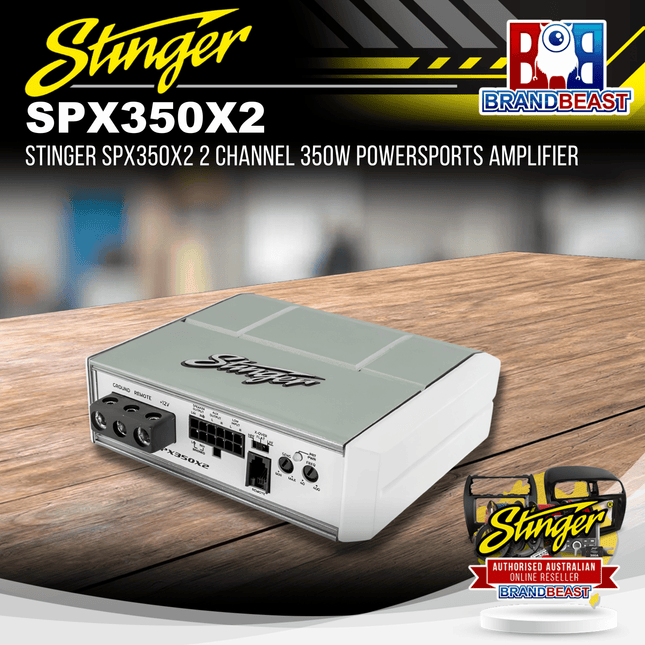

Stinger SPX350X2 2-Channel 350W Class D Powersports Amplifier with IPX-4/5 Weather Resistance
Built for the elements a compact, weather-resistant Class D powersports amplifier delivering 350W bridged into boats, ATVs, UTVs, motorcycles, and 4x4s where standard car amplifiers won't survive.
Product Overview
The Stinger SPX350X2 is a 2-channel Class D powersports amplifier engineered for use in harsh environments where conventional car amplifiers fall short. With an IPX-4/5 weather-resistant design, weather-resistant PCB, and D-Class MOSFETs, it is built to handle the moisture, dust, vibration, and wide voltage swings encountered in marine, off-road, ATV, UTV, motorcycle, and 4x4 applications.
The unregulated power supply design operates across a wide voltage range (8–16V), making it suitable for applications with non-standard battery systems. An AUX RCA pass-through output allows multiple SPX350X2 units to be daisy-chained from a single audio source, and an included remote volume control knob with mute function provides easy level adjustment.
Features & Benefits
IPX-4/5 weather-resistant design — moisture, splash, and dust resistant
Weather-resistant PCB for long-term durability in harsh environments
Full range Class D amplifier with D-Class MOSFETs
Unregulated power supply — operates across 8V to 16V
AUX RCA pass-through output for linking multiple amplifiers from one source
Included remote volume control knob with mute function
12dB/octave Linkwitz-Riley crossover, adjustable 40Hz–400Hz
Balanced 2-channel RCA input (200mV–12Vrms)
Diecast endcaps with removable mounting feet
Compact, low-profile footprint
Suitable for motorcycles, ATVs, UTVs, boats, marine, and mobile applications
Technical Specs
Specification
Detail
SKU / Part Number
SPX350X2
Brand
Stinger
Channels
2-Channel
Class
Class D (Full Range)
RMS Power @ 4Ω (Stereo)
125W RMS x 2
RMS Power @ 2Ω (Stereo)
175W RMS x 2
RMS Power @ 4Ω (Bridged)
350W RMS
Rated Voltage
14.4V
Operating Voltage Range
8V – 16V (Unregulated)
Preamp Input
2-Channel Balanced RCA
Input Voltage Range
200mV – 12Vrms (Balanced)
Preamp Output
2-Channel AUX RCA Pass-Through
Frequency Response
20Hz – 20kHz
Signal to Noise Ratio
>110dB (CEA Standard)
THD+N
<1%
Crossover
12dB/Octave Linkwitz-Riley, 40Hz–400Hz
Power / Ground Wire Gauge
8 AWG
Weather Rating
IPX-4/5
Endcaps
Diecast with removable mounting feet
What's in the Box
Amplifier, Volume Control Knob, Amplifier Fly Lead Harness, Manual
Compatible With / Goes Well With
Direct Vehicle Fit:
Universal — motorcycles, ATVs, UTVs, boats, marine vessels, 4x4 and off-road vehicles
Goes Well With:
Marine-grade speakers and powersports speakers
Additional SPX350X2 units (daisy-chainable via AUX RCA output)
Marine head units with RCA pre-outs
8 AWG power and ground wiring kits
Stinger powersports wiring accessories
Frequently Asked Questions
What does IPX-4/5 weather resistance mean for this amplifier?
IPX-4 provides protection against water splashing from any direction. IPX-5 adds protection against water jets. For a powersports amplifier, this means it can handle rain, spray, splashing water, and wet environments — though it is not fully waterproof and should not be submerged.
Can I run this amplifier in bridged mono mode?
Yes. The SPX350X2 delivers 350W RMS bridged into 4Ω, making it suitable for driving a single subwoofer or full-range speaker in high-output mono applications.
Can I link multiple SPX350X2 amplifiers from one audio source?
Yes. The AUX RCA pass-through output allows you to connect a second (or further) SPX350X2 amplifier directly from the output of the first, distributing a single audio source to multiple amplifiers without additional signal splitting equipment.
Why does this amplifier use an unregulated power supply?
Unregulated power supplies are better suited to applications with non-standard or fluctuating voltage — common in boats, ATVs, and motorcycles where charging systems and battery capacities vary. The SPX350X2 is designed to operate reliably across 8V to 16V.
What wire gauge do I need to install this amplifier?
Stinger specifies 8 AWG power and ground wiring for the SPX350X2. Using undersized wiring will limit power delivery and may cause overheating — always match or exceed the recommended gauge.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Ultra-Compact 400W Stereo Amplifier Class-AD Constant Power, C.L.E.A.N. Clip Detection, High-Level Inputs. Built for Cars, UTVs, and Motorcycles.
Product Overview
The Rockford Fosgate Power T400X2AD is a 400W 2-channel amplifier built on Rockford Fosgate's proprietary Class-AD technology a high-efficiency, ultra-compact design purpose-built for space-constrained vehicle applications including hybrid and electric vehicles, small cars, motorcycles, and side-by-side UTVs where conventional full-size amplifiers cannot be fitted.
Unlike the mono Class-BD amplifiers in the Power series, the T400X2AD is a stereo amplifier and introduces several integration-focused features not found in the larger mono models. A multi-impedance Constant Power configuration maintains the same output at both 4Ω and 2Ω a specific and measurable claim, rather than a generalised "all impedances" statement. High-level inputs with auto turn-on allow direct connection to a factory head unit without a remote turn-on wire, and the Remote-Out feature enables downstream accessories to be triggered when the amplifier engages via high-level input. C.L.E.A.N. clip detection with LED indicators provides real-time feedback of input and output clipping during gain structure setup a genuine installer aid. Dual fan forced induction, dual extruded heat sinks, and real-time thermal sensing manage temperature in the compact chassis.
Key Specifications
Power output: 400W total (2-channel — rated power per channel at specific impedance not confirmed — see Red-flags)
Amplifier class: Class-AD (Rockford Fosgate proprietary)
Configuration: 2-channel stereo
Constant Power: Yes — same output at 4Ω and 2Ω (multi-impedance)
Bridged operation: Yes — 4Ω bridged capable
High-level inputs: Yes — with auto turn-on
Low-level inputs: Yes (RCA)
Remote-Out: Yes — when using high-level inputs
C.L.E.A.N. input/output clip detection: Yes — with LED indicators
Crossover: Built-in (type/slope not specified — confirm with Rockford Fosgate)
Cooling: Dual fan forced induction + dual extruded heat sinks + real-time thermal sensing
Controls: Top mounted
Power/ground connectors: 8 AWG
RCA connectors: Upgraded
PLC2 remote: 2013 PLC2 remote ready
3-stage thermal lock extrusion: Yes
Discrete surface mount technology: Yes
Signal-to-noise ratio: Not specified — confirm with Rockford Fosgate
THD: Not specified — confirm with Rockford Fosgate
Frequency response: Not specified — confirm with Rockford Fosgate
Dimensions: Not specified — confirm with Rockford Fosgate
Weight: Not specified — confirm with Rockford Fosgate
Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
Class-AD Technology — Ultra-Compact High Efficiency — Rockford Fosgate's proprietary Class-AD topology delivers high efficiency in a substantially reduced physical footprint compared to traditional Class-AB amplifiers of similar output — enabling fitment in the constrained installation spaces of hybrid and electric vehicles, motorcycles, UTVs, and small cars where a full-size amplifier physically cannot be mounted.
Constant Power at 4Ω and 2Ω — Same Output at Both Impedances — Unlike a standard amplifier that produces significantly more power into 2Ω than 4Ω, the T400X2AD's multi-impedance Constant Power delivers the same output at both 4Ω and 2Ω. This provides consistent performance regardless of whether 4Ω or 2Ω speakers are connected — a particularly useful characteristic in vehicle applications where speaker impedance combinations can be mixed across the two channels.
High-Level Inputs with Auto Turn-On — Direct connection to a factory head unit's speaker outputs without requiring a low-level RCA output or a dedicated remote turn-on wire. The amplifier automatically activates when signal is detected — essential for hybrid and electric vehicles, and modern OEM systems that do not expose a traditional remote output.
Remote-Out Feature via High-Level Input — When the T400X2AD is activated via high-level auto turn-on, its Remote-Out output provides a 12V trigger signal to power downstream accessories — maintaining the ability to control a subwoofer amplifier or other 12V accessories without a direct remote wire from the head unit.
C.L.E.A.N. Input/Output Clip Detection with LED Indicators — Rockford Fosgate's Circuit Level Evaluation And Normalisation (C.L.E.A.N.) system monitors both the input and output stages for clipping, with separate LED indicators for each. This allows precise gain setting during installation — removing guesswork from a process that is the most common cause of speaker and amplifier damage in car audio systems.
Top Mounted Controls — All adjustment controls are accessible from the top of the amplifier chassis — gain, crossover, and C.L.E.A.N. indicators are accessible without removing the amplifier from its mounting position, simplifying setup and fine-tuning in confined installations.
Dual Fan Forced Induction Cooling — Active cooling via dual fans allows the compact chassis to manage the heat generated by sustained 400W output — preventing thermal throttling in confined or poorly ventilated installation locations common in small vehicles and UTVs.
Dual Extruded Heat Sinks with Real-Time Thermal Sensing — Passive heat sinking combined with real-time thermal monitoring provides a staged thermal management approach. The 3-stage thermal lock extrusion protects the amplifier from sustained overload rather than simply shutting down, maximising uptime in demanding installations.
4Ω Bridged Capable — The two channels can be bridged to drive a single 4Ω subwoofer or full-range speaker at higher combined output — adding subwoofer integration capability to the compact amplifier's application range.
2013 PLC2 Remote Ready — Compatible with Rockford Fosgate's PLC2 remote level control, enabling a dash-mounted remote bass level adjustment without accessing the amplifier directly.
Discrete Surface Mount Technology — Internal construction using discrete SMT components rather than integrated modules contributes to the compact physical size while maintaining high-quality signal path components.
Technical Specs
Specification
Detail
Brand
Rockford Fosgate
Part Number
T400X2AD
Series
Power
Power Output
400W (2-channel total)
Amplifier Class
Class-AD (Rockford Fosgate proprietary)
Configuration
2-Channel Stereo
Constant Power
Yes — same output at 4Ω and 2Ω
Bridged Operation
Yes — 4Ω bridged capable
High-Level Inputs
Yes — with auto turn-on
Low-Level Inputs
Yes (RCA)
Remote-Out
Yes (when using high-level inputs)
C.L.E.A.N. Clip Detection
Input and output — with LED indicators
Crossover
Built-in — type/slope not specified
Cooling
Dual fan + dual extruded heat sinks + real-time thermal sensing
Controls
Top Mounted
Power/Ground Connectors
8 AWG
RCA Connectors
Upgraded
PLC2 Remote
2013 PLC2 Remote Ready
Construction
Discrete Surface Mount Technology
Rated Power per Channel
Not specified — confirm with Rockford Fosgate
Frequency Response
Not specified
Signal-to-Noise Ratio
Not specified
THD
Not specified
Dimensions
Not specified
Weight
Not specified
Warranty
Not specified — confirm with Rockford Fosgate
Compatible With / Goes Well With
Suitable vehicle applications:
Hybrid and electric vehicles (high-level input auto turn-on eliminates dependency on remote wire)
Small cars and hatchbacks with limited installation space
Motorcycles and touring bikes with compact battery and mounting constraints
Side-by-side UTVs (Polaris RZR, Can-Am Maverick, and similar)
Trucks and SUVs requiring a compact stereo amplifier solution
Suitable speaker configurations:
2-channel 4Ω or 2Ω stereo speaker configuration
Bridged mono to single 4Ω subwoofer or full-range speaker
Factory speaker upgrade using high-level input connection
Pairs well with:
Aftermarket door speakers (4Ω or 2Ω) for a direct factory integration upgrade
A dedicated mono subwoofer amplifier powered via Remote-Out
Rockford Fosgate PLC2 remote level control (2013 compatible)
8 AWG amplifier wiring kits
Frequently Asked Questions
What does Class-AD mean and how does it differ from Class-AB or Class-D?
Class-AD is Rockford Fosgate's proprietary amplifier topology, engineered for high efficiency in a compact physical footprint. It is distinct from both Class-AB (which is thermally demanding and physically large) and standard Class-D (which can have audio quality trade-offs). The specific efficiency and distortion characteristics of Class-AD should be confirmed from the Rockford Fosgate T400X2AD datasheet.
How does the high-level auto turn-on work with a factory head unit?
The high-level inputs accept signal directly from the factory head unit's speaker outputs. When the head unit produces audio signal, the amplifier detects this and activates automatically — no dedicated remote turn-on wire from the head unit is required. The Remote-Out feature then provides a 12V output to trigger downstream accessories.
What does C.L.E.A.N. clip detection do during amplifier setup?
C.L.E.A.N. (Circuit Level Evaluation And Normalisation) monitors both the input and output stages of the amplifier for clipping. During gain setting, the LED indicators illuminate when the input or output clips — allowing the installer to set the gain at the highest level before clipping occurs, maximising output without inducing distortion. This removes the guesswork from a critical step that directly affects sound quality and component life.
Can the T400X2AD be bridged to run a subwoofer?
Yes. Both channels can be bridged to drive a single 4Ω subwoofer or full-range speaker. Confirm the bridged power output at 4Ω with Rockford Fosgate or the official datasheet before specifying for a specific subwoofer.
Is the T400X2AD suitable for a UTV or motorcycle?
Yes. The ultra-compact Class-AD chassis, dual fan cooling for confined spaces, and high-level auto turn-on for non-standard electrical systems make the T400X2AD specifically suited to UTV and motorcycle audio applications. Confirm physical dimensions with Rockford Fosgate to verify fitment in your specific UTV or motorcycle audio enclosure before purchasing.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

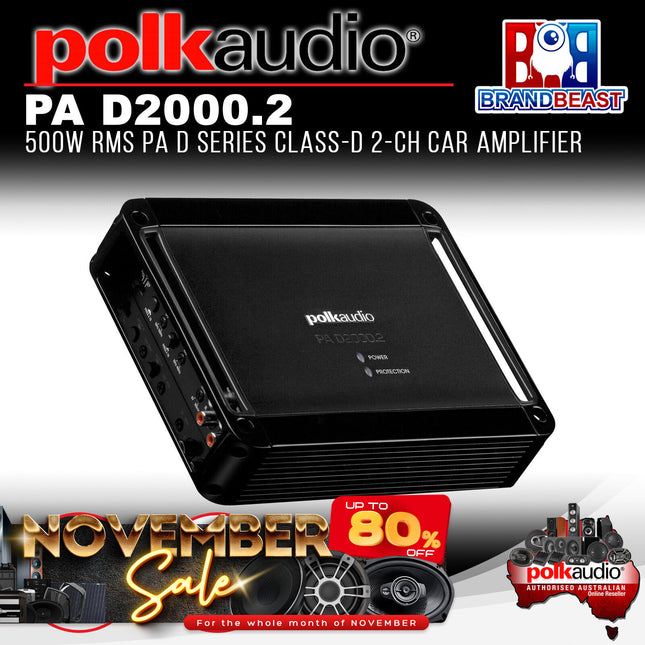

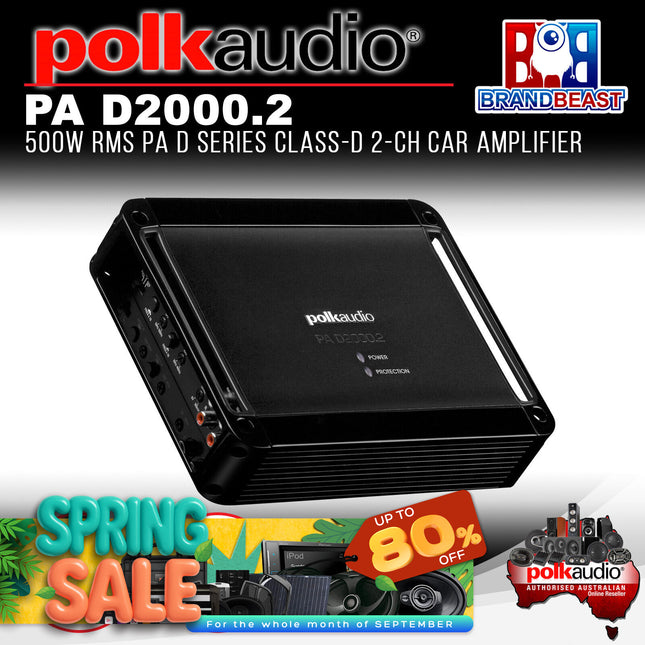

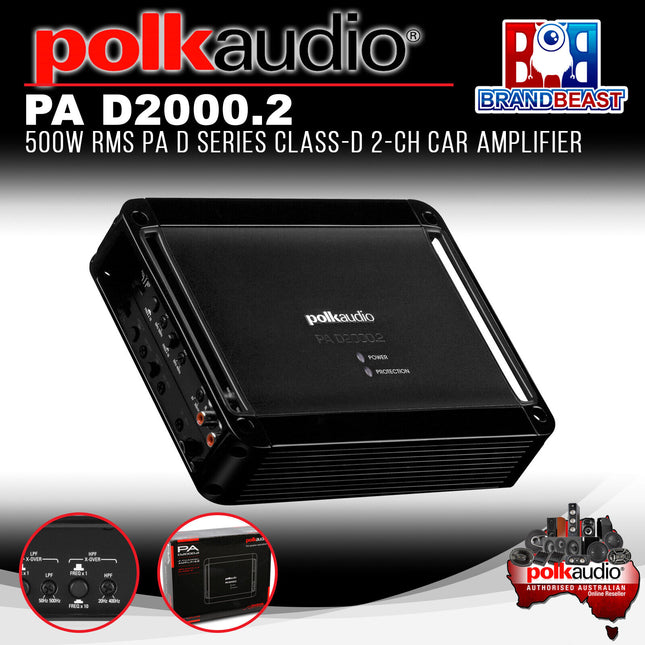

Highlights: What's In The Box: Similar Products Polk Audio PA880 800W 1-Channel Amplifier $499.00 Polk Audio PA D1000.1 1200W PA D Series Monoblock $659.00 Polk Audio PA D2000.2 PA D Series 2-Channel Class $449.00 Polk Audio PA D4000.4 4-Channel Car Amplifier $659.00 Polk Audio PA D5000.5 PA D Series 5-Channel Class $825.00 Highlights: 2-CHANNEL CAR AMPLIFIER 125 WATTS RMS X 2 AT 4 OHMS (250 WATTS RMS X 2 AT 2 OHMS) 500 WATTS RMS X 1 IN BRIDGED MODE (4-OHM STABLE IN BRIDGED MODE) VARIABLE HIGH-PASS FILTER (20-4000 HZ, 12 DB PER OCTAVE) VARIABLE LOW-PASS FILTER (50-5000 HZ, 12 DB PER OCTAVE) PREAMP INPUTS AND OUTPUTS FUSE RATING: 25A X 2 4-GAUGE POWER AND GROUND LEADS RECOMMENDED — WIRING AND HARDWARE NOT INCLUDED WITH AMPLIFIER 9"W X 1-13/16"H X 6-3/4"D
Legendary Products & Support From Authorized Dealers
When you choose Polk Audio, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Polk Audio dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Polk Audio's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Polk Audio dealer today!

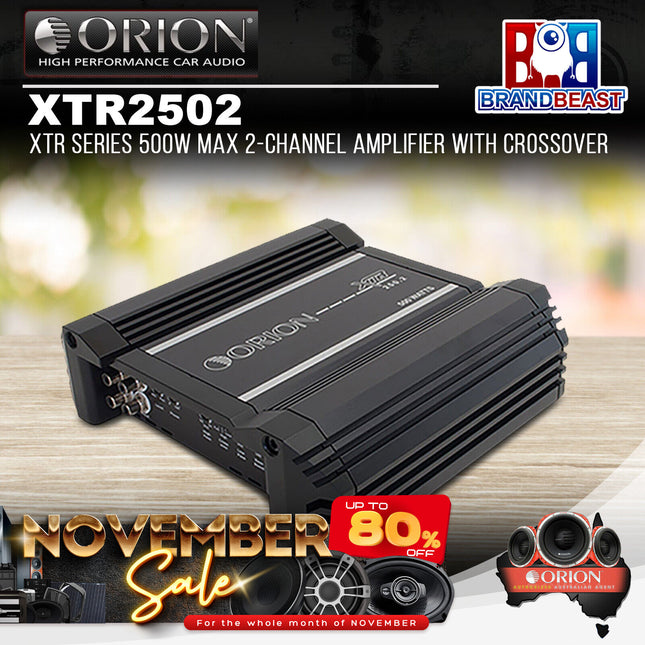

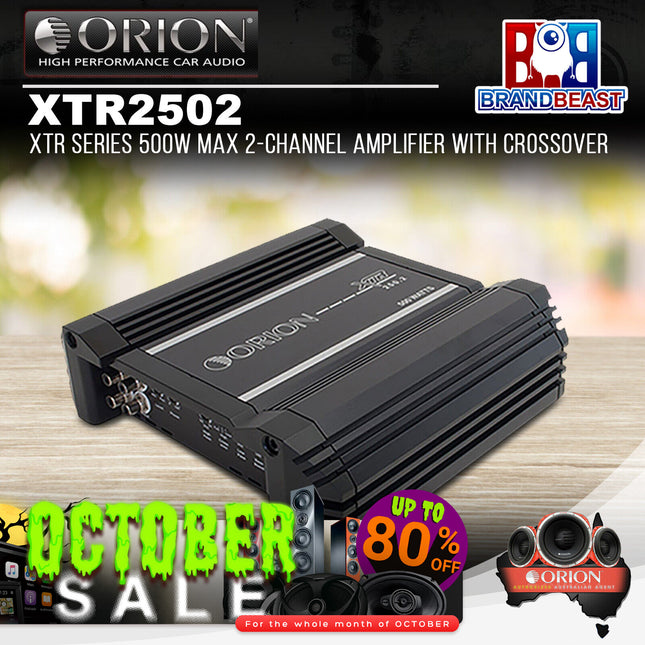

Designed to Be a True Worldwide Product! Orion 500W max 2-channel XTR series amplifier with crossover. Specifications: RMS Power Rating: ¢ 4 ohms: 70 watts x 2 chan. ¢ 2 ohms: 140 watts x 2 chan. ¢ Bridged, 4 ohms: 250 watts x 1 chan. Max power output: 500 watts MOSFET Power supply and output stage Power and protection LED Indicators Low-level RCA Inputs Accepts high-level speaker inputs from an OEM stereo Thermal, DC offset, short protection and under-voltage protection X-Over (crossover) activates the low-pass, FLAT and high-pass crossovers X-Over frequency control adjusts the frequency for the high- and low-pass filters Silver-plated RCA level inputs Silver-plated screw terminals Variable high-pass filter (50-2,000 Hz, 12 dB/octave) Variable Low-pass filter (50-2,000 Hz, 12 dB/octave) Subsonic Filter (12 dB at 24 Hz) Frequency response: 20-20,000 Hz CEA-2006 compliant amplifier Dimensions: 9-1/4"L x 8-3/4"W x 2-1/2"H 4-gauge power and ground wiring is required for installation
Legendary Products & Support From Authorized Dealers
When you choose Orion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Orion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Orion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Orion dealer today!

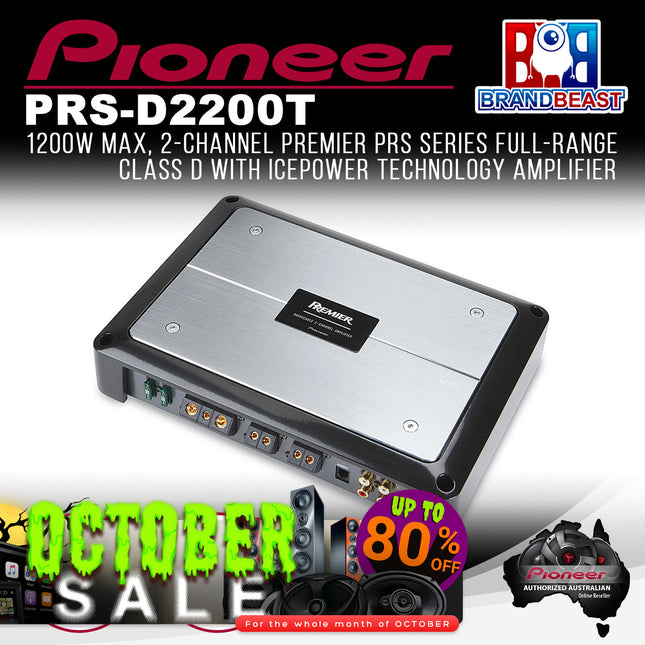

The Reference In Car Audio Amplification Get Pure Sound Using Pioneer PRS Amplifiers The goal of a good amplifier is to cleanly amplify the music signal, free of distortion or added color. The Premier PRS-D2200T is a new generation of Class FD (Full-Range Class D) amplifiers that clearly achieves this goal. Using an exclusing designed ICEpower circuit, music comes through clear, crisp and detailed. Class-FD ICEpower Amplifier Class-FD (Full Range Class-D) ICEpower amplifiers combine ultra-efficient Class-D circuitry and ICEpower digital amplifier technology for cleaner, truer sound quality featuring tight bass with minimal lag effect; crisp, airy mids and highs; and unsurpassed specifications. The key to superior full range performance is Controlled Oscillation Modulation (COM) and Multivariable Enhanced Cascade Control (MECC). Superior Channel Separation PRS amplifiers feature Left and Right independent signal circuitry that eliminates signal interference between the channels and achieves excellent channel separation throughout a wider frequency range. Full Custom-Made Power Supply Capacitor Bank In the quest for optimal bass, Pioneer focused on the PRS amplifier's power handling. With a high-capacity, custom-made capacitor bank adapted to the power supply section, this amp supplies power with rock-solid stability, and does an excellent job of reproducing low-frequency sound. Linear Technology Operational Amplifier The PRS amplifier features this Linear Technology Corporation operational amplifier (OP AMP) used in high-end home audio amplifiers for its precise gain and sound linearity characteristics. The PRS-D1200M includes the OP AMP in its bass boost circuitry to prevent sound quality deterioration. Energy Saving Design A huge benefit is the Class FD design, which consumes far less current than traditional amplifier designs. This results in less draw on your vehicle's alternator, and could actually improve fuel mileage in many cases. It also allows for a compact chassis (heatsink) that takes up less space and provides more installation flexibility. Variable Crossover (40~500Hz, HPF/LPF) For added flexibility, the variable crossover lets you optimize your system's efficiency and delivers the best possible sound quality. You can adjust it continuously between 40 to 500Hz, as well as selecting from either High-Pass Filter (use for your main speakers) or Low-Pass Filter (use for your subwoofers), giving you the ultimate flexibility in setting up your system. Selectable Bass Boost with Wired Bass Remote So you're in the driver's seat going 65mph and you want to fine-tune the bass boost. But the amp's out of reach, way in the back. What are you supposed to do — pull over, get out, and run around to the trunk? That's why the PRS-D2200T comes with a wired bass remote. It's set at 50Hz, ideal for tuning in some more thump from your subwoofers. And because this is selectable bass boost, you can set the level at 0dB, 6dB, or 12dB, whichever sounds best to you. Speaker Level Inputs What, you DON'T own a Pioneer headunit? Well, we won't hold it against you. In fact we'll even help you build onto your system. The PRS-D2200T's speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. Premier® Two-Year Warranty The warranty on this model is two years — double the warranty period of typical models currently on the market. Features: Bridegeable 1/2-Channel Capability Bass Boost Remote Variable LPF/HPF (40 Hz to 500 Hz, -12 dB/oct) Input level control (400 mV to 6.5 V) Low load impedance capability (4 ohm, 2 to 8 ohm allowable) Gold-Plated RCA input & output terminals, speaker terminals, and power/ground terminals Speaker level input (1.6 V to 26 V) Speaker line turn on sensor High-performance balanced isolator input circuit High-Efficiency MOSFET output section TVC (Total Vibration Control) Technology CEA2006 Specifications: 150 Watts x 2, at 4 ohms <= 1% THD+N 600 Watts x 1, at 4 ohms BRIDGE <= 1% THD+N 80 dBA Signal-to-Noise Ratio (Reference: 1 Watt Output) Specifications: Peak Music Power: 1200 Watts Number of Channels: 20 Load Impedance Capability: 2~8 Ohm (Stereo), 4~8 Ohm (Bridged) Continuous Power (4 Ohms): 150W x 2 Continuous Power (2 Ohms): 300W x 2 Continuous Power Bridged (4 Ohms): 600W x 1 Frequency Response: 10Hz ~ 40kHz Total Harmonic Distortion: 0.005% Signal-to-Noise Ratio: 100 dB Dimensions: 12 x 2-1/4 x 8 Input Level Control: Hi-Volt (400mV ~ 6.5V) Built-in Crossover: 2ch. HPF/LPF Crossover Frequency Range: 40~120Hz, -12dB/Oct. Bass Level Control: 50Hz, 0/6/9/12dB, with Remote
Legendary Products & Support From Authorized Dealers
When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Pioneer dealer today!
