6"×9" 2-Way Power Series Coaxial 100W RMS, 90dB, 50Hz–22kHz, CEA-2031. Carbon Fibre Cone, Aluminium Dome Tweeter, 12dB/Octave Butterworth Crossover.
Product Overview
The Rockford Fosgate Power T1692 is a 6"×9" 2-way coaxial speaker rated at 100W RMS (200W peak) the highest-powered and most sensitive model in the Power series coaxial range in this catalogue. Confirmed specifications include 4-Ohm impedance, 90dB sensitivity at 1W/1M, 50Hz to 22kHz frequency response, 87mm (3.43") mounting depth, a 1" (25.4mm) aluminium dome tweeter with 12dB/octave Butterworth HP crossover, and CEA-2031 compliance. Grilles are confirmed included.
The T1692 uses the Power series carbon fibre and polypropylene composite cone, aluminium dome tweeter with polyurethane suspension, butyl rubber surround, and ICC (Integrated Concealed Crossover). Shipping weight is confirmed at 5.72 kg per pair.
Key Specifications
Speaker size: 6"×9" (oval)
Configuration: 2-way coaxial
Power handling (RMS): 100W per speaker (CEA-2031 compliant)
Power handling (peak): 200W per speaker
Impedance: 4-Ohm
Sensitivity: 90dB @ 1W/1M
Frequency response: 50Hz – 22kHz
Mounting depth: 3.43" (87mm)
Tweeter: Aluminium dome, 1" (25.4mm), polyurethane suspension
Crossover: Built-in HP 12dB/octave Butterworth (ICC)
Cone: Carbon fibre and polypropylene injection-moulded composite
Surround: Butyl rubber
Basket: Not specified — confirm with Rockford Fosgate
OEM adapter plate: Not mentioned — confirm with Rockford Fosgate
Grilles: Included ✓
Mounting hardware: Not mentioned
Sold as: Pair (2 speakers — confirmed in description)
CEA-2031 compliant: Yes
Shipping weight: 12.6 lbs (5.72 kg) per pair
Cutout dimensions: Not specified — confirm with Rockford Fosgate
Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
100W RMS CEA-2031 — 100W RMS is the highest confirmed power rating in the Power series coaxial range, confirmed to the CEA-2031 industry standard. The 200W peak rating provides headroom for dynamic programme material.
90dB Sensitivity — At 90dB, the T1692 is the most efficient confirmed Power series coaxial in this catalogue — producing the highest sound pressure level per watt, performing well from both factory head unit power and amplified installations.
50Hz – 22kHz Frequency Response — A lower limit of 50Hz from a 6"×9" oval covers substantial bass content including bass guitar, kick drum, and lower vocal fundamentals — meaningful low-frequency extension without requiring a subwoofer for moderate listening levels.
87mm Mounting Depth — At 3.43" (87mm), the T1692 is deep. Confirm that the available door cavity depth in your vehicle can accommodate 87mm before purchasing — this is a critical fitment measurement for rear deck and door installations.
1" Aluminium Dome Tweeter with 12dB/Octave Butterworth Crossover — A 1" (25.4mm) aluminium dome with polyurethane suspension delivers fast, detailed high-frequency output. The built-in 12dB/octave Butterworth ICC provides a maximally flat frequency response through the crossover region for smooth treble integration.
Carbon Fibre and Polypropylene Composite Cone — The injection-moulded composite delivers a lighter, stiffer diaphragm than standard polypropylene — improving midrange accuracy and transient response.
Butyl Rubber Surround — UV and heat-resistant synthetic rubber for long-term reliability in Australian vehicle conditions.
Grilles Included — Confirmed grille inclusion for a finished appearance.
Technical Specs
Specification
Detail
Brand
Rockford Fosgate
Part Number
T1692
Series
Power
Speaker Size
6"×9" (oval)
Configuration
2-Way Coaxial
Power Handling (RMS)
100W per speaker ✓ (CEA-2031)
Power Handling (Peak)
200W per speaker ✓
Impedance
4-Ohm ✓
Sensitivity
90dB @ 1W/1M ✓
Frequency Response
50Hz – 22kHz ✓
Mounting Depth
3.43" (87mm) ✓
Tweeter
Aluminium Dome, 1" (25.4mm), Polyurethane Suspension ✓
Crossover
HP 12dB/Octave Butterworth (ICC) ✓
Cone
Carbon Fibre & Polypropylene Composite
Surround
Butyl Rubber
Basket
Not specified — confirm with Rockford Fosgate
CEA-2031 Compliant
Yes ✓
Grilles
Included ✓
Mounting Hardware
Not mentioned
OEM Adapter Plate
Not mentioned — confirm with Rockford Fosgate
Sold As
Pair (2 speakers) ✓
Shipping Weight
12.6 lbs / 5.72 kg per pair ✓
Cutout Dimensions
Not specified — confirm with Rockford Fosgate
Warranty
Not specified — confirm with Rockford Fosgate
Compatible With / Goes Well With
Suitable installation positions:
Factory 6"×9" oval rear deck, parcel shelf, and door panel speaker positions
Common rear deck format across a wide range of Australian passenger vehicles
Pairs well with:
Rockford Fosgate T400-4, T600-4, or T1000-4AD 4-channel amplifiers
Dedicated subwoofer for bass below 50Hz
Weight
5.72 kg per pair (shipping weight).
Frequently Asked Questions
Is mounting hardware included with the T1692?
The product description states that mounting hardware is included, while the specification table states "Mounting Hardware: No." This is a direct conflict in the supplier data. Confirm with Rockford Fosgate before purchasing.
What is the confirmed mounting depth for the T1692?
3.43" (87mm) — confirmed in the specification table. This is a substantial depth for a 6"×9" oval speaker. Many rear deck and door installations have limited cavity depth; confirm your vehicle's available depth before purchasing.
What are the confirmed power and sensitivity specifications?
100W RMS (CEA-2031 compliant) and 90dB sensitivity at 1W/1M are both confirmed. These are the highest confirmed figures in the Power series coaxial range in this catalogue.
What crossover does the T1692 use?
A built-in 12dB/octave Butterworth high-pass crossover (ICC) — integrated into the tweeter assembly. The Butterworth alignment produces a maximally flat frequency response through the crossover region. Crossover frequency point (Hz) is not confirmed in the supplier data — pull from the official Rockford Fosgate T1692 datasheet.
What is the difference between the 100W RMS and 200W peak ratings?
RMS is the sustained continuous power the speaker safely handles over time — the relevant figure for amplifier matching. Peak (200W) is the transient power the speaker can briefly handle during dynamic programme peaks. Always match amplifier output to the RMS rating.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Stadium Series Component Speakers from JBL!
JBL 870W Peak (290W RMS) 6″ x 9″ Stadium series 2-way component speaker system.
Features:
435 watts Peak Each, 145 watts RMS Each
3/4″ Aluminum Dome Tweeters
Glass Fiber cone material
Impedance: 3 ohms
Sensitivity: 94 dB
Specifications:
Size, inches (mm) 6√ó9 (168√ó240)
Design 2-way comp
Grilles Included Yes
Continuous Power 145W
Peak Power 435W
Frequency Range 35Hz-40kHz
Nominal Impedance 3.0ohms
Sensitivity (2.83V/1m) 94dB
What's in the Box:
Speakers (2)
Tweeters (2)
Tweeter flush mounts (2)
Tweeter surface mounts (2)
Crossover networks (2)
Mounting screws (8)
Mounting clips (8)
Speaker connection cables (2)
Adhesive brand badges
User manual
Legendary Products & Support From Authorized Dealers
When you choose JBL, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized JBL dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by JBL's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized JBL dealer today!
Stadium Series Car Speakers from JBL!
JBL 720W peak (240W RMS) 6×9″ Stadium series 3-way 3-ohm coaxial car speaker.
Features:
360 watts Max Each, 120 watts RMS Each
3/4″ Aluminum Dome Tweeters
Fiberglass cone material
Impedance: 3 ohms
Sensitivity: 94 dB @ 2.83 V
Mounting Depth: 3.15″
Specifications:
Size, inches (mm) 6√ó9 (168√ó240)
Design 3-way coax
Grilles Included Yes
Continuous Power 120W
Peak Power 360W
Frequency Range 35Hz-40kHz
Nominal Impedance 3.0ohms
Sensitivity (2.83V/1m) 94dB
What's in the Box:
Speakers (2)
Grilles (2, attached)
User manual
Quick start guide
Brand sticker/decal
2 Adhesive backed foam gaskets
Eight 1-3/8″ Screws
8 Speed clips
Legendary Products & Support From Authorized Dealers
When you choose JBL, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized JBL dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by JBL's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized JBL dealer today!
Unleash the Power: Orion XTR Series Speakers – Where Bold Sound Meets Endurance!
The Orion XTR Series speakers are proud to be loud! These mean speakers can handle just about anything you throw at them and they show no mercy. These speakers can be properly powered from an aftermarket receiver or an amplifier. Advanced speaker engineering keep the speaker's cool and performing properly, even when they have been playing for a long time. The UV Coated fiber blended cones have the Orion logo on the dust cap, making it easy for you to show the world what speakers you have.
Features:
Cone Moisture and UV resistant paper cone
Surround Butyl rubber
Voice Coil 2 layer copper wire on a Kapton former
Tweeter Silk Dome - Ferrofluid
Spider Nomex
Stamped steel baskets with Euro mounting configurations
Specifications:
Nominal Impedance (ohms) 4
RMS/Power Continuous/Maximum (watts) 95/190/500
Frequency Response (Hz) 55 to 22k
Sensitivity (dB) 93
Mounting Depth (inches) 3.31
Mounting Diameter (inches) 5.87x8.39
What's in the Box:
1 x Owner's Manual
1 x Mounting template
2 x XTR coaxial speakers
2 x Grilles
Mounting screws
Legendary Products & Support From Authorized Dealers
When you choose Orion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Orion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Orion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Orion dealer today!
Designed to Deliver Infinity's Signature Sound
They feature edge-driven textile tweeters for smooth, clear highs and the larger models ofter an adjustable tweeter output level control for optimization based on installation location. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered basket is optimized to fit most factory openings. Available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component—they’re the perfect upgrade from factory speakers.
Edge-Driven, Textile TweetersThe tweeters in Infinity Reference speakers play smooth, never-harsh regardless of output level.
Adjustable Tweeter Output LevelThe larger Reference coaxial models and the component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.
Plus One™ Woofer Cone ArchitectureHarman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and greater musical character.
Optimized Frame SizeReference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature Infinity sound in more vehicles.
Competitive PricingReference speakers provide signature Infinity sound at affordable prices.
Specifications:
Power Handling 125W RMS, 375W peak
Sensitivity (@2.83V) 93dB
Frequency Response 46Hz – 21kHz
Impedance 3.0 ohms
What's In the Box:
1 pair of woofers
1 pair of tweeters
1 pair of speaker grilles
1 pair of crossovers
1 pair of woofer adapter rings
1 pair of tweeter surface mount accessories
1 pair of tweeter flush mount accessories
1 pair of tweeter nuts
1 pair of tweeter flat washers
6 tweeter mounting screws
8 woofer mounting screws
8 crossover mounting screws
8 speed clips
1 pair of spacers
Foam mounting tape
Owner's manual
Legendary Products & Support From Authorized Dealers
When you choose Infinity, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Infinity dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Infinity's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Infinity dealer today!
Rockford Fosgate P1V2-69 Punch P1 6"x9" 3-Way Coaxial Speakers
Premium 6"x9" 3-way coaxial speakers engineered with VAST 2.0 technology and Auto Fit Architecture for seamless integration and relentless performance in modern vehicles.
Product Overview
The Rockford Fosgate P1V2-69 Punch P1 represents the next generation of automotive audio excellence, specifically engineered for vehicles featuring 6"x9" factory speaker locations and built to deliver commanding performance that puts you in control of your listening experience. Powered by advanced VAST 2.0 technology, these speakers provide a 25% increase in cone area compared to previous generations, resulting in maximum output and deeper, more impactful bass that transforms your driving experience with extended low-frequency response down to 45Hz and exceptional efficiency rating of 89dB sensitivity. The Auto Fit Architecture features redesigned frame geometry, precision-engineered mounting holes, removable motor cover, and optimized speaker dimensions ensuring seamless integration into today's modern vehicles without compromise or modification requirements in the popular 6"x9" format. The Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges provide precise alignment for drop-in integration into most factory mounting locations, making installation straightforward and adaptable regardless of your vehicle's configuration including rear deck and door panel applications. Built with class-leading construction including reinforced carbon fiber baskets, Santoprene surrounds, and Nomex spiders, every component and material was chosen for strength and engineered for the long haul, delivering relentless performance that lasts no matter how hard you drive them through demanding listening sessions. The Tru-Sight tweeter configuration ensures precise high-frequency alignment with exceptional clarity, while the 3-way array including inverted dome tweeter and piezo super tweeter reproduces every note with accuracy across the full frequency spectrum from 45Hz to 25kHz.
Features & Benefits
VAST 2.0 Technology: Advanced cone design delivers 25% increase in cone area compared to previous generation, resulting in maximum output capability and deeper, more impactful bass response with extended low-frequency extension down to 45Hz that significantly outperforms standard factory speakers and traditional coaxial designs in the popular 6"x9" format.
Auto Fit Architecture: Comprehensive engineering approach featuring redesigned frame geometry, updated mounting flanges, removable motor cover, and optimized 6"x9" oval dimensions ensuring seamless integration into modern vehicles with drop-in fitment that eliminates modification requirements and installation complications in challenging oval speaker locations commonly found in rear decks.
Tru-Sight Tweeter Alignment: Precision-engineered 3/4-inch Tetolon inverted dome tweeter with co-witnessed 3/8-inch polypropylene piezo super tweeter ensures accurate high-frequency reproduction and optimal sound staging, delivering crystal-clear vocals and detailed cymbal reproduction with exceptional imaging characteristics across the entire listening area for immersive audio experience.
Reinforced Carbon Fiber Basket: 15% glass-fiber reinforced PA66 injection-molded composite basket construction provides superior strength and rigidity compared to stamped steel baskets, eliminating resonance and flex while maintaining structural integrity under extreme output conditions for distortion-free performance and precise woofer control throughout the excursion range.
Santoprene Half-Roll Surround: Premium Santoprene surround material chemically bonded to mica-reinforced polypropylene cone delivers exceptional low distortion characteristics and unmatched fatigue resistance, maintaining consistent performance through temperature extremes and years of demanding use without deterioration, cracking, or performance degradation common with inferior rubber compounds.
Nomex Spider Assembly: Fatigue and tear-resistant linear Nomex spider with ultra-flexible braided tinsel leads securely stitched to spider ensures consistent excursion control and excellent durability, maintaining proper voice coil alignment throughout the speaker's operational life even under high-power conditions and extreme listening levels that would damage conventional spider materials.
ICC+ Concealed Crossover: Internal Concealed Crossover with 6dB/octave network seamlessly integrated into speaker assembly eliminates external mounting requirements while ensuring optimal frequency distribution to tweeter, super tweeter, and woofer for balanced, cohesive sound reproduction across the entire frequency range without external black boxes or additional installation complexity.
Removable Motor Cover: Innovative removable motor cover design accommodates tight mounting applications where rear clearance is limited, providing installation flexibility in challenging locations while maintaining full performance capability without compromising magnetic motor structure integrity, output potential, or thermal management characteristics.
CTA-2031 Compliant: Certified to industry-standard testing protocols ensuring published specifications for power handling and performance meet rigorous requirements, guaranteeing reliable operation and accurate performance claims backed by independent verification and truth-in-advertising compliance demonstrating commitment to honest specifications.
Technical Specifications
Specification
Details
Brand
Rockford Fosgate
Model Number
P1V2-69
Series
Punch P1
Speaker Type
3-Way Coaxial
Size
6" x 9" (152mm x 229mm)
Power Handling (RMS)
75 Watts
Power Handling (Peak)
150 Watts
Impedance
4 Ohm
Frequency Response
45 Hz - 25 kHz
Resonant Frequency (Fs)
60 Hz
Sensitivity (1W/1M)
89 dB
Sensitivity (2.83V/1M)
92 dB
Tweeter Size
3/4 inch (19mm) Inverted Dome
Tweeter Type
Tetolon Inverted Dome
Super Tweeter Size
3/8 inch (9mm) Co-Witnessed Convex
Super Tweeter Type
Polypropylene Piezo
Voice Coil Diameter
1 inch (25.4mm)
Woofer Cone Material
20-40% Mica Reinforced Polypropylene
Surround Material
Santoprene Half-Roll
Spider Material
Nomex Linear
Basket Material
15% Glass-Fiber Reinforced PA66 Composite
Voice Coil Former
Vented Kapton
Motor Structure
High-Strength Y35 Ferrite (5mm Larger)
Crossover Type
ICC+ Internal Concealed 6dB/Octave
Tweeter Crossover Point
9kHz @ 6dB/Octave High-Pass
Cutout Diameter
8.4" x 5.71" (213.5mm x 145mm)
Mounting Depth (With Cover)
3.13 inches (79.4mm)
Minimum Mounting Depth (No Cover)
2.76 inches (70mm)
Front Side Clearance
0.42 inches (10.6mm)
Removable Motor Cover
Yes
Grille Included
No (Sold Separately)
CTA-2031 Compliant
Yes
Warranty
2 Years
Quantity
2 Speakers (Pair)
Compatible With

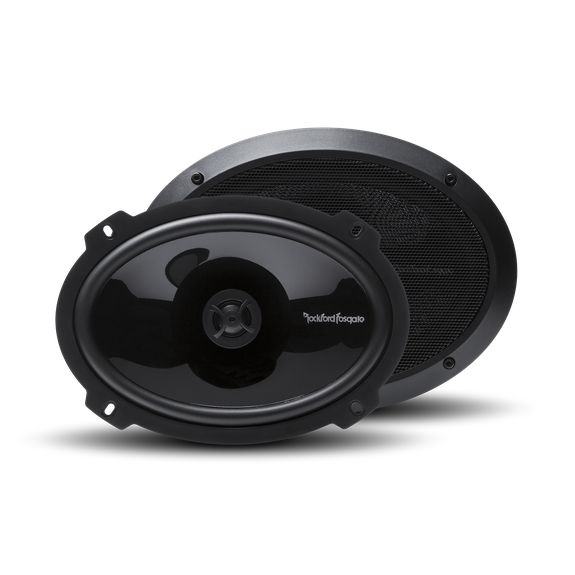

The Rockford Fosgate P1V2-69 features universal 6"x9" fitment compatible with vehicles featuring 6"x9" factory speaker locations. The Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges accommodates various mounting configurations including rear deck installations and door panels where oval speaker locations are specified. The removable motor cover provides installation flexibility in tight mounting applications with limited rear clearance. Verify your factory speaker size is 6"x9", cutout dimensions accommodate 8.4" x 5.71", and mounting depth allows minimum 2.76 inches clearance (or 3.13 inches with motor cover installed).
Frequently Asked Questions
Q: Will these speakers fit my vehicle? A: The P1V2-69 fits most vehicles with 6"x9" oval speaker openings. Verify your factory speaker size is 6"x9", cutout dimensions accommodate 8.4" x 5.71", and mounting depth allows at least 2.76 inches clearance without motor cover or 3.13 inches with cover. The Auto Fit Architecture with F.L.W.R. technology accommodates various mounting configurations. Contact us with your vehicle year, make, and model for specific fitment confirmation.
Q: Do I need an external amplifier for these speakers? A: No external amplifier is required. The P1V2-69 performs excellently with factory head units and amplifiers rated at 75 watts RMS per channel. However, pairing with an aftermarket amplifier capable of delivering 75 watts RMS at 4 ohms per channel will maximize VAST 2.0 technology performance potential and unlock the full dynamic range and extended bass response these speakers are capable of delivering.
Q: What's the advantage of VAST 2.0 technology in this 6"x9" speaker? A: VAST 2.0 technology provides a 25% increase in cone area compared to previous generation speakers, resulting in significantly greater output capability and deeper bass response extending down to 45Hz. This advanced design maximizes the available 6"x9" oval speaker diameter to deliver performance typically associated with dedicated subwoofer systems while maintaining compatibility with standard factory mounting locations.
Q: Are speaker grilles included with these speakers? A: No, grilles are sold separately. The P1V2-69 package includes two speakers, cutout template, mounting hardware, speaker wire, crimp connectors, and butt connectors. Rockford Fosgate offers compatible grilles and trim rings as separate accessories allowing you to choose the aesthetic that best matches your vehicle's interior or personal preference.
Q: What does the removable motor cover feature provide? A: The removable motor cover allows installation in tight mounting applications where rear clearance is limited. With the motor cover installed, mounting depth is 3.13 inches. Removing the motor cover reduces minimum mounting depth to 2.76 inches, providing installation flexibility in challenging locations while maintaining full magnetic motor structure performance and speaker capability without compromise.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Designed to Meet Pioneer’s “Open & Smooth” Sound Concept
Pioneer’s latest generation of TS-A series speakers support the following features:
Carbon & Mica reinforced IMPP cone construction for fast and deep bass response.
A specially designed tweeter diaphragm to provide clear mid-range and highs with low distortion.
Designed to meet Pioneer’s “Open & Smooth” sound concept, these speakers are designed to perform at a wides range of audio frequencies, providing the listener with an “Open” (wide) sound staging and “Smooth” transition. With over 80 years of experience designing and manufacturing loudspeakers, we are confident you will enjoy the experience.
IMPP Cone ConstructionCarbon & Mica reinforced IMPP cone for deeper and richer bass response.
Pioneer’s “Open & Smooth”™ Sound ConceptThe Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
Easy InstallationIncluded with the component system are 6×9″ multi-fit installation adaptors that expand flexibility and improve acoustic performance.
EV OptimizedThe TS-A6961F speakers are the perfect addition for increased sound quality in your electric vehicle! High-efficiency with a sensitivity rating of 92dB, these speakers will not only provide optimal audio quality but are also designed to produce deep bass with minimal input.
CarSoundFitPioneer’s CarSoundFit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and Pioneer audio upgrades and immerse yourself within the sound quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
Pioneer TS-A6961F Specifications:
General
Size: 6x9"
Design: 6x9" 4-Way Coaxial
Tweeter Design: 18mm
Tweeter Composition: Pulp/PET
Woofer Composition: Carbon & Mica Reinforced IMPP
Woofer Surround: Elastic polymer
Woofer Magnet: Composition Ferrite
Warranty: 1 Year
Installation Specification
Max. Music Power: (Nominal) 450W MAX (90W Nom)
Frequency Response: 29Hz - 28kHz
Sensitivity: (1W/1 m) 92dB
Impedance: 4Ω
Mounting Depth: 72mm
Cut-Out Dimensions: 153 x 222mm
Grills Included: Yes
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
This 6x9” Coaxial Car Speaker from Orion Has Been Designed to Be a True Worldwide Product!
Orion Cobalt series 6"x9" 2-way coaxial speaker.
Legendary Products & Support From Authorized Dealers
When you choose Orion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Orion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Orion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Orion dealer today!
Infinity ALPHA 6930 490W 6x9" 3-Way Car Coaxial Speakers: 3-Way Car Coaxial SpeakersInfinity ALPHA 6930 is a 6" x 9" 490W, 3-way car coaxial speaker.Infinity ALPHA6930 Features:Injection-molded polypropylene coneThe polypropylene woofer cone in Alpha speakers is engineered for superior rigidity and sensitivity. The result is increased low-frequency output and richer, more robust musical character.NEW Infinity ID designThe new Infinity Alpha speaker has more elegant ID design for young audio junkies who desire an upgrade to their factory sound and style .Competitively TunedInfinity employs second order filters for tweeters and sophisticated two-way crossovers for multi-element speakers and component systems resulting in higher power handling and added flexibility and accuracy when tuning speakers. A higher quality crossover allows Infinity's wizards to consider speaker acoustic characteristics as well as specifications when tuning the Infinity sound.Rigid Reliability TestingInfinity Alpha series speakers have to go through environmental testing that would destroy other speakers. Infinity freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time.Value EngineeredWith the goal of providing access to great Infinity sound at an affordable price, our engineers valued engineered the Alpha Series speakers to deliver great sound at an affordable price.What's in the Box: 2x Speakers 2x Grilles 8x screws 8x speed clips
Legendary Products & Support From Authorized Dealers
When you choose Infinity, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Infinity dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Infinity's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Infinity dealer today!
Sound Quality Unlike Any Other 6x9 Speaker!
D Full Range, Music for AllThe D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.
Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener.
26mm Polyestersoft Dome TweeterContoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.) while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.
Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extremely low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend Aramid fibers into the polypropylene resin during the injection molding process. The resulting Aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass.
Features:
330 Watts Max Power
26mm Polyester Soft Dome Tweeter with Swivel Capability
Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass & Sound
Specifications: General
Size: 6x9"
Design: 6x9" 2-Way Coaxial System
Tweeter Design: 26mm Soft Dome
Tweeter Composition: Polyester
Woofer Composition: Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
Woofer Surround: Butyl Rubber
Woofer Magnet Composition: Ferrite
Warranty: 1 Year
Installation Specification
Max. Music Power (Nominal): 330W Max (110W Nom)
Frequency Response: 33Hz to 42kHz
Sensitivity (1W/1 m): 87 dB
Impedance: 4Ω
Mounting Depth: 73mm
Cut-Out Dimensions: 153mm x 222mm
Legendary Products & Support From Authorized Dealers
When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Pioneer dealer today!
