9" Wireless CarPlay for Blaupunkt-Equipped Volkswagens White MFD Only, Retains Climate Control, Vehicle Menu, and Infolink SWC Product Overview The Aerpro AMDVW13 is the Blaupunkt-amplifier counterpart to the AMDVW12, covering six Volkswagen models fitted with the factory Blaupunkt amplified system and a white MFD (Multi-Function Display): Eos (2007–2014), Golf (2009–2013), Passat (2006–2015), Polo (2010–2014), Scirocco (2009–2014), and Tiguan (2008–2014). Where the AMDVW12 suits Panasonic amplified variants across a broader model range, the AMDVW13 specifically addresses Blaupunkt-equipped vehicles and offers a richer retention package preserving the factory Blaupunkt amplifier, vehicle climate control display, parking visualisation (if equipped), vehicle menu, and full Infolink SWC functionality including the phone button. The Infolink SWC interface harness is a more sophisticated integration than the standard SWC harness, enabling the additional vehicle system retention. The kit includes the AM905D multimedia receiver, matte black facia kit, Infolink SWC interface harness, SWC patch lead, amplifier retention harness, antenna adaptor, and a surface mount camera with a 110-degree lens, 6m RCA video cable, in-line reverse trigger, optional parking guidelines, and IP67 rating. Features & Benefits Blaupunkt amplified systems — white MFD models only — the AMDVW13 is the correct kit for VW models with a factory Blaupunkt amplifier and white MFD; Panasonic amplified vehicles require the AMDVW2 or AMDVW12; green MFD variants are not compatible Factory Blaupunkt amplifier retained — the amplifier retention harness preserves the factory Blaupunkt amplified audio system; an amplifier trigger wire may need to be connected during installation Vehicle climate control display retained — the Infolink SWC harness preserves climate control readout on the aftermarket display, a feature not available with the standard SWC harness used in other VW kits Parking visualisation retained (if equipped) — on VW models with factory parking sensors and visual display, parking visualisation carries over to the aftermarket head unit display Vehicle menu retained — full vehicle menu access after installation, unlike the AMDVW12 which does not retain vehicle menu Infolink SWC interface harness — VW's Infolink-specific SWC integration retains steering wheel controls including the phone button, along with the additional vehicle system data that enables climate control and parking visualisation retention Surface mount camera included — 110° lens, IP67, parking guidelines — the included camera differs from a standard 720P AHD unit: 110-degree field of view, 6m RCA video cable with in-line reverse trigger, optional parking guideline overlay, IP67 rated; mountable as front, rear, or reverse camera HD camera resolution reduction — connecting an aftermarket HD camera will result in the signal being downscaled; the included surface mount camera is not affected Factory reverse camera not retained — factory reverse camera retention is not supported; the included surface mount camera replaces this function Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported 9" capacitive touchscreen at 1024x600 resolution — large, responsive display across all covered VW platforms Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration via front/rear/sub preamp channels Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Included Camera Camera type Surface mount (front, rear or reverse) Lens angle 110° Cable 6m RCA video with in-line reverse trigger Parking guidelines Optional IP rating IP67 Feature Retention Steering wheel controls Yes (including phone button — Infolink harness) Vehicle climate control display Yes Parking visualisation Yes (if equipped) Vehicle menu Yes Factory Blaupunkt amplifier Yes (model dependent — trigger wire may be required) Factory reverse camera No Parking tones No Factory AUX input N/A Factory USB input N/A MFD requirement White MFD only — green MFD not compatible HD camera Reduced resolution when connected Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Volkswagen Eos (2007–2014) with Blaupunkt amp and white MFD Volkswagen Golf (2009–2013) with Blaupunkt amp and white MFD Volkswagen Passat (2006–2015) with Blaupunkt amp and white MFD Volkswagen Polo (2010–2014) with Blaupunkt amp and white MFD Volkswagen Scirocco (2009–2014) with Blaupunkt amp and white MFD Volkswagen Tiguan (2008–2014) with Blaupunkt amp and white MFD Not compatible with green MFD variants of any covered model Not compatible with Panasonic amplified systems — use AMDVW2 or AMDVW12 for those variants Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Weight Not specified Frequently Asked Questions How does the AMDVW13 differ from the AMDVW12? The AMDVW13 is for Blaupunkt amplified VW models with a white MFD; the AMDVW12 suits Panasonic amplified variants across a broader model range. The AMDVW13 also retains vehicle climate control, parking visualisation, and vehicle menu — features the AMDVW12 does not retain — and uses the Infolink SWC harness for deeper vehicle integration. What is the white MFD and how do I know if my VW has one? MFD stands for Multi-Function Display — the small instrument cluster display used in many VW models. VW used both white and green backlit MFD units across this era. The AMDVW13 suits white MFD models only. Check the colour of your factory instrument cluster display; if it has a green background the AMDVW13 is not compatible. Does this retain climate control on the new head unit display? Yes — the Infolink SWC interface harness carries vehicle climate control data to the aftermarket head unit, allowing climate control readout to appear on the 9" display. This is a key advantage over the AMDVW12, which uses a standard SWC harness and does not support this function. What is the Infolink SWC harness and why does it matter? Infolink is Volkswagen's proprietary SWC communication protocol used in these models. The Infolink-specific harness carries not just SWC button signals but also vehicle system data including climate control and parking information — enabling the AMDVW13 to retain a more complete set of factory features than a standard SWC harness allows. Is the included camera a 720P AHD unit? No — the AMDVW13 includes a surface mount RCA camera with a 110-degree lens, 6m video cable with in-line reverse trigger, optional parking guideline overlay, and IP67 rating. It is not a 720P AHD unit and connects via RCA. It can be mounted as a front, rear, or reverse camera.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

9" Wireless CarPlay for Modern Volkswagens with Factory MIB-PQ Units SWC Retained, Optional Ignition Stabiliser and Camera Adaptor Available Product Overview The Aerpro AMDVW14 is a complete head unit upgrade kit for five newer-generation Volkswagen models fitted with the factory MIB-PQ (Modular Infotainment Toolbox, PQ platform) head unit: Amarok (2016-on), Caddy (2015–2020), Multivan (2016–2019), Tiguan (2015–2016), and Transporter (2016–2019). It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls. Several installation requirements and optional accessories apply to this kit. An ignition stabiliser (Aerpro APIGNSTB, sold separately) may be required on stop-start equipped models. The factory reverse camera is not retained by this kit a separate camera retention adaptor (Aerpro APVVW03, sold separately) is required to retain the factory camera signal. The phone button on the steering wheel may require removal of the fuse from the factory Bluetooth module to function. Features & Benefits MIB-PQ unit specific — designed for VW models fitted with the factory MIB-PQ head unit; the Aerpro What Fits Your Car Guide should be used to confirm your vehicle's factory unit type before ordering SWC retained — the SWC interface harness and patch lead carry over factory steering wheel control functions; the phone button may require fuse removal from the factory Bluetooth module to activate Stop-start models may need ignition stabiliser — the Aerpro APIGNSTB ignition stabiliser (sold separately) may be required on stop-start equipped VW models to prevent the head unit from cycling off during automatic stop events Factory reverse camera not retained — adaptor available separately — the factory reverse camera signal is not retained by this kit; the Aerpro APVVW03 camera retention adaptor (sold separately) is required to retain the factory camera; the included 720P AHD camera adds reversing visibility without factory camera retention Factory amplifier not retained — no amplifier retention harness is included; this kit does not support factory amplified system retention HD camera resolution reduction — connecting an aftermarket HD camera will result in reduced resolution output; the included 720P AHD camera is unaffected Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging 9" capacitive touchscreen at 1024x600 resolution — major display upgrade across all covered MIB-PQ platform VW models Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; provides reversing visibility without factory camera retention Matte black vehicle-specific facia kit — matched across the covered VW MIB-PQ model range 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes (phone button may require factory BT fuse removal) Factory reverse camera No (APVVW03 adaptor required — sold separately) Factory amplifier Not retained Vehicle menu Not retained Factory AUX / USB input N/A Parking tones N/A Stop-start models Ignition stabiliser APIGNSTB may be required (sold separately) Factory unit requirement MIB-PQ only HD camera Reduced resolution when connected Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Volkswagen Amarok (2016-on) with factory MIB-PQ unit Volkswagen Caddy (2015–2020) with factory MIB-PQ unit Volkswagen Multivan (2016–2019) with factory MIB-PQ unit Volkswagen Tiguan (2015–2016) with factory MIB-PQ unit Volkswagen Transporter (2016–2019) with factory MIB-PQ unit Not compatible with MIB-MQB or other factory head unit platforms — confirm factory unit type before purchasing Aerpro APIGNSTB Ignition Stabiliser (sold separately) — may be required for stop-start models Aerpro APVVW03 Camera Retention Adaptor (sold separately) — required to retain factory reverse camera Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Weight Not specified Frequently Asked Questions What is the MIB-PQ unit and how do I know if my VW has one? MIB stands for Modular Infotainment Toolbox — VW's factory infotainment platform. PQ refers to the PQ vehicle platform used in older-generation VW models. The MIB-PQ is the head unit installed in the Amarok, Caddy, Multivan, Tiguan, and Transporter variants covered by this kit. The Aerpro What Fits Your Car Guide is the most reliable way to confirm your factory unit type before purchasing. Does my stop-start VW need an ignition stabiliser? VW models with a stop-start engine management system may cause the head unit to cycle off when the engine stops automatically, then on again when it restarts. The Aerpro APIGNSTB ignition stabiliser (sold separately) prevents this by maintaining a steady power signal to the head unit. Whether it is required depends on the specific vehicle — the installer can determine this during the installation process. Can I retain my factory reverse camera? Not with this kit alone. The factory reverse camera signal is not retained by the AMDVW14 without the Aerpro APVVW03 camera retention adaptor, which is sold separately and not included in this kit. The 720P AHD universal rear camera included in the kit provides reversing visibility in its place or alongside the factory camera when the adaptor is used. Why might the phone button need a fuse removed? Some VW models with MIB-PQ units retain a factory Bluetooth module that can interfere with the phone button function on the aftermarket head unit. Removing the fuse from that factory module prevents the conflict. This is an installation step that the installer can identify and action based on the specific vehicle. How does this differ from the AMDVW12 and AMDVW13? The AMDVW12 and AMDVW13 cover older VW platforms (pre-2015 MFD-era models) with Panasonic or Blaupunkt amplifiers respectively. The AMDVW14 covers the newer MIB-PQ platform models (2015-on). The AMDVW14 does not include an amplifier retention harness, has additional optional accessories (APIGNSTB, APVVW03), and has the Bluetooth module fuse consideration that the older kits do not.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

9" Wireless CarPlay for VW Beetle and Tiguan MIB-PQ Infodaptor Integration Retains Amp, Parking Tones and Vehicle Menu at the Cost of Camera Resolution Product Overview The Aerpro AMDVW15 is a complete head unit upgrade kit for the Volkswagen Beetle (2015–2016) and Tiguan (2015–2016) fitted with the factory MIB-PQ head unit. Its defining component is the included Infodaptor Interface a proprietary integration module that connects between the vehicle and the aftermarket head unit, enabling vehicle information to be displayed on the 9" screen and retaining the factory amplified system, parking tones, and vehicle menu access. SWC (via the Infolink harness) is also retained, and the factory reverse camera can be retained with the separately sold Aerpro APVVW03 adaptor. Critical trade-off: The Infodaptor Interface connects via the head unit's rear camera input. Because this input is occupied by the Infodaptor, all camera and video output on this head unit operates at low resolution. This is an inherent limitation of how the Infodaptor integrates, not a fault and affects both the included surface mount camera and any connected aftermarket camera. Buyers who prioritise high-quality camera image quality should consider whether this trade-off is acceptable before purchasing. Other important notes: Stop-start models may require the Aerpro APIGNSTB ignition stabiliser (sold separately). The factory reverse camera requires the Aerpro APVVW03 camera retention adaptor (sold separately). The phone button may require fuse removal from the factory Bluetooth module to function. Features & Benefits Infodaptor Interface included — the proprietary integration module connects via the head unit's rear camera input, enabling vehicle data to appear on the aftermarket display and retaining the factory amplified system, parking tones, and vehicle menu — a significantly richer feature set than the AMDVW14 for these specific models All camera and video output is low resolution — the Infodaptor occupies the rear camera input, which reduces all camera and video signal quality to low resolution output on this head unit; this is an inherent limitation of the integration method, not a defect Factory amplifier retained — the Infodaptor preserves the factory amplified audio system without a separate amplifier retention harness Parking tones retained — factory parking tone function carries over after installation via the Infodaptor Vehicle menu retained — full vehicle menu access is maintained on the aftermarket head unit via the Infodaptor Infolink SWC harness with phone button — the Infolink-specific SWC harness retains factory steering wheel controls; the phone button may require fuse removal from the factory Bluetooth module to activate Factory reverse camera — APVVW03 required (sold separately) — the factory reverse camera can be retained but requires the separately sold Aerpro APVVW03 camera retention adaptor; without it, the factory camera is not retained Stop-start models may need APIGNSTB — the ignition stabiliser (sold separately) may be required to prevent the head unit cycling off during automatic stop events Surface mount camera included — 110°, IP67, optional parking guidelines — 110-degree field of view, 6m RCA video cable with in-line reverse trigger, optional parking guidelines, IP67 rated, mountable as front, rear, or reverse HD camera resolution further reduced — connecting an aftermarket HD camera to this head unit results in reduced resolution, compounded by the Infodaptor's impact on camera input quality Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported 9" capacitive touchscreen at 1024x600 resolution — large, responsive display across the Beetle and Tiguan MIB-PQ platforms Built-in DAB+ digital radio — digital audio and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included Matte black vehicle-specific facia kit — matched to the Beetle and Tiguan 2015–2016 interior trim Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Reverse camera input Yes (occupied by Infodaptor — low resolution output) Second camera input Yes (720P AHD compatible — low resolution output) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Infodaptor Interface Connects via Head unit rear camera input Camera output Low resolution (all camera/video input affected) Vehicle info on display Yes Included Camera Camera type Surface mount (front, rear or reverse) Lens angle 110° Cable 6m RCA video with in-line reverse trigger Parking guidelines Optional IP rating IP67 Feature Retention Steering wheel controls Yes (Infolink harness; phone button may need BT fuse removed) Factory amplifier Yes (via Infodaptor) Parking tones Yes (via Infodaptor) Vehicle menu Yes (via Infodaptor) Factory reverse camera Yes — requires APVVW03 (sold separately) Factory AUX / USB N/A Camera resolution Low resolution — all inputs affected by Infodaptor HD camera Further reduced resolution Stop-start ignition APIGNSTB may be required (sold separately) Factory unit requirement MIB-PQ only Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Volkswagen Beetle (2015–2016) with factory MIB-PQ unit Volkswagen Tiguan (2015–2016) with factory MIB-PQ unit Aerpro APVVW03 Camera Retention Adaptor (sold separately) — required to retain factory reverse camera Aerpro APIGNSTB Ignition Stabiliser (sold separately) — may be required for stop-start models Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Weight Not specified Frequently Asked Questions What is the Infodaptor and what does it do? The Infodaptor is a proprietary interface module included in this kit. It connects between the vehicle's factory wiring and the aftermarket head unit via the head unit's rear camera input, carrying vehicle data signals that allow the factory amplified system, parking tones, and vehicle menu to be retained and displayed on the aftermarket screen — functions that cannot be preserved using a standard wiring harness alone. Why is the camera output low resolution on this kit? The Infodaptor uses the head unit's rear camera input to carry its vehicle data signal. Because this input is occupied, all camera and video signals processed through this head unit are output at low resolution — this applies to the included surface mount camera and any aftermarket camera connected to the second input. This is an inherent limitation of the Infodaptor integration method, not a fault with the head unit. How does this differ from the AMDVW14 for the same MIB-PQ platform? The AMDVW14 covers five VW models and retains SWC only, with no factory amp, parking tones, or vehicle menu retention. The AMDVW15 covers only the Beetle and Tiguan 2015–2016, but uses the Infodaptor to retain the factory amplifier, parking tones, and vehicle menu — at the cost of low-resolution camera output. The AMDVW15 is the higher-retention, lower-camera-quality option for those specific models. Can I retain my factory reverse camera? Yes — but only with the separately sold Aerpro APVVW03 camera retention adaptor, which is not included in this kit. Note that even with the factory camera retained, the output resolution will be low due to the Infodaptor occupying the rear camera input. Do I need anything else for stop-start models? Stop-start VW models may require the Aerpro APIGNSTB ignition stabiliser (sold separately) to maintain steady power to the head unit during automatic engine stop-start cycles. Whether this is needed depends on the specific vehicle and can be determined during installation.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

10" Wireless CarPlay Across 11 Volkswagen Models Panasonic Amp Retained, Size Warnings Apply to Several Models Product Overview The Aerpro AMDVW2 is a complete head unit upgrade kit covering eleven Volkswagen models across various years, replacing the factory head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver. It adds wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 retaining factory steering wheel controls (including the phone button) and the factory Panasonic amplified audio system where present. Covered vehicles: Amarok (2011–2016)* Beetle (2012–2014) Caddy (2005–2015) Eos (2007–2014) Golf (2004–2013)* Jetta (2006–2015)* Passat (2006–2015)* Polo (2010–2015)* Scirocco (2009–2014)* Tiguan (2008–2014)* Transporter (2010–2015) Size warning 10" screen obstruction by model: Due to the physical size of the 10" display, certain factory dash controls are partially covered on starred models. Review the following before purchasing for your vehicle: Amarok (2011–2016): Kit may partially cover top buttons Golf (2004–2009): Kit covers vent dial — may still be accessible but has not been tested Jetta (2006–2011): Kit covers vent dial — may still be accessible but has not been tested Passat (2006–2015): Kit covers part of hazard or clock on some models Polo (2010–2015): Kit covers part of buttons Scirocco (2009–2014): Kit covers vent adjusters Tiguan (2008–2014): Kit partially covers hazard button Factory amplifier Panasonic only: The amplifier retention harness in this kit is compatible with factory Panasonic amplified systems only. It is not compatible with factory Blaupunkt amplified systems for Blaupunkt-equipped vehicles, use the Aerpro AMDVW3 instead. An amplifier trigger wire may need to be connected during installation. The kit includes the AM1005D multimedia receiver, matte black facia kit, SWC interface harness, SWC patch lead, amplifier retention harness, and antenna adaptor. Note that factory reverse camera and parking tones are not retained on this kit. Features & Benefits 11 VW models covered in one kit — Amarok, Beetle, Caddy, Eos, Golf, Jetta, Passat, Polo, Scirocco, Tiguan, and Transporter across various 2004–2016 build years; confirm fitment for your specific model, year, and variant using the Aerpro What Fits Your Car Guide 10" size warnings — check your model — for seven of the eleven covered models, the 10" display partially covers factory dash controls; review the model-by-model obstruction notes in the overview before purchasing Factory Panasonic amplifier retained — the included amplifier retention harness preserves Panasonic factory amplified audio systems; a trigger wire may need to be wired in during installation Blaupunkt amplified systems NOT compatible — VW models with factory Blaupunkt amplification require the Aerpro AMDVW3 instead of this kit SWC retained including phone button — all factory VW steering wheel controls carry over via the SWC interface harness and patch lead Factory reverse camera not retained — this kit does not retain the factory reverse camera on any covered model Parking tones not retained — factory parking tone function is not preserved on this kit Matte black vehicle-specific facia kit — matched to the covered VW interior trim; antenna adaptor included for a correct aerial connection Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to models where factory camera is not retained 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained factory system Technical Specs Specification Detail Display size 10" Head unit model AM1005D Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes (including phone button) Factory Panasonic amplifier Yes (model dependent — trigger wire may be required) Factory Blaupunkt amplifier Not compatible — use AMDVW3 Factory reverse camera Not retained Parking tones Not retained Factory AUX / USB N/A Vehicle menu N/A Park brake requirement Not specified Size Obstructions (*) Amarok (2011–2016) May partially cover top buttons Golf (2004–2009) Covers vent dial — accessibility not tested Jetta (2006–2011) Covers vent dial — accessibility not tested Passat (2006–2015) Covers part of hazard or clock (some models) Polo (2010–2015) Covers part of buttons Scirocco (2009–2014) Covers vent adjusters Tiguan (2008–2014) Partially covers hazard button Compatible With / Goes Well With Volkswagen Amarok (2011–2016)* — with Panasonic amp Volkswagen Beetle (2012–2014) — with Panasonic amp Volkswagen Caddy (2005–2015) — with Panasonic amp Volkswagen Eos (2007–2014) — with Panasonic amp Volkswagen Golf (2004–2013)* — with Panasonic amp Volkswagen Jetta (2006–2015)* — with Panasonic amp Volkswagen Passat (2006–2015)* — with Panasonic amp Volkswagen Polo (2010–2015)* — with Panasonic amp Volkswagen Scirocco (2009–2014)* — with Panasonic amp Volkswagen Tiguan (2008–2014)* — with Panasonic amp Volkswagen Transporter (2010–2015) — with Panasonic amp Not compatible with any of the above models fitted with factory Blaupunkt amplification — use Aerpro AMDVW3 Size obstruction warnings apply to starred models — review per-model notes before purchasing Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Weight Not specified Frequently Asked Questions How do I know if my VW has a Panasonic or Blaupunkt factory amplifier? Check the label on your factory head unit or the amplifier itself — the brand name is usually printed clearly. Panasonic and Blaupunkt are both OEM suppliers used across the VW range during these years, often varying by model grade and market. If unsure, a qualified installer can identify the system before purchasing the kit. What do the (*) size warnings mean — will controls still work? The 10" display is physically larger than most factory VW head units, and on starred models it extends over adjacent dash controls. Aerpro's guidance is model-specific: on the Golf and Jetta the vent dial may still be reachable but hasn't been tested; on the Tiguan and Passat the hazard button or clock may be partially covered; on the Scirocco the vent adjusters are covered; on the Polo and Amarok various buttons are partially obstructed. Review each model's obstruction note before purchasing. Is the factory reverse camera retained? No — this kit does not retain the factory reverse camera on any covered VW model. The 720P AHD universal rear camera included in the kit adds reversing visibility in its place. What is the amplifier trigger wire and do I need to connect it? Some factory Panasonic amplifiers in these VW models require a 12V trigger signal to switch on. If your vehicle's Panasonic amp uses a remote trigger, this wire will need to be wired in during installation for the amplifier to function. A professional installer familiar with VW audio systems can confirm whether your specific vehicle requires this step. Does this suit all VW models from this era — including MK7 Golf or later Passat? Coverage ends within the 2004–2016 window stated for each model. Later models such as the Golf Mk7 (2013+) and post-2015 Passat use MIB-platform head units and require different kits. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific model year and generation.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

10" Wireless CarPlay for VW with White MFD Blaupunkt Amp, Parking Tones and Vehicle Menu Retained via Infodaptor, Low Resolution Output Product Overview The Aerpro AMDVW3 is a complete head unit upgrade kit for Volkswagen models fitted with a factory Blaupunkt amplified audio system and white Multi-Function Display (MFD). It covers the Eos (2007–2014), Passat (2006–2015)*, Polo (2010–2015)*, Scirocco (2009–2014)*, and Tiguan (2008–2014), delivering wireless Apple CarPlay and Android Auto, DAB+ digital radio, and Bluetooth V5 via a 10" capacitive touchscreen while retaining the factory Blaupunkt amplifier, steering wheel controls (including the phone button), parking tones, and vehicle menu access. This is the companion kit to the AMDVW2, which covers the same VW model range with Panasonic amplification. The AMDVW3 is specifically for white MFD (Blaupunkt) variants and uses a different integration approach: an Infodaptor Interface Harness that connects to the rear camera input on the head unit to carry the vehicle information signal. As a consequence, the video output from this interface is low resolution. If a high-definition aftermarket camera is installed on this system, its resolution will also be reduced. The kit includes the AM1005D multimedia receiver, matte black facia kit, Infodaptor Interface Harness (Infolink SWC interface), SWC patch lead, amplifier retention harness, antenna adaptor, and a surface mount rear camera (110-degree, IP67, with 6m RCA cable and in-line reverse trigger). Size warning — 10" screen obstruction by model: Passat (2006–2015): Kit covers part of hazard or clock on some models Polo (2010–2015): Kit covers part of buttons Scirocco (2009–2014): Kit covers vent adjusters Tiguan (2008–2014): Kit partially covers hazard button Features & Benefits White MFD / Blaupunkt models only — the AMDVW3 is specifically engineered for VW variants with the white Multi-Function Display, which indicates Blaupunkt amplification; Panasonic-equipped variants use the AMDVW2 Infodaptor Interface Harness — connects to the rear camera input on the head unit to carry vehicle system data; this integration path allows retention of the Blaupunkt amplifier, SWC, parking tones, and vehicle menu, but the output is inherently low resolution Low resolution output — the Infodaptor's use of the camera input means all video output from this interface is low resolution; this applies to vehicle information display and any connected camera signal HD camera resolution reduced — if a high-definition aftermarket camera is added to this system, its resolution will be reduced by the Infodaptor interface Factory Blaupunkt amplifier retained — the included amplifier retention harness preserves the Blaupunkt factory amplified audio system Parking tones retained — factory parking sensor tone function is preserved after installation Vehicle menu retained — full vehicle menu access is preserved via the Infodaptor Interface SWC retained including phone button — factory steering wheel controls carry over via the Infodaptor and SWC patch lead Factory reverse camera not retained — the rear camera input on the head unit is used by the Infodaptor Interface, so a separate factory reverse camera cannot be retained through the same input Size warnings apply to starred models — the 10" display partially covers factory dash controls on Passat, Polo, Scirocco, and Tiguan; review per-model notes above before purchasing Matte black vehicle-specific facia kit — matched to covered VW interior trim; antenna adaptor included Surface mount camera included (110°, IP67) — this is not the standard 720P AHD camera; it is a 110-degree surface mount unit with 6m RCA cable and in-line reverse trigger, mountable as front, rear, or reverse camera with optional parking guidelines Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifiers alongside the retained Blaupunkt system Technical Specs Specification Detail Display size 10" Head unit model AM1005D Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (used by Infodaptor — low resolution output) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Included Camera Type Surface mount (wired) Lens angle 110° Cable 6m RCA video cable with in-line reverse trigger IP rating IP67 Mount options Front, rear, or reverse Parking guidelines Optional Feature Retention Steering wheel controls Yes (including phone button) Factory Blaupunkt amplifier Yes — via amplifier retention harness Parking tones Yes — via Infodaptor Interface Vehicle menu Yes — via Infodaptor Interface Factory reverse camera Not retained — camera input used by Infodaptor HD camera resolution Reduced when used with this kit Factory AUX / USB N/A Park brake requirement Not specified Size Obstructions (*) Passat (2006–2015) Covers part of hazard or clock (some models) Polo (2010–2015) Covers part of buttons Scirocco (2009–2014) Covers vent adjusters Tiguan (2008–2014) Partially covers hazard button Compatible With / Goes Well With Volkswagen Eos (2007–2014) — White MFD / Blaupunkt amplified Volkswagen Passat (2006–2015)* — White MFD / Blaupunkt amplified Volkswagen Polo (2010–2015)* — White MFD / Blaupunkt amplified Volkswagen Scirocco (2009–2014)* — White MFD / Blaupunkt amplified Volkswagen Tiguan (2008–2014) — White MFD / Blaupunkt amplified Not compatible with Panasonic-amplified variants of these or other VW models — use Aerpro AMDVW2 (*) Size obstruction warnings apply to starred models — review per-model notes before purchasing Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Second camera input supports an additional camera (720P AHD compatible, though resolution reduced via Infodaptor) Weight Not specified Frequently Asked Questions How do I identify whether my VW has a White MFD? The Multi-Function Display (MFD) is the small information screen in the instrument cluster or dash that shows vehicle data such as fuel consumption, trip distance, and audio information. On Blaupunkt-equipped VW models it has a white or light-coloured appearance, as opposed to the amber/orange display found on Panasonic-equipped models. If your MFD is white, this kit is for your vehicle. If it's amber or orange, use the AMDVW2. What is the Infodaptor Interface and why does it output low resolution? The Infodaptor is a vehicle integration module that reads vehicle system data (amplifier control, SWC, parking tones, vehicle menu) and outputs it through a video signal that connects to the head unit's rear camera input. Because it transmits data as an analogue video signal through the camera input rather than a native digital connection, the output is inherently low resolution. This is an architectural constraint of this integration method, not a defect. What is the difference between the AMDVW3 and the AMDVW2? The AMDVW2 covers VW models with Panasonic amplification; the AMDVW3 covers VW models with Blaupunkt amplification and White MFD. The AMDVW3 retains more factory features (adding parking tones and vehicle menu) but uses the Infodaptor via the camera input, which reduces output resolution. The AMDVW2 uses a conventional amplifier harness without this limitation. How does the included surface mount camera compare to the standard AHD camera? The AMDVW3 includes a surface mount camera with a 110-degree lens and IP67 rating, supplied with 6m of RCA video cable and an in-line reverse trigger. This is not the 720P AHD Sony camera found in most other Aerpro kits — it is a standard definition surface mount unit. Note that because the rear camera input is occupied by the Infodaptor Interface, this camera connects via the second camera input. Will a high-definition aftermarket camera work with this kit? It can be connected, but the resolution will be reduced. The Infodaptor Interface's use of the rear camera input means any camera signal passing through the system is downscaled to low resolution output. If maximum camera image quality is a priority, this integration architecture is a limiting factor to consider before purchasing.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

10" Wireless CarPlay for the MIB-PQ Generation VW — SWC Retained, Optional Camera and Stop-Start Adaptors Available Product Overview The Aerpro AMDVW4 is a complete head unit upgrade kit for Volkswagen models fitted with the MIB-PQ factory head unit — the Amarok (2016-on), Caddy (2015–2020), Multivan (2016–2019), Tiguan (2015–2016)*, and Transporter (2016–2019). It replaces the MIB-PQ unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5. Steering wheel controls are retained as standard. (*) Tiguan size warning: On Tiguan (2015–2016) models, the 10" kit partially covers the factory hazard button. The kit includes the AM1005D multimedia receiver, matte black facia kit, SWC interface harness, SWC patch lead, and antenna adaptor. Factory reverse camera, amplifier, and vehicle menu are not retained by this kit as standard. Factory camera retention is possible with the separately sold APVVW03 adaptor. Stop-start models may require the separately sold APIGNSTB ignition stabiliser. The phone button on the steering wheel may require removing a fuse from the factory Bluetooth module to function correctly after installation. Important: Suits MIB-PQ factory unit models only. Confirm your factory head unit model before purchasing — other VW head unit generations require different kits. Use the Aerpro What Fits Your Car Guide to confirm fitment. Features & Benefits MIB-PQ factory unit models only — the AMDVW4 is specifically designed for VW models fitted with the MIB-PQ head unit; earlier VW models with Panasonic or Blaupunkt systems use the AMDVW2 or AMDVW3; other MIB-platform variants require different kits SWC retained — factory steering wheel controls carry over via the SWC interface harness and patch lead Phone button — Bluetooth fuse may need removing — on some MIB-PQ models, the factory Bluetooth module conflicts with the new head unit's phone button function; removing the relevant fuse from the factory BT module may be required for the phone button to work correctly Factory camera retention — APVVW03 required (sold separately) — the factory reverse camera is not retained by this kit as standard; the APVVW03 camera retention adaptor (sold separately) is required to carry over the factory camera signal Stop-start models — APIGNSTB may be required (sold separately) — vehicles with factory stop-start systems may experience head unit reboot or power instability; the APIGNSTB ignition stabiliser (sold separately) addresses this Tiguan (2015–2016) size warning — the 10" display partially covers the factory hazard button on this model year; review before purchasing for this variant Factory reverse camera, amplifier, and vehicle menu — not retained as standard — none of these features carry over through the base kit; factory camera can be added via APVVW03 Matte black vehicle-specific facia kit — matched to MIB-PQ generation VW interior trim; antenna adaptor included for a correct aerial connection 10" capacitive touchscreen at 1024x600 resolution — significantly larger than the MIB-PQ factory display Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility where factory camera is not retained 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels Technical Specs Specification Detail Display size 10" Head unit model AM1005D Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes Phone button May require factory BT module fuse removal Factory reverse camera Not retained as standard — APVVW03 required (sold separately) Factory amplifier Not retained Vehicle menu Not retained Parking tones N/A Factory AUX / USB N/A Stop-start compatibility APIGNSTB may be required (sold separately) Tiguan (2015–2016) 10" kit partially covers factory hazard button Factory unit requirement MIB-PQ only Park brake requirement Not specified Compatible With / Goes Well With Volkswagen Amarok (2016-on) — with MIB-PQ factory unit Volkswagen Caddy (2015–2020) — with MIB-PQ factory unit Volkswagen Multivan (2016–2019) — with MIB-PQ factory unit Volkswagen Tiguan (2015–2016)* — with MIB-PQ factory unit; hazard button partially covered Volkswagen Transporter (2016–2019) — with MIB-PQ factory unit Not compatible with VW models fitted with Panasonic or Blaupunkt factory systems — use AMDVW2 or AMDVW3 Not compatible with other MIB-platform variants outside the listed model/year combinations APVVW03 camera retention adaptor (sold separately) — required to retain factory reverse camera APIGNSTB ignition stabiliser (sold separately) — may be required for stop-start models Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub) Weight Not specified Frequently Asked Questions How do I identify if my VW has the MIB-PQ factory unit? MIB (Modular Infotainment Platform) is Volkswagen's head unit platform used from around 2014–2016 across multiple models. The MIB-PQ designation refers to the first generation of this platform on the PQ chassis architecture (used in Caddy, Tiguan 2015–2016, Transporter, and others). The head unit typically features a touchscreen display integrated into the centre console without a traditional CD/disc slot and with VW's proprietary audio interface. Confirm with the Aerpro What Fits Your Car Guide if unsure. Can I retain the factory reverse camera? Not with the base kit — factory reverse camera retention is not included as standard. The separately sold APVVW03 camera retention adaptor is required to carry over the factory camera signal to the new head unit. My VW has stop-start — do I need the APIGNSTB ignition stabiliser? Possibly — on stop-start models the head unit can experience power interruption or reboot when the engine auto-stops and restarts, because the factory voltage drop associated with stop-start events can fall below the head unit's minimum operating threshold. The APIGNSTB stabiliser (sold separately) prevents this by maintaining a stable supply voltage during these events. Why might the phone button need a Bluetooth fuse removed? The factory MIB-PQ head unit communicates phone button commands via the factory Bluetooth module. After installing the aftermarket head unit, this factory BT module can interfere with the new head unit's phone button recognition. Removing the relevant fuse disables the factory BT module's interference, allowing the new head unit to handle the phone button correctly. A qualified installer familiar with VW electronics should perform this step. Does this suit the Tiguan from 2017 onwards? No — the AMDVW4 covers the Tiguan only in 2015–2016, which is the window when the Tiguan used the MIB-PQ platform. From 2017 the Tiguan moved to a different generation (MQB architecture with updated MIB2 infotainment). That variant requires a different kit. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific Tiguan year and build.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

10" Wireless CarPlay for MIB-PQ VW Models Infodaptor Retains Amp, Parking Tones and Vehicle Menu, Low Resolution Output Product Overview The Aerpro AMDVW5 is the Infodaptor-equipped companion to the AMDVW4, covering the same MIB-PQ generation Volkswagen models with a more comprehensive factory feature retention package. Where the AMDVW4 retains SWC only, the AMDVW5 additionally retains the factory amplified audio system, parking tones, and vehicle menu all via the included Infodaptor Interface Harness. The trade-off is low resolution output from the Infodaptor, as this integration uses the head unit's rear camera input to carry vehicle system data. Covered vehicles: Amarok (2016-on) Beetle (2015–2016) Caddy (2015–2020) Multivan (2016–2019) Tiguan (2015–2016)* Transporter (2016–2019) Tiguan size warning: On Tiguan (2015–2016) models, the 10" kit partially covers the factory hazard button. Low resolution output: The Infodaptor Interface connects to the rear camera input on the head unit; the output from this interface is low resolution. Factory reverse camera retention requires the separately sold APVVW03 adaptor. Stop-start models may require the separately sold APIGNSTB ignition stabiliser. Phone button may require removing a fuse from the factory Bluetooth module. The kit includes the AM1005D multimedia receiver, matte black facia kit, Infodaptor Interface Harness (Infolink SWC), SWC patch lead, antenna adaptor, and a surface mount rear camera (110-degree, IP67, 6m RCA cable with in-line reverse trigger). Features & Benefits MIB-PQ factory unit models only — suits the same generation as the AMDVW4 (with Beetle added); earlier VW models with Panasonic or Blaupunkt amplification use the AMDVW2 or AMDVW3 Infodaptor Interface Harness — connects to the rear camera input to carry vehicle system data; enables retention of the factory amplifier, parking tones, and vehicle menu that the base AMDVW4 does not retain Low resolution output — the Infodaptor uses the camera input, so all video output from this interface is low resolution; this applies to vehicle information display and connected camera signals Factory amplifier retained — the factory MIB-PQ amplified audio system is preserved via the Infodaptor and amplifier retention path Parking tones retained — factory parking sensor tone function is preserved after installation via the Infodaptor Vehicle menu retained — factory vehicle menu access is preserved via the Infodaptor Interface SWC retained — factory steering wheel controls carry over; phone button may require factory BT module fuse removal Factory reverse camera — APVVW03 required (sold separately) — the rear camera input is occupied by the Infodaptor; retaining the factory camera requires the separately sold APVVW03 adaptor Stop-start models — APIGNSTB may be required (sold separately) — vehicles with stop-start systems may require the APIGNSTB ignition stabiliser to prevent head unit power instability Beetle (2015–2016) included — the AMDVW5 adds the Beetle to the model coverage compared to the AMDVW4; no size warning applies to the Beetle Tiguan (2015–2016) size warning — the 10" display partially covers the factory hazard button on this model year Surface mount camera included (110°, IP67) — not the standard 720P AHD camera; a 110-degree surface mount unit with 6m RCA cable and in-line reverse trigger, mountable as front, rear, or reverse camera with optional parking guidelines Matte black vehicle-specific facia kit — matched to MIB-PQ generation VW interior; antenna adaptor included Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included Technical Specs Specification Detail Display size 10" Head unit model AM1005D Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (used by Infodaptor — low resolution output) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Included Camera Type Surface mount (wired) Lens angle 110° Cable 6m RCA video cable with in-line reverse trigger IP rating IP67 Mount options Front, rear, or reverse Parking guidelines Optional Feature Retention Steering wheel controls Yes Phone button May require factory BT module fuse removal Factory amplifier Yes — via Infodaptor Interface Parking tones Yes — via Infodaptor Interface Vehicle menu Yes — via Infodaptor Interface Factory reverse camera Optional — APVVW03 required (sold separately) Factory AUX / USB N/A Stop-start compatibility APIGNSTB may be required (sold separately) Video output resolution Low resolution (Infodaptor via camera input) Tiguan (2015–2016) 10" kit partially covers factory hazard button Factory unit requirement MIB-PQ only Park brake requirement Not specified Compatible With / Goes Well With Volkswagen Amarok (2016-on) — with MIB-PQ factory unit Volkswagen Beetle (2015–2016) — with MIB-PQ factory unit Volkswagen Caddy (2015–2020) — with MIB-PQ factory unit Volkswagen Multivan (2016–2019) — with MIB-PQ factory unit Volkswagen Tiguan (2015–2016)* — with MIB-PQ factory unit; hazard button partially covered Volkswagen Transporter (2016–2019) — with MIB-PQ factory unit Not compatible with earlier VW models with Panasonic or Blaupunkt amplification — use AMDVW2 or AMDVW3 APVVW03 camera retention adaptor (sold separately) — required to retain factory reverse camera APIGNSTB ignition stabiliser (sold separately) — may be required for stop-start models Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Weight Not specified Frequently Asked Questions What is the difference between the AMDVW5 and the AMDVW4? Both cover the same MIB-PQ generation VW models (with the AMDVW5 adding the Beetle 2015–2016). The AMDVW4 retains SWC only and uses a standard harness with no Infodaptor; the AMDVW5 uses the Infodaptor Interface to additionally retain the factory amplifier, parking tones, and vehicle menu. The trade-off is that the AMDVW5 outputs low resolution video through the Infodaptor. What is the Infodaptor and why does it output low resolution? The Infodaptor is a vehicle integration module that reads factory system data (amplifier, SWC, parking tones, vehicle menu) and transmits it as an analogue video signal via the head unit's rear camera input. Because it uses the camera input rather than a native digital interface, the output is low resolution. This is a deliberate integration architecture, not a fault. Can I retain the factory reverse camera? Yes, but only with the separately sold APVVW03 camera retention adaptor. Because the rear camera input on the head unit is occupied by the Infodaptor Interface, the factory camera requires the APVVW03 to connect via an alternative path. Does this include the same camera as other Aerpro kits? No — the AMDVW5 includes a surface mount camera with a 110-degree lens and IP67 rating, supplied with 6m of RCA video cable and an in-line reverse trigger. This is a standard definition surface mount unit, not the 720P AHD Sony sensor camera found in most other Aerpro kits. Does the Beetle 2015-2016 have any size or obstruction warnings? No — the Beetle (2015–2016) is not starred in the supplier data, meaning no size-related obstruction warnings apply to this model. The only starred model in this kit is the Tiguan (2015–2016), where the 10" kit partially covers the factory hazard button.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

10" Wireless CarPlay for the VW Transporter T6 with MIB-II Infodaptor Retains Amp, SWC, Parking Tones and Vehicle Menu Connected Car Features Not Retained Product Overview The Aerpro AMDVW6 is a complete head unit upgrade kit exclusively for the Volkswagen Transporter (2016–2019) fitted with the MIB-II factory head unit. It should not be confused with the AMDVW4 or AMDVW5, which cover the Transporter (2016–2019) with the MIB-PQ factory unit a different integration architecture requiring different kits. The AMDVW6 uses the same Infodaptor integration approach as the AMDVW5, retaining the factory amplified audio system, steering wheel controls (including the phone button), parking tones, and vehicle menu access via the Infodaptor Interface Harness. As with all Infodaptor-based kits, the interface connects to the rear camera input on the head unit, and the output is low resolution. Connected Car features are not retained: Features including E-Call, We Connect, and the towing alarm are not actively retained by this kit. They may have limited background functionality but should not be relied upon after installation. SOS/Service/Info buttons — dealership coding recommended: For Transporter T6 models with SOS, Service, or Info buttons, Aerpro recommends having these functions factory coded out by an approved dealership prior to installation. Failure to do so may cause diagnostic issues on the MFD after the head unit swap. Factory reverse camera retention requires the separately sold APVVW03 adaptor. Stop-start models may require the separately sold APIGNSTB ignition stabiliser. The kit includes the AM1005D multimedia receiver, matte black facia kit, Infodaptor Interface Harness, SWC patch lead, antenna adaptor, and a surface mount rear camera (110-degree, IP67, 6m RCA cable with in-line reverse trigger). Features & Benefits MIB-II factory unit models only — the AMDVW6 is for the Transporter (2016–2019) with the MIB-II platform specifically; Transporter models with MIB-PQ use the AMDVW4 or AMDVW5 instead Infodaptor Interface Harness — connects to the rear camera input on the head unit to carry vehicle system data; enables retention of factory amplifier, SWC, parking tones, and vehicle menu — but outputs low resolution video Low resolution output — the Infodaptor's use of the camera input means all video output from this interface is low resolution; this applies to vehicle information display and any connected camera signal Factory amplifier retained — the factory amplified audio system is preserved after installation via the Infodaptor Parking tones retained — factory parking sensor tone function is preserved via the Infodaptor Vehicle menu retained — factory vehicle menu access is preserved via the Infodaptor SWC retained including phone button — factory steering wheel controls carry over via the Infodaptor and SWC patch lead Connected Car features (E-Call, We Connect, towing alarm) not retained — these MIB-II connected services are not actively retained by this kit and should not be relied upon after installation; they may have limited background functionality only SOS/Service/Info button coding required pre-installation — on Transporter T6 models with SOS, Service, or Info buttons, Aerpro recommends factory coding these functions out at an approved VW dealership before installing this kit, to prevent MFD diagnostic issues Factory reverse camera — APVVW03 required (sold separately) — the rear camera input is occupied by the Infodaptor; retaining the factory camera requires the APVVW03 adaptor sold separately Stop-start models — APIGNSTB may be required (sold separately) — vehicles with stop-start may require the APIGNSTB ignition stabiliser to prevent head unit power instability Matte black vehicle-specific facia kit — matched to the Transporter T6 interior; antenna adaptor included Surface mount camera included (110°, IP67) — not the standard 720P AHD camera; a 110-degree surface mount unit with 6m RCA cable and in-line reverse trigger, mountable as front, rear, or reverse camera Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included Technical Specs Specification Detail Display size 10" Head unit model AM1005D Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (used by Infodaptor — low resolution output) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Included Camera Type Surface mount (wired) Lens angle 110° Cable 6m RCA video cable with in-line reverse trigger IP rating IP67 Mount options Front, rear, or reverse Parking guidelines Optional Feature Retention Steering wheel controls Yes (including phone button) Factory amplifier Yes — via Infodaptor Interface Parking tones Yes — via Infodaptor Interface Vehicle menu Yes — via Infodaptor Interface Factory reverse camera Optional — APVVW03 required (sold separately) Connected Car (E-Call, We Connect, towing alarm) Not retained SOS/Service/Info buttons Dealership coding recommended pre-installation Factory AUX / USB N/A Video output resolution Low resolution (Infodaptor via camera input) Stop-start compatibility APIGNSTB may be required (sold separately) Factory unit requirement MIB-II only Park brake requirement Not specified Compatible With / Goes Well With Volkswagen Transporter (2016–2019) — with MIB-II factory head unit only Not compatible with Transporter (2016–2019) fitted with MIB-PQ — use AMDVW4 or AMDVW5 for those APVVW03 camera retention adaptor (sold separately) — required to retain factory reverse camera APIGNSTB ignition stabiliser (sold separately) — may be required for stop-start models Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Weight Not specified Frequently Asked Questions How do I know if my Transporter has MIB-II or MIB-PQ? Both MIB-II and MIB-PQ are variants of VW's Modular Infotainment Platform, and both appeared in the Transporter T6 (2016–2019) depending on specification and market. MIB-II is generally found in higher-specification T6 variants with connected services (E-Call, We Connect) and SOS/Service/Info buttons; MIB-PQ is more common in base commercial configurations. The clearest indicator is whether your Transporter has connected car buttons or services — if it does, it likely has MIB-II. Confirm using the Aerpro What Fits Your Car Guide before purchasing. What Connected Car features are not retained and does this matter? E-Call (emergency call on crash detection), We Connect (VW's connected vehicle app platform), and the towing alarm are not actively retained after installation. These features are tied to the factory MIB-II head unit's connectivity architecture. They may have limited background functionality, but should not be relied upon post-installation. If any of these connected services are important to your vehicle's operation, consider whether an aftermarket head unit upgrade is suitable. Why should I get SOS/Service/Info buttons coded out before installation? On Transporter T6 models with SOS, Service call, or Info buttons, these functions are registered to the MIB-II system. After replacing the factory head unit, the MFD may generate diagnostic faults because the system expects these buttons to be active. Having them factory coded out by an approved VW dealership before the installation prevents these faults from appearing. Can I retain the factory reverse camera? Yes, but only with the separately sold APVVW03 camera retention adaptor. Because the rear camera input on the head unit is occupied by the Infodaptor Interface, the APVVW03 is required to route the factory camera through an alternative path. What is the Infodaptor and why is the output low resolution? The Infodaptor is a vehicle integration module that reads factory system data (amplifier, SWC, parking tones, vehicle menu) and transmits it as an analogue video signal through the head unit's rear camera input. Because it uses the camera input rather than a native digital interface, the output is low resolution. This is the same architecture used in the AMDVW3 and AMDVW5 for other VW models.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

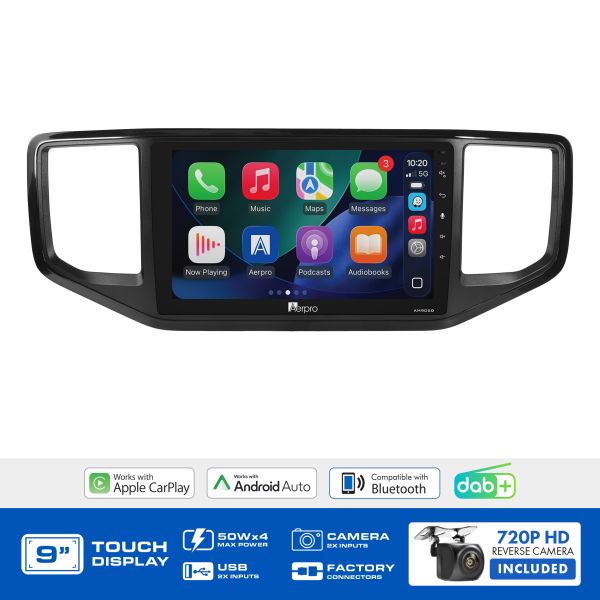

Complete 9" Head Unit Upgrade Kit for Volkswagen Amarok 2016–2019 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Retained, Rear Camera Included. Product Overview The Aerpro AMDVW8 is a complete head unit upgrade kit specifically designed for the Volkswagen Amarok (2016–2019). Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, and a 720P AHD universal rear camera. Steering wheel controls are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion. Kit Inclusions AM905D 9" Multimedia Receiver Matte Black Fascia Kit Steering Wheel Control Interface Harness Antenna Adaptor 720P AHD Universal Rear Camera Key Specifications Screen: 9" capacitive touchscreen 1024x600 resolution Wireless CarPlay & Android Auto: Yes (wired also supported) DAB+ digital radio: Yes (AM/FM with RDS also included) Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Max power output: 4 x 50W RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer) 13-band EQ and time alignment: Yes USB inputs: 2 x rear USB (FAT32 / 32GB max) Reverse camera input: Yes (720P AHD compatible) Second camera input: Yes (720P AHD compatible) LED button illumination: 6-colour selectable Rear camera: 720P AHD universal included Features & Benefits Steering wheel controls retained: Factory SWC function retained via the included harness Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming 9" capacitive touchscreen: Large, smooth 1024x600 display 720P AHD rear camera included: Immediate reversing visibility with the included camera additional front or tow camera input also available 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability 13-band EQ with time alignment: Precision audio tuning Technical Specs Specification Detail SKU AMDVW8 Brand Aerpro Screen Size 9" Resolution 1024x600 Touchscreen Capacitive OS Linux DIN Format Fixed Screen Trapezoid Max Power 4CH x 50W RCA Preouts 4V / 5-channel Wireless CarPlay/Android Auto Yes DAB+ Yes AM/FM Presets AM 12 / FM 18 Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP) USB Inputs 2 x Rear (FAT32 / 32GB max) Reverse Camera Input Yes (720P AHD compatible) Second Camera Input Yes (720P AHD compatible) EQ 13-band Time Alignment Yes LED Illumination 6-colour selectable SWC Retained Yes Factory Reverse Camera Retained No Vehicle Menu Retained No Factory Amplifier No Kit Includes Rear Camera Yes 720P AHD universal Suits Volkswagen Amarok 2016–2019 Compatible Vehicles Volkswagen Amarok 2016–2019 Frequently Asked Questions Does this kit retain the factory reverse camera? No factory reverse camera retention is not supported by the AMDVW8. The included 720P AHD universal rear camera provides reversing visibility as a replacement. Does this kit retain the vehicle menu? No vehicle menu retention is not supported by this kit. Is a rear camera included? Yes a 720P AHD universal rear camera is included in the kit. An additional camera input is also available for a front or tow camera. Does this kit retain steering wheel controls? Yes the included steering wheel control interface harness retains factory SWC function. What is the return policy for this product? Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
