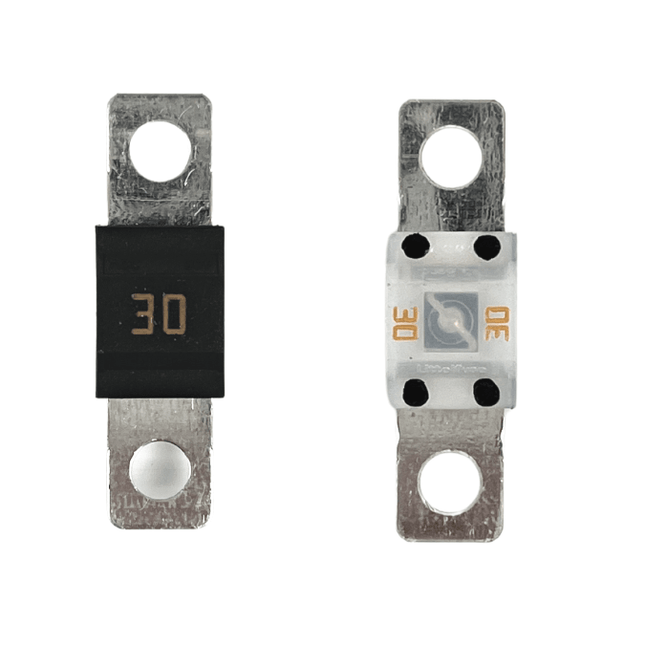

BAINTECH SWE-MID030R 30A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID030R 30A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 30A current rating suitable for auxiliary batteries, small to medium inverters, LED lighting circuits, portable fridges, and accessory distribution, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 30A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID030R provides replacement 30A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, inverter installations, LED lighting systems, portable refrigeration, and high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for medium to high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 30A rating makes this fuse suitable for protecting circuits including auxiliary battery charging systems (DC-DC chargers, battery isolators up to 30A output), small to medium power inverters (300-500W continuous), LED light bar installations (multiple bars or single high-power bar up to 360W), portable fridge circuits (dual fridge setups or large capacity units), solar charge controller connections (up to 30A output), accessory distribution panels (supplying multiple lower-current circuits), and general high-current accessories drawing up to 30A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 30A circuit protection. 30A Current Rating for Medium-Current Applications: 30A rating provides appropriate circuit protection for auxiliary battery charging circuits (DC-DC chargers 20-30A output, battery isolators, VSR systems up to 30A), small to medium inverters (300-500W continuous at 12V drawing 25-40A accounting for efficiency losses and surge capacity), LED lighting installations (multiple light bars or single high-power bar totaling approximately 360W at 12V), portable fridge circuits (dual fridge setups or large capacity units drawing up to 30A combined including compressor startup surge), solar charging systems (charge controllers up to 30A output rating), accessory distribution (consolidating multiple lower-current circuits at distribution point), and general accessories up to 30A continuous current draw. Fuse rating selected based on circuit requirements—30A appropriate for circuits drawing 20-24A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—30A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 30A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery. Versatile Circuit Protection Applications: Suitable for auxiliary battery systems, DC-DC charger protection, battery isolator circuits, small to medium inverter installations, LED lighting circuits, portable refrigeration, solar charging systems, accessory distribution panels, winch control circuits, and general 30A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 30A overcurrent protection in 12V or 24V electrical systems. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID030R SKU SWE-MID030 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 30A Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Auxiliary Batteries, Inverters, Lighting, Fridges, Accessory Circuits, 12V/24V Systems Frequently Asked Questions Q: How do I know what amperage fuse I need for my circuit? A: Determine correct fuse amperage by: measuring actual circuit current draw with clamp meter during maximum load operation (most accurate method), calculating from equipment specifications (watts ÷ voltage ÷ efficiency = amps), or consulting equipment manufacturer recommendations for fuse sizing. Proper fuse sizing: multiply measured or calculated current by 1.25-1.5 safety factor accounting for startup surges and variations, select next available fuse rating above calculated value, verify fuse rating does not exceed wire ampacity (fuse must protect wire from overheating). Example: inverter drawing 24A continuous requires minimum 30A fuse (24A × 1.25 = 30A). Never install fuse larger than wire capacity—10AWG wire maximum 30A fuse regardless of equipment current draw. Undersized fuse causes nuisance tripping, oversized fuse fails protecting wire creating fire hazard. Q: When should I replace blown fuse with same amperage versus different rating? A: Replace with same amperage if: fuse blew from temporary overload (equipment startup, momentary short circuit now resolved), circuit normally operates properly with existing fuse rating, and equipment and wiring designed for that amperage. Replace with different rating if: fuse repeatedly blows during normal operation (indicates undersized fuse—increase rating within wire capacity limits), equipment specifications indicate different fuse requirement, or circuit modified requiring different protection. Investigate before changing fuse rating: determine why original fuse blew (equipment fault, short circuit, actual overload), verify circuit current draw matches fuse rating, check for damaged wiring or faulty equipment causing overcurrent. Never increase fuse rating without verifying wire capacity adequate—oversized fuse allows wire overheating before fuse protection activates creating fire hazard. Q: Can I temporarily bypass blown fuse or use higher amperage fuse to keep circuit operating? A: Absolutely not—extremely dangerous practice creating fire hazard and equipment damage risk. Fuse blew because circuit drew excessive current—bypassing fuse or installing oversized fuse removes protection allowing: wire overheating potentially igniting insulation causing vehicle fire, equipment damage from sustained overcurrent, battery damage from excessive discharge, and electrical system damage from fault currents. Correct approach: identify and resolve cause of blown fuse (short circuit, overloaded equipment, faulty accessory), install properly-rated replacement fuse, verify circuit operates normally without repeated fuse failure. If replacement fuse immediately blows, indicates serious circuit problem requiring troubleshooting—continuing to replace fuses without resolving underlying fault wastes components and risks equipment damage. Carry spare fuses for emergency repairs but never bypass fuse protection. Q: How do I know if MIDI fuse is blown without removing from holder? A: Visual inspection through clear fuse body shows internal element condition—intact fuse displays continuous metal strip connecting both blade terminals, blown fuse shows visible gap where element melted or separated. Inspect fuse in holder if holder orientation allows viewing fuse body, or remove fuse for closer examination if holder position prevents direct viewing. Additional indicators: circuit failure symptoms (equipment not operating, no power to accessories), multimeter continuity test across fuse terminals (infinite resistance indicates blown fuse, near-zero resistance indicates intact fuse), or voltage measurement (full battery voltage across blown fuse terminals, minimal voltage drop across intact fuse under load). Visual inspection quickest method requiring no tools—examine fuse element through transparent body checking for continuous conductor or break indicating blown condition. Q: Should I keep spare MIDI fuses in vehicle—what spares are recommended? A: Strongly recommended maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse failure without extended downtime waiting parts delivery—particularly critical for remote travel or offshore boating where parts unavailable. Recommended spare fuse inventory: carry 2-3 spare fuses matching each installed fuse rating in vehicle electrical system, include common ratings used in typical auxiliary systems (30A, 40A, 50A, 60A, 70A for MIDI applications), store in sealed container protecting from moisture and physical damage, label container indicating fuse types and ratings for easy identification during roadside repairs. Prioritize spares for critical circuits: inverter (enables appliance operation), fridge (prevents food spoilage), DC-DC charger (maintains auxiliary battery charge), and lighting (ensures visibility). Consider waterproof fuse storage container for marine applications preventing corrosion from moisture exposure degrading spare fuses before needed.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

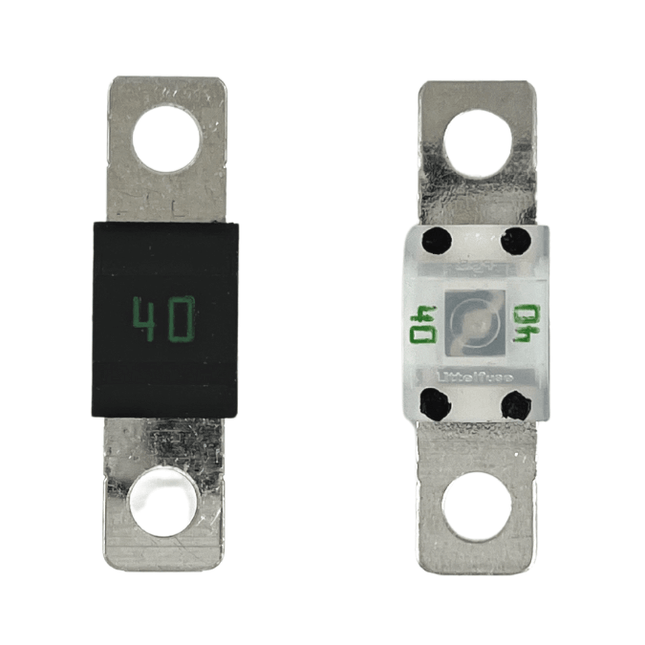

BAINTECH SWE-MID040R 40A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID040R 40A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 40A current rating suitable for medium inverters, high-output DC-DC chargers, LED lighting arrays, multiple accessory distribution, and higher-current circuits, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 40A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID040R provides replacement 40A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, medium inverter installations, LED lighting systems, high-output charging systems, and medium to high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for medium to high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 40A rating makes this fuse suitable for protecting circuits including medium power inverters (500-700W continuous), high-output DC-DC chargers (30-40A output rating), auxiliary battery charging systems with increased capacity, LED light bar arrays (multiple high-power bars totaling 400-480W combined), multiple parallel accessory distribution (consolidating several circuits at distribution point), solar charge controllers (30-40A output capacity), dual portable fridge installations, and general medium-current accessories drawing up to 40A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 40A circuit protection. 40A Current Rating for Medium-Current Applications: 40A rating provides appropriate circuit protection for medium power inverters (500-700W continuous at 12V drawing 40-60A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (30-40A output rating protecting charging circuits), auxiliary battery charging with increased capacity (alternator feeds up to 40A), LED lighting arrays (multiple high-power light bars totaling approximately 480W at 12V), multiple parallel accessory distribution (consolidating various circuits at central distribution point), solar charging systems (charge controllers 30-40A output rating), dual portable fridge installations (two fridges or large capacity units with combined startup surge up to 40A), accessory circuits powering combination of devices (lights, pumps, fans, electronics), and general accessories up to 40A continuous current draw. Fuse rating selected based on circuit requirements—40A appropriate for circuits drawing 27-32A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—40A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 40A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery. Versatile Circuit Protection Applications: Suitable for medium inverter systems (500-700W), high-output DC-DC chargers (30-40A), auxiliary battery charging circuits, LED lighting arrays, multiple accessory distribution, solar charging systems, dual fridge installations, combination accessory loads, and general 40A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 40A overcurrent protection in 12V or 24V electrical systems. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID040R SKU SWE-MID040 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 40A Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Medium Inverters, DC-DC Chargers, LED Lighting, Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 40A fuse protect? A: 40A fuse suitable for inverters up to approximately 600-700W continuous output at 12V. Calculate: 600W ÷ 12V ÷ 0.9 efficiency = 56A peak draw requiring 60-70A fuse for surge capacity, however 500W continuous (42A draw) operates comfortably with 40A fuse if inverter surge handled by brief overload tolerance. More conservatively, 40A fuse appropriate for inverters rated 400-500W continuous ensuring adequate protection margin. For larger inverters (800W+), use higher amperage fuse—50-60A for 800W, 70-80A for 1000W. Undersized fuse causes nuisance tripping during inverter startup or peak loads, oversized fuse fails protecting wiring from overheating. Consult inverter manufacturer specifications for recommended fuse size—some inverters specify exact fuse rating accounting for surge characteristics and efficiency. Q: What wire gauge required for 40A circuit using this fuse? A: 40A circuit requires minimum 8AWG (10mm²) wire for short runs under 2-3 meters, 6AWG (16mm²) wire recommended for longer runs 3-5 meters minimizing voltage drop. Wire sizing critical: 8AWG rated approximately 40-50A continuous (depending on ambient temperature and installation method), 6AWG rated approximately 55-65A providing additional safety margin. Consider voltage drop: 8AWG wire over 4 meters at 40A experiences approximately 3-4% voltage drop potentially affecting equipment performance, heavier 6AWG reduces drop to 2-3% maintaining voltage at load. For critical circuits like inverters where voltage drop impacts performance, use 6AWG minimum even for short runs. Install fuse within 200-300mm of battery protecting entire cable. Never use wire smaller than 8AWG for 40A circuit regardless of fuse rating—creates fire hazard from wire overheating before fuse protection activates. Q: Can I replace 30A fuse with 40A fuse to stop repeated fuse blowing? A: Only if circuit legitimately requires 40A capacity and wiring adequate for increased current. Before increasing fuse rating: determine why 30A fuse repeatedly blows (measure actual circuit current, check for short circuits, verify equipment specifications), confirm wire gauge adequate for 40A (minimum 8AWG required), ensure equipment rated for increased current capacity. Legitimate reasons to increase: equipment specifications indicate 30-40A requirement, measured circuit current 27-35A requiring 40A fuse, or circuit modified adding equipment increasing total load. Never increase fuse rating to bypass underlying problem: faulty equipment drawing excessive current, short circuit in wiring, or overloaded circuit exceeding design capacity. Installing oversized fuse without addressing root cause risks wire overheating, equipment damage, and fire hazards from sustained overcurrent before inadequate fuse protection activates. Q: How long do MIDI fuses last—when should I replace? A: MIDI fuses have indefinite shelf life if stored properly (dry location, protected from physical damage) and operate indefinitely until blown from overcurrent event—fuses don't wear out or degrade from age alone. Replace fuse when: visually confirmed blown (element severed/melted visible through clear body), circuit fails and fuse testing shows open circuit (infinite resistance), or preventive replacement after multiple thermal cycles if fuse exposed to repeated high currents near rating (element may weaken from repeated heating though typically fuse operates reliably until blown). Check fuse condition during routine electrical system inspections: verify element intact, inspect terminals for corrosion, ensure secure fit in holder. Replace if terminals corroded degrading contact quality or fuse body cracked from physical damage. Maintain spare fuses for rapid replacement after blown fuse events—blown fuse indicates circuit problem requiring investigation before reinstalling new fuse. Q: What's difference between 40A MIDI fuse and 40A standard blade fuse? A: Physical size and current capacity range distinguish MIDI from standard blade fuses: MIDI fuses physically larger with more robust terminals and element construction handling 30-100A current range, standard blade fuses (ATO/ATC type) smaller fitting compact fuse boxes typically rated 2-40A maximum. MIDI fuses required for circuits exceeding standard blade fuse 40A maximum capacity, situations requiring physical robustness for vibration/shock resistance, or installations using MIDI fuse holders for consistency across higher-current circuits. Cannot interchange: MIDI fuses don't fit standard blade fuse holders due to larger terminal spacing and body size, standard blade fuses don't fit MIDI holders and wouldn't provide adequate current capacity or mechanical robustness. Use MIDI fuses for auxiliary electrical systems, inverter circuits, high-output chargers, and substantial accessory loads—use standard blade fuses for lower-current circuits, factory vehicle circuits, and compact fuse panel installations.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

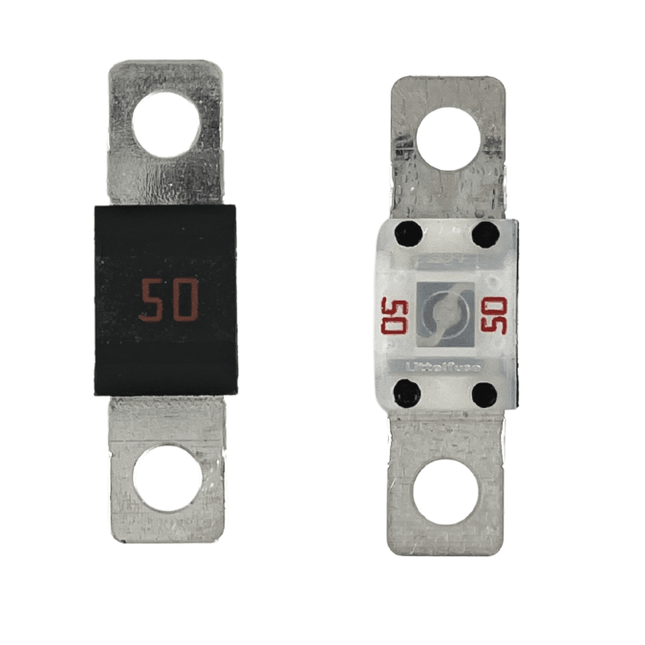

BAINTECH SWE-MID050R 50A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID050R 50A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 50A current rating suitable for medium to large inverters, high-output DC-DC chargers, heavy-duty LED lighting arrays, multiple accessory distribution, and higher-current circuits, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 50A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID050R provides replacement 50A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, medium to large inverter installations, LED lighting systems, high-output charging systems, and high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for medium to high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 50A rating makes this fuse suitable for protecting circuits including medium to large power inverters (700-900W continuous), high-output DC-DC chargers (40-50A output rating), auxiliary battery charging systems with substantial capacity, heavy-duty LED light bar arrays (multiple high-power bars totaling 500-600W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (40-50A output capacity), dual battery systems with increased loads, combination accessory installations, and general medium to high-current accessories drawing up to 50A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 50A circuit protection. 50A Current Rating for Medium to High-Current Applications: 50A rating provides appropriate circuit protection for medium to large power inverters (700-900W continuous at 12V drawing 55-75A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (40-50A output rating protecting charging circuits), auxiliary battery charging with substantial capacity (alternator feeds up to 50A), heavy-duty LED lighting arrays (multiple high-power light bars totaling approximately 600W at 12V), multiple parallel accessory distribution (consolidating various high-current circuits at central distribution point), solar charging systems (charge controllers 40-50A output rating), dual battery systems with increased loading, combination accessory circuits powering multiple devices (inverter plus lights plus accessories), and general accessories up to 50A continuous current draw. Fuse rating selected based on circuit requirements—50A appropriate for circuits drawing 33-40A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—50A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 50A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery. Versatile Circuit Protection Applications: Suitable for medium to large inverter systems (700-900W), high-output DC-DC chargers (40-50A), auxiliary battery charging circuits, heavy-duty LED lighting arrays, multiple accessory distribution, solar charging systems, dual battery systems with substantial loads, combination high-current installations, and general 50A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 50A overcurrent protection in 12V or 24V electrical systems. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID050R SKU SWE-MID050 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 50A Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Medium to Large Inverters, DC-DC Chargers, LED Lighting, Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 50A fuse protect? A: 50A fuse suitable for inverters up to approximately 700-900W continuous output at 12V depending on inverter efficiency and surge characteristics. Calculate conservatively: 700W ÷ 12V ÷ 0.9 efficiency = 65A peak draw requiring margin for startup surge, however continuous operation at 600W (56A) operates safely with 50A fuse if brief surges accommodated by inverter design. More conservatively, 50A fuse appropriate for inverters rated 500-700W continuous ensuring adequate protection margin without nuisance tripping. For 1000W+ inverters, use higher amperage fuse—60-70A for 1000W, 80-100A for 1500W. Always consult inverter manufacturer specifications for recommended fuse size accounting for specific surge characteristics and efficiency ratings of particular inverter model. Q: What wire gauge required for 50A circuit using this fuse? A: 50A circuit requires minimum 6AWG (16mm²) wire for runs under 2-3 meters, 4AWG (25mm²) wire recommended for longer runs 3-5 meters minimizing voltage drop at high current levels. Wire sizing critical at 50A: 6AWG rated approximately 55-65A continuous (depending on ambient temperature and installation method), 4AWG rated approximately 70-85A providing additional safety margin. Consider voltage drop particularly important for inverters and sensitive equipment: 6AWG wire over 4 meters at 50A experiences approximately 3-4% voltage drop potentially affecting inverter performance, heavier 4AWG reduces drop to 2-3% maintaining adequate voltage. For critical high-current circuits where voltage drop impacts performance, use 4AWG minimum. Install fuse within 200-300mm of battery protecting entire cable run. Never use wire smaller than 6AWG for 50A circuit—creates fire hazard from wire overheating before fuse protection activates. Q: Can I use 50A fuse in place of 40A fuse to provide more capacity? A: Only if circuit legitimately requires 50A capacity and wiring upgraded to handle increased current. Increasing fuse rating without proper justification creates safety hazard: wire rated for 40A (8AWG typical) could overheat drawing 45-50A before fuse protection activates, equipment designed for 40A maximum could suffer damage from overcurrent. Before increasing from 40A to 50A: measure actual circuit current determining if legitimate increase needed, verify wire gauge adequate for 50A (minimum 6AWG required—if existing wire is 8AWG must upgrade), confirm equipment specifications support increased current. Legitimate reasons: equipment specifications indicate 40-50A requirement, measured circuit draws 35-45A requiring larger fuse, or circuit modified adding equipment increasing total load. Never increase fuse rating attempting to stop repeated fuse blowing without addressing root cause—indicates circuit problem requiring investigation not larger fuse. Q: How do I determine if 50A is correct fuse size for my application? A: Calculate required fuse size: measure or calculate circuit maximum continuous current draw, multiply by 1.25-1.5 safety factor accounting for surges and variations, select next available fuse rating above calculated value, verify fuse rating does not exceed wire capacity. Example: DC-DC charger rated 40A output draws 40A continuous, multiply by 1.25 = 50A minimum fuse requirement—50A fuse appropriate. Second example: inverter drawing 45A continuous requires minimum 56A fuse (45A × 1.25)—use 60A fuse as 50A too small causing nuisance trips. Verify wire capacity: 6AWG wire supports maximum 50-60A fuse, 8AWG wire supports maximum 40A fuse—never install fuse exceeding wire capacity regardless of equipment requirements. Consider equipment specifications: some manufacturers specify exact fuse ratings accounting for surge characteristics—follow manufacturer recommendations when provided. Q: What's advantage of MIDI fuse over standard blade fuse at same amperage? A: MIDI fuses offer several advantages over standard blade fuses at equivalent ratings: physically larger and more robust construction better withstands vibration and mechanical stress in mobile installations, heavier terminals and element provide superior current-carrying capacity with lower resistance and heat generation at high currents, positive mechanical retention in MIDI holders prevents vibration-induced loosening common with blade fuses in rough conditions, and larger body size accommodates thicker fuse element enabling more reliable performance at higher continuous currents. Standard blade fuses rated 40A at their maximum capacity operate near thermal limits potentially causing premature failure, while 40A MIDI fuse operates well within design capacity providing reliability margin. MIDI fuses preferred for auxiliary electrical systems, high-current circuits, offroad vehicles, and applications where mechanical robustness and current-carrying capability critical for reliable long-term performance under demanding conditions.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

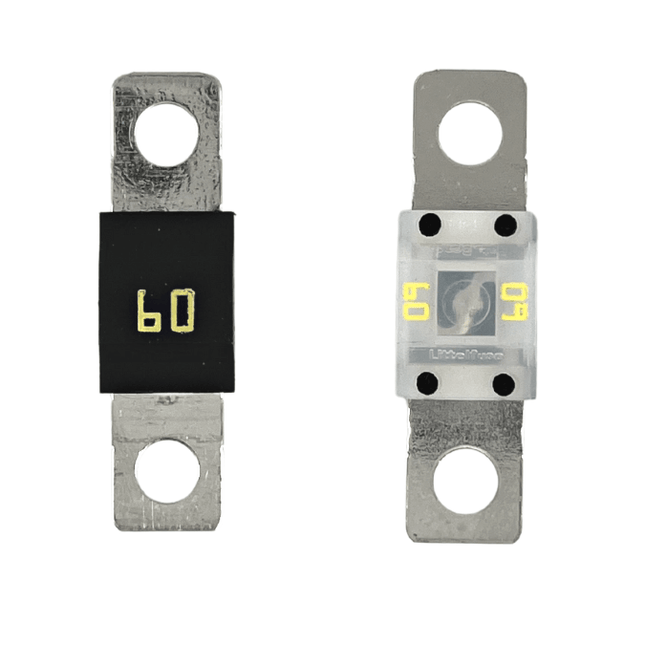

BAINTECH SWE-MID060R 60A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID060R 60A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 60A current rating suitable for large inverters, high-output DC-DC chargers, heavy-duty LED lighting arrays, multiple high-current accessory distribution, and substantial electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 60A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID060R provides replacement 60A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, large inverter installations, LED lighting systems, high-output charging systems, and high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 60A rating makes this fuse suitable for protecting circuits including large power inverters (900-1100W continuous), high-output DC-DC chargers (50-60A output rating), auxiliary battery charging systems with substantial capacity, heavy-duty LED light bar arrays (multiple high-power bars totaling 600-720W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (50-60A output capacity), dual battery systems with significant loads, combination high-current installations, and general high-current accessories drawing up to 60A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 60A circuit protection. 60A Current Rating for High-Current Applications: 60A rating provides appropriate circuit protection for large power inverters (900-1100W continuous at 12V drawing 75-100A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (50-60A output rating protecting charging circuits), auxiliary battery charging with substantial capacity (alternator feeds up to 60A), heavy-duty LED lighting arrays (multiple high-power light bars totaling approximately 720W at 12V), multiple parallel accessory distribution (consolidating various high-current circuits at central distribution point), solar charging systems (charge controllers 50-60A output rating), dual battery systems with significant loading, combination high-current circuits powering multiple devices (inverter plus lights plus accessories simultaneously), and general accessories up to 60A continuous current draw. Fuse rating selected based on circuit requirements—60A appropriate for circuits drawing 40-48A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—60A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at higher current levels. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 60A where minor resistance increases cause significant voltage drops. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 60A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery. Versatile Circuit Protection Applications: Suitable for large inverter systems (900-1100W), high-output DC-DC chargers (50-60A), auxiliary battery charging circuits with high current capacity, heavy-duty LED lighting arrays, multiple high-current accessory distribution, solar charging systems with substantial output, dual battery systems with significant loads, combination high-current installations, and general 60A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 60A overcurrent protection in 12V or 24V electrical systems.  Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

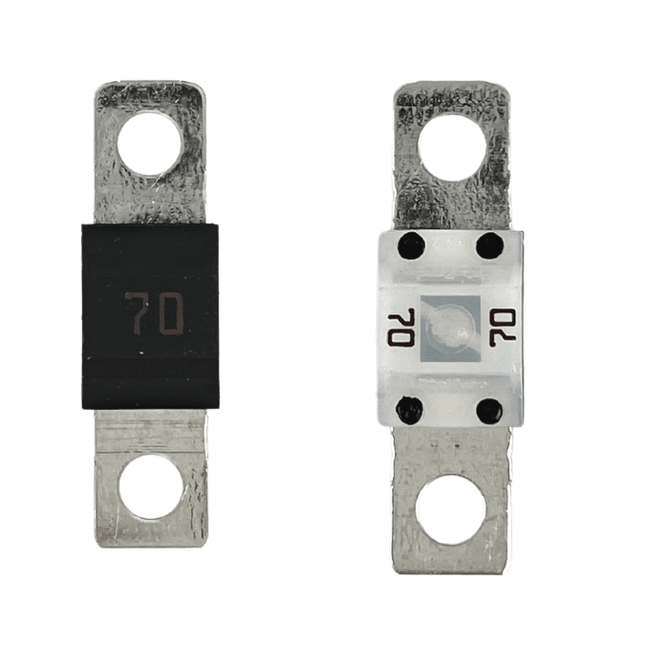

BAINTECH SWE-MID070 70A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID070 70A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 70A current rating suitable for large inverters, high-output DC-DC chargers, heavy-duty LED lighting arrays, multiple high-current accessory distribution, and substantial electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 70A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID070 provides replacement 70A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, large inverter installations, LED lighting systems, high-output charging systems, and high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 70A rating makes this fuse suitable for protecting circuits including large power inverters (1000-1300W continuous), high-output DC-DC chargers (60-70A output rating), auxiliary battery charging systems with substantial capacity, heavy-duty LED light bar arrays (multiple high-power bars totaling 700-840W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (60-70A output capacity), dual battery systems with significant loads, combination high-current installations, and general high-current accessories drawing up to 70A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 70A circuit protection. 70A Current Rating for High-Current Applications: 70A rating provides appropriate circuit protection for large power inverters (1000-1300W continuous at 12V drawing 85-115A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (60-70A output rating protecting charging circuits), auxiliary battery charging with substantial capacity (alternator feeds up to 70A), heavy-duty LED lighting arrays (multiple high-power light bars totaling approximately 840W at 12V), multiple parallel accessory distribution (consolidating various high-current circuits at central distribution point), solar charging systems (charge controllers 60-70A output rating), dual battery systems with significant loading, combination high-current circuits powering multiple devices (inverter plus lights plus accessories simultaneously), and general accessories up to 70A continuous current draw. Fuse rating selected based on circuit requirements—70A appropriate for circuits drawing 45-56A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—70A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at higher current levels. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 70A where minor resistance increases cause significant voltage drops and heat generation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 70A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for high-current circuits powering essential equipment. Versatile Circuit Protection Applications: Suitable for large inverter systems (1000-1300W), high-output DC-DC chargers (60-70A), auxiliary battery charging circuits with high current capacity, heavy-duty LED lighting arrays, multiple high-current accessory distribution, solar charging systems with substantial output, dual battery systems with significant loads, combination high-current installations powering multiple simultaneous loads, and general 70A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 70A overcurrent protection in 12V or 24V electrical systems. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID070 SKU SWE-MID070 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 70A Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Large Inverters, High-Output DC-DC Chargers, Heavy-Duty Lighting, Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 70A fuse protect? A: 70A fuse suitable for inverters up to approximately 1000-1300W continuous output at 12V depending on inverter efficiency and surge characteristics. Calculate: 1000W ÷ 12V ÷ 0.9 efficiency = 93A peak draw requiring margin for startup surge, however continuous operation at 900W (83A) operates with margin using 70A fuse if brief surges accommodated by inverter design. More conservatively, 70A fuse appropriate for inverters rated 800-1000W continuous ensuring adequate protection without nuisance tripping. For larger inverters (1500W+), use higher amperage fuse—80-100A for 1500W, 150A+ for 2000W+. Always verify wire capacity adequate—70A fuse requires minimum 4AWG wire, preferably 2AWG for longer runs. Consult inverter manufacturer specifications for recommended fuse size accounting for specific model surge characteristics and efficiency ratings. Q: What wire gauge required for 70A circuit using this fuse? A: 70A circuit requires minimum 4AWG (25mm²) wire for short runs under 2 meters, 2AWG (35mm²) wire strongly recommended for runs 2-4 meters, or 1AWG (50mm²) for runs exceeding 4 meters minimizing voltage drop at high current levels. Wire sizing critical at 70A: 4AWG rated approximately 70-85A continuous operating near capacity, 2AWG rated approximately 95-115A providing substantial safety margin and reduced voltage drop. Voltage drop considerations especially critical: 4AWG wire over 3 meters at 70A experiences approximately 4-5% voltage drop significantly affecting inverter performance, heavier 2AWG reduces drop to 2-3% maintaining adequate voltage. For large inverters and critical high-current circuits, use 2AWG minimum regardless of cable run length ensuring minimal voltage drop and heat generation. Install fuse within 200-300mm of battery protecting entire cable run. Never use wire smaller than 4AWG for 70A circuit—creates serious fire hazard from wire overheating before fuse protection activates. Q: Can I replace 60A fuse with 70A fuse if circuit occasionally trips 60A fuse? A: Only if circuit legitimately requires 70A capacity, wiring adequate to handle increased current, and occasional tripping caused by legitimate surge currents not underlying fault. Before increasing from 60A to 70A: measure actual circuit current with clamp meter during normal operation and peak loads determining if legitimate requirement, verify wire gauge adequate for 70A (minimum 4AWG required—if existing wire inadequate must upgrade), investigate cause of 60A fuse trips (brief surge currents during equipment startup versus sustained overload indicating problem). Legitimate reasons: equipment specifications indicate surge currents 60-70A during startup with normal operation below 60A, measured circuit draws 55-65A during peak loads requiring larger fuse, or multiple accessories simultaneously drawing combined current approaching 60A requiring margin. Never increase fuse rating attempting to bypass equipment fault, short circuit, or sustained overload—addresses symptom not cause creating fire hazard from sustained overcurrent before inadequate fuse protection activates. Q: How do I calculate correct fuse size for my specific application? A: Calculate required fuse size following systematic approach: measure actual circuit current draw with clamp meter during maximum load operation (most accurate method) or calculate from equipment specifications (watts ÷ voltage ÷ efficiency = amps), multiply measured or calculated current by 1.25-1.5 safety factor accounting for startup surges and variations, select next available standard fuse rating above calculated value, verify fuse rating does not exceed wire ampacity (critical safety check). Example: DC-DC charger drawing 60A continuous with 70A peak startup—60A × 1.25 = 75A calculated requirement, however brief startup surge accommodated selecting 70A fuse. Second example: inverter drawing 65A continuous requires minimum 81A fuse (65A × 1.25)—use 80-100A fuse depending on available ratings. Always verify wire capacity before finalizing fuse selection—never install fuse exceeding wire ampacity regardless of equipment current requirements. Q: What maintenance required for MIDI fuses—when should I inspect or replace? A: MIDI fuses require minimal maintenance but benefit from periodic inspection: visually inspect fuse element through clear body during routine electrical system checks verifying element intact without discoloration or degradation, check fuse terminals for corrosion particularly in marine or coastal environments cleaning with electrical contact cleaner if oxidation present, verify secure fit in fuse holder ensuring positive mechanical and electrical contact without looseness, and test voltage drop across fuse under load (should be minimal—significant voltage drop indicates poor connection or degraded fuse). Replace fuse when: visual inspection shows blown element (conductor severed or melted), fuse repeatedly trips indicating circuit problem or inadequate rating, terminals corroded degrading electrical contact, or fuse body damaged from physical impact. Preventive replacement not typically required—fuses operate indefinitely until blown from overcurrent. Maintain spare fuses in vehicle tool kit for rapid replacement after blown fuse events enabling circuit restoration without extended downtime particularly important for essential circuits like inverters, chargers, and lighting systems.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

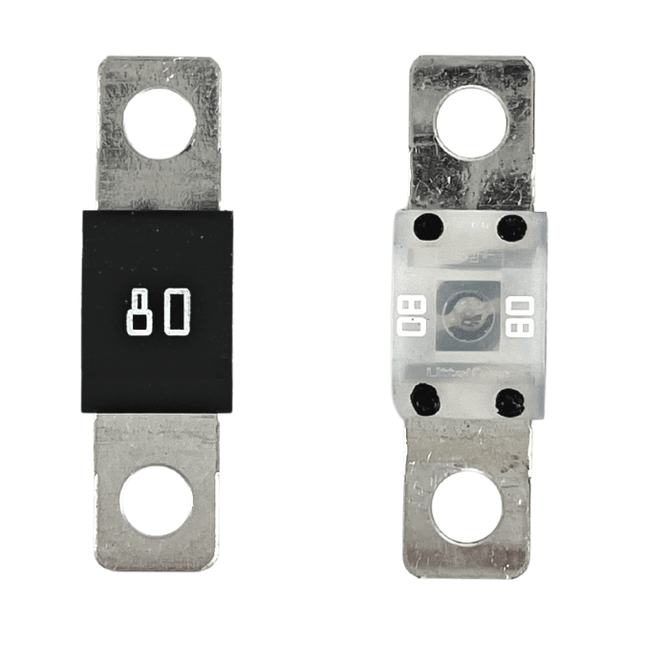

BAINTECH SWE-MID080 80A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID080 80A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 80A current rating suitable for large inverters, high-output DC-DC chargers, heavy-duty LED lighting arrays, multiple high-current accessory distribution, and substantial electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 80A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID080 provides replacement 80A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, large inverter installations, LED lighting systems, high-output charging systems, and high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 80A rating makes this fuse suitable for protecting circuits including large power inverters (1100-1500W continuous), high-output DC-DC chargers (70-80A output rating), auxiliary battery charging systems with substantial capacity, heavy-duty LED light bar arrays (multiple high-power bars totaling 800-960W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (70-80A output capacity), dual battery systems with significant loads, combination high-current installations, and general high-current accessories drawing up to 80A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 80A circuit protection. 80A Current Rating for High-Current Applications: 80A rating provides appropriate circuit protection for large power inverters (1100-1500W continuous at 12V drawing 95-140A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (70-80A output rating protecting charging circuits), auxiliary battery charging with substantial capacity (alternator feeds up to 80A), heavy-duty LED lighting arrays (multiple high-power light bars totaling approximately 960W at 12V), multiple parallel accessory distribution (consolidating various high-current circuits at central distribution point), solar charging systems (charge controllers 70-80A output rating), dual battery systems with significant loading, combination high-current circuits powering multiple devices (inverter plus lights plus accessories simultaneously), and general accessories up to 80A continuous current draw. Fuse rating selected based on circuit requirements—80A appropriate for circuits drawing 53-64A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—80A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at higher current levels approaching MIDI fuse maximum capacity. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 80A where minor resistance increases cause significant voltage drops and heat generation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 80A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for high-current circuits powering essential equipment. Versatile Circuit Protection Applications: Suitable for large inverter systems (1100-1500W), high-output DC-DC chargers (70-80A), auxiliary battery charging circuits with high current capacity, heavy-duty LED lighting arrays, multiple high-current accessory distribution, solar charging systems with substantial output, dual battery systems with significant loads, combination high-current installations powering multiple simultaneous loads, and general 80A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 80A overcurrent protection in 12V or 24V electrical systems. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID080 SKU SWE-MID080 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 80A Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Large Inverters, High-Output DC-DC Chargers, Heavy-Duty Lighting, Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 80A fuse protect? A: 80A fuse suitable for inverters up to approximately 1100-1500W continuous output at 12V depending on inverter efficiency and surge characteristics. Calculate: 1200W ÷ 12V ÷ 0.9 efficiency = 111A peak draw requiring margin for startup surge, however continuous operation at 1000W (93A) operates with margin using 80A fuse if brief surges accommodated by inverter design. More conservatively, 80A fuse appropriate for inverters rated 900-1200W continuous ensuring adequate protection without nuisance tripping. For larger inverters (1500W+), use higher amperage fuse—100A for 1500W, 150A+ for 2000W+. Always verify wire capacity adequate—80A fuse requires minimum 2AWG wire, preferably 1AWG for longer runs or critical applications. Consult inverter manufacturer specifications for recommended fuse size accounting for specific model surge characteristics. Q: What wire gauge required for 80A circuit using this fuse? A: 80A circuit requires minimum 2AWG (35mm²) wire for runs under 3 meters, 1AWG (50mm²) wire strongly recommended for runs 3-5 meters, or 1/0AWG (55mm²) for runs exceeding 5 meters minimizing voltage drop at high current levels. Wire sizing critical at 80A: 2AWG rated approximately 95-115A continuous providing adequate margin, 1AWG rated approximately 130-150A providing substantial safety margin and minimal voltage drop. Voltage drop considerations especially critical for large inverters: 2AWG wire over 3 meters at 80A experiences approximately 3-4% voltage drop affecting inverter performance, heavier 1AWG reduces drop to 2% maintaining adequate voltage. For 1200W+ inverters and critical high-current circuits, use 1AWG minimum regardless of cable run length ensuring minimal voltage drop and heat generation. Install fuse within 200-300mm of battery protecting entire cable run. Never use wire smaller than 2AWG for 80A circuit—creates serious fire hazard from wire overheating before fuse protection activates. Q: Can I replace 70A fuse with 80A fuse if circuit occasionally trips 70A fuse? A: Only if circuit legitimately requires 80A capacity, wiring adequate to handle increased current, and occasional tripping caused by legitimate surge currents not underlying fault. Before increasing from 70A to 80A: measure actual circuit current with clamp meter during normal operation and peak loads, verify wire gauge adequate for 80A (minimum 2AWG required—if existing wire 4AWG or smaller must upgrade to 2AWG minimum), investigate cause of 70A fuse trips (brief surge currents during equipment startup versus sustained overload). Legitimate reasons: equipment specifications indicate surge currents 70-80A during startup with normal operation below 70A, measured circuit draws 65-75A during peak loads requiring larger fuse. Never increase fuse rating attempting to bypass equipment fault, short circuit, or sustained overload—addresses symptom not cause creating fire hazard from sustained overcurrent. Q: Is 80A MIDI fuse near maximum capacity—should I use MEGA fuse instead? A: 80A represents upper range of MIDI fuse capacity (typically 30-100A)—MIDI fuses suitable for this rating though approaching maximum design capacity. MEGA fuses (typically 80-500A) offer alternative for 80A+ circuits providing more robust construction and current-carrying capability. Consider MEGA fuses when: sustained operation near or above 80A, circuit requires fusing above 100A (exceeds MIDI capacity), installation experiences severe vibration requiring maximum mechanical robustness, or preference for larger format offering thermal management advantages. MIDI 80A fuse appropriate for applications operating primarily below 80A with brief peaks to 80A—adequate for most 1200W inverters, 70A DC-DC chargers, and similar applications. For 1500W+ inverters or sustained 80A+ operation, consider MEGA fuse format providing greater capacity margin and thermal performance. Q: How do I maintain spare fuse inventory for high-current circuits? A: Maintain comprehensive spare fuse inventory for high-current circuits powering essential equipment: carry 2-3 spare fuses matching each installed rating (80A, 70A, 60A, etc.), store in waterproof container protecting from moisture and physical damage, label container indicating fuse types and ratings for rapid identification during roadside repairs, prioritize spares for critical circuits (inverter, DC-DC charger, primary lighting), include common adjacent ratings enabling temporary substitution if exact replacement unavailable (70A or 100A as backup for 80A circuit). For extended remote travel or offshore boating: increase spare quantities to 3-5 per rating, include fuse puller tool for convenient removal, carry multimeter for fuse testing, and maintain fuse holder spares for installations where holder failure possible. Regularly inspect spare fuse inventory checking for corrosion, physical damage, or moisture ingress replacing degraded spares maintaining emergency repair capability.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

BAINTECH SWE-MID100 100A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID100 100A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 100A current rating suitable for very large inverters, high-output DC-DC chargers, heavy-duty LED lighting arrays, multiple high-current accessory distribution, and maximum electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 100A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID100 provides replacement 100A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, very large inverter installations, LED lighting systems, high-output charging systems, and maximum high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—100A rating represents maximum capacity of MIDI fuse format bridging gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for highest-current applications within MIDI range common in serious touring vehicles, marine installations, and commercial vehicle auxiliary systems. 100A rating makes this fuse suitable for protecting circuits including very large power inverters (1500-2000W continuous), high-output DC-DC chargers (80-100A output rating), auxiliary battery charging systems with maximum capacity, heavy-duty LED light bar arrays (multiple high-power bars totaling 1000-1200W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (80-100A output capacity), dual battery systems with significant loads, combination high-current installations, and general high-current accessories drawing up to 100A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 100A circuit protection at maximum MIDI fuse capacity. 100A Current Rating for Maximum High-Current Applications: 100A rating provides appropriate circuit protection for very large power inverters (1500-2000W continuous at 12V drawing 125-185A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (80-100A output rating protecting charging circuits), auxiliary battery charging with maximum capacity (alternator feeds up to 100A), heavy-duty LED lighting arrays (multiple high-power light bars totaling approximately 1200W at 12V), multiple parallel accessory distribution (consolidating various high-current circuits at central distribution point), solar charging systems (charge controllers 80-100A output rating), dual battery systems with significant loading, combination high-current circuits powering multiple devices (large inverter plus lights plus accessories simultaneously), and general accessories up to 100A continuous current draw. Fuse rating selected based on circuit requirements—100A appropriate for circuits drawing 67-80A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions representing maximum MIDI fuse capacity. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—100A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at maximum MIDI fuse capacity. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 100A where minor resistance increases cause significant voltage drops and heat generation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 100A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for maximum high-current circuits powering essential equipment. Maximum MIDI Fuse Capacity: 100A represents maximum current rating available in MIDI fuse format—suitable for highest-current applications within MIDI range before transitioning to larger MEGA fuse format. MIDI 100A fuse appropriate for applications requiring up to 100A protection with MIDI format advantages including compact size, standard holder compatibility, and widespread availability. For applications requiring fusing above 100A, MEGA fuse format (80-500A range) provides appropriate solution with more robust construction and enhanced current-carrying capability suitable for very large inverters, primary alternator feeds, and maximum high-current circuits. Versatile Circuit Protection Applications: Suitable for very large inverter systems (1500-2000W), high-output DC-DC chargers (80-100A), auxiliary battery charging circuits with maximum current capacity, heavy-duty LED lighting arrays, multiple high-current accessory distribution, solar charging systems with maximum output, dual battery systems with significant loads, combination high-current installations powering multiple simultaneous loads, and general 100A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 100A overcurrent protection in 12V or 24V electrical systems representing maximum MIDI fuse capacity. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID100 SKU SWE-MID100 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 100A (Maximum MIDI Capacity) Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Very Large Inverters, High-Output DC-DC Chargers, Heavy-Duty Lighting, Maximum Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 100A fuse protect? A: 100A fuse suitable for inverters up to approximately 1500-2000W continuous output at 12V depending on inverter efficiency and surge characteristics. Calculate: 1500W ÷ 12V ÷ 0.9 efficiency = 139A peak draw, however continuous operation at 1200W (111A) operates with brief surge accommodation. More conservatively, 100A fuse appropriate for inverters rated 1200-1500W continuous ensuring adequate protection. For larger inverters (2000W+), requires fusing above 100A exceeding MIDI capacity—use MEGA fuses rated 150A+ for 2000W, 200A+ for 3000W. Always verify wire capacity adequate—100A fuse requires minimum 1AWG wire, preferably 1/0AWG for longer runs. At 100A representing maximum MIDI capacity, consider MEGA fuse format for applications requiring greater margin or sustained operation near rating. Q: What wire gauge required for 100A circuit using this fuse? A: 100A circuit requires minimum 1AWG (50mm²) wire for runs under 3 meters, 1/0AWG (55mm²) wire strongly recommended for runs 3-5 meters, or 2/0AWG (70mm²) for runs exceeding 5 meters minimizing voltage drop at maximum current levels. Wire sizing critical at 100A: 1AWG rated approximately 130-150A continuous providing adequate margin, 1/0AWG rated approximately 170-195A providing substantial safety margin and minimal voltage drop. Voltage drop considerations especially critical for large inverters: 1AWG wire over 3 meters at 100A experiences approximately 3-4% voltage drop significantly affecting inverter performance, heavier 1/0AWG reduces drop to 2% maintaining adequate voltage. For 1500W+ inverters and critical maximum high-current circuits, use 1/0AWG minimum regardless of cable run length ensuring minimal voltage drop and heat generation. Install fuse within 200-300mm of battery protecting entire cable run. Never use wire smaller than 1AWG for 100A circuit—creates serious fire hazard. Q: Is 100A MIDI fuse appropriate or should I use MEGA fuse for this current? A: 100A represents maximum MIDI fuse capacity—suitable for applications operating primarily below 100A with brief peaks to 100A. Consider MEGA fuse format (starting at 80A capacity) when: sustained operation at or near 100A, circuit requires fusing above 100A (exceeds MIDI maximum), installation experiences severe vibration requiring maximum mechanical robustness, preference for larger format offering superior thermal management, or future expansion anticipated requiring higher capacity. MIDI 100A fuse appropriate for: 1200-1500W inverters operating primarily below rated capacity, 80A DC-DC chargers with 100A surge capacity, applications where MIDI format advantages (compact size, standard holder compatibility) important. MEGA fuse advantages: more robust construction, superior current-carrying capability, better thermal performance, available in ratings up to 500A enabling future expansion. Transition point between MIDI and MEGA typically 80-100A depending on application specifics. Q: Can I replace 80A fuse with 100A fuse to provide additional capacity margin? A: Only if circuit legitimately requires up to 100A capacity, wiring upgraded to handle increased current (minimum 1AWG), and increase justified by measured requirements not attempting to bypass underlying problem. Before increasing from 80A to 100A: measure actual circuit current with clamp meter during normal operation and peak loads, verify wire gauge adequate for 100A (minimum 1AWG required—if existing wire 2AWG or smaller must upgrade to 1AWG), investigate whether 80A fuse adequate or circuit truly approaches 100A. Legitimate reasons: equipment specifications indicate surge currents 80-100A during startup, measured circuit draws 75-90A during peak loads requiring larger fuse with margin, or circuit modified adding equipment increasing total load. Never increase fuse rating attempting to bypass equipment fault, short circuit, or sustained overload without addressing cause—100A represents maximum MIDI capacity with no further increase available within format. Q: What applications typically require 100A MIDI fuse protection? A: 100A MIDI fuses typically protect: very large power inverters (1200-1800W continuous rated requiring 100A+ draw at 12V), high-output DC-DC chargers (80-100A output rating with input current approaching 100A accounting for conversion losses), auxiliary battery charging from high-output alternators (80-100A feeds to secondary battery banks), multiple parallel high-current accessory distribution (consolidating several 20-40A circuits at single distribution point totaling 80-100A combined), heavy-duty LED lighting arrays (multiple high-power light bars totaling 1000W+ combined), combination installations (medium inverter plus accessories plus lighting drawing 80-100A combined), and maximum high-current circuits within MIDI fuse capacity range. Applications exceeding 100A continuous or requiring higher fusing transition to MEGA fuse format providing 80-500A capacity range suitable for very large inverters (2000W+), primary alternator outputs (100-200A), electric winches (150-400A), and maximum electrical loads.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

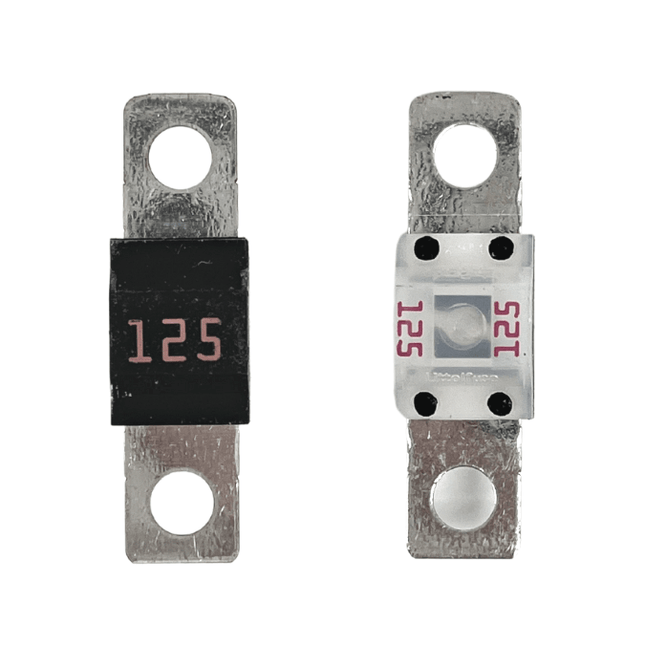

BAINTECH SWE-MID125 125A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID125 125A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 125A current rating suitable for very large inverters, maximum-output DC-DC chargers, extreme LED lighting arrays, multiple high-current accessory distribution, and maximum electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 125A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID125 provides replacement 125A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, very large inverter installations, LED lighting systems, maximum-output charging systems, and extreme high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design—125A rating extends beyond typical MIDI range providing solution for extreme high-current applications before transitioning to larger MEGA fuse format suitable for serious expedition vehicles, marine installations with substantial electrical demands, and commercial vehicle auxiliary systems requiring maximum circuit protection. 125A rating makes this fuse suitable for protecting circuits including very large power inverters (2000-2500W continuous), maximum-output DC-DC chargers (100-125A output rating), auxiliary battery charging systems with extreme capacity, extreme LED light bar arrays (multiple high-power bars totaling 1200-1500W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (100-125A output capacity), dual battery systems with maximum loads, combination high-current installations, and general extreme high-current accessories drawing up to 125A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 125A circuit protection representing extended MIDI fuse capacity. 125A Current Rating for Extreme High-Current Applications: 125A rating provides appropriate circuit protection for very large power inverters (2000-2500W continuous at 12V drawing 165-230A accounting for efficiency losses and surge capacity), maximum-output DC-DC chargers (100-125A output rating protecting charging circuits), auxiliary battery charging with extreme capacity (alternator feeds up to 125A), extreme LED lighting arrays (multiple high-power light bars totaling approximately 1500W at 12V), multiple parallel accessory distribution (consolidating various high-current circuits at central distribution point), solar charging systems (charge controllers 100-125A output rating), dual battery systems with maximum loading, combination high-current circuits powering multiple devices (large inverter plus lights plus accessories simultaneously), and general accessories up to 125A continuous current draw. Fuse rating selected based on circuit requirements—125A appropriate for circuits drawing 83-100A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions representing extended MIDI fuse capacity. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under extreme high-current conditions—125A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at extended MIDI fuse capacity. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 125A where minor resistance increases cause significant voltage drops and heat generation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 125A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for extreme high-current circuits powering essential equipment. Extended MIDI Fuse Capacity: 125A represents extended current rating beyond typical MIDI fuse maximum (100A)—suitable for extreme high-current applications requiring protection above standard MIDI range while maintaining MIDI format advantages including compact size and standard holder compatibility. MIDI 125A fuse appropriate for applications requiring up to 125A protection within MIDI format. For applications requiring fusing substantially above 125A, MEGA fuse format (80-500A range) provides appropriate solution with more robust construction and enhanced current-carrying capability suitable for extremely large inverters, primary alternator feeds, and maximum high-current circuits. Versatile Circuit Protection Applications: Suitable for very large inverter systems (2000-2500W), maximum-output DC-DC chargers (100-125A), auxiliary battery charging circuits with extreme current capacity, extreme LED lighting arrays, multiple high-current accessory distribution, solar charging systems with maximum output, dual battery systems with extreme loads, combination high-current installations powering multiple simultaneous loads, and general 125A circuits in expedition caravans, serious 4WD touring vehicles, large boats, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 125A overcurrent protection in 12V or 24V electrical systems representing extended MIDI fuse capacity. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID125 SKU SWE-MID125 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 125A (Extended MIDI Capacity) Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Very Large Inverters, Maximum-Output DC-DC Chargers, Extreme Lighting Arrays, Maximum Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 125A fuse protect? A: 125A fuse suitable for inverters up to approximately 2000-2500W continuous output at 12V depending on inverter efficiency and surge characteristics. Calculate: 2000W ÷ 12V ÷ 0.9 efficiency = 185A peak draw, however continuous operation at 1500W (139A) operates with brief surge accommodation. More conservatively, 125A fuse appropriate for inverters rated 1500-2000W continuous ensuring adequate protection. For larger inverters (3000W+), requires substantially higher fusing—200A+ for 3000W exceeding MIDI capacity requiring MEGA fuses. Always verify wire capacity adequate—125A fuse requires minimum 1/0AWG wire, preferably 2/0AWG for longer runs or sustained high-current operation. At 125A representing extended MIDI capacity, consider MEGA fuse format for applications requiring sustained operation near rating or future expansion capability. Q: What wire gauge required for 125A circuit using this fuse? A: 125A circuit requires minimum 1/0AWG (55mm²) wire for runs under 2-3 meters, 2/0AWG (70mm²) wire strongly recommended for runs 3-4 meters, or 3/0AWG (85mm²) for runs exceeding 4 meters minimizing voltage drop at extreme current levels. Wire sizing absolutely critical at 125A: 1/0AWG rated approximately 170-195A continuous providing adequate margin, 2/0AWG rated approximately 195-225A providing substantial safety margin and minimal voltage drop. Voltage drop considerations especially critical for large inverters: 1/0AWG wire over 3 meters at 125A experiences approximately 4% voltage drop significantly affecting inverter performance and efficiency, heavier 2/0AWG reduces drop to 2-3% maintaining adequate voltage. For 2000W+ inverters and extreme high-current circuits, use 2/0AWG minimum regardless of cable run length ensuring minimal voltage drop and heat generation. Install fuse within 200-300mm of battery protecting entire cable run. Never use wire smaller than 1/0AWG for 125A circuit—creates extreme fire hazard. Q: Should I use 125A MIDI fuse or upgrade to MEGA fuse for this current level? A: 125A represents extended MIDI fuse capacity approaching transition point to MEGA format—decision depends on application specifics. Choose MIDI 125A when: application requires up to 125A protection, MIDI format advantages important (compact size, existing MIDI holder infrastructure), no future expansion anticipated requiring higher capacity, and circuit operates primarily below 125A with brief peaks. Choose MEGA fuse format when: sustained operation at or near 125A, future expansion anticipated requiring higher capacity, installation experiences severe vibration requiring maximum robustness, preference for superior thermal management, or circuit requires protection above 125A. MEGA fuses starting at 80-100A capacity overlap MIDI high end—MEGA advantages include more robust construction, superior current-carrying capability, better thermal performance, and scalability to 500A for future requirements. For 2000W+ inverters operating near maximum capacity, MEGA format typically preferred ensuring adequate thermal management and future expansion capability. Q: Can I replace 100A fuse with 125A fuse to provide additional capacity? A: Only if circuit legitimately requires up to 125A capacity, wiring upgraded to handle increased current (minimum 1/0AWG), and increase justified by measured requirements not attempting to bypass underlying problem. Before increasing from 100A to 125A: measure actual circuit current with clamp meter during normal operation and peak loads, verify wire gauge adequate for 125A (minimum 1/0AWG required—if existing wire 1AWG or smaller must upgrade to 1/0AWG minimum), investigate whether 100A fuse adequate or circuit truly approaches 125A. Legitimate reasons: equipment specifications indicate surge currents 100-125A during startup, measured circuit draws 95-115A during peak loads requiring larger fuse with margin, or circuit modified adding substantial equipment increasing total load. Never increase fuse rating attempting to bypass equipment fault, short circuit, or sustained overload without addressing cause—125A represents very high current requiring careful justification and proper wire sizing. Q: What applications typically require 125A MIDI fuse protection? A: 125A MIDI fuses typically protect: very large power inverters (2000W continuous rated requiring 125A+ draw accounting for efficiency losses and surge), maximum-output DC-DC chargers (100-125A output rating with input current approaching 125A), auxiliary battery charging from very high-output alternators (100-125A feeds to secondary battery banks), multiple parallel extreme high-current accessory distribution (consolidating several 30-50A circuits totaling 100-125A combined), extreme LED lighting arrays (multiple high-power light bars totaling 1200-1500W combined), combination installations (large inverter plus substantial accessories plus lighting drawing 100-125A combined), and maximum high-current circuits approaching upper limits of practical 12V electrical distribution. Applications exceeding 125A substantially or requiring higher protection transition to MEGA fuse format or consider voltage increase to 24V reducing current requirements proportionally—2000W at 24V draws approximately 95A versus 185A at 12V significantly reducing wire gauge requirements and electrical system stress.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

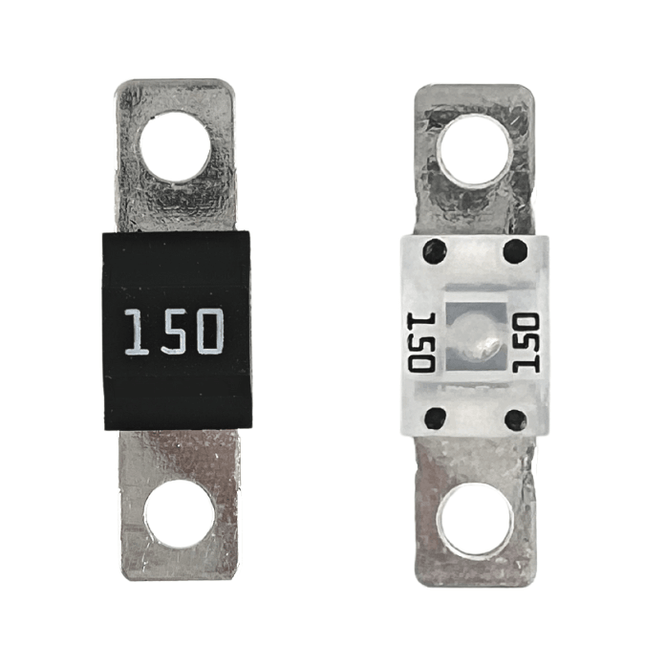

BAINTECH SWE-MID150 150A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID150 150A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 150A current rating suitable for extremely large inverters, maximum-output DC-DC chargers, extreme LED lighting arrays, multiple high-current accessory distribution, and extreme electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 150A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID150 provides replacement 150A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, extremely large inverter installations, LED lighting systems, maximum-output charging systems, and extreme high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design—150A rating significantly extends beyond typical MIDI range providing solution for extreme high-current applications overlapping with MEGA fuse format suitable for serious expedition vehicles, large marine installations with substantial electrical demands, and commercial vehicle auxiliary systems requiring maximum circuit protection. 150A rating makes this fuse suitable for protecting circuits including extremely large power inverters (2500-3000W continuous), maximum-output DC-DC chargers (125-150A output rating), auxiliary battery charging systems with extreme capacity, extreme LED light bar arrays (multiple high-power bars totaling 1500-1800W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (125-150A output capacity), dual battery systems with extreme loads, combination high-current installations, and general extreme high-current accessories drawing up to 150A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 150A circuit protection representing extreme extended MIDI fuse capacity overlapping with MEGA fuse range. 150A Current Rating for Extreme High-Current Applications: 150A rating provides appropriate circuit protection for extremely large power inverters (2500-3000W continuous at 12V drawing 210-280A accounting for efficiency losses and surge capacity), maximum-output DC-DC chargers (125-150A output rating protecting charging circuits), auxiliary battery charging with extreme capacity (alternator feeds up to 150A), extreme LED lighting arrays (multiple high-power light bars totaling approximately 1800W at 12V), multiple parallel accessory distribution (consolidating various extreme high-current circuits at central distribution point), solar charging systems (charge controllers 125-150A output rating), dual battery systems with extreme loading, combination high-current circuits powering multiple devices (very large inverter plus lights plus accessories simultaneously), and general accessories up to 150A continuous current draw. Fuse rating selected based on circuit requirements—150A appropriate for circuits drawing 100-120A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions representing extreme extended MIDI fuse capacity. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under extreme high-current conditions—150A continuous current generates very substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at extreme extended MIDI fuse capacity. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 150A where minor resistance increases cause very significant voltage drops and heat generation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 150A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for extreme high-current circuits powering essential equipment. Extreme Extended MIDI Fuse Capacity: 150A represents extreme extended current rating well beyond typical MIDI fuse range (30-100A standard)—suitable for extreme high-current applications requiring protection above standard and extended MIDI range while maintaining MIDI format advantages including standard holder compatibility. MIDI 150A fuse appropriate for applications requiring up to 150A protection within MIDI format constraints. At this current level, MEGA fuse format (80-500A range) often preferred providing more robust construction, superior thermal management, and enhanced current-carrying capability—150A MIDI suitable when MIDI format infrastructure already installed and maximum rating needed without holder replacement. Versatile Circuit Protection Applications: Suitable for extremely large inverter systems (2500-3000W), maximum-output DC-DC chargers (125-150A), auxiliary battery charging circuits with extreme current capacity, extreme LED lighting arrays, multiple high-current accessory distribution, solar charging systems with maximum output, dual battery systems with extreme loads, combination high-current installations powering multiple simultaneous loads, and general 150A circuits in serious expedition caravans, professional 4WD touring vehicles, large boats, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 150A overcurrent protection in 12V or 24V electrical systems representing extreme extended MIDI fuse capacity. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID150 SKU SWE-MID150 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 150A (Extreme Extended MIDI Capacity) Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Extremely Large Inverters, Maximum-Output DC-DC Chargers, Extreme Lighting Arrays, Maximum Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 150A fuse protect? A: 150A fuse suitable for inverters up to approximately 2500-3000W continuous output at 12V depending on inverter efficiency and surge characteristics. Calculate: 2500W ÷ 12V ÷ 0.9 efficiency = 231A peak draw, however continuous operation at 2000W (185A) operates with brief surge accommodation. More conservatively, 150A fuse appropriate for inverters rated 1800-2500W continuous ensuring adequate protection. For larger inverters (3000W+), requires substantially higher fusing—200A+ for 3000W, 250A+ for 4000W exceeding practical MIDI capacity requiring MEGA fuses. Always verify wire capacity adequate—150A fuse requires minimum 2/0AWG wire, preferably 3/0AWG or 4/0AWG for longer runs. At 150A representing extreme MIDI capacity, strongly consider MEGA fuse format for sustained operation or 24V system reducing current requirements by half (2500W at 24V draws approximately 116A versus 231A at 12V). Q: What wire gauge required for 150A circuit using this fuse? A: 150A circuit requires minimum 2/0AWG (70mm²) wire for very short runs under 2 meters, 3/0AWG (85mm²) wire strongly recommended for runs 2-3 meters, or 4/0AWG (107mm²) for runs exceeding 3 meters minimizing voltage drop at extreme current levels. Wire sizing absolutely critical at 150A: 2/0AWG rated approximately 195-225A continuous providing adequate margin, 3/0AWG rated approximately 225-260A providing substantial safety margin and reduced voltage drop, 4/0AWG rated approximately 260-300A providing maximum safety margin. Voltage drop considerations critical for large inverters: 2/0AWG wire over 2 meters at 150A experiences approximately 4-5% voltage drop significantly affecting inverter performance, heavier 3/0AWG reduces drop to 3% maintaining better voltage, 4/0AWG achieves 2% for optimal performance. For 2500W+ inverters and extreme high-current circuits, use 3/0AWG or 4/0AWG ensuring minimal voltage drop and heat generation. Install fuse within 200-300mm of battery. Never use wire smaller than 2/0AWG for 150A circuit—creates extreme fire hazard. Consider 24V system reducing current requirements significantly. Q: Should I use 150A MIDI fuse or switch to MEGA fuse for this current level? A: 150A represents extreme MIDI capacity well into MEGA fuse territory—MEGA format typically preferred at this current level. Choose MIDI 150A only when: existing MIDI holder infrastructure already installed avoiding holder replacement expense, application requires maximum 150A protection within MIDI format constraints, no future expansion anticipated, and short-duration operation near rating. Choose MEGA fuse format (recommended at 150A) when: sustained operation at or near 150A, future expansion anticipated, new installation without existing holder infrastructure, preference for superior thermal management and robustness, or circuit may require protection above 150A future. MEGA advantages at 150A include: more robust construction handling high current better, superior thermal management reducing heat-related issues, enhanced current-carrying capability, and scalability to 500A for expansion. For 2500W+ inverters or sustained 150A operation, MEGA format strongly recommended ensuring adequate thermal management, safety margins, and long-term reliability under extreme electrical demands. Q: Can I replace 125A fuse with 150A fuse to provide additional capacity? A: Only if circuit legitimately requires up to 150A capacity, wiring upgraded to handle extreme increased current (minimum 2/0AWG, preferably 3/0AWG), and increase justified by measured requirements not attempting to bypass underlying problem. Before increasing from 125A to 150A: measure actual circuit current with clamp meter during normal operation and peak loads, verify wire gauge adequate for 150A (minimum 2/0AWG required—if existing wire 1/0AWG or smaller must upgrade to 2/0AWG or 3/0AWG), investigate whether 125A fuse adequate or circuit truly approaches 150A. Legitimate reasons: equipment specifications indicate surge currents 125-150A, measured circuit draws 115-140A during peak loads requiring larger fuse, or circuit substantially modified adding major equipment. Never increase fuse rating attempting to bypass equipment fault, short circuit, or sustained overload—150A represents extreme current requiring careful justification, proper heavy-gauge wire sizing, and consideration whether 24V system more appropriate reducing current requirements proportionally. Q: At 150A in 12V system, should I consider upgrading to 24V instead? A: Yes, 150A at 12V represents extreme electrical demand where 24V system offers significant advantages: 150A load at 12V (1800W) becomes approximately 75A at 24V (same power, half current), wire requirements reduce substantially (75A requires 4AWG versus 150A requiring 2/0AWG or larger), voltage drop issues minimize significantly, terminal and connection stress reduces, fusing becomes more manageable, and overall electrical system efficiency improves. Consider 24V system when: new installation or major electrical system upgrade planned, sustained operation at or near 150A, future expansion anticipated, or multiple high-current circuits requiring heavy wiring becoming cost-prohibitive. 24V particularly beneficial for: 2000W+ inverters, 100A+ DC-DC chargers, extensive LED lighting arrays, and applications where wire runs exceed 3-4 meters. 12V appropriate only when: existing 12V infrastructure substantial, load intermittent not sustained, no future expansion planned, or equipment specifically requires 12V (some fridges, electronics). At 150A and above, 24V system upgrade often more cost-effective and reliable solution than managing extreme 12V current requirements.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

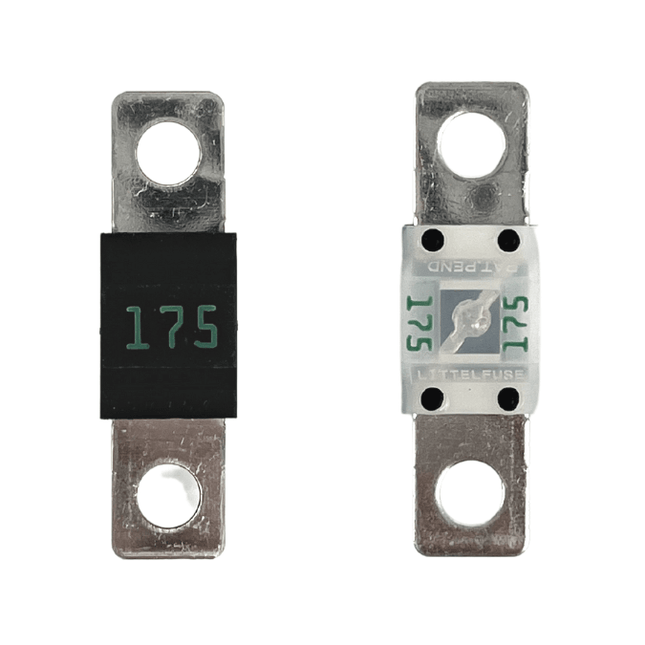

BAINTECH SWE-MID175 175A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID175 175A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 175A current rating suitable for extremely large inverters, maximum-output DC-DC chargers, extreme LED lighting arrays, multiple high-current accessory distribution, and extreme electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 175A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID175 provides replacement 175A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, extremely large inverter installations, LED lighting systems, maximum-output charging systems, and extreme high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design—175A rating significantly extends beyond typical MIDI range providing solution for extreme high-current applications fully overlapping with MEGA fuse format suitable for serious expedition vehicles, large marine installations with substantial electrical demands, and commercial vehicle auxiliary systems requiring maximum circuit protection. 175A rating makes this fuse suitable for protecting circuits including extremely large power inverters (3000-3500W continuous), maximum-output DC-DC chargers (150-175A output rating), auxiliary battery charging systems with extreme capacity, extreme LED light bar arrays (multiple high-power bars totaling 1800-2100W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (150-175A output capacity), dual battery systems with extreme loads, combination high-current installations, and general extreme high-current accessories drawing up to 175A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 175A circuit protection representing extreme extended MIDI fuse capacity well into MEGA fuse range where MEGA format typically preferred. 175A Current Rating for Extreme High-Current Applications: 175A rating provides appropriate circuit protection for extremely large power inverters (3000-3500W continuous at 12V drawing 250-325A accounting for efficiency losses and surge capacity), maximum-output DC-DC chargers (150-175A output rating protecting charging circuits), auxiliary battery charging with extreme capacity (alternator feeds up to 175A), extreme LED lighting arrays (multiple high-power light bars totaling approximately 2100W at 12V), multiple parallel accessory distribution (consolidating various extreme high-current circuits at central distribution point), solar charging systems (charge controllers 150-175A output rating), dual battery systems with extreme loading, combination high-current circuits powering multiple devices (extremely large inverter plus lights plus accessories simultaneously), and general accessories up to 175A continuous current draw. Fuse rating selected based on circuit requirements—175A appropriate for circuits drawing 117-140A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions representing extreme extended MIDI fuse capacity. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under extreme high-current conditions—175A continuous current generates very substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at extreme extended MIDI fuse capacity operating well beyond typical MIDI design parameters. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 175A where minor resistance increases cause very significant voltage drops and heat generation. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 175A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for extreme high-current circuits powering essential equipment. Extreme Extended MIDI Fuse Capacity: 175A represents extreme extended current rating well beyond typical MIDI fuse range (30-100A standard) and fully into MEGA fuse territory—suitable for extreme high-current applications requiring protection above standard and extended MIDI range while maintaining MIDI format advantages including standard holder compatibility when MIDI infrastructure already installed. At this extreme current level, MEGA fuse format (80-500A range) strongly preferred providing significantly more robust construction, superior thermal management, enhanced current-carrying capability, and better suited for sustained high-current operation—175A MIDI primarily suitable when MIDI format infrastructure already installed requiring maximum rating without holder replacement or for applications with brief peak currents to 175A rather than sustained operation. Versatile Circuit Protection Applications: Suitable for extremely large inverter systems (3000-3500W), maximum-output DC-DC chargers (150-175A), auxiliary battery charging circuits with extreme current capacity, extreme LED lighting arrays, multiple high-current accessory distribution, solar charging systems with maximum output, dual battery systems with extreme loads, combination high-current installations powering multiple simultaneous loads, and general 175A circuits in serious expedition caravans, professional 4WD touring vehicles, large boats, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 175A overcurrent protection in 12V or 24V electrical systems representing extreme extended MIDI fuse capacity where 24V systems strongly recommended reducing current requirements proportionally. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID175 SKU SWE-MID175 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 175A (Extreme Extended MIDI Capacity) Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Extremely Large Inverters, Maximum-Output DC-DC Chargers, Extreme Lighting Arrays, Maximum Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: What size inverter can 175A fuse protect and should I use 24V system instead? A: 175A fuse suitable for inverters up to approximately 3000-3500W continuous output at 12V depending on inverter efficiency—however at this power level 24V system strongly recommended. Calculate 12V: 3000W ÷ 12V ÷ 0.9 efficiency = 278A peak draw far exceeding 175A fuse requiring higher rating and massive wire. Same 3000W at 24V: 3000W ÷ 24V ÷ 0.9 efficiency = 139A—manageable with 150A fuse and 1/0AWG or 2/0AWG wire versus 3/0AWG or 4/0AWG required at 12V. For 3000W+ applications, 24V system offers: half current requirements, smaller wire gauge needs, reduced voltage drop, improved efficiency, lower connection stress, and more manageable electrical system. 175A MIDI at 12V approaching impractical limits—use 24V system or MEGA fuse format with heavy wiring if 12V required. 24V strongly recommended for sustained operation above 2000W. Q: What wire gauge required for 175A circuit and is this practical at 12V? A: 175A circuit requires minimum 3/0AWG (85mm²) wire for very short runs under 2 meters, 4/0AWG (107mm²) strongly recommended for any run over 2 meters minimizing voltage drop at extreme current levels. Wire sizing absolutely critical: 3/0AWG rated approximately 225-260A continuous providing minimal margin, 4/0AWG rated approximately 260-300A providing adequate safety margin. Voltage drop critical: 3/0AWG over 2 meters at 175A experiences approximately 4-5% voltage drop severely affecting inverter performance, 4/0AWG reduces to 3% still marginal. Practical considerations: 3/0AWG and 4/0AWG extremely heavy, stiff, difficult routing through vehicle, expensive, requires massive terminals and lugs, challenging installation. At 175A and 12V, electrical system becomes impractical—24V system reduces current to approximately 88A requiring only 4AWG or 6AWG wire (manageable size), dramatically lower cost, easier installation, reduced voltage drop. For 175A at 12V, strongly consider: 24V system conversion, MEGA fuse format, professional installation, or reconsidering power requirements. 175A at 12V represents extreme electrical demand approaching practical limits of mobile 12V systems. Q: Should I use 175A MIDI fuse or switch to MEGA fuse format at this current? A: At 175A, MEGA fuse format strongly recommended over MIDI—175A well beyond typical MIDI design parameters approaching format limitations. Choose MIDI 175A only when: existing MIDI holder infrastructure already installed with no budget for holder upgrade, brief peak currents to 175A rather than sustained operation, no future expansion anticipated, and accepting compromises in thermal management and robustness. Choose MEGA fuse format (strongly recommended) when: sustained operation approaching or at 175A, new installation without existing holder infrastructure, future expansion possible, preference for proper thermal management and robustness at extreme current, or professional installation where format selection optimized. MEGA advantages at 175A include: significantly more robust construction designed for high continuous current, superior thermal management preventing heat-related failures, enhanced current-carrying capability with lower resistance, scalability to 500A for expansion, and industry-standard solution for extreme high-current protection. For 3000W+ inverters or sustained 175A operation, MEGA format strongly recommended—MIDI 175A suitable primarily for existing MIDI installations requiring maximum available rating without holder replacement. Q: Can I replace 150A fuse with 175A fuse to provide additional capacity? A: Only if circuit legitimately requires up to 175A capacity, wiring upgraded to handle extreme increased current (minimum 3/0AWG, preferably 4/0AWG), and increase justified by measured requirements—however at this current level strongly reconsider entire electrical system design. Before increasing from 150A to 175A: measure actual circuit current determining genuine requirement, verify wire gauge adequate for 175A (minimum 3/0AWG required—if existing wire smaller than 3/0AWG must upgrade), investigate whether 150A actually inadequate or underlying issue exists, and evaluate whether 24V system more appropriate reducing current requirements by half. Legitimate reasons rare at this extreme level: equipment specifically rated requiring 150-175A surge currents, or multiple extreme loads totaling 150-175A. More likely: reconsider system design, upgrade to 24V reducing current proportionally, use MEGA fuse format, or consult professional electrical system designer. Never increase to 175A attempting to bypass equipment problems—represents extreme current requiring careful engineering, professional installation, and consideration whether 12V system appropriate for application. Q: At what point should I seriously consider 24V system instead of higher amperage 12V? A: Strongly consider 24V system when sustained current exceeds 100-125A or peak current approaches 150-175A—benefits become compelling at these levels. 24V advantages: same power at half current (3000W at 24V = 125A versus 250A at 12V), wire gauge requirements drop dramatically (125A requires 1/0AWG versus 250A requiring beyond 4/0AWG), voltage drop reduces proportionally improving efficiency, terminals and connections experience half mechanical and thermal stress, fusing becomes manageable, and overall electrical system more reliable. 24V particularly beneficial for: 2000W+ inverters, 100A+ DC-DC chargers, extensive high-power LED lighting, applications with long wire runs, professional or commercial installations, or future expansion anticipated. Transition considerations: some equipment 12V-only (certain fridges, some electronics) requiring DC-DC converters, initial conversion cost for 24V alternator and equipment, and learning curve for 24V systems. However, at 175A and 12V, electrical system becomes impractical—24V conversion often more cost-effective and reliable than managing extreme 12V current with massive wire, heavy terminals, and marginal voltage drop. Consult professional system designer for applications exceeding 150A at 12V.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

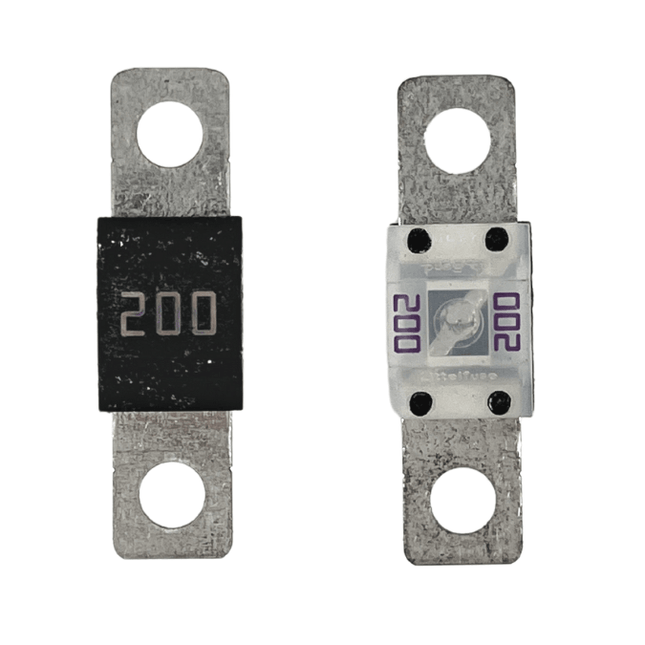

BAINTECH SWE-MID200 200A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems Replace blown fuses and maintain circuit protection with the Baintech SWE-MID200 200A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 200A current rating suitable for extremely large inverters, maximum-output DC-DC chargers, extreme LED lighting arrays, multiple high-current accessory distribution, and extreme electrical loads, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 200A circuit protection in automotive and marine electrical systems. Product Overview The Baintech SWE-MID200 provides replacement 200A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, extremely large inverter installations, LED lighting systems, maximum-output charging systems, and extreme high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design—200A rating represents extreme extended capacity well beyond typical MIDI range providing solution for absolute maximum high-current applications fully within MEGA fuse format territory suitable for serious expedition vehicles, large marine installations with substantial electrical demands, and commercial vehicle auxiliary systems requiring maximum circuit protection. 200A rating makes this fuse suitable for protecting circuits including extremely large power inverters (3500-4000W+ continuous), maximum-output DC-DC chargers (175-200A output rating), auxiliary battery charging systems with extreme capacity, extreme LED light bar arrays (multiple high-power bars totaling 2100-2400W combined), multiple parallel accessory distribution (consolidating several high-current circuits at distribution point), solar charge controllers (175-200A output capacity), dual battery systems with extreme loads, combination high-current installations, and general extreme high-current accessories drawing up to 200A continuous operation representing absolute upper limits of practical mobile 12V electrical systems. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections. Key Features Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 200A circuit protection representing extreme extended MIDI fuse capacity well beyond typical MIDI design parameters where MEGA format strongly preferred for sustained operation. 200A Current Rating for Extreme High-Current Applications: 200A rating provides appropriate circuit protection for extremely large power inverters (3500-4000W+ continuous at 12V drawing 290-370A accounting for efficiency losses and surge capacity—impractical at 12V requiring 24V system), maximum-output DC-DC chargers (175-200A output rating protecting charging circuits), auxiliary battery charging with extreme capacity (alternator feeds up to 200A), extreme LED lighting arrays (multiple high-power light bars totaling approximately 2400W at 12V), multiple parallel accessory distribution (consolidating various extreme high-current circuits at central distribution point), solar charging systems (charge controllers 175-200A output rating), dual battery systems with extreme loading, combination high-current circuits powering multiple devices (extremely large inverter plus lights plus accessories simultaneously), and general accessories up to 200A continuous current draw. Fuse rating selected based on circuit requirements—200A appropriate for circuits drawing 133-160A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions representing extreme extended MIDI fuse capacity at absolute practical limits of MIDI format. Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access. Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under extreme high-current conditions—200A continuous current generates very substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures particularly critical at extreme extended MIDI fuse capacity operating at absolute format limits requiring professional installation and thermal management considerations. Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation especially important at 200A where minor resistance increases cause very significant voltage drops and heat generation requiring professional installation ensuring proper terminal torque and thermal management. Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 200A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation representing maximum circuit protection at absolute MIDI format limits. Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery particularly important for extreme high-current circuits powering essential equipment requiring professional electrical system design and installation. Extreme Extended MIDI Fuse Capacity: 200A represents extreme extended current rating at absolute upper limits of MIDI fuse format fully within MEGA fuse territory—suitable only for extreme high-current applications requiring protection at maximum available MIDI rating while maintaining MIDI format compatibility when MIDI infrastructure already installed. At this extreme current level, MEGA fuse format (80-500A range) very strongly preferred providing significantly more robust construction, superior thermal management, enhanced current-carrying capability designed for sustained high-current operation, and industry-standard solution for extreme circuit protection—200A MIDI primarily suitable when MIDI format infrastructure already installed requiring absolute maximum available rating without holder replacement or for brief peak currents rather than sustained 200A operation requiring professional electrical system evaluation. Versatile Circuit Protection Applications: Suitable for extremely large inverter systems (3500-4000W+ strongly recommending 24V system), maximum-output DC-DC chargers (175-200A), auxiliary battery charging circuits with extreme current capacity, extreme LED lighting arrays, multiple high-current accessory distribution, solar charging systems with maximum output, dual battery systems with extreme loads, combination high-current installations powering multiple simultaneous loads, and general 200A circuits in serious expedition caravans, professional 4WD touring vehicles, large boats, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 200A overcurrent protection in 12V or 24V electrical systems representing extreme extended MIDI fuse capacity at absolute format limits where 24V systems mandatory for practical implementation and professional electrical system design essential. Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores. Technical Specifications Part Number SWE-MID200 SKU SWE-MID200 Product Type MIDI Fuse (Replacement) Brand Baintech Fuse Type MIDI Fuse Format Current Rating 200A (Extreme Extended MIDI Capacity - Maximum) Voltage Rating 12V/24V DC (32V maximum typical) Fuse Body Clear Transparent for Visual Inspection Terminal Type Blade-Style with Corrosion-Resistant Plating Weight 0.05kg Compatibility All Standard MIDI Fuse Holders Applications Extremely Large Inverters, Maximum-Output DC-DC Chargers, Extreme Lighting Arrays, Maximum Accessory Distribution, 12V/24V Systems Frequently Asked Questions Q: Is 200A MIDI fuse practical at 12V or should I use 24V system? A: 200A at 12V represents absolute practical limit of mobile 12V electrical systems—24V system mandatory for any practical implementation at this power level. Consider: 3500W inverter at 12V draws approximately 325A (far exceeding 200A fuse), same 3500W at 24V draws approximately 163A (manageable with 175-200A fuse). 200A at 12V requires: beyond 4/0AWG wire (250-300 kcmil or larger—extremely heavy, stiff, expensive, nearly impossible routing through vehicle), massive terminals and lugs (specialized equipment required), extreme voltage drop issues even short distances (4% drop over 1 meter at 200A with 4/0AWG), and thermal management challenges from extreme current density. 24V system at same power: half current requirements (100A versus 200A for 2400W), manageable wire sizes (2/0AWG or 3/0AWG versus beyond 4/0AWG), practical voltage drop (2-3% achievable), reasonable terminal sizes, and industry-standard implementation. For any application approaching or requiring 200A protection: mandatory 24V system conversion, MEGA fuse format (not MIDI), professional electrical system design, and realistic evaluation whether power requirements appropriate for mobile application. 200A MIDI suitable only for existing MIDI installations requiring absolute maximum rating for brief peak currents—sustained 200A operation impractical in 12V mobile systems. Q: What wire gauge required for 200A circuit and is this actually installable? A: 200A circuit theoretically requires wire exceeding 4/0AWG approaching 250-300 kcmil (127-152mm²) for any meaningful cable run—practically uninstallable in typical mobile applications. Wire sizing at 200A: 4/0AWG (107mm²) rated approximately 260-300A continuous providing minimal margin only for very short runs (under 1 meter), beyond 4/0AWG (250-300 kcmil) required for any run over 1-2 meters. Practical installation challenges: 250-300 kcmil cable extremely heavy (several kg per meter), extremely stiff preventing routing through confined vehicle spaces, requires specialized bending equipment, terminals and lugs become massive specialized components, installation requires professional tools and expertise, cable cost extremely high, and routing nearly impossible in typical vehicle construction. Voltage drop catastrophic: 4/0AWG over 2 meters at 200A experiences 5-6% voltage drop destroying inverter performance, 300 kcmil reduces to 3-4% still marginal. Reality: 200A at 12V impractical for mobile installations—professionals universally recommend 24V system reducing current to 100A requiring manageable 1/0AWG or 2/0AWG wire. For 200A at 12V existing installations: professional evaluation mandatory, consider 24V conversion, use shortest possible cable runs (under 1 meter if possible), MEGA fuse format not MIDI, and accept severe voltage drop limitations. Any new installation requiring 200A: design as 24V system from start—attempting 200A at 12V represents poor electrical system design. Q: Should I use 200A MIDI fuse or must I switch to MEGA fuse format? A: At 200A, MEGA fuse format very strongly recommended—200A at absolute limits of MIDI format design parameters approaching format failure modes. Choose MIDI 200A only when: existing MIDI holder infrastructure already installed with no possibility of holder upgrade, brief peak currents to 200A (seconds duration) rather than sustained operation, fully understanding compromises in thermal management and format limitations, and accepting risks associated with operating fuse at format limits. Choose MEGA fuse format (very strongly recommended—industry standard at 200A) when: sustained operation approaching or at 200A, new installation or holder replacement possible, future expansion possible, professional installation where format selection optimized for application, or any application valuing reliability and proper engineering over infrastructure compatibility. MEGA advantages at 200A critical: robust construction specifically designed for extreme continuous current, superior thermal management preventing heat-related failures common with MIDI at limits, enhanced current-carrying capability with substantially lower resistance, scalability to 500A for expansion, and industry-standard professional solution for extreme high-current protection. For 3500W+ inverters, 175-200A DC-DC chargers, or sustained 200A operation: MEGA format mandatory—MIDI 200A suitable only for existing MIDI installations with brief peak currents requiring absolute maximum available rating understanding format operating at absolute limits. Professional electrical system designer would specify MEGA format for any 200A application. Q: Can I replace 175A fuse with 200A fuse for additional capacity margin? A: Only if circuit legitimately requires up to 200A capacity, wiring upgraded beyond 4/0AWG, and increase justified by measured requirements—however at this extreme level professional electrical system redesign mandatory not simple fuse replacement. Before considering 175A to 200A increase: engage professional electrical system designer evaluating entire system design, measure actual circuit current with high-capacity clamp meter (standard meters inadequate at 200A), verify wire gauge adequate for 200A (beyond 4/0AWG required—if existing wire inadequate complete rewiring necessary not simple upgrade), investigate whether 175A actually inadequate or fundamental design problem exists, and evaluate whether 24V system conversion more appropriate than attempting 200A at 12V. Reality check: legitimate reasons for 200A at 12V extremely rare—typically indicates: inadequate initial system design, attempting excessive power in 12V system better suited for 24V, equipment mismatch, or misunderstanding of power requirements. Appropriate response: professional system redesign, 24V conversion reducing current by half, realistic evaluation of actual power needs versus wants, or acceptance that some applications exceed practical mobile 12V limits. Never increase to 200A attempting to bypass underlying problems—represents absolute practical limit requiring professional engineering not DIY troubleshooting. Consult qualified marine or automotive electrical system designer before implementing 200A circuits. Q: At what point have I exceeded practical limits of mobile 12V systems? A: 200A represents absolute practical limit of mobile 12V electrical systems—beyond this point 24V or 48V systems mandatory for any practical implementation. Critical thresholds: 100-125A represents comfortable upper limit for well-designed 12V systems (manageable wire, reasonable voltage drop, DIY-feasible installation), 150-175A represents extreme upper limit requiring professional design and heavy wiring (challenging but possible with expertise), 200A+ represents impractical territory where 12V system disadvantages (massive wire, extreme voltage drop, installation difficulties, thermal challenges) overwhelm any benefits. Beyond 200A at 12V: wire requirements become absurd (beyond 300-400 kcmil uninstallable in vehicles), voltage drop catastrophic even shortest distances, terminal and connection thermal management extremely difficult, efficiency losses substantial, and costs exceed 24V system conversion. Professional recommendations: under 100A comfortable in 12V, 100-150A consider 24V benefits, 150-175A strongly prefer 24V, 200A+ mandatory 24V, 300A+ consider 48V for extreme applications. When evaluating system: if considering 200A+ fusing at 12V, pause and consult professional—likely indicates system design problem better solved with higher voltage rather than extreme current. Modern expedition vehicles with substantial electrical demands (4000W+ inverters, extreme charging, comprehensive accessories) universally adopt 24V or 48V systems—attempting equivalent capability at 12V represents outdated approach with severe practical limitations. Consider 24V conversion providing: half current at same power, manageable wire sizes, practical voltage drop, reduced connection stress, industry-standard implementation, and future expansion capability.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

BAINTECH BTDBM Dual Battery Monitor - Digital Voltage Display and State of Charge Monitoring for Dual Battery Systems Monitor dual battery systems effectively with the Baintech BTDBM Dual Battery Monitor—featuring simultaneous voltage monitoring of starter and auxiliary batteries providing real-time state of charge visibility, digital LED display showing precise voltage readings for both battery banks, color-coded LED indicators providing at-a-glance battery status assessment, compact flush-mount design integrating seamlessly into dash panels or console surfaces, simple two-wire installation per battery eliminating complex wiring requirements, wide voltage range compatibility (9-30V DC) suitable for 12V and 24V systems, low power consumption preserving battery charge during monitoring, and essential battery management tool for caravans, 4WD vehicles, boats, motorhomes, and mobile installations requiring reliable dual battery system monitoring preventing unexpected battery depletion and ensuring adequate starting power. Product Overview The Baintech BTDBM addresses dual battery system monitoring requirements providing real-time voltage display and state of charge indication for both starter battery and auxiliary battery—essential information for managing mobile electrical systems preventing auxiliary battery over-discharge while maintaining adequate starter battery charge ensuring reliable engine starting. Dual battery systems common in caravans, 4WD touring vehicles, boats, and motorhomes separate starting functions from auxiliary loads (fridges, lighting, inverters, accessories)—battery monitor enables users to assess both battery states simultaneously making informed decisions about power consumption, charging requirements, and electrical system management. Digital LED display provides precise voltage readings for each battery eliminating guesswork about battery condition—voltage directly correlates to state of charge enabling users to determine remaining capacity and charging needs. Color-coded LED indicators supplement voltage display providing intuitive at-a-glance status assessment—typically green indicating good charge, yellow/amber indicating moderate charge, and red indicating low charge requiring immediate attention or charging. Flush-mount design enables clean professional installation integrated into dash panels, console surfaces, or custom mounting locations appearing factory-installed rather than aftermarket addition—compact footprint consumes minimal dashboard real estate while providing comprehensive battery monitoring functionality. Simple installation requires only positive and negative wire connections to each battery—no complex programming, configuration, or additional sensors simplifying DIY installation for users with basic automotive electrical knowledge. Wide voltage range compatibility (9-30V DC typical) ensures operation across various battery states from deeply discharged to fully charged and accommodates both 12V and 24V electrical systems—single monitor suitable for diverse vehicle applications. Low power consumption (milliamps typical) ensures monitor operation negligibly impacts battery charge—continuous monitoring possible without concern for parasitic drain depleting batteries during storage or extended non-use periods. Key Features Simultaneous Dual Battery Monitoring: Independent monitoring of starter battery and auxiliary battery voltages providing comprehensive dual battery system visibility from single display unit. Eliminates need for multiple separate voltmeters or manual battery testing—both battery states visible at glance enabling informed power management decisions. Real-time voltage monitoring updates continuously tracking battery state changes during charging, discharging, and load variations. Essential for dual battery system management ensuring adequate starter battery charge for reliable engine starting while maximizing auxiliary battery utilization for appliances and accessories without over-discharge risking battery damage. Digital LED Voltage Display: Precision digital display shows exact battery voltages (typically 0.1V resolution) for both starter and auxiliary batteries—accurate voltage readings enable precise state of charge determination and battery condition assessment. Superior to analog gauges or simple indicator lights providing specific voltage information rather than vague approximations. Digital display easily readable in various lighting conditions including bright sunlight and darkness—LED illumination ensures visibility day and night. Voltage readings directly correlate to battery state of charge—users familiar with battery voltage-SOC relationships can determine remaining capacity and charging requirements from voltage readings without separate SOC meters. Color-Coded LED Status Indicators: Intuitive color-coded LED indicators provide at-a-glance battery status assessment supplementing voltage display—typically green LED indicates good charge (above 12.5V for 12V batteries), yellow/amber LED indicates moderate charge (12.0-12.5V range requiring monitoring), and red LED indicates low charge (below 12.0V requiring immediate charging or load reduction). Color-coding enables quick status assessment without reading voltage values—particularly valuable when driving or performing tasks where detailed display reading inconvenient. Visual alerts draw attention to low battery conditions preventing unexpected battery depletion and equipment shutdown. Compact Flush-Mount Design: Low-profile flush mounting configuration creates clean professional installation integrated seamlessly into dash panels, console surfaces, or custom mounting locations. Compact footprint (typically 50-70mm diameter) consumes minimal dashboard real estate—suitable for installations where mounting space limited or aesthetics important. Flush design sits level with mounting surface preventing protruding housing disrupting aesthetics or creating obstacles. Black finish integrates with dark interior trim and console surfaces maintaining professional appearance. Installation requires single mounting hole (typically 52mm diameter standard gauge cutout) with rear access for wiring connections—standard gauge hole size enables replacement of existing unused gauge positions or standardized installation across vehicle types. Simple Two-Wire Installation Per Battery: Straightforward installation requires only positive and negative wire connections to each battery—positive wire to battery positive terminal, negative wire to battery negative terminal or chassis ground. No complex programming, configuration menus, or sensor installation simplifying DIY installation for users with basic automotive electrical skills. Self-calibrating operation requires no setup procedures—connect wiring and monitor immediately operational displaying accurate voltage readings. Includes wiring for both batteries (typically 22-18 AWG wire adequate for low-current monitoring)—wire length sufficient for typical installations though custom wire runs possible for non-standard mounting locations. Clear wiring diagram and installation instructions included ensuring correct installation without confusion about polarity or connection points. Wide Voltage Range Compatibility: Operates across wide voltage range (typically 9-30V DC) accommodating various battery states from deeply discharged to fully charged and compatible with both 12V and 24V electrical systems. Single monitor suitable for diverse vehicle applications eliminating need for voltage-specific models. Wide range ensures monitor remains operational throughout battery discharge preventing monitor shutdown when battery monitoring most critical. Overvoltage protection prevents monitor damage from charging system voltage spikes or transients—withstands typical alternator voltage regulation variations and battery charging voltages without damage. Low Power Consumption: Minimal current draw (typically under 50mA—often 10-30mA) ensures continuous battery monitoring negligibly impacts battery charge—parasitic drain insignificant compared to battery self-discharge rates. Continuous monitoring possible during vehicle storage or extended non-use periods without concern for monitor draining batteries. No on/off switch required—monitor operates continuously providing battery status information whenever needed without user intervention. Low power consumption particularly important for auxiliary battery monitoring where preserving charge for appliances and accessories priority. Essential Battery Management Information: Provides critical information for dual battery system management including: starter battery voltage ensuring adequate charge for reliable engine starting, auxiliary battery voltage indicating available capacity for appliances and accessories, charging status visible during alternator operation or solar charging showing batteries receiving charge, discharge rate observable during equipment operation showing load impact on batteries, and low battery warnings indicating need for charging or load reduction. Information enables proactive battery management preventing unexpected battery depletion, equipment shutdowns, or inability to start engine from depleted starter battery. Versatile Installation Applications: Suitable for caravans monitoring house battery and starter battery during travel and camping, 4WD vehicles managing auxiliary battery for fridge, lighting, and accessories while preserving starter battery charge, boats monitoring starting battery and house battery for electronics, navigation equipment, and onboard systems, motorhomes managing multiple battery banks for appliances and systems, commercial vehicles with auxiliary equipment requiring battery monitoring, mobile workshops with dual battery setups powering tools and equipment, and any dual battery application requiring real-time voltage monitoring and state of charge visibility for effective battery management. Quality Australian-Market Product: Designed and distributed for Australian market by Bainbridge Technologies (Baintech) addressing specific requirements of Australian mobile installations including harsh environmental conditions, diverse vehicle applications, and dual battery systems common in Australian caravanning and 4WD touring culture. Available through established Australian distribution networks including auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores with knowledgeable staff providing installation guidance and technical support. Technical Specifications Part Number BTDBM SKU BTDBM Product Type Dual Battery Monitor Brand Baintech Display Type Digital LED Voltage Display Monitored Batteries 2 (Starter + Auxiliary) Voltage Range 9-30V DC (12V/24V Compatible) Voltage Resolution 0.1V (typical) Status Indicators Color-Coded LED (Green/Yellow/Red typical) Mounting Style Flush Mount Mounting Hole Size 52mm (standard gauge cutout typical) Housing Material UV-Resistant Plastic Housing Colour Black Power Consumption <50mA (typical) Operating Temperature -20°C to +70°C (typical) Installation Two-Wire Per Battery (Positive + Negative) Applications Caravans, 4WD, Boats, Motorhomes, Dual Battery Systems Frequently Asked Questions Q: How do I interpret voltage readings to determine battery state of charge? A: Battery voltage correlates to state of charge (SOC)—for 12V lead-acid batteries: 12.7V+ indicates 100% charge (fully charged), 12.5V indicates approximately 75% charge (good condition), 12.2V indicates approximately 50% charge (moderate—recharge soon), 12.0V indicates approximately 25% charge (low—recharge immediately), below 11.8V indicates under 10% charge (critically low—risk of damage from over-discharge). For AGM and lithium batteries, voltage-SOC relationships differ slightly—AGM similar to lead-acid, lithium maintains higher voltage until deeply discharged then drops rapidly. Monitor both batteries: starter battery should remain above 12.5V ensuring reliable starting, auxiliary battery can be discharged further (to 12.0V for lead-acid, 50% DOD safe limit) but avoid regular deep discharge extending battery lifespan. Voltage readings most accurate when batteries at rest (no charging or discharging for 30+ minutes)—voltage under load appears lower than actual SOC, voltage during charging appears higher. Q: Why do voltage readings fluctuate—is monitor faulty or batteries failing? A: Voltage fluctuations normal and expected in dual battery systems—not indication of monitor fault or battery failure. Common causes of voltage changes: alternator charging increases voltage (14.2-14.8V typical during charging), load application decreases voltage (fridge compressor starting, lights operating, inverter running), battery rest voltage stabilizes after charging or discharging ceases (voltage rebounds after load removed or charging stopped), temperature affects battery voltage (cold batteries show lower voltage, warm batteries higher), and battery state of charge naturally varies during use. Rapid fluctuations during driving normal—alternator charges batteries increasing voltage, then load applications decrease voltage creating continuous variations. Stable voltage when parked with no loads and no charging indicates battery rest voltage—most accurate SOC indication. Gradual voltage decline over hours/days indicates battery self-discharge or parasitic loads draining charge—normal self-discharge approximately 3-5% monthly for lead-acid, faster for older batteries. Q: Can I install dual battery monitor myself or need professional installation? A: DIY installation straightforward for users with basic automotive electrical skills and tools. Installation process: identify suitable mounting location on dash or console with rear access for wiring, drill mounting hole matching monitor diameter (typically 52mm standard gauge cutout), route positive wire from monitor to each battery positive terminal (or nearby positive connection point), route negative wire from monitor to each battery negative terminal or chassis ground near battery, secure connections using ring terminals and appropriate fasteners, verify correct polarity (reverse polarity may damage monitor), insert monitor into mounting hole securing with retaining hardware, test monitor operation verifying voltage readings reasonable for both batteries. Professional installation recommended if: unfamiliar with automotive electrical systems, uncertain about wire routing through dash/firewall, concerned about correct connection points, or prefer professional workmanship and warranty. Installation typically requires: drill and hole saw for mounting hole, crimp tool for terminal installation, basic hand tools for terminal connections, and multimeter for verification (optional but recommended confirming correct voltage readings). Q: What's difference between dual battery monitor and battery isolator—do I need both? A: Dual battery monitor and battery isolator serve different functions—most dual battery systems benefit from both. Battery monitor (BTDBM) provides information—displays voltage and state of charge for both batteries enabling informed power management decisions but does not control charging or isolation. Battery isolator controls charging—manages which batteries receive alternator charge and prevents auxiliary battery from draining starter battery but provides no information about battery states. Typical dual battery system includes: battery isolator (VSR, DC-DC charger, or manual switch) managing charging and isolation between batteries, and battery monitor providing visibility into battery voltages and states. Monitor essential for: knowing when batteries require charging, assessing available auxiliary battery capacity for appliances, verifying starter battery maintaining adequate charge, and detecting electrical system problems from abnormal voltage readings. Isolator essential for: directing alternator charge to appropriate batteries, preventing auxiliary loads draining starter battery, and protecting starter battery ensuring reliable engine starting. For complete dual battery system: install isolator for control plus monitor for visibility—combined provide comprehensive battery management. Q: Monitor shows one battery low voltage—what should I check and how to resolve? A: Systematic troubleshooting sequence: verify voltage reading accuracy by testing battery with multimeter (confirms monitor reading correct or identifies monitor calibration issue), check battery connections for corrosion, looseness, or high resistance (clean and tighten terminals if issues found), inspect battery isolator operation ensuring batteries charging properly (VSR connecting during charging, DC-DC charger operating, manual switch in correct position), test alternator output voltage ensuring adequate charging voltage (should see 14.2-14.8V at batteries during engine operation), assess battery condition and age (old or damaged batteries may not hold charge—load test reveals battery health), evaluate loads on low-voltage battery determining if excessive consumption causing discharge (auxiliary battery powering fridge, inverter, lights—reduce loads if necessary), verify battery capacity adequate for application (undersized battery depletes quickly—consider capacity upgrade), check for parasitic drains when vehicle off (faulty equipment or wiring drawing current), and examine battery charging system including alternator, wiring, and isolator for faults preventing proper charging. Resolution depends on cause: clean connections restoring electrical contact, charge battery fully using mains charger or extended driving, replace old/damaged battery failing to hold charge, upgrade battery capacity if consistently depleted during normal use, or repair charging system faults preventing proper battery charging.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less
