Victron Energy 12/1200/50-16 MultiPlus Inverter Chargers: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature. PowerControl - Dealing with limited generator, shore side or grid power (800-1200VA model only) With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist - Boosting the capacity of shore or generator power (800-1200VA model only) Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools. Search Mode When Search Mode is ‘on', the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the MultiPlus, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again. Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low). Remote on / off / charger on Three pole connector. Victron Energy PMP122120000 Specifications: Inverter Input Voltage Range: 9.5V - 17V Output: Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0,1% Cont. output power at 25°C: 1000W Cont. output power at 40°C: 900W Cont. output power at 65°C: 600W Peak power: 2400W Maximum efficiency: 94% Zero-load power: 9W Zero-load power in search mode: 3W Charger AC Input: Input voltage range: 187-265 VAC Input frequency: 45 Р65 Hz Charge voltage 'absorption': 14.4V Charge voltage 'float': 13.8V Storage mode: 13.2V Charge current house battery: 50A Charge current starter batter:y 1A Battery temperature sensor: Yes
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Energy 12/800/35-16 MultiPlus Inverter Chargers: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature. PowerControl - Dealing with limited generator, shore side or grid power (800-1200VA model only) With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist - Boosting the capacity of shore or generator power (800-1200VA model only) Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools. Search Mode When Search Mode is ‘on', the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the MultiPlus, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again. Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low). Remote on / off / charger on Three pole connector. Victron Energy PMP121800000 Specifications: Inverter: Input Voltage Range: 9.5V - 17V Output: Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0,1% Cont. output power at 25°C: 800W Cont. output power at 40°C: 700W Cont. output power at 65°C: 650W Peak power: 400W Maximum efficiency: 93% Zero-load power: 7W Zero-load power in search mode: 2W Charger: AC Input: Input voltage range: 187-265 VAC Input frequency: 45 Р65 Hz Charge voltage 'absorption': 14.4V Charge voltage 'float': 13.8V Storage mode: 13.2V Charge current house battery: 35A Charge current starter batter:y 1A Battery temperature sensor: Yes
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Energy 48/3000 Phoenix Inverter Smart: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems. It's powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish. Bluetooth is built-in, and makes setting up your high power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect. Victron Energy PIN482300000 Specifications: Input voltage range (V DC): 37,2 Р68V Output: Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1) Cont. output power at 25ºC (2): 3000VA Cont. output power at 25ºC: 2400W Cont. output power at 40ºC: 2200W Cont. output power at 65ºC: 1700W Peak power (W): 6000VA Max. efficiency 12/ 24 /48 V (%): 95 Zero load power 12 / 24 / 48 V (W): 15 Zero load power in ECO mode (W): 2.8
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Energy 48/1600 Phoenix Inverter Smart: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product
The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems. It's powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish. Bluetooth is built-in, and makes setting up your high power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.
Victron Energy PIN482160000 Specifications:
Input voltage range (V DC): 37,2 – 68V
Output:
Output voltage: 230 VAC ±2%
Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25ºC (2): 1600VA
Cont. output power at 25ºC: 1300W
Cont. output power at 40ºC: 1200W
Cont. output power at 65ºC: 800W
Peak power (W): 3000VA
Max. efficiency 12/ 24 /48 V (%): 94
Zero load power 12 / 24 / 48 V (W): 11
Zero load power in ECO mode (W): 2.1
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Energy 48/3000 Phoenix Inverter: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product SinusMax - Superior engineering Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. Extra start-up power A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances. Virtually unlimited power thanks to parallel and 3-phase operation capability Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible. To transfer the load to another AC source: the automatic transfer switch If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds). Computer interface All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface. Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems. Victron Energy PIN483020000 Specifications: Input voltage range (V DC): 19 Р33V Output: Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1) Cont. output power at 25ºC (VA) (2): 3000 Cont. output power at 25ºC (W): 2400 Cont. output power at 40ºC (W): 2200 Cont. output power at 65ºC (W): 1700 Peak power (W): 6000 Max. efficiency 12/ 24 /48 V (%): 95 Zero load power 12 / 24 / 48 V (W): 25 Zero load power in AES mode (W): 20 Zero load power in Search mode (W): 12
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!

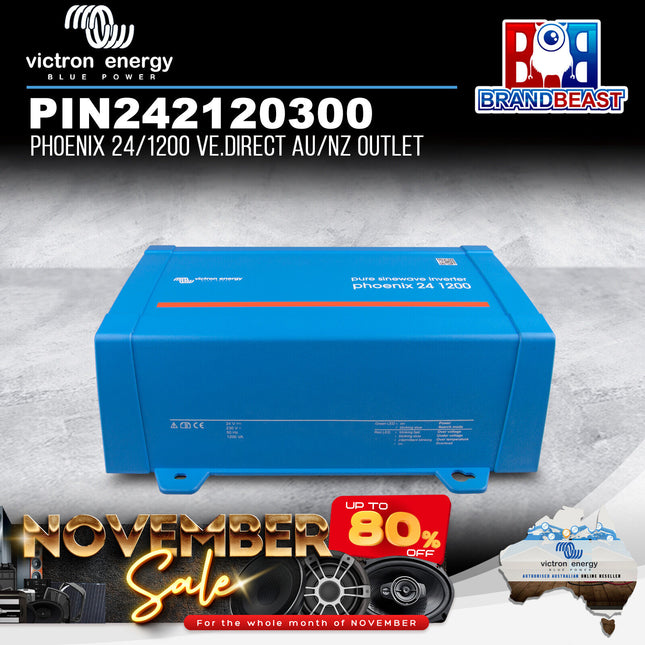

Victron Energy Phoenix 24/1200 Ve.Direct AU/NZ Outlet: Victron Energy Phoenix Inverters With Ve.direct Communication Port The VE.Direct port can be connected to a computer via the VE. Direct to USB interface cable, or a smartphone (Apple and Android), tablet, MacBook and other devices via the VE.Direct Bluetooth Smart dongle. This allows you to monitor In- and output voltage and current alarms. You can also configure: low voltage alarm trip and reset levels, low voltage cut-off and restart levels, output voltage 210-245V, frequency 50Hz or 60Hz, ECO mode on/off and ECO mode sense level. Victron Energy PIN242120300 Features: Fully Configurable Low Voltage Alarm Trip And Reset Levels Low Voltage Cut-off And Restart Levels Output Voltage 210 – 245v Frequency 50hz Or 60hz Eco Mode On/off And Eco Mode Sense Level Monitoring In And Output Voltage And Current Alarms Compatible Accessories Ve.direct Bluetooth Smart Dongle Ve.direct To Usb Interface Color Control Bmv 700 Battery Monitor
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!

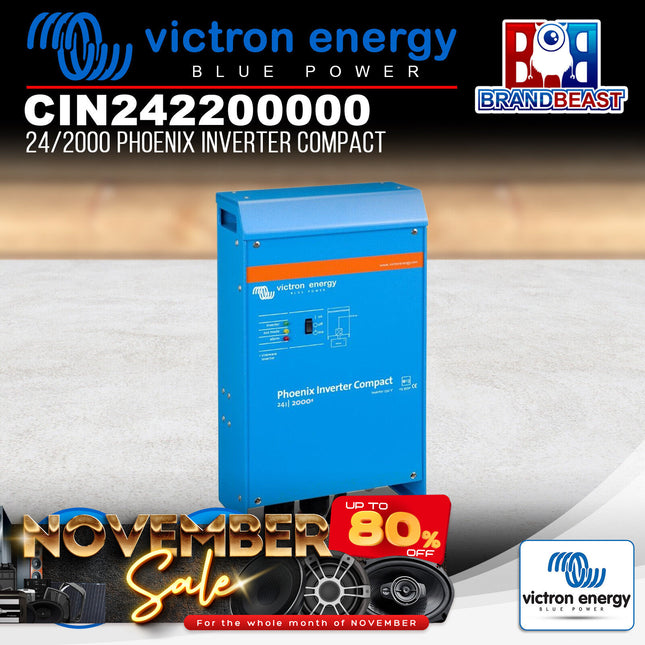

Victron Energy 24/2000 Phoenix Inverter Compact: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product SinusMax - Superior engineeringDeveloped for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.Extra start-up powerA unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.Virtually unlimited power thanks to parallel and 3-phase operation capabilityUp to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.To transfer the load to another AC source: the automatic transfer switchIf an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).Computer interfaceAll models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface.Together with our VEConfigure software, which can be downloaded free of charge fromour website, all parameters of the inverters can be customized. This includes output voltage and frequency, overand under voltage settings and programming the relay. This relay can for example be used to signal severalalarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power controlnetwork of Victron Energy, or to other computerized monitoring and control systems.Victron Energy CIN242200000 Specifications: Input voltage range (V DC): 19 Р33V Output: Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1) Cont. output power at 25ºC (VA) (2): 2000 Cont. output power at 25ºC (W): 1600 Cont. output power at 40ºC (W): 1450 Cont. output power at 65ºC (W): 1000 Peak power (W): 4000 Max. efficiency 12/ 24 /48 V (%): 92 Zero load power 12 / 24 / 48 V (W): 9 Zero load power in AES mode (W): 7 Zero load power in Search mode (W): 3
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Energy 12/1200 Phoenix Inverter Compact: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product SinusMax - Superior engineeringDeveloped for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.Extra start-up powerA unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.Virtually unlimited power thanks to parallel and 3-phase operation capabilityUp to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.To transfer the load to another AC source: the automatic transfer switchIf an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).Computer interfaceAll models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface.Together with our VEConfigure software, which can be downloaded free of charge fromour website, all parameters of the inverters can be customized. This includes output voltage and frequency, overand under voltage settings and programming the relay. This relay can for example be used to signal severalalarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power controlnetwork of Victron Energy, or to other computerized monitoring and control systems.Victron Energy CIN121220000 Specifications: Input voltage range (V DC): 9,5 Р17V Output: Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1) Cont. output power at 25ºC (VA) (2): 1200 Cont. output power at 25ºC (W): 1000 Cont. output power at 40ºC (W): 900 Cont. output power at 65ºC (W): 600 Peak power (W): 2400 Max. efficiency 12/ 24 /48 V (%): 92 Zero load power 12 / 24 / 48 V (W): 8 Zero load power in AES mode (W): 5 Zero load power in Search mode (W): 2
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications. Designed to Work with Lithium Iron Phosphate Batteries RITAR batteries are well known for their stable and reliable performance. They are easy to maintain; thus permitting a safe and proper operation of the equipment that the battery powers. The battery can withstand overcharge, over discharge, vibration and shock. It is also capable of extended storage. The unique construction and sealing technique guarantees that no electrolyte leakage can occur from the terminals or case of any battery. This feature insures safe and efficient operation of the batteries in any position. The batteries are classified as РNon-Spillable Рand will meet all requirements of the International Air Transport Association. During the expected float service life of RITAR batteries, there is no need to check the specific gravity of the electrolyte, or add water. In fact, there is no provision for these maintenance functions. The batteries are equipped with a safe low pressure venting system, which operates from 1 psi to 6 psi. The venting system is designed to release excess gas in the event that the gas pressure rises to a level above the normal rate. Afterwards, the venting system automatically re-seals itself when the gas pressure level returns its normal rate. This feature prevents excessive build up of gas in the batteries. This low pressure venting system, coupled with the extraordinarily high recombination efficiency, make RITAR batteries the safest sealed lead-acid batteries available. Ritar Power specialise in sealed lead acid and gel batteries. Covering a wide array of applications they have a heritage of research and development which has lead to developing high quality products. Through constant innovation they have engineered production lines which minimise any environmental impact. Using high quality materials and state of the art construction practices, Ritar Power manufacture batteries with proven performance in extreme operating conditions. Please note: These batteries come with 5 years nationwide warranty. Features: SAFETY LiFePO4 cells, high consistency, long cycle life and much more safety. UN38.3, CE certification for system, UL 1642 for cell DESIGN ABS container, replace VRLA battery perfectly. Fast charge performance. -20~+55° C widely temperature range. Maintenance free. BATTERY MANAGEMENT SYSTEM Integrated hardware BMS inside. Independent protection for charge and discharge. Over voltage, low voltage, over temperature and short circuit protection. Specifications: Nominal Voltage : 12.8 Nominal Capacity : 100 Nominal Energy : 1280 Internal Resistance : <20 Cycle Life : >4800 @50% DOD >3500 @80% DOD >3000 @100% DOD BMS : Over change, over discharge, over and under temperature short circuit protection, cell balancing. Parallel Support : Max 2 Sets Series Support : Max 4 sets Charging Voltage : 14.6 Max Charging Current : 100 Recommended Charging Current : 50 End of Discharge Voltage : 11.2 Max Discharging Current : 100 Pulse Discharge Current : 270A @10s Charge Temperature Range : 0 Р50c Discharge Temperature Range : -20 -55c Dimension : 306*168*210 Case Material: ABS UL94-HB Material Systems : LiFeP04 Protection Class : IP65 Terminal : M8 Designed Calendar Life : 10 years
Legendary Products & Support From Authorized Dealers
When you choose Ritar, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Ritar dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Ritar's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Ritar dealer today!
Keep Your Devices Charged and Your Appliances Powered up During Your Outdoor Travels with The Thunder 600/1000/2000 W Pure Sine Wave Inverters
These intelligent devices convert the DC current from your vehicles battery into AC current giving you access to the same type of 240V power you get at home. The Thunder inverters include overload, short circuit and over-temperature protection and load-controlled cooling fan, which is engaged when power consumption reaches a certain level preventing further damage to your battery. Whether you are looking for a small inverter to run something from your car or camper trailer, or you want to power a range of appliances from your boat, the Thunder 600/1000/2000W inverters have got you covered.
LCD Screen Operation

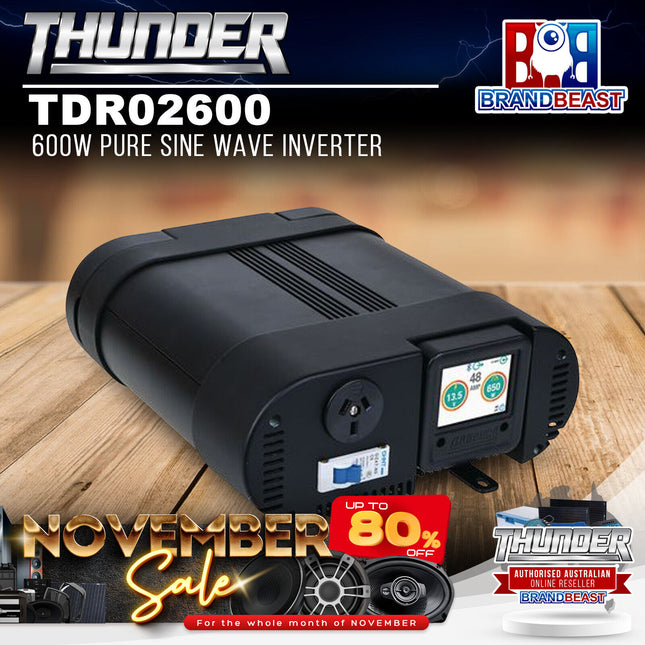

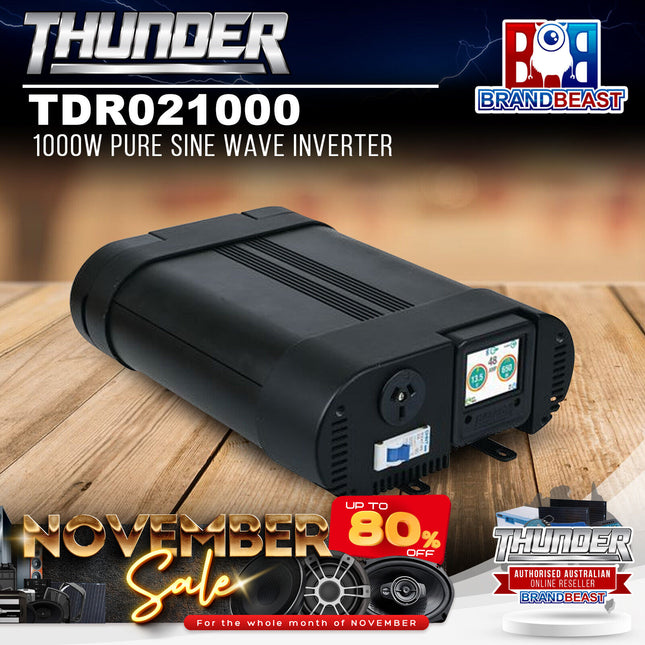

The Thunder 600/1000/2000W Power Inverters come with a 2.4-inch
Bluetooth LCD display with touch screen functionality for switching the main unit on/off from up to 10m away from the inverter installation location.
While the device is in use, the LCD screen will show the inverters output power, input voltage, amperage, output wattage and also low voltage warning allowing you to have better visibility of your device’s functionality.
The inverter also features a small Bluetooth icon on the top of the screen which will be displayed if there is signal received from the main unit.
If the input battery voltage reaches 11.5V, the voltage display value will start to flash, the low voltage warning will occur and the output power will shut down in order to prevent further power draw from the battery.
Integrated Bluetooth LCD Display Screen1. 240VAC external power input (only displayed when external 240VAC power is connected) *Displayed on the 2000W Thunder Power Inverter only2. Bluetooth active icon (only displayed when the Bluetooth signal is connected)3. Output active icon (When inverter has 240VAC load connected)4. DC input active icon (When DC input terminal has 12V connected)5. Input battery DC voltage reading (When battery voltage drops to 11.5V, the number will flash)6. Output power reading7. Low voltage cut-off indicator (only displays when battery voltage drops to 11V)8. Input DC current reading9. Touch control On/Off switch of the inverter output (Blue is on, Grey is off)10. Manual switch to turn screen on/off2000W Power Inverter Ac Transfer Switch

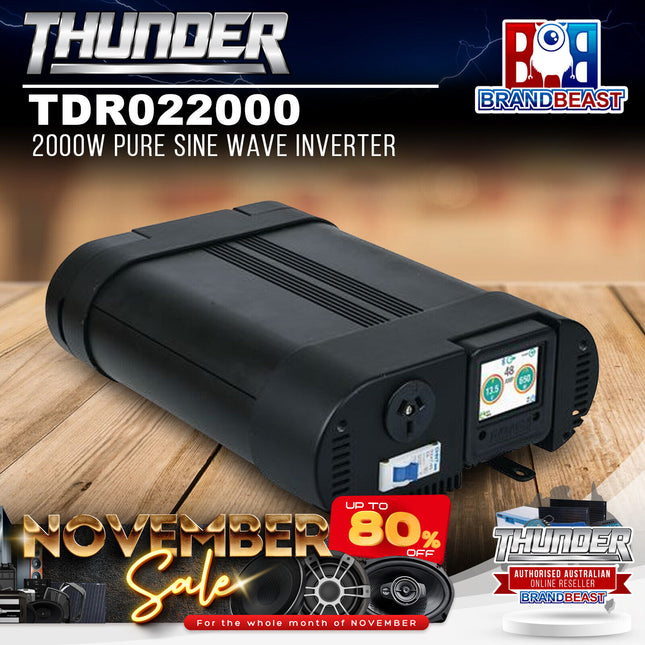

The Thunder 2000W Pure Sine Wave Inverter is conveniently designed with the addition of an automatic transfer switch to allow a seamless transition from DC input to 240V mains power and vice versa.
This allows you the flexibility of using DC power when on the road, staying off the grid or utilising 240V power while staying at powered sites without having to manually switch between input modes. The switch does this by sensing when AC power is going into the back of the unit’s AC terminals.
The DC input will be bypassed and cut off to ensure no current draw from the DC battery. This then prompts the 240V AC outlets at the front and the three AC terminals at the back to become operational.
When using DC input, only the two front power points become active.
This process happens in 0.1 seconds to ensure there is no disruption to powering the essentials in your caravan or motorhome. The 2.4-inch LCD screen displays the AC input mode on the top left corner and will display an input of 0V, 0A and 0W to allow complete visibility of the unit.
Features:
Removable 2.4-inch Bluetooth colour LCD display with touch screen functionality for switching
main unit on/off and displays inverter input voltage, amperage, output AC wattage and low
voltage warning
Heavy duty aluminium housing
Highly efficient power processing with 90% efficiency
Permanent mounting points
Low voltage warning at 11.5V with flashing voltage reading on the voltage gauge
Shuts down output at 11V along with visible warning on LCD screen
Over/under voltage, output short circuit, over temperature protection
Automatic temperature reduction with rear cooling fan
3-year warranty
Single 240VAC outlet (600/1000W inverters only)
Dual 240VAC outlet (2000W inverter only)
Automatic AC transfer switch senses when 240VAC input connected (2000W inverter only)
Specifications:
Continuous Output Power: 2000W
Peak Power (only for a short time): 4000W
Output Overload Protection (manual restart): 2200W
Output Voltage: 240V
Efficiency (full load): 90%
AC Transfer Switch: Yes
Transfer Switch Speed: ≤0.5s
Safety Switch: 5A250VAC
RCD Switch Protection: 10A240VAC, t≤0.1s
Input Cable Type Supplied(100% copper fully insulated): 70cm AWG3(25mm2)
External Fuse Specification: 150A
Measurements: 435x233x95mm(80mm C2C Mount holes)
Minimum Input Voltage: 11V
Output Frequency: 50Hz
Output Waveform: Pure Sine Wave
Input Voltage Range: 11-15V
Input Low Voltage Warning: 11.5V
Input Low Voltage Cut-off: 11V
Input Over-Voltage Cut-Off(automatically resets): 15.5V
Standby Current (when main switch is off): 11mA
No Load Working Current(when main switch is off): 0.5-0.6A
Protection Systems (output): Over/under-voltage protection, overheating protection, overload protection, output short circuit protection.
LCD Display Functions: Displays output power, input voltage, input current and also has an on/off button for switching unit on/off
LCD Screen Extra Cable Length: 0.3m and 1.7m extension cable for LCD display unit power supply
Internal Operating Temperature Range: -10°C - 50°C
Internal Over-Temperature Protection (requires manual reset): 60°C - 65°C
Cooling Fan: Single brushless fan (automatic operation)
Fan Control Method: Temperature maintained at 40°C±10°C
Approvals:CE, EMC, AS/NZS 4763:2011
Legendary Products & Support From Authorized Dealers
When you choose Thunder, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Thunder dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Thunder's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Thunder dealer today!
Keep Your Devices Charged and Your Appliances Powered up During Your Outdoor Travels with The Thunder 600/1000/2000 W Pure Sine Wave Inverters
These intelligent devices convert the DC current from your vehicles battery into AC current giving you access to the same type of 240V power you get at home. The Thunder inverters include overload, short circuit and over-temperature protection and load-controlled cooling fan, which is engaged when power consumption reaches a certain level preventing further damage to your battery. Whether you are looking for a small inverter to run something from your car or camper trailer, or you want to power a range of appliances from your boat, the Thunder 600/1000/2000W inverters have got you covered.
LCD Screen Operation
The Thunder 600/1000/2000W Power Inverters come with a 2.4-inch
Bluetooth LCD display with touch screen functionality for switching the main unit on/off from up to 10m away from the inverter installation location.
While the device is in use, the LCD screen will show the inverters output power, input voltage, amperage, output wattage and also low voltage warning allowing you to have better visibility of your device’s functionality.
The inverter also features a small Bluetooth icon on the top of the screen which will be displayed if there is signal received from the main unit.
If the input battery voltage reaches 11.5V, the voltage display value will start to flash, the low voltage warning will occur and the output power will shut down in order to prevent further power draw from the battery.
Integrated Bluetooth LCD Display Screen1. 240VAC external power input (only displayed when external 240VAC power is connected) *Displayed on the 2000W Thunder Power Inverter only2. Bluetooth active icon (only displayed when the Bluetooth signal is connected)3. Output active icon (When inverter has 240VAC load connected)4. DC input active icon (When DC input terminal has 12V connected)5. Input battery DC voltage reading (When battery voltage drops to 11.5V, the number will flash)6. Output power reading7. Low voltage cut-off indicator (only displays when battery voltage drops to 11V)8. Input DC current reading9. Touch control On/Off switch of the inverter output (Blue is on, Grey is off)10. Manual switch to turn screen on/off2000W Power Inverter Ac Transfer Switch
The Thunder 2000W Pure Sine Wave Inverter is conveniently designed with the addition of an automatic transfer switch to allow a seamless transition from DC input to 240V mains power and vice versa.
This allows you the flexibility of using DC power when on the road, staying off the grid or utilising 240V power while staying at powered sites without having to manually switch between input modes. The switch does this by sensing when AC power is going into the back of the unit’s AC terminals.
The DC input will be bypassed and cut off to ensure no current draw from the DC battery. This then prompts the 240V AC outlets at the front and the three AC terminals at the back to become operational.
When using DC input, only the two front power points become active.
This process happens in 0.1 seconds to ensure there is no disruption to powering the essentials in your caravan or motorhome. The 2.4-inch LCD screen displays the AC input mode on the top left corner and will display an input of 0V, 0A and 0W to allow complete visibility of the unit.
Features:
Removable 2.4-inch Bluetooth colour LCD display with touch screen functionality for switching
main unit on/off and displays inverter input voltage, amperage, output AC wattage and low
voltage warning
Heavy duty aluminium housing
Highly efficient power processing with 90% efficiency
Permanent mounting points
Low voltage warning at 11.5V with flashing voltage reading on the voltage gauge
Shuts down output at 11V along with visible warning on LCD screen
Over/under voltage, output short circuit, over temperature protection
Automatic temperature reduction with rear cooling fan
3-year warranty
Single 240VAC outlet (600/1000W inverters only)
Dual 240VAC outlet (2000W inverter only)
Automatic AC transfer switch senses when 240VAC input connected (2000W inverter only)
Specifications:
Continuous Output Power: 1000W
Peak Power (only for a short time): 2000W
Output Overload Protection (manual restart): 1100W
Output Voltage: 240V
Efficiency (full load): 90%
AC Transfer Switch: -
Transfer Switch Speed: -
Safety Switch: 5A250VAC
RCD Switch Protection: -
Input Cable Type Supplied(100% copper fully insulated): 70cm AWG6(13.3mm2)
External Fuse Specification: 80A
Measurements: 310x233x95mm(80mm C2C Mount holes)
Minimum Input Voltage: 11V
Output Frequency: 50Hz
Output Waveform: Pure Sine Wave
Input Voltage Range: 11-15V
Input Low Voltage Warning: 11.5V
Input Low Voltage Cut-off: 11V
Input Over-Voltage Cut-Off(automatically resets): 15.5V
Standby Current (when main switch is off): 11mA
No Load Working Current(when main switch is off): 0.5-0.6A
Protection Systems (output): Over/under-voltage protection, overheating protection, overload protection, output short circuit protection.
LCD Display Functions: Displays output power, input voltage, input current and also has an on/off button for switching unit on/off
LCD Screen Extra Cable Length: 0.3m and 1.7m extension cable for LCD display unit power supply
Internal Operating Temperature Range: -10°C - 50°C
Internal Over-Temperature Protection (requires manual reset): 60°C - 65°C
Cooling Fan: Single brushless fan (automatic operation)
Fan Control Method: Temperature maintained at 40°C±10°C
Approvals:CE, EMC, AS/NZS 4763:2011
Legendary Products & Support From Authorized Dealers
When you choose Thunder, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Thunder dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Thunder's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Thunder dealer today!
Keep Your Devices Charged and Your Appliances Powered up During Your Outdoor Travels with The Thunder 600/1000/2000 W Pure Sine Wave Inverters These intelligent devices convert the DC current from your vehicles battery into AC current giving you access to the same type of 240V power you get at home. The Thunder inverters include overload, short circuit and over-temperature protection and load-controlled cooling fan, which is engaged when power consumption reaches a certain level preventing further damage to your battery. Whether you are looking for a small inverter to run something from your car or camper trailer, or you want to power a range of appliances from your boat, the Thunder 600/1000/2000W inverters have got you covered. LCD Screen Operation The Thunder 600/1000/2000W Power Inverters come with a 2.4-inch Bluetooth LCD display with touch screen functionality for switching the main unit on/off from up to 10m away from the inverter installation location. While the device is in use, the LCD screen will show the inverters output power, input voltage, amperage, output wattage and also low voltage warning allowing you to have better visibility of your device's functionality. The inverter also features a small Bluetooth icon on the top of the screen which will be displayed if there is signal received from the main unit. If the input battery voltage reaches 11.5V, the voltage display value will start to flash, the low voltage warning will occur and the output power will shut down in order to prevent further power draw from the battery. Integrated Bluetooth LCD Display Screen 1. 240VAC external power input (only displayed when external 240VAC power is connected) *Displayed on the 2000W Thunder Power Inverter only 2. Bluetooth active icon (only displayed when the Bluetooth signal is connected) 3. Output active icon (When inverter has 240VAC load connected) 4. DC input active icon (When DC input terminal has 12V connected) 5. Input battery DC voltage reading (When battery voltage drops to 11.5V, the number will flash) 6. Output power reading 7. Low voltage cut-off indicator (only displays when battery voltage drops to 11V) 8. Input DC current reading 9. Touch control On/Off switch of the inverter output (Blue is on, Grey is off) 10. Manual switch to turn screen on/off 2000W Power Inverter Ac Transfer Switch The Thunder 2000W Pure Sine Wave Inverter is conveniently designed with the addition of an automatic transfer switch to allow a seamless transition from DC input to 240V mains power and vice versa. This allows you the flexibility of using DC power when on the road, staying off the grid or utilising 240V power while staying at powered sites without having to manually switch between input modes. The switch does this by sensing when AC power is going into the back of the unit's AC terminals. The DC input will be bypassed and cut off to ensure no current draw from the DC battery. This then prompts the 240V AC outlets at the front and the three AC terminals at the back to become operational. When using DC input, only the two front power points become active. This process happens in 0.1 seconds to ensure there is no disruption to powering the essentials in your caravan or motorhome. The 2.4-inch LCD screen displays the AC input mode on the top left corner and will display an input of 0V, 0A and 0W to allow complete visibility of the unit.
Legendary Products & Support From Authorized Dealers
When you choose Thunder, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Thunder dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Thunder's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Thunder dealer today!
