Victron Energy Orion DC-DC Converter 24/12-40: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product Remote on-off connector The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase the output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40) Victron Energy ORI241240021 Specifications: Input voltage range (V): 18-35 Under voltage shutdown (V): 14 Under voltage restart (V): 18 Output voltage adjustable with potentiometer: no Output voltage (V): 13,2 Efficiency (%): 95 Suitable to buffer-charge a battery: no Can be connected in parallel: no Continuous output current (A): 40 Max. Output current (A): 55 Fan-assisted cooling (temp. controlled): yes Galvanic isolation: no Offload current: < 20mA Remote on-off: yes Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C DC connection: Faston tabs 6.3 mm
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Energy Orion DC-DC Converter 24/12-70: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel. Easy to install Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40) Victron Energy ORI241270020 Specifications: Input voltage range (V): 18-35 Under voltage shutdown (V): 14 Under voltage restart (V): 18 Output voltage adjustable with potentiometer: yes Output voltage (V): Adjustable 10–15V F set 13,2V Efficiency (%): 92 Suitable to buffer-charge a battery: yes Can be connected in parallel: yes Continuous output current (A): 70 Max. Output current (A): 85 Fan assisted cooling (temp. controlled): yes Galvanic isolation: no Off load current: < 20mA Remote on-off: yes Operating temperature range (derate 3% per ¬∞C above 40¬∞C): -20 to +55¬∞C DC connection: Faston tabs 6.3 mm
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Energy 12V to 24V 8A DC to DC Converters: The Orion Converters From Victron Energy Have Been Designed to Be a True World-wide Product An ever-increasing amount of electric equipment is being used on vehicles and boats. Because most low-voltage equipment, such as navigation and radio equipment, mobile telephones or car hi-fi systems, is designed for 12 Volts, Victron Energy supplies DC/DC converters which deliver a stable 12 Volt supply from a 24 Volt system. These products are also distinguished by high efficiency, together with absolute safety. An inferior supply can cause irreparable damage to your 12 Volt system, but the use of an Orion voltage converter prevents problems of that type. Next to converters from 12V to 12V, a wide range of other models is available. Victron Energy ORI122408020 Specifications Input voltage range (V): 9-18 Under voltage shutdown (V): 8 Under voltage restart (V): 10 Output voltage adjustable with potentiometer: no Output voltage (V): 24 Efficiency (%): 95 Suitable to buffer-charge a battery: no Can be connected in parallel: no Continuous output current (A): 8 Max. Output current (A): 20 Fan assisted cooling (temp. controlled): no Galvanic isolation: no Off load current: < 10mA Remote on-off: no Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C DC connection: Faston tabs: 6.3 mm Weight: 0.4kg Dimensions hxwxd in mm: 45x90x115
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!

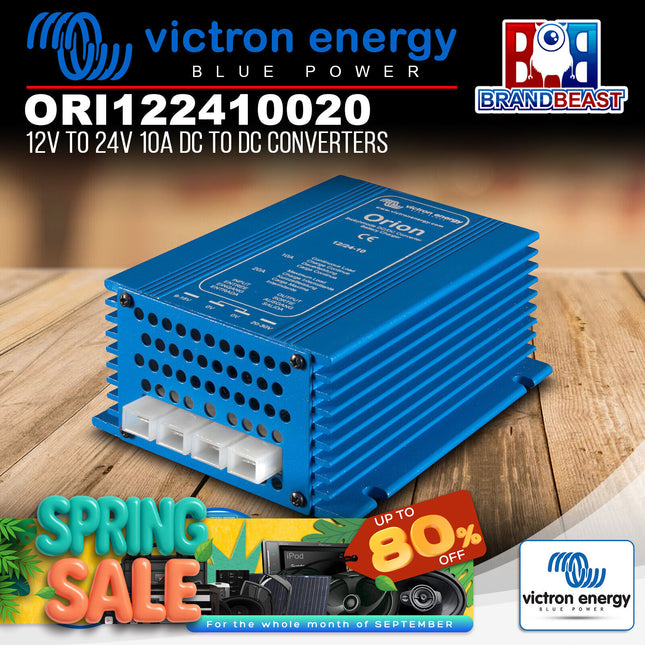

Victron Energy 12V to 24V 10A DC to DC Converters: The Orion Converters From Victron Energy Have Been Designed to Be a True World-wide Product An ever-increasing amount of electric equipment is being used on vehicles and boats. Because most low-voltage equipment, such as navigation and radio equipment, mobile telephones or car hi-fi systems, is designed for 12 Volts, Victron Energy supplies DC/DC converters which deliver a stable 12 Volt supply from a 24 Volt system. These products are also distinguished by high efficiency, together with absolute safety. An inferior supply can cause irreparable damage to your 12 Volt system, but the use of an Orion voltage converter prevents problems of that type. Next to converters from 24 V to 12 V, a wide range of other models is available. Victron Energy ORI122410020 Specifications: Input voltage range: 15-40VDC Under voltage shutdown: 13V Under voltage restart: 14V No load current at 24V: 20mA DC output voltage: 12V +/- 3% Maximum continuous output current: 10A Efficiency: 93% Ripple & Noise: 75mV pp Operating temperature range (derate 3% per °C above 40°C): -20 to +70°C (full rated output up to 40°C) Overload protection: Hiccup mode, recovers automatically after the fault condition is removed Short circuit proof: Yes Protection against reverse polarity: Connection With external fuse or circuit breaker (not included)
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!

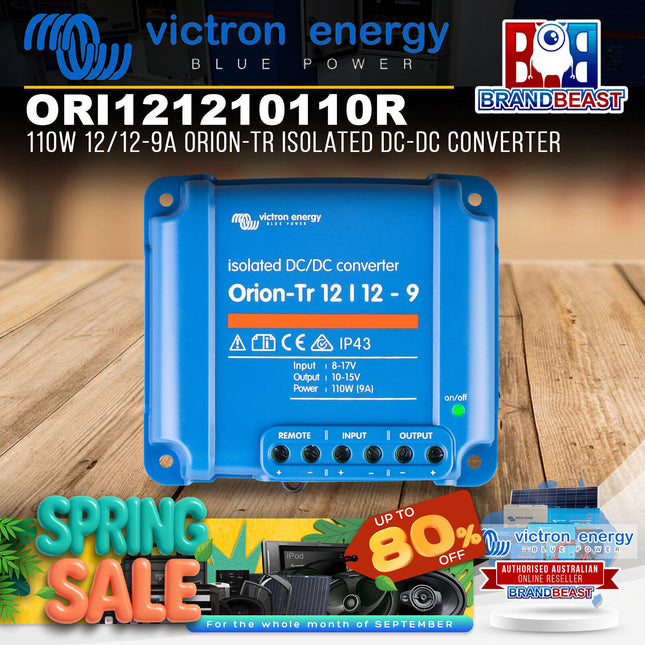

Victron Energy 110W 12/12-9A Orion-Tr Isolated DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product Remote on-off The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperatures. IP43 protection When installed with the screw terminals oriented downward. Screw terminals No special tools are needed for installation. Input fuse (not replaceable) On 12V and 24V input models only Victron Energy ORI121210110R Specifications: Input voltage range: 8-17V Under voltage shut down: 7V Under voltage restart: 7,5V Nominal output voltage: 12,2V Output voltage adjust range: 10-15V Output voltage tolerance: +/- 0,2V Output noise: 2mV rms Cont. output current at nominal output voltage and 25°C: 9A Maximum output current (10 s) at nominal output voltage: 12,5A Short circuit output current: 32A Cont. output power at 25°C: 110W Cont. output power at 40°C: 85W Efficiency: 87% Offload current: < 50mA Galvanic isolation: 200V dc between input, output, and case Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C) Humidity: Max. 95% non-condensing DC connection: Screw terminals Maximum cable cross-section: 6 mm² AWG10 Weight: 0,42 kg Dimensions hxwxd: 100 x 113 x 47 mm
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!

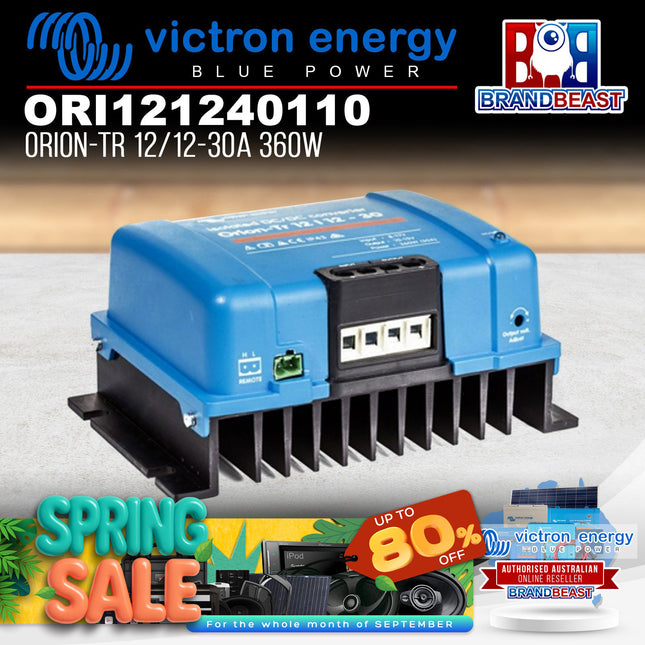

Victron Energy 360W 12/12-30A Orion-Tr Isolated DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperatures. IP43 protection When installed with the screw terminals oriented downward. Screw terminals No special tools are needed for installation. Input fuse (not replaceable) On 12V and 24V input models only Victron Energy ORI121240110 Specifications: Input voltage range: 10-17V Under voltage shut down: 7V Under voltage restart: 7,5V Nominal output voltage: 12,2V Output voltage adjust range: 10-15V Output voltage tolerance: +/- 0,2V Output noise: 2mV rms Cont. output current at nominal output voltage and 25°C: 30A Maximum output current (10 s) at nominal output voltage: 40A Short circuit output current: 60A Cont. output power at 25°C: 430W Cont. output power at 40°C: 360W Efficiency: 87% Offload current: < 80mA Galvanic isolation: 200V dc between input, output, and case Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C) Humidity: Max. 95% non-condensing DC connection: Screw terminals Maximum cable cross-section: 16 mm² AWG10 Weight: 1.3 kg Dimensions hxwxd: 130 x 186 x 70 mm
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!

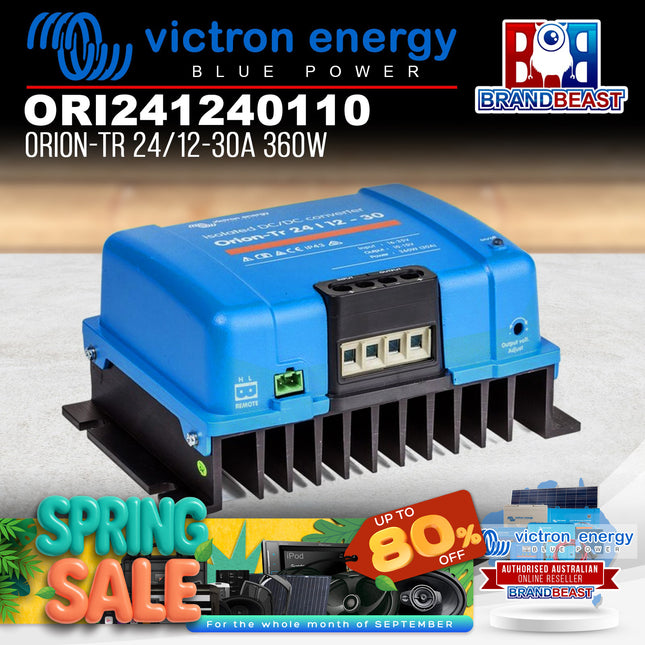

Victron Energy 360W 24/12-30A Orion-Tr Isolated DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperatures. IP43 protection When installed with the screw terminals oriented downward. Screw terminals No special tools are needed for installation. Input fuse (not replaceable) On 12V and 24V input models only Victron Energy ORI241240110 Specifications: Input voltage range: 20-35V Under voltage shut down: 14V Under voltage restart: 15V Nominal output voltage: 12,2V Output voltage adjust range: 10-15V Output voltage tolerance: +/- 0,2V Output noise: 2mV rms Cont. output current at nominal output voltage and 25°C: 30A Maximum output current (10 s) at nominal output voltage: 45A Short circuit output current: 60A Cont. output power at 25°C: 430W Cont. output power at 40°C: 360W Efficiency: 88% Offload current: < 100mA Galvanic isolation: 200V dc between input, output, and case Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C) Humidity: Max. 95% non-condensing DC connection: Screw terminals Maximum cable cross-section: 16 mm² AWG10
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Stinger 1 Pack Shoc-Krome 300 AMP ANL Fuse: Can Be Used with Any of Stingers ANL Fuse Holders Stinger SPF52300 Features: Ultimate Circuit Protection High Conductivity Shoc-Krome Plating Maximum Current Transfer Stinger SPF52300 Specifications: Amp Rating: 300A Fuse Type: ANL Style
Legendary Products & Support From Authorized Dealers
When you choose Stinger, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Stinger dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Stinger's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Stinger dealer today!
Stinger 1 Pack Shoc-Krome 250 AMP ANL Fuse: Can Be Used With Any Of Stingers ANL Fuse Holders.
Legendary Products & Support From Authorized Dealers
When you choose Stinger, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Stinger dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Stinger's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Stinger dealer today!
Stinger 1 Pack Shoc-Krome 150 AMP ANL Fuse: Can Be Used With Any Of Stingers ANL Fuse Holders Stinger SPF52150 Features: Ultimate Circuit Protection High Conductivity Shoc-Krome Plating Maximum Current Transfer ANL Style
Legendary Products & Support From Authorized Dealers
When you choose Stinger, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Stinger dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Stinger's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Stinger dealer today!

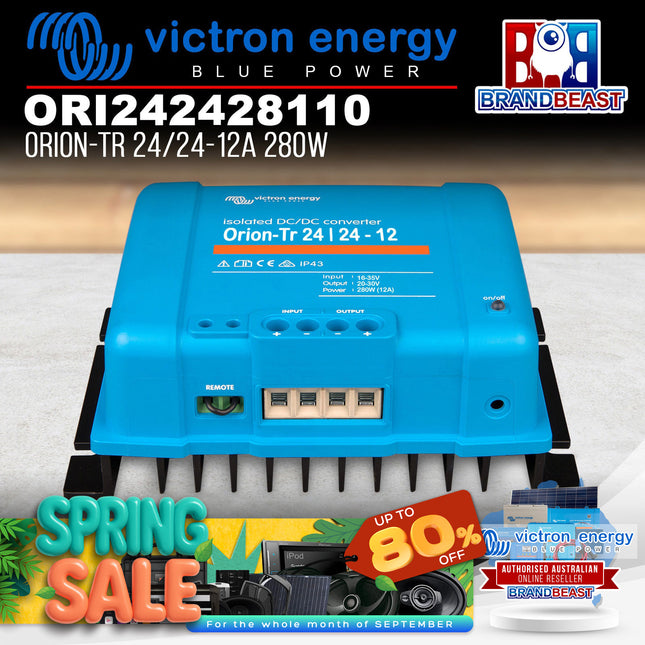

Victron Energy 280W 24/24-12A Orion-Tr Isolated DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12V and 24V input models only
Victron Energy ORI242428110 Specifications:
Input voltage range: 16-35V
Under voltage shut down: 14V
Under voltage restart: 15V
Nominal output voltage: 24,2V
Output voltage adjust range: 20-30V
Output voltage tolerance: +/- 0,2V
Output noise: 2mV rms
Cont. output current at nominal output voltage and 25°C: 12A
Maximum output current (10 s) at nominal output voltage: 15A
Short circuit output current: 30A
Cont. output power at 25°C: 320W
Cont. output power at 40°C: 280W
Efficiency: 89%
Offload current: < 80mA
Galvanic isolation: 200V dc between input, output, and case
Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
Humidity: Max. 95% non-condensing
DC connection: Screw terminals
Maximum cable cross-section: 6 mm² AWG10
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Stinger 1 Pack Shoc-Krome 100 AMP ANL Fuse: Can Be Used With Any Of Stingers ANL Fuse Holders. Stinger SPF52100 Features: Ultimate Circuit Protection High Conductivity Shoc-Krome Plating Maximum Current Transfer
Legendary Products & Support From Authorized Dealers
When you choose Stinger, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Stinger dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Stinger's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Stinger dealer today!
