Maximum power Class D subwoofer amplification engineered for extreme marine and automotive bass applications. Product Overview The JL Audio XDM1000 monoblock amplifier delivers elite-level subwoofer power in a marine-rated Class D package. With 1000W RMS output at 2Ω and 600W at 4Ω, this dedicated bass amplifier provides the headroom demanded by serious marine audio installations, competition SPL builds, and high-output 4WD systems. The marine-grade conformal coating protects against Australia's harshest coastal conditions, salt spray, and bilge moisture while maintaining exceptionally low distortion below 1% THD across the full power band. Built on JL Audio's proven XDM platform, the 1000-watt monoblock features variable low-pass filtering (50Hz-500Hz) with selectable 12dB or 24dB/octave slopes, allowing precise integration with any subwoofer configuration. The robust 80A fuse rating and substantial heat sink design ensure sustained performance during extended listening sessions at anchor, beach parties, or highway touring. At 374mm wide, it represents the flagship of JL Audio's monoblock XDM range—engineered for installers who refuse to compromise on power or reliability. Key Specifications Monoblock Class D amplifier optimised for high-output subwoofer applications Maximum rated power: 1000W RMS at 2Ω (14.4V input, <1% THD) Power at 4Ω load: 600W RMS (14.4V input, <1% THD) Power at 2Ω load (battery voltage): 800W RMS (12.5V input, <1% THD) Power at 4Ω load (battery voltage): 500W RMS (12.5V input, <1% THD) Frequency response: 7Hz-500Hz (+0, -1dB) Signal-to-noise ratio: >83dB (A-weighted, 20Hz-20kHz, referred to rated power) Signal-to-noise ratio: >53dB (A-weighted, 20Hz-20kHz, referred to 1W) Operating voltage: 11-14.5 VDC (12V systems only) Damping factor: >1000 @ 4Ω, 50Hz / >500 @ 2Ω, 50Hz THD+N: <1% @ rated power, 2Ω per channel Input voltage range: 200mV-4V RMS via RCA inputs Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Infrasonic filter: Not specified for this variant Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified Fuse rating: 80A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Buffered pass-through preamp outputs Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level control Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 1000W RMS Continuous PowerDelivers maximum bass authority for demanding marine wakeboard towers, competition SPL builds, or dual-subwoofer touring setups. The 1000W output at 2Ω provides substantial headroom above typical listening levels, ensuring clean, undistorted bass even during peak musical passages. Perfect for large cabin volumes in centre console boats, caravan entertainment systems, or dual-cab ute installations requiring serious low-frequency impact. Variable Low-Pass Filtering (50Hz-500Hz)Precision crossover control allows seamless integration with any subwoofer design. Selectable 12dB or 24dB/octave slopes accommodate sealed, ported, or bandpass enclosures, ensuring smooth transitions between subwoofer and main speakers. The detented, calibrated potentiometers enable repeatable settings across installations—critical for professional installers servicing multiple similar builds. Marine-Rated Class D TopologyConformal-coated circuit boards resist salt spray, moisture ingress, and corrosive coastal environments. Engineered for harsh Australian marine conditions—from tropical Queensland humidity to Southern Ocean salt spray. The robust construction handles bilge moisture, deck washdowns, and weather exposure that would destroy conventional automotive amplifiers, making it equally suitable for offshore fishing boats, ski boats, or canopy-protected 4WD cargo areas. Flagship Power CapacityThe 80A fuse rating and substantial internal power supply deliver consistent performance under sustained high-output conditions. Whether running twin 12" subs in a ported enclosure or a single high-excursion 15" driver, the XDM1000 maintains voltage stability and thermal control during extended listening sessions. Ideal for beach parties, boat rallies, or long-distance touring where the engine may be off for hours. High Damping Factor (>1000 @ 4Ω)Exceptional electrical control over subwoofer cone motion produces tight, articulate bass with minimal overhang. The high damping factor ensures kick drums, bass guitar, and electronic music maintain transient precision even at extreme output levels. Critical for maintaining clarity in noisy marine environments where wind, engine, and wave noise compete with audio playback. Extended Chassis DesignAt 374mm (14.73"), the XDM1000 features the largest footprint in the monoblock XDM range, accommodating a substantial heat sink and power supply components. The extended chassis distributes thermal load efficiently, enabling sustained full-power operation without thermal compression—the enemy of clean bass. Mount horizontally under seats, vertically behind panels, or in dedicated amplifier racks. Optional Water-Resistant Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, driver's seat, or entertainment zone. Essential for compensating between moored listening conditions and underway wind noise, or between empty boat weight and fully loaded touring configurations. The remote maintains full control authority over the amplifier's output level. Technical Specs Amplifier class: Class D Channels: 1 (Monoblock) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 1000W × 1 Power at 4Ω load (14.4V @ 4Ω, <1% THD): 600W × 1 Power on battery voltage (12.5V @ 2Ω, <1% THD): 800W × 1 Minimum power output (12.5V @ 4Ω, <1% THD): 500W × 1 Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to rated power): >83dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >53dB Damping factor @ 4Ω: >1000 @ 50Hz Damping factor @ 2Ω: >500 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 7Hz-500Hz Input voltage range @ RCA inputs: 200mV-4V RMS Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Detented, calibrated filter potentiometers: Yes Buffered pass-through preamp output: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 80A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes 24V variants (6-channel and 8-channel only) for commercial/heavy vehicle applications—this monoblock 1000W model operates on 12V systems exclusively. Compatible With / Goes Well With Subwoofer Recommendations: JL Audio Marine M6 or M3 12" or 15" subwoofers (500W-1000W RMS continuous) Dual 10" or 12" subwoofer configurations (500W each, wired for 2Ω total) Single high-excursion 15" subwoofer (800W-1000W RMS handling) Ported or sealed enclosures rated for 1000W RMS handling Installation Accessories: 4 AWG or 2 AWG amplifier wiring kit with 80A+ inline fuse holder (0 AWG recommended for extended runs) JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (12-14 AWG recommended for subwoofer runs) RCA interconnect cables with marine-grade shielding Sound deadening material for enclosure mounting surfaces and surrounding panels Heavy-duty amplifier mounting brackets or racks System Compatibility: Marine head units with 2V-4V preamp outputs (4V recommended for best signal-to-noise ratio) Aftermarket head units with dedicated subwoofer preouts Line output converters for factory radio integration Dual-battery systems with high-output alternators (130A+ minimum recommended) Distribution blocks for multi-amplifier systems Electrical System Requirements: Minimum 130A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for deep-cycle support) Proper grounding with dedicated ground point to chassis/hull Voltage-stable electrical system (avoid excessive voltage drop under load) Caution: The XDM1000 demands substantial electrical capacity. Verify your alternator output, battery capacity, and wiring gauge before installation. Undersized electrical systems will result in voltage drop, thermal protection triggering, or inconsistent performance. Running at 2Ω delivers maximum 1000W but requires robust electrical infrastructure. For extended engine-off listening, consider auxiliary battery systems with proper isolation. Frequently Asked Questions What electrical system upgrades do I need to run this 1000W amplifier?Minimum 130A alternator, AGM or lithium auxiliary battery for engine-off use, 4 AWG power/ground wire (0-2 AWG for runs over 5m), and 80A fuse within 45cm of battery. Undersized systems cause voltage drop and thermal protection shutdown. Can I run dual subwoofers with this amplifier?Yes. Wire two 4Ω subs in parallel for 2Ω total (1000W shared) or two 2Ω subs in series for 4Ω total (600W shared). Never wire two 2Ω subs in parallel—this creates 1Ω load that can damage the amplifier. Will this fit in the same space as the XDM600 monoblock?No. The XDM1000 measures 374mm wide versus the XDM600's 216mm width. Verify mounting location accommodates the extended chassis (374mm × 180mm × 52mm) with adequate ventilation clearance above and around the heat sink. Is this suitable for wakeboard tower speakers or only subwoofers?Subwoofers only. The XDM1000 features low-pass filtering (50Hz-500Hz) optimised for bass reproduction. For wakeboard tower full-range speakers, consider JL Audio's multi-channel XDM amplifiers with high-pass filtering capabilities. How do I prevent thermal shutdown during long engine-off listening sessions?Ensure 50mm+ clearance around the amplifier for airflow, avoid mounting in sealed enclosures, and consider auxiliary cooling fans for enclosed installations. Monitor voltage—if battery voltage drops below 11V, reduce output or start engine to prevent thermal protection activation.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Professional-grade 8-channel Class D amplification engineered specifically for 24V commercial marine and heavy vehicle applications. Product Overview The JL Audio XDM800 8-channel amplifier delivers comprehensive full-range amplification for 24V electrical systems found in commercial vessels, charter boats, coach buses, and heavy transport applications. With 100W RMS per channel at 2Ω (800W total) or 90W per channel at 4Ω (720W total), this marine-rated Class D platform drives complete audio systems including cabin speakers, tower speakers, and helm zones from a single amplifier. The 24V-specific design operates optimally at 25-28.8V input, making it ideal for diesel-powered vessels, commercial fishing boats, and work trucks running dual 12V battery configurations in series. Built on JL Audio's proven XDM architecture with marine-grade conformal coating, the 8-channel configuration allows flexible system design: run all eight channels independently, bridge pairs for higher power to four zones, or combine configurations for mixed full-range and subwoofer applications. Variable high-pass and low-pass filtering on all channel pairs (50Hz-500Hz, 12dB/octave slopes) enables precise tuning for different speaker types and mounting locations. At 374mm wide with a 40A fuse rating and 4 AWG wire compatibility, the XDM800 represents the ultimate commercial marine amplification solution for Australian charter operators, commercial fishermen, and fleet managers demanding reliability in harsh coastal conditions. Key Specifications 8-channel Class D amplifier designed for 24V electrical systems Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 8 channels (800W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 90W RMS × 8 channels (720W total) Bridged power (28.8V @ 4Ω, <1% THD): 180W RMS × 4 channels (720W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 100W RMS × 8 channels (800W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 90W RMS × 8 channels (720W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 4 channels (720W total bridged) Operating voltage: 24V DC systems (designed for 25-28.8V input) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: >104dB (A-weighted, 20Hz-20kHz, referred to rated power) - applicable to 6-channel 24V model, not specified separately for 8-channel THD+N: <1% @ rated power, 2Ω per channel Input voltage range: Not specified for 24V models Damping factor: Not specified for 24V models Filter modes (Channels 1 & 2): Not specified for 24V 8-channel Filter modes (Channels 3 & 4): Not specified for 24V 8-channel Filter modes (Channels 5 & 6): Not specified for 24V 8-channel Filter modes (Channels 7 & 8): Not specified for 24V 8-channel Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified for 24V 8-channel variant Fuse rating: 40A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 24V Commercial Marine DesignPurpose-built for 24V electrical systems common in commercial vessels, charter boats, and heavy transport. Unlike 12V amplifiers that struggle with voltage compatibility, the XDM800 operates optimally at 25-28.8V input—the native voltage range of diesel-powered boats, coach buses, and commercial fishing vessels with dual 12V batteries wired in series. Eliminates the need for voltage converters or multiple 12V amplifiers in 24V installations. 8-Channel FlexibilityDrive complete multi-zone audio systems from a single amplifier. Run all eight channels independently for cabin speakers, flybridge zones, cockpit areas, and helm stations. Bridge channel pairs (1+2, 3+4, 5+6, 7+8) for 180W output to demanding tower speakers or marine subwoofers. Mix configurations: six channels for full-range speakers plus one bridged pair for a subwoofer, providing maximum installation flexibility for commercial applications. Marine-Rated Class D TopologyConformal-coated circuit boards withstand salt spray, bilge moisture, and corrosive marine environments encountered in Australian commercial fishing, charter operations, and offshore work vessels. The robust construction handles tropical humidity in Far North Queensland, Southern Ocean conditions off Tasmania, and everything between. Engineered for installations where amplifier failure isn't an option—charter boats operating daily, commercial fishing vessels at sea for weeks, or work boats in remote locations. Variable Filtering Across All Channel PairsPrecise crossover control on channels 1&2, 3&4, 5&6, and 7&8 allows system-specific tuning. High-pass filter cabin speakers to remove low-frequency strain, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz range accommodate any speaker configuration, from compact marine coaxials to high-output tower speakers and marine subwoofers. Compact 24V Power DistributionThe 40A fuse rating and 4 AWG wire compatibility simplify installation in commercial vessels with existing 24V distribution systems. Unlike cobbling together multiple 12V amplifiers with voltage converters, the XDM800 integrates directly into 24V electrical infrastructure, reducing wiring complexity, connection points, and potential failure modes. Critical for fleet installations where consistency and serviceability matter. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust system volume from the helm, flybridge, or entertainment zone. Essential for commercial charter operators who need guest-accessible volume control, or fishing guides adjusting audio levels between travel and fishing modes. The remote provides convenient control without accessing the amplifier installation location. Extended Chassis for Thermal ManagementThe 374mm (14.73") chassis accommodates substantial heat sink area, enabling sustained full-power operation across all eight channels without thermal compression. Critical for commercial applications running audio continuously during day charters, fishing trips, or long-distance transport. The Class D efficiency minimizes heat generation, but the extended chassis ensures reliable cooling even in poorly ventilated engine rooms or equipment bays. Technical Specs Amplifier class: Class D Channels: 8 (Full-range) Operating voltage: 24V DC systems (25-28.8V input range) Power Output (varies by voltage and load impedance): Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 8 (800W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 90W RMS × 8 (720W total) Bridged power (28.8V @ 4Ω, <1% THD): 180W RMS × 4 (720W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 100W RMS × 8 (800W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 90W RMS × 8 (720W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 4 (720W total bridged) THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 12Hz-22kHz (assuming full-range operation similar to other multi-channel models) Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 40A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Warranty: 3 years Important Note: This is a 24V-specific model designed for commercial marine vessels, heavy vehicles, and applications with dual 12V batteries in series. It is NOT compatible with standard 12V automotive/marine electrical systems. Verify your system operates at 24V (25-28.8V range) before purchase. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", or 6×9" sizes) Marine tower speakers rated 100-180W RMS per speaker (when bridged) Marine component speaker systems rated 75-100W RMS Marine subwoofers rated 180W RMS per driver (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG amplifier wiring kit designed for 24V systems with 40A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding 24V-compatible distribution blocks for multi-amplifier systems Heavy-duty amplifier mounting brackets or marine-rated equipment racks System Compatibility: Marine head units with 24V DC operation and preamp outputs Commercial marine audio processors with 24V compatibility 24V electrical systems (dual 12V batteries in series configuration) Charter vessels, commercial fishing boats, work boats with 24V infrastructure Coach buses, heavy transport vehicles with 24V electrical systems Electrical System Requirements: Confirmed 24V DC electrical system (25-28.8V operating range) Dual 12V batteries wired in series for 24V output Adequate alternator capacity for continuous audio operation Proper 24V distribution with circuit protection Dedicated ground point to hull/chassis Caution: This amplifier requires a 24V electrical system. It will NOT operate on standard 12V automotive/marine systems. Verify your vessel or vehicle operates at 24V before ordering. Attempting to connect to a 12V system will result in insufficient power and potential amplifier damage. For 12V applications, consider the standard XDM 8-channel 12V variant. Frequently Asked Questions Is this amplifier compatible with my 12V boat electrical system?No. This model requires a 24V DC system (25-28.8V input range). It's designed for commercial vessels, charter boats, and heavy vehicles with dual 12V batteries wired in series. For 12V applications, you need the standard XDM 8-channel 12V model (not this 24V variant). Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6, 7+8) for 180W RMS per bridged pair at 4Ω load. This allows four bridged outputs at 180W each, ideal for marine tower speakers or subwoofers requiring more power than single-channel 100W output. What wire gauge do I need for a 24V installation?Minimum 4 AWG copper power and ground wire with 40A fuse (AFS, AGU, or MaxiFuse™) within 45cm of battery positive terminal. Use marine-grade tinned copper wire for saltwater applications. Unlike 12V systems drawing higher current, 24V systems typically require less current for equivalent power, but maintain proper gauge for voltage drop prevention. Will this work in my coach bus or heavy truck with 24V electrical system?Yes, if your vehicle has a true 24V DC system (dual 12V batteries in series) operating at 25-28.8V. Common in commercial buses, heavy transport, and some recreational vehicles with diesel engines. Verify voltage with multimeter before installation—24V nominal systems typically read 25-28V depending on charge state. How do I set up multi-zone audio with independent volume control?Use channels 1&2 for Zone 1 (cabin), 3&4 for Zone 2 (cockpit), 5&6 for Zone 3 (flybridge), and 7&8 for Zone 4 (tower speakers). The optional HD-RLC remote controls master volume. For zone-independent control, install separate volume controls in each zone, or use a marine audio processor with zone management feeding the amplifier inputs.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Comprehensive 8-channel Class D amplification engineered for complete marine and automotive audio systems requiring multi-zone control. Product Overview The JL Audio XDM800 8-channel amplifier delivers total system amplification for multi-zone marine installations, automotive touring setups, and enthusiast builds requiring complete speaker control from a single chassis. With 100W RMS per channel at 2Ω (800W total) or 75W per channel at 4Ω (600W total), this marine-rated Class D platform drives cabin speakers, tower speakers, rear zones, and helm areas independently. The 12V design integrates seamlessly into standard automotive and marine electrical systems while the conformal-coated construction withstands Australia's harshest coastal conditions, bilge moisture, and dusty 4WD environments. Built on JL Audio's proven XDM architecture, the 8-channel configuration enables sophisticated system design: run all eight channels independently for maximum zone control, bridge adjacent pairs for 200W output to demanding speakers, or combine configurations for mixed full-range and subwoofer applications. Variable filtering on all channel pairs (50Hz-500Hz, 12dB/octave slopes) accommodates different speaker types and mounting locations, while detented potentiometers ensure repeatable tuning. At 374mm wide with an 80A fuse rating and 4 AWG wire compatibility, the XDM800 represents the ultimate multi-zone amplification solution for Australian marine enthusiasts, 4WD tourers, and automotive audio specialists. Key Specifications 8-channel Class D amplifier optimised for full-range multi-zone applications Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 8 channels (800W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 8 channels (600W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 4 channels (800W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 8 channels (720W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 8 channels (480W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 4 channels (720W total bridged) Operating voltage: 11-14.5 VDC (12V systems only) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: Not specified separately for 8-channel 12V (6-channel specification shows >104dB) Damping factor @ 4Ω: Not specified separately for 8-channel (multi-channel models show >150 @ 50Hz) Damping factor @ 2Ω: Not specified separately for 8-channel (multi-channel models show >75 @ 50Hz) THD+N: <1% @ rated power, 2Ω per channel Input voltage range: Not specified for 8-channel (other models show 200mV-4V RMS) Filter modes: Not specified separately for 8-channel 12V Filter slopes: Not specified separately for 8-channel 12V Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified for 8-channel variant Fuse rating: 80A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 8-Channel Multi-Zone FlexibilityDrive complete audio systems from a single amplifier installation. Allocate channels strategically: four channels for cabin coaxials, two bridged pairs for tower speakers at 200W each, or six channels for speakers plus one bridged pair for a compact subwoofer. Perfect for ski boats requiring cockpit, cabin, and tower zones independently controlled, or 4WD tourers with front cabin, rear cargo, and rooftop speaker zones. Eliminates the complexity and wiring bulk of multiple smaller amplifiers. 12V Standard Electrical IntegrationDesigned for conventional 12V automotive and marine electrical systems (11-14.5V operating range). Integrates directly into factory or aftermarket head unit systems without voltage converters or special infrastructure. The 80A fuse rating and 4 AWG wire compatibility match standard marine and automotive electrical practices, simplifying professional installations and DIY builds alike. Compatible with AGM, lithium, or standard flooded batteries common in Australian recreational vehicles and vessels. Independent Channel Control with Bridge CapabilityRun all eight channels independently at 75-100W each for maximum zone control, or bridge adjacent pairs (1+2, 3+4, 5+6, 7+8) for four outputs at 200W each. Bridge mode suits high-output tower speakers, marine subwoofers, or demanding full-range speakers requiring more power than single-channel output. Mix configurations within the same installation: six unbridged channels for cabin speakers plus one bridged pair for subwoofer duty. Marine-Rated Class D TopologyConformal-coated circuit boards resist salt spray, bilge moisture, and the corrosive environments encountered in Australian coastal boating, offshore fishing, and beach-launched vessels. The robust construction handles tropical humidity in Far North Queensland waters, dusty corrugated tracks in the Outback, and Southern Ocean conditions off Tasmania. Class D efficiency minimizes heat generation, enabling reliable operation in poorly ventilated equipment bays, under seats, or in enclosed amplifier racks. Variable Filtering Across Channel PairsPrecision crossover control on channels 1&2, 3&4, 5&6, and 7&8 allows speaker-specific tuning. High-pass filter cabin speakers to remove low-frequency strain and improve clarity, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz range accommodate marine coaxials, component speakers, tower speakers, and compact subwoofers. Detented potentiometers enable repeatable settings across similar installations—critical for professional installers servicing multiple boats or vehicles. Extended Chassis for Thermal ManagementThe 374mm (14.73") chassis accommodates substantial heat sink area, enabling sustained full-power operation across all eight channels without thermal compression or protection shutdown. Critical for multi-hour listening sessions at anchor, beach parties, or long-distance highway touring. The extended chassis distributes thermal load efficiently, maintaining clean power output even when running all channels simultaneously at high volume levels. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust system volume from the helm, driver's seat, or entertainment area. Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or automotive installations where the amp is hidden behind panels. The remote provides convenient master volume control without accessing the installation location. Technical Specs Amplifier class: Class D Channels: 8 (Full-range) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 8 (800W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 8 (600W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 4 (800W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 8 (720W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 8 (480W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 4 (720W total bridged) THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 12Hz-22kHz Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 80A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes a 24V 8-channel variant for commercial/heavy vehicle applications—this model operates on standard 12V automotive/marine electrical systems only. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9", or 7.7" sizes) Marine component speaker systems rated 75-100W RMS per channel Marine tower speakers rated 150-200W RMS per speaker (when bridged) Compact marine subwoofers rated 200W RMS (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG or 0-2 AWG amplifier wiring kit with 80A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding (minimum 8-channel RCA distribution) Distribution blocks for clean power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces System Compatibility: Marine head units with 4V preamp outputs (8-channel preamp output or DSP required) Aftermarket head units with 8-channel preamp capability Marine DSP processors with 8-channel output Line output converters with 8-channel capability for factory radio integration 12V electrical systems with adequate alternator capacity (100A+ recommended) Electrical System Requirements: Minimum 100A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for extended engine-off listening) Proper grounding with dedicated ground point to chassis/hull 4 AWG power and ground wiring with proper routing and protection Caution: Eight-channel systems require careful planning. Ensure your head unit or DSP provides eight independent preamp outputs. Verify speaker impedances before bridging channels—bridged operation requires 4Ω minimum load per bridged pair. Running all eight channels at maximum power simultaneously demands robust electrical infrastructure including high-output alternator, proper wiring gauge, and adequate battery capacity. Frequently Asked Questions Can I run this amplifier with a standard aftermarket head unit?Only if your head unit or DSP provides eight independent preamp outputs. Most standard head units offer 2-4 channels of preamp output—you'll need an 8-channel DSP or signal processor to feed all channels. Alternatively, use a multi-zone marine source unit with 8-channel capability. Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6, 7+8) for 200W RMS per bridged pair at 4Ω load. This provides four bridged outputs at 200W each, ideal for marine tower speakers or compact subwoofers. Ensure speakers are rated for 4Ω minimum impedance when bridging. What size alternator do I need to run all eight channels at full power?Minimum 100A alternator for sustained full-power operation. At maximum output (800W), the amplifier draws approximately 80A from the electrical system. Factor in other electrical loads (navigation, pumps, lights) and ensure your alternator provides adequate reserve capacity. Undersized alternators cause voltage drop and thermal protection shutdown. Can I use this in a 4WD touring setup with multiple speaker zones?Yes, perfect application. Allocate channels for front cabin, rear cargo area, rooftop speakers, and annexe zones. The 12V operation suits dual-battery systems with proper isolation. Mount in cargo area or under seats with adequate ventilation. Consider auxiliary battery for extended camping scenarios with engine-off listening. How do I set up independent zone control for different areas?Use channels 1&2 for Zone 1 (cabin), 3&4 for Zone 2 (cockpit/tower), 5&6 for Zone 3 (rear/cargo), and 7&8 for Zone 4 (additional zone or bridged subwoofer). The optional HD-RLC remote controls master volume. For true zone-independent control, install separate zone controllers or use a DSP with zone management feeding the amplifier.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Professional 6-channel Class D amplification engineered specifically for 24V commercial marine vessels and heavy vehicle applications. Product Overview The JL Audio XDM600/6-24V 6-channel amplifier delivers comprehensive full-range amplification for 24V electrical systems found in commercial vessels, charter boats, coach buses, and heavy transport applications. With 100W RMS per channel at 2Ω (600W total) or 75W per channel at 4Ω (450W total), this marine-rated Class D platform drives complete audio systems including cabin speakers, cockpit zones, and helm areas from a single compact chassis. The 24V-specific design operates optimally at 22-29V input—the native voltage range of diesel-powered vessels and commercial vehicles with dual 12V battery configurations wired in series. Built using JL Audio's advanced NexD™ high-speed switching design, the 6-channel configuration allows flexible system architecture: run all six channels independently, bridge pairs for higher power (200W per bridged pair), or configure as a staggered-power system with bridged front channels and unbridged rear channels. Variable high-pass and low-pass filtering on all three channel banks (50Hz-500Hz, 12dB/octave slopes) enables precise tuning for different speaker types and mounting locations. At 216mm wide with marine-grade construction and a 30A fuse rating, the XDM600/6-24V represents the ideal 24V amplification solution for Australian charter operators, commercial fishermen, and fleet managers demanding reliability in harsh coastal conditions. Key Specifications 6-channel Class D amplifier designed for 24V electrical systems Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 6 channels (600W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 75W RMS × 6 channels (450W total) Bridged power (28.8V @ 4Ω, <1% THD): 200W RMS × 3 channels (600W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 90W RMS × 6 channels (540W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 60W RMS × 6 channels (360W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 3 channels (540W total bridged) Operating voltage: 22-29V DC (24V systems only) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: >104dB (A-weighted, 20Hz-20kHz, referred to highest rated power) Signal-to-noise ratio: >84dB (A-weighted, 20Hz-20kHz, referred to 1W) Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N: <1% @ rated power, 2Ω per channel Input channel modes: 2-channel or 4-channel Filter modes (Channels 1 & 2, 3 & 4, 5 & 6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz Infrasonic filter: No Buffered pass-through preamp outputs: Yes Dimensions: 216mm (W) × 180mm (D) × 52mm (H) Weight: Not specified Fuse rating: 30A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Automatic turn-on: Signal sensing or DC-offset sensing Marine-grade construction with gasketed removable top cover 3-year manufacturer warranty Features & Benefits 24V Commercial Marine DesignPurpose-built for 24V electrical systems common in commercial vessels, charter boats, and heavy transport. Unlike 12V amplifiers that require voltage adaptation, the XDM600/6-24V operates optimally at 22-29V input—the native voltage range of diesel-powered boats, coach buses, and commercial fishing vessels with dual 12V batteries wired in series. Eliminates the need for voltage converters or multiple 12V amplifiers in 24V installations, simplifying electrical infrastructure and reducing potential failure points. Flexible 6-Channel ArchitectureConfigure for multiple installation scenarios: run all six channels independently (75-100W each) for complete cabin coverage, bridge three pairs for 200W outputs to demanding speakers, or create a staggered-power system with 200W × 2 bridged for front zones plus 75W × 2 unbridged for rear fill. The channel bank design (1&2, 3&4, 5&6) allows independent filtering and level adjustment per zone, perfect for commercial vessels requiring helm, cockpit, and cabin zones with different speaker requirements. Advanced NexD™ Class D TopologyJL Audio's proprietary NexD™ high-speed switching design delivers full-bandwidth Class D operation with exceptionally low distortion and remarkable efficiency. The marine-grade conformal coating resists salt spray, bilge moisture, and corrosive environments encountered in Australian commercial fishing, charter operations, and offshore work vessels. Robust construction handles tropical humidity in Far North Queensland, Southern Ocean conditions off Tasmania, and everything between—engineered for installations where amplifier failure isn't an option. Variable Filtering Across All Three Channel BanksPrecision crossover control on channels 1&2, 3&4, and 5&6 allows system-specific tuning. High-pass filter cabin speakers to remove low-frequency strain, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz continuously variable range accommodate any speaker configuration, from compact marine coaxials to high-output tower speakers. Independent filter control per channel bank enables sophisticated system design with multiple speaker types in different zones. Compact 24V Power DistributionThe 30A fuse rating and 4 AWG wire compatibility simplify installation in commercial vessels with existing 24V distribution systems. At just 216mm wide, the compact chassis fits shallow-mount locations behind helm panels, under seats, or in equipment bays where larger amplifiers won't fit. The gasketed, removable top cover protects controls from moisture ingress while enabling easy access for tuning and adjustment during commissioning or seasonal maintenance. Automatic Turn-On CapabilityDual-mode turn-on detection (signal sensing or DC-offset sensing) enables seamless integration with factory audio systems or aftermarket source units. Eliminates the need for separate remote turn-on wiring in many installations, simplifying OEM integration for commercial fleet applications. Critical for charter vessels and work boats where installers need reliable operation without complex wiring modifications to factory electrical systems. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, flybridge, or entertainment zone. The remote provides level adjustment for two, four, or all six channels directly from the driver's seat or cockpit. Essential for commercial charter operators who need guest-accessible volume control, or fishing guides adjusting audio levels between travel and fishing modes without accessing the amplifier installation location. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 6 (Full-range) Operating voltage: 22-29V DC (24V systems only - NOT compatible with 12V systems) Power Output (varies by voltage and load impedance): Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 6 (600W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 75W RMS × 6 (450W total) Bridged power (28.8V @ 4Ω, <1% THD): 200W RMS × 3 (600W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 90W RMS × 6 (540W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 60W RMS × 6 (360W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 3 (540W total bridged) Frequency response (+0, -1dB): 12Hz-22kHz Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to highest rated power): >104dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >84dB Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Input channel modes: 2-channel or 4-channel selectable Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz (continuously variable) Infrasonic filter: No Buffered pass-through preamp outputs: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Automatic turn-on: Signal sensing or DC-offset sensing Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 30A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 216mm × 180mm × 52mm (8.52" × 7.09" × 2.05") Weight: Not specified Construction: Marine-grade materials with gasketed removable top cover Finish: Black powder-coat Water rating: Not rated (marine-grade construction, not waterproof) Warranty: 3 years Important Note: This is a 24V-specific model designed for commercial marine vessels, heavy vehicles, and applications with dual 12V batteries in series. It is NOT compatible with standard 12V automotive/marine electrical systems. Operating voltage range is 22-29V DC. Use in vessels with positive ground and/or voltages other than 24V will result in damage and void the warranty. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", or 6×9" sizes) Marine component speaker systems rated 75-100W RMS per channel Marine tower speakers rated 150-200W RMS per speaker (when bridged) Compact marine subwoofers rated 200W RMS (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG amplifier wiring kit designed for 24V systems with 30A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding 24V-compatible distribution blocks for multi-amplifier systems Heavy-duty amplifier mounting brackets or marine-rated equipment racks System Compatibility: Marine head units with 24V DC operation and preamp outputs Commercial marine audio processors with 24V compatibility 24V electrical systems (dual 12V batteries in series configuration) Charter vessels, commercial fishing boats, work boats with 24V infrastructure Coach buses, heavy transport vehicles with 24V electrical systems Electrical System Requirements: Confirmed 24V DC electrical system (22-29V operating range) Dual 12V batteries wired in series for 24V output Adequate alternator capacity for continuous audio operation Proper 24V distribution with circuit protection Dedicated ground point to hull/chassis (negative ground systems only) Caution: This amplifier requires a 24V negative-ground electrical system. It will NOT operate on standard 12V automotive/marine systems. Verify your vessel or vehicle operates at 24V before ordering. Use in vessels with positive ground and/or voltages other than 24V will result in damage to the product and void the warranty. For 12V applications, consider the standard XDM 6-channel 12V variant. Frequently Asked Questions Is this amplifier compatible with my 12V boat electrical system?No. This model requires a 24V DC negative-ground system (22-29V input range). It's designed for commercial vessels, charter boats, and heavy vehicles with dual 12V batteries wired in series. Attempting to use it on a 12V system will result in insufficient power and potential damage. For 12V applications, you need the standard XDM 6-channel 12V model. Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6) for 200W RMS per bridged pair at 4Ω load (28.8V input). This allows three bridged outputs at 200W each, ideal for marine tower speakers or subwoofers requiring more power than single-channel 100W output. You can also mix configurations: bridge channels 1+2 and 3+4 for 200W front speakers, leave channels 5&6 unbridged for 75W rear fill. What is the staggered-power configuration mentioned in the description?Bridge four channels (1+2 and 3+4) for 200W × 2 @ 4Ω to front speakers, while leaving channels 5&6 unbridged for 75W × 2 @ 4Ω to rear speakers. This provides maximum power where needed (front soundstage) while conserving electrical capacity for rear fill. Alternatively, bridge channels 1+2 and 3+4 for two subwoofers at 200W each, plus channels 5&6 for satellite speakers at 75W × 2. How does the automatic turn-on work without a remote wire?The amplifier features dual-mode detection: signal sensing (detects audio signal on RCA inputs) or DC-offset sensing (detects DC voltage from source unit). This enables integration with factory systems that don't provide remote turn-on output. Select the appropriate mode based on your source unit—signal sensing for aftermarket units, DC-offset for many factory systems. Eliminates complex wiring modifications in commercial fleet installations. What does "marine-grade construction" mean if it's not waterproof?Marine-grade construction includes conformal-coated circuit boards to resist salt spray, moisture, and corrosion in marine environments. The gasketed removable top cover protects controls from moisture ingress. However, the amplifier is not waterproof/submersible—mount away from direct water streams, bilge flooding, or areas subject to washdown. Suitable for protected equipment bays, under helm panels, or in cabin locations with normal marine moisture exposure.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Versatile 6-channel Class D amplification engineered for complete marine and automotive multi-zone audio systems. Product Overview The JL Audio XDM600/6 6-channel amplifier delivers comprehensive full-range amplification for multi-zone marine installations, automotive touring setups, and enthusiast builds requiring complete speaker control from a single chassis. With 100W RMS per channel at 2Ω (600W total) or 75W per channel at 4Ω (450W total), this marine-rated Class D platform drives cabin speakers, cockpit zones, tower speakers, and helm areas independently. The 12V design integrates seamlessly into standard automotive and marine electrical systems while the conformal-coated construction withstands Australia's harshest coastal conditions, bilge moisture, and dusty 4WD environments. Built on JL Audio's proven XDM architecture, the 6-channel configuration enables sophisticated system design: run all six channels independently for maximum zone control, bridge adjacent pairs for 200W output to demanding tower speakers or compact subwoofers, or create staggered-power configurations with bridged front channels and unbridged rear fill. Variable filtering on all three channel banks (channels 1&2, 3&4, 5&6) with 50Hz-500Hz range and 12dB/octave slopes accommodates different speaker types and mounting locations. At 260mm wide with a 50A fuse rating and 2.63kg weight, the XDM600/6 represents the ideal multi-zone amplification solution for Australian marine enthusiasts, ski boat owners, and 4WD tourers. Key Specifications 6-channel Class D amplifier optimised for full-range multi-zone applications Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 6 channels (600W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 6 channels (450W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 3 channels (600W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 6 channels (540W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 6 channels (360W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 3 channels (540W total bridged) Operating voltage: 11-14.5 VDC (12V systems only) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: >104dB (A-weighted, 20Hz-20kHz, referred to highest rated power) Signal-to-noise ratio: >84dB (A-weighted, 20Hz-20kHz, referred to 1W) Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N: <1% @ rated power, 2Ω per channel Input voltage range: Not specified for 6-channel (other multi-channel models: 200mV-4V RMS) Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz Detented, calibrated filter potentiometers: Yes Buffered pass-through preamp outputs: Not specified for 6-channel Dimensions: 260mm (W) × 180mm (D) × 52mm (H) Weight: 2.63kg (5.8 lbs) Fuse rating: 50A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 6-Channel Multi-Zone FlexibilityDrive complete audio systems from a single amplifier installation. Allocate channels strategically: four channels for cabin coaxials, two bridged pairs for tower speakers at 200W each, or six channels for full cabin coverage with independent zone control. Perfect for ski boats requiring cockpit, cabin, and tower zones, or 4WD tourers with front cabin, rear cargo, and rooftop speaker zones. Eliminates the complexity and wiring bulk of multiple smaller amplifiers while providing professional-grade zone control. 12V Standard Electrical IntegrationDesigned for conventional 12V automotive and marine electrical systems (11-14.5V operating range). Integrates directly into factory or aftermarket head unit systems without voltage converters or special infrastructure. The 50A fuse rating and 4 AWG wire compatibility match standard marine and automotive electrical practices, simplifying professional installations and DIY builds alike. Compatible with AGM, lithium, or standard flooded batteries common in Australian recreational vehicles and vessels. Independent Channel Control with Bridge CapabilityRun all six channels independently at 75-100W each for maximum zone control, or bridge adjacent pairs (1+2, 3+4, 5+6) for three outputs at 200W each. Bridge mode suits high-output tower speakers, marine subwoofers, or demanding full-range speakers requiring more power than single-channel output. Mix configurations within the same installation: four unbridged channels for cabin speakers plus one bridged pair for subwoofer duty, providing system design flexibility without multiple amplifiers. Marine-Rated Class D TopologyConformal-coated circuit boards resist salt spray, bilge moisture, and the corrosive environments encountered in Australian coastal boating, offshore fishing, and beach-launched vessels. The robust construction handles tropical humidity in Far North Queensland waters, dusty corrugated tracks in the Outback, and Southern Ocean conditions off Tasmania. Class D efficiency minimizes heat generation, enabling reliable operation in poorly ventilated equipment bays, under seats, or in enclosed amplifier racks without thermal shutdown. Variable Filtering Across All Three Channel BanksPrecision crossover control on channels 1&2, 3&4, and 5&6 allows speaker-specific tuning. High-pass filter cabin speakers to remove low-frequency strain and improve clarity, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz continuously variable range accommodate marine coaxials, component speakers, tower speakers, and compact subwoofers. Detented potentiometers enable repeatable settings across similar installations—critical for professional installers servicing multiple boats. Compact Chassis with Professional-Grade Heat ManagementAt 260mm (10.23") wide and just 2.63kg, the XDM600/6 fits shallow-mount locations behind helm panels, under seats, or in equipment bays where larger amplifiers won't fit. The efficient Class D topology and well-designed heat sink maintain stable operation across all six channels simultaneously, even during extended listening sessions at anchor, beach parties, or long-distance highway touring. The compact footprint doesn't compromise thermal performance—essential for sustained full-power operation. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust system volume from the helm, driver's seat, or entertainment area. Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or automotive installations where the amp is hidden behind panels. The remote provides convenient master volume control without accessing the installation location, perfect for recreational boaters and touring enthusiasts. Technical Specs Amplifier class: Class D Channels: 6 (Full-range) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 6 (600W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 6 (450W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 3 (600W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 6 (540W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 6 (360W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 3 (540W total bridged) Frequency response (+0, -1dB): 12Hz-22kHz Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to highest rated power): >104dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >84dB Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz (continuously variable) Detented, calibrated filter potentiometers: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 50A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 260mm × 180mm × 52mm (10.23" × 7.09" × 2.05") Weight: 2.63kg (5.8 lbs) Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes a 24V 6-channel variant (XDM600/6-24V) for commercial/heavy vehicle applications—this model operates on standard 12V automotive/marine electrical systems only. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9", or 7.7" sizes) Marine component speaker systems rated 75-100W RMS per channel Marine tower speakers rated 150-200W RMS per speaker (when bridged) Compact marine subwoofers rated 200W RMS (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG amplifier wiring kit with 50A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding (minimum 6-channel distribution) Distribution blocks for clean power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces System Compatibility: Marine head units with 4V preamp outputs (6-channel preamp output or DSP required) Aftermarket head units with 6-channel preamp capability Marine DSP processors with 6-channel output Line output converters with 6-channel capability for factory radio integration 12V electrical systems with adequate alternator capacity (90A+ recommended) Electrical System Requirements: Minimum 90A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for extended engine-off listening) Proper grounding with dedicated ground point to chassis/hull 4 AWG power and ground wiring with proper routing and protection Caution: Six-channel systems require careful planning. Ensure your head unit or DSP provides six independent preamp outputs. Verify speaker impedances before bridging channels—bridged operation requires 4Ω minimum load per bridged pair. Running all six channels at maximum power simultaneously demands robust electrical infrastructure including high-output alternator, proper wiring gauge, and adequate battery capacity. Weight 2.63kg (5.8 lbs) Frequently Asked Questions Can I run this amplifier with a standard aftermarket head unit?Only if your head unit or DSP provides six independent preamp outputs. Most standard head units offer 2-4 channels of preamp output—you'll need a 6-channel DSP or signal processor to feed all channels. Alternatively, use a marine source unit with 6-channel capability or run the amplifier with fewer active channels. Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6) for 200W RMS per bridged pair at 4Ω load. This provides three bridged outputs at 200W each, ideal for marine tower speakers or compact subwoofers. Ensure speakers are rated for 4Ω minimum impedance when bridging. You can also mix configurations: bridge two pairs, leave two channels unbridged. What size alternator do I need to run all six channels at full power?Minimum 90A alternator for sustained full-power operation. At maximum output (600W), the amplifier draws approximately 60-65A from the electrical system. Factor in other electrical loads (navigation, pumps, lights) and ensure your alternator provides adequate reserve capacity. Undersized alternators cause voltage drop and potential thermal protection shutdown. Can I use this in a ski boat with tower speakers and cabin speakers?Yes, perfect application. Bridge channels 1+2 and 3+4 for 200W × 2 to tower speakers, use channels 5&6 unbridged for 75W × 2 to cabin speakers. Alternatively, run all six channels unbridged for complete cabin/cockpit coverage at 75-100W per zone. The variable filtering allows precise tuning for different speaker types and mounting locations. How do I set up independent zone control for different areas?Use channels 1&2 for Zone 1 (cabin), 3&4 for Zone 2 (cockpit/tower), and 5&6 for Zone 3 (rear/helm). The optional HD-RLC remote controls master volume. For true zone-independent control, install separate zone controllers or use a DSP with zone management feeding the amplifier. The three independent filter banks allow different crossover settings per zone.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Complete 5-channel Class D system amplification engineered for audiophile-grade component speaker systems plus dedicated subwoofer control. Product Overview The JL Audio XDM700/5 5-channel amplifier delivers comprehensive system amplification for complete marine and automotive installations requiring four satellite speakers plus a dedicated subwoofer channel. With 75W RMS × 4 for main speakers at 4Ω and 300W RMS for the subwoofer at 2Ω (700W total), this marine-rated Class D platform drives complete audiophile-grade systems from a single compact chassis. Built using JL Audio's advanced NexD™ high-speed switching design, the 12V configuration integrates seamlessly into standard automotive and marine electrical systems while the conformal-coated marine-grade construction withstands Australia's harshest coastal conditions, bilge moisture, and dusty 4WD environments. The sophisticated signal processing architecture enables true 3-way crossover configuration: high-pass filter for front channels (50Hz-5kHz range with x10 multiplier), high-pass or bandpass filter for rear channels (50Hz-500Hz), and variable-slope low-pass filter (12dB or 24dB/octave) for the subwoofer channel. This flexibility allows precise system tuning for component speakers, coaxials, and subwoofers in demanding installations. Automatic turn-on capability via signal sensing or DC-offset sensing simplifies integration with factory systems. At 260mm wide, 2.79kg, and featuring a gasketed removable top cover, the XDM700/5 represents the ultimate single-amplifier solution for Australian marine enthusiasts and automotive audio specialists demanding complete system control without multiple amplifiers. Key Specifications 5-channel Class D amplifier (4 main channels + 1 dedicated subwoofer channel) Main channels maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 4 (400W total) Main channels power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 4 (300W total) Main channels bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 2 (400W total bridged) Subwoofer channel maximum power (14.4V @ 2Ω, <1% THD): 300W RMS × 1 Subwoofer channel power at 3Ω load (14.4V @ 3Ω, <1% THD): 240W RMS × 1 Subwoofer channel power at 4Ω load (14.4V @ 4Ω, <1% THD): 180W RMS × 1 Main channels power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 4 (360W total) Main channels power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 4 (240W total) Main channels bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 2 (360W total bridged) Subwoofer channel power at 2Ω load (12.5V @ 2Ω, <1% THD): 300W RMS × 1 Subwoofer channel power at 3Ω load (12.5V @ 3Ω, <1% THD): 240W RMS × 1 Subwoofer channel power at 4Ω load (12.5V @ 4Ω, <1% THD): 180W RMS × 1 Operating voltage: 11-14.5 VDC (12V systems only) Frequency response (Main channels): 12Hz-22kHz (+0, -1dB) Frequency response (Subwoofer channel): 10Hz-1kHz (+0, -1dB) Signal-to-noise ratio (Main channels): >104dB (A-weighted, 20Hz-20kHz, referred to highest rated power) Signal-to-noise ratio: >84dB (A-weighted, 20Hz-20kHz, referred to 1W) Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N (Main channels): <1% @ rated power, 2Ω per channel THD+N (Subwoofer channel): <1% @ rated power, 2Ω per channel Input voltage range: 200mV-4V RMS at RCA inputs Channel input mode switch: Yes (2/4/6 channel modes) Dimensions: 260mm (W) × 180mm (D) × 52mm (H) Weight: 2.79kg (6.15 lbs) Fuse rating: 60A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Remote level modes: Subwoofer channel only or all channels Automatic turn-on: Signal sensing or DC-offset sensing Marine-grade construction with gasketed removable top cover 3-year manufacturer warranty Filter Specifications: Channels 1 & 2 (Front): High-Pass only, 12dB/octave, 50Hz-5kHz range (with x10 multiplier: 500Hz-5kHz) Channels 3 & 4 (Rear): High-Pass or Bandpass, 12dB/octave, 50Hz-500Hz range Subwoofer Channel: Low-Pass only, 12dB or 24dB/octave (selectable), 50Hz-500Hz range Detented, calibrated filter potentiometers: Yes Filter defeat function: Yes Infrasonic filter: None Features & Benefits Complete System Amplification from Single ChassisDrive four satellite speakers plus a dedicated subwoofer without multiple amplifiers cluttering your installation. The 5-channel architecture delivers 75W × 4 for component or coaxial speakers while simultaneously providing 300W for a 10" or 12" subwoofer. Eliminates the complexity of separate 4-channel and monoblock amplifiers, reduces wiring bulk, simplifies power distribution, and frees valuable installation space in boats, utes, and caravans. Perfect for complete audiophile-grade systems in single-amplifier installations. Advanced NexD™ Class D TopologyJL Audio's proprietary NexD™ high-speed switching design delivers full-bandwidth Class D operation with exceptionally low distortion and remarkable efficiency. The marine-grade conformal coating resists salt spray, bilge moisture, and corrosive environments encountered in Australian coastal boating, offshore fishing, and beach-launched vessels. Robust construction handles tropical humidity in Far North Queensland, dusty corrugated tracks in the Outback, and Southern Ocean conditions off Tasmania. Engineered for installations demanding reliability without compromise. True 3-Way Crossover CapabilityConfigure as a sophisticated 3-way system: high-pass filter on front channels (tweeters/midrange), bandpass filter on rear channels (midrange/midbass), and low-pass filter on subwoofer channel. The x10 multiplier switch on channels 1&2 extends the high-pass range from 50Hz-500Hz to 500Hz-5kHz, enabling precise tweeter protection and component system integration. Detented, calibrated potentiometers ensure repeatable settings—critical for professional installers servicing multiple similar builds or enthusiasts fine-tuning complex systems. Flexible Main Channel FilteringFront channels (1&2) feature high-pass-only filtering with 50Hz-5kHz range, ideal for protecting component speakers from damaging low frequencies. Rear channels (3&4) offer high-pass or bandpass modes with 50Hz-500Hz range, providing flexibility for full-range coaxials or mid-bass duties in 3-way configurations. The independent filter architecture allows front and rear speakers to operate at different frequency ranges, maximizing system performance without external processors. Variable-Slope Subwoofer ControlThe dedicated subwoofer channel features selectable 12dB or 24dB/octave low-pass slopes with 50Hz-500Hz continuously variable range. Use 12dB slopes for sealed enclosures requiring gentler roll-off, or 24dB slopes for ported enclosures needing steeper cutoff near tuning frequency. The 300W output at 2Ω drives single 12" subwoofers with authority, while the 240W at 3Ω suits dual 6Ω subs wired in parallel—providing flexibility for various subwoofer configurations. Automatic Turn-On CapabilityDual-mode turn-on detection (signal sensing or DC-offset sensing) enables seamless integration with factory audio systems or aftermarket source units. Eliminates the need for separate remote turn-on wiring in many installations, simplifying OEM integration for fleet applications or factory system upgrades. Critical for installations where installers need reliable operation without complex wiring modifications to factory electrical systems. Optional Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, driver's seat, or entertainment area. Switch between two modes: adjust subwoofer channel only (preserve main speaker levels while controlling bass), or adjust all channels simultaneously (master volume control). Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or quick bass adjustments between moored listening and underway conditions. Channel Input Mode SwitchConfigure input channels for 2-channel, 4-channel, or 6-channel operation depending on source unit preamp outputs. This flexibility accommodates various head unit configurations: use 2-channel mode with simple stereo sources, 4-channel mode with front/rear preouts, or 6-channel mode with dedicated subwoofer preout. Simplifies integration across different source equipment without external summing or Y-cables. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 5 (4 main channels + 1 dedicated subwoofer channel) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Main Channels Power Output (Channels 1, 2, 3, 4): Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 4 (400W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 4 (300W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 2 (400W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 4 (360W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 4 (240W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 2 (360W total bridged) Subwoofer Channel Power Output (Channel 5): Maximum rated power (14.4V @ 2Ω, <1% THD): 300W RMS × 1 Power at 3Ω load (14.4V @ 3Ω, <1% THD): 240W RMS × 1 Power at 4Ω load (14.4V @ 4Ω, <1% THD): 180W RMS × 1 Power at 2Ω load (12.5V @ 2Ω, <1% THD): 300W RMS × 1 Power at 3Ω load (12.5V @ 3Ω, <1% THD): 240W RMS × 1 Power at 4Ω load (12.5V @ 4Ω, <1% THD): 180W RMS × 1 Frequency response (Main channels, +0/-1dB): 12Hz-22kHz Frequency response (Subwoofer channel, +0/-1dB): 10Hz-1kHz Signal-to-noise ratio (Main channels, A-weighted, 20Hz-20kHz, referred to highest rated power): >104dB Signal-to-noise ratio (referred to 1W, A-weighted, 20Hz-20kHz): >84dB Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N @ rated power (Main channels): <1% @ 2Ω per channel THD+N @ rated power (Subwoofer channel): <1% @ 2Ω per channel Input voltage range @ RCA inputs: 200mV-4V RMS Signal Processing: Filter mode (Channels 1 & 2 - Front): High-Pass only Filter slope (Channels 1 & 2 - Front): 12dB/octave Filter frequency range (Channels 1 & 2 - Front): 50Hz-5kHz (with x10 multiplier: 500Hz-5kHz) Filter mode (Channels 3 & 4 - Rear): High-Pass or Bandpass Filter slope (Channels 3 & 4 - Rear): 12dB/octave Filter frequency range (Channels 3 & 4 - Rear): 50Hz-500Hz Filter mode (Subwoofer Channel): Low-Pass only Filter slope (Subwoofer Channel): 12dB/octave or 24dB/octave (selectable) Filter frequency range (Subwoofer Channel): 50Hz-500Hz Detented, calibrated filter potentiometers: Yes Filter defeat function: Yes Infrasonic filter: None Channel input mode switch: Yes (2/4/6 channel modes) Pass-through preamp output: None Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Remote level modes: Subwoofer channel only or all channels Automatic turn-on: Signal sensing or DC-offset sensing Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 60A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 260mm × 180mm × 52mm (10.23" × 7.09" × 2.05") Weight: 2.79kg (6.15 lbs) Construction: Marine-grade materials with gasketed removable top cover Finish: Black powder-coat Warranty: 3 years Important Note: This is the 12V model. The XDM series includes 24V variants in some configurations, but this 5-channel model operates on standard 12V automotive/marine electrical systems only. Compatible With / Goes Well With Speaker Recommendations: Component speaker systems rated 75-100W RMS (front and/or rear) Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9" sizes) Marine subwoofers rated 180-300W RMS (10" or 12" single-voice-coil or dual-voice-coil) Tower speakers rated 150-200W RMS (when bridging main channels) Installation Accessories: 4 AWG amplifier wiring kit with 60A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG for main channels, 12-14 AWG for subwoofer) RCA interconnect cables with marine-grade shielding (5-channel distribution or individual runs) Distribution blocks for clean power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces and subwoofer enclosures System Compatibility: Marine head units with multi-channel preamp outputs (minimum 2-channel, ideal 4-6 channel) Aftermarket head units with subwoofer preamp output Marine DSP processors with 5-6 channel output capability Line output converters for factory radio integration 12V electrical systems with adequate alternator capacity (90A+ recommended) Subwoofer Configurations: Single 2Ω subwoofer (300W) - maximum power Single 4Ω subwoofer (180W) - lower power draw Dual 6Ω subwoofers wired in parallel (240W total @ 3Ω) - unique configuration Single dual-voice-coil 4Ω subwoofer wired to 2Ω (300W) - maximum flexibility Electrical System Requirements: Minimum 90A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for extended engine-off listening) Proper grounding with dedicated ground point to chassis/hull 4 AWG power and ground wiring with proper routing and protection Caution: Five-channel systems require careful planning. Ensure your head unit or DSP provides adequate preamp outputs (minimum 2-channel stereo plus subwoofer preout). The subwoofer channel does NOT support 1.5Ω loads—minimum 2Ω impedance required. Verify subwoofer impedance and wiring configuration before connection to avoid damage. Weight 2.79kg (6.15 lbs) Frequently Asked Questions Can I run component speakers on all four main channels?Yes. The XDM700/5 is ideal for two pairs of component speakers (front and rear) plus a subwoofer. Use the high-pass filter on channels 1&2 for front components, high-pass or bandpass on channels 3&4 for rear components, and low-pass on the subwoofer channel. The x10 multiplier on channels 1&2 allows tweeter protection up to 5kHz. What's the difference between the high-pass and bandpass filter modes on channels 3&4?High-pass mode passes frequencies above the cutoff point (50Hz-500Hz)—ideal for full-range coaxial speakers. Bandpass mode passes frequencies within a specific range—useful for 3-way systems where channels 3&4 handle midrange duties between tweeters (channels 1&2) and subwoofer (channel 5). Configure based on your speaker type and system design. Can I bridge the main channels for higher power to tower speakers?Yes. Bridge channels 1+2 and/or 3+4 for 200W per bridged pair at 4Ω load. This is perfect for marine tower speakers requiring more power than the 75-100W per channel. Note that bridging disables individual channel filtering—use external crossovers or full-range tower speakers when bridged. What subwoofer impedance should I use for maximum power?Wire your subwoofer to 2Ω for maximum 300W output. Use a single 2Ω subwoofer, or a dual-voice-coil 4Ω subwoofer wired in parallel to achieve 2Ω. The amplifier does NOT support 1.5Ω loads. At 4Ω, the amp delivers 180W—adequate for many applications with lower electrical system demands. How do I set up the remote level control for subwoofer-only adjustment?Connect the optional HD-RLC or MHD-RLC remote and configure the amplifier's remote level mode switch to "Sub Channel" mode. This allows bass adjustment without affecting main speaker volumes—perfect for compensating between moored and underway listening, or adjusting bass levels based on music genre without retuning the entire system.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Flagship 5-channel Class D system amplification engineered for maximum power delivery with advanced NexD™ technology and thermal rollback protection. Product Overview The JL Audio XDM1000/5 5-channel amplifier represents the pinnacle of JL Audio's XDM series, delivering 1000W total system power for complete marine and automotive installations requiring four satellite speakers plus a high-output subwoofer channel. Built using JL Audio's advanced NexD™ high-speed switching design achieving over 80% total amplifier efficiency, this marine-rated Class D platform provides exceptional power output while minimizing electrical system demands. The 12V configuration integrates seamlessly into standard automotive and marine electrical systems, while the all-aluminum powder-coated housing with sealed security cover protects against corrosion and the elements in Australia's harshest coastal conditions. The sophisticated architecture features studio-grade signal processing with fully variable filters and calibrated potentiometers beneath the sealed security cover. Advanced rollback protection ensures the amplifier never shuts down due to thermal overload—innovative circuit design keeps the music playing even under demanding conditions by intelligently managing power output. Automatic turn-on capability offers three options: auto signal sensing with +12V remote out, auto DC-offset sensing with +12V remote out, or conventional +12V turn-on lead. At 374mm wide with exclusive dual-mode input filter for outstanding noise rejection, the XDM1000/5 represents the ultimate single-amplifier solution for Australian marine enthusiasts and automotive audio specialists demanding maximum system power without multiple amplifiers. Key Specifications 5-channel Class D amplifier with NexD™ technology (4 main channels + 1 dedicated subwoofer channel) Total system power: 1000W RMS Operating voltage: 11-14.5 VDC (12V systems only) Amplifier efficiency: >80% (NexD™ high-speed switching design) Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified All-aluminum powder-coated housing for corrosion resistance Sealed security cover protects controls from elements Studio-grade signal processing with fully variable filters Calibrated potentiometers for precise tuning Advanced rollback protection prevents thermal shutdown Automatic turn-on: 3 modes (signal sensing, DC-offset sensing, or +12V remote) Exclusive dual-mode input filter for noise rejection Differential-balanced inputs for crystal-clear audio performance Marine-grade construction suitable for boats or cars 2-year manufacturer warranty Note: Detailed power ratings per channel, filter specifications, and technical measurements are not provided in supplier documentation. Contact manufacturer for complete specifications. Features & Benefits Advanced NexD™ High-Efficiency TechnologyJL Audio's proprietary NexD™ high-speed switching design achieves total amplifier efficiencies exceeding 80%—significantly higher than conventional Class D amplifiers. This exceptional efficiency reduces current draw from your electrical system, minimizes heat generation, and permits reliable high-power 1000W output from a compact chassis. Critical for Australian marine applications where electrical capacity is limited, or 4WD touring setups where auxiliary battery runtime matters during extended camping scenarios. Advanced Rollback Protection SystemInnovative circuit design ensures the amplifier never experiences complete thermal shutdown—a common frustration with traditional amplifiers during extended high-output sessions. The advanced rollback protection intelligently manages power output when thermal conditions approach limits, keeping the music playing even under demanding conditions like beach parties, boat rallies, or outback camping. Unlike conventional thermal protection that abruptly cuts power, the XDM1000/5 gracefully manages output to maintain continuous operation. Studio-Grade Signal ProcessingBeneath the sealed security cover lies audiophile-grade signal processing with fully variable filters and calibrated potentiometers. The precision controls enable sophisticated system tuning for component speakers, coaxials, and subwoofers in demanding installations. Calibrated potentiometers ensure repeatable settings—critical for professional installers servicing multiple similar builds or enthusiasts fine-tuning complex systems without external DSP processors. Exclusive Dual-Mode Input FilterJL Audio's proprietary dual-mode input filter combined with differential-balanced inputs delivers outstanding noise rejection and crystal-clear audio performance in boats or cars. The filter automatically adapts to electrical noise characteristics common in marine environments (alternator whine, bilge pump interference) or automotive installations (ignition noise, accessory interference). Critical for maintaining audiophile-grade sound quality in electrically noisy environments where conventional amplifiers produce audible interference. Triple Auto Turn-On CapabilityChoose from three automatic turn-on options based on your installation: auto signal sensing with +12V remote out (detects audio signal on RCA inputs), auto DC-offset sensing with +12V remote out (detects DC voltage from source unit), or conventional +12V turn-on lead (standard remote wire). The signal/DC-offset sensing modes eliminate the need for separate remote wiring in many factory system upgrades, simplifying integration in commercial fleet applications or vessels where complex wiring modifications aren't practical. Marine-Grade Corrosion ResistanceThe all-aluminum powder-coated housing inhibits corrosion in Australian coastal conditions, salt spray, and bilge moisture. The sealed security cover protects controls and circuitry from the elements—critical for installations in wet bilges, exposed cockpit areas, or poorly sealed cargo compartments in 4WD vehicles. Unlike conventional amplifiers with exposed heatsinks and control surfaces, the XDM1000/5 maintains long-term reliability in harsh marine environments from tropical Queensland humidity to Southern Ocean salt spray. Compact Flagship ChassisAt 374mm wide, the XDM1000/5 delivers flagship 1000W system power in a chassis that fits locations where traditional high-power amplifiers won't mount. The extended footprint accommodates substantial power supply components and heat sink area while maintaining the low 52mm profile essential for under-seat, behind-panel, or shallow equipment bay installations. Multiple configuration options enable mounting horizontally, vertically, or in dedicated amplifier racks depending on available space. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 5 (4 main channels + 1 dedicated subwoofer channel) Total system power: 1000W RMS Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Amplifier efficiency: >80% (NexD™ technology) Signal Processing: Studio-grade signal processing with fully variable filters Calibrated potentiometers for precise, repeatable tuning Exclusive dual-mode input filter for noise rejection Differential-balanced inputs for superior audio performance Protection & Control: Advanced rollback protection (prevents thermal shutdown) Automatic turn-on options: Signal sensing / DC-offset sensing / +12V remote +12V remote output capability (for daisy-chaining additional equipment) Physical Specifications: Dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Housing: All-aluminum powder-coated construction Protection: Sealed security cover over controls and circuitry Finish: Black powder-coat Warranty: 2 years Important Note: This is the 12V model. Detailed power output specifications per channel, filter frequencies, slopes, fuse rating, and wire gauge requirements are not provided in available documentation. Contact JL Audio or authorized dealers for complete technical specifications before installation planning. Compatible With / Goes Well With Speaker Recommendations: Component speaker systems for main channels Marine coaxial speakers for main channels High-output marine subwoofers (power handling dependent on actual channel specifications) Tower speakers (verify bridging capability and power ratings) Installation Accessories: Heavy-gauge amplifier wiring kit (gauge dependent on actual specifications) Marine-grade speaker wire RCA interconnect cables with marine-grade shielding (5-channel distribution) Distribution blocks for power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces System Compatibility: Marine head units with multi-channel preamp outputs Aftermarket head units with subwoofer preamp output Marine DSP processors with 5-channel output capability Line output converters for factory radio integration 12V electrical systems with adequate alternator capacity Electrical System Requirements: High-output alternator recommended for 1000W total system power Adequate battery reserve (AGM or lithium recommended) Proper grounding with dedicated ground point to chassis/hull Heavy-gauge power and ground wiring (consult installation manual) Caution: Detailed specifications including power output per channel, impedance compatibility, fuse rating, and wire gauge requirements are not provided in available documentation. Consult JL Audio technical support or authorized dealers before purchase to ensure compatibility with your speakers and electrical system. Weight Not specified Frequently Asked Questions What makes the XDM1000/5 different from the XDM700/5?The XDM1000/5 delivers 1000W total system power versus the XDM700/5's 700W, representing a 43% increase in output capability. The 1000W model features the extended 374mm chassis for enhanced power supply and thermal management, enabling higher sustained output levels for demanding applications requiring maximum bass authority and main speaker headroom. What is advanced rollback protection and how does it work?Unlike traditional thermal protection that abruptly shuts down the amplifier when overheating, advanced rollback protection intelligently reduces output gradually when approaching thermal limits. This keeps the music playing continuously—albeit at slightly reduced levels—rather than experiencing frustrating shutdowns during extended high-output sessions at anchor or beach parties. How does the NexD technology benefit my electrical system?NexD™ high-speed switching achieves over 80% efficiency, meaning less current draw from your battery and alternator compared to conventional amplifiers producing the same power. This reduces strain on your electrical system, minimizes heat generation requiring cooling, and extends battery runtime during engine-off listening—critical for marine applications and remote camping scenarios. Which automatic turn-on mode should I use?Use signal sensing for most aftermarket head units (detects audio on RCA inputs), DC-offset sensing for many factory systems (detects DC voltage from source unit output), or conventional +12V remote for guaranteed compatibility with any source unit providing remote turn-on output. Try signal or DC-offset modes first to eliminate remote wire runs in complex installations. Is this amplifier suitable for saltwater marine environments?Yes. The all-aluminum powder-coated housing resists corrosion, and the sealed security cover protects controls and circuitry from salt spray and moisture. However, mount away from direct water streams, bilge flooding, or areas subject to washdown. Pair with marine-grade wiring and heat-shrink connections for long-term reliability in coastal conditions.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

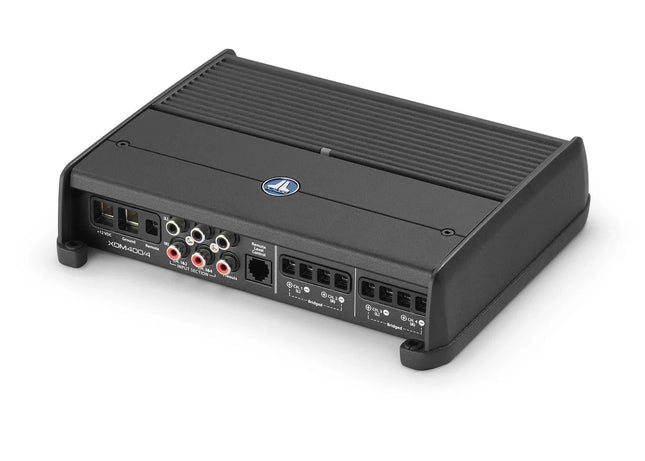

Ultra-compact 4-channel Class D amplification engineered for maximum power density with advanced NexD™ technology in a chassis that fits anywhere. Product Overview The JL Audio XDM400/4 4-channel amplifier represents the ultimate space-efficient solution for marine and automotive installations requiring serious full-range power in the smallest possible footprint. Delivering 100W RMS per channel at 2Ω (400W total) or 75W per channel at 4Ω (300W total), this ultra-compact Class D platform drives four satellite speakers or two speakers plus a subwoofer from a chassis that fits under seats, behind helm panels, or in shallow equipment bays where traditional amplifiers won't mount. Built using JL Audio's advanced NexD™ high-speed switching design with full-bandwidth Class D operation, the XDM400/4 achieves exceptionally low distortion and remarkable efficiency in marine-grade construction. The versatile 4-channel configuration enables multiple system architectures: run all four channels independently for complete cabin/cockpit coverage, bridge two channels for 200W to a subwoofer while driving two satellites, or pair with the XDM600/1 monoblock for a stunning 1000W complete system (four satellites + subwoofer) that fits entirely under a seat. Variable 12dB/octave filtering on both channel banks (channels 1&2 and 3&4) with continuously variable 50Hz-500Hz cutoff enables precise tuning for different speaker types. Automatic turn-on via signal sensing or DC-offset sensing simplifies factory system integration. With marine-grade materials, gasketed removable top cover, and exclusive dual-mode input filter, the XDM400/4 delivers audiophile-grade performance in Australia's harshest coastal conditions. Key Specifications 4-channel Class D amplifier with NexD™ technology optimised for full-range applications Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 4 channels (400W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 4 channels (300W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 2 channels (400W total bridged) Operating voltage: 11-14.5 VDC (12V systems only) Ultra-compact chassis dimensions (specific measurements not provided in supplier data) Weight: Not specified Advanced NexD™ high-speed switching design Full-bandwidth Class D operation with extremely low distortion Marine-grade materials construction Gasketed removable top cover protects controls Exclusive dual-mode input filter for noise-free performance Automatic turn-on: Signal sensing or DC-offset sensing Variable 12dB/octave filters per channel bank Filter modes (Channels 1&2 and 3&4): Low-Pass or High-Pass Filter frequency range: 50Hz-500Hz (continuously variable) Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Remote level modes: All channels or rear channels only Black powder-coat finish 3-year manufacturer warranty (assumed standard XDM warranty) Note: Detailed technical specifications including power ratings at 12.5V, signal-to-noise ratio, damping factor, THD+N measurements, input voltage range, fuse rating, wire gauge requirements, and physical dimensions are not provided in supplier documentation. Features & Benefits Ultra-Compact Power DensityThe XDM400/4 delivers serious full-range power (100W × 4) in an ultra-compact chassis that fits locations where traditional amplifiers simply won't mount. Perfect for under-seat installations in boats with limited space, behind helm panels in centre console vessels, shallow cargo areas in dual-cab utes, or compact equipment bays in caravans. The small footprint doesn't compromise power output—JL Audio's NexD™ technology achieves full 400W capability in a package that disappears into tight installations. Advanced NexD™ Full-Bandwidth Class DJL Audio's proprietary NexD™ high-speed switching design permits full-bandwidth Class D operation with extremely low distortion and remarkable efficiency. Unlike conventional Class D amplifiers compromised by switching artifacts at high frequencies, the NexD™ topology maintains clean, undistorted output across the entire audible spectrum from deep bass to high treble. The exceptional efficiency reduces current draw, minimizes heat generation, and enables reliable high-power output from the compact chassis—critical for space-constrained marine installations. Versatile System Configuration OptionsConfigure as a standalone 4-channel amp for complete cabin coverage, bridge two channels for 200W to a compact subwoofer while driving two satellites, or pair with the JL Audio XDM600/1 monoblock for a complete 1000W system (four satellites + dedicated subwoofer) that fits entirely under a seat or deck. The modular approach provides upgrade flexibility: start with the XDM400/4 for immediate needs, add the monoblock later for serious bass authority without replacing existing equipment. Independent Channel Bank FilteringVariable 12dB/octave filters on channels 1&2 and 3&4 enable precise system tuning. Configure as high-pass filters to protect speakers from damaging low frequencies, or low-pass filters for subwoofer duty when bridged. The continuously variable 50Hz-500Hz cutoff range accommodates marine coaxials, component speakers, and compact subwoofers. Independent filtering per channel bank allows front and rear speakers to operate at different frequency ranges, maximizing system performance without external crossovers. Exclusive Dual-Mode Input FilterJL Audio's proprietary dual-mode input filter combined with differential-balanced circuitry delivers outstanding noise rejection and crystal-clear audio performance in boats or cars. The filter automatically adapts to electrical noise characteristics common in marine environments (alternator whine, bilge pump interference) or automotive installations (ignition noise, accessory interference). Critical for maintaining audiophile-grade sound quality in electrically noisy environments where conventional amplifiers produce audible interference. Automatic Turn-On CapabilityDual-mode turn-on detection (signal sensing or DC-offset sensing) enables seamless integration with factory audio systems or aftermarket source units without separate remote turn-on wiring. Signal sensing detects audio signal on RCA inputs, while DC-offset sensing detects DC voltage from source unit output. Simplifies factory system upgrades in commercial vessels, charter boats, or vehicles where complex wiring modifications aren't practical or desirable. Optional Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, driver's seat, or entertainment area. Switch between two modes: adjust all channels simultaneously (master volume control), or adjust rear channels only (preserve front speaker levels while controlling rear fill). Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or quick adjustments between moored and underway conditions. Marine-Grade ConstructionBuilt with marine-grade materials to withstand salt spray, bilge moisture, and corrosive coastal environments. The gasketed removable top cover protects controls and circuitry from moisture ingress while enabling easy access for tuning and adjustment. The black powder-coat finish resists corrosion in Australian conditions from tropical Queensland humidity to Southern Ocean salt spray. Suitable for protected equipment bays, under helm panels, or cabin locations with normal marine moisture exposure. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 4 (Full-range) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (14.4V input): Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 4 (400W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 4 (300W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 2 (400W total bridged) Signal Processing: Filter modes (Channels 1&2 and 3&4): Low-Pass or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz (continuously variable) Exclusive dual-mode input filter: Yes (for noise rejection) Protection & Control: Automatic turn-on: Signal sensing or DC-offset sensing Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Remote level modes: All channels or rear channels only Physical Specifications: Dimensions: Not specified (ultra-compact design) Weight: Not specified Construction: Marine-grade materials Protection: Gasketed removable top cover Finish: Black powder-coat Warranty: 3 years (assumed standard XDM warranty) Important Note: Detailed specifications including power ratings at 12.5V input, physical dimensions, weight, frequency response, signal-to-noise ratio, damping factor, THD+N measurements, input voltage range, fuse rating, and wire gauge requirements are not provided in available supplier documentation. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9" sizes) Marine component speaker systems rated 75-100W RMS per channel Compact marine subwoofers rated 200W RMS (when bridging two channels) Full-range cabin speakers for complete coverage Recommended System Pairings: JL Audio XDM600/1 monoblock (pair for complete 1000W system: 4 satellites + subwoofer) JL Audio XDM300/1 monoblock (pair for 700W system: 4 satellites + 300W sub) Installation Accessories: Marine-grade amplifier wiring kit (gauge requirements not specified) JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding Distribution blocks for power/ground distribution Amplifier mounting brackets for compact installations Sound deadening material for mounting surfaces System Compatibility: Marine head units with 2-4 channel preamp outputs Aftermarket head units with front/rear preamp outputs Line output converters for factory radio integration 12V electrical systems with adequate alternator capacity Caution: Detailed specifications including fuse rating, wire gauge requirements, and physical dimensions are not provided in available documentation. Consult JL Audio technical support or authorized dealers before purchase to ensure proper electrical system sizing and installation space verification. Frequently Asked Questions How small is the XDM400/4 compared to traditional 4-channel amplifiers?The XDM400/4 is described as "ultra-compact" with dimensions specifically designed to fit under seats, behind helm panels, or in shallow equipment bays. While exact measurements aren't provided in available documentation, it's engineered for installations where traditional amplifiers won't fit while still delivering 100W × 4 output. Can I run a subwoofer with this 4-channel amplifier?Yes. Bridge channels 3+4 (or 1+2) for 200W RMS to a 4Ω compact subwoofer, leaving the other two channels unbridged for 75-100W to satellite speakers. This configuration is ideal for boats or vehicles requiring bass reinforcement without dedicating a separate monoblock amplifier in space-constrained installations. Should I pair this with the XDM600/1 monoblock for a complete system?JL Audio specifically recommends this pairing to create a stunning 1000W amplification system (400W for four satellites from the XDM400/4 plus 600W for subwoofer from the XDM600/1) that fits entirely under a seat or deck. The modular approach provides clean installation, proper power distribution, and dedicated subwoofer control without compromising main speaker performance. How does the automatic turn-on work without a remote wire?The amplifier features dual-mode detection: signal sensing (detects audio signal on RCA inputs) or DC-offset sensing (detects DC voltage from source unit output). Select the appropriate mode based on your source unit—signal sensing for most aftermarket units, DC-offset for many factory systems. Eliminates complex wiring in factory system upgrades. What does the remote level control adjust?With the optional HD-RLC or MHD-RLC remote, you can select between two modes: adjust all channels simultaneously (master volume for entire system), or adjust rear channels only (preserve front speaker levels while controlling rear fill intensity). The mode selection depends on your listening preferences and system configuration.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

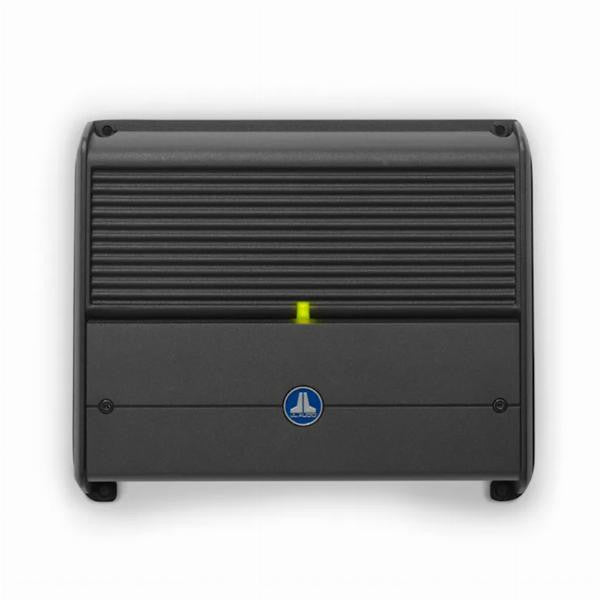

Versatile 3-channel Class D system amplification engineered for two-channel plus subwoofer configurations with advanced NexD™ technology and thermal rollback protection. Product Overview The JL Audio XDM500/3 3-channel amplifier delivers comprehensive system amplification for marine and automotive installations requiring two satellite speakers plus a dedicated subwoofer channel. With 500W total system power distributed across three channels, this marine-rated Class D platform drives complete audio systems from a single compact chassis. Built using JL Audio's advanced NexD™ high-speed switching design achieving over 80% total amplifier efficiency, the XDM500/3 provides exceptional power output while minimizing electrical system demands. The 12V configuration integrates seamlessly into standard automotive and marine electrical systems, while the all-aluminum powder-coated housing with sealed security cover protects against corrosion and the elements in Australia's harshest coastal conditions. The sophisticated architecture features studio-grade signal processing with fully variable filters and calibrated potentiometers beneath the sealed security cover. Advanced rollback protection ensures the amplifier never shuts down due to thermal overload—innovative circuit design keeps the music playing even under demanding conditions by intelligently managing power output. Automatic turn-on capability offers three options: auto signal sensing with +12V remote out, auto DC-offset sensing with +12V remote out, or conventional +12V turn-on lead. At 216mm wide, 2.18kg, and featuring exclusive dual-mode input filter for outstanding noise rejection, the XDM500/3 represents the ideal single-amplifier solution for Australian marine enthusiasts and automotive audio specialists requiring two-channel plus subwoofer control. Key Specifications 3-channel Class D amplifier with NexD™ technology (2 main channels + 1 dedicated subwoofer channel) Total system power: 500W RMS Operating voltage: 11-14.5 VDC (12V systems only) Amplifier efficiency: >80% (NexD™ high-speed switching design) Dimensions: 216mm (W) × 180mm (D) × 52mm (H) Weight: 2.18kg (4.8 lbs) All-aluminum powder-coated housing for corrosion resistance Sealed security cover protects controls from elements Studio-grade signal processing with fully variable filters Calibrated potentiometers for precise tuning Advanced rollback protection prevents thermal shutdown Automatic turn-on: 3 modes (signal sensing, DC-offset sensing, or +12V remote) Exclusive dual-mode input filter for noise rejection Differential-balanced inputs for crystal-clear audio performance Marine-grade construction suitable for boats or cars 2-year manufacturer warranty Note: Detailed power ratings per channel, filter specifications, and technical measurements are not provided in supplier documentation. Contact manufacturer for complete specifications. Features & Benefits Advanced NexD™ High-Efficiency TechnologyJL Audio's proprietary NexD™ high-speed switching design achieves total amplifier efficiencies exceeding 80%—significantly higher than conventional Class D amplifiers. This exceptional efficiency reduces current draw from your electrical system, minimizes heat generation, and permits reliable 500W output from a compact chassis. Critical for Australian marine applications where electrical capacity is limited, or 4WD touring setups where auxiliary battery runtime matters during extended camping scenarios with engine-off listening. Advanced Rollback Protection SystemInnovative circuit design ensures the amplifier never experiences complete thermal shutdown—a common frustration with traditional amplifiers during extended high-output sessions. The advanced rollback protection intelligently manages power output when thermal conditions approach limits, keeping the music playing even under demanding conditions like beach parties, boat rallies, or outback camping. Unlike conventional thermal protection that abruptly cuts power, the XDM500/3 gracefully manages output to maintain continuous operation. Studio-Grade Signal ProcessingBeneath the sealed security cover lies audiophile-grade signal processing with fully variable filters and calibrated potentiometers. The precision controls enable sophisticated system tuning for main speakers and subwoofers in demanding installations. Calibrated potentiometers ensure repeatable settings—critical for professional installers servicing multiple similar builds or enthusiasts fine-tuning systems without external DSP processors. The 3-channel configuration simplifies wiring and system design compared to separate stereo and monoblock amplifiers. Exclusive Dual-Mode Input FilterJL Audio's proprietary dual-mode input filter combined with differential-balanced inputs delivers outstanding noise rejection and crystal-clear audio performance in boats or cars. The filter automatically adapts to electrical noise characteristics common in marine environments (alternator whine, bilge pump interference) or automotive installations (ignition noise, accessory interference). Critical for maintaining audiophile-grade sound quality in electrically noisy environments where conventional amplifiers produce audible interference. Triple Auto Turn-On CapabilityChoose from three automatic turn-on options based on your installation: auto signal sensing with +12V remote out (detects audio signal on RCA inputs), auto DC-offset sensing with +12V remote out (detects DC voltage from source unit), or conventional +12V turn-on lead (standard remote wire). The signal/DC-offset sensing modes eliminate the need for separate remote wiring in many factory system upgrades, simplifying integration in commercial fleet applications or vessels where complex wiring modifications aren't practical. Marine-Grade Corrosion ResistanceThe all-aluminum powder-coated housing inhibits corrosion in Australian coastal conditions, salt spray, and bilge moisture. The sealed security cover protects controls and circuitry from the elements—critical for installations in wet bilges, exposed cockpit areas, or poorly sealed cargo compartments in 4WD vehicles. Unlike conventional amplifiers with exposed heatsinks and control surfaces, the XDM500/3 maintains long-term reliability in harsh marine environments from tropical Queensland humidity to Southern Ocean salt spray. Compact Two-Speaker Plus Sub ConfigurationThe 3-channel design is ideal for boats with cabin stereo plus subwoofer, utes with front speakers plus bass, or caravans with entertainment zone plus low-frequency reinforcement. Eliminates the need for separate 2-channel and monoblock amplifiers, reducing installation complexity, wiring bulk, and equipment bay congestion. The 216mm width fits locations where larger multi-channel amplifiers won't mount, while the 2.18kg weight simplifies mounting bracket requirements and installation logistics. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 3 (2 main channels + 1 dedicated subwoofer channel) Total system power: 500W RMS Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Amplifier efficiency: >80% (NexD™ technology) Signal Processing: Studio-grade signal processing with fully variable filters Calibrated potentiometers for precise, repeatable tuning Exclusive dual-mode input filter for noise rejection Differential-balanced inputs for superior audio performance Protection & Control: Advanced rollback protection (prevents thermal shutdown) Automatic turn-on options: Signal sensing / DC-offset sensing / +12V remote +12V remote output capability (for daisy-chaining additional equipment) Physical Specifications: Dimensions (W × D × H): 216mm × 180mm × 52mm (8.52" × 7.09" × 2.05") Weight: 2.18kg (4.8 lbs) Housing: All-aluminum powder-coated construction Protection: Sealed security cover over controls and circuitry Finish: Black powder-coat Warranty: 2 years Important Note: Detailed power output specifications per channel (main channels vs. subwoofer channel), filter frequencies, slopes, fuse rating, wire gauge requirements, frequency response, signal-to-noise ratio, and damping factor are not provided in available documentation. Contact JL Audio or authorized dealers for complete technical specifications before installation planning. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers for main channels (2 speakers) Marine component speakers for main channels Marine subwoofers for dedicated subwoofer channel (power handling dependent on actual specifications) Compact marine subwoofers for space-constrained installations Installation Accessories: Marine-grade amplifier wiring kit (gauge dependent on actual specifications) Marine-grade speaker wire RCA interconnect cables with marine-grade shielding (3-channel distribution) Distribution blocks for power/ground distribution Amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces System Compatibility: Marine head units with front preamp outputs plus subwoofer output Aftermarket head units with 2-channel plus subwoofer preamp outputs Line output converters for factory radio integration with summing 12V electrical systems with adequate alternator capacity Electrical System Requirements: Adequate alternator capacity for 500W total system power Proper battery reserve (AGM or lithium recommended) Proper grounding with dedicated ground point to chassis/hull Marine-grade wiring (consult installation manual for gauge requirements) Caution: Detailed specifications including power output per channel, impedance compatibility, fuse rating, and wire gauge requirements are not provided in available documentation. Consult JL Audio technical support or authorized dealers before purchase to ensure compatibility with your speakers and electrical system. Weight 2.18kg (4.8 lbs) Frequently Asked Questions What's the difference between the XDM500/3 and running separate 2-channel and monoblock amplifiers?The XDM500/3 consolidates two satellite speakers plus subwoofer amplification into a single chassis, reducing installation complexity, wiring runs, equipment bay space requirements, and power distribution connections. The integrated design simplifies tuning with coordinated controls in one location rather than accessing multiple amplifiers mounted in different areas. What is advanced rollback protection and how does it work?Unlike traditional thermal protection that abruptly shuts down the amplifier when overheating, advanced rollback protection intelligently reduces output gradually when approaching thermal limits. This keeps the music playing continuously—albeit at slightly reduced levels—rather than experiencing frustrating shutdowns during extended high-output sessions at anchor, beach parties, or camping scenarios. How does the NexD technology benefit my electrical system?NexD™ high-speed switching achieves over 80% efficiency, meaning less current draw from your battery and alternator compared to conventional amplifiers producing the same power. This reduces strain on your electrical system, minimizes heat generation requiring cooling, and extends battery runtime during engine-off listening—critical for marine applications and remote camping scenarios. Which automatic turn-on mode should I use?Use signal sensing for most aftermarket head units (detects audio on RCA inputs), DC-offset sensing for many factory systems (detects DC voltage from source unit output), or conventional +12V remote for guaranteed compatibility with any source unit providing remote turn-on output. Try signal or DC-offset modes first to eliminate remote wire runs in complex installations. Is this amplifier suitable for saltwater marine environments?Yes. The all-aluminum powder-coated housing resists corrosion, and the sealed security cover protects controls and circuitry from salt spray and moisture. However, mount away from direct water streams, bilge flooding, or areas subject to washdown. Pair with marine-grade wiring and heat-shrink connections for long-term reliability in coastal conditions.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

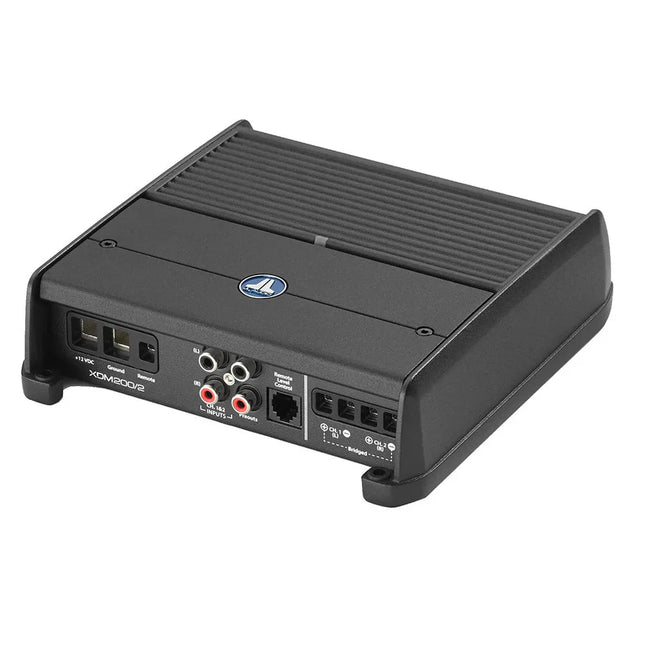

Compact 2-channel Class D amplification engineered for space-constrained RV, caravan, and auxiliary speaker zone applications. Product Overview The JL Audio XDM200/2 2-channel amplifier delivers 200W total clean power in an exceptionally compact chassis designed specifically for recreational vehicle, caravan, and auxiliary speaker zone applications. Built to JL Audio's rigorous standards for durability and sound quality, this space-efficient Class D platform provides reliable high-performance audio upgrade for primary speakers in smaller campers or secondary speaker zones in larger motorhomes. The small footprint makes it perfect for installations where mounting space is at a premium—behind entertainment panels, under dinette seating, or in shallow equipment compartments common in Australian caravans and motorhomes. Engineered to withstand the rigors of recreational vehicle lifestyle, the XDM200/2 features marine-grade construction suitable for the vibration, temperature extremes, and environmental challenges encountered during Australian outback touring, coastal camping, and extended off-grid adventures. The 12V configuration integrates seamlessly into standard RV and caravan electrical systems, while the efficient Class D topology minimizes current draw—critical for auxiliary battery systems and solar-powered setups. Whether upgrading factory RV speakers, adding entertainment zone amplification, or building a complete touring audio system, the XDM200/2 represents the ideal compact amplification solution for Australian grey nomads, 4WD tourers, and caravan enthusiasts. Key Specifications 2-channel Class D amplifier optimised for RV and caravan applications Total power output: 200W RMS Compact chassis designed for space-constrained installations Operating voltage: 12V DC (specific range not provided) Built to JL Audio's high standards for durability and sound quality Reliable high-performance audio upgrade Designed to withstand recreational vehicle lifestyle rigors Suitable for primary speakers in smaller campers Ideal for auxiliary power to secondary speaker zones in motorhomes Marine-grade construction (assumed from XDM series lineage) Dimensions: Not specified Weight: Not specified Warranty: Not specified (assumed standard JL Audio warranty) Note: Detailed specifications including power ratings per channel at different impedances and voltages, filter specifications, fuse rating, wire gauge requirements, physical dimensions, weight, and technical measurements are not provided in supplier documentation. Features & Benefits Compact RV-Specific DesignThe exceptionally small chassis fits installations where traditional amplifiers simply won't mount—behind entertainment cabinets, under dinette seating, in overhead compartments, or shallow equipment bays common in Australian caravans and motorhomes. The compact footprint doesn't compromise power output, delivering 200W clean power for primary speakers in smaller campers or auxiliary zones in larger rigs. Perfect for slide-out entertainment areas, outdoor speaker zones, or bedroom audio systems where space is at absolute premium. Built for Recreational Vehicle LifestyleEngineered specifically to withstand the unique challenges of RV and caravan use: constant road vibration on corrugated tracks, temperature extremes from tropical Far North Queensland to alpine Southern Highlands, dust ingress on outback tours, and the mechanical stress of repeated setup/packdown cycles. Unlike home or automotive amplifiers that fail under RV conditions, the XDM200/2 maintains reliable operation through years of grey nomad touring, coastal camping, and remote adventures. Efficient Power Draw for Off-Grid SystemsClass D efficiency minimizes current draw from auxiliary battery systems—critical for solar-powered caravans, off-grid camping scenarios, or extended free-camping where battery capacity is limited. The efficient design allows quality audio enjoyment without rapidly depleting battery reserves needed for refrigeration, lighting, and water pumps. Essential for Australian tourers spending weeks in remote locations like Cape York, the Kimberley, or Simpson Desert where electrical conservation matters. Primary or Auxiliary Zone FlexibilityConfigure as the main amplifier for smaller campers requiring simple stereo amplification, or deploy as auxiliary power for secondary speaker zones in larger motorhomes. Perfect for outdoor entertainment areas under annexes, bedroom zones independent from main living area, or slide-out sections with dedicated speaker systems. The versatile 2-channel design accommodates various RV audio architectures without excessive complexity or equipment bulk. JL Audio Durability StandardsBuilt to JL Audio's rigorous quality standards—the same engineering excellence found in high-end marine and automotive applications. Unlike budget RV amplifiers that fail prematurely or produce distorted output, the XDM200/2 delivers years of reliable service with clean, undistorted power reproduction. The proven reliability matters when you're thousands of kilometres from service centres in remote Australian locations like the Nullarbor, Gibb River Road, or Cape York Peninsula. Clean Power for Speaker Upgrade CompatibilityThe 200W output provides substantial headroom for aftermarket speaker upgrades common in RV and caravan audio improvements. Factory RV speakers typically handle 50-100W—the XDM200/2's clean power delivery allows upgrading to quality marine-grade or automotive speakers rated 75-100W per channel without amplifier limitations. Essential for tourers wanting entertainment-quality audio during extended stays at caravan parks, beach camps, or outback stations. Simple Integration with RV SystemsThe 12V design integrates directly into standard RV and caravan electrical infrastructure without voltage conversion or special wiring. Compatible with existing RV audio source units, aftermarket head units, or entertainment systems common in modern motorhomes. The straightforward installation suits DIY-minded grey nomads or professional RV audio installers servicing touring vehicles across Australia. Technical Specs Amplifier class: Class D (assumed from XDM series) Channels: 2 Total power output: 200W RMS Operating voltage: 12V DC (specific range not provided) Chassis design: Compact (specific dimensions not provided) Construction: Built to JL Audio durability standards Designed to withstand recreational vehicle lifestyle Marine-grade construction (assumed from XDM series lineage) Physical Specifications: Dimensions: Not specified (compact design confirmed) Weight: Not specified Warranty: Not specified Important Note: Detailed specifications including power output per channel at different impedances (2Ω, 4Ω), power ratings at different voltages (14.4V, 12.5V), bridged power capability, filter specifications, frequency response, signal-to-noise ratio, damping factor, THD+N measurements, input voltage range, fuse rating, wire gauge requirements, and physical dimensions are not provided in available supplier documentation. Compatible With / Goes Well With Speaker Recommendations: Marine-grade coaxial speakers rated 75-100W RMS (6", 6.5" sizes common in RVs) RV-specific speakers designed for recreational vehicle environments Outdoor speakers for annexe/awning entertainment zones Moisture-resistant speakers for bathroom/wet area installations Installation Accessories: RV-grade amplifier wiring kit (gauge requirements not specified) Marine-grade speaker wire (14-16 AWG typical for RV installations) RCA interconnect cables for source unit connection Amplifier mounting brackets suitable for RV cabinet/panel mounting Vibration-dampening mounting hardware for mobile installations System Compatibility: RV entertainment systems with preamp outputs Aftermarket head units with front/rear preamp capability Multi-zone RV audio controllers 12V RV electrical systems with adequate battery capacity RV Electrical Considerations: Compatible with standard 12V RV auxiliary battery systems Suitable for solar-powered electrical systems with proper battery capacity Works with AGM, lithium, or standard flooded batteries common in caravans Verify adequate alternator capacity when engine is running Caution: Detailed specifications including fuse rating, wire gauge requirements, power output per channel, and impedance compatibility are not provided in available documentation. Consult JL Audio technical support or authorized RV audio specialists before purchase to ensure proper system sizing and compatibility with your recreational vehicle's electrical system and speakers. Frequently Asked Questions Will this amplifier fit in my compact camper trailer or small caravan?Yes, the XDM200/2 is specifically designed with a compact chassis for smaller campers and space-constrained installations. While exact dimensions aren't provided, it's engineered to fit locations where traditional amplifiers won't mount—behind entertainment panels, under seating, or in shallow overhead compartments common in Australian caravans. Can I use this for outdoor speakers under my caravan annexe?Absolutely. The XDM200/2 is ideal for auxiliary speaker zones including outdoor entertainment areas under annexes or awnings. Pair with marine-grade or outdoor-rated speakers designed for moisture exposure. Mount the amplifier inside the caravan in a protected location, run speaker wire to external speakers. How much power does this draw from my caravan batteries?Specific current draw specifications aren't provided, but Class D efficiency (typical of XDM series) minimizes battery consumption compared to conventional amplifiers. For off-grid camping, monitor battery voltage and consider your total electrical load including refrigeration, lighting, and water pumps. Consult a qualified RV electrician for system capacity planning. Will this handle the vibration and temperature extremes of outback touring?Yes. The XDM200/2 is specifically built to JL Audio's standards for durability and designed to withstand recreational vehicle lifestyle rigors. This includes road vibration on corrugated tracks, temperature extremes across Australian climates, and the mechanical stress of mobile installations. Proper mounting with vibration-dampening hardware ensures long-term reliability. Can I use this as the main amplifier in a larger motorhome?The XDM200/2 works as primary amplification in smaller campers, but in larger motorhomes it's better suited as auxiliary power for secondary zones (bedroom, outdoor, slide-out areas) while using a higher-power amplifier for main living area speakers. The 200W total output may be insufficient for large motorhome main zones requiring higher SPL levels.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

JL Audio JLA-010-03339-00 MVi Marine Amplifier - 8 Channel Full-Range Marine Amplifier Premium marine amplification with intelligent DSP control and IPX2 weather protection for ultimate boat audio performance. Product Overview The JL Audio MVi 8-Channel Marine Amplifier (JLA-010-03339-00) represents the pinnacle of marine audio engineering, delivering 800 watts of clean, efficient Class D power across eight independent channels. Designed specifically for the demanding marine environment, this amplifier combines advanced digital signal processing with IPX2 weather protection to provide exceptional sound quality and reliability on the water. The compact chassis houses sophisticated circuitry that powers everything from full-range speakers to tower speakers, with bridging capability for added flexibility. With USB connectivity for advanced tuning via JL Audio's TüN software and compatibility with the JLid network bridge, the MVi system transforms marine audio into a fully integrated, professionally tuned sound system that thrives in harsh saltwater conditions. Features & Benefits The 8-channel MVi amplifier delivers 100 watts RMS per channel at 2 ohms (90W at 12.5V input), providing ample power for comprehensive marine audio systems including helm stations, cockpit zones, tower speakers, and cabin areas. The Class D design ensures maximum efficiency with minimal heat generation, critical for enclosed marine installations. Advanced digital signal processing through USB connectivity allows precise tuning of crossovers, equalization, time alignment, and output levels for each channel individually. The amplifier's bridging capability creates four 200-watt channels for driving larger speakers or dedicated zones. IPX2 water and dust rating protects against splashing and marine moisture when mounted vertically with connections downward. The compact footprint (13.96" x 2.05" x 6.93") simplifies installation in space-constrained marine environments. Marine-grade construction with conformal-coated circuit boards and corrosion-resistant hardware ensures long-term reliability in saltwater conditions. Technical Specifications Specification Details Model JLA-010-03339-00 MVi Marine Amplifier Configuration 8-Channel Full-Range Amplifier Class Class D Power @ 14.4V / 4Ω 75W RMS x 8 channels Power @ 14.4V / 2Ω 100W RMS x 8 channels Power @ 12.5V / 2Ω 90W RMS x 8 channels Bridged Power 200W x 4 @ 4Ω Total System Power 800 watts Frequency Response 12 Hz - 21 kHz (+0/-1dB) Signal-to-Noise Ratio 99 dB (analog inputs) THD+N @ Rated Power <1% @ 2Ω per channel Damping Factor >100 @ 4Ω, >50 @ 2Ω (50 Hz) Input Voltage Range 250 mV - 16V RMS (RCA) Operating Voltage 10-15 VDC Water/Dust Rating IPX2 (vertical mount) Fuse Rating 80A Recommended Fuse Type AFS, AGU, or MaxiFuse™ Min. Wire Gauge 4 AWG (power/ground) Dimensions (W x H x D) 355 x 52 x 176 mm (13.96" x 2.05" x 6.93") Weight 2.54 kg (5.6 lbs) Warranty 3 years Included Accessories Power connector, speaker harnesses, 6ft USB cable, RCA covers, mounting hardware, Allen wrenches Compatible With / Goes Well With JL Audio Marine Speakers: M3 Marine Speakers, M6 Marine Speakers, M3/M6/M7 Marine Subwoofers, M6 Thin-Line Subwoofers, M3/M6 Enclosed Tower Speakers, VeX Enclosed Systems JL Audio Source Units: MediaMaster 55 Stereo, MediaMaster 105 Stereo, JL Audio Receivers System Components: JLid Communication and Network Bridge (MVi-HUB) for multi-amplifier networking and advanced system control Installation Requirements: 4 AWG copper power and ground wiring, 80A fuse (AFS/AGU/MaxiFuse), vertical mounting location with downward-facing connections for IPX2 rating, PC/Mac with USB for TüN software tuning Frequently Asked Questions Can this amplifier run a complete 8-speaker marine audio system with tower speakers? Yes, the 8-channel configuration is ideal for comprehensive marine systems. Use channels 1-4 for helm/cockpit speakers, channels 5-8 for tower speakers or additional zones. Alternatively, bridge channels in pairs (creating four 200W channels) to power larger tower speakers while using remaining channels for cabin or transom areas. What makes the MVi series suitable for saltwater environments compared to standard car amplifiers? MVi amplifiers feature IPX2 water/dust rating, conformal-coated circuit boards that resist corrosion, marine-grade stainless steel hardware, and UV-resistant construction. The vertical mounting requirement ensures connections face downward, preventing water ingress. Standard car amplifiers lack these protections and will corrode rapidly in marine environments. Do I need the JLid hub to use this amplifier or can it operate standalone? The amplifier operates independently without the JLid hub. However, the hub (MVi-HUB) enables networking multiple MVi amplifiers, source switching between multiple head units, zone control, and advanced system management. For single-amplifier installations, connect directly via USB to a PC/Mac for tuning with JL Audio's TüN software. What's the advantage of Class D amplification in marine applications? Class D amplifiers achieve 80-90% efficiency compared to 50-60% for Class AB designs, generating significantly less heat. This is crucial for marine installations where amplifiers are often mounted in enclosed, poorly ventilated spaces. The reduced heat generation improves reliability, extends component lifespan, and eliminates the need for large heat sinks or external cooling fans. Can I bridge all eight channels to create four high-power outputs for larger speakers? Yes, bridging pairs of channels creates four bridged outputs delivering 200 watts each at 4 ohms. This configuration is perfect for powering four large tower speakers or four separate zones with high-output requirements. Bridge channels 1-2, 3-4, 5-6, and 7-8 by connecting positive to one channel and negative to the adjacent channel, ensuring 4-ohm minimum load per bridged pair.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

JL Audio JLA-010-03335-00 MVi Marine Amplifier - Monoblock Marine Subwoofer Amplifier High-output monoblock marine subwoofer amplifier with intelligent DSP control and IPX2 weather protection for powerful bass on the water. Product Overview The JL Audio MVi Monoblock Marine Amplifier (JLA-010-03335-00) delivers 1000 watts of dedicated subwoofer power designed specifically for the demanding marine environment. This Class D monoblock amplifier combines massive output capability with advanced digital signal processing to provide exceptional low-frequency performance and reliability on the water. The IPX2-rated chassis protects sophisticated circuitry from marine moisture and splashing, while USB connectivity enables precise tuning via JL Audio's TüN software. With frequency response optimized for subwoofer duty (12 Hz-500 Hz) and exceptional damping factor for tight bass control, this amplifier transforms marine audio systems by adding deep, powerful low-end response. Compatible with JL Audio's complete range of marine subwoofers including M3, M6, M6 Thin-Line, and M7 models, the MVi monoblock delivers the foundation for professional-grade boat audio that thrives in harsh saltwater conditions. Features & Benefits The 1000-watt monoblock configuration delivers 1000 watts RMS at 2 ohms (800W at 12.5V input) or 600 watts at 4 ohms, providing massive power for single or dual subwoofer installations. Class D amplification achieves maximum efficiency with minimal heat generation, essential for enclosed marine installations where ventilation is limited. Advanced digital signal processing through USB connectivity allows precise tuning of subsonic filters, low-pass crossovers, equalization, phase adjustment, and output levels specifically for your subwoofer and boat acoustics. The frequency response optimized for bass reproduction (12 Hz-500 Hz) ensures energy is focused where subwoofers need it most. Exceptional damping factor exceeding 400 at 4 ohms and 300 at 2 ohms provides tight control over subwoofer cone movement for articulate, punchy bass response. IPX2 water and dust rating protects against splashing and marine moisture when mounted vertically with connections downward. Marine-grade construction with conformal-coated circuit boards and corrosion-resistant stainless steel hardware ensures long-term reliability in saltwater environments. Technical Specifications Specification Details Model JLA-010-03335-00 MVi Marine Amplifier Configuration Monoblock Subwoofer Amplifier Amplifier Class Class D Power @ 14.4V / 4Ω 600W RMS x 1 channel Power @ 14.4V / 2Ω 1000W RMS x 1 channel Power @ 12.5V / 4Ω 500W RMS x 1 channel Power @ 12.5V / 2Ω 800W RMS x 1 channel Total System Power 1000 watts Frequency Response 12 Hz - 500 Hz (+0/-1dB) Signal-to-Noise Ratio 87 dB (analog inputs, rated power) SNR @ 1W 60 dB (analog inputs) THD+N @ Rated Power <1% @ 2Ω Damping Factor >400 @ 4Ω, >300 @ 2Ω (50 Hz) Input Voltage Range 250 mV - 8V RMS (RCA) Operating Voltage 10-15 VDC Water/Dust Rating IPX2 (vertical mount) Fuse Rating 80A Recommended Fuse Type AFS, AGU, or MaxiFuse™ Min. Wire Gauge 4 AWG (power/ground) Dimensions (W x H x D) 355 x 52 x 176 mm (13.96" x 2.05" x 6.93") Weight 2.54 kg (5.6 lbs) Warranty 3 years Included Accessories Power connector, speaker harnesses, 6ft USB cable, RCA covers, mounting hardware, Allen wrenches Compatible With / Goes Well With JL Audio Marine Subwoofers: M3 Marine Subwoofer, M6 Marine Subwoofer, M6 Marine Thin-Line Subwoofer, M7 Marine Subwoofer, VeX Enclosed System JL Audio Source Units: MediaMaster 55 Stereo, MediaMaster 105 Stereo, JL Audio Receivers for signal source and system integration System Components: JLid Communication and Network Bridge (MVi-HUB) for multi-amplifier networking, zone control, and advanced system management Installation Requirements: 4 AWG copper power and ground wiring, 80A fuse (AFS/AGU/MaxiFuse), vertical mounting location with downward-facing connections for IPX2 rating, PC/Mac with USB for TüN software tuning, sealed or ported subwoofer enclosure matched to amplifier power output Frequently Asked Questions Can this amplifier power two marine subwoofers simultaneously? Yes, you can wire two subwoofers to achieve the desired impedance load. Two 4-ohm subs wired in parallel create a 2-ohm load (1000W), two 2-ohm subs in series create 4 ohms (600W). For maximum output, use two 4-ohm subwoofers in parallel. Ensure your subwoofers can handle the divided power and that combined power handling exceeds amplifier output. What's the advantage of the 12 Hz-500 Hz frequency response for subwoofer applications? This optimized bandwidth focuses amplifier power exclusively in the bass region where subwoofers operate, eliminating wasted energy on frequencies the subwoofer cannot reproduce. The 12 Hz lower limit captures deep bass fundamentals often lost in marine environments, while the 500 Hz upper limit prevents overlap with full-range speakers, ensuring clean system integration and maximum efficiency. How does the damping factor affect subwoofer performance in a boat? The exceptional damping factor (>400 @ 4Ω) provides superior control over subwoofer cone movement, critical in marine environments where boat motion and acoustic reflections can cause bass to sound loose or boomy. High damping factor ensures the amplifier can rapidly stop and start cone movement, delivering tight, accurate bass response even when the boat is moving through water or encountering waves. Do I need the JLid hub for a single-amplifier, subwoofer-only system? No, the amplifier operates independently. Connect your source unit's subwoofer output via RCA cable and tune using a PC/Mac with USB connection and JL Audio's TüN software. The JLid hub becomes valuable when adding additional MVi amplifiers for full-range speakers, enabling unified system control, source switching, zone management, and simplified tuning across multiple amplifiers. Why choose a dedicated subwoofer amplifier over using bridged channels from a multi-channel amp? Dedicated monoblock amplifiers like the MVi 1000W provide higher continuous power, better thermal management, frequency response optimized for bass reproduction (not wasted on highs), and superior damping factor for subwoofer control. The focused design eliminates compromises inherent in multi-purpose amplifiers, delivering cleaner, more powerful bass with greater reliability in demanding marine installations where amplifiers often run near capacity during extended listening sessions.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
