Easy In, Easy OutThe Fusion CA-QCONN is a product long over due. Designed and developed by Fusion Engineers the plug offers safe, fast removal of your active bass enclosure (bass box) or amplifier. You may wish to remove your system for security reasons, or for the full use of your boot space, whatever the reason the Fusion CA-QCONN makes it easy and safe. The plug is a heavy duty connector that connects positive, negative and remote wires. It is made up of 2 parts one end to connect to your equipment and the other to your power source made from quality ABS.Features: Quick release plug allows fast safe removal of your active sub boxes and or expensive amplifiers Fast installation no special tools required Universal works with any amplifier or active sub box 80 amp power rating Heavy duty plated terminals accept up to 8 gauge wire Black ABS construction for durability Legendary Products & Support From Authorized Dealers When you choose Fusion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Fusion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Fusion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Fusion dealer today!

Read more less

Four channels. One serious upgrade. Product Overview The Infinity REF3004A is a full-featured 4 channel car amplifier built for Aussie drivers who want real, usable power without filling the boot with gear. Delivering 75W RMS per channel at 4 ohms or 200W RMS per channel in 2-channel bridged mode this amplifier is versatile enough to run front and rear speakers today and transition to subwoofer duty when you're ready to add a dedicated sub amp down the track. Designed to slot into virtually any system, the REF3004A features both preamp and speaker-level inputs, so it works just as well in a factory-stereo setup as it does with an aftermarket headunit. Independent high and low-pass filters on the front and rear channels let you dial in your sound properly no guesswork, no compromise. Key Specifications 75W RMS x 4 channels at 4 ohms 100W RMS x 4 channels at 2 ohms 200W RMS x 2 channels at 4 ohms (bridged mode) 4-ohm stable in bridged configuration Variable high-pass and low-pass filters: 32–320Hz, 12dB/octave Filters operate independently on front and rear channels Preamp and speaker-level inputs included Preamp outputs for daisy-chaining additional amplifiers Fuse rating: 30A x 2 (two 30A fuses) Recommended power and ground lead: 8-gauge Wiring and hardware not included Features & Benefits Flexible power modes: Run four speakers at 75W RMS each for a full-system build, or bridge to 2-channel at 200W RMS to power a pair of subwoofers. One amp, multiple system configurations. Speaker-level inputs: Connects directly to factory headunit speaker outputs, making this ideal for Aussie utes, SUVs, and 4WDs that still have the OEM head unit in place. Independent variable filters: Separate high and low-pass filters on front and rear channels (32–320Hz, 12dB/octave) mean you're not locked into a one-size-fits-all crossover point. Dial in your door speakers and dash separately. Preamp outputs: Future-proof your system. Add a dedicated sub amp or processor later without rewiring the whole install. Compact form factor: At 320 x 180mm footprint, it tucks neatly under a seat or into a tight boot space a practical win on wagons, dual-cabs, and touring builds. Dual 30A fuse protection: Built-in protection helps safeguard your system on corrugated outback roads and long touring runs where electrical stability matters. Technical Specs Channels: 4 (stereo) / 2 (bridged) RMS Power (4Ω, 4ch): 75W x 4 RMS Power (2Ω, 4ch): 100W x 4 RMS Power (4Ω, bridged): 200W x 2 Bridged impedance stability: 4 ohms minimum High-pass filter range: 32–320Hz, 12dB/octave Low-pass filter range: 32–320Hz, 12dB/octave Filter assignment: Independent front and rear channels Inputs: Preamp (RCA) + Speaker-level Outputs: Preamp (RCA) Fuse: 30A x 2 Recommended power/ground wire gauge: 8 AWG (8-gauge) Dimensions (W x H x D): 320mm x 55.5mm x 180mm Wiring kit: Not included Compatible With Any vehicle with factory or aftermarket headunit (speaker-level inputs allow OEM compatibility) Suitable for passenger cars, utes, SUVs, wagons, and 4WDs Pairs well with Infinity Reference Series component or coaxial speakers Works with 4-ohm or 2-ohm speaker loads (4-channel mode) Compatible with 4-ohm subwoofers in bridged mode Recommended to pair with a dedicated 8-gauge amplifier wiring kit (sold separately) Can be paired with a separate mono subwoofer amplifier using the preamp outputs Frequently Asked Questions Does the REF3004A work with a factory (OEM) headunit? Yes. The built-in speaker-level inputs allow you to connect this amplifier directly to the factory headunit's speaker outputs no RCA outputs required on the source unit. Can I use this amp to power subwoofers? Yes. In bridged 2-channel mode, the REF3004A delivers 200W RMS per channel at 4 ohms, making it capable of driving a pair of 4-ohm subwoofers. Note: bridged mode requires a 4-ohm minimum load. Do I need a separate wiring kit? Yes. Wiring and hardware are not included. Infinity recommends 8-gauge power and ground leads. A quality 8-gauge amplifier wiring kit is required for correct and safe installation. What is the physical size of the REF3004A? The amplifier measures 320mm wide x 55.5mm high x 180mm deep compact enough to fit under most seats or in a standard boot install alongside other gear. Can I add another amplifier using the preamp outputs? Yes. The REF3004A includes preamp (RCA) outputs, allowing you to pass signal to a second amplifier such as a dedicated mono sub amp without the need for an additional signal splitter. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

PAC AP4-GM71 AmpPRO Amplifier Integration Interface for Select 2019-2026 GM Vehicles with Bose Complete amplifier integration module and T-harness for installing aftermarket amplifiers in select 2019-2026 GM vehicles with a factory Bose sound system, retaining all factory radio controls and audio features while delivering 6-channel RCA outputs, optical digital output, and wired remote level control. Product Overview The PAC AmpPRO AP4-GM71 is a purpose-built amplifier integration interface designed for select 2019-2026 GM vehicles equipped with a factory Bose audio system. Adding an aftermarket amplifier to these vehicles without a dedicated interface results in the loss of factory audio features, volume-linked control, and system integration. The AP4-GM71 solves this by tapping into the vehicle's data bus via a plug-and-play T-harness, delivering clean, variable RCA outputs to the aftermarket amplifier while fully preserving the factory radio's fit, finish, and feature set — including navigation audio, Bluetooth, OnStar, parking sensor chimes, safety alerts, and infotainment audio. Six-channel RCA pre-outputs (front, rear, and sub) provide up to 5V RMS switchable output, with a wired remote level control knob included for the non-fading subwoofer channels. A data-controlled remote turn-on lead activates the amplifier automatically with the factory radio. An optical Toslink digital output is also included for use with high-end digital signal processors and amplifiers, though no optical cable is supplied. The AP4-GM71 is also configurable via the AmpPRO PC App (Windows only), which allows adjustment of minimum volume level, chime volume, and a 3-band EQ with frequency and Q-factor control. Firmware updates are also delivered through the app. Important: Compatibility requires the vehicle to have a Bose Infotainment system with RPO code IOS, IOT, or IOK. Verify the RPO code on the silver sticker in the glove compartment or by scanning the QR code on the GM label in the driver's door jamb. Features & Benefits 6-Channel RCA Pre-Outputs Provides Left/Right Front, Left/Right Rear, and two non-fading subwoofer RCA outputs. Switchable between 5V and 4V RMS output via dip switch to suit different amplifier input sensitivities. Retains All Factory Radio Controls and Audio Features Preserves factory navigation audio, Bluetooth, OnStar, parking sensor chimes, safety alerts, and infotainment features through the aftermarket amplifier, maintaining the complete factory audio experience. Wired Remote Level Control for Sub Channels Includes a 6-foot wired level control knob for the subwoofer (non-fading) channels, mountable in an accessible location for convenient bass level adjustment. If not connected, the subwoofer channel output defaults to maximum. Data-Controlled Remote Turn-On Lead A data-controlled remote turn-on wire activates the aftermarket amplifier automatically when the factory radio is switched on. Rated at 2A; an external relay is required if higher current draw is needed. Optical Toslink Digital Output A variable 2-channel Toslink optical output is provided for connection to high-end digital processors or amplifiers requiring a digital signal input. No optical cable is included. AmpPRO PC App Configuration (Windows) The optional AmpPRO PC App allows configuration of minimum volume level, chime volume, and a 3-band parametric EQ (Bass, Mid, Treble) with selectable frequency and Q-factor settings, as well as firmware updates. The app is available from PAC and runs on Windows PC only. Compatible with GM Super Cruise The AP4-GM71 is compatible with vehicles equipped with GM's Super Cruise driver assistance feature. Plug-and-Play T-Harness Includes a vehicle-specific T-harness for direct connection to the factory radio harness with no cutting or permanent modification to the factory wiring. Technical Specs Specification Details Brand PAC Part Number AP4-GM71 FAE SKU PACAP4-GM71 Product Type Amplifier Integration Interface and T-Harness RCA Outputs 6-Channel (Front L/R, Rear L/R, Sub x2 Non-Fading) RCA Output Voltage Switchable 5V or 4V RMS (Dip Switch 2) Optical Output Toslink Digital (2-Channel Variable, cable not included) Remote Turn-On Lead Yes (Data-Controlled, 2A rated) Level Control Wired Remote Knob for Sub Channels (6ft cable included) Factory Features Retained Navigation, Bluetooth, OnStar, Chimes, Safety Alerts, Infotainment GM Super Cruise Compatible Yes PC App AmpPRO PC App (Windows only) — Min Volume, Chime Volume, 3-Band EQ, Firmware Updates EQ Bass Frequency 60 / 80 / 100 / 120Hz EQ Mid Frequency 500Hz / 1kHz / 1.5kHz / 2.5kHz EQ Treble Frequency 7.5kHz / 10kHz / 12.5kHz / 15kHz RPO Code Requirement IOS, IOT, or IOK (Bose Infotainment) Installation Plug-and-Play T-Harness, No Wire Cutting Required Vehicle Application Select 2019-2026 GM vehicles with factory Bose (see compatibility table) Compatible With / Goes Well With Important: The AP4-GM71 is only compatible with GM vehicles equipped with a factory Bose Infotainment system with RPO code IOS, IOT, or IOK. Verify your vehicle's RPO code before purchasing. Make Model Year Notes Cadillac CT5 2020-2024 With Bose only Chevrolet Blazer 2019-2025 With Bose only Chevrolet Camaro 2019-2024 With Bose only Chevrolet Colorado 2019-2022 With Bose only Chevrolet Silverado 2019 New model, with Bose only Chevrolet Silverado 2020-2026 With Bose only Chevrolet Silverado HD 2021-2025 With Bose only Chevrolet Suburban 2021-2024 With Bose only Chevrolet Tahoe 2021-2024 With Bose only Chevrolet Traverse 2020-2023 With Bose only GMC Acadia 2020-2023 With Bose only GMC Canyon 2019-2022 With Bose only GMC Sierra 2019-2026 With Bose only GMC Sierra HD 2021-2025 With Bose only GMC Yukon 2021-2024 With Bose only GMC Yukon XL 2021-2024 With Bose only Goes Well With: Aftermarket monoblock or multichannel amplifier RCA Y-adapter (required if running sub output to a 2-channel amplifier input, sold separately) External relay (required if amplifier remote draw exceeds 2A, sold separately) Toslink optical cable for digital processor connection (sold separately) Aftermarket subwoofer or speaker system Frequently Asked Questions How do I know if my GM vehicle is compatible with the AP4-GM71? Your vehicle must be equipped with a Bose Infotainment system with RPO code IOS, IOT, or IOK. To verify, check the silver sticker inside your glove compartment for these RPO codes. If the sticker is not present, scan the QR code on the GM label in the driver's door jamb. RPO codes are listed in alphabetical order in both cases. The AP4-GM71 is not compatible with non-Bose or standard audio system variants of the listed models. Does the AP4-GM71 retain factory features like navigation audio and OnStar? Yes. The AP4-GM71 retains all factory audio features routed through the infotainment system, including navigation prompts, Bluetooth audio, OnStar communications, parking sensor chimes, safety alerts, and other infotainment audio. These signals are passed through to the aftermarket amplifier alongside the primary audio output. What is the AmpPRO PC App and do I need it? The AmpPRO PC App is a free Windows application available from PAC that allows you to configure the minimum volume level, chime volume level, and a 3-band parametric EQ on the AP4-GM71, as well as update the module's firmware. The app is optional — the interface functions without it — but it provides additional fine-tuning capability that is particularly useful for matching the system's output to a custom amplifier installation. The app is Windows only and is not required for basic operation. Do I need an RCA Y-adapter for the subwoofer output? If your amplifier requires two separate RCA inputs for the subwoofer channels, yes. The AP4-GM71 provides a single sub RCA output per channel (two total). If your amplifier has a bridged mono input requiring two RCA connections, an RCA Y-adapter is required and is sold separately. What happens if I do not connect the level control knob? If the supplied wired level control knob is not connected to the interface module, the subwoofer channel output will default to maximum output level at all times. For systems where sub bass level adjustment is needed, the knob should be mounted in an accessible location such as under the dash or in a centre console cavity.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

PAC AP4-CH42 AmpPRO Amplifier Integration RCA Out Kit for Select 2021+ Chrysler, Dodge, Jeep, and RAM Plug-and-play amplifier integration RCA output kit engineered for select 2021-onwards Chrysler, Dodge, Jeep, and RAM vehicles, enabling clean installation of aftermarket amplifiers while retaining the factory radio's original fit, finish, and audio features. Product Overview The PAC AmpPRO AP4-CH42 is a vehicle-specific amplifier integration interface designed to simplify aftermarket amplifier installation in select 2021-onwards Chrysler, Dodge, Jeep, and RAM vehicles with both non-amplified and factory-amplified sound systems. Installing an aftermarket amplifier in these vehicles without a dedicated interface risks loss of factory audio features, volume tracking, and infotainment integration. The AP4-CH42 addresses this by providing RCA outputs that work in conjunction with the factory radio, allowing upgraded amplifiers to be added cleanly without replacing or modifying the factory head unit. The AmpPRO solution retains the factory radio's original fit, finish, and complete feature set, preserving the in-cabin experience while improving audio performance through the aftermarket amplifier. The plug-and-play harness connects directly to the factory radio connector with no wire cutting or permanent modification required. Please note: compatibility covers both factory-amplified and non-amplified variants on some models. Always verify your specific vehicle's factory audio configuration against the compatibility guide before purchasing. Features & Benefits Amplifier Integration for Factory and Non-Amplified Systems Supports installation of aftermarket amplifiers in select vehicles with both factory-amplified and non-amplified audio systems, providing flexibility across different trim and equipment levels of the covered models. Retains Factory Radio Fit, Finish, and Features The factory head unit remains in place and fully operational. Factory audio features including infotainment, navigation audio, and system integration are retained through the aftermarket amplifier. Plug-and-Play Harness Connects directly to the factory radio connector with no wire cutting or permanent modification to the vehicle's original wiring harness, allowing the factory radio to be reinstalled at any time if required. RCA Output Kit Provides RCA pre-amp outputs for connection to an aftermarket amplifier, delivering a clean signal from the factory source unit to the upgraded audio system. Broad Chrysler/Dodge/Jeep/RAM Coverage A single interface solution covering multiple current-generation platforms across four brands sharing compatible connector and data-bus architecture. Technical Specs Specification Details Brand PAC Part Number AP4-CH42 FAE SKU PACAP4-CH42 Product Type Amplifier Integration Interface and RCA Out Kit Factory System Compatibility Non-Amplified and Factory-Amplified Systems Factory Features Retained Yes Installation Plug-and-Play, No Wire Cutting Required Vehicle Application Select 2021+ Chrysler, Dodge, Jeep, and RAM (see compatibility table) Compatible With / Goes Well With The PAC AP4-CH42 is compatible with the following vehicles: Make Model Year Notes Chrysler Pacifica 2021-2022 Dodge Durango 2021 10-inch screen models Dodge Ram Truck 2022-2024 New model with factory amplifier Dodge Ram Truck 2022-2024 Classic model without factory amplifier Jeep Gladiator 2024 Jeep Wrangler 2024-2025 Jeep Wrangler Unlimited 2024-2025 RAM Truck 2022-2024 New model with factory amplifier RAM Truck 2022-2024 Classic model without factory amplifier RAM 2500 2019-2023 5th Gen DT Series Goes Well With: Aftermarket monoblock or multichannel amplifier Aftermarket subwoofer or speaker system External relay (if amplifier remote draw exceeds interface rating, sold separately) RCA Y-adapter for mono amplifier applications (sold separately) Frequently Asked Questions Does the AP4-CH42 work with both factory-amplified and non-amplified models? Yes. The AP4-CH42 is compatible with select variants of the covered models fitted with a factory amplified sound system as well as non-amplified base audio configurations. The "New model" and "Classic model" designations for Dodge/RAM Truck refer to distinct cab or trim configurations — always verify your specific variant against the compatibility guide before purchasing. Will my factory radio and infotainment features still work after installing the AP4-CH42? Yes. The AmpPRO interface retains the factory radio's original fit, finish, and features. The factory head unit remains installed and fully operational, with factory infotainment features preserved through the aftermarket amplifier. Does installation require cutting or modifying my factory wiring? No. The AP4-CH42 connects directly to the factory radio connector via the included plug-and-play harness. No wire cutting or permanent modification to the factory harness is required, allowing the original radio to be reinstalled at any time. What is the difference between the "New model" and "Classic model" listed for Dodge/RAM Truck? For the 2022-2024 Dodge Ram Truck and RAM Truck, PAC distinguishes between the current-generation "New model" body style and the previous-generation "Classic model" body style, which continued in production alongside the new model. These two body styles have different dashboard and wiring configurations. The AP4-CH42 covers both variants. Confirm your vehicle's body style and factory audio configuration before purchasing. Do I need any additional accessories to complete the amplifier installation? The AP4-CH42 provides the interface and RCA outputs required to connect an aftermarket amplifier to the factory system. Depending on your amplifier and installation requirements, you may also need an RCA Y-adapter, an external relay for higher-current remote turn-on, and suitable amplifier wiring. We recommend consulting a qualified car audio installer to identify all required accessories for your specific vehicle and amplifier combination.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

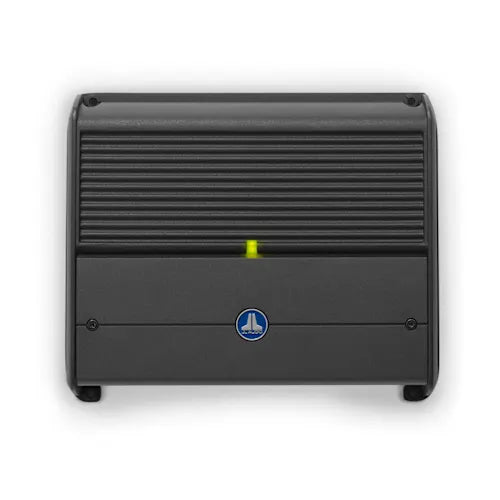

Premium Class D subwoofer amplification engineered for marine and automotive applications where power meets durability. Product Overview The JL Audio XDM600 monoblock amplifier represents JL Audio's commitment to marine-grade power delivery in a compact, efficient Class D platform. Delivering 600W RMS at 2Ω and 400W at 4Ω, this dedicated subwoofer amplifier drives deep bass with authority while maintaining exceptionally low distortion below 1% THD. The marine-rated construction handles Australian coastal conditions, wet bilges, and dusty 4WD environments with equal confidence. Designed for single-subwoofer installations where space is limited but performance isn't negotiable, the XDM600 features variable low-pass filtering (50Hz-500Hz) with selectable 12dB or 24dB/octave slopes, plus a defeatable 30Hz infrasonic filter to protect drivers from damaging subsonic frequencies. At just 216mm wide and 2.86kg, it mounts easily in boats, utes, caravans, or behind seats where traditional amplifiers won't fit. Key Specifications Monoblock Class D amplifier optimised for subwoofer duty Maximum rated power: 600W RMS at 2Ω (14.4V input, <1% THD) Power at 4Ω load: 400W RMS (14.4V input, <1% THD) Power at 2Ω load (battery voltage): 500W RMS (12.5V input, <1% THD) Power at 4Ω load (battery voltage): 300W RMS (12.5V input, <1% THD) Frequency response: 7Hz-500Hz (+0, -1dB) Signal-to-noise ratio: >87dB (A-weighted, 20Hz-20kHz, referred to rated power) Signal-to-noise ratio: >67dB (A-weighted, 20Hz-20kHz, referred to 1W) Operating voltage: 11-14.5 VDC (12V systems only) Damping factor: >1000 @ 4Ω, 50Hz / >500 @ 2Ω, 50Hz THD+N: <1% @ rated power, 2Ω per channel Input voltage range: 200mV-4V RMS via RCA inputs Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Infrasonic filter: 30Hz, defeatable Dimensions: 216mm (W) × 180mm (D) × 52mm (H) Weight: 2.86kg Fuse rating: 50A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Buffered pass-through preamp outputs Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level control Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits Variable Low-Pass Filtering (50Hz-500Hz)Dial in precise crossover points to match your subwoofer's characteristics and cabin acoustics. Selectable 12dB or 24dB/octave slopes provide flexibility for sealed or ported enclosures, ensuring smooth integration with front-stage speakers without overlap or gaps in frequency response. Defeatable 30Hz Infrasonic FilterProtects subwoofer drivers from destructive subsonic content below audible range—critical when running ported enclosures near tuning frequency or when playing bass-heavy tracks with subsonic rumble. Defeat when running sealed enclosures for maximum low-end extension. Marine-Rated Class D TopologyConformal-coated circuit boards and marine-grade construction resist moisture, salt spray, and corrosion. Ideal for tinnie fishing setups, ski boats, wakeboard towers, caravan installations exposed to rain ingress, or 4WD dual-battery systems subjected to dust and vibration across corrugated tracks. Compact, Efficient FootprintAt 216mm × 180mm × 52mm and just 2.86kg, the XDM600 delivers serious subwoofer power without monopolising installation space. Class D efficiency reduces heat generation, enabling mounting behind seats, under false floors, or in shallow bilge areas where traditional Class AB amplifiers would overheat. High Damping Factor (>1000 @ 4Ω)Tight electrical control over subwoofer cone motion delivers punchy, articulate bass with minimal overhang—critical for reproducing kick drums, bass guitar, and electronic music with precision. The high damping factor ensures transient response remains crisp even during demanding passages. Optional Water-Resistant Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust subwoofer output from the helm, driver's seat, or caravan dinette. Essential for compensating between moored listening and underway conditions, or between solo driving and loaded touring configurations. Buffered Pass-Through Preamp OutputsDaisy-chain additional amplifiers for multi-sub or full-range expansion without signal degradation. The buffered output maintains voltage consistency regardless of downstream impedance, ensuring predictable system performance as installations grow. Technical Specs Amplifier class: Class D Channels: 1 (Monoblock) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 600W × 1 Power at 4Ω load (14.4V @ 4Ω, <1% THD): 400W × 1 Power on battery voltage (12.5V @ 2Ω, <1% THD): 500W × 1 Minimum power output (12.5V @ 4Ω, <1% THD): 300W × 1 Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to rated power): >87dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >67dB Damping factor @ 4Ω: >1000 @ 50Hz Damping factor @ 2Ω: >500 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 7Hz-500Hz Input voltage range @ RCA inputs: 200mV-4V RMS Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Infrasonic filter: 30Hz, defeatable Detented, calibrated filter potentiometers: Yes Buffered pass-through preamp output: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 50A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 216mm × 180mm × 52mm (8.52" × 7.09" × 2.05") Weight: 2.86kg (6.3 lbs) Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes 24V variants (6-channel and 8-channel only) for commercial/heavy vehicle applications - this monoblock 600W model operates on 12V systems exclusively. Compatible With / Goes Well With Subwoofer Recommendations: JL Audio Marine M6 or M3 10" or 12" subwoofers (300W-600W RMS continuous) Sealed or ported enclosures up to 600W RMS handling Shallow-mount subwoofers for space-constrained marine or automotive installations Installation Accessories: 4 AWG amplifier wiring kit with 50A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for subwoofer runs) RCA interconnect cables with marine-grade shielding Sound deadening material for enclosure mounting surfaces System Compatibility: Marine head units with preamp outputs (2V-4V recommended) Aftermarket head units with dedicated subwoofer preouts Line output converters for OEM integration Dual-battery systems with adequate alternator capacity (90A+ recommended) Caution: Verify your subwoofer's impedance (2Ω or 4Ω) and power handling capacity before connection. Running a 4Ω sub will yield 400W; a 2Ω load delivers full 600W output. Ensure adequate alternator capacity and battery reserve for sustained high-output operation. Weight 2.86kg (6.3 lbs) Frequently Asked Questions Will this amplifier fit behind my boat's helm seat or under a ute tub liner?At 216mm × 180mm × 52mm, the XDM600 fits most shallow-mount locations. Ensure 50mm clearance above the unit for heat dissipation and verify mounting depth accommodates wire terminals. Can I run two subwoofers with this monoblock amplifier?Yes, if wired correctly. Wire two 4Ω subs in parallel for 2Ω total load (600W shared) or two 2Ω subs in series for 4Ω total (400W shared). Do not wire two 2Ω subs in parallel—this creates a 1Ω load that risks amplifier damage. Is the marine rating suitable for saltwater boating environments?Yes. Conformal-coated circuit boards resist salt spray, moisture, and corrosion. Mount away from direct water streams or bilge flooding. Pair with marine-grade wiring and heat-shrink connections for long-term reliability in coastal conditions. What size power wire and fuse do I need for installation?Minimum 4 AWG copper power and ground wire with a 50A fuse (AFS, AGU, or MaxiFuse™) installed within 45cm of battery positive terminal. Use marine-grade tinned copper wire for saltwater applications to prevent corrosion. This 12V model requires standard automotive/marine electrical systems (11-14.5 VDC). How do I set the low-pass filter and infrasonic filter correctly?Start with low-pass filter at 80Hz (12dB slope) and infrasonic filter engaged. Adjust low-pass upward if bass sounds thin or downward if vocals sound muddy. Switch to 24dB slope for ported enclosures. Disengage infrasonic filter only if running sealed enclosures and experiencing bass roll-off.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

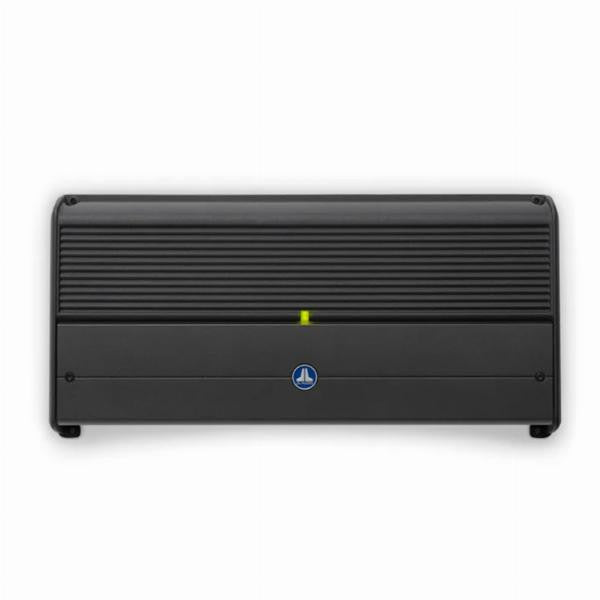

Maximum power Class D subwoofer amplification engineered for extreme marine and automotive bass applications. Product Overview The JL Audio XDM1000 monoblock amplifier delivers elite-level subwoofer power in a marine-rated Class D package. With 1000W RMS output at 2Ω and 600W at 4Ω, this dedicated bass amplifier provides the headroom demanded by serious marine audio installations, competition SPL builds, and high-output 4WD systems. The marine-grade conformal coating protects against Australia's harshest coastal conditions, salt spray, and bilge moisture while maintaining exceptionally low distortion below 1% THD across the full power band. Built on JL Audio's proven XDM platform, the 1000-watt monoblock features variable low-pass filtering (50Hz-500Hz) with selectable 12dB or 24dB/octave slopes, allowing precise integration with any subwoofer configuration. The robust 80A fuse rating and substantial heat sink design ensure sustained performance during extended listening sessions at anchor, beach parties, or highway touring. At 374mm wide, it represents the flagship of JL Audio's monoblock XDM range—engineered for installers who refuse to compromise on power or reliability. Key Specifications Monoblock Class D amplifier optimised for high-output subwoofer applications Maximum rated power: 1000W RMS at 2Ω (14.4V input, <1% THD) Power at 4Ω load: 600W RMS (14.4V input, <1% THD) Power at 2Ω load (battery voltage): 800W RMS (12.5V input, <1% THD) Power at 4Ω load (battery voltage): 500W RMS (12.5V input, <1% THD) Frequency response: 7Hz-500Hz (+0, -1dB) Signal-to-noise ratio: >83dB (A-weighted, 20Hz-20kHz, referred to rated power) Signal-to-noise ratio: >53dB (A-weighted, 20Hz-20kHz, referred to 1W) Operating voltage: 11-14.5 VDC (12V systems only) Damping factor: >1000 @ 4Ω, 50Hz / >500 @ 2Ω, 50Hz THD+N: <1% @ rated power, 2Ω per channel Input voltage range: 200mV-4V RMS via RCA inputs Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Infrasonic filter: Not specified for this variant Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified Fuse rating: 80A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Buffered pass-through preamp outputs Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level control Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 1000W RMS Continuous PowerDelivers maximum bass authority for demanding marine wakeboard towers, competition SPL builds, or dual-subwoofer touring setups. The 1000W output at 2Ω provides substantial headroom above typical listening levels, ensuring clean, undistorted bass even during peak musical passages. Perfect for large cabin volumes in centre console boats, caravan entertainment systems, or dual-cab ute installations requiring serious low-frequency impact. Variable Low-Pass Filtering (50Hz-500Hz)Precision crossover control allows seamless integration with any subwoofer design. Selectable 12dB or 24dB/octave slopes accommodate sealed, ported, or bandpass enclosures, ensuring smooth transitions between subwoofer and main speakers. The detented, calibrated potentiometers enable repeatable settings across installations—critical for professional installers servicing multiple similar builds. Marine-Rated Class D TopologyConformal-coated circuit boards resist salt spray, moisture ingress, and corrosive coastal environments. Engineered for harsh Australian marine conditions—from tropical Queensland humidity to Southern Ocean salt spray. The robust construction handles bilge moisture, deck washdowns, and weather exposure that would destroy conventional automotive amplifiers, making it equally suitable for offshore fishing boats, ski boats, or canopy-protected 4WD cargo areas. Flagship Power CapacityThe 80A fuse rating and substantial internal power supply deliver consistent performance under sustained high-output conditions. Whether running twin 12" subs in a ported enclosure or a single high-excursion 15" driver, the XDM1000 maintains voltage stability and thermal control during extended listening sessions. Ideal for beach parties, boat rallies, or long-distance touring where the engine may be off for hours. High Damping Factor (>1000 @ 4Ω)Exceptional electrical control over subwoofer cone motion produces tight, articulate bass with minimal overhang. The high damping factor ensures kick drums, bass guitar, and electronic music maintain transient precision even at extreme output levels. Critical for maintaining clarity in noisy marine environments where wind, engine, and wave noise compete with audio playback. Extended Chassis DesignAt 374mm (14.73"), the XDM1000 features the largest footprint in the monoblock XDM range, accommodating a substantial heat sink and power supply components. The extended chassis distributes thermal load efficiently, enabling sustained full-power operation without thermal compression—the enemy of clean bass. Mount horizontally under seats, vertically behind panels, or in dedicated amplifier racks. Optional Water-Resistant Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, driver's seat, or entertainment zone. Essential for compensating between moored listening conditions and underway wind noise, or between empty boat weight and fully loaded touring configurations. The remote maintains full control authority over the amplifier's output level. Technical Specs Amplifier class: Class D Channels: 1 (Monoblock) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 1000W × 1 Power at 4Ω load (14.4V @ 4Ω, <1% THD): 600W × 1 Power on battery voltage (12.5V @ 2Ω, <1% THD): 800W × 1 Minimum power output (12.5V @ 4Ω, <1% THD): 500W × 1 Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to rated power): >83dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >53dB Damping factor @ 4Ω: >1000 @ 50Hz Damping factor @ 2Ω: >500 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 7Hz-500Hz Input voltage range @ RCA inputs: 200mV-4V RMS Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Detented, calibrated filter potentiometers: Yes Buffered pass-through preamp output: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 80A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes 24V variants (6-channel and 8-channel only) for commercial/heavy vehicle applications—this monoblock 1000W model operates on 12V systems exclusively. Compatible With / Goes Well With Subwoofer Recommendations: JL Audio Marine M6 or M3 12" or 15" subwoofers (500W-1000W RMS continuous) Dual 10" or 12" subwoofer configurations (500W each, wired for 2Ω total) Single high-excursion 15" subwoofer (800W-1000W RMS handling) Ported or sealed enclosures rated for 1000W RMS handling Installation Accessories: 4 AWG or 2 AWG amplifier wiring kit with 80A+ inline fuse holder (0 AWG recommended for extended runs) JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (12-14 AWG recommended for subwoofer runs) RCA interconnect cables with marine-grade shielding Sound deadening material for enclosure mounting surfaces and surrounding panels Heavy-duty amplifier mounting brackets or racks System Compatibility: Marine head units with 2V-4V preamp outputs (4V recommended for best signal-to-noise ratio) Aftermarket head units with dedicated subwoofer preouts Line output converters for factory radio integration Dual-battery systems with high-output alternators (130A+ minimum recommended) Distribution blocks for multi-amplifier systems Electrical System Requirements: Minimum 130A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for deep-cycle support) Proper grounding with dedicated ground point to chassis/hull Voltage-stable electrical system (avoid excessive voltage drop under load) Caution: The XDM1000 demands substantial electrical capacity. Verify your alternator output, battery capacity, and wiring gauge before installation. Undersized electrical systems will result in voltage drop, thermal protection triggering, or inconsistent performance. Running at 2Ω delivers maximum 1000W but requires robust electrical infrastructure. For extended engine-off listening, consider auxiliary battery systems with proper isolation. Frequently Asked Questions What electrical system upgrades do I need to run this 1000W amplifier?Minimum 130A alternator, AGM or lithium auxiliary battery for engine-off use, 4 AWG power/ground wire (0-2 AWG for runs over 5m), and 80A fuse within 45cm of battery. Undersized systems cause voltage drop and thermal protection shutdown. Can I run dual subwoofers with this amplifier?Yes. Wire two 4Ω subs in parallel for 2Ω total (1000W shared) or two 2Ω subs in series for 4Ω total (600W shared). Never wire two 2Ω subs in parallel—this creates 1Ω load that can damage the amplifier. Will this fit in the same space as the XDM600 monoblock?No. The XDM1000 measures 374mm wide versus the XDM600's 216mm width. Verify mounting location accommodates the extended chassis (374mm × 180mm × 52mm) with adequate ventilation clearance above and around the heat sink. Is this suitable for wakeboard tower speakers or only subwoofers?Subwoofers only. The XDM1000 features low-pass filtering (50Hz-500Hz) optimised for bass reproduction. For wakeboard tower full-range speakers, consider JL Audio's multi-channel XDM amplifiers with high-pass filtering capabilities. How do I prevent thermal shutdown during long engine-off listening sessions?Ensure 50mm+ clearance around the amplifier for airflow, avoid mounting in sealed enclosures, and consider auxiliary cooling fans for enclosed installations. Monitor voltage—if battery voltage drops below 11V, reduce output or start engine to prevent thermal protection activation.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

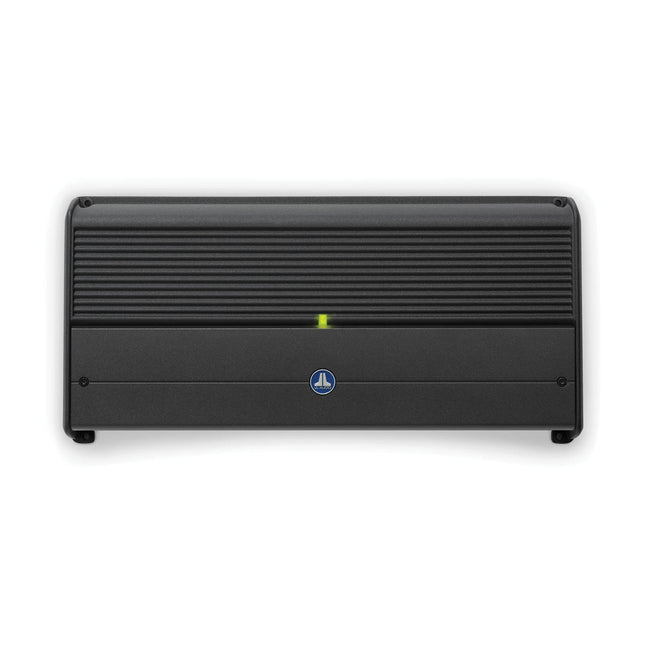

Professional-grade 8-channel Class D amplification engineered specifically for 24V commercial marine and heavy vehicle applications. Product Overview The JL Audio XDM800 8-channel amplifier delivers comprehensive full-range amplification for 24V electrical systems found in commercial vessels, charter boats, coach buses, and heavy transport applications. With 100W RMS per channel at 2Ω (800W total) or 90W per channel at 4Ω (720W total), this marine-rated Class D platform drives complete audio systems including cabin speakers, tower speakers, and helm zones from a single amplifier. The 24V-specific design operates optimally at 25-28.8V input, making it ideal for diesel-powered vessels, commercial fishing boats, and work trucks running dual 12V battery configurations in series. Built on JL Audio's proven XDM architecture with marine-grade conformal coating, the 8-channel configuration allows flexible system design: run all eight channels independently, bridge pairs for higher power to four zones, or combine configurations for mixed full-range and subwoofer applications. Variable high-pass and low-pass filtering on all channel pairs (50Hz-500Hz, 12dB/octave slopes) enables precise tuning for different speaker types and mounting locations. At 374mm wide with a 40A fuse rating and 4 AWG wire compatibility, the XDM800 represents the ultimate commercial marine amplification solution for Australian charter operators, commercial fishermen, and fleet managers demanding reliability in harsh coastal conditions. Key Specifications 8-channel Class D amplifier designed for 24V electrical systems Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 8 channels (800W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 90W RMS × 8 channels (720W total) Bridged power (28.8V @ 4Ω, <1% THD): 180W RMS × 4 channels (720W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 100W RMS × 8 channels (800W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 90W RMS × 8 channels (720W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 4 channels (720W total bridged) Operating voltage: 24V DC systems (designed for 25-28.8V input) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: >104dB (A-weighted, 20Hz-20kHz, referred to rated power) - applicable to 6-channel 24V model, not specified separately for 8-channel THD+N: <1% @ rated power, 2Ω per channel Input voltage range: Not specified for 24V models Damping factor: Not specified for 24V models Filter modes (Channels 1 & 2): Not specified for 24V 8-channel Filter modes (Channels 3 & 4): Not specified for 24V 8-channel Filter modes (Channels 5 & 6): Not specified for 24V 8-channel Filter modes (Channels 7 & 8): Not specified for 24V 8-channel Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified for 24V 8-channel variant Fuse rating: 40A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 24V Commercial Marine DesignPurpose-built for 24V electrical systems common in commercial vessels, charter boats, and heavy transport. Unlike 12V amplifiers that struggle with voltage compatibility, the XDM800 operates optimally at 25-28.8V input—the native voltage range of diesel-powered boats, coach buses, and commercial fishing vessels with dual 12V batteries wired in series. Eliminates the need for voltage converters or multiple 12V amplifiers in 24V installations. 8-Channel FlexibilityDrive complete multi-zone audio systems from a single amplifier. Run all eight channels independently for cabin speakers, flybridge zones, cockpit areas, and helm stations. Bridge channel pairs (1+2, 3+4, 5+6, 7+8) for 180W output to demanding tower speakers or marine subwoofers. Mix configurations: six channels for full-range speakers plus one bridged pair for a subwoofer, providing maximum installation flexibility for commercial applications. Marine-Rated Class D TopologyConformal-coated circuit boards withstand salt spray, bilge moisture, and corrosive marine environments encountered in Australian commercial fishing, charter operations, and offshore work vessels. The robust construction handles tropical humidity in Far North Queensland, Southern Ocean conditions off Tasmania, and everything between. Engineered for installations where amplifier failure isn't an option—charter boats operating daily, commercial fishing vessels at sea for weeks, or work boats in remote locations. Variable Filtering Across All Channel PairsPrecise crossover control on channels 1&2, 3&4, 5&6, and 7&8 allows system-specific tuning. High-pass filter cabin speakers to remove low-frequency strain, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz range accommodate any speaker configuration, from compact marine coaxials to high-output tower speakers and marine subwoofers. Compact 24V Power DistributionThe 40A fuse rating and 4 AWG wire compatibility simplify installation in commercial vessels with existing 24V distribution systems. Unlike cobbling together multiple 12V amplifiers with voltage converters, the XDM800 integrates directly into 24V electrical infrastructure, reducing wiring complexity, connection points, and potential failure modes. Critical for fleet installations where consistency and serviceability matter. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust system volume from the helm, flybridge, or entertainment zone. Essential for commercial charter operators who need guest-accessible volume control, or fishing guides adjusting audio levels between travel and fishing modes. The remote provides convenient control without accessing the amplifier installation location. Extended Chassis for Thermal ManagementThe 374mm (14.73") chassis accommodates substantial heat sink area, enabling sustained full-power operation across all eight channels without thermal compression. Critical for commercial applications running audio continuously during day charters, fishing trips, or long-distance transport. The Class D efficiency minimizes heat generation, but the extended chassis ensures reliable cooling even in poorly ventilated engine rooms or equipment bays. Technical Specs Amplifier class: Class D Channels: 8 (Full-range) Operating voltage: 24V DC systems (25-28.8V input range) Power Output (varies by voltage and load impedance): Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 8 (800W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 90W RMS × 8 (720W total) Bridged power (28.8V @ 4Ω, <1% THD): 180W RMS × 4 (720W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 100W RMS × 8 (800W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 90W RMS × 8 (720W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 4 (720W total bridged) THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 12Hz-22kHz (assuming full-range operation similar to other multi-channel models) Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 40A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Warranty: 3 years Important Note: This is a 24V-specific model designed for commercial marine vessels, heavy vehicles, and applications with dual 12V batteries in series. It is NOT compatible with standard 12V automotive/marine electrical systems. Verify your system operates at 24V (25-28.8V range) before purchase. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", or 6×9" sizes) Marine tower speakers rated 100-180W RMS per speaker (when bridged) Marine component speaker systems rated 75-100W RMS Marine subwoofers rated 180W RMS per driver (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG amplifier wiring kit designed for 24V systems with 40A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding 24V-compatible distribution blocks for multi-amplifier systems Heavy-duty amplifier mounting brackets or marine-rated equipment racks System Compatibility: Marine head units with 24V DC operation and preamp outputs Commercial marine audio processors with 24V compatibility 24V electrical systems (dual 12V batteries in series configuration) Charter vessels, commercial fishing boats, work boats with 24V infrastructure Coach buses, heavy transport vehicles with 24V electrical systems Electrical System Requirements: Confirmed 24V DC electrical system (25-28.8V operating range) Dual 12V batteries wired in series for 24V output Adequate alternator capacity for continuous audio operation Proper 24V distribution with circuit protection Dedicated ground point to hull/chassis Caution: This amplifier requires a 24V electrical system. It will NOT operate on standard 12V automotive/marine systems. Verify your vessel or vehicle operates at 24V before ordering. Attempting to connect to a 12V system will result in insufficient power and potential amplifier damage. For 12V applications, consider the standard XDM 8-channel 12V variant. Frequently Asked Questions Is this amplifier compatible with my 12V boat electrical system?No. This model requires a 24V DC system (25-28.8V input range). It's designed for commercial vessels, charter boats, and heavy vehicles with dual 12V batteries wired in series. For 12V applications, you need the standard XDM 8-channel 12V model (not this 24V variant). Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6, 7+8) for 180W RMS per bridged pair at 4Ω load. This allows four bridged outputs at 180W each, ideal for marine tower speakers or subwoofers requiring more power than single-channel 100W output. What wire gauge do I need for a 24V installation?Minimum 4 AWG copper power and ground wire with 40A fuse (AFS, AGU, or MaxiFuse™) within 45cm of battery positive terminal. Use marine-grade tinned copper wire for saltwater applications. Unlike 12V systems drawing higher current, 24V systems typically require less current for equivalent power, but maintain proper gauge for voltage drop prevention. Will this work in my coach bus or heavy truck with 24V electrical system?Yes, if your vehicle has a true 24V DC system (dual 12V batteries in series) operating at 25-28.8V. Common in commercial buses, heavy transport, and some recreational vehicles with diesel engines. Verify voltage with multimeter before installation—24V nominal systems typically read 25-28V depending on charge state. How do I set up multi-zone audio with independent volume control?Use channels 1&2 for Zone 1 (cabin), 3&4 for Zone 2 (cockpit), 5&6 for Zone 3 (flybridge), and 7&8 for Zone 4 (tower speakers). The optional HD-RLC remote controls master volume. For zone-independent control, install separate volume controls in each zone, or use a marine audio processor with zone management feeding the amplifier inputs.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

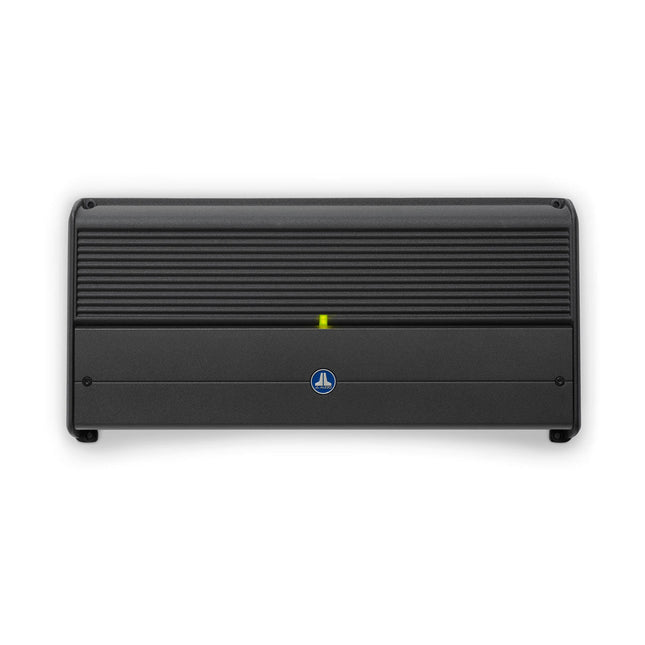

Comprehensive 8-channel Class D amplification engineered for complete marine and automotive audio systems requiring multi-zone control. Product Overview The JL Audio XDM800 8-channel amplifier delivers total system amplification for multi-zone marine installations, automotive touring setups, and enthusiast builds requiring complete speaker control from a single chassis. With 100W RMS per channel at 2Ω (800W total) or 75W per channel at 4Ω (600W total), this marine-rated Class D platform drives cabin speakers, tower speakers, rear zones, and helm areas independently. The 12V design integrates seamlessly into standard automotive and marine electrical systems while the conformal-coated construction withstands Australia's harshest coastal conditions, bilge moisture, and dusty 4WD environments. Built on JL Audio's proven XDM architecture, the 8-channel configuration enables sophisticated system design: run all eight channels independently for maximum zone control, bridge adjacent pairs for 200W output to demanding speakers, or combine configurations for mixed full-range and subwoofer applications. Variable filtering on all channel pairs (50Hz-500Hz, 12dB/octave slopes) accommodates different speaker types and mounting locations, while detented potentiometers ensure repeatable tuning. At 374mm wide with an 80A fuse rating and 4 AWG wire compatibility, the XDM800 represents the ultimate multi-zone amplification solution for Australian marine enthusiasts, 4WD tourers, and automotive audio specialists. Key Specifications 8-channel Class D amplifier optimised for full-range multi-zone applications Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 8 channels (800W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 8 channels (600W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 4 channels (800W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 8 channels (720W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 8 channels (480W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 4 channels (720W total bridged) Operating voltage: 11-14.5 VDC (12V systems only) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: Not specified separately for 8-channel 12V (6-channel specification shows >104dB) Damping factor @ 4Ω: Not specified separately for 8-channel (multi-channel models show >150 @ 50Hz) Damping factor @ 2Ω: Not specified separately for 8-channel (multi-channel models show >75 @ 50Hz) THD+N: <1% @ rated power, 2Ω per channel Input voltage range: Not specified for 8-channel (other models show 200mV-4V RMS) Filter modes: Not specified separately for 8-channel 12V Filter slopes: Not specified separately for 8-channel 12V Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified for 8-channel variant Fuse rating: 80A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 8-Channel Multi-Zone FlexibilityDrive complete audio systems from a single amplifier installation. Allocate channels strategically: four channels for cabin coaxials, two bridged pairs for tower speakers at 200W each, or six channels for speakers plus one bridged pair for a compact subwoofer. Perfect for ski boats requiring cockpit, cabin, and tower zones independently controlled, or 4WD tourers with front cabin, rear cargo, and rooftop speaker zones. Eliminates the complexity and wiring bulk of multiple smaller amplifiers. 12V Standard Electrical IntegrationDesigned for conventional 12V automotive and marine electrical systems (11-14.5V operating range). Integrates directly into factory or aftermarket head unit systems without voltage converters or special infrastructure. The 80A fuse rating and 4 AWG wire compatibility match standard marine and automotive electrical practices, simplifying professional installations and DIY builds alike. Compatible with AGM, lithium, or standard flooded batteries common in Australian recreational vehicles and vessels. Independent Channel Control with Bridge CapabilityRun all eight channels independently at 75-100W each for maximum zone control, or bridge adjacent pairs (1+2, 3+4, 5+6, 7+8) for four outputs at 200W each. Bridge mode suits high-output tower speakers, marine subwoofers, or demanding full-range speakers requiring more power than single-channel output. Mix configurations within the same installation: six unbridged channels for cabin speakers plus one bridged pair for subwoofer duty. Marine-Rated Class D TopologyConformal-coated circuit boards resist salt spray, bilge moisture, and the corrosive environments encountered in Australian coastal boating, offshore fishing, and beach-launched vessels. The robust construction handles tropical humidity in Far North Queensland waters, dusty corrugated tracks in the Outback, and Southern Ocean conditions off Tasmania. Class D efficiency minimizes heat generation, enabling reliable operation in poorly ventilated equipment bays, under seats, or in enclosed amplifier racks. Variable Filtering Across Channel PairsPrecision crossover control on channels 1&2, 3&4, 5&6, and 7&8 allows speaker-specific tuning. High-pass filter cabin speakers to remove low-frequency strain and improve clarity, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz range accommodate marine coaxials, component speakers, tower speakers, and compact subwoofers. Detented potentiometers enable repeatable settings across similar installations—critical for professional installers servicing multiple boats or vehicles. Extended Chassis for Thermal ManagementThe 374mm (14.73") chassis accommodates substantial heat sink area, enabling sustained full-power operation across all eight channels without thermal compression or protection shutdown. Critical for multi-hour listening sessions at anchor, beach parties, or long-distance highway touring. The extended chassis distributes thermal load efficiently, maintaining clean power output even when running all channels simultaneously at high volume levels. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust system volume from the helm, driver's seat, or entertainment area. Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or automotive installations where the amp is hidden behind panels. The remote provides convenient master volume control without accessing the installation location. Technical Specs Amplifier class: Class D Channels: 8 (Full-range) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 8 (800W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 8 (600W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 4 (800W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 8 (720W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 8 (480W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 4 (720W total bridged) THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 12Hz-22kHz Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 80A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes a 24V 8-channel variant for commercial/heavy vehicle applications—this model operates on standard 12V automotive/marine electrical systems only. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9", or 7.7" sizes) Marine component speaker systems rated 75-100W RMS per channel Marine tower speakers rated 150-200W RMS per speaker (when bridged) Compact marine subwoofers rated 200W RMS (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG or 0-2 AWG amplifier wiring kit with 80A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding (minimum 8-channel RCA distribution) Distribution blocks for clean power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces System Compatibility: Marine head units with 4V preamp outputs (8-channel preamp output or DSP required) Aftermarket head units with 8-channel preamp capability Marine DSP processors with 8-channel output Line output converters with 8-channel capability for factory radio integration 12V electrical systems with adequate alternator capacity (100A+ recommended) Electrical System Requirements: Minimum 100A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for extended engine-off listening) Proper grounding with dedicated ground point to chassis/hull 4 AWG power and ground wiring with proper routing and protection Caution: Eight-channel systems require careful planning. Ensure your head unit or DSP provides eight independent preamp outputs. Verify speaker impedances before bridging channels—bridged operation requires 4Ω minimum load per bridged pair. Running all eight channels at maximum power simultaneously demands robust electrical infrastructure including high-output alternator, proper wiring gauge, and adequate battery capacity. Frequently Asked Questions Can I run this amplifier with a standard aftermarket head unit?Only if your head unit or DSP provides eight independent preamp outputs. Most standard head units offer 2-4 channels of preamp output—you'll need an 8-channel DSP or signal processor to feed all channels. Alternatively, use a multi-zone marine source unit with 8-channel capability. Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6, 7+8) for 200W RMS per bridged pair at 4Ω load. This provides four bridged outputs at 200W each, ideal for marine tower speakers or compact subwoofers. Ensure speakers are rated for 4Ω minimum impedance when bridging. What size alternator do I need to run all eight channels at full power?Minimum 100A alternator for sustained full-power operation. At maximum output (800W), the amplifier draws approximately 80A from the electrical system. Factor in other electrical loads (navigation, pumps, lights) and ensure your alternator provides adequate reserve capacity. Undersized alternators cause voltage drop and thermal protection shutdown. Can I use this in a 4WD touring setup with multiple speaker zones?Yes, perfect application. Allocate channels for front cabin, rear cargo area, rooftop speakers, and annexe zones. The 12V operation suits dual-battery systems with proper isolation. Mount in cargo area or under seats with adequate ventilation. Consider auxiliary battery for extended camping scenarios with engine-off listening. How do I set up independent zone control for different areas?Use channels 1&2 for Zone 1 (cabin), 3&4 for Zone 2 (cockpit/tower), 5&6 for Zone 3 (rear/cargo), and 7&8 for Zone 4 (additional zone or bridged subwoofer). The optional HD-RLC remote controls master volume. For true zone-independent control, install separate zone controllers or use a DSP with zone management feeding the amplifier.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

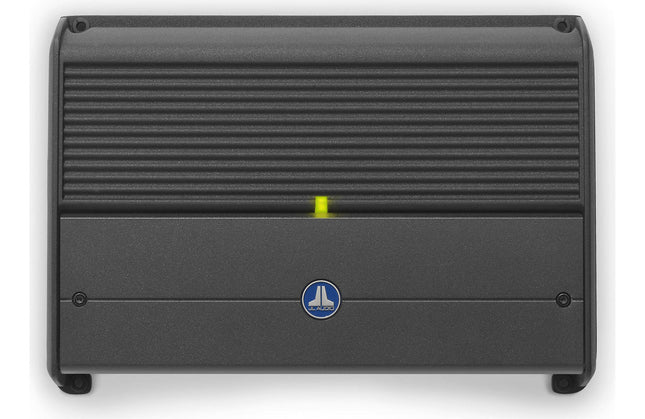

Professional 6-channel Class D amplification engineered specifically for 24V commercial marine vessels and heavy vehicle applications. Product Overview The JL Audio XDM600/6-24V 6-channel amplifier delivers comprehensive full-range amplification for 24V electrical systems found in commercial vessels, charter boats, coach buses, and heavy transport applications. With 100W RMS per channel at 2Ω (600W total) or 75W per channel at 4Ω (450W total), this marine-rated Class D platform drives complete audio systems including cabin speakers, cockpit zones, and helm areas from a single compact chassis. The 24V-specific design operates optimally at 22-29V input—the native voltage range of diesel-powered vessels and commercial vehicles with dual 12V battery configurations wired in series. Built using JL Audio's advanced NexD™ high-speed switching design, the 6-channel configuration allows flexible system architecture: run all six channels independently, bridge pairs for higher power (200W per bridged pair), or configure as a staggered-power system with bridged front channels and unbridged rear channels. Variable high-pass and low-pass filtering on all three channel banks (50Hz-500Hz, 12dB/octave slopes) enables precise tuning for different speaker types and mounting locations. At 216mm wide with marine-grade construction and a 30A fuse rating, the XDM600/6-24V represents the ideal 24V amplification solution for Australian charter operators, commercial fishermen, and fleet managers demanding reliability in harsh coastal conditions. Key Specifications 6-channel Class D amplifier designed for 24V electrical systems Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 6 channels (600W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 75W RMS × 6 channels (450W total) Bridged power (28.8V @ 4Ω, <1% THD): 200W RMS × 3 channels (600W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 90W RMS × 6 channels (540W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 60W RMS × 6 channels (360W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 3 channels (540W total bridged) Operating voltage: 22-29V DC (24V systems only) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: >104dB (A-weighted, 20Hz-20kHz, referred to highest rated power) Signal-to-noise ratio: >84dB (A-weighted, 20Hz-20kHz, referred to 1W) Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N: <1% @ rated power, 2Ω per channel Input channel modes: 2-channel or 4-channel Filter modes (Channels 1 & 2, 3 & 4, 5 & 6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz Infrasonic filter: No Buffered pass-through preamp outputs: Yes Dimensions: 216mm (W) × 180mm (D) × 52mm (H) Weight: Not specified Fuse rating: 30A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Automatic turn-on: Signal sensing or DC-offset sensing Marine-grade construction with gasketed removable top cover 3-year manufacturer warranty Features & Benefits 24V Commercial Marine DesignPurpose-built for 24V electrical systems common in commercial vessels, charter boats, and heavy transport. Unlike 12V amplifiers that require voltage adaptation, the XDM600/6-24V operates optimally at 22-29V input—the native voltage range of diesel-powered boats, coach buses, and commercial fishing vessels with dual 12V batteries wired in series. Eliminates the need for voltage converters or multiple 12V amplifiers in 24V installations, simplifying electrical infrastructure and reducing potential failure points. Flexible 6-Channel ArchitectureConfigure for multiple installation scenarios: run all six channels independently (75-100W each) for complete cabin coverage, bridge three pairs for 200W outputs to demanding speakers, or create a staggered-power system with 200W × 2 bridged for front zones plus 75W × 2 unbridged for rear fill. The channel bank design (1&2, 3&4, 5&6) allows independent filtering and level adjustment per zone, perfect for commercial vessels requiring helm, cockpit, and cabin zones with different speaker requirements. Advanced NexD™ Class D TopologyJL Audio's proprietary NexD™ high-speed switching design delivers full-bandwidth Class D operation with exceptionally low distortion and remarkable efficiency. The marine-grade conformal coating resists salt spray, bilge moisture, and corrosive environments encountered in Australian commercial fishing, charter operations, and offshore work vessels. Robust construction handles tropical humidity in Far North Queensland, Southern Ocean conditions off Tasmania, and everything between—engineered for installations where amplifier failure isn't an option. Variable Filtering Across All Three Channel BanksPrecision crossover control on channels 1&2, 3&4, and 5&6 allows system-specific tuning. High-pass filter cabin speakers to remove low-frequency strain, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz continuously variable range accommodate any speaker configuration, from compact marine coaxials to high-output tower speakers. Independent filter control per channel bank enables sophisticated system design with multiple speaker types in different zones. Compact 24V Power DistributionThe 30A fuse rating and 4 AWG wire compatibility simplify installation in commercial vessels with existing 24V distribution systems. At just 216mm wide, the compact chassis fits shallow-mount locations behind helm panels, under seats, or in equipment bays where larger amplifiers won't fit. The gasketed, removable top cover protects controls from moisture ingress while enabling easy access for tuning and adjustment during commissioning or seasonal maintenance. Automatic Turn-On CapabilityDual-mode turn-on detection (signal sensing or DC-offset sensing) enables seamless integration with factory audio systems or aftermarket source units. Eliminates the need for separate remote turn-on wiring in many installations, simplifying OEM integration for commercial fleet applications. Critical for charter vessels and work boats where installers need reliable operation without complex wiring modifications to factory electrical systems. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, flybridge, or entertainment zone. The remote provides level adjustment for two, four, or all six channels directly from the driver's seat or cockpit. Essential for commercial charter operators who need guest-accessible volume control, or fishing guides adjusting audio levels between travel and fishing modes without accessing the amplifier installation location. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 6 (Full-range) Operating voltage: 22-29V DC (24V systems only - NOT compatible with 12V systems) Power Output (varies by voltage and load impedance): Maximum rated power (28.8V @ 2Ω, <1% THD): 100W RMS × 6 (600W total) Power at 4Ω load (28.8V @ 4Ω, <1% THD): 75W RMS × 6 (450W total) Bridged power (28.8V @ 4Ω, <1% THD): 200W RMS × 3 (600W total bridged) Power at 2Ω load (25V @ 2Ω, <1% THD): 90W RMS × 6 (540W total) Power at 4Ω load (25V @ 4Ω, <1% THD): 60W RMS × 6 (360W total) Bridged power (25V @ 4Ω, <1% THD): 180W RMS × 3 (540W total bridged) Frequency response (+0, -1dB): 12Hz-22kHz Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to highest rated power): >104dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >84dB Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Input channel modes: 2-channel or 4-channel selectable Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz (continuously variable) Infrasonic filter: No Buffered pass-through preamp outputs: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Automatic turn-on: Signal sensing or DC-offset sensing Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 30A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 216mm × 180mm × 52mm (8.52" × 7.09" × 2.05") Weight: Not specified Construction: Marine-grade materials with gasketed removable top cover Finish: Black powder-coat Water rating: Not rated (marine-grade construction, not waterproof) Warranty: 3 years Important Note: This is a 24V-specific model designed for commercial marine vessels, heavy vehicles, and applications with dual 12V batteries in series. It is NOT compatible with standard 12V automotive/marine electrical systems. Operating voltage range is 22-29V DC. Use in vessels with positive ground and/or voltages other than 24V will result in damage and void the warranty. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", or 6×9" sizes) Marine component speaker systems rated 75-100W RMS per channel Marine tower speakers rated 150-200W RMS per speaker (when bridged) Compact marine subwoofers rated 200W RMS (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG amplifier wiring kit designed for 24V systems with 30A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding 24V-compatible distribution blocks for multi-amplifier systems Heavy-duty amplifier mounting brackets or marine-rated equipment racks System Compatibility: Marine head units with 24V DC operation and preamp outputs Commercial marine audio processors with 24V compatibility 24V electrical systems (dual 12V batteries in series configuration) Charter vessels, commercial fishing boats, work boats with 24V infrastructure Coach buses, heavy transport vehicles with 24V electrical systems Electrical System Requirements: Confirmed 24V DC electrical system (22-29V operating range) Dual 12V batteries wired in series for 24V output Adequate alternator capacity for continuous audio operation Proper 24V distribution with circuit protection Dedicated ground point to hull/chassis (negative ground systems only) Caution: This amplifier requires a 24V negative-ground electrical system. It will NOT operate on standard 12V automotive/marine systems. Verify your vessel or vehicle operates at 24V before ordering. Use in vessels with positive ground and/or voltages other than 24V will result in damage to the product and void the warranty. For 12V applications, consider the standard XDM 6-channel 12V variant. Frequently Asked Questions Is this amplifier compatible with my 12V boat electrical system?No. This model requires a 24V DC negative-ground system (22-29V input range). It's designed for commercial vessels, charter boats, and heavy vehicles with dual 12V batteries wired in series. Attempting to use it on a 12V system will result in insufficient power and potential damage. For 12V applications, you need the standard XDM 6-channel 12V model. Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6) for 200W RMS per bridged pair at 4Ω load (28.8V input). This allows three bridged outputs at 200W each, ideal for marine tower speakers or subwoofers requiring more power than single-channel 100W output. You can also mix configurations: bridge channels 1+2 and 3+4 for 200W front speakers, leave channels 5&6 unbridged for 75W rear fill. What is the staggered-power configuration mentioned in the description?Bridge four channels (1+2 and 3+4) for 200W × 2 @ 4Ω to front speakers, while leaving channels 5&6 unbridged for 75W × 2 @ 4Ω to rear speakers. This provides maximum power where needed (front soundstage) while conserving electrical capacity for rear fill. Alternatively, bridge channels 1+2 and 3+4 for two subwoofers at 200W each, plus channels 5&6 for satellite speakers at 75W × 2. How does the automatic turn-on work without a remote wire?The amplifier features dual-mode detection: signal sensing (detects audio signal on RCA inputs) or DC-offset sensing (detects DC voltage from source unit). This enables integration with factory systems that don't provide remote turn-on output. Select the appropriate mode based on your source unit—signal sensing for aftermarket units, DC-offset for many factory systems. Eliminates complex wiring modifications in commercial fleet installations. What does "marine-grade construction" mean if it's not waterproof?Marine-grade construction includes conformal-coated circuit boards to resist salt spray, moisture, and corrosion in marine environments. The gasketed removable top cover protects controls from moisture ingress. However, the amplifier is not waterproof/submersible—mount away from direct water streams, bilge flooding, or areas subject to washdown. Suitable for protected equipment bays, under helm panels, or in cabin locations with normal marine moisture exposure.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

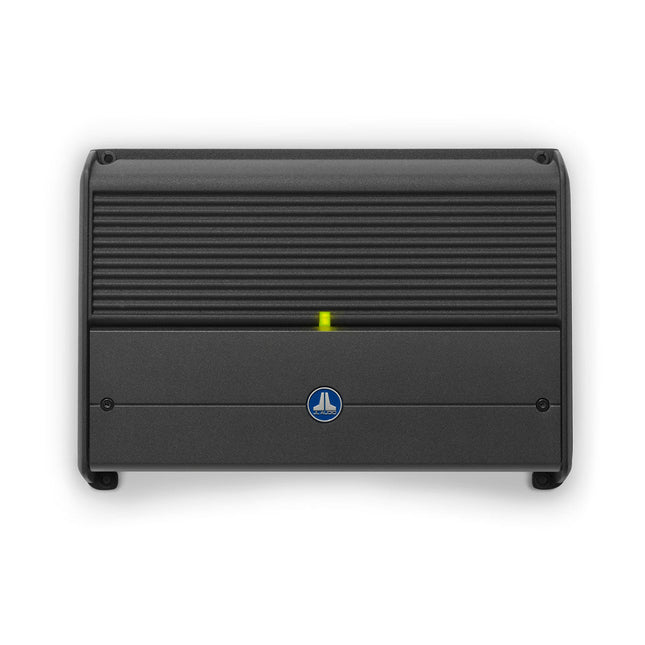

Versatile 6-channel Class D amplification engineered for complete marine and automotive multi-zone audio systems. Product Overview The JL Audio XDM600/6 6-channel amplifier delivers comprehensive full-range amplification for multi-zone marine installations, automotive touring setups, and enthusiast builds requiring complete speaker control from a single chassis. With 100W RMS per channel at 2Ω (600W total) or 75W per channel at 4Ω (450W total), this marine-rated Class D platform drives cabin speakers, cockpit zones, tower speakers, and helm areas independently. The 12V design integrates seamlessly into standard automotive and marine electrical systems while the conformal-coated construction withstands Australia's harshest coastal conditions, bilge moisture, and dusty 4WD environments. Built on JL Audio's proven XDM architecture, the 6-channel configuration enables sophisticated system design: run all six channels independently for maximum zone control, bridge adjacent pairs for 200W output to demanding tower speakers or compact subwoofers, or create staggered-power configurations with bridged front channels and unbridged rear fill. Variable filtering on all three channel banks (channels 1&2, 3&4, 5&6) with 50Hz-500Hz range and 12dB/octave slopes accommodates different speaker types and mounting locations. At 260mm wide with a 50A fuse rating and 2.63kg weight, the XDM600/6 represents the ideal multi-zone amplification solution for Australian marine enthusiasts, ski boat owners, and 4WD tourers. Key Specifications 6-channel Class D amplifier optimised for full-range multi-zone applications Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 6 channels (600W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 6 channels (450W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 3 channels (600W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 6 channels (540W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 6 channels (360W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 3 channels (540W total bridged) Operating voltage: 11-14.5 VDC (12V systems only) Frequency response: 12Hz-22kHz (+0, -1dB) Signal-to-noise ratio: >104dB (A-weighted, 20Hz-20kHz, referred to highest rated power) Signal-to-noise ratio: >84dB (A-weighted, 20Hz-20kHz, referred to 1W) Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N: <1% @ rated power, 2Ω per channel Input voltage range: Not specified for 6-channel (other multi-channel models: 200mV-4V RMS) Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz Detented, calibrated filter potentiometers: Yes Buffered pass-through preamp outputs: Not specified for 6-channel Dimensions: 260mm (W) × 180mm (D) × 52mm (H) Weight: 2.63kg (5.8 lbs) Fuse rating: 50A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 6-Channel Multi-Zone FlexibilityDrive complete audio systems from a single amplifier installation. Allocate channels strategically: four channels for cabin coaxials, two bridged pairs for tower speakers at 200W each, or six channels for full cabin coverage with independent zone control. Perfect for ski boats requiring cockpit, cabin, and tower zones, or 4WD tourers with front cabin, rear cargo, and rooftop speaker zones. Eliminates the complexity and wiring bulk of multiple smaller amplifiers while providing professional-grade zone control. 12V Standard Electrical IntegrationDesigned for conventional 12V automotive and marine electrical systems (11-14.5V operating range). Integrates directly into factory or aftermarket head unit systems without voltage converters or special infrastructure. The 50A fuse rating and 4 AWG wire compatibility match standard marine and automotive electrical practices, simplifying professional installations and DIY builds alike. Compatible with AGM, lithium, or standard flooded batteries common in Australian recreational vehicles and vessels. Independent Channel Control with Bridge CapabilityRun all six channels independently at 75-100W each for maximum zone control, or bridge adjacent pairs (1+2, 3+4, 5+6) for three outputs at 200W each. Bridge mode suits high-output tower speakers, marine subwoofers, or demanding full-range speakers requiring more power than single-channel output. Mix configurations within the same installation: four unbridged channels for cabin speakers plus one bridged pair for subwoofer duty, providing system design flexibility without multiple amplifiers. Marine-Rated Class D TopologyConformal-coated circuit boards resist salt spray, bilge moisture, and the corrosive environments encountered in Australian coastal boating, offshore fishing, and beach-launched vessels. The robust construction handles tropical humidity in Far North Queensland waters, dusty corrugated tracks in the Outback, and Southern Ocean conditions off Tasmania. Class D efficiency minimizes heat generation, enabling reliable operation in poorly ventilated equipment bays, under seats, or in enclosed amplifier racks without thermal shutdown. Variable Filtering Across All Three Channel BanksPrecision crossover control on channels 1&2, 3&4, and 5&6 allows speaker-specific tuning. High-pass filter cabin speakers to remove low-frequency strain and improve clarity, low-pass subwoofer channels for dedicated bass reproduction, or run full-range where needed. The 12dB/octave slopes and 50Hz-500Hz continuously variable range accommodate marine coaxials, component speakers, tower speakers, and compact subwoofers. Detented potentiometers enable repeatable settings across similar installations—critical for professional installers servicing multiple boats. Compact Chassis with Professional-Grade Heat ManagementAt 260mm (10.23") wide and just 2.63kg, the XDM600/6 fits shallow-mount locations behind helm panels, under seats, or in equipment bays where larger amplifiers won't fit. The efficient Class D topology and well-designed heat sink maintain stable operation across all six channels simultaneously, even during extended listening sessions at anchor, beach parties, or long-distance highway touring. The compact footprint doesn't compromise thermal performance—essential for sustained full-power operation. Optional Water-Resistant Remote ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust system volume from the helm, driver's seat, or entertainment area. Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or automotive installations where the amp is hidden behind panels. The remote provides convenient master volume control without accessing the installation location, perfect for recreational boaters and touring enthusiasts. Technical Specs Amplifier class: Class D Channels: 6 (Full-range) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 6 (600W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 6 (450W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 3 (600W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 6 (540W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 6 (360W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 3 (540W total bridged) Frequency response (+0, -1dB): 12Hz-22kHz Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to highest rated power): >104dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >84dB Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Filter modes (Channels 1&2, 3&4, 5&6): Off, Low-Pass, or High-Pass Filter slope: 12dB/octave Filter frequency range: 50Hz-500Hz (continuously variable) Detented, calibrated filter potentiometers: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 50A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 260mm × 180mm × 52mm (10.23" × 7.09" × 2.05") Weight: 2.63kg (5.8 lbs) Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes a 24V 6-channel variant (XDM600/6-24V) for commercial/heavy vehicle applications—this model operates on standard 12V automotive/marine electrical systems only. Compatible With / Goes Well With Speaker Recommendations: Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9", or 7.7" sizes) Marine component speaker systems rated 75-100W RMS per channel Marine tower speakers rated 150-200W RMS per speaker (when bridged) Compact marine subwoofers rated 200W RMS (when using bridged channel pairs) Full-range cabin speakers for multi-zone installations Installation Accessories: 4 AWG amplifier wiring kit with 50A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for most runs) RCA interconnect cables with marine-grade shielding (minimum 6-channel distribution) Distribution blocks for clean power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces System Compatibility: Marine head units with 4V preamp outputs (6-channel preamp output or DSP required) Aftermarket head units with 6-channel preamp capability Marine DSP processors with 6-channel output Line output converters with 6-channel capability for factory radio integration 12V electrical systems with adequate alternator capacity (90A+ recommended) Electrical System Requirements: Minimum 90A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for extended engine-off listening) Proper grounding with dedicated ground point to chassis/hull 4 AWG power and ground wiring with proper routing and protection Caution: Six-channel systems require careful planning. Ensure your head unit or DSP provides six independent preamp outputs. Verify speaker impedances before bridging channels—bridged operation requires 4Ω minimum load per bridged pair. Running all six channels at maximum power simultaneously demands robust electrical infrastructure including high-output alternator, proper wiring gauge, and adequate battery capacity. Weight 2.63kg (5.8 lbs) Frequently Asked Questions Can I run this amplifier with a standard aftermarket head unit?Only if your head unit or DSP provides six independent preamp outputs. Most standard head units offer 2-4 channels of preamp output—you'll need a 6-channel DSP or signal processor to feed all channels. Alternatively, use a marine source unit with 6-channel capability or run the amplifier with fewer active channels. Can I bridge channels for higher power to tower speakers or subwoofers?Yes. Bridge adjacent channel pairs (1+2, 3+4, 5+6) for 200W RMS per bridged pair at 4Ω load. This provides three bridged outputs at 200W each, ideal for marine tower speakers or compact subwoofers. Ensure speakers are rated for 4Ω minimum impedance when bridging. You can also mix configurations: bridge two pairs, leave two channels unbridged. What size alternator do I need to run all six channels at full power?Minimum 90A alternator for sustained full-power operation. At maximum output (600W), the amplifier draws approximately 60-65A from the electrical system. Factor in other electrical loads (navigation, pumps, lights) and ensure your alternator provides adequate reserve capacity. Undersized alternators cause voltage drop and potential thermal protection shutdown. Can I use this in a ski boat with tower speakers and cabin speakers?Yes, perfect application. Bridge channels 1+2 and 3+4 for 200W × 2 to tower speakers, use channels 5&6 unbridged for 75W × 2 to cabin speakers. Alternatively, run all six channels unbridged for complete cabin/cockpit coverage at 75-100W per zone. The variable filtering allows precise tuning for different speaker types and mounting locations. How do I set up independent zone control for different areas?Use channels 1&2 for Zone 1 (cabin), 3&4 for Zone 2 (cockpit/tower), and 5&6 for Zone 3 (rear/helm). The optional HD-RLC remote controls master volume. For true zone-independent control, install separate zone controllers or use a DSP with zone management feeding the amplifier. The three independent filter banks allow different crossover settings per zone.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

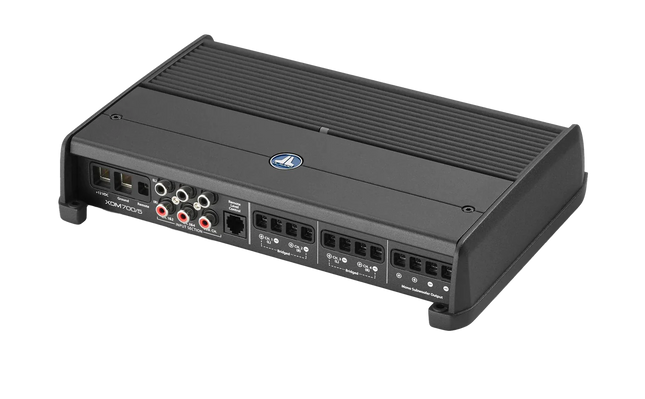

Complete 5-channel Class D system amplification engineered for audiophile-grade component speaker systems plus dedicated subwoofer control. Product Overview The JL Audio XDM700/5 5-channel amplifier delivers comprehensive system amplification for complete marine and automotive installations requiring four satellite speakers plus a dedicated subwoofer channel. With 75W RMS × 4 for main speakers at 4Ω and 300W RMS for the subwoofer at 2Ω (700W total), this marine-rated Class D platform drives complete audiophile-grade systems from a single compact chassis. Built using JL Audio's advanced NexD™ high-speed switching design, the 12V configuration integrates seamlessly into standard automotive and marine electrical systems while the conformal-coated marine-grade construction withstands Australia's harshest coastal conditions, bilge moisture, and dusty 4WD environments. The sophisticated signal processing architecture enables true 3-way crossover configuration: high-pass filter for front channels (50Hz-5kHz range with x10 multiplier), high-pass or bandpass filter for rear channels (50Hz-500Hz), and variable-slope low-pass filter (12dB or 24dB/octave) for the subwoofer channel. This flexibility allows precise system tuning for component speakers, coaxials, and subwoofers in demanding installations. Automatic turn-on capability via signal sensing or DC-offset sensing simplifies integration with factory systems. At 260mm wide, 2.79kg, and featuring a gasketed removable top cover, the XDM700/5 represents the ultimate single-amplifier solution for Australian marine enthusiasts and automotive audio specialists demanding complete system control without multiple amplifiers. Key Specifications 5-channel Class D amplifier (4 main channels + 1 dedicated subwoofer channel) Main channels maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 4 (400W total) Main channels power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 4 (300W total) Main channels bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 2 (400W total bridged) Subwoofer channel maximum power (14.4V @ 2Ω, <1% THD): 300W RMS × 1 Subwoofer channel power at 3Ω load (14.4V @ 3Ω, <1% THD): 240W RMS × 1 Subwoofer channel power at 4Ω load (14.4V @ 4Ω, <1% THD): 180W RMS × 1 Main channels power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 4 (360W total) Main channels power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 4 (240W total) Main channels bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 2 (360W total bridged) Subwoofer channel power at 2Ω load (12.5V @ 2Ω, <1% THD): 300W RMS × 1 Subwoofer channel power at 3Ω load (12.5V @ 3Ω, <1% THD): 240W RMS × 1 Subwoofer channel power at 4Ω load (12.5V @ 4Ω, <1% THD): 180W RMS × 1 Operating voltage: 11-14.5 VDC (12V systems only) Frequency response (Main channels): 12Hz-22kHz (+0, -1dB) Frequency response (Subwoofer channel): 10Hz-1kHz (+0, -1dB) Signal-to-noise ratio (Main channels): >104dB (A-weighted, 20Hz-20kHz, referred to highest rated power) Signal-to-noise ratio: >84dB (A-weighted, 20Hz-20kHz, referred to 1W) Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N (Main channels): <1% @ rated power, 2Ω per channel THD+N (Subwoofer channel): <1% @ rated power, 2Ω per channel Input voltage range: 200mV-4V RMS at RCA inputs Channel input mode switch: Yes (2/4/6 channel modes) Dimensions: 260mm (W) × 180mm (D) × 52mm (H) Weight: 2.79kg (6.15 lbs) Fuse rating: 60A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Remote level control: Optional HD-RLC or MHD-RLC (water-resistant) Remote level modes: Subwoofer channel only or all channels Automatic turn-on: Signal sensing or DC-offset sensing Marine-grade construction with gasketed removable top cover 3-year manufacturer warranty Filter Specifications: Channels 1 & 2 (Front): High-Pass only, 12dB/octave, 50Hz-5kHz range (with x10 multiplier: 500Hz-5kHz) Channels 3 & 4 (Rear): High-Pass or Bandpass, 12dB/octave, 50Hz-500Hz range Subwoofer Channel: Low-Pass only, 12dB or 24dB/octave (selectable), 50Hz-500Hz range Detented, calibrated filter potentiometers: Yes Filter defeat function: Yes Infrasonic filter: None Features & Benefits Complete System Amplification from Single ChassisDrive four satellite speakers plus a dedicated subwoofer without multiple amplifiers cluttering your installation. The 5-channel architecture delivers 75W × 4 for component or coaxial speakers while simultaneously providing 300W for a 10" or 12" subwoofer. Eliminates the complexity of separate 4-channel and monoblock amplifiers, reduces wiring bulk, simplifies power distribution, and frees valuable installation space in boats, utes, and caravans. Perfect for complete audiophile-grade systems in single-amplifier installations. Advanced NexD™ Class D TopologyJL Audio's proprietary NexD™ high-speed switching design delivers full-bandwidth Class D operation with exceptionally low distortion and remarkable efficiency. The marine-grade conformal coating resists salt spray, bilge moisture, and corrosive environments encountered in Australian coastal boating, offshore fishing, and beach-launched vessels. Robust construction handles tropical humidity in Far North Queensland, dusty corrugated tracks in the Outback, and Southern Ocean conditions off Tasmania. Engineered for installations demanding reliability without compromise. True 3-Way Crossover CapabilityConfigure as a sophisticated 3-way system: high-pass filter on front channels (tweeters/midrange), bandpass filter on rear channels (midrange/midbass), and low-pass filter on subwoofer channel. The x10 multiplier switch on channels 1&2 extends the high-pass range from 50Hz-500Hz to 500Hz-5kHz, enabling precise tweeter protection and component system integration. Detented, calibrated potentiometers ensure repeatable settings—critical for professional installers servicing multiple similar builds or enthusiasts fine-tuning complex systems. Flexible Main Channel FilteringFront channels (1&2) feature high-pass-only filtering with 50Hz-5kHz range, ideal for protecting component speakers from damaging low frequencies. Rear channels (3&4) offer high-pass or bandpass modes with 50Hz-500Hz range, providing flexibility for full-range coaxials or mid-bass duties in 3-way configurations. The independent filter architecture allows front and rear speakers to operate at different frequency ranges, maximizing system performance without external processors. Variable-Slope Subwoofer ControlThe dedicated subwoofer channel features selectable 12dB or 24dB/octave low-pass slopes with 50Hz-500Hz continuously variable range. Use 12dB slopes for sealed enclosures requiring gentler roll-off, or 24dB slopes for ported enclosures needing steeper cutoff near tuning frequency. The 300W output at 2Ω drives single 12" subwoofers with authority, while the 240W at 3Ω suits dual 6Ω subs wired in parallel—providing flexibility for various subwoofer configurations. Automatic Turn-On CapabilityDual-mode turn-on detection (signal sensing or DC-offset sensing) enables seamless integration with factory audio systems or aftermarket source units. Eliminates the need for separate remote turn-on wiring in many installations, simplifying OEM integration for fleet applications or factory system upgrades. Critical for installations where installers need reliable operation without complex wiring modifications to factory electrical systems. Optional Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, driver's seat, or entertainment area. Switch between two modes: adjust subwoofer channel only (preserve main speaker levels while controlling bass), or adjust all channels simultaneously (master volume control). Essential for marine applications where the amplifier is mounted in inaccessible equipment bays, or quick bass adjustments between moored listening and underway conditions. Channel Input Mode SwitchConfigure input channels for 2-channel, 4-channel, or 6-channel operation depending on source unit preamp outputs. This flexibility accommodates various head unit configurations: use 2-channel mode with simple stereo sources, 4-channel mode with front/rear preouts, or 6-channel mode with dedicated subwoofer preout. Simplifies integration across different source equipment without external summing or Y-cables. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 5 (4 main channels + 1 dedicated subwoofer channel) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Main Channels Power Output (Channels 1, 2, 3, 4): Maximum rated power (14.4V @ 2Ω, <1% THD): 100W RMS × 4 (400W total) Power at 4Ω load (14.4V @ 4Ω, <1% THD): 75W RMS × 4 (300W total) Bridged power (14.4V @ 4Ω, <1% THD): 200W RMS × 2 (400W total bridged) Power at 2Ω load (12.5V @ 2Ω, <1% THD): 90W RMS × 4 (360W total) Power at 4Ω load (12.5V @ 4Ω, <1% THD): 60W RMS × 4 (240W total) Bridged power (12.5V @ 4Ω, <1% THD): 180W RMS × 2 (360W total bridged) Subwoofer Channel Power Output (Channel 5): Maximum rated power (14.4V @ 2Ω, <1% THD): 300W RMS × 1 Power at 3Ω load (14.4V @ 3Ω, <1% THD): 240W RMS × 1 Power at 4Ω load (14.4V @ 4Ω, <1% THD): 180W RMS × 1 Power at 2Ω load (12.5V @ 2Ω, <1% THD): 300W RMS × 1 Power at 3Ω load (12.5V @ 3Ω, <1% THD): 240W RMS × 1 Power at 4Ω load (12.5V @ 4Ω, <1% THD): 180W RMS × 1 Frequency response (Main channels, +0/-1dB): 12Hz-22kHz Frequency response (Subwoofer channel, +0/-1dB): 10Hz-1kHz Signal-to-noise ratio (Main channels, A-weighted, 20Hz-20kHz, referred to highest rated power): >104dB Signal-to-noise ratio (referred to 1W, A-weighted, 20Hz-20kHz): >84dB Damping factor @ 4Ω: >150 @ 50Hz Damping factor @ 2Ω: >75 @ 50Hz THD+N @ rated power (Main channels): <1% @ 2Ω per channel THD+N @ rated power (Subwoofer channel): <1% @ 2Ω per channel Input voltage range @ RCA inputs: 200mV-4V RMS Signal Processing: Filter mode (Channels 1 & 2 - Front): High-Pass only Filter slope (Channels 1 & 2 - Front): 12dB/octave Filter frequency range (Channels 1 & 2 - Front): 50Hz-5kHz (with x10 multiplier: 500Hz-5kHz) Filter mode (Channels 3 & 4 - Rear): High-Pass or Bandpass Filter slope (Channels 3 & 4 - Rear): 12dB/octave Filter frequency range (Channels 3 & 4 - Rear): 50Hz-500Hz Filter mode (Subwoofer Channel): Low-Pass only Filter slope (Subwoofer Channel): 12dB/octave or 24dB/octave (selectable) Filter frequency range (Subwoofer Channel): 50Hz-500Hz Detented, calibrated filter potentiometers: Yes Filter defeat function: Yes Infrasonic filter: None Channel input mode switch: Yes (2/4/6 channel modes) Pass-through preamp output: None Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Remote level modes: Subwoofer channel only or all channels Automatic turn-on: Signal sensing or DC-offset sensing Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 60A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 260mm × 180mm × 52mm (10.23" × 7.09" × 2.05") Weight: 2.79kg (6.15 lbs) Construction: Marine-grade materials with gasketed removable top cover Finish: Black powder-coat Warranty: 3 years Important Note: This is the 12V model. The XDM series includes 24V variants in some configurations, but this 5-channel model operates on standard 12V automotive/marine electrical systems only. Compatible With / Goes Well With Speaker Recommendations: Component speaker systems rated 75-100W RMS (front and/or rear) Marine coaxial speakers rated 75-100W RMS (6", 6.5", 6×9" sizes) Marine subwoofers rated 180-300W RMS (10" or 12" single-voice-coil or dual-voice-coil) Tower speakers rated 150-200W RMS (when bridging main channels) Installation Accessories: 4 AWG amplifier wiring kit with 60A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG for main channels, 12-14 AWG for subwoofer) RCA interconnect cables with marine-grade shielding (5-channel distribution or individual runs) Distribution blocks for clean power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces and subwoofer enclosures System Compatibility: Marine head units with multi-channel preamp outputs (minimum 2-channel, ideal 4-6 channel) Aftermarket head units with subwoofer preamp output Marine DSP processors with 5-6 channel output capability Line output converters for factory radio integration 12V electrical systems with adequate alternator capacity (90A+ recommended) Subwoofer Configurations: Single 2Ω subwoofer (300W) - maximum power Single 4Ω subwoofer (180W) - lower power draw Dual 6Ω subwoofers wired in parallel (240W total @ 3Ω) - unique configuration Single dual-voice-coil 4Ω subwoofer wired to 2Ω (300W) - maximum flexibility Electrical System Requirements: Minimum 90A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for extended engine-off listening) Proper grounding with dedicated ground point to chassis/hull 4 AWG power and ground wiring with proper routing and protection Caution: Five-channel systems require careful planning. Ensure your head unit or DSP provides adequate preamp outputs (minimum 2-channel stereo plus subwoofer preout). The subwoofer channel does NOT support 1.5Ω loads—minimum 2Ω impedance required. Verify subwoofer impedance and wiring configuration before connection to avoid damage. Weight 2.79kg (6.15 lbs) Frequently Asked Questions Can I run component speakers on all four main channels?Yes. The XDM700/5 is ideal for two pairs of component speakers (front and rear) plus a subwoofer. Use the high-pass filter on channels 1&2 for front components, high-pass or bandpass on channels 3&4 for rear components, and low-pass on the subwoofer channel. The x10 multiplier on channels 1&2 allows tweeter protection up to 5kHz. What's the difference between the high-pass and bandpass filter modes on channels 3&4?High-pass mode passes frequencies above the cutoff point (50Hz-500Hz)—ideal for full-range coaxial speakers. Bandpass mode passes frequencies within a specific range—useful for 3-way systems where channels 3&4 handle midrange duties between tweeters (channels 1&2) and subwoofer (channel 5). Configure based on your speaker type and system design. Can I bridge the main channels for higher power to tower speakers?Yes. Bridge channels 1+2 and/or 3+4 for 200W per bridged pair at 4Ω load. This is perfect for marine tower speakers requiring more power than the 75-100W per channel. Note that bridging disables individual channel filtering—use external crossovers or full-range tower speakers when bridged. What subwoofer impedance should I use for maximum power?Wire your subwoofer to 2Ω for maximum 300W output. Use a single 2Ω subwoofer, or a dual-voice-coil 4Ω subwoofer wired in parallel to achieve 2Ω. The amplifier does NOT support 1.5Ω loads. At 4Ω, the amp delivers 180W—adequate for many applications with lower electrical system demands. How do I set up the remote level control for subwoofer-only adjustment?Connect the optional HD-RLC or MHD-RLC remote and configure the amplifier's remote level mode switch to "Sub Channel" mode. This allows bass adjustment without affecting main speaker volumes—perfect for compensating between moored and underway listening, or adjusting bass levels based on music genre without retuning the entire system.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

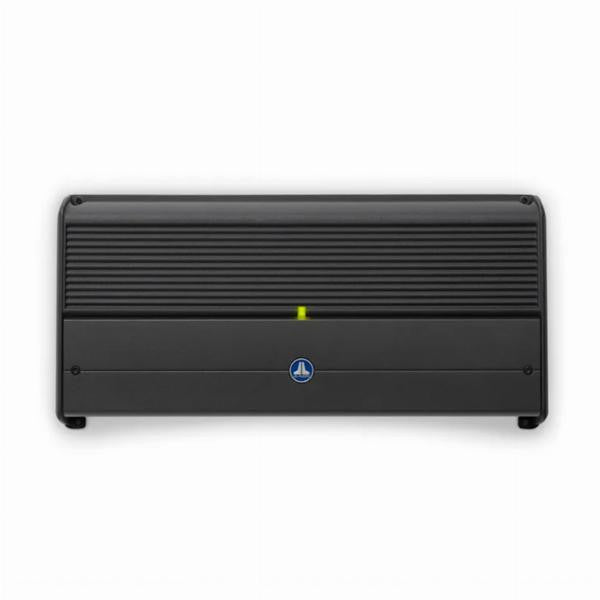

Flagship 5-channel Class D system amplification engineered for maximum power delivery with advanced NexD™ technology and thermal rollback protection. Product Overview The JL Audio XDM1000/5 5-channel amplifier represents the pinnacle of JL Audio's XDM series, delivering 1000W total system power for complete marine and automotive installations requiring four satellite speakers plus a high-output subwoofer channel. Built using JL Audio's advanced NexD™ high-speed switching design achieving over 80% total amplifier efficiency, this marine-rated Class D platform provides exceptional power output while minimizing electrical system demands. The 12V configuration integrates seamlessly into standard automotive and marine electrical systems, while the all-aluminum powder-coated housing with sealed security cover protects against corrosion and the elements in Australia's harshest coastal conditions. The sophisticated architecture features studio-grade signal processing with fully variable filters and calibrated potentiometers beneath the sealed security cover. Advanced rollback protection ensures the amplifier never shuts down due to thermal overload—innovative circuit design keeps the music playing even under demanding conditions by intelligently managing power output. Automatic turn-on capability offers three options: auto signal sensing with +12V remote out, auto DC-offset sensing with +12V remote out, or conventional +12V turn-on lead. At 374mm wide with exclusive dual-mode input filter for outstanding noise rejection, the XDM1000/5 represents the ultimate single-amplifier solution for Australian marine enthusiasts and automotive audio specialists demanding maximum system power without multiple amplifiers. Key Specifications 5-channel Class D amplifier with NexD™ technology (4 main channels + 1 dedicated subwoofer channel) Total system power: 1000W RMS Operating voltage: 11-14.5 VDC (12V systems only) Amplifier efficiency: >80% (NexD™ high-speed switching design) Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified All-aluminum powder-coated housing for corrosion resistance Sealed security cover protects controls from elements Studio-grade signal processing with fully variable filters Calibrated potentiometers for precise tuning Advanced rollback protection prevents thermal shutdown Automatic turn-on: 3 modes (signal sensing, DC-offset sensing, or +12V remote) Exclusive dual-mode input filter for noise rejection Differential-balanced inputs for crystal-clear audio performance Marine-grade construction suitable for boats or cars 2-year manufacturer warranty Note: Detailed power ratings per channel, filter specifications, and technical measurements are not provided in supplier documentation. Contact manufacturer for complete specifications. Features & Benefits Advanced NexD™ High-Efficiency TechnologyJL Audio's proprietary NexD™ high-speed switching design achieves total amplifier efficiencies exceeding 80%—significantly higher than conventional Class D amplifiers. This exceptional efficiency reduces current draw from your electrical system, minimizes heat generation, and permits reliable high-power 1000W output from a compact chassis. Critical for Australian marine applications where electrical capacity is limited, or 4WD touring setups where auxiliary battery runtime matters during extended camping scenarios. Advanced Rollback Protection SystemInnovative circuit design ensures the amplifier never experiences complete thermal shutdown—a common frustration with traditional amplifiers during extended high-output sessions. The advanced rollback protection intelligently manages power output when thermal conditions approach limits, keeping the music playing even under demanding conditions like beach parties, boat rallies, or outback camping. Unlike conventional thermal protection that abruptly cuts power, the XDM1000/5 gracefully manages output to maintain continuous operation. Studio-Grade Signal ProcessingBeneath the sealed security cover lies audiophile-grade signal processing with fully variable filters and calibrated potentiometers. The precision controls enable sophisticated system tuning for component speakers, coaxials, and subwoofers in demanding installations. Calibrated potentiometers ensure repeatable settings—critical for professional installers servicing multiple similar builds or enthusiasts fine-tuning complex systems without external DSP processors. Exclusive Dual-Mode Input FilterJL Audio's proprietary dual-mode input filter combined with differential-balanced inputs delivers outstanding noise rejection and crystal-clear audio performance in boats or cars. The filter automatically adapts to electrical noise characteristics common in marine environments (alternator whine, bilge pump interference) or automotive installations (ignition noise, accessory interference). Critical for maintaining audiophile-grade sound quality in electrically noisy environments where conventional amplifiers produce audible interference. Triple Auto Turn-On CapabilityChoose from three automatic turn-on options based on your installation: auto signal sensing with +12V remote out (detects audio signal on RCA inputs), auto DC-offset sensing with +12V remote out (detects DC voltage from source unit), or conventional +12V turn-on lead (standard remote wire). The signal/DC-offset sensing modes eliminate the need for separate remote wiring in many factory system upgrades, simplifying integration in commercial fleet applications or vessels where complex wiring modifications aren't practical. Marine-Grade Corrosion ResistanceThe all-aluminum powder-coated housing inhibits corrosion in Australian coastal conditions, salt spray, and bilge moisture. The sealed security cover protects controls and circuitry from the elements—critical for installations in wet bilges, exposed cockpit areas, or poorly sealed cargo compartments in 4WD vehicles. Unlike conventional amplifiers with exposed heatsinks and control surfaces, the XDM1000/5 maintains long-term reliability in harsh marine environments from tropical Queensland humidity to Southern Ocean salt spray. Compact Flagship ChassisAt 374mm wide, the XDM1000/5 delivers flagship 1000W system power in a chassis that fits locations where traditional high-power amplifiers won't mount. The extended footprint accommodates substantial power supply components and heat sink area while maintaining the low 52mm profile essential for under-seat, behind-panel, or shallow equipment bay installations. Multiple configuration options enable mounting horizontally, vertically, or in dedicated amplifier racks depending on available space. Technical Specs Amplifier class: Class D (NexD™ high-speed switching design) Channels: 5 (4 main channels + 1 dedicated subwoofer channel) Total system power: 1000W RMS Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Amplifier efficiency: >80% (NexD™ technology) Signal Processing: Studio-grade signal processing with fully variable filters Calibrated potentiometers for precise, repeatable tuning Exclusive dual-mode input filter for noise rejection Differential-balanced inputs for superior audio performance Protection & Control: Advanced rollback protection (prevents thermal shutdown) Automatic turn-on options: Signal sensing / DC-offset sensing / +12V remote +12V remote output capability (for daisy-chaining additional equipment) Physical Specifications: Dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Housing: All-aluminum powder-coated construction Protection: Sealed security cover over controls and circuitry Finish: Black powder-coat Warranty: 2 years Important Note: This is the 12V model. Detailed power output specifications per channel, filter frequencies, slopes, fuse rating, and wire gauge requirements are not provided in available documentation. Contact JL Audio or authorized dealers for complete technical specifications before installation planning. Compatible With / Goes Well With Speaker Recommendations: Component speaker systems for main channels Marine coaxial speakers for main channels High-output marine subwoofers (power handling dependent on actual channel specifications) Tower speakers (verify bridging capability and power ratings) Installation Accessories: Heavy-gauge amplifier wiring kit (gauge dependent on actual specifications) Marine-grade speaker wire RCA interconnect cables with marine-grade shielding (5-channel distribution) Distribution blocks for power/ground distribution Heavy-duty amplifier mounting brackets or marine-rated equipment racks Sound deadening material for mounting surfaces System Compatibility: Marine head units with multi-channel preamp outputs Aftermarket head units with subwoofer preamp output Marine DSP processors with 5-channel output capability Line output converters for factory radio integration 12V electrical systems with adequate alternator capacity Electrical System Requirements: High-output alternator recommended for 1000W total system power Adequate battery reserve (AGM or lithium recommended) Proper grounding with dedicated ground point to chassis/hull Heavy-gauge power and ground wiring (consult installation manual) Caution: Detailed specifications including power output per channel, impedance compatibility, fuse rating, and wire gauge requirements are not provided in available documentation. Consult JL Audio technical support or authorized dealers before purchase to ensure compatibility with your speakers and electrical system. Weight Not specified Frequently Asked Questions What makes the XDM1000/5 different from the XDM700/5?The XDM1000/5 delivers 1000W total system power versus the XDM700/5's 700W, representing a 43% increase in output capability. The 1000W model features the extended 374mm chassis for enhanced power supply and thermal management, enabling higher sustained output levels for demanding applications requiring maximum bass authority and main speaker headroom. What is advanced rollback protection and how does it work?Unlike traditional thermal protection that abruptly shuts down the amplifier when overheating, advanced rollback protection intelligently reduces output gradually when approaching thermal limits. This keeps the music playing continuously—albeit at slightly reduced levels—rather than experiencing frustrating shutdowns during extended high-output sessions at anchor or beach parties. How does the NexD technology benefit my electrical system?NexD™ high-speed switching achieves over 80% efficiency, meaning less current draw from your battery and alternator compared to conventional amplifiers producing the same power. This reduces strain on your electrical system, minimizes heat generation requiring cooling, and extends battery runtime during engine-off listening—critical for marine applications and remote camping scenarios. Which automatic turn-on mode should I use?Use signal sensing for most aftermarket head units (detects audio on RCA inputs), DC-offset sensing for many factory systems (detects DC voltage from source unit output), or conventional +12V remote for guaranteed compatibility with any source unit providing remote turn-on output. Try signal or DC-offset modes first to eliminate remote wire runs in complex installations. Is this amplifier suitable for saltwater marine environments?Yes. The all-aluminum powder-coated housing resists corrosion, and the sealed security cover protects controls and circuitry from salt spray and moisture. However, mount away from direct water streams, bilge flooding, or areas subject to washdown. Pair with marine-grade wiring and heat-shrink connections for long-term reliability in coastal conditions.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
