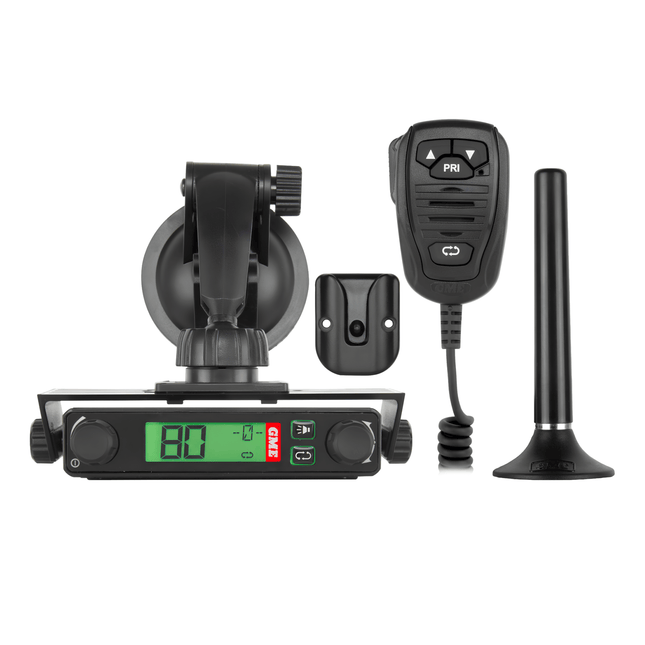

GME TX3120SPNP Plug 'n' Play UHF CB Radio Kit The GME TX3120SPNP is a 5 watt super compact UHF CB radio Plug 'n' Play kit, installable in under 30 seconds with no drilling, cutting, or soldering, featuring Scansuite digital scanning technology, digital signal processing, and dynamic volume control. Product Overview This Plug 'n' Play UHF CB radio boasts an installation time of less than 30 seconds. The TX3120SPNP is easily installed into any vehicle in under 30 seconds and does not require any drilling, cutting, or soldering. Aimed at the casual user, the TX3120SPNP includes the TX3120S UHF CB radio, magnetic antenna, suction cup mount, and 12V DC cigarette lighter lead, enabling the kit to be easily removed when not required or transferred between vehicles. The TX3120S features GME's market-leading digital scanning technology, Scansuite, and an impressive feature list that includes digital signal processing, advanced signal management, and dynamic volume control. The radio also includes CTCSS and DCS to minimise unwanted background noise and interruptions from other users. The super compact chassis of the TX3120S is engineered to offer maximum features when installation space is limited, with separate rotary controls for volume and channel selection, the widest LCD screen available on any super compact sized UHF, and a new dynamic speaker microphone. These unique features improve usability and audio quality for an excellent communications experience at an affordable price. Features & Benefits Plug 'n' Play - 30 Second Installation: No drilling, cutting, or soldering required, letting the TX3120SPNP be installed in under 30 seconds and easily removed or transferred between vehicles. Super Compact Design: The super compact chassis is engineered to offer maximum features when installation space is limited. Scansuite Digital Scanning Technology: GME's market-leading Scansuite digital scanning technology helps manage and monitor channel activity efficiently. Full Spectrum Back-Lit LCD: The widest LCD screen available on any super compact sized UHF features full spectrum back-lighting for clear visibility in a range of conditions. Digital Signal Processing: Digital signal processing and advanced signal management help deliver clearer audio and improved communication performance. Dynamic Volume Control: Dynamic volume control automatically adjusts audio output to help compensate for varying signal strength. CTCSS and DCS: CTCSS and DCS tone signalling help minimise unwanted background noise and interruptions from other users on shared channels. New Dynamic Speaker Microphone: A new dynamic speaker microphone improves usability and audio quality for an excellent communications experience. Separate Rotary Volume and Channel Controls: Dedicated rotary controls for volume and channel selection make the TX3120S easy to operate on the move. Technical Specs Specification Detail SKU TX3120SPNP Brand GME Description 5 Watt Super Compact UHF CB Radio Plug 'n' Play Kit Transmission Power 5W Installation Plug 'n' Play, Under 30 Seconds, No Drilling/Cutting/Soldering Chassis Super Compact Display Full Spectrum Back-Lit LCD (Widest in Super Compact Class) Controls Separate Rotary Volume and Channel Controls Signalling CTCSS, DCS Scanning Scansuite Digital Scanning Technology Audio Processing Digital Signal Processing, Advanced Signal Management, Dynamic Volume Control Mounting Suction Cup Mount, Magnetic Antenna In the Box TX3120S UHF CB Radio, MC311B Speaker Microphone, MB054 Suction Cup Mount, AE4026 Magnetic Antenna, MB205 Microphone Mounting Bracket, LE026 12V DC Lead, Mounting Hardware Compatible With The TX3120SPNP is designed for use under UHF CB licensing regulations in Australia and New Zealand. Aimed at the casual user, the kit's suction cup mount and magnetic antenna allow it to be easily removed when not required or transferred between vehicles, without permanent installation. Frequently Asked Questions How long does the TX3120SPNP take to install? The TX3120SPNP is easily installed into any vehicle in under 30 seconds, with no drilling, cutting, or soldering required. Can I move the TX3120SPNP between vehicles? Yes. The suction cup mount and magnetic antenna and 12V DC cigarette lighter lead let the kit be easily removed and transferred between vehicles as needed. What's included in the TX3120SPNP kit? The kit includes the TX3120S radio, a speaker microphone, a suction cup mount, a magnetic antenna, a microphone mounting bracket, a 12V DC lead, and mounting hardware. Who is the TX3120SPNP designed for? The TX3120SPNP is aimed at the casual user who wants a straightforward, temporary UHF CB setup without permanent vehicle modification. Does the TX3120S reduce background noise from other users? Yes. The TX3120S includes CTCSS and DCS tone signalling to help minimise unwanted background noise and interruptions from other users on shared channels.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

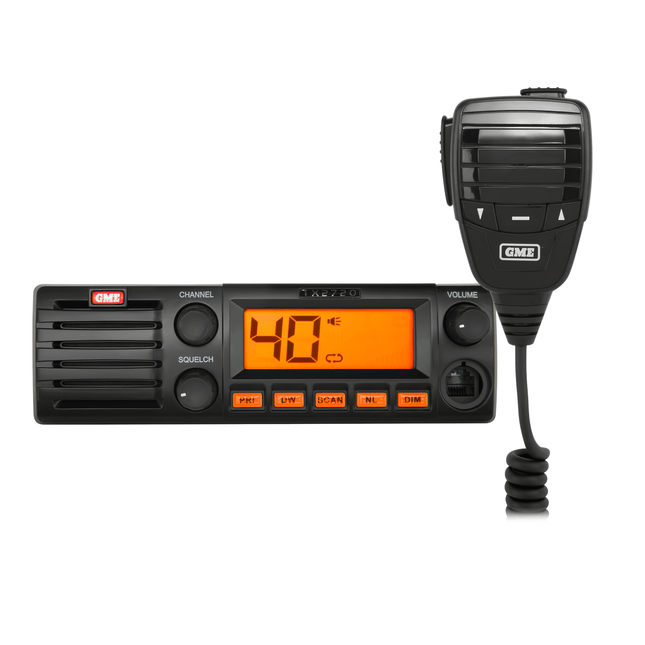

GME TX2720 27MHz DIN Mount CB Radio The GME TX2720 is a 4 watt DIN size 26MHz AM CB radio, the ideal communications solution for any heavy vehicle, featuring fully user-programmable channel scanning, a priority channel, and a back-lit LCD with dimming function. Product Overview The 27MHz/CB TX2720 is the ideal communications solution for any heavy vehicle. The TX2720 is a 4 watt DIN size 26MHz AM CB radio with a number of enhanced features including improved performance of the transmitter and receiver. Featuring fully user-programmable channel scanning, priority channel, and a back-lit Liquid Crystal Display (LCD) with dimming function, the TX2720's compact size allows for easy installation, and is supplied with a flush mount kit for standard DIN mount installations. Features & Benefits 4 Watt Transmission Power: 4 watts of transmission power provides reliable communication suited to heavy vehicle use. Advanced Noise Limiting (NL) Circuitry: Advanced noise limiting circuitry helps deliver clearer reception in noisy electrical environments common to heavy vehicles. Optimised Automatic Gain Control: Optimised automatic gain control helps maintain consistent audio output as signal strength varies. Channel Scanning with Memory: Fully user-programmable channel scanning with memory allows quick monitoring of preferred channels. Priority Channel with Dual Watch: A priority channel with dual watch functionality allows an important channel to be monitored alongside general use. Back-Lit LCD with Dimming Function: The back-lit LCD includes a dimming function, keeping the display legible and comfortable to view in varying light conditions. Compact DIN Size for Easy Installation: The compact DIN size chassis allows for easy installation, supplied with a flush mount kit for standard DIN mount installations. Technical Specs Specification Detail SKU TX2720 Brand GME Description 27MHz DIN Mount CB Radio Transmission Power 4W Band 26MHz AM CB Chassis DIN Size Display Back-Lit LCD with Dimming Function Scanning Channel Scanning with Memory Channel Monitoring Priority Channel with Dual Watch Audio Processing Advanced Noise Limiting Circuitry, Optimised Automatic Gain Control Mounting Standard DIN Mount, Flush Mount Kit Supplied In the Box TX2720 CB Radio, MC553B Heavy Duty Microphone, MB206 Microphone Mounting Bracket, LE09 12V DC Power Lead, Mounting Hardware Compatible With The TX2720 is designed for use under CB licensing regulations in Australia and New Zealand, ideal as a communications solution for heavy vehicles. The MC553B heavy duty microphone and MB206 mounting bracket are included, with a flush mount kit supplied for standard DIN mount installations. A suitable CB antenna is required and sold separately if not already fitted. Frequently Asked Questions Who is the TX2720 designed for? The TX2720 is designed as the ideal communications solution for any heavy vehicle, with improved transmitter and receiver performance for demanding use. Does the TX2720 fit a standard DIN mounting slot? Yes. The TX2720's compact size allows for easy installation, and it's supplied with a flush mount kit for standard DIN mount installations. Does the TX2720 have channel scanning? Yes. The TX2720 has fully user-programmable channel scanning with memory, along with a priority channel and dual watch functionality. What's included in the box with the TX2720? The TX2720 comes with a heavy duty microphone, a microphone mounting bracket, a 12V DC power lead, and mounting hardware. Does the TX2720 come with an antenna? No. A suitable CB antenna is required and sold separately if not already fitted to the vehicle.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Oricom Handheld UHF CB Radio Twin Pack: Perfect for Inexperienced UHF CB Radio Users or A Family that Loves the Outdoors This radio pack delivers exceptional voice quality and a range of up to 3km in optimal conditions. Small enough to slip in a pocket, or clip to your belt, The PMR795BL will ensure you have effective communications wherever you find yourself. Oricom PMR795BL Features: Compact & light weight 80 channels LED torch Duplex mode (range extender) Monitor function Dual watch VOX Call tone alert Each radio requires 3 x AAA alkaline batteries (not supplied)
Legendary Products & Support From Authorized Dealers
When you choose ORICOM, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized ORICOM dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by ORICOM's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized ORICOM dealer today!
Uniden 5W Watt Handheld VHF Marine Waterproof Floating Radio: Fully Submersible, Waterproof, Floating, and Lightweight Design that is So Simple to Use Perfectly suited for all boating and marine applications, the MHS127 is equipped with a table-top drop-in charger allowing you to conveniently charge your unit this compact two-way radio is certified to meet the world standard JIS8 waterproof level. The MHS127 also allows you to switch between 1 watt, 2.5 watt and 5 watt output, which provides maximum transmission power. The Large LCD Display is backlit for easy viewing at night or in low light situations. The MHS127 is also equipped with Dual and Triple Watch Mode which lets you monitor up to one Distress / Hailing channel and one weather channel along with one regular marine channel. The SOS Strobe / Flashlight has a high intensity strobe LED and can be set to blink an SOS pattern or to be steady on (torch) mode. Precision matched for optimum performance with a flexible whip antenna. Uniden MHS127 Features: 1 watt, 2.5 watt and 5 watt output switchable Submersible / Waterproof to JIS8* Floating, Lightweight Design** International Channels Transmitter Boost Key Flexible Whip Antenna Large LCD Display with Backlit SOS Strobe / Flashlight Instant Channel Dual and Triple Watch Operation Emergency 16/67 Channel Monitoring Weather Channel Key Table-Top-Drop-In-Charger Digital Volume / Squelch Memory Scan Mode 3 Year Warranty Designed and Engineered in Japan Built Rugged for Australian and New Zealand Conditions What's in the Box: 1x MHS127 1x Antenna 1x Rechargeable Lithium-Ion Poly Battery Pack 1x Charging Cradle with Screws 1x Cigarette Lead Adaptor 1x AC Adaptor 1x Belt Clip 1x Wrist Strap 1x Owner's Manual
Legendary Products & Support From Authorized Dealers
When you choose UNIDEN, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized UNIDEN dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by UNIDEN's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized UNIDEN dealer today!

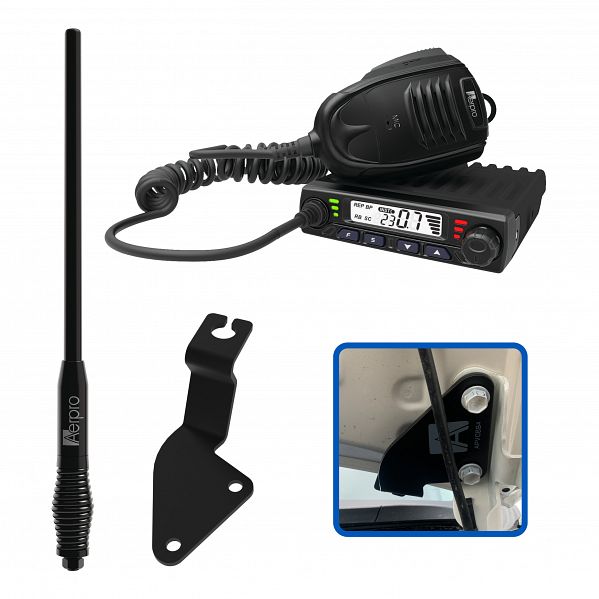

Aerpro APTYCBE1 Complete 5W UHF CB Kit for Toyota Hilux and Fortuner 2015-On with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB4 Bonnet Mount Bracket
The Aerpro APTYCBE1 is a complete UHF CB radio kit designed specifically for the Toyota Hilux and Fortuner (2015-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB4 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the Toyota Hilux or Fortuner (2015-on) is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APTYCBE1 is the compact (non-hideaway) counterpart to the APTYCBH1 hideaway kit for the Toyota Hilux and Fortuner (2015-on). Where the APTYCBH1 uses the AP477H hideaway radio with a remote speaker microphone mounted out of sight, the APTYCBE1 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin.
The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB4 mounts on the passenger side bonnet hinge of the Hilux and Fortuner using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete compact UHF CB kit for Toyota Hilux and Fortuner 2015-on: Radio, antenna, and bonnet bracket all included.
AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB4 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Hilux or Fortuner.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
1x UHF CB Radio
1x Microphone (attached to radio)
1x Microphone Mounting Clip
1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
1x 4.5m RG58 Cable with Female FME Connector
1x FME to PL259 Adaptor
1x Mounting Nut
1x Weather Cap
APVCBB4 Bonnet Bracket:
1x Bonnet Mount Bracket
Technical specs
AP477E UHF CB Radio
Specification
Detail
Transmission Power
5W
Frequency
476.425MHz to 477.4125MHz
Channels
80
CTCSS/DCS Codes
Yes
Duplex Mode
Yes
Channel Scan
Yes
Squelch Control
Yes
Busy Channel Lockout
Yes
Call Tone Alter
Yes
Roger Beep
Yes
Button Beep
Yes
Volume Control
Yes
Backlit Display
White
Radio Type
Ultra-compact chassis
Microphone
Fixed cord
Voltage
12V and 24V DC
External Speaker Port
Yes
Mute Out
Yes
Antenna Connection
PL259
Radio Warranty
5 years
CBSTHD1 UHF Antenna
Specification
Detail
Frequency
477MHz
Gain
3.0dBi
Ground Independent
Yes
Elevated Feed
Yes
Total Length
700mm
Mast Length
570mm
Mast Width
40mm
Mast Type
Fibreglass radome
Spring Type
Stainless steel
Antenna Mounting Thread
16mm
Mast Mounting Thread
30mm
Cable Type
RG58 with female FME
Cable Length
4.5m
Colour
Black
Antenna Warranty
1 year
APVCBB4 Bonnet Bracket
Specification
Detail
Mounting Position
Passenger side bonnet hinge
Metal Type
4mm press-bent steel
Finish
Matte black powder coat
Antenna Mounting Hole
18mm
Cable Slot Size
5mm
Bracket Warranty
1 year
Compatible with
Make
Model
Years
Toyota
Hilux
2015 to 2020
Toyota
Hilux
2020 to 2025
Toyota
Fortuner
2015 to 2020
Toyota
Fortuner
2020-on
Frequently asked questions
What is the difference between the APTYCBE1 and the APTYCBH1? The APTYCBH1 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APTYCBE1 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB4 bonnet bracket for the Toyota Hilux and Fortuner 2015-on.
What is included in the APTYCBE1 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB4 bonnet bracket.
Does the AP477E radio work with 24V vehicles? Yes. The AP477E operates on both 12V and 24V DC systems.
Does the APVCBB4 bracket require drilling into the Hilux or Fortuner? No. The APVCBB4 uses existing mounting points on the passenger side bonnet hinge of the Toyota Hilux and Fortuner (2015-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APTYCBE1 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB4 bracket each carry a 1-year warranty.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Oricom 80 Channels Handheld UHF CB Radio: Stay in Touch with Family and Friends for Free with the PMR780BL UHF 2-Way RadioThe compact design ensures that you can keep in touch in and around the home, camp site or while out enjoying leisure activities.Perfect for the first time user or the outdoors family, this Walkie-Talkie delivers exceptional voice quality and a range of up to 3km. It can be slipped into your pocket or clipped onto your belt making it the ideal solution to your active communication needs.Oricom PMR780BL Features: Compact & light weight 80 Narrowband channels* Range up to 3km* Call tone alert Volume control Roger beep confirmation tone Power save mode Belt clips included Each radio requires 3 x AAA alkaline batteries (not supplied)
Legendary Products & Support From Authorized Dealers
When you choose ORICOM, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized ORICOM dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by ORICOM's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized ORICOM dealer today!
Oricom 80 Channels UHF CB Radio Single Pack: Stay in Touch with Family and Friends for Free with the PMR780 UHF 2-Way RadioThe compact design ensures that you can keep in touch in and around the home, camp site or while out enjoying leisure activities.Perfect for the first time user or the outdoors family, this Walkie-Talkie delivers exceptional voice quality and a range of up to 3km. It can be slipped into your pocket or clipped onto your belt making it the ideal solution to your active communication needs.Oricom PMR7801BL Features: Compact & light weight 80 Narrowband channels* Range up to 3km* Call tone alert Volume control Roger beep confirmation tone Power save mode Belt clips included Each radio requires 3 x AAA alkaline batteries (not supplied)
Legendary Products & Support From Authorized Dealers
When you choose ORICOM, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized ORICOM dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by ORICOM's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized ORICOM dealer today!
Uniden Submersible / Waterproof 2.5W VHF Marine Radio that Floats – Includes Carabiner Clip: Fully Submersible, Waterproof, Floating, and Lightweight Design that is So Simple to UseThe unit comes with a Carabiner Clip for added convenience and up to 12hrs operating time.
The MHS050 also allows you to switch between 1 watt output, to preserve the life of the battery and 2.5 watt output, which provides maximum transmission power. The Large LCD Display and is backlit for easy viewing at night or in low light situations. The MHS050 is also equipped with Triple Watch Mode which monitors Channel 16 and Channel 9 simultaneously for a signal while at the same time allowing you to listen to the selected channel and the convenience One Touch Emergency Channel 16. Precision matched for optimum performance with a Built-in Antenna. Perfectly suited for all boating and marine applications, the MHS050 is a 2.5 watt Waterproof* VHF Marine Radio. Equipped with a table-top drop-in charger allowing you to conveniently charge your unit this compact two-way radio is certified to meet the world standard JIS8 waterproof level. Engineered and designed in Japan specifically for the rugged Australian and New Zealand conditions, Uniden’s MHS050 is durable enough to take anywhere and offers outstanding performance in all situations. With extended range and crystal clear sound, the MHS050 is the ultimate in marine communications. *Meets the world standards JIS8. Being defined as protecting against the effects of continuos immersion in water.**Radio only and when not connected with the Carabiner Clip.Operating time (in hours): 12 hours based on 5% transmitting, 5% receiving and 90% waiting in low power mode.Unit must only be used in country of purchase.Specifications subject to change without notice.Uniden MHS050 Features: VHF Marine Radio – 2.5 watt Submersible / Waterproof to JIS8* Floating, Lightweight Design** Carabiner Clip: Attach to the radios hook for secure connection to Optional Belt or Strap Simple, Easy To Use TX Power Hi/Lo: 1W and 2.5W Maximum Transmit Power International Channels: Communicate using International Marine VHF Channels Large Backlit Channel Display Battery Level Indicator: View the radio frequency signal strength Digital Squelch: 3 level Digital Squelch Triple Watch Mode: Monitors Channel 16 and Channel 9 simultaneously for a signal while at the same time allowing you to listen to the selected channels One-Touch Channel 16/9: At the touch of a button you have access to Emergency Channel 16 or Channel 9 Memory Scan: Allows you to scan the programmed Channels in the memory Table-Top-Drop-In-Charger Battery Save Operation: Allows the MHS050 to automatically save and conserve power when not in use Keypad Lock: Locks the keypad to avoid accidental key presses Designed and Engineered in Japan Built Rugged for Australian and New Zealand Conditions Dimensions of the Unit: 227mm(H) x 68mm(W) x 33mm(D) What's in the Box: 1 x MHS050 1 x Rechargeable NiMH Battery Pack 1 x Charger 1 x AC Adaptor 1 x Belt Clip 1 x Carabiner Clip 1 x Owner’s Manual
Legendary Products & Support From Authorized Dealers
When you choose UNIDEN, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized UNIDEN dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by UNIDEN's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized UNIDEN dealer today!

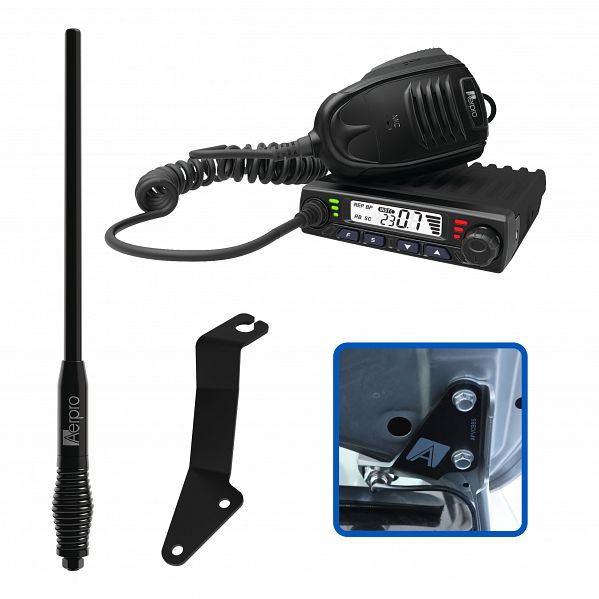

Aerpro APTYCBE2 Complete 5W UHF CB Kit for Toyota LandCruiser 200 Series 2016 to 2021 Excludes GX with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB5 Bonnet Mount Bracket
The Aerpro APTYCBE2 is a complete UHF CB radio kit designed specifically for the Toyota LandCruiser 200 Series (2016 to 2021), excluding GX models. Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB5 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the LC200 is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APTYCBE2 is the compact (non-hideaway) counterpart to the APTYCBH2 hideaway kit for the Toyota LandCruiser 200 Series (2016 to 2021), excluding GX grade models. Where the APTYCBH2 uses the AP477H hideaway radio with a remote speaker microphone mounted out of sight, the APTYCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin.
The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB5 mounts on the passenger side bonnet hinge of the LC200 using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete compact UHF CB kit for Toyota LandCruiser 200 Series 2016 to 2021 (excludes GX): Radio, antenna, and bonnet bracket all included.
AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.
GX models excluded: The APTYCBE2 is confirmed for non-GX 200 Series variants only.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB5 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the LC200.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
1x UHF CB Radio
1x Microphone (attached to radio)
1x Microphone Mounting Clip
1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
1x 4.5m RG58 Cable with Female FME Connector
1x FME to PL259 Adaptor
1x Mounting Nut
1x Weather Cap
APVCBB5 Bonnet Bracket:
1x Bonnet Mount Bracket
Technical specs
AP477E UHF CB Radio
Specification
Detail
Transmission Power
5W
Frequency
476.425MHz to 477.4125MHz
Channels
80
CTCSS/DCS Codes
Yes
Duplex Mode
Yes
Channel Scan
Yes
Squelch Control
Yes
Busy Channel Lockout
Yes
Call Tone Alter
Yes
Roger Beep
Yes
Button Beep
Yes
Volume Control
Yes
Backlit Display
White
Radio Type
Ultra-compact chassis
Microphone
Fixed cord
Voltage
12V and 24V DC
External Speaker Port
Yes
Mute Out
Yes
Antenna Connection
PL259
Radio Warranty
5 years
CBSTHD1 UHF Antenna
Specification
Detail
Frequency
477MHz
Gain
3.0dBi
Ground Independent
Yes
Elevated Feed
Yes
Total Length
700mm
Mast Length
570mm
Mast Width
40mm
Mast Type
Fibreglass radome
Spring Type
Stainless steel
Antenna Mounting Thread
16mm
Mast Mounting Thread
30mm
Cable Type
RG58 with female FME
Cable Length
4.5m
Colour
Black
Antenna Warranty
1 year
APVCBB5 Bonnet Bracket
Specification
Detail
Mounting Position
Passenger side bonnet hinge
Metal Type
4mm press-bent steel
Finish
Matte black powder coat
Antenna Mounting Hole
18mm
Cable Slot Size
5mm
Bracket Warranty
1 year
Compatible with
Make
Model
Variant
Years
Notes
Toyota
LandCruiser
200 Series (LC200)
2016 to 2021
Excludes GX grade
Frequently asked questions
What is the difference between the APTYCBE2 and the APTYCBH2? The APTYCBH2 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APTYCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB5 bonnet bracket for the Toyota LandCruiser 200 Series 2016 to 2021 (excludes GX).
Why is the GX model excluded? The APTYCBE2 is confirmed for non-GX 200 Series LandCruiser variants only. The GX grade has a different dashboard and bonnet hinge configuration that is not compatible with this kit. Confirm your LandCruiser's grade before purchasing.
What is included in the APTYCBE2 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB5 bonnet bracket.
Does the APVCBB5 bracket require drilling into the LandCruiser? No. The APVCBB5 uses existing mounting points on the passenger side bonnet hinge of the Toyota LandCruiser 200 Series (2016 to 2021) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APTYCBE2 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB5 bracket each carry a 1-year warranty.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Aerpro APMZCBE1 Complete 5W UHF CB Kit for Mazda BT-50 2020-On with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB8 Bonnet Mount Bracket
The Aerpro APMZCBE1 is a complete UHF CB radio kit designed specifically for the Mazda BT-50 (2020-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB8 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the Mazda BT-50 (2020-on) is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APMZCBE1 is the compact (non-hideaway) counterpart to the APMZCBH1 hideaway kit for the Mazda BT-50 (2020-on). Where the APMZCBH1 uses the AP477H hideaway radio with a remote speaker microphone mounted out of sight, the APMZCBE1 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin.
The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB8 mounts on the passenger side bonnet hinge of the BT-50 using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete compact UHF CB kit for Mazda BT-50 2020-on: Radio, antenna, and bonnet bracket all included.
AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB8 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the BT-50.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
1x UHF CB Radio
1x Microphone (attached to radio)
1x Microphone Mounting Clip
1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
1x 4.5m RG58 Cable with Female FME Connector
1x FME to PL259 Adaptor
1x Mounting Nut
1x Weather Cap
APVCBB8 Bonnet Bracket:
1x Bonnet Mount Bracket
Technical specs
AP477E UHF CB Radio
Specification
Detail
Transmission Power
5W
Frequency
476.425MHz to 477.4125MHz
Channels
80
CTCSS/DCS Codes
Yes
Duplex Mode
Yes
Channel Scan
Yes
Squelch Control
Yes
Busy Channel Lockout
Yes
Call Tone Alter
Yes
Roger Beep
Yes
Button Beep
Yes
Volume Control
Yes
Backlit Display
White
Radio Type
Ultra-compact chassis
Microphone
Fixed cord
Voltage
12V and 24V DC
External Speaker Port
Yes
Mute Out
Yes
Antenna Connection
PL259
Radio Warranty
5 years
CBSTHD1 UHF Antenna
Specification
Detail
Frequency
477MHz
Gain
3.0dBi
Ground Independent
Yes
Elevated Feed
Yes
Total Length
700mm
Mast Length
570mm
Mast Width
40mm
Mast Type
Fibreglass radome
Spring Type
Stainless steel
Antenna Mounting Thread
16mm
Mast Mounting Thread
30mm
Cable Type
RG58 with female FME
Cable Length
4.5m
Colour
Black
Antenna Warranty
1 year
APVCBB8 Bonnet Bracket
Specification
Detail
Mounting Position
Passenger side bonnet hinge
Metal Type
4mm press-bent steel
Finish
Matte black powder coat
Antenna Mounting Hole
18mm
Cable Slot Size
5mm
Bracket Warranty
1 year
Compatible with
Make
Model
Years
Mazda
BT-50
2020-on
Frequently asked questions
What is the difference between the APMZCBE1 and the APMZCBH1? The APMZCBH1 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APMZCBE1 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB8 bonnet bracket for the Mazda BT-50 2020-on.
What is included in the APMZCBE1 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB8 bonnet bracket.
Does the AP477E radio work with 24V vehicles? Yes. The AP477E operates on both 12V and 24V DC systems.
Does the APVCBB8 bracket require drilling into the BT-50? No. The APVCBB8 uses existing mounting points on the passenger side bonnet hinge of the Mazda BT-50 (2020-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APMZCBE1 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB8 bracket each carry a 1-year warranty.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Aerpro APIZCBE2 Complete 5W UHF CB Kit for Isuzu D-MAX and MU-X 2021-On with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB9 Bonnet Mount Bracket
The Aerpro APIZCBE2 is a complete UHF CB radio kit designed specifically for the Isuzu D-MAX and MU-X (2021-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB9 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the Isuzu D-MAX or MU-X (2021-on) is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APIZCBE2 is the compact (non-hideaway) counterpart to the APIZCBH2 hideaway kit for the Isuzu D-MAX and MU-X (2021-on). Where the APIZCBH2 uses the AP477H hideaway radio with a remote speaker microphone mounted out of sight, the APIZCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin.
The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB9 mounts on the passenger side bonnet hinge of the D-MAX and MU-X (2021-on) using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete compact UHF CB kit for Isuzu D-MAX and MU-X 2021-on: Radio, antenna, and bonnet bracket all included.
AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB9 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the D-MAX or MU-X.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
1x UHF CB Radio
1x Microphone (attached to radio)
1x Microphone Mounting Clip
1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
1x 4.5m RG58 Cable with Female FME Connector
1x FME to PL259 Adaptor
1x Mounting Nut
1x Weather Cap
APVCBB9 Bonnet Bracket:
1x Bonnet Mount Bracket
Technical specs
AP477E UHF CB Radio
Specification
Detail
Transmission Power
5W
Frequency
476.425MHz to 477.4125MHz
Channels
80
CTCSS/DCS Codes
Yes
Duplex Mode
Yes
Channel Scan
Yes
Squelch Control
Yes
Busy Channel Lockout
Yes
Call Tone Alter
Yes
Roger Beep
Yes
Button Beep
Yes
Volume Control
Yes
Backlit Display
White
Radio Type
Ultra-compact chassis
Microphone
Fixed cord
Voltage
12V and 24V DC
External Speaker Port
Yes
Mute Out
Yes
Antenna Connection
PL259
Radio Warranty
5 years
CBSTHD1 UHF Antenna
Specification
Detail
Frequency
477MHz
Gain
3.0dBi
Ground Independent
Yes
Elevated Feed
Yes
Total Length
700mm
Mast Length
570mm
Mast Width
40mm
Mast Type
Fibreglass radome
Spring Type
Stainless steel
Antenna Mounting Thread
16mm
Mast Mounting Thread
30mm
Cable Type
RG58 with female FME
Cable Length
4.5m
Colour
Black
Antenna Warranty
1 year
APVCBB9 Bonnet Bracket
Specification
Detail
Mounting Position
Passenger side bonnet hinge
Metal Type
4mm press-bent steel
Finish
Matte black powder coat
Antenna Mounting Hole
18mm
Cable Slot Size
5mm
Bracket Warranty
1 year
Compatible with
Make
Model
Years
Isuzu
D-MAX
2021-on
Isuzu
MU-X
2021-on
Frequently asked questions
What is the difference between the APIZCBE2 and the APIZCBH2? The APIZCBH2 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APIZCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB9 bonnet bracket for the Isuzu D-MAX and MU-X 2021-on.
What is included in the APIZCBE2 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB9 bonnet bracket.
Does the AP477E radio work with 24V vehicles? Yes. The AP477E operates on both 12V and 24V DC systems.
Does the APVCBB9 bracket require drilling into the D-MAX or MU-X? No. The APVCBB9 uses existing mounting points on the passenger side bonnet hinge of the Isuzu D-MAX and MU-X (2021-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APIZCBE2 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB9 bracket each carry a 1-year warranty.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Aerpro APFOCBE2 Complete 5W UHF CB Kit for Ford Ranger RA 2022-On with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB10 Bonnet Mount Bracket
The Aerpro APFOCBE2 is a complete UHF CB radio kit designed specifically for the Ford Ranger RA (2022-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB10 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the RA Ranger is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APFOCBE2 is the compact (non-hideaway) counterpart to the APFOCBH2 hideaway kit for the Ford Ranger RA. Where the APFOCBH2 uses the AP477H hideaway radio with a remote speaker microphone, the APFOCBE2 uses the AP477E standard radio where all controls are on the radio body itself. The AP477E mounts in a visible, accessible position within the cabin rather than hidden under the dash or seat.
The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. The fixed-cord microphone is attached directly to the radio body. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB10 mounts on the passenger side bonnet hinge of the RA Ranger using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete compact UHF CB kit for Ford Ranger RA 2022-on: Radio, antenna, and bonnet bracket all included.
AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB10 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the RA Ranger.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
1x UHF CB Radio
1x Microphone (attached to radio)
1x Microphone Mounting Clip
1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
1x 4.5m RG58 Cable with Female FME Connector
1x FME to PL259 Adaptor
1x Mounting Nut
1x Weather Cap
APVCBB10 Bonnet Bracket:
1x Bonnet Mount Bracket
Technical specs
AP477E UHF CB Radio
Specification
Detail
Transmission Power
5W
Frequency
476.425MHz to 477.4125MHz
Channels
80
CTCSS/DCS Codes
Yes
Duplex Mode
Yes
Channel Scan
Yes
Squelch Control
Yes
Busy Channel Lockout
Yes
Call Tone Alter
Yes
Roger Beep
Yes
Button Beep
Yes
Volume Control
Yes
Backlit Display
White
Radio Type
Ultra-compact chassis
Microphone
Fixed cord
Voltage
12V and 24V DC
External Speaker Port
Yes
Mute Out
Yes
Antenna Connection
PL259
Radio Warranty
5 years
CBSTHD1 UHF Antenna
Specification
Detail
Frequency
477MHz
Gain
3.0dBi
Ground Independent
Yes
Elevated Feed
Yes
Total Length
700mm
Mast Length
570mm
Mast Width
40mm
Mast Type
Fibreglass radome
Spring Type
Stainless steel
Antenna Mounting Thread
16mm
Mast Mounting Thread
30mm
Cable Type
RG58 with female FME
Cable Length
4.5m
Colour
Black
Antenna Warranty
1 year
APVCBB10 Bonnet Bracket
Specification
Detail
Mounting Position
Passenger side bonnet hinge
Metal Type
4mm press-bent steel
Finish
Matte black powder coat
Antenna Mounting Hole
18mm
Cable Slot Size
5mm
Bracket Warranty
1 year
Compatible with
Make
Model
Variant
Years
Ford
Ranger
RA
2022-on
Ford
Everest
UB
2022-on
Frequently asked questions
What is the difference between the APFOCBE2 and the APFOCBH2? The APFOCBH2 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APFOCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB10 bonnet bracket for the Ford Ranger RA 2022-on.
What is included in the APFOCBE2 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB10 bonnet bracket.
Does the AP477E radio work with 24V vehicles? Yes. The AP477E operates on both 12V and 24V DC systems, making it suited to passenger vehicles, 4WDs, utes, trucks, and vans.
Does the APVCBB10 bracket require drilling into the RA Ranger? No. The APVCBB10 uses existing mounting points on the passenger side bonnet hinge of the Ford Ranger RA (2022-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APFOCBE2 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB10 bracket each carry a 1-year warranty.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
