Clean 9" Wireless CarPlay Upgrade for the Mazda 3 BL SWC and Vehicle Menu Retained, No Dash Modification Required Product Overview The Aerpro AMDMZ4 is a complete head unit upgrade kit for the Mazda 3 BL (2009–2013) in non-amplified specification. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls and full vehicle menu access. Compared to some Aerpro Mazda kits, the AMDMZ4 is a more straightforward installation: no dash modification is required, and vehicle menu access is fully retained without the top display complications seen on other platforms. The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Note that the phone button on the steering wheel is not supported by this kit, all other SWC functions are retained. Factory reverse camera, USB input, and AUX input are not applicable or retained on this kit. Features & Benefits SWC retained — phone button not supported — all factory steering wheel controls carry over via the SWC interface harness and patch lead, with the exception of the phone button which is not supported by this kit Vehicle menu fully retained — the Mazda 3 BL vehicle menu is accessible after installation without any additional relocation panels or displays required; a clean, complete retention No dash modification required — unlike the Mazda BT-50 AMDMZ1, the AMDMZ4 installation does not require cutting or trimming the factory dash sub frame; a more straightforward fit for the BL platform Non-amplified models only — factory-amplified Mazda 3 BL variants are not compatible with this kit Black vehicle-specific facia kit — trim-matched to the Mazda 3 BL interior for a clean factory-finish installation Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB connection also supported for simultaneous phone charging 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory Mazda 3 BL head unit with full touch control across navigation, media, and settings Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles without a factory reverse camera 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for Mazda 3 BL cabin-specific tuning Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes (phone button not supported) Vehicle menu Yes Factory reverse camera N/A Factory USB input N/A Factory AUX input N/A Factory amplifier Not retained — non-amplified models only Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Mazda 3 BL (2009–2013) — non-amplified variants only Not compatible with factory-amplified Mazda 3 BL variants Not compatible with Mazda 3 BM (2013–2019) or BN (2016–2019) — different platforms requiring different kits Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub) Second camera input supports an optional front or towing camera (720P AHD compatible) Weight Not specified Frequently Asked Questions Does the phone button on the Mazda 3 BL steering wheel work after installation? No — the phone button is specifically not supported by the AMDMZ4. All other factory steering wheel control functions are retained. If phone button support is essential, this kit is not suitable for your build. How do I know if my Mazda 3 BL is non-amplified? A non-amplified Mazda 3 BL runs all speaker wiring directly from the factory head unit. A factory-amplified variant has a separate amplifier unit mounted elsewhere in the vehicle with its own speaker wiring. The Aerpro What Fits Your Car Guide can help confirm your specific build. Is the vehicle menu fully accessible after installation? Yes — the vehicle menu is fully retained on the AMDMZ4 without any display relocation or additional components. This is a clean, complete retention compared to some other Mazda kits where top display complications affect menu accessibility. Does this suit later Mazda 3 models (BM or BN)? No — the AMDMZ4 is designed for the Mazda 3 BL platform (2009–2013). The BM (2013–2019) and BN (2016–2019) generations are different platforms and require different kits. Is there a factory reverse camera on the Mazda 3 BL to retain? No — the Mazda 3 BL is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in the kit adds reversing visibility from scratch. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

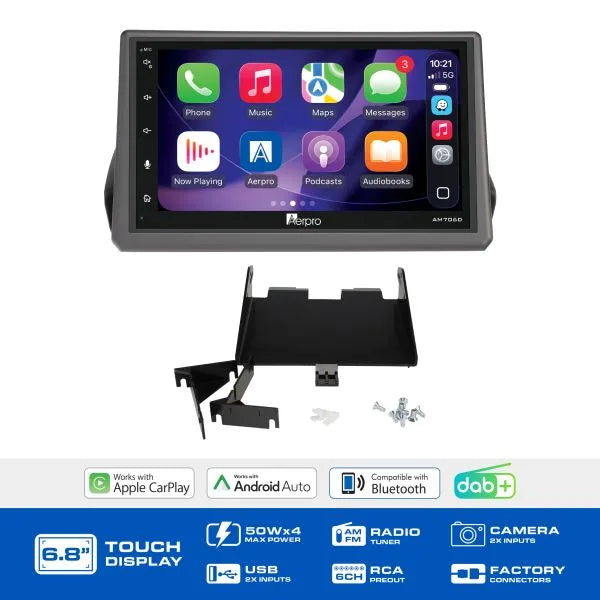

Aerpro AM8548K 6.8 Inch L-Shape Multimedia Receiver Mazda CX3 2016-2020 and Mazda 2 2014-ON Non-Amplified Wireless Apple CarPlay Android Auto DAB+ Bluetooth V5 4x50W 6 RCA Preouts Infolink Plus The Aerpro AM8548K is a complete head unit upgrade kit for Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON (DJ) non-amplified variants. 6.8" capacitive touchscreen (1024x600), L-shape chassis, wireless and wired Apple CarPlay and Android Auto, DAB+, Bluetooth V5, 4x50W max output, 6-channel 4V RCA preouts (3 pair: front/rear/subwoofer), 13-band EQ, time alignment. Infolink Plus input for select OEM function integration. SWC adaptor sold separately. Important: Suits non-amplified variants of Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON DJ only. Use the Aerpro What Fits Your Car Guide to confirm fitment. Steering wheel control adaptor sold separately. Product overview The AM8548K is Aerpro's complete multimedia upgrade kit for Mazda CX3 2016-2020 and Mazda 2 Demio 2014-ON DJ non-amplified variants. The kit includes the 6.8" L-shape multimedia receiver and vehicle-specific installation kit. The L-shape chassis uses a shallow-mount base with a clear upper section, suited to vehicles where a standard double DIN chassis cannot clear the dash cavity. Infolink Plus input supports select factory functions including climate control, parking sensors, and gauges depending on the vehicle and module. Wireless and wired Apple CarPlay and Android Auto. DAB+ digital radio with AM/FM and RDS. Bluetooth V5 with HD Voice. 4x50W max output with 6-channel 4V RCA preouts for front, rear, and subwoofer. 13-band EQ, time alignment, and subwoofer level control. Dual 720P AHD-compatible camera inputs. SWC adaptor not included, sold separately. Features and benefits 6.8" capacitive touchscreen (1024x600): Clear display in the L-shape chassis format. L-shape chassis: Shallow-mount base with clear upper section for vehicles where a standard double DIN chassis will not clear the dash cavity. Wireless and wired Apple CarPlay and Android Auto. DAB+ digital radio with AM/FM and RDS. Bluetooth V5 with HD Voice (HFP 1.6). 4x50W max output with 6-channel 4V RCA preouts (front/rear/subwoofer). 13-band graphic EQ, time alignment, loudness, LPF, and 6+2 custom preset EQs. Infolink Plus input: Supports select factory functions such as climate control, parking sensors, and gauges (vehicle and module dependent). Dual 720P AHD-compatible camera inputs: Reverse and second camera inputs. Composite video output. Dual rear USB inputs: CarPlay/Android Auto with charging (USB1) and media with charging (USB2). 6-colour button illumination (red, yellow, green, blue, purple, white). Customisable boot screen and 12 preset wallpapers. Steering wheel control compatible: SWC adaptor sold separately. Suits Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON DJ non-amplified variants. Technical specs Specification Detail SKU AM8548K Brand Aerpro Display Size 6.8 inch Resolution 1024x600 Touchscreen Capacitive OS Linux DIN Style 2 DIN body, L-shape chassis Max Power Output 4 x 50W RCA Preouts 4V, 6 RCA, 3 pair (front/rear/subwoofer) Apple CarPlay Yes (wireless and wired) Android Auto Yes (wireless and wired) DAB+ Yes AM/FM Presets AM 12 / FM 18 RDS Yes Bluetooth Version V5 (A2DP, AVRCP, HFP, PBAP) HFP Profile HFP 1.6 (HD Voice) Microphone Internal and external USB1 (Rear) CarPlay, Android Auto, charging (5V/1.5A) USB2 (Rear) Media, charging (5V/1.5A) USB Max Capacity FAT32 32GB Rear A/V Input Yes (RCA, 3 connectors) Composite Video Output Yes Reverse Camera Input Yes (720P AHD compatible) Second Camera Input Yes (720P AHD compatible) Infolink Plus Input Yes EQ 13-band graphic Preset EQs 6+2 custom Time Alignment Yes LPF Yes Subwoofer Level Control Yes Button Illumination 6-colour (red, yellow, green, blue, purple, white) SWC Aerpro SWC adaptor (sold separately) Vehicle Mazda CX3 2016-2020, Mazda 2 (Demio) 2014-ON DJ What's in the box Aerpro 6.8" L-shape multimedia receiver Vehicle-specific installation kit Frequently asked questions Does the AM8548K suit all Mazda CX3 and Mazda 2 variants? No. The AM8548K suits non-amplified variants of Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON DJ only. Use the Aerpro What Fits Your Car Guide to confirm your specific variant before purchasing. Is the steering wheel control adaptor included? No. The AM8548K is compatible with steering wheel controls but the SWC adaptor is sold separately. Contact us for the correct adaptor for your vehicle. What is the L-shape chassis on the AM8548K? The L-shape chassis uses a shallow-mount base with a clear upper section rather than a full double DIN enclosure. This suits vehicles where a standard double DIN chassis cannot clear the depth of the dash cavity behind the head unit opening. What does Infolink Plus do on the AM8548K? Infolink Plus input supports select factory vehicle functions such as climate control display, parking sensor readout, and gauge information on the head unit screen. Functionality is vehicle and module dependent. Does the AM8548K support a factory reverse camera? The AM8548K has a 720P AHD-compatible reverse camera input. Retention of a factory reverse camera depends on the vehicle and installation. Contact us to confirm camera compatibility for your specific variant. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer Support If you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment Buying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

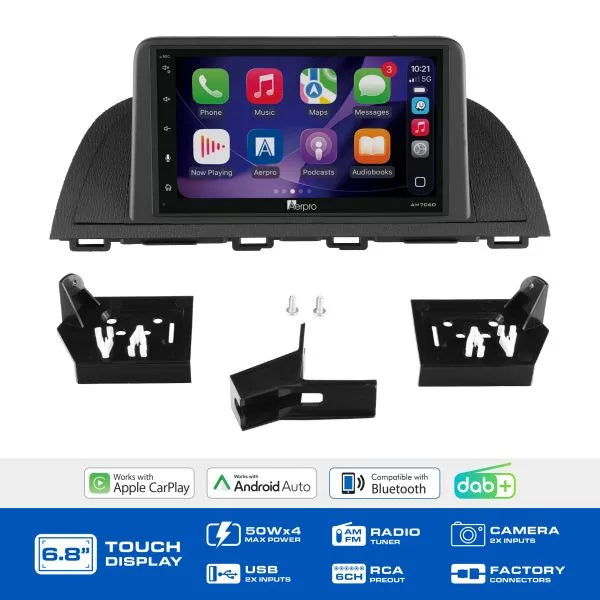

Aerpro AM8462K 6.8" L-Shape Multimedia Receiver Complete Kit for Mazda 3 2013-2016 Non-Amp The Aerpro AM8462K is a complete head unit upgrade kit for the Mazda 3 (BM, 2013-2016) non-amplified vehicles, featuring a 6.8" capacitive touchscreen multimedia receiver with wireless Apple CarPlay and Android Auto, built-in DAB+, Bluetooth V5, 4 x 50W max power, 13-band EQ, and 6 x 4V RCA preouts. The kit includes a vehicle-specific installation kit and retains steering wheel controls with a compatible SWC adaptor. Product overview The AM8462K uses an L-chassis design with a shallow mount base and a clear upper section, specifically suited to vehicles where a standard double DIN chassis would not clear the dash cavity. The 6.8" 1024 x 600 capacitive touchscreen provides a clear and responsive display for navigation, media, and phone functions. Wireless CarPlay and Android Auto connect to compatible smartphones without a cable, and the built-in Bluetooth V5 handles hands-free calling with HFP 1.6 HD Voice and A2DP audio streaming. The Infolink Plus input supports integration with select factory functions including climate control, parking sensors, and gauges depending on the vehicle and module. Dual rear camera inputs are AHD 720P compatible, supporting reverse, towing, or front camera additions. The 13-band graphic EQ with time alignment, 6 x 4V RCA preouts, and subwoofer level control provide a complete audio tuning platform for aftermarket amplifier and speaker setups. Note that steering wheel control retention requires a compatible Aerpro SWC adaptor, sold separately. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchasing. Features and benefits Complete head unit upgrade kit: Includes the multimedia receiver and a vehicle-specific installation kit with all parts required to complete the installation and retain important vehicle features for the Mazda 3 BM (2013-2016). L-chassis design: The shallow mount base chassis with clear upper section suits vehicles where a standard double DIN chassis cannot clear the dash cavity, providing a factory-fit appearance in the Mazda 3 BM. 6.8" 1024x600 capacitive touchscreen: A 6.8-inch capacitive touchscreen with 1024 x 600 resolution provides a clear, bright, and responsive display for all media, navigation, and phone functions. Wireless Apple CarPlay and Android Auto: Connects to compatible iPhones and Android smartphones wirelessly for instant access to maps, music, calls, and messages without a USB cable. Built-in DAB+ digital radio: Integrated DAB+ tuner provides access to digital radio stations with clearer reception and more station options than standard AM/FM. Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 handles hands-free calling with HD Voice quality and A2DP wireless audio streaming for a connected in-car experience. 4 x 50W max power output: Four channels of 50W max power provide strong output for factory speaker replacements, with 6 x 4V RCA preouts for aftermarket amplifier integration. 13-band graphic EQ with time alignment: A 13-band EQ covering 32Hz to 16kHz, time alignment, LPF for subwoofer control, and six preset EQ modes plus two custom slots provide a comprehensive audio tuning platform. Infolink Plus input: Supports integration with select factory functions including climate control, parking sensors, and gauges, vehicle and module dependent. Dual AHD 720P camera inputs: Two rear camera inputs supporting AHD 720P allow reverse, towing, and front cameras to be added for improved safety and convenience. Multi-colour key illumination: Six selectable key backlight colours (red, yellow, green, blue, purple, white) allow the controls to be matched to the vehicle interior. Customisable boot screen and wallpaper: The head unit supports a custom startup image via JPG upload and twelve selectable preset wallpapers for a personalised display. Technical specs Specification Detail SKU AM8462K Brand Aerpro Barcode 9317114958136 Compatible Vehicle Mazda 3 (BM) 2013-2016, non-amplified Display Size 6.8 inches Display Resolution 1024 x 600 Touchscreen Type Capacitive DIN Size Double DIN, L-chassis OS Linux Power Output 4 x 50W max (4 ohm) RCA Preouts 6 x 4V (front, rear, subwoofer) Smartphone Connectivity Apple CarPlay and Android Auto (wireless and wired) Bluetooth Version V5 (A2DP, AVRCP, HFP 1.6, PBAP) DAB+ Yes AM Presets 12 FM Presets 18 RDS Yes USB Inputs 2 x rear (CarPlay/Android Auto + media, 5V/1.5A each) USB Max Capability FAT32, 32GB Reverse Camera Input Yes, AHD 720P compatible Second Camera Input Yes, AHD 720P compatible Infolink Plus Input Yes EQ 13-band graphic EQ Time Alignment Yes Subwoofer Level Control Yes Steering Wheel Control Yes, with Aerpro SWC adaptor (sold separately) Key Illumination 6-colour options (red, yellow, green, blue, purple, white) Media Playback MP3, MP4, MKV, FLAC, Xvid Compatible with The Aerpro AM8462K is confirmed for the Mazda 3 (BM, 2013-2016) non-amplified variants. It is not confirmed for Mazda 3 models with factory amplification. Use the Aerpro What Fits Your Car Guide to confirm compatibility for your specific vehicle before purchasing. Steering wheel control retention requires a compatible Aerpro SWC adaptor, sold separately. Frequently asked questions Does the AM8462K suit the Mazda 3 with a factory amplifier?No. The AM8462K is confirmed for non-amplified Mazda 3 BM (2013-2016) variants. Contact us for guidance on compatible kits for factory-amplified Mazda 3 models. Is a steering wheel control adaptor included in the AM8462K kit?Steering wheel control retention is supported but requires a compatible Aerpro SWC adaptor, which is sold separately. Contact us for guidance on the correct SWC adaptor for your Mazda 3. Does the AM8462K support wireless CarPlay and Android Auto?Yes. The AM8462K supports both Apple CarPlay and Android Auto wirelessly, as well as wired connection via the rear USB input. What is the Infolink Plus input on the AM8462K?The Infolink Plus input supports integration with select factory vehicle functions including climate control, parking sensors, and gauges. Availability depends on the specific vehicle and any additional Aerpro modules required. Contact us for further guidance on Infolink Plus compatibility for the Mazda 3 BM. Can aftermarket amplifiers be connected to the AM8462K?Yes. The AM8462K features 6 x 4V RCA preouts covering front, rear, and subwoofer channels for connecting aftermarket amplifiers. Contact us for guidance on compatible amplifier options for your setup. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer Support If you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment Buying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

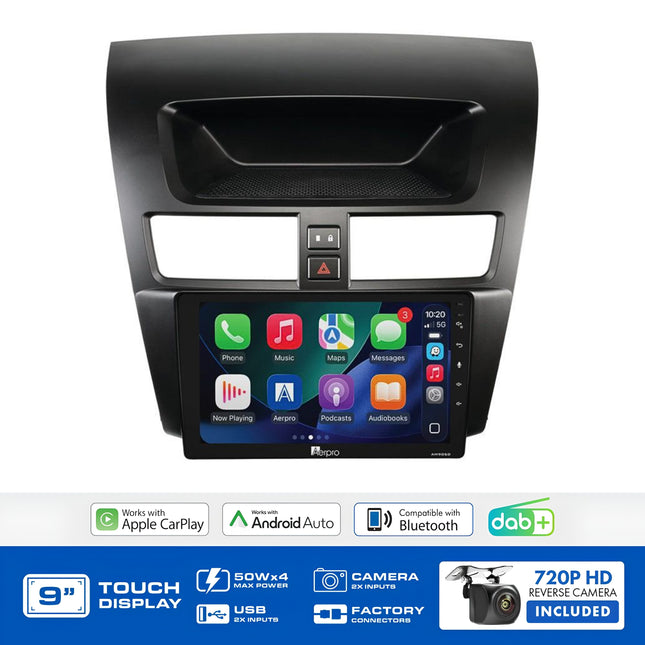

9" Wireless CarPlay for the Mazda BT-50 Dash Modification Required, Top Display Not Retained, Read Before Purchasing Product Overview The Aerpro AMDMZ1 is a complete head unit upgrade kit for the Mazda BT-50 (2012–2018) in non-touchscreen variants. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 retaining factory steering wheel controls, parking tones (if equipped), and limited vehicle menu access. This installation has several important requirements and limitations that buyers should fully understand before purchasing: Dash modification required: The plastic sub frame under the factory radio must be cut to seat the new head unit. This is a physical, non-reversible modification to the factory dash structure. Professional installation is strongly recommended. Top factory display not retained: The secondary top display in the BT-50 (which shows trip and clock information) is not retained or relocated by this kit. The steering wheel controls do technically retain access to trip and clock adjustments via SWC however, without the top display present and active, those adjustments cannot be viewed. A separate relocation panel or harness would be required to relocate the display; this kit does not include one and no specific part number is supplied by Aerpro for this purpose. Bluetooth unpairing required: All Bluetooth devices must be unpaired from the factory Bluetooth system before the factory head unit is removed. Failure to do this before removal may result in pairing issues on other devices. Non-touchscreen models only: BT-50 variants with a factory touchscreen fitted are not compatible with this kit. Features & Benefits SWC retained (including phone button on selected models) — SWC interface harness and patch lead included; full SWC retention including phone button applies to selected BT-50 builds, not all variants Parking tones retained (if equipped) — factory parking tone function is preserved on BT-50 models where fitted; not applicable on all variants Dash sub frame modification required — the plastic factory sub frame under the radio must be physically cut to allow the new head unit to fit; not reversible; professional installation recommended Top display not retained — trip and clock access lost — the factory top display is removed with this installation and not relocated; SWC technically retains trip/clock access but these settings cannot be viewed without the display being relocated separately No relocation panel included — if retaining visible access to trip and clock settings is important, a separate relocation panel and harness (not supplied or specified by Aerpro for this kit) would be required Bluetooth unpairing step required before removal — all devices paired to the factory Bluetooth must be unpaired before the factory head unit is uninstalled Non-touchscreen models only — BT-50 variants with a factory touchscreen are not compatible Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB connection also supported for simultaneous phone charging 9" capacitive touchscreen at 1024x600 resolution — major upgrade over the non-touchscreen factory BT-50 unit Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles without factory reverse camera 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes (phone button on selected models only) Parking tones Yes (if equipped) Vehicle menu / trip-clock SWC access retained; not viewable without top display relocation Top factory display Not retained — no relocation panel included Factory reverse camera N/A Factory USB input N/A Factory AUX input N/A Dash modification Required — sub frame cutting Bluetooth unpairing Required before factory head unit removal Park brake requirement Not required Compatible With / Goes Well With Mazda BT-50 (2012–2018) without factory touchscreen Not compatible with Mazda BT-50 variants fitted with a factory touchscreen Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub) Second camera input supports an optional front or towing camera (720P AHD compatible) Weight Not specified Frequently Asked Questions What happens to the factory top display after installation? The factory top display (which shows trip computer and clock information) is removed with the factory head unit and is not retained or relocated by this kit. Without a separate relocation panel and harness — not included in this kit — the display will no longer be present in the vehicle. Can I still access trip and clock settings after installation? The SWC retains the button inputs for trip and clock adjustments, but these changes cannot be viewed without the top display present. In practice, trip and clock settings are no longer accessible unless the factory top display is relocated elsewhere in the vehicle using a separately sourced panel and harness. What does the dash modification involve? The plastic sub frame beneath the factory radio in the BT-50 dash must be cut to create clearance for the new head unit. This is a physical modification that is not reversible. Professional installation by an experienced installer is strongly recommended given the cutting involved. Why do I need to unpair Bluetooth devices before removing the factory head unit? The factory Bluetooth system stores paired device data. Removing the head unit without first clearing paired devices can cause issues with how those devices reconnect to new Bluetooth systems. Unpairing all devices from the factory head unit before removal is a required pre-installation step. Does this suit my BT-50 if it has a factory touchscreen? No — the AMDMZ1 is designed for non-touchscreen BT-50 variants only. Models with a factory touchscreen are a different configuration and require a different kit.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

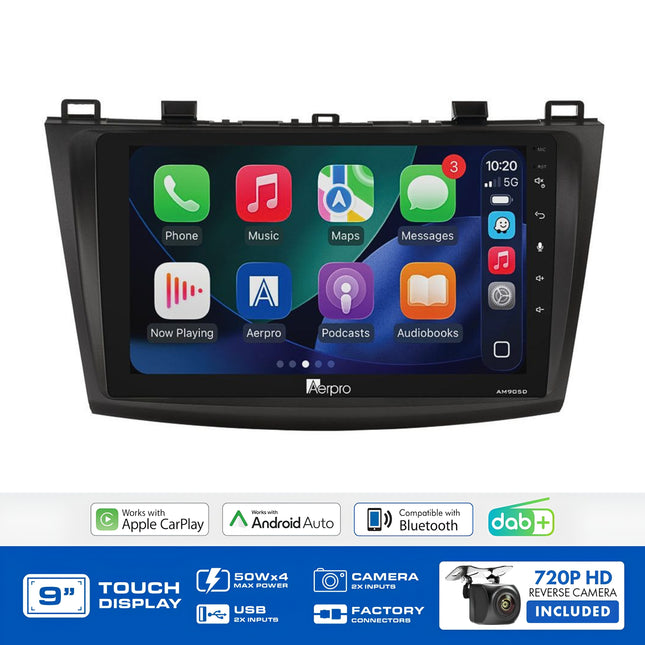

9" Wireless CarPlay for the Bose-Equipped Mazda 3 BL Factory Bose Amplifier Retained, SWC Carried Over Product Overview The Aerpro AMDMZ5 is the Bose-amplified counterpart to the AMDMZ4, designed specifically for the Mazda 3 BL (2009–2013) fitted with the factory Bose amplified audio system. Where the AMDMZ4 suits non-amplified variants, the AMDMZ5 is the correct kit for BL owners with Bose retaining the factory Bose amplifier and its speaker outputs after the head unit swap. Using the non-amplified AMDMZ4 on a Bose-equipped BL would result in loss of sound through the Bose speakers; the AMDMZ5 resolves this. The kit adds wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 to the 9" capacitive touchscreen, and retains factory steering wheel controls. The phone button is not supported, and vehicle menu access is not retained on this kit. The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Features & Benefits Retains factory Bose amplified system — the defining advantage of this kit over the AMDMZ4; the factory Bose amplifier and speaker outputs are preserved, maintaining the Bose audio system's performance and character after the head unit upgrade SWC retained — phone button not supported — all factory steering wheel controls are retained via the SWC interface harness and patch lead, with the exception of the phone button which is not supported Bose-specific kit — not interchangeable with AMDMZ4 — using the AMDMZ4 (non-amplified) on a Bose BL would result in loss of audio through the Bose speakers; the AMDMZ5 is the correct kit for amplified variants Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB connection also supported for simultaneous phone charging 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory Mazda 3 BL Bose head unit with full touch control across navigation, media, and settings Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles without a factory reverse camera Black vehicle-specific facia kit — trim-matched for a clean factory-finish installation in the Mazda 3 BL 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier additions alongside the retained Bose system via front/rear/sub preamp channels 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes (phone button not supported) Factory Bose amplifier Yes — retained Vehicle menu Not retained Factory reverse camera N/A Factory USB input N/A Factory AUX input N/A Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Mazda 3 BL (2009–2013) with factory Bose amplified audio system Not compatible with non-amplified Mazda 3 BL variants — use AMDMZ4 for those Not compatible with Mazda 3 BM (2013–2019) or BN (2016–2019) — different platforms requiring different kits Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Second camera input supports an optional front or towing camera (720P AHD compatible) Weight Not specified Frequently Asked Questions How does the AMDMZ5 differ from the AMDMZ4? The AMDMZ5 is for Mazda 3 BL variants with the factory Bose amplified audio system; the AMDMZ4 is for non-amplified variants. The AMDMZ5 retains the factory Bose amplifier while the AMDMZ4 does not — the two kits are not interchangeable across amplified and non-amplified builds. Will my factory Bose speakers still work after installation? Yes — the AMDMZ5 retains the factory Bose amplifier, preserving audio output through the Bose speaker system. Using the non-amplified AMDMZ4 on a Bose-equipped BL would result in no sound through those speakers, which is why the correct kit selection matters. Does the phone button on the steering wheel work after installation? No — the phone button is specifically not supported by the AMDMZ5. All other factory steering wheel control functions are retained. If phone button support is a requirement, this kit is not suitable. How do I know if my Mazda 3 BL has the factory Bose system? Bose-equipped Mazda 3 BL models have "Bose" logos on the speaker grilles and typically came with the higher trim variants. The factory head unit may also display Bose branding. The Aerpro What Fits Your Car Guide can confirm which kit suits your specific build. Is the vehicle menu accessible after installation? No — vehicle menu access is not retained on the AMDMZ5. This differs from the AMDMZ4, which does retain vehicle menu access. If vehicle menu retention is important, confirm whether your BL is amplified or non-amplified, as only the non-amplified AMDMZ4 retains this function.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

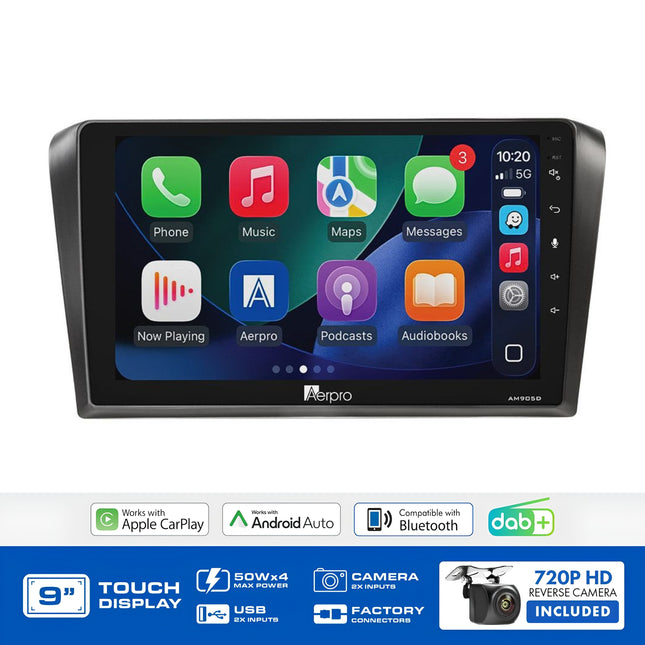

9" Wireless CarPlay Upgrade for the Original Mazda 3 BK Silver Facia, SWC Retained, Non-Amplified Product Overview The Aerpro AMDMZ6 is a complete head unit upgrade kit for the Mazda 3 BK (2004–2009) in non-amplified specification. The first-generation Mazda 3 platform gets a significant jump in connectivity with this kit replacing the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5, while retaining factory steering wheel controls. The kit is distinguished by its silver facia matching the BK's interior trim rather than the black facia used on the later BL kits along with the SWC interface harness, SWC patch lead, and a 720P AHD universal rear camera. Note that no antenna adaptor is included in this kit, as the Mazda 3 BK uses a factory antenna connection that does not require one. Factory reverse camera, USB input, AUX input, and vehicle menu access are not applicable or retained on this kit. Features & Benefits Silver vehicle-specific facia kit — matched to the first-generation Mazda 3 BK interior trim; the silver finish distinguishes this kit from the black facia used on the later BL (AMDMZ4/AMDMZ5) kits SWC retained — the SWC interface harness and patch lead carry over all factory steering wheel control functions; phone button support is not explicitly excluded by the supplier data for this variant Non-amplified models only — factory-amplified Mazda 3 BK variants are not compatible with this kit No antenna adaptor required — the Mazda 3 BK factory antenna connection does not require an adaptor; this kit does not include one and none is needed Wireless Apple CarPlay & Android Auto — a major connectivity upgrade for a vehicle that predates smartphone integration; connect over Wi-Fi for maps, music, calls, and messages without cables; wired USB also supported 9" capacitive touchscreen at 1024x600 resolution — a substantial display upgrade over the original factory BK head unit with full touch control across navigation, media, and settings Built-in DAB+ digital radio — digital audio quality and expanded station access that the factory BK radio cannot offer; AM/FM with RDS, 18 FM and 12 AM presets also included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle not factory-equipped with a reverse camera 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for BK cabin-specific tuning Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes Factory reverse camera N/A Factory USB input N/A Factory AUX input N/A Vehicle menu N/A Factory amplifier Not retained — non-amplified models only Antenna adaptor Not required / not included Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Mazda 3 BK (2004–2009) — non-amplified variants only Not compatible with factory-amplified Mazda 3 BK variants Not compatible with Mazda 3 BL (2009–2013) — use AMDMZ4 (non-amplified) or AMDMZ5 (Bose amplified) for those models Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub) Second camera input supports an optional front or towing camera (720P AHD compatible) Weight Not specified Frequently Asked Questions How does the AMDMZ6 differ from the AMDMZ4 for the Mazda 3 BL? The AMDMZ6 suits the older BK generation (2004–2009) while the AMDMZ4 suits the BL (2009–2013). Key differences: the AMDMZ6 uses a silver facia (the AMDMZ4 uses black), does not include an antenna adaptor, and does not retain the vehicle menu. The BL-specific kits are not interchangeable with the BK platform. Is the phone button on the steering wheel retained? The supplier specification for this kit states SWC is retained without explicitly excluding the phone button — unlike the AMDMZ4 and AMDMZ5 kits which specifically note the phone button is not supported. Whether the BK's phone button is functional after installation should be confirmed using the Aerpro What Fits Your Car Guide or by checking with Aerpro directly. How do I know if my Mazda 3 BK is non-amplified? A non-amplified BK runs all speaker wiring directly from the factory head unit with no separate amplifier unit mounted elsewhere in the vehicle. If your BK has a separate amplifier (typically under a seat or in the boot) with its own speaker wiring, it is an amplified variant and requires a different kit. Why is no antenna adaptor included in this kit? The Mazda 3 BK uses a factory antenna connection type that is compatible with the AM905D head unit directly, without requiring an adaptor. This differs from later Mazda 3 BL kits (AMDMZ4/AMDMZ5) which include an antenna adaptor for that platform's connection type. Does the Mazda 3 BK have a factory reverse camera? No — the Mazda 3 BK is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

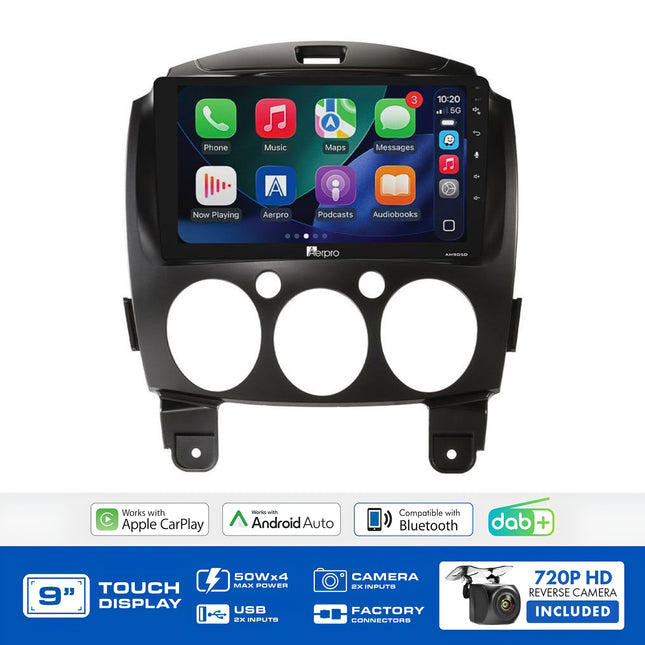

9" Wireless CarPlay for the Mazda 2 DE SWC Models Only, Clean Factory Fit, AUX Not Retained Product Overview The Aerpro AMDMZ7 is a complete head unit upgrade kit for the Mazda 2 DE Series 1 and Series 2 (2007–2014) fitted with factory steering wheel controls. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining the factory SWC functionality. The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Note that factory AUX input is not retained on this kit where the Mazda 2 DE is equipped with an AUX port, it will not carry over after installation. Features & Benefits SWC-equipped models only — the AMDMZ7 is designed for Mazda 2 DE variants with factory steering wheel controls; the SWC interface harness and patch lead carry over all factory SWC functions after installation Factory AUX input not retained — where the Mazda 2 DE is fitted with a factory AUX port, it will not be retained after installation; CarPlay, Android Auto, and Bluetooth Audio replace the AUX input function Wireless Apple CarPlay & Android Auto — a significant upgrade for a compact city car that predates smartphone integration; connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported 9" capacitive touchscreen at 1024x600 resolution — a large, responsive touch display in a compact vehicle; maps, media, and settings all accessible through a single screen Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included Black vehicle-specific facia kit — matched to the Mazda 2 DE interior trim for a clean, factory-finish installation Antenna adaptor included — ensures correct connection between the head unit and the Mazda 2 DE factory antenna 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle without factory reverse camera capability 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes Factory AUX input No Factory reverse camera N/A Factory USB input N/A Vehicle menu N/A Factory amplifier N/A Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Mazda 2 DE Series 1 (2007–2010) with factory steering wheel controls Mazda 2 DE Series 2 (2010–2014) with factory steering wheel controls Not compatible with Mazda 2 DE variants without factory steering wheel controls — a different kit is required Not compatible with Mazda 2 DJ (2014–2022) — a different platform requiring a different kit Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Second camera input supports an optional front or towing camera (720P AHD compatible) Weight Not specified Frequently Asked Questions How do I know if my Mazda 2 DE has steering wheel controls? Mazda 2 DE models with SWC have buttons mounted on the steering wheel for controlling audio volume, track selection, and phone calls. If your steering wheel has no such buttons, your vehicle does not have SWC and this kit is not suitable. Is the factory AUX input retained after installation? No — the factory AUX input is not retained on the AMDMZ7, even on DE variants that have one fitted. CarPlay, Android Auto, and Bluetooth Audio via the head unit replace the AUX function. Does this suit Mazda 2 DE variants without steering wheel controls? No — the AMDMZ7 is designed for SWC-equipped DE variants only. DE models without SWC require a different kit. Use the Aerpro What Fits Your Car Guide to find the correct option. Does this suit the Mazda 2 DJ (2014-2022)? No — the AMDMZ7 covers the DE generation (2007–2014) only. The DJ is a different platform and requires a different kit. Is there a difference in fitment between DE Series 1 and Series 2? Both Series 1 (2007–2010) and Series 2 (2010–2014) are covered by the AMDMZ7 where SWC is fitted. There are no known fitment differences between the two series for this kit, but confirming with the Aerpro What Fits Your Car Guide for your specific build is always recommended.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

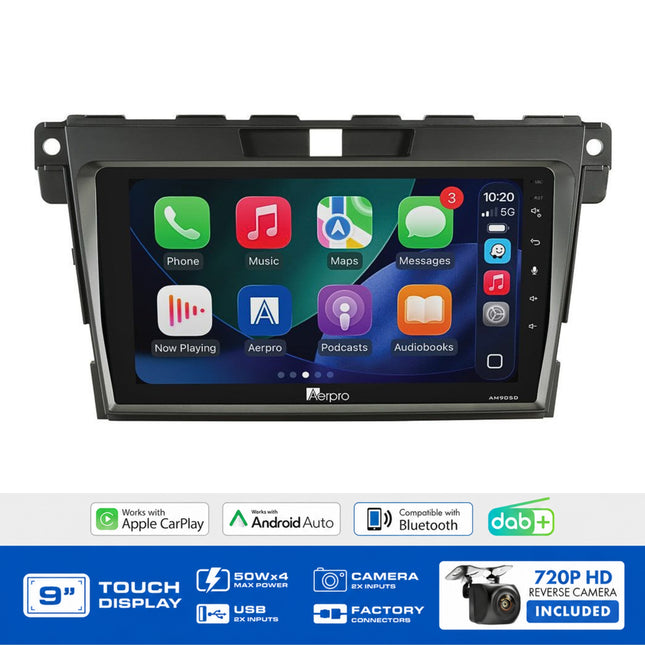

9" Wireless CarPlay for the Mazda CX7 ER Series 2 Non-Amplified, SWC and Vehicle Menu Retained, Phone Button Not Supported Product Overview The Aerpro AMDMZ20 is a complete head unit upgrade kit for the Mazda CX7 ER Series 2 (2009–2012) in non-amplified specification. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 retaining factory steering wheel controls and full vehicle menu access. The kit includes the AM905D multimedia receiver, matte black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Note that the phone button on the steering wheel is not supported by this kit. Factory reverse camera, USB, AUX, and amplifier integration are all N/A for this platform. Features & Benefits SWC retained — phone button not supported — all factory CX7 steering wheel controls carry over via the SWC interface harness and patch lead, with the exception of the phone button which is not supported Vehicle menu retained — full vehicle menu access is preserved after installation with no additional display relocation required Non-amplified models only — factory-amplified CX7 ER Series 2 variants are not compatible with this kit Matte black vehicle-specific facia kit — matched to the CX7 ER Series 2 interior trim Antenna adaptor included — ensures correct antenna connection for the CX7 platform Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging 9" capacitive touchscreen at 1024x600 resolution — a significant display upgrade over the factory CX7 unit with full touch control across navigation, media, and settings Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles not factory-equipped with a reverse camera 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes (phone button not supported) Vehicle menu Yes Factory reverse camera N/A — not factory equipped Factory AUX / USB N/A Factory amplifier Not retained — non-amplified models only Parking tones N/A Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Mazda CX7 ER Series 2 (2009–2012) — non-amplified variants only Not compatible with factory-amplified CX7 ER Series 2 variants Not compatible with CX7 ER Series 1 (2006–2009) — confirm fitment for earlier variants using the Aerpro What Fits Your Car Guide Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub) Second camera input supports an optional front or towing camera (720P AHD compatible) Weight Not specified Frequently Asked Questions Does the phone button on the CX7 steering wheel work after installation? No — the phone button is specifically not supported by the AMDMZ20. All other factory steering wheel control functions are retained. If phone button support is a requirement, this kit is not suitable. What is the difference between CX7 Series 1 and Series 2? The Mazda CX7 ER ran in two series: Series 1 (2006–2009) and the facelifted Series 2 (2009–2012). The AMDMZ20 covers Series 2 only. Confirm whether Series 1 variants are also covered using the Aerpro What Fits Your Car Guide before purchasing for an earlier CX7. How do I know if my CX7 ER Series 2 is non-amplified? A non-amplified CX7 has all speaker wiring running directly from the factory head unit with no separate amplifier unit mounted elsewhere in the vehicle. If your CX7 has a separate amp (typically under a seat or in the boot) with its own speaker wiring, it is an amplified variant and requires a different kit. Is the vehicle menu accessible after installation? Yes — the vehicle menu is fully retained on the AMDMZ20 without any additional display relocation or components required. Does the Mazda CX7 have a factory reverse camera? No — the CX7 ER Series 2 is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

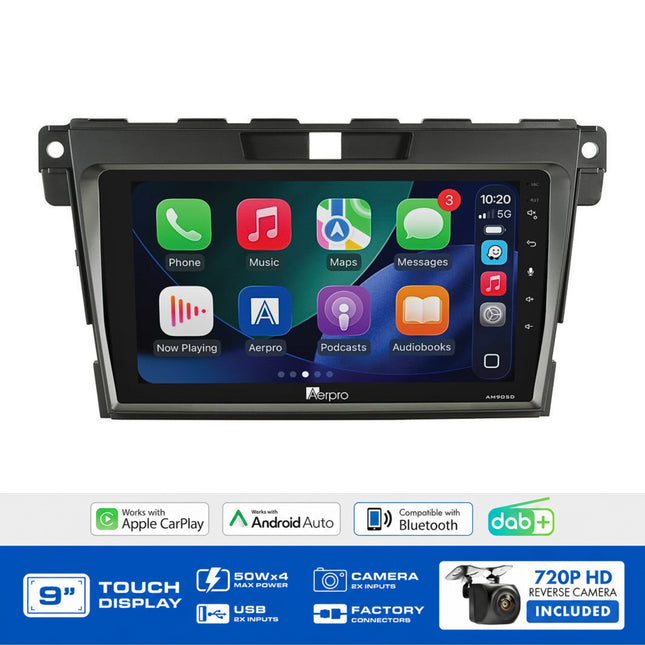

9" Wireless CarPlay for the Amplified Mazda CX7 ER Series 2 Factory Amp Retained, Line Level Converter Must Be Used Product Overview The Aerpro AMDMZ21 is the amplified counterpart to the AMDMZ20, designed specifically for the Mazda CX7 ER Series 2 (2009–2012) fitted with a factory amplified audio system. It retains the factory amplifier, steering wheel controls, and vehicle menu access while adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 via a 9" capacitive touchscreen at 1024x600 resolution. Critical installation requirement: The SWC Interface Harness in this kit includes a line level converter. This converter MUST be connected during installation. Bypassing it or failing to use it correctly risks damage to the factory amplifier. Using the non-amplified AMDMZ20 on an amplified CX7 will also risk amplifier damage. Ensure the correct kit is ordered for your vehicle's specification. The kit includes the AM905D multimedia receiver, matte black facia kit, SWC interface harness (with line level converter), SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. The phone button on the steering wheel is not supported on this kit. Features & Benefits Factory amplifier retained — the amplified CX7's audio system is preserved after installation; the line level converter in the SWC harness is what enables safe integration without damage to the amplifier Line level converter included and mandatory — the SWC Interface Harness contains a line level converter that must be used during installation; it converts the head unit output to a safe signal level for the factory amplifier input; bypassing it risks amplifier damage Amplified models only — using this kit on a non-amplified CX7 is not appropriate; non-amplified variants use the AMDMZ20 instead SWC retained — phone button not supported — all factory steering wheel controls carry over via the SWC harness, with the exception of the phone button which is not supported Vehicle menu retained — full vehicle menu access is preserved after installation Matte black vehicle-specific facia kit — consistent finish with the AMDMZ20 for the CX7 ER Series 2 platform Antenna adaptor included — ensures correct antenna connection for the CX7 platform Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory CX7 unit with full touch control across navigation, media, and settings Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to the CX7 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained factory system Technical Specs Specification Detail Display size 9" Resolution 1024x600 Touchscreen type Capacitive OS Linux DIN size Fixed Screen Style (Trapezoid) Max power output 4CH x 50W (4 ohm) RCA preouts 4V, 5-channel (Front / Rear / Subwoofer) Preamp voltage 4V p-p EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) Preset EQs 6 + 2 custom Time alignment Yes Subwoofer level control Yes Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired) Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) Microphone Internal + external (with mount) DAB Yes FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets AM tuner range 522–1710KHz (9KHz step) / 12 presets RDS Yes USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A) USB2 (rear) Media playback + charging (5V / 1.5A) USB max capacity FAT32 / 32GB Media formats MP3, MP4, MKV, FLAC, Xvid Rear A/V input RCA type (3 pcs) Composite video output Yes (x2) Reverse camera input Yes (720P AHD compatible) Second camera input Yes (720P AHD compatible) Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD language English Rear Camera (AHD) Image sensor Sony 225, 1/3" CMOS AHD Lens angle 150° Mount type Surface mount Feature Retention Steering wheel controls Yes (phone button not supported) Factory amplifier Yes — line level converter in SWC harness must be used Vehicle menu Yes Factory reverse camera N/A Factory AUX / USB N/A Parking tones N/A Line level converter Included in SWC harness — mandatory for installation Dash modification Not required Park brake requirement Not required Compatible With / Goes Well With Mazda CX7 ER Series 2 (2009–2012) — factory amplified variants only Not compatible with non-amplified CX7 ER Series 2 — use AMDMZ20 for those variants Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub) Second camera input supports an optional front or towing camera (720P AHD compatible) Weight Not specified Frequently Asked Questions Why must the line level converter be used — what happens if it isn't? The factory amplifier in the CX7 ER Series 2 is designed to receive a specific signal level at its input. The AM905D head unit outputs at a higher level than the factory amplifier expects. Without the line level converter (which steps the signal down to a safe level), the excess signal can overdrive and damage the factory amplifier. Using the AMDMZ20 (non-amplified kit) on an amplified CX7 has the same risk. How does the AMDMZ21 differ from the AMDMZ20? The AMDMZ21 is for factory-amplified CX7 variants; the AMDMZ20 is for non-amplified variants. The AMDMZ21 retains the factory amplifier using the line level converter integrated into the SWC harness. Both kits retain SWC (excluding phone button) and vehicle menu. Neither retains the factory reverse camera, USB, or AUX. Does the phone button on the steering wheel work after installation? No — the phone button is specifically not supported by the AMDMZ21. All other factory steering wheel control functions are retained. This applies to both the amplified AMDMZ21 and the non-amplified AMDMZ20. How do I know if my CX7 ER Series 2 is amplified? An amplified CX7 has a separate amplifier unit mounted in the vehicle (typically under a seat or in the boot) with dedicated speaker wiring running from it. If all speaker wiring runs directly from the factory head unit with no separate amplifier, the vehicle is non-amplified and the AMDMZ20 is the correct kit. Is the factory amplifier fully retained and functional? Yes — the factory amplifier and its speaker outputs are retained using the line level converter in the SWC harness. All factory speaker zones driven by the amplifier continue to operate normally after installation, provided the line level converter is correctly connected.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Aerpro AX9246K 6.8" Multimedia Head Unit Upgrade Kit Mazda 3 A fully matched upgrade kit for the Mazda 3 (2004-2009), the AX9246K combines a 6.8" wireless CarPlay and Android Auto multimedia receiver with a vehicle-specific black fascia installation kit and a 720P AHD surface mount camera, all in one box. Product Overview The AX9246K is Aerpro's complete head unit upgrade solution engineered for the Mazda 3 (2004-2009), also known as the Mazda Axela BK. It is supplied as a three-component kit comprising the Aerpro 6.8" multimedia receiver, the vehicle-specific installation kit tailored to the Mazda 3 dashboard profile, and a 720P AHD surface mount camera. No additional accessories need to be sourced for a standard installation. The vehicle-specific installation kit includes a black fascia kit, a steering wheel control interface, and a universal SWC patch lead, ensuring factory steering wheel controls are retained after installation. The 6.8" capacitive touchscreen at 1024x600 resolution supports wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP audio streaming, AVRCP media control, and PBAP phonebook access. Both internal and external microphone options are provided, with the external microphone and mount included in the head unit box. Audio performance is delivered via 4 x 50W maximum output, a 13-band graphic EQ covering 32Hz through to 16kHz, time alignment, subwoofer low-pass filter control, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration. Dual rear USB inputs support CarPlay and Android Auto on USB 1 and media playback on USB 2, each at 5V/1.5A charging. Dual AHD 720P-compatible camera inputs accept the included surface mount camera and an additional second camera simultaneously. The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor with a 150-degree lens angle and is mountable as a front, rear, or reverse camera. It is supplied with 6 metres of RCA video cable with an in-line reverse trigger wire. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase. Features & Benefits Complete Vehicle-Specific Upgrade Kit for Mazda 3 2004-2009: The AX9246K includes all components required for a complete installation in the Mazda 3 (2004-2009) without additional accessory sourcing. The vehicle-specific installation kit covers the fascia, steering wheel control interface, and patch lead requirements of the Mazda 3 BK platform. Black Fascia Kit for Mazda 3 Dashboard Integration: The included black fascia kit is designed specifically for the Mazda 3 (2004-2009) dashboard profile, providing a clean, factory-fit finish around the 6.8" head unit that integrates with the interior trim of the BK generation Mazda 3. 6.8" Capacitive Touchscreen at 1024x600: The 6.8" capacitive touchscreen delivers a large, responsive display with 1024x600 resolution for clear navigation of maps, media, and settings, well suited to the dashboard opening of the Mazda 3 2004-2009. Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto operate wirelessly for hands-free smartphone integration, or via wired USB connection for simultaneous charging. On first wireless connection, a one-time pairing via Bluetooth and Wi-Fi is required before subsequent connections become automatic. Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP high-quality audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling. Both an internal microphone and an external microphone with mount are included, allowing the external microphone to be positioned optimally in the cabin. 13-Band Graphic EQ with Time Alignment: The 13-band EQ covers 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz for precise acoustic tuning, complemented by time alignment and a subwoofer low-pass filter for a complete onboard tuning toolkit. 4V 6-Channel RCA Preouts: Six RCA preamp channels at 4V covering front, rear, and subwoofer outputs allow external amplifiers to be added to the system with a high-output, low-noise signal. Subwoofer level control is also provided directly from the head unit. 720P AHD Surface Mount Camera Included: The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor, a 150-degree lens angle, optional parking guidelines, and an IP67 waterproof rating. It can be mounted as a front, rear, or reverse camera and connects to the head unit via the included 6-metre RCA cable with in-line reverse trigger wire. Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs allow the included surface mount camera and a second camera to be connected simultaneously, supporting configurations such as front and reverse or reverse and towing cameras. 6-Colour Button Illumination: The key illumination is selectable across six colours including red, yellow, green, blue, purple, and white, allowing the button lighting to be matched to the Mazda 3 interior. AM/FM Tuner with RDS: FM tuning covers 87.5-108.0MHz with 18 presets, and AM covers 522-1710kHz with 12 presets, with RDS support for station and track information display. Technical Specs Specification Detail SKU AX9246K Brand Aerpro Compatible Vehicles Mazda 3 (Axela BK), 2004-2009 Display Size 6.8" Display Resolution 1024 x 600 Touchscreen Type Capacitive OS Linux DIN Size 2 DIN (Double DIN) Max Power (4 Ohm) 50W x 4 RCA Preamp Outputs 4V, 6-channel (Front / Rear / Subwoofer) Subwoofer Level Control Yes EQ 13-Band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16KHz) EQ Presets 6 + 2 Custom Time Alignment Yes Low-Pass Filter (Sub) Yes Loudness Yes Smartphone Connectivity Wireless and Wired Apple CarPlay, Wireless and Wired Android Auto Bluetooth Version V5 Bluetooth Profiles A2DP, AVRCP, HFP, PBAP HFP Profile HFP 1.6 (HD Voice) Microphone Internal and External (included) ID3 Tag Display Yes USB 1 (Rear) CarPlay, Android Auto, Charging (5V/1.5A) USB 2 (Rear) Media Playback, Charging (5V/1.5A) USB Max Capacity FAT32, 32GB Media Playback Formats MP3, MP4, MKV, FLAC, Xvid Camera Input 1 Reverse Camera (720P AHD Compatible) Camera Input 2 Second Camera (720P AHD Compatible) Rear A/V Input Yes (RCA, 3 connectors) Composite Video Output Yes AM Tuner 522-1710kHz, 9kHz step, 12 presets FM Tuner 87.5-108.0MHz, 0.05MHz step, 18 presets RDS Yes Button Illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD Language English Camera Image Sensor Sony 225, 1/3" CMOS AHD Camera Lens Angle 150 degrees Camera Mount Type Surface Mount Camera Use Front, Rear, or Reverse Camera IP Rating IP67 Camera Cable Length 6 metres (RCA with in-line reverse trigger) Fascia Finish Black What's in the Box Aerpro 6.8" Multimedia Receiver: 1x 6.8" Multimedia Double DIN Head Unit Double DIN Metal Frame and Mounting Hardware Head Unit Plastic Trim Wiring Harness with ISO Connection 3 Wire Learning SWC Lead External Microphone with Mount GPS Antenna with Adhesive Pad QR Digital Manual Leaflet Vehicle Specific Installation Kit: Black Fascia Kit Steering Wheel Control Interface Universal Patch Lead 720P AHD Surface Mount Camera: 720P AHD Surface Mount Camera (wired) 6-Metre Video Cable (RCA) with In-Line Reverse Trigger Compatible With The AX9246K is engineered for the Mazda 3 (Axela BK) from 2004-2009. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase. The 4V 6-channel RCA preouts are compatible with most aftermarket amplifiers requiring front, rear, and subwoofer signal inputs. The dual AHD 720P camera inputs are compatible with most aftermarket AHD 720P and standard composite cameras in addition to the included surface mount camera. Frequently Asked Questions Does the AX9246K retain the factory Mazda 3 steering wheel controls? Yes. The vehicle-specific installation kit includes a steering wheel control interface and a universal SWC patch lead that connects to the head unit's SWC input, allowing the factory steering wheel audio controls to operate with the new head unit after installation and calibration. Does the AX9246K include a reverse camera retention lead for the Mazda 3's factory reverse camera? No. The vehicle-specific installation kit for the AX9246K does not include a reverse camera retention lead based on the source data provided. The kit includes a black fascia, steering wheel control interface, and universal patch lead. The 720P AHD surface mount camera included in the kit can be installed as a new reverse camera for the vehicle, connected directly to the head unit's reverse camera input via the included 6-metre RCA cable with in-line reverse trigger wire. If retaining a factory reverse camera is required, confirm whether any additional retention adaptor is needed with your installer or by using the Aerpro What Fits Your Car Guide before purchase. What generation of Mazda 3 is the AX9246K compatible with? The AX9246K is engineered for the first-generation Mazda 3, known as the Axela BK, produced from 2004-2009. It is not designed for the second-generation BL (2009-2013) or later Mazda 3 generations. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific build date and variant before purchase. Can the included 720P AHD camera be used as a front camera instead of a reverse camera? Yes. The included 720P AHD surface mount camera can be installed and configured as a front, rear, or reverse camera depending on the installation requirement. It connects to either of the head unit's two AHD 720P-compatible camera inputs via the included 6-metre RCA cable with in-line reverse trigger wire. If used as a front camera, the reverse trigger wire would not be connected and the camera would need to be activated through an alternative trigger or manual input method depending on the head unit's camera activation settings. Can external amplifiers be connected to the AX9246K? Yes. The head unit provides 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be connected for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong, low-noise signal compatible with most aftermarket car audio amplifiers. Subwoofer level control is also available directly from the head unit for convenient bass adjustment without accessing the amplifier directly.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Aerpro AX7510K 6.8" Multimedia Head Unit Upgrade Kit Mazda 2 A fully matched upgrade kit for the Mazda 2 (2007-2014), the AX7510K combines a 6.8" wireless CarPlay and Android Auto multimedia receiver with a vehicle-specific black fascia installation kit and a 720P AHD surface mount camera, all in one box. Product Overview The AX7510K is Aerpro's complete head unit upgrade solution engineered for the Mazda 2 DE (Demio) from 2007-2014. It is supplied as a three-component kit comprising the Aerpro 6.8" multimedia receiver, the vehicle-specific installation kit tailored to the Mazda 2 dashboard profile, and a 720P AHD surface mount camera. No additional accessories need to be sourced for a standard installation. The vehicle-specific installation kit includes a black fascia kit, a steering wheel control interface, and a universal SWC patch lead, ensuring factory steering wheel controls are retained after installation. The 6.8" capacitive touchscreen at 1024x600 resolution supports wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP audio streaming, AVRCP media control, and PBAP phonebook access. Both internal and external microphone options are provided, with the external microphone and mount included in the head unit box. Audio performance is delivered via 4 x 50W maximum output, a 13-band graphic EQ covering 32Hz through to 16kHz, time alignment, subwoofer low-pass filter control, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration. Dual rear USB inputs support CarPlay and Android Auto on USB 1 and media playback on USB 2, each at 5V/1.5A charging. Dual AHD 720P-compatible camera inputs accept the included surface mount camera and an additional second camera simultaneously. The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor with a 150-degree lens angle and is mountable as a front, rear, or reverse camera. It is supplied with 6 metres of RCA video cable with an in-line reverse trigger wire. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase. Features & Benefits Complete Vehicle-Specific Upgrade Kit for Mazda 2 2007-2014: The AX7510K includes all components required for a complete installation in the Mazda 2 DE (2007-2014) without additional accessory sourcing. The vehicle-specific installation kit covers the fascia, steering wheel control interface, and patch lead requirements of the Mazda 2 DE platform. Black Fascia Kit for Mazda 2 Dashboard Integration: The included black fascia kit is designed specifically for the Mazda 2 DE (2007-2014) dashboard profile, providing a clean, factory-fit finish around the 6.8" head unit that integrates with the interior trim of this Mazda 2 generation. 6.8" Capacitive Touchscreen at 1024x600: The 6.8" capacitive touchscreen delivers a large, responsive display with 1024x600 resolution for clear navigation of maps, media, and settings, well suited to the dashboard opening of the Mazda 2 2007-2014. Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto operate wirelessly for hands-free smartphone integration, or via wired USB connection for simultaneous charging. On first wireless connection, a one-time pairing via Bluetooth and Wi-Fi is required before subsequent connections become automatic. Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP high-quality audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling. Both an internal microphone and an external microphone with mount are included, allowing the external microphone to be positioned optimally in the cabin. 13-Band Graphic EQ with Time Alignment: The 13-band EQ covers 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz for precise acoustic tuning, complemented by time alignment and a subwoofer low-pass filter for a complete onboard tuning toolkit. 4V 6-Channel RCA Preouts: Six RCA preamp channels at 4V covering front, rear, and subwoofer outputs allow external amplifiers to be added to the system with a high-output, low-noise signal. Subwoofer level control is also provided directly from the head unit. 720P AHD Surface Mount Camera Included: The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor, a 150-degree lens angle, optional parking guidelines, and an IP67 waterproof rating. It can be mounted as a front, rear, or reverse camera and connects to the head unit via the included 6-metre RCA cable with in-line reverse trigger wire. Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs allow the included surface mount camera and a second camera to be connected simultaneously, supporting configurations such as front and reverse cameras. 6-Colour Button Illumination: The key illumination is selectable across six colours including red, yellow, green, blue, purple, and white, allowing the button lighting to be matched to the Mazda 2 interior. AM/FM Tuner with RDS: FM tuning covers 87.5-108.0MHz with 18 presets, and AM covers 522-1710kHz with 12 presets, with RDS support for station and track information display. Technical Specs Specification Detail SKU AX7510K Brand Aerpro Compatible Vehicles Mazda 2 (Demio DE), 2007-2014 Display Size 6.8" Display Resolution 1024 x 600 Touchscreen Type Capacitive OS Linux DIN Size 2 DIN (Double DIN) Max Power (4 Ohm) 50W x 4 RCA Preamp Outputs 4V, 6-channel (Front / Rear / Subwoofer) Subwoofer Level Control Yes EQ 13-Band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16KHz) EQ Presets 6 + 2 Custom Time Alignment Yes Low-Pass Filter (Sub) Yes Loudness Yes Smartphone Connectivity Wireless and Wired Apple CarPlay, Wireless and Wired Android Auto Bluetooth Version V5 Bluetooth Profiles A2DP, AVRCP, HFP, PBAP HFP Profile HFP 1.6 (HD Voice) Microphone Internal and External (included) ID3 Tag Display Yes USB 1 (Rear) CarPlay, Android Auto, Charging (5V/1.5A) USB 2 (Rear) Media Playback, Charging (5V/1.5A) USB Max Capacity FAT32, 32GB Media Playback Formats MP3, MP4, MKV, FLAC, Xvid Camera Input 1 Reverse Camera (720P AHD Compatible) Camera Input 2 Second Camera (720P AHD Compatible) Rear A/V Input Yes (RCA, 3 connectors) Composite Video Output Yes AM Tuner 522-1710kHz, 9kHz step, 12 presets FM Tuner 87.5-108.0MHz, 0.05MHz step, 18 presets RDS Yes Button Illumination 6-colour (Red, Yellow, Green, Blue, Purple, White) OSD Language English Camera Image Sensor Sony 225, 1/3" CMOS AHD Camera Lens Angle 150 degrees Camera Mount Type Surface Mount Camera Use Front, Rear, or Reverse Camera IP Rating IP67 Camera Cable Length 6 metres (RCA with in-line reverse trigger) Fascia Finish Black What's in the Box Aerpro 6.8" Multimedia Receiver: 1x 6.8" Multimedia Double DIN Head Unit Double DIN Metal Frame and Mounting Hardware Head Unit Plastic Trim Wiring Harness with ISO Connection 3 Wire Learning SWC Lead External Microphone with Mount GPS Antenna with Adhesive Pad QR Digital Manual Leaflet Vehicle Specific Installation Kit: Black Fascia Kit Steering Wheel Control Interface Universal Patch Lead 720P AHD Surface Mount Camera: 720P AHD Surface Mount Camera (wired) 6-Metre Video Cable (RCA) with In-Line Reverse Trigger Compatible With The AX7510K is engineered for the Mazda 2 DE (Demio) from 2007-2014. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase. The 4V 6-channel RCA preouts are compatible with most aftermarket amplifiers requiring front, rear, and subwoofer signal inputs. The dual AHD 720P camera inputs are compatible with most aftermarket AHD 720P and standard composite cameras in addition to the included surface mount camera. Frequently Asked Questions Does the AX7510K retain the factory Mazda 2 steering wheel controls? Yes. The vehicle-specific installation kit includes a steering wheel control interface and a universal SWC patch lead that connects to the head unit's SWC input, allowing the factory steering wheel audio controls to operate with the new head unit after installation and calibration. What generation of Mazda 2 is the AX7510K compatible with? The AX7510K is engineered for the second-generation Mazda 2, known as the Demio DE, produced from 2007-2014. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific build date and variant before purchase. Does the AX7510K include a reverse camera retention lead for the Mazda 2's factory reverse camera? No. The vehicle-specific installation kit for the AX7510K does not include a reverse camera retention lead. The 720P AHD surface mount camera included in the kit can be installed as a new reverse camera for the vehicle, connected directly to the head unit's reverse camera input via the included 6-metre RCA cable with in-line reverse trigger wire. Can the included 720P AHD camera be used as a front camera instead of a reverse camera? Yes. The included 720P AHD surface mount camera can be installed and configured as a front, rear, or reverse camera depending on the installation requirement. It connects to either of the head unit's two AHD 720P-compatible camera inputs via the included 6-metre RCA cable with in-line reverse trigger wire. If used as a front camera, the reverse trigger wire would not be connected and the camera would need to be activated through an alternative trigger or manual input method depending on the head unit's camera activation settings. Can external amplifiers be connected to the AX7510K? Yes. The head unit provides 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be connected for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong, low-noise signal compatible with most aftermarket car audio amplifiers. Subwoofer level control is also available directly from the head unit for convenient bass adjustment without accessing the amplifier directly.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
