Rockford Fosgate M0-65 M0 Series Marine Grade 6.5 Inch 2-Way Full-Range Speakers in White - Pair
A pair of marine grade 6.5 inch 2-way full-range speakers in white, handling 65W RMS and 250W peak with 90.5dB sensitivity. Features a UV and salt-fog resistant Santoprene surround, co-moulded mineral-filled polypropylene cone, VAST surround technology, grille-integrated 0.5 inch LCP balanced dome tweeter, fully sealed ICC crossover, and 100% UV stable ASA plastic frame. Sealed motor design with zinc nickel-plated marine grade brass terminals. Sold as a pair. Backed by a 2 year warranty.
Product Overview
The Rockford Fosgate M0-65 is a pair of M0 series 6.5 inch 2-way full-range marine speakers in white, purpose-built for high-quality audio reproduction in marine watercraft and off-road vehicle audio systems. The entry-level M0 series delivers weatherproofing technology specific to the marine environment, combining a 100% UV stable ASA plastic frame, encapsulated motor assembly, and zinc nickel-plated marine grade brass connection terminals that resist discolouration and corrosion in the harshest marine conditions.
Bass and midrange reproduction is handled by an injection-moulded mineral-filled polypropylene cone body with a co-moulded Santoprene surround that is UV and salt-fog resistant. Rockford Fosgate's patented VAST (Vertical Attach Surround Technique) increases the effective radiating cone area by up to 25%, delivering more output from the same 6.5 inch footprint. A linear synthetic fiber blend spider provides consistent excursion control. The fully sealed ICC (Integrated Concealed Crossover) 6dB/octave high-pass network is hidden inside the basket for a clean installation, crossing over to a grille-integrated 0.5 inch (13mm) LCP balanced dome tweeter for smooth, crystal-clear high-frequency reproduction up to 25kHz. The sealed motor design protects the motor assembly from water and debris. Stainless steel mounting hardware is included. The black version of these speakers is available as the M0-65B.
Features & Benefits
UV and Salt-Fog Resistant Santoprene Surround: The Santoprene surround is chosen specifically for its resistance to UV degradation and salt-fog exposure, maintaining flexibility and consistent excursion control in marine environments over the long term without cracking or stiffening.
VAST Surround Technology - Up to 25% More Cone Area: Rockford Fosgate's patented Vertical Attach Surround Technique attaches the surround vertically to the cone rather than at an angle, increasing the effective radiating cone area by up to 25% and delivering more bass and midrange output from the same 6.5 inch driver.
Grille-Integrated 0.5 Inch LCP Balanced Dome Tweeter: The 0.5 inch (13mm) LCP balanced dome tweeter is integrated directly into the grille, creating a clean appearance without exposed tweeter pods while delivering smooth high-frequency extension up to 25kHz.
Fully Sealed ICC 6dB/Octave Crossover: The Integrated Concealed Crossover is fully sealed and hidden inside the basket, simplifying installation and protecting the crossover components from environmental exposure without requiring a separate external crossover.
100% UV Stable ASA Frame with Sealed Motor Design: The 100% UV stable ASA plastic frame resists discolouration in direct sunlight and saltwater environments. The sealed motor design protects the voice coil and motor assembly from water and debris ingress.
90.5dB Sensitivity - Efficient Output from Low Power: At 90.5dB sensitivity (1W/1m), the M0-65 produces more output per watt than lower-sensitivity marine speakers, making it well suited to being powered directly by a marine source unit's internal amplifier or a modest external amp.
Zinc Nickel-Plated Marine Grade Brass Terminals and Stainless Steel Hardware: The zinc nickel-plated marine grade brass connection terminals resist corrosion at the connection point, and stainless steel mounting hardware prevents rust in marine environments.
Technical Specs
Specification
Detail
SKU
M0-65
Speaker Type
2-Way Full-Range
Speaker Size
6.5 inch
Colour
White
Nominal Impedance
4 Ohm
Power Handling
65W RMS / 250W Peak
Sensitivity
90.5 dB (1W/1m) / 91 dB (2.83V/1m)
Frequency Response
40 Hz - 25 kHz
Tweeter
0.5 inch (12.7mm) LCP Balanced Dome (Grille-Integrated)
Woofer Voice Coil Former
1 inch (25mm) High Temp Kapton
Cone
Co-Moulded Mineral-Filled Polypropylene
Surround
Santoprene (UV and Salt-Fog Resistant)
Spider
Linear Synthetic Fiber Blend
Motor Design
Sealed
Frame
100% UV Stable ASA Plastic
Crossover
ICC 6dB/Octave High-Pass (Fully Sealed)
Surround Technology
VAST
Terminals
Zinc Nickel-Plated Marine Grade Brass
Mounting Hardware
Stainless Steel (included)
Grille / Trim Ring
Included
Midrange Mounting Depth
2.52 inch (63.9mm)
CEA-2031 Compliant
Yes
Sold As
Pair (2 each)
Shipping Weight
0.88kg (pair)
Warranty
2 Years
Compatible With / Goes Well With
The M0-65 is suited to marine watercraft, pontoon boats, ski boats, and off-road vehicle audio systems requiring a reliable, weather-resistant 6.5 inch full-range speaker at an accessible price point. At 90.5dB sensitivity and a 65W RMS rating, it can be driven directly by a marine source unit's internal amplifier in smaller installations or paired with an external marine amplifier for higher output. The black version is available as the M0-65B.
Goes Well With:
PMX-1 - Rockford Fosgate Punch marine media receiver, compatible as a direct-drive source for the M0-65 at 25W x 4 internal amplifier output
M2-300X4 - M2 series 300W 4-channel marine amplifier for higher output beyond direct-drive levels
M2-200X2 - M2 series 200W 2-channel marine amplifier for compact 2-channel builds
M0-65B - Black version of these speakers for colour-matched installations
M1-65 - M1 series white 6.5 inch marine speakers, the mid-tier step up from the M0-65
Frequently Asked Questions
What is the difference between the M0-65 and the M1-65?
Both are white 6.5 inch 2-way marine speakers, but the M1-65 is the mid-tier M1 series option with higher power handling and more advanced construction than the M0-65. The M0-65 handles 65W RMS with a 6dB/octave ICC crossover and grille-integrated tweeter. The M1-65 steps up with improved driver construction and higher power handling. Choose the M0-65 for a reliable entry-level marine speaker; choose the M1-65 if more power headroom or additional construction refinements are required.
Can the M0-65 be powered directly by a marine source unit without an external amplifier?
Yes. At 90.5dB sensitivity and 65W RMS power handling, the M0-65 works well with the internal amplifiers found in marine source units such as the PMX-1, which delivers 25W x 4 at 4-ohm RMS. For higher output or to drive the speakers closer to their full power handling capability, an external marine amplifier such as the M2-300X4 is recommended.
Is the M0-65 suitable for saltwater marine environments?
Yes. The M0-65 is purpose-built for marine environments with a UV and salt-fog resistant Santoprene surround, 100% UV stable ASA plastic frame, sealed motor design, and zinc nickel-plated marine grade brass connection terminals. It is designed to resist discolouration and corrosion in both freshwater and saltwater conditions.
What is the mounting depth required for the M0-65?
The M0-65 requires a mounting depth of 2.52 inches (63.9mm). Measure the available depth behind the mounting surface before purchasing to confirm the speaker will fit without interference from hull structure or wiring behind the panel.
Does the M0-65 come in a black version?
Yes. The black version of this speaker is available as the M0-65B, sharing the same specifications and marine-grade construction. Contact us or refer to the M0-65B product page for more details.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

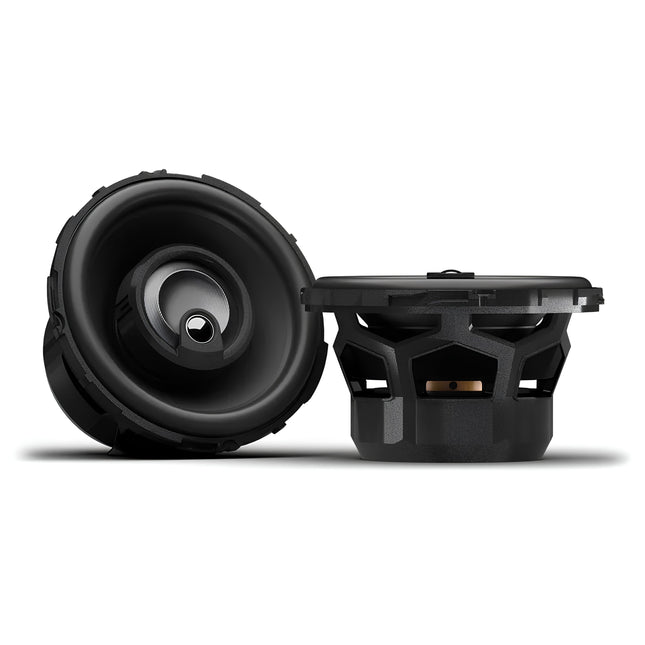

Rockford Fosgate P1V2-25 Punch P1 2.5" 3-Way Coaxial Speakers
Professional-grade 2.5 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and enhanced bass response in compact factory speaker locations. The Rockford Fosgate Punch P1V2-25 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology ensuring seamless drop-in integration into modern vehicle factory mounting locations without modification. This comprehensive coaxial speaker system combines 2.5-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (150Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, Nomex spider construction, glass-fiber reinforced composite basket, and high-strength Y35 ferrite motor structure with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes twist-lock OEM adaptors, bass blocker crossovers, mounting hardware, cutout templates, and wiring ensuring professional installation results for factory system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from compact 2.5-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings.
Precision 3-Way Coaxial Configuration
Comprehensive three-way speaker design combines 2.5-inch mica-reinforced polypropylene curvilinear cone for midrange frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology for precise high-frequency reproduction, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (150Hz-25kHz) with exceptional clarity, detail, and impact ensuring factory system replacements achieve dramatic sonic improvements across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining excellent sensitivity (82dB @ 1W/1M, 85dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Ultra-Durable Construction for Long-Term Reliability
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.
Complete Drop-In Installation System
Comprehensive installation kit includes twist-lock OEM adaptor plates ensuring secure mounting in factory locations, external bass blocker crossovers (6dB/octave @ 1,200Hz) protecting speakers from damaging low frequencies when used without subwoofer, precision cutout templates for custom installations, mounting hardware including self-tapping screws, pre-terminated speaker wire with spade connectors, and crimp butt connectors enabling professional installation results without requiring specialized tools or fabrication.
Factory Location Woofer Ring (F.L.W.R.) Integration
Innovative F.L.W.R. technology with updated mounting flanges provides flexible yet precise alignment for seamless drop-in integration into most factory mounting locations across modern vehicles. The redesigned frame geometry accommodates various factory mounting configurations while maintaining optimal speaker alignment ensuring professional installation appearance and performance without dashboard modifications or custom fabrication requirements.
Technical Specifications
Specification
Details
Model
P1V2-25
Brand
Rockford Fosgate
Series
Punch P1
Speaker Type
3-Way Coaxial
CTA-2031 Compliant
Yes
Midrange Size (Nominal Diameter)
2.5 inches
Tweeter Size
3/4 inch (19mm) Tetolon inverted dome
Piezo Super Tweeter Size
3/8 inch (9mm) Polypropylene convex
Nominal Impedance
4 ohms
Voice Coil Diameter
1 inch (25.4mm)
Frequency Response
150Hz - 25kHz
Fs (Resonant Frequency)
200 Hz
Power Handling (RMS)
75 Watts RMS
Power Handling (Peak)
150 Watts Peak
Sensitivity @ 1W/1M
82 dB
Sensitivity @ 2.83V/1M
85 dB
Cone Material
20-40% Mica reinforced Polypropylene curvilinear cone
Surround Material
Santoprene half-roll surround
Spider Material
Nomex linear spider
Basket Material
15% glass-fiber reinforced PA66 composite
Voice Coil Former
Vented Kapton
Motor Structure
High-strength Y35 ferrite (5mm larger than previous generation)
Crossover (Tweeter High-Pass)
9kHz @ 6dB/octave
Crossover (Midrange Bass Blocker)
1,200Hz @ 6dB/octave (33µF capacitor)
Cutout Diameter
2.54 inches (64.5mm)
Rear-Loading Depth (Twist-Lock Adaptor)
1.47 inches (37.3mm)
Front-Loading Depth (Twist-Lock Adaptor)
1.6 inches (40.6mm)
Front Side Clearance
0.32 inches (8.2mm)
Grille/Trim Ring Included
No (sold separately)
Removable Motor Cover
No
Quantity
Sold in pairs (2 speakers)
Warranty
2-Year Manufacturer Warranty
Country of Origin
Designed for Australian market compliance
Compatible With
Vehicle Applications:
Factory Speaker Locations Requiring 2.5" Diameter
Dashboard Speaker Locations
Door Panel Speaker Locations (compact mounting)
Rear Deck Speaker Locations
A-Pillar Speaker Locations
Kick Panel Speaker Locations
Center Console Speaker Locations
Factory Systems with Single-Cone Drivers (no tweeters)
Ideal Replacement For:
Factory 2.5" Full-Range Speakers
Factory Single-Cone Drivers
OEM Dashboard Speakers
Factory Center Channel Speakers
Basic OEM Audio Systems
Single-Speaker Door Locations
Factory Rear Deck Speakers
Head Unit Compatibility:
Factory Head Units (50W x 4 typical output)
Aftermarket Head Units (CEA-2006 compliant)
Amplified Systems (75W RMS maximum per channel)
OEM Premium Audio Systems
Any head unit with 4-ohm speaker output capability
System Configurations:
Front Dashboard Upgrade (with rear speakers and subwoofer)
Full-Range Replacement (all factory speaker locations)
Center Channel Application (3-way configuration ideal)
Component System Supplement (dashboard fill speakers)
Basic System Upgrade (significant improvement over factory single-cone)
Frequently Asked Questions
Q: What is included in the Rockford Fosgate P1V2-25 package?
The P1V2-25 package includes (2) 2.5-inch 4-ohm 3-way coaxial speakers, (2) twist-lock OEM speaker adaptors for factory mounting locations, (2) 33µF non-polarized bass blocker capacitors for high-pass filtering, (1) speaker cutout template, (4) self-tapping Phillips mounting screws, (2) 205mm pre-terminated speaker wires with spade connectors, (3) negative female spade connectors, (3) positive female spade connectors, and (4) crimp butt connectors. Grilles are sold separately. This comprehensive kit provides everything needed for professional installation.
Q: Will these speakers fit my factory 2.5-inch speaker locations without modification?
Yes, the P1V2-25 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and included twist-lock OEM adaptors ensuring seamless drop-in integration into most factory 2.5-inch mounting locations. The cutout diameter is 2.54 inches (64.5mm) with rear-loading depth of 1.47 inches and front-loading depth of 1.6 inches. Verify your factory speaker mounting depth before purchase, but the included adaptors accommodate most modern vehicle factory mounting configurations without dashboard modifications.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-25 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 82dB @ 1W/1M (85dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The included bass blocker crossovers protect speakers when used without subwoofer, and the 4-ohm impedance ensures compatibility with all factory and aftermarket head units.
Q: What is VAST 2.0 technology and how does it improve performance over factory speakers?
VAST 2.0 (Variable Area Speaker Technology) delivers 25% increase in effective cone area compared to traditional speaker designs within the same mounting diameter. This increased surface area enables higher sound pressure levels (SPL) and enhanced bass response from compact 2.5-inch driver diameter. Combined with the 3-way coaxial configuration featuring dedicated tweeter and super tweeter, the P1V2-25 delivers dramatic improvements in clarity, detail, impact, and frequency response compared to factory single-cone drivers that lack dedicated high-frequency reproduction.
Q: Are grilles included with these speakers and what mounting depth is required?
Grilles are sold separately for the P1V2-25 speakers allowing customization based on installation location and aesthetic preferences. The speakers require 1.47 inches (37.3mm) rear-loading mounting depth when using the included twist-lock adaptor, or 1.6 inches (40.6mm) front-loading depth. Front side clearance requirement is 0.32 inches (8.2mm). The included cutout template ensures accurate mounting hole preparation, and the twist-lock adaptors simplify installation into factory locations while providing secure speaker retention.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

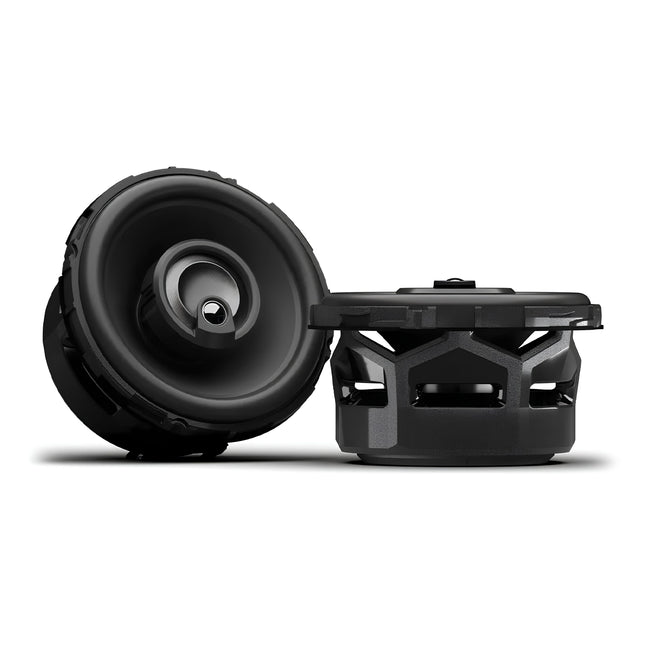

Rockford Fosgate P1V2-3 Punch P1 3.5" 3-Way Coaxial Speakers
Professional-grade 3.5 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing increased cone area for maximum output and enhanced bass response in compact factory speaker locations. The Rockford Fosgate Punch P1V2-3 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology ensuring seamless drop-in integration into modern vehicle factory mounting locations without modification. This comprehensive coaxial speaker system combines 3.5-inch mica-reinforced polypropylene woofer with 3/4-inch Tetolon inverted dome tweeter and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (98Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene rubber surround, vented Kapton voice coil construction, glass-fiber reinforced composite basket, and robust motor structure with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete with Factory Location Woofer Ring and mounting flanges ensuring adapted fit to many vehicles, these speakers provide simple all-in-one upgrades for factory system replacements requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-3 are perfect for Basic OEM systems with 3.5-inch speaker locations in doors, dash, or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 (Vertical Attach Surround Technique) technology, the PUNCH series delivers increased cone area compared to traditional speaker designs resulting in maximum output and deeper, more impactful bass from compact 3.5-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings.
Precision 3-Way Coaxial Configuration
Comprehensive three-way speaker design combines 3.5-inch mica-reinforced polypropylene (IMPP) woofer for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter for precise high-frequency reproduction, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (98Hz-25kHz) with exceptional clarity, detail, and impact ensuring factory system replacements achieve dramatic sonic improvements across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining excellent sensitivity (82dB @ 1W/1M, 85dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while robust motor structure provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Ultra-Durable Construction for Long-Term Reliability
Every component chosen for strength and built for the long haul. Reinforced glass-fiber composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene rubber surround delivers low distortion with unmatched fatigue resistance across temperature extremes, and vented Kapton voice coil former ensures excellent heat dissipation maintaining power handling capability during sustained high-output operation. Co-molded construction ensures high durability eliminating separation failures common with adhesive-bonded designs.
Factory Location Woofer Ring (F.L.W.R.) Integration
Innovative F.L.W.R. technology with included mounting flanges provides flexible yet precise alignment for seamless drop-in integration into most factory 3.5-inch mounting locations across modern vehicles. The redesigned frame geometry accommodates various factory mounting configurations while maintaining optimal speaker alignment ensuring professional installation appearance and performance without dashboard modifications or custom fabrication requirements.
Enhanced Thermal Management
Vented Kapton voice coil former provides excellent heat dissipation enabling sustained high-output operation without thermal compression or power handling degradation. This advanced thermal management system ensures consistent performance during extended listening sessions at high volume levels maintaining sonic quality and reliability across demanding automotive environments with extreme temperature variations.
Technical Specifications
Specification
Details
Model
P1V2-3
Brand
Rockford Fosgate
Series
Punch P1 V2
Speaker Type
3-Way Coaxial
Speaker Size
3.5 inches (3-1/2")
Woofer Design
Cone
Woofer Material
Mica-reinforced polypropylene (IMPP)
Woofer Surround
Santoprene rubber
Tweeter Size
3/4 inch inverted dome
Tweeter Material
Tetolon
Super Tweeter Size
3/8 inch piezo
Super Tweeter Material
Polypropylene
Nominal Impedance
4 ohms
Voice Coil Former
Vented Kapton
Basket Material
Glass-fiber reinforced injection molded composite
Frequency Response
98Hz - 25,000 Hz
Power Handling (RMS)
75 Watts RMS
Power Handling (Peak)
150 Watts Peak
Sensitivity @ 1W/1M
82 dB
Sensitivity @ 2.83V/1M
85 dB
VAST 2.0 Technology
Yes (Vertical Attach Surround Technique)
Factory Location Woofer Ring
Yes (FLWR with mounting flanges included)
Weather-Resistant
No (interior automotive use)
Grilles Included
No (sold separately)
Quantity
Sold in pairs (2 speakers)
Parts Warranty
2 Years
Labor Warranty
2 Years
Country of Origin
Designed for Australian market compliance
Compatible With
Vehicle Applications:
Factory Speaker Locations Requiring 3.5" Diameter
Dashboard Speaker Locations
Door Panel Speaker Locations
Rear Deck Speaker Locations
Kick Panel Speaker Locations
Center Console Speaker Locations
Factory Systems with Single-Cone Drivers (no tweeters)
Ideal Replacement For:
Factory 3.5" Full-Range Speakers
Factory Single-Cone Drivers
OEM Dashboard Speakers
Factory Door Panel Speakers
Basic OEM Audio Systems
Single-Speaker Door Locations
Factory Rear Deck Speakers
Head Unit Compatibility:
Factory Head Units (50W x 4 typical output)
Aftermarket Head Units (CEA-2006 compliant)
Amplified Systems (75W RMS maximum per channel)
OEM Premium Audio Systems
Any head unit with 4-ohm speaker output capability
System Configurations:
Front Dashboard Upgrade (with rear speakers and subwoofer)
Full-Range Replacement (all factory speaker locations)
Door Speaker Upgrade (front and rear doors)
Component System Supplement (fill speakers)
Basic System Upgrade (significant improvement over factory single-cone)
Frequently Asked Questions
Q: Will the Rockford Fosgate P1V2-3 speakers fit my factory 3.5-inch speaker locations?
Yes, the P1V2-3 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and included mounting flanges ensuring seamless drop-in integration into most factory 3.5-inch mounting locations across modern vehicles. The redesigned frame geometry and mounting holes accommodate various factory mounting configurations without dashboard modifications. Verify your factory speaker mounting depth and cutout diameter before purchase to ensure proper fitment.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-3 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 82dB @ 1W/1M (85dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The 4-ohm impedance ensures compatibility with all factory and aftermarket head units without requiring impedance matching or additional components.
Q: What is VAST 2.0 technology and how does it improve performance?
VAST 2.0 (Vertical Attach Surround Technique) increases effective cone area compared to traditional speaker designs within the same mounting diameter. This increased surface area enables higher sound pressure levels (SPL) and enhanced bass response from compact 3.5-inch driver diameter. Combined with the 3-way coaxial configuration featuring dedicated tweeter and super tweeter, the P1V2-3 delivers dramatic improvements in clarity, detail, impact, and frequency response (98Hz-25kHz) compared to factory single-cone drivers lacking dedicated high-frequency reproduction.
Q: Are grilles included with these speakers and what components come in the package?
Grilles are sold separately for the P1V2-3 speakers allowing customization based on installation location and aesthetic preferences. The package includes (2) 3.5-inch 4-ohm 3-way coaxial speakers and Factory Location Woofer Ring (F.L.W.R.) with mounting flanges for adapted fit to many vehicles. Additional mounting hardware and installation accessories may be required depending on specific vehicle application. The included F.L.W.R. mounting system simplifies installation into factory locations while providing secure speaker retention.
Q: How do these speakers compare to factory speakers in terms of sound quality?
The P1V2-3 speakers deliver dramatic sonic improvements over factory single-cone drivers through comprehensive 3-way design featuring dedicated 3/4-inch Tetolon inverted dome tweeter and 3/8-inch polypropylene piezo super tweeter. This multi-driver configuration provides superior high-frequency clarity, enhanced midrange detail, and improved bass response (down to 98Hz) that factory speakers cannot reproduce. The mica-reinforced polypropylene woofer with Santoprene surround ensures low distortion and accurate reproduction across entire frequency range delivering "punch" and clarity impossible with basic factory speakers.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

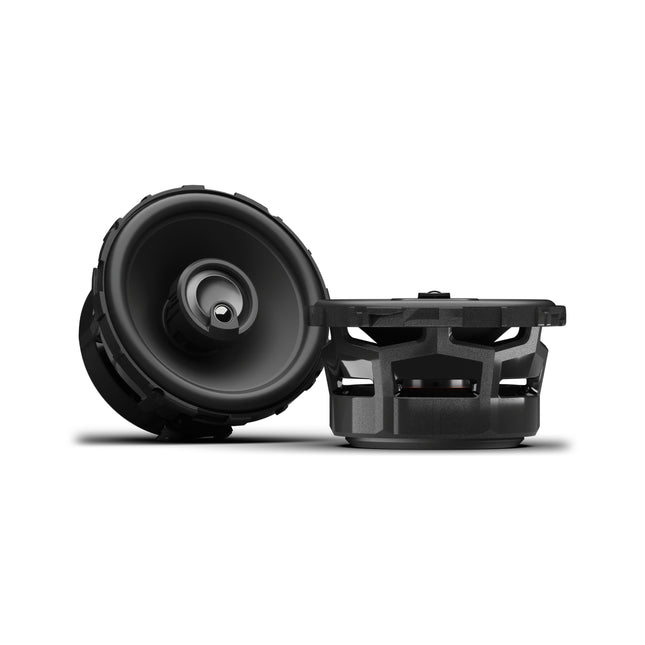

Rockford Fosgate P1V2-4 Punch P1 4" 3-Way Coaxial Speakers
Professional-grade 4 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and deeper, more impactful bass in factory speaker locations. The Rockford Fosgate Punch P1V2-4 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and six included OEM twist-lock adaptors ensuring seamless drop-in integration into modern vehicle factory mounting locations without modification. This comprehensive coaxial speaker system combines 4-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter featuring Tru-Sight alignment technology and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (75Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, fatigue-resistant Nomex spider construction, 15% glass-fiber reinforced PA66 composite basket, and high-strength Y35 ferrite motor structure (5mm larger than previous generation) with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes six twist-lock OEM adaptors (4-tab, 3-tab, and 3-tab wide configurations), bass blocker crossovers, mounting hardware, cutout template, and wiring ensuring professional installation results for factory system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-4 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from compact 4-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension (down to 75Hz) ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings.
Precision 3-Way Coaxial Configuration with Tru-Sight Technology
Comprehensive three-way speaker design combines 4-inch mica-reinforced polypropylene curvilinear cone for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology ensuring precise high-frequency alignment, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (75Hz-25kHz) with exceptional clarity, detail, and impact ensuring every note comes through with accuracy and relentless output across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining exceptional sensitivity (85dB @ 1W/1M, 88dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure (5mm larger than previous generation) provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Ultra-Durable Construction Built to Last
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, ultra-flexible braided tinsel leads securely stitched to spider prevent failure, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.
Complete Drop-In Installation System with Six OEM Adaptors
Comprehensive installation kit includes six twist-lock OEM adaptor configurations (4-tab, 3-tab, and 3-tab wide) ensuring secure mounting in diverse factory locations, external bass blocker crossovers (6dB/octave @ 1,200Hz) protecting speakers from damaging low frequencies when used without subwoofer, precision cutout template for custom installations, mounting hardware including eight self-tapping screws, pre-terminated speaker wire with spade connectors, and crimp butt connectors enabling professional installation results across various vehicle applications without requiring specialized tools or fabrication.
Advanced Thermal Management and Protection
Vented Kapton voice coil former provides excellent heat dissipation enabling sustained high-output operation without thermal compression or power handling degradation. Co-molded basket terminals ensure secure connectivity preventing terminal failures while internal concealed ICC+ 6dB/octave crossover network protects tweeter from damaging low frequencies. This comprehensive thermal management and protection system ensures consistent performance during extended listening sessions at high volume levels maintaining sonic quality and reliability.
Technical Specifications
Specification
Details
Model
P1V2-4
Brand
Rockford Fosgate
Series
Punch P1
Speaker Type
3-Way Coaxial
CTA-2031 Compliant
Yes
Midrange Size (Nominal Diameter)
4 inches
Tweeter Size
3/4 inch (19mm) Tetolon inverted dome
Piezo Super Tweeter Size
3/8 inch (9mm) Polypropylene convex
Nominal Impedance
4 ohms
Voice Coil Diameter
1 inch (25.4mm)
Frequency Response
75Hz - 25kHz
Fs (Resonant Frequency)
100 Hz
Power Handling (RMS)
75 Watts RMS
Power Handling (Peak)
150 Watts Peak
Sensitivity @ 1W/1M
85 dB
Sensitivity @ 2.83V/1M
88 dB
Cone Material
20-40% Mica reinforced Polypropylene curvilinear cone
Surround Material
Santoprene half-roll surround
Spider Material
Nomex linear spider
Basket Material
15% glass-fiber reinforced PA66 composite
Voice Coil Former
Vented Kapton
Motor Structure
High-strength Y35 ferrite (5mm larger than previous generation)
Crossover (Tweeter High-Pass)
9kHz @ 6dB/octave
Crossover (Midrange Bass Blocker)
1,200Hz @ 6dB/octave (33µF capacitor)
Cutout Diameter
3.41 inches (86.5mm)
Rear-Loading Depth (Twist-Lock Adaptor)
1.72 inches (43.8mm)
Front-Loading Depth (Twist-Lock Adaptor)
1.99 inches (50.5mm)
Front Side Clearance
0.5 inches (12.7mm)
Grille/Trim Ring Included
No (sold separately)
Removable Motor Cover
No
Quantity
Sold in pairs (2 speakers)
Warranty
2-Year Manufacturer Warranty
Country of Origin
Designed for Australian market compliance
Compatible With
Vehicle Applications:
Factory Speaker Locations Requiring 4" Diameter
Door Panel Speaker Locations
Rear Deck Speaker Locations
Dashboard Speaker Locations
Kick Panel Speaker Locations
Factory Systems with Single-Cone Drivers (no tweeters)
Basic OEM Audio Systems
Ideal Replacement For:
Factory 4" Full-Range Speakers
Factory Single-Cone Drivers
OEM Door Panel Speakers
Factory Rear Deck Speakers
Basic OEM Audio Systems
Single-Speaker Door Locations
Factory Dashboard Speakers
Head Unit Compatibility:
Factory Head Units (50W x 4 typical output)
Aftermarket Head Units (CEA-2006 compliant)
Amplified Systems (75W RMS maximum per channel)
OEM Premium Audio Systems
Any head unit with 4-ohm speaker output capability
System Configurations:
Front Door Upgrade (with rear speakers and subwoofer)
Full-Range Replacement (all factory speaker locations)
Rear Deck Installation (2-speaker or 4-speaker configurations)
Component System Supplement (fill speakers)
Basic System Upgrade (significant improvement over factory single-cone)
Frequently Asked Questions
Q: What OEM adaptors are included with the Rockford Fosgate P1V2-4 speakers?
The P1V2-4 package includes six twist-lock OEM adaptors to ensure compatibility with diverse factory mounting locations: (2) 4-tab twist-lock adaptors, (2) 3-tab twist-lock adaptors, and (2) 3-tab wide twist-lock adaptors. This comprehensive adaptor selection accommodates most factory 4-inch speaker mounting configurations across modern vehicles. Additional included components: (2) speakers, (1) cutout template, (2) 33µF bass blocker capacitors, (8) self-tapping mounting screws, (2) pre-terminated speaker wires, spade connectors, and crimp butt connectors. Grilles are sold separately.
Q: Will these speakers fit my factory 4-inch speaker locations without modification?
Yes, the P1V2-4 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and six included twist-lock OEM adaptors ensuring seamless drop-in integration into most factory 4-inch mounting locations. The cutout diameter is 3.41 inches (86.5mm) with rear-loading depth of 1.72 inches and front-loading depth of 1.99 inches. Verify your factory speaker mounting depth before purchase. The multiple adaptor configurations accommodate various factory mounting hole patterns ensuring secure installation without dashboard modifications.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-4 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 85dB @ 1W/1M (88dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The included bass blocker crossovers protect speakers when used without subwoofer, and the 4-ohm impedance ensures compatibility with all factory and aftermarket head units.
Q: What is VAST 2.0 technology and Tru-Sight tweeter alignment?
VAST 2.0 (Vertical Attach Surround Technique) delivers 25% increase in effective cone area compared to traditional speaker designs within the same mounting diameter enabling higher SPL and enhanced bass response down to 75Hz. Tru-Sight tweeter alignment technology ensures precise high-frequency positioning and alignment so every note comes through with clarity and accuracy. Combined with the 3-way coaxial configuration and high-strength Y35 ferrite motor (5mm larger than previous generation), the P1V2-4 delivers dramatic improvements in output, clarity, and bass impact compared to factory single-cone drivers.
Q: Are grilles included and what mounting depth is required for installation?
Grilles are sold separately for the P1V2-4 speakers allowing customization based on installation location and aesthetic preferences. The speakers require 1.72 inches (43.8mm) rear-loading mounting depth when using the included twist-lock adaptors, or 1.99 inches (50.5mm) front-loading depth. Front side clearance requirement is 0.5 inches (12.7mm). The included cutout template ensures accurate mounting hole preparation, and the six twist-lock adaptor configurations simplify installation into diverse factory locations while providing secure speaker retention across various mounting patterns.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

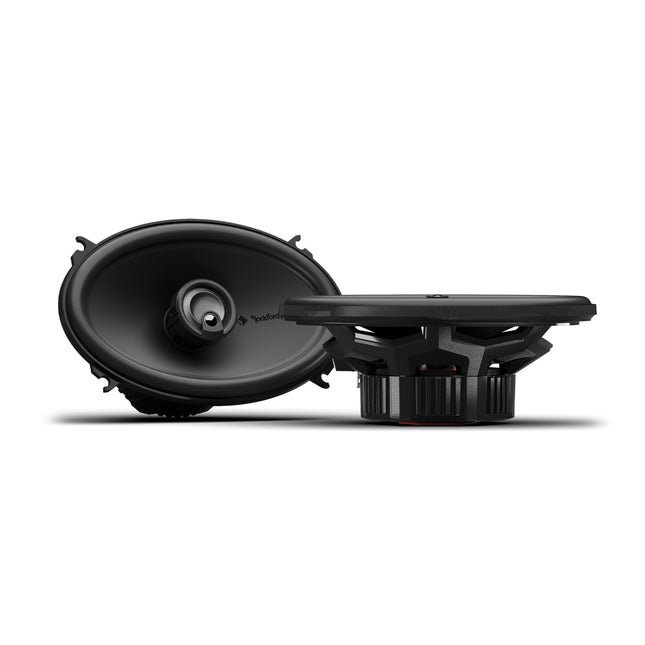

Rockford Fosgate P1V2-46 Punch P1 4"x6" 3-Way Coaxial Speakers
Professional-grade 4x6 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and deeper, more impactful bass in factory 4x6 speaker locations. The Rockford Fosgate Punch P1V2-46 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and removable motor cover ensuring seamless drop-in integration into modern vehicle factory mounting locations including tight-clearance applications. This comprehensive coaxial speaker system combines 4x6-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter featuring Tru-Sight alignment technology and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (64Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, fatigue-resistant Nomex spider construction, 15% glass-fiber reinforced PA66 composite basket, and high-strength Y35 ferrite motor structure (5mm larger than previous generation) with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes 4-tab adaptors, bass blocker crossovers, removable motor cover for tight applications, mounting hardware, cutout template, and wiring ensuring professional installation results for factory 4x6 system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-46 are perfect for Basic OEM systems with 4x6-inch speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from 4x6-inch driver dimensions. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension (down to 64Hz) ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings or modifications.
Precision 3-Way Coaxial Configuration with Tru-Sight Technology
Comprehensive three-way speaker design combines 4x6-inch mica-reinforced polypropylene curvilinear cone for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology ensuring precise high-frequency alignment, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (64Hz-25kHz) with exceptional clarity, detail, and impact ensuring every note comes through with accuracy and relentless output across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining exceptional sensitivity (86dB @ 1W/1M, 89dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure (5mm larger than previous generation) provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Removable Motor Cover for Tight-Clearance Applications
Innovative removable motor cover design enables installation flexibility in tight-clearance applications reducing mounting depth from 2.02 inches (with cover) to 1.93 inches (without cover). This versatile mounting system accommodates diverse factory mounting locations including door panels and rear deck applications with limited clearance behind mounting surface ensuring successful installation where traditional speakers cannot fit while maintaining full performance capability and protection across all mounting configurations.
Ultra-Durable Construction Built to Last
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, ultra-flexible braided tinsel leads securely stitched to spider prevent failure, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.
Complete Drop-In Installation System
Comprehensive installation kit includes 4-tab adaptors ensuring secure mounting in factory 4x6 locations, external bass blocker crossovers (6dB/octave @ 400Hz) protecting speakers from damaging low frequencies when used without subwoofer, precision cutout template for custom installations, complete mounting hardware including machine nuts, machine screws, and self-tapping screws, pre-terminated speaker wire with spade connectors, and crimp butt connectors enabling professional installation results without requiring specialized tools or fabrication across various vehicle applications.
Technical Specifications
Specification
Details
Model
P1V2-46
Brand
Rockford Fosgate
Series
Punch P1
Speaker Type
3-Way Coaxial
CTA-2031 Compliant
Yes
Midrange Size (Nominal Diameter)
4 x 6 inches
Tweeter Size
3/4 inch (19mm) Tetolon inverted dome
Piezo Super Tweeter Size
3/8 inch (9mm) Polypropylene convex
Nominal Impedance
4 ohms
Voice Coil Diameter
1 inch (25.4mm)
Frequency Response
64Hz - 25kHz
Fs (Resonant Frequency)
85 Hz
Power Handling (RMS)
75 Watts RMS
Power Handling (Peak)
150 Watts Peak
Sensitivity @ 1W/1M
86 dB
Sensitivity @ 2.83V/1M
89 dB
Cone Material
20-40% Mica reinforced Polypropylene curvilinear cone
Surround Material
Santoprene half-roll surround
Spider Material
Nomex linear spider
Basket Material
15% glass-fiber reinforced PA66 composite
Voice Coil Former
Vented Kapton
Motor Structure
High-strength Y35 ferrite (5mm larger than previous generation)
Crossover (Tweeter High-Pass)
9kHz @ 6dB/octave
Crossover (Midrange Bass Blocker)
400Hz @ 6dB/octave (100µF capacitor)
Cutout Diameter
5.62" x 3.66" (142.7mm x 92.9mm)
Mounting Depth (With Motor Cover)
2.02 inches (51.2mm)
Min. Mounting Depth (No Motor Cover)
1.93 inches (49.1mm)
Front Side Clearance
0.38 inches (9.7mm)
Removable Motor Cover
Yes
Grille/Trim Ring Included
No (sold separately)
Quantity
Sold in pairs (2 speakers)
Warranty
2-Year Manufacturer Warranty
Country of Origin
Designed for Australian market compliance
Compatible With
Vehicle Applications:
Factory Speaker Locations Requiring 4"x6" Dimensions
Door Panel Speaker Locations
Rear Deck Speaker Locations
Factory Systems with Single-Cone Drivers (no tweeters)
Basic OEM Audio Systems
Tight-Clearance Applications (removable motor cover)
Ideal Replacement For:
Factory 4"x6" Full-Range Speakers
Factory Single-Cone Drivers
OEM Door Panel 4x6 Speakers
Factory Rear Deck 4x6 Speakers
Basic OEM Audio Systems
Limited-Depth Mounting Locations
Head Unit Compatibility:
Factory Head Units (50W x 4 typical output)
Aftermarket Head Units (CEA-2006 compliant)
Amplified Systems (75W RMS maximum per channel)
OEM Premium Audio Systems
Any head unit with 4-ohm speaker output capability
System Configurations:
Front Door Upgrade (with rear speakers and subwoofer)
Rear Deck Installation (2-speaker or 4-speaker configurations)
Full-Range Replacement (all factory speaker locations)
Component System Supplement (fill speakers)
Basic System Upgrade (significant improvement over factory single-cone)
Frequently Asked Questions
Q: What is included in the Rockford Fosgate P1V2-46 package?
The P1V2-46 package includes (2) 4"x6" 4-ohm 3-way coaxial speakers, (1) speaker cutout template, (2) 4-tab adaptors for factory mounting, (2) 100µF non-polarized bass blocker capacitors, (8) machine nuts M3x0.5, (8) machine screws M3x0.5, (8) self-tapping Phillips mounting screws, (2) 205mm pre-terminated speaker wires with spade connectors, (3) negative female spade connectors, (3) positive female spade connectors, and (4) crimp butt connectors. Grilles are sold separately. This comprehensive kit provides everything needed for professional installation.
Q: Will these speakers fit my factory 4"x6" speaker locations and what is the mounting depth?
Yes, the P1V2-46 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and included 4-tab adaptors ensuring seamless drop-in integration into most factory 4"x6" mounting locations. The cutout diameter is 5.62" x 3.66" (142.7mm x 92.9mm). Mounting depth is 2.02 inches (51.2mm) with motor cover installed, or 1.93 inches (49.1mm) minimum mounting depth with motor cover removed for tight-clearance applications. The removable motor cover provides installation flexibility in limited-depth locations.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-46 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 86dB @ 1W/1M (89dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The included bass blocker crossovers (400Hz @ 6dB/octave) protect speakers when used without subwoofer, and the 4-ohm impedance ensures compatibility with all factory and aftermarket head units.
Q: What is the removable motor cover and when should I remove it?
The removable motor cover enables installation flexibility in tight-clearance applications. With the motor cover installed, mounting depth is 2.02 inches (51.2mm). Removing the motor cover reduces mounting depth to 1.93 inches (49.1mm) enabling successful installation where limited clearance exists behind mounting surface such as shallow door panels or rear deck locations. The speaker maintains full performance capability and protection with or without motor cover providing versatile mounting options across diverse vehicle applications.
Q: How does VAST 2.0 technology improve performance in 4"x6" speakers?
VAST 2.0 (Vertical Attach Surround Technique) delivers 25% increase in effective cone area compared to traditional speaker designs within the same 4"x6" mounting dimensions. This increased surface area enables higher SPL and enhanced bass response down to 64Hz from the elliptical driver format. Combined with the 3-way coaxial configuration featuring Tru-Sight tweeter alignment, high-strength Y35 ferrite motor (5mm larger than previous generation), and exceptional sensitivity (89dB @ 2.83V/1M), the P1V2-46 delivers dramatic improvements in output, clarity, and bass impact compared to factory single-cone drivers.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

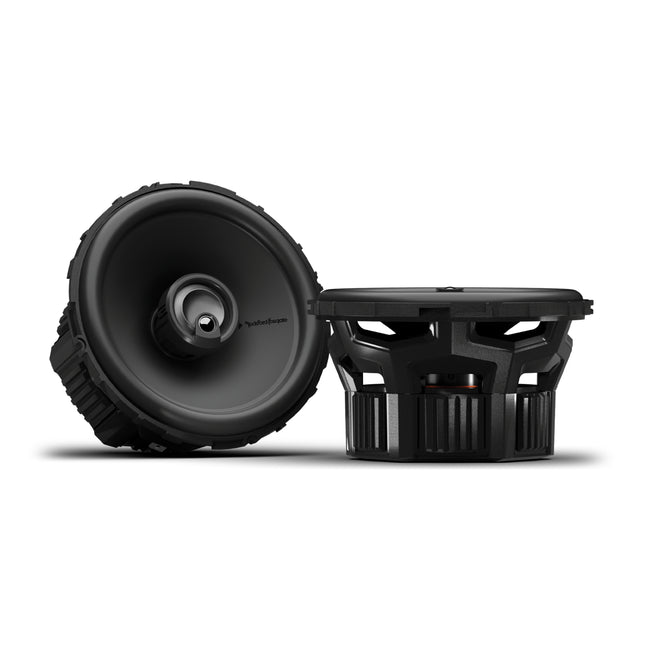

Rockford Fosgate P1V2-5 Punch P1 5.25" 3-Way Coaxial Speakers
Professional-grade 5.25 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and deeper, more impactful bass in factory 5.25-inch speaker locations. The Rockford Fosgate Punch P1V2-5 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and four included OEM twist-lock adaptors ensuring seamless drop-in integration into modern vehicle factory mounting locations including 5.25-inch and 4x6-inch applications. This comprehensive coaxial speaker system combines 5.25-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter featuring Tru-Sight alignment technology and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (56Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, fatigue-resistant Nomex spider construction, 15% glass-fiber reinforced PA66 composite basket, removable motor cover for tight-clearance applications, and high-strength Y35 ferrite motor structure (5mm larger than previous generation) with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes versatile adaptor configurations for 5.25-inch and 4x6-inch factory locations, mounting hardware, cutout template, and wiring ensuring professional installation results for factory system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-5 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from 5.25-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension (down to 56Hz) ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings or modifications.
Precision 3-Way Coaxial Configuration with Tru-Sight Technology
Comprehensive three-way speaker design combines 5.25-inch mica-reinforced polypropylene curvilinear cone for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology ensuring precise high-frequency alignment, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (56Hz-25kHz) with exceptional clarity, detail, and impact ensuring every note comes through with accuracy and relentless output across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining exceptional sensitivity (86dB @ 1W/1M, 89dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure (5mm larger than previous generation) provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Versatile Adaptor System for Multiple Mounting Configurations
Comprehensive installation kit includes four OEM adaptor configurations: (2) 4-tab twist-lock adaptors for standard 5.25-inch factory mounting, (2) 5.25-inch to 4x6-inch adaptors enabling installation in 4x6-inch factory locations, and (2) 3-tab wide adaptors for alternative mounting patterns. This versatile adaptor system ensures secure mounting across diverse factory locations eliminating compatibility concerns and enabling professional installation results across various vehicle applications without requiring custom fabrication.
Removable Motor Cover for Tight-Clearance Applications
Innovative removable motor cover design enables installation flexibility in tight-clearance applications reducing minimum mounting depth to 2.31 inches (58.6mm) without motor cover. Standard installation with twist-lock adaptors requires 2.33 inches (59.2mm) rear-loading depth or 2.60 inches (66mm) front-loading depth. This versatile mounting system accommodates diverse factory mounting locations including door panels and rear deck applications with limited clearance ensuring successful installation while maintaining full performance capability and protection.
Ultra-Durable Construction Built to Last
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, ultra-flexible braided tinsel leads securely stitched to spider prevent failure, vented Kapton voice coil former ensures excellent heat dissipation, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.
Technical Specifications
Specification
Details
Model
P1V2-5
Brand
Rockford Fosgate
Series
Punch P1
Speaker Type
3-Way Coaxial
CTA-2031 Compliant
Yes
Midrange Size (Nominal Diameter)
5.25 inches
Tweeter Size
3/4 inch (19mm) Tetolon inverted dome
Piezo Super Tweeter Size
3/8 inch (9mm) Polypropylene convex
Nominal Impedance
4 ohms
Voice Coil Diameter
1 inch (25.4mm)
Frequency Response
56Hz - 25kHz
Fs (Resonant Frequency)
75 Hz
Power Handling (RMS)
75 Watts RMS
Power Handling (Peak)
150 Watts Peak
Sensitivity @ 1W/1M
86 dB
Sensitivity @ 2.83V/1M
89 dB
Cone Material
20-40% Mica reinforced Polypropylene curvilinear cone
Surround Material
Santoprene half-roll surround
Spider Material
Nomex linear spider
Basket Material
15% glass-fiber reinforced PA66 composite
Voice Coil Former
Vented Kapton
Motor Structure
High-strength Y35 ferrite (5mm larger than previous generation)
Crossover (Tweeter High-Pass)
9kHz @ 6dB/octave
Cutout Diameter
4.37 inches (111mm)
Rear-Loading Depth (Twist-Lock Adaptor)
2.33 inches (59.2mm)
Front-Loading Depth (Twist-Lock Adaptor)
2.60 inches (66mm)
Min. Mounting Depth (No Motor Cover)
2.31 inches (58.6mm)
Front Side Clearance
0.44 inches (11.1mm)
Removable Motor Cover
Yes
Grille/Trim Ring Included
No (sold separately)
Quantity
Sold in pairs (2 speakers)
Warranty
2-Year Manufacturer Warranty
Country of Origin
Designed for Australian market compliance
Compatible With
Vehicle Applications:
Factory Speaker Locations Requiring 5.25" Diameter
Factory Speaker Locations Requiring 4"x6" Diameter (with adaptors)
Door Panel Speaker Locations
Rear Deck Speaker Locations
Kick Panel Speaker Locations
Factory Systems with Single-Cone Drivers (no tweeters)
Basic OEM Audio Systems
Ideal Replacement For:
Factory 5.25" Full-Range Speakers
Factory 4"x6" Full-Range Speakers (with included adaptors)
Factory Single-Cone Drivers
OEM Door Panel Speakers
Factory Rear Deck Speakers
Basic OEM Audio Systems
Limited-Depth Mounting Locations (removable motor cover)
Head Unit Compatibility:
Factory Head Units (50W x 4 typical output)
Aftermarket Head Units (CEA-2006 compliant)
Amplified Systems (75W RMS maximum per channel)
OEM Premium Audio Systems
Any head unit with 4-ohm speaker output capability
System Configurations:
Front Door Upgrade (with rear speakers and subwoofer)
Full-Range Replacement (all factory speaker locations)
Rear Deck Installation (2-speaker or 4-speaker configurations)
Component System Supplement (fill speakers)
Basic System Upgrade (significant improvement over factory single-cone)
Mixed Size Replacement (5.25" in doors, 4x6" adaptors for rear deck)
Frequently Asked Questions
Q: What OEM adaptors are included with the Rockford Fosgate P1V2-5 speakers?
The P1V2-5 package includes four OEM adaptor configurations to ensure compatibility with diverse factory mounting locations: (2) 4-tab twist-lock adaptors for standard 5.25-inch factory mounting, (2) 5.25-inch to 4x6-inch adaptors enabling installation in 4x6-inch factory locations, and (2) 3-tab wide adaptors for alternative mounting patterns. Additional included components: (2) speakers, (1) cutout template, (8) self-tapping mounting screws, (2) pre-terminated speaker wires, spade connectors, and crimp butt connectors. Grilles are sold separately.
Q: Will these speakers fit both 5.25-inch and 4x6-inch factory speaker locations?
Yes, the P1V2-5 speakers feature versatile adaptor system enabling installation in both 5.25-inch and 4x6-inch factory mounting locations. For 5.25-inch locations, use the included 4-tab twist-lock adaptors or 3-tab wide adaptors. For 4x6-inch locations, use the included 5.25-inch to 4x6-inch adaptors. The cutout diameter is 4.37 inches (111mm) with mounting depths ranging from 2.31 inches (minimum without motor cover) to 2.60 inches (front-loading with adaptor). This flexibility eliminates size compatibility concerns across diverse vehicle applications.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-5 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 86dB @ 1W/1M (89dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The 4-ohm impedance and internal ICC+ 6dB/octave crossover network ensure compatibility with all factory and aftermarket head units without requiring external crossovers or impedance matching.
Q: What is the removable motor cover and when should I remove it?
The removable motor cover enables installation flexibility in tight-clearance applications. Standard installation with twist-lock adaptors requires 2.33 inches (59.2mm) rear-loading depth or 2.60 inches (66mm) front-loading depth. Removing the motor cover reduces minimum mounting depth to 2.31 inches (58.6mm) enabling successful installation where limited clearance exists behind mounting surface such as shallow door panels or rear deck locations. The speaker maintains full performance capability and protection with or without motor cover providing versatile mounting options.
Q: How does the P1V2-5 improve sound quality compared to factory 5.25-inch speakers?
The P1V2-5 delivers dramatic sonic improvements over factory single-cone drivers through comprehensive 3-way design featuring dedicated 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment and 3/8-inch polypropylene piezo super tweeter. VAST 2.0 technology provides 25% increased cone area enabling higher SPL and enhanced bass response down to 56Hz. The mica-reinforced polypropylene cone with Santoprene surround, high-strength Y35 ferrite motor (5mm larger than previous generation), and exceptional sensitivity (89dB @ 2.83V/1M) ensure superior clarity, detail, impact, and output impossible with basic factory speakers delivering true "punch" across entire frequency range.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Rockford Fosgate P1V2-6 Punch P1 6.0" 3-Way Coaxial Speakers
Professional-grade 6.0 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and deeper, more impactful bass in factory 6-inch speaker locations. The Rockford Fosgate Punch P1V2-6 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and removable motor cover ensuring seamless drop-in integration into modern vehicle factory mounting locations including tight-clearance applications. This comprehensive coaxial speaker system combines 6.0-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter featuring Tru-Sight alignment technology and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (53Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, fatigue-resistant Nomex spider construction, 15% glass-fiber reinforced PA66 composite basket, and high-strength Y35 ferrite motor structure (5mm larger than previous generation) with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes mounting hardware, cutout template, and wiring ensuring professional installation results for factory system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-6 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from 6.0-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension (down to 53Hz) ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings or modifications.
Precision 3-Way Coaxial Configuration with Tru-Sight Technology
Comprehensive three-way speaker design combines 6.0-inch mica-reinforced polypropylene curvilinear cone for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology ensuring precise high-frequency alignment, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (53Hz-25kHz) with exceptional clarity, detail, and impact ensuring every note comes through with accuracy and relentless output across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining exceptional sensitivity (88dB @ 1W/1M, 91dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure (5mm larger than previous generation) provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Removable Motor Cover for Tight-Clearance Applications
Innovative removable motor cover design enables installation flexibility in tight-clearance applications reducing mounting depth from 2.38 inches (with cover) to 2.14 inches (without cover). This versatile mounting system accommodates diverse factory mounting locations including door panels and rear deck applications with limited clearance behind mounting surface ensuring successful installation where traditional speakers cannot fit while maintaining full performance capability and protection across all mounting configurations.
Ultra-Durable Construction Built to Last
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, ultra-flexible braided tinsel leads securely stitched to spider prevent failure, vented Kapton voice coil former ensures excellent heat dissipation, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.
Complete Installation System
Comprehensive installation kit includes precision cutout template for accurate mounting hole preparation, eight self-tapping Phillips mounting screws for secure speaker retention, pre-terminated 18 AWG speaker wire with spade connectors for factory harness connection, and crimp butt connectors for wire splicing enabling professional installation results without requiring specialized tools or fabrication. The included ICC+ internal concealed 6dB/octave crossover network protects tweeter from damaging low frequencies ensuring long-term reliability.
Technical Specifications
Specification
Details
Model
P1V2-6
Brand
Rockford Fosgate
Series
Punch P1
Speaker Type
3-Way Coaxial
CTA-2031 Compliant
Yes
Midrange Size (Nominal Diameter)
6.0 inches
Tweeter Size
3/4 inch (19mm) Tetolon inverted dome
Piezo Super Tweeter Size
3/8 inch (9mm) Polypropylene convex
Nominal Impedance
4 ohms
Voice Coil Diameter
1 inch (25.4mm)
Frequency Response
53Hz - 25kHz
Fs (Resonant Frequency)
70 Hz
Power Handling (RMS)
75 Watts RMS
Power Handling (Peak)
150 Watts Peak
Sensitivity @ 1W/1M
88 dB
Sensitivity @ 2.83V/1M
91 dB
Cone Material
20-40% Mica reinforced Polypropylene curvilinear cone
Surround Material
Santoprene half-roll surround
Spider Material
Nomex linear spider
Basket Material
15% glass-fiber reinforced PA66 composite
Voice Coil Former
Vented Kapton
Motor Structure
High-strength Y35 ferrite (5mm larger than previous generation)
Crossover (Tweeter High-Pass)
9kHz @ 6dB/octave
Cutout Diameter
5 inches (127mm)
Mounting Depth (With Motor Cover)
2.38 inches (60.4mm)
Min. Mounting Depth (No Motor Cover)
2.14 inches (54.3mm)
Front Side Clearance
0.49 inches (12.4mm)
Removable Motor Cover
Yes
Grille/Trim Ring Included
No (sold separately)
Quantity
Sold in pairs (2 speakers)
Warranty
2-Year Manufacturer Warranty
Country of Origin
Designed for Australian market compliance
What's in the Box
Rockford Fosgate P1V2-6 Package Includes:
(2) 6.0" 4Ω 3-Way Coaxial Speakers
(1) 6.0" Speaker Cutout Template
(8) Self-Tapping Phillips #8x32mm Mounting Screws
(2) 18 AWG Red/Black Speaker Wire, 205mm
(3) 18 AWG (–) Female Crimp Spade Connectors (.187")
(3) 18 AWG (+) Female Crimp Spade Connectors (.250")
(4) 18 AWG Crimp Butt Connectors
Note: Grilles are sold separately. OEM adaptors are not included with this model.
Compatible With
Vehicle Applications:
Factory Speaker Locations Requiring 6.0" Diameter
Door Panel Speaker Locations
Rear Deck Speaker Locations
Factory Systems with Single-Cone Drivers (no tweeters)
Basic OEM Audio Systems
Tight-Clearance Applications (removable motor cover)
Ideal Replacement For:
Factory 6.0" Full-Range Speakers
Factory Single-Cone Drivers
OEM Door Panel 6" Speakers
Factory Rear Deck 6" Speakers
Basic OEM Audio Systems
Limited-Depth Mounting Locations
Head Unit Compatibility:
Factory Head Units (50W x 4 typical output)
Aftermarket Head Units (CEA-2006 compliant)
Amplified Systems (75W RMS maximum per channel)
OEM Premium Audio Systems
Any head unit with 4-ohm speaker output capability
System Configurations:
Front Door Upgrade (with rear speakers and subwoofer)
Rear Deck Installation (2-speaker or 4-speaker configurations)
Full-Range Replacement (all factory speaker locations)
Component System Supplement (fill speakers)
Basic System Upgrade (significant improvement over factory single-cone)
Frequently Asked Questions
Q: What is included in the Rockford Fosgate P1V2-6 package?
The P1V2-6 package includes (2) 6.0-inch 4-ohm 3-way coaxial speakers, (1) speaker cutout template for accurate mounting hole preparation, (8) self-tapping Phillips mounting screws for secure speaker retention, (2) 205mm pre-terminated speaker wires with spade connectors, (3) negative female crimp spade connectors, (3) positive female crimp spade connectors, and (4) crimp butt connectors. Grilles are sold separately. OEM adaptors are not included with this model.
Q: Will these speakers fit my factory 6.0-inch speaker locations and what is the mounting depth?
Yes, the P1V2-6 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology ensuring seamless drop-in integration into most factory 6.0-inch mounting locations. The cutout diameter is 5 inches (127mm). Mounting depth is 2.38 inches (60.4mm) with motor cover installed, or 2.14 inches (54.3mm) minimum mounting depth with motor cover removed for tight-clearance applications. Front side clearance requirement is 0.49 inches (12.4mm). The removable motor cover provides installation flexibility in limited-depth locations.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-6 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 88dB @ 1W/1M (91dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The 4-ohm impedance and internal ICC+ 6dB/octave crossover network ensure compatibility with all factory and aftermarket head units without requiring external crossovers or impedance matching.
Q: What is the removable motor cover and when should I remove it?
The removable motor cover enables installation flexibility in tight-clearance applications. With the motor cover installed, mounting depth is 2.38 inches (60.4mm). Removing the motor cover reduces mounting depth to 2.14 inches (54.3mm) enabling successful installation where limited clearance exists behind mounting surface such as shallow door panels or rear deck locations. The speaker maintains full performance capability and protection with or without motor cover providing versatile mounting options across diverse vehicle applications.
Q: How does the P1V2-6 improve sound quality compared to factory 6-inch speakers?
The P1V2-6 delivers dramatic sonic improvements over factory single-cone drivers through comprehensive 3-way design featuring dedicated 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment and 3/8-inch polypropylene piezo super tweeter. VAST 2.0 technology provides 25% increased cone area enabling higher SPL and enhanced bass response down to 53Hz. The mica-reinforced polypropylene cone with Santoprene surround, high-strength Y35 ferrite motor (5mm larger than previous generation), and exceptional sensitivity (91dB @ 2.83V/1M) ensure superior clarity, detail, impact, and output impossible with basic factory speakers delivering true "punch" across entire frequency range.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

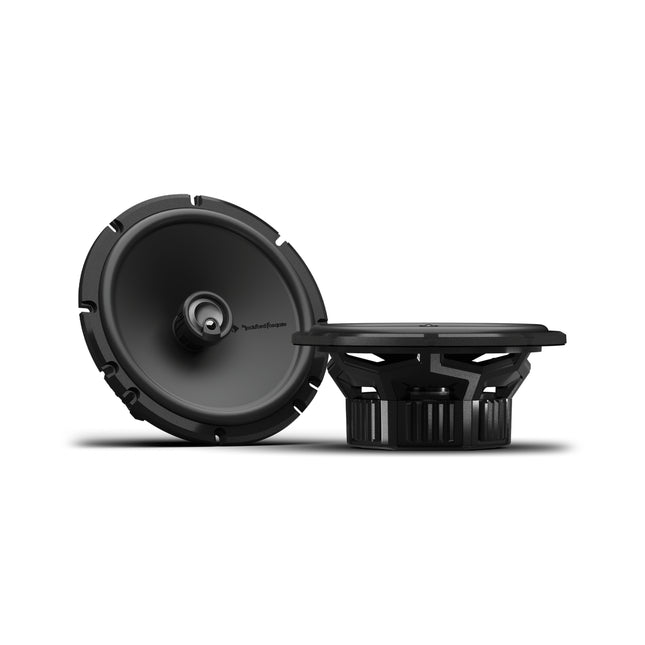

Rockford Fosgate P1V2-65 Punch P1 6.5" 3-Way Coaxial Speakers
Professional-grade 6.5 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and deeper, more impactful bass in factory 6.5-inch speaker locations. The Rockford Fosgate Punch P1V2-65 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and removable motor cover ensuring seamless drop-in integration into modern vehicle factory mounting locations including tight-clearance applications. This comprehensive coaxial speaker system combines 6.5-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter featuring Tru-Sight alignment technology and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (49Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, fatigue-resistant Nomex spider construction, 15% glass-fiber reinforced PA66 composite basket, and high-strength Y35 ferrite motor structure (5mm larger than previous generation) with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes mounting hardware, cutout template, and wiring ensuring professional installation results for factory 6.5-inch system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-65 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from 6.5-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension (down to 49Hz) ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings or modifications delivering true full-range performance.
Precision 3-Way Coaxial Configuration with Tru-Sight Technology
Comprehensive three-way speaker design combines 6.5-inch mica-reinforced polypropylene curvilinear cone for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology ensuring precise high-frequency alignment, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (49Hz-25kHz) with exceptional clarity, detail, and impact ensuring every note comes through with accuracy and relentless output across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining exceptional sensitivity (88dB @ 1W/1M, 91dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure (5mm larger than previous generation) provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Removable Motor Cover for Tight-Clearance Applications
Innovative removable motor cover design enables installation flexibility in tight-clearance applications reducing mounting depth from 2.5 inches (with cover) to 2.26 inches (without cover). This versatile mounting system accommodates diverse factory mounting locations including door panels and rear deck applications with limited clearance behind mounting surface ensuring successful installation where traditional speakers cannot fit while maintaining full performance capability and protection across all mounting configurations.
Ultra-Durable Construction Built to Last
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, ultra-flexible braided tinsel leads securely stitched to spider prevent failure, vented Kapton voice coil former ensures excellent heat dissipation, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.
Complete Installation System
Comprehensive installation kit includes precision cutout template for accurate mounting hole preparation, eight self-tapping Phillips mounting screws for secure speaker retention, pre-terminated 18 AWG speaker wire with spade connectors for factory harness connection, and crimp butt connectors for wire splicing enabling professional installation results without requiring specialized tools or fabrication. The included ICC+ internal concealed 6dB/octave crossover network protects tweeter from damaging low frequencies ensuring long-term reliability.
Technical Specifications
Specification
Details
Model
P1V2-65
Brand
Rockford Fosgate
Series
Punch P1
Speaker Type
3-Way Coaxial
CTA-2031 Compliant
Yes
Midrange Size (Nominal Diameter)
6.5 inches
Tweeter Size
3/4 inch (19mm) Tetolon inverted dome
Piezo Super Tweeter Size
3/8 inch (9mm) Polypropylene convex
Nominal Impedance
4 ohms
Voice Coil Diameter
1 inch (25.4mm)
Frequency Response
49Hz - 25kHz
Fs (Resonant Frequency)
65 Hz
Power Handling (RMS)
75 Watts RMS
Power Handling (Peak)
150 Watts Peak
Sensitivity @ 1W/1M
88 dB
Sensitivity @ 2.83V/1M
91 dB
Cone Material
20-40% Mica reinforced Polypropylene curvilinear cone
Surround Material
Santoprene half-roll surround
Spider Material
Nomex linear spider
Basket Material
15% glass-fiber reinforced PA66 composite
Voice Coil Former
Vented Kapton
Motor Structure
High-strength Y35 ferrite (5mm larger than previous generation)
Crossover (Tweeter High-Pass)
9kHz @ 6dB/octave
Cutout Diameter
5.42 inches (137.6mm)
Mounting Depth (With Motor Cover)
2.5 inches (63.5mm)
Min. Mounting Depth (No Motor Cover)
2.26 inches (57.3mm)
Front Side Clearance
0.43 inches (11mm)
Removable Motor Cover
Yes
Grille/Trim Ring Included
No (sold separately)
Quantity
Sold in pairs (2 speakers)
Warranty
2-Year Manufacturer Warranty
Country of Origin
Designed for Australian market compliance
What's in the Box
Rockford Fosgate P1V2-65 Package Includes:
(2) 6.5" 4Ω 3-Way Coaxial Speakers
(1) 6.5" Speaker Cutout Template
(8) Self-Tapping Phillips #8x32mm Mounting Screws
(2) 18 AWG Red/Black Speaker Wire, 205mm
(3) 18 AWG (–) Female Crimp Spade Connectors (.187")
(3) 18 AWG (+) Female Crimp Spade Connectors (.250")
(4) 18 AWG Crimp Butt Connectors
Note: Grilles are sold separately. OEM adaptors are not included with this model.
Compatible With
Vehicle Applications:
Factory Speaker Locations Requiring 6.5" Diameter
Door Panel Speaker Locations
Rear Deck Speaker Locations
Factory Systems with Single-Cone Drivers (no tweeters)
Basic OEM Audio Systems
Tight-Clearance Applications (removable motor cover)
Most Popular Factory Speaker Size
Ideal Replacement For:
Factory 6.5" Full-Range Speakers
Factory Single-Cone Drivers
OEM Door Panel 6.5" Speakers
Factory Rear Deck 6.5" Speakers
Basic OEM Audio Systems
Limited-Depth Mounting Locations
Head Unit Compatibility:
Factory Head Units (50W x 4 typical output)
Aftermarket Head Units (CEA-2006 compliant)
Amplified Systems (75W RMS maximum per channel)
OEM Premium Audio Systems
Any head unit with 4-ohm speaker output capability
System Configurations:
Front Door Upgrade (with rear speakers and subwoofer)
Rear Deck Installation (2-speaker or 4-speaker configurations)
Full-Range Replacement (all factory speaker locations)
Component System Supplement (fill speakers)
Basic System Upgrade (significant improvement over factory single-cone)
Complete 4-Speaker System (front and rear)
Frequently Asked Questions
Q: What is included in the Rockford Fosgate P1V2-65 package?
The P1V2-65 package includes (2) 6.5-inch 4-ohm 3-way coaxial speakers, (1) speaker cutout template for accurate mounting hole preparation, (8) self-tapping Phillips mounting screws for secure speaker retention, (2) 205mm pre-terminated speaker wires with spade connectors, (3) negative female crimp spade connectors, (3) positive female crimp spade connectors, and (4) crimp butt connectors. Grilles are sold separately. OEM adaptors are not included with this model enabling direct factory replacement installation.
Q: Will these speakers fit my factory 6.5-inch speaker locations and what is the mounting depth?
Yes, the P1V2-65 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology ensuring seamless drop-in integration into most factory 6.5-inch mounting locations. The cutout diameter is 5.42 inches (137.6mm). Mounting depth is 2.5 inches (63.5mm) with motor cover installed, or 2.26 inches (57.3mm) minimum mounting depth with motor cover removed for tight-clearance applications. Front side clearance requirement is 0.43 inches (11mm). The removable motor cover provides installation flexibility in limited-depth locations.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-65 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 88dB @ 1W/1M (91dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The 4-ohm impedance and internal ICC+ 6dB/octave crossover network ensure compatibility with all factory and aftermarket head units without requiring external crossovers or impedance matching.
Q: How does the P1V2-65 compare to the P1V2-6 model?
The P1V2-65 features larger 6.5-inch cone diameter compared to P1V2-6's 6.0-inch diameter delivering enhanced bass response down to 49Hz versus 53Hz, increased surface area through VAST 2.0 technology enabling higher SPL output, and slightly larger mounting requirements (5.42-inch cutout versus 5-inch). Both models share identical power handling (75W RMS), sensitivity specifications, tweeter configurations, and construction quality. The 6.5-inch model provides enhanced low-frequency performance and output capability ideal for primary door speaker locations while 6.0-inch model suits tighter mounting constraints.
Q: What is the removable motor cover and when should I remove it?
The removable motor cover enables installation flexibility in tight-clearance applications. With the motor cover installed, mounting depth is 2.5 inches (63.5mm). Removing the motor cover reduces mounting depth to 2.26 inches (57.3mm) enabling successful installation where limited clearance exists behind mounting surface such as shallow door panels or rear deck locations. The speaker maintains full performance capability and protection with or without motor cover providing versatile mounting options across diverse vehicle applications ensuring successful installation in challenging mounting locations.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

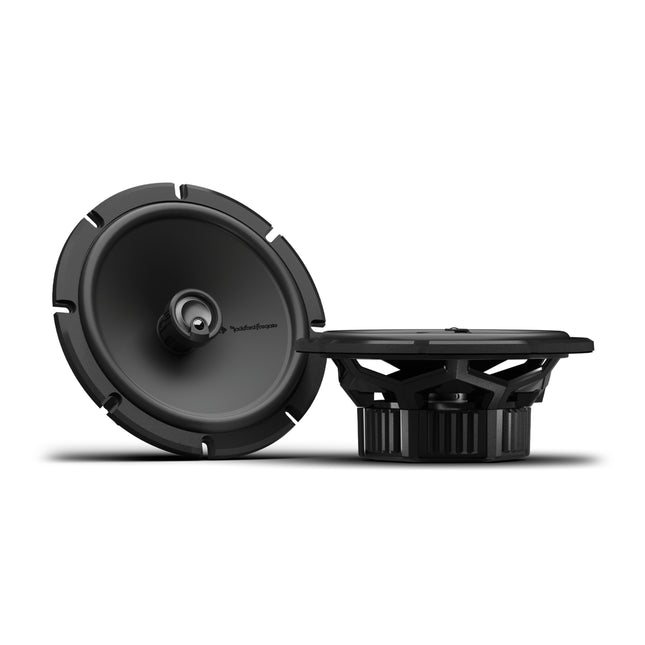

Rockford Fosgate P1V2-675 Punch P1 6.75" 3-Way Coaxial Speakers
Premium 6.75-inch 3-way coaxial speakers engineered with VAST 2.0 technology and Auto Fit Architecture for seamless integration and relentless performance in modern vehicles.
Product Overview
The Rockford Fosgate P1V2-675 Punch P1 represents the next generation of automotive audio excellence, engineered to fit perfectly and built to deliver commanding performance that puts you in control. Powered by advanced VAST 2.0 technology, these speakers provide a 25% increase in cone area compared to previous generations, resulting in maximum output and deeper, more impactful bass that transforms your driving experience. The Auto Fit Architecture features redesigned frame geometry, precision-engineered mounting holes, removable motor cover, and optimized speaker diameter ensuring seamless integration into today's modern vehicles without compromise. The Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges provide precise alignment for drop-in integration into most factory mounting locations, making installation straightforward and adaptable regardless of your vehicle's configuration. Built with class-leading construction including reinforced carbon fiber baskets, Santoprene surrounds, and Nomex spiders, every component and material was chosen for strength and engineered for the long haul, delivering relentless performance that lasts no matter how hard you drive them. The Tru-Sight tweeter ensures precise high-frequency alignment with exceptional clarity, while the 3-way configuration including inverted dome tweeter and piezo super tweeter reproduces every note with accuracy across the full frequency spectrum from 49Hz to 25kHz.
Features & Benefits
VAST 2.0 Technology: Advanced cone design delivers 25% increase in cone area compared to previous generation, resulting in maximum output capability and deeper, more impactful bass response that significantly outperforms standard factory speakers and traditional coaxial designs.
Auto Fit Architecture: Comprehensive engineering approach featuring redesigned frame geometry, updated mounting flanges, removable motor cover, and optimized diameter ensuring seamless integration into modern vehicles with drop-in fitment that eliminates modification requirements and installation complications.
Tru-Sight Tweeter Alignment: Precision-engineered 3/4-inch Tetolon inverted dome tweeter with co-witnessed 3/8-inch polypropylene piezo super tweeter ensures accurate high-frequency reproduction and optimal sound staging, delivering crystal-clear vocals and detailed cymbal reproduction with exceptional imaging characteristics.
Reinforced Carbon Fiber Basket: 15% glass-fiber reinforced PA66 injection-molded composite basket construction provides superior strength and rigidity compared to stamped steel baskets, eliminating resonance and flex while maintaining structural integrity under extreme output conditions for distortion-free performance.
Santoprene Half-Roll Surround: Premium Santoprene surround material chemically bonded to mica-reinforced polypropylene cone delivers exceptional low distortion characteristics and unmatched fatigue resistance, maintaining consistent performance through temperature extremes and years of demanding use without deterioration.
Nomex Spider Assembly: Fatigue and tear-resistant linear Nomex spider with ultra-flexible braided tinsel leads securely stitched to spider ensures consistent excursion control and excellent durability, maintaining proper voice coil alignment throughout the speaker's operational life even under high-power conditions.
ICC+ Concealed Crossover: Internal Concealed Crossover with 6dB/octave network seamlessly integrated into speaker assembly eliminates external mounting requirements while ensuring optimal frequency distribution to tweeter, super tweeter, and woofer for balanced, cohesive sound reproduction across the entire frequency range.
Removable Motor Cover: Innovative removable motor cover design accommodates tight mounting applications where rear clearance is limited, providing installation flexibility in challenging locations while maintaining full performance capability without compromising magnetic motor structure integrity.
CTA-2031 Compliant: Certified to industry-standard testing protocols ensuring published specifications for power handling and performance meet rigorous requirements, guaranteeing reliable operation and accurate performance claims backed by independent verification.
Technical Specifications
Specification
Details
Brand
Rockford Fosgate
Model Number
P1V2-675
Series
Punch P1
Speaker Type
3-Way Coaxial
Size
6.75 inches (171mm)
Power Handling (RMS)
75 Watts
Power Handling (Peak)
150 Watts
Impedance
4 Ohm
Frequency Response
49 Hz - 25 kHz
Sensitivity (1W/1M)
88 dB
Sensitivity (2.83V/1M)
91 dB
Resonant Frequency (Fs)
65 Hz
Tweeter Size
3/4 inch (19mm) Inverted Dome
Tweeter Type
Tetolon Inverted Dome
Super Tweeter Size
3/8 inch (9mm) Co-Witnessed Convex
Super Tweeter Type
Polypropylene Piezo
Voice Coil Diameter
1 inch (25.4mm)
Woofer Cone Material
20-40% Mica Reinforced Polypropylene
Surround Material
Santoprene Half-Roll
Spider Material
Nomex Linear
Basket Material
15% Glass-Fiber Reinforced PA66 Composite
Voice Coil Former
Vented Kapton
Motor Structure
High-Strength Y35 Ferrite (5mm Larger)
Crossover Type
ICC+ Internal Concealed 6dB/Octave
Tweeter Crossover Point
9kHz @ 6dB/Octave High-Pass
Cutout Diameter
5.67 inches (144mm)
Mounting Depth (With Cover)
2.48 inches (62.9mm)
Minimum Mounting Depth (No Cover)
2.24 inches (56.8mm)
Front Side Clearance
0.51 inches (12.9mm)
Removable Motor Cover
Yes
Grille Included
No (Sold Separately)
CTA-2031 Compliant
Yes
Warranty
2 Years
Quantity
2 Speakers (Pair)
Compatible With
The Rockford Fosgate P1V2-675 features universal 6.75-inch fitment compatible with vehicles featuring 6.75-inch factory speaker locations. The Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges accommodates various mounting configurations including door panels and rear decks. The removable motor cover provides installation flexibility in tight mounting applications with limited rear clearance. Verify your factory speaker size is 6.75 inches, cutout diameter accommodates 5.67 inches, and mounting depth allows minimum 2.24 inches clearance (or 2.48 inches with motor cover installed).
Frequently Asked Questions
Q: Will these speakers fit my vehicle? A: The P1V2-675 fits most vehicles with 6.75-inch speaker openings. Verify your factory speaker size is 6.75 inches, cutout diameter accommodates 5.67 inches, and mounting depth allows at least 2.24 inches clearance without motor cover or 2.48 inches with cover. The Auto Fit Architecture with F.L.W.R. technology accommodates various mounting configurations. Contact us with your vehicle year, make, and model for specific fitment confirmation.
Q: Do I need an external amplifier for these speakers? A: No external amplifier is required. The P1V2-675 performs excellently with factory head units and amplifiers rated at 75 watts RMS per channel. However, pairing with an aftermarket amplifier capable of delivering 75 watts RMS at 4 ohms per channel will maximize VAST 2.0 technology performance potential and unlock the full dynamic range these speakers are capable of delivering.
Q: What's the advantage of VAST 2.0 technology? A: VAST 2.0 technology provides a 25% increase in cone area compared to previous generation speakers, resulting in significantly greater output capability and deeper, more impactful bass response. This advanced design maximizes the available speaker diameter to deliver performance typically associated with larger speakers while maintaining compatibility with standard 6.75-inch mounting locations.
Q: Are speaker grilles included with these speakers? A: No, grilles are sold separately. The P1V2-675 package includes two speakers, cutout template, mounting hardware, speaker wire, crimp connectors, and butt connectors. Rockford Fosgate offers compatible grilles and trim rings as separate accessories allowing you to choose the aesthetic that best matches your vehicle's interior or personal preference.
Q: What does the removable motor cover feature provide? A: The removable motor cover allows installation in tight mounting applications where rear clearance is limited. With the motor cover installed, mounting depth is 2.48 inches. Removing the motor cover reduces minimum mounting depth to 2.24 inches, providing installation flexibility in challenging locations while maintaining full magnetic motor structure performance and speaker capability without compromise.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

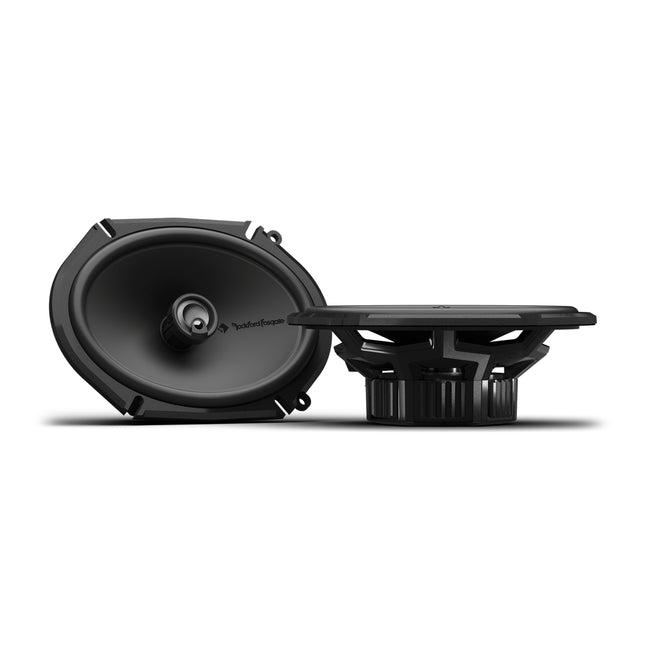

Rockford Fosgate P1V2-68 Punch P1 6"x8" 3-Way Coaxial Speakers
Premium 6"x8" 3-way coaxial speakers engineered with VAST 2.0 technology and Auto Fit Architecture for seamless integration and relentless performance in modern vehicles.
Product Overview
The Rockford Fosgate P1V2-68 Punch P1 represents the next generation of automotive audio excellence, specifically engineered for vehicles featuring 6"x8" factory speaker locations and built to deliver commanding performance that puts you in control. Powered by advanced VAST 2.0 technology, these speakers provide a 25% increase in cone area compared to previous generations, resulting in maximum output and deeper, more impactful bass that transforms your driving experience with extended low-frequency response down to 45Hz. The Auto Fit Architecture features redesigned frame geometry, precision-engineered mounting holes, removable motor cover, and optimized speaker dimensions ensuring seamless integration into today's modern vehicles without compromise or modification requirements. The Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges provide precise alignment for drop-in integration into most factory mounting locations, making installation straightforward and adaptable regardless of your vehicle's configuration. Built with class-leading construction including reinforced carbon fiber baskets, Santoprene surrounds, and Nomex spiders, every component and material was chosen for strength and engineered for the long haul, delivering relentless performance that lasts no matter how hard you drive them. The Tru-Sight tweeter configuration ensures precise high-frequency alignment with exceptional clarity, while the 3-way array including inverted dome tweeter and piezo super tweeter reproduces every note with accuracy across the full frequency spectrum from 45Hz to 25kHz.
Features & Benefits
VAST 2.0 Technology: Advanced cone design delivers 25% increase in cone area compared to previous generation, resulting in maximum output capability and deeper, more impactful bass response with extended low-frequency extension down to 45Hz that significantly outperforms standard factory speakers and traditional coaxial designs.
Auto Fit Architecture: Comprehensive engineering approach featuring redesigned frame geometry, updated mounting flanges, removable motor cover, and optimized 6"x8" oval dimensions ensuring seamless integration into modern vehicles with drop-in fitment that eliminates modification requirements and installation complications in challenging oval speaker locations.
Tru-Sight Tweeter Alignment: Precision-engineered 3/4-inch Tetolon inverted dome tweeter with co-witnessed 3/8-inch polypropylene piezo super tweeter ensures accurate high-frequency reproduction and optimal sound staging, delivering crystal-clear vocals and detailed cymbal reproduction with exceptional imaging characteristics across the entire listening area.
Reinforced Carbon Fiber Basket: 15% glass-fiber reinforced PA66 injection-molded composite basket construction provides superior strength and rigidity compared to stamped steel baskets, eliminating resonance and flex while maintaining structural integrity under extreme output conditions for distortion-free performance and precise woofer control.
Santoprene Half-Roll Surround: Premium Santoprene surround material chemically bonded to mica-reinforced polypropylene cone delivers exceptional low distortion characteristics and unmatched fatigue resistance, maintaining consistent performance through temperature extremes and years of demanding use without deterioration or performance degradation.
Nomex Spider Assembly: Fatigue and tear-resistant linear Nomex spider with ultra-flexible braided tinsel leads securely stitched to spider ensures consistent excursion control and excellent durability, maintaining proper voice coil alignment throughout the speaker's operational life even under high-power conditions and extreme listening levels.
ICC+ Concealed Crossover: Internal Concealed Crossover with 6dB/octave network seamlessly integrated into speaker assembly eliminates external mounting requirements while ensuring optimal frequency distribution to tweeter, super tweeter, and woofer for balanced, cohesive sound reproduction across the entire frequency range without external black boxes.
Removable Motor Cover: Innovative removable motor cover design accommodates tight mounting applications where rear clearance is limited, providing installation flexibility in challenging locations while maintaining full performance capability without compromising magnetic motor structure integrity or reducing output potential.
CTA-2031 Compliant: Certified to industry-standard testing protocols ensuring published specifications for power handling and performance meet rigorous requirements, guaranteeing reliable operation and accurate performance claims backed by independent verification and truth-in-advertising compliance.
Technical Specifications
Specification
Details
Brand
Rockford Fosgate
Model Number
P1V2-68
Series
Punch P1
Speaker Type
3-Way Coaxial
Size
6" x 8" (152mm x 203mm)
Power Handling (RMS)
75 Watts
Power Handling (Peak)
150 Watts
Impedance
4 Ohm
Frequency Response
45 Hz - 25 kHz
Resonant Frequency (Fs)
60 Hz
Sensitivity (1W/1M)
88 dB
Sensitivity (2.83V/1M)
91 dB
Tweeter Size
3/4 inch (19mm) Inverted Dome
Tweeter Type
Tetolon Inverted Dome
Super Tweeter Size
3/8 inch (9mm) Co-Witnessed Convex
Super Tweeter Type
Polypropylene Piezo
Voice Coil Diameter
1 inch (25.4mm)
Woofer Cone Material
20-40% Mica Reinforced Polypropylene
Surround Material
Santoprene Half-Roll
Spider Material
Nomex Linear
Basket Material
15% Glass-Fiber Reinforced PA66 Composite
Voice Coil Former
Vented Kapton
Motor Structure
High-Strength Y35 Ferrite (5mm Larger)
Crossover Type
ICC+ Internal Concealed 6dB/Octave
Tweeter Crossover Point
9kHz @ 6dB/Octave High-Pass
Cutout Diameter
7.19" x 5.18" (182.5mm x 131.5mm)
Mounting Depth (With Cover)
2.61 inches (66.4mm)
Minimum Mounting Depth (No Cover)
2.37 inches (60.3mm)
Front Side Clearance
0.43 inches (11mm)
Removable Motor Cover
Yes
Grille Included
No (Sold Separately)
CTA-2031 Compliant
Yes
Warranty
2 Years
Quantity
2 Speakers (Pair)
Compatible With
The Rockford Fosgate P1V2-68 features universal 6"x8" fitment compatible with vehicles featuring 6"x8" factory speaker locations. The Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges accommodates various mounting configurations including door panels and rear decks where oval speaker locations are specified. The removable motor cover provides installation flexibility in tight mounting applications with limited rear clearance. Verify your factory speaker size is 6"x8", cutout dimensions accommodate 7.19" x 5.18", and mounting depth allows minimum 2.37 inches clearance (or 2.61 inches with motor cover installed).
Frequently Asked Questions
Q: Will these speakers fit my vehicle? A: The P1V2-68 fits most vehicles with 6"x8" oval speaker openings. Verify your factory speaker size is 6"x8", cutout dimensions accommodate 7.19" x 5.18", and mounting depth allows at least 2.37 inches clearance without motor cover or 2.61 inches with cover. The Auto Fit Architecture with F.L.W.R. technology accommodates various mounting configurations. Contact us with your vehicle year, make, and model for specific fitment confirmation.
Q: Do I need an external amplifier for these speakers? A: No external amplifier is required. The P1V2-68 performs excellently with factory head units and amplifiers rated at 75 watts RMS per channel. However, pairing with an aftermarket amplifier capable of delivering 75 watts RMS at 4 ohms per channel will maximize VAST 2.0 technology performance potential and unlock the full dynamic range and extended bass response these speakers are capable of delivering.
Q: What's the advantage of VAST 2.0 technology in this 6"x8" speaker? A: VAST 2.0 technology provides a 25% increase in cone area compared to previous generation speakers, resulting in significantly greater output capability and deeper bass response extending down to 45Hz. This advanced design maximizes the available 6"x8" oval speaker diameter to deliver performance typically associated with larger speakers while maintaining compatibility with standard factory mounting locations.
Q: Are speaker grilles included with these speakers? A: No, grilles are sold separately. The P1V2-68 package includes two speakers, cutout template, mounting hardware, speaker wire, crimp connectors, and butt connectors. Rockford Fosgate offers compatible grilles and trim rings as separate accessories allowing you to choose the aesthetic that best matches your vehicle's interior or personal preference.
Q: What does the removable motor cover feature provide? A: The removable motor cover allows installation in tight mounting applications where rear clearance is limited. With the motor cover installed, mounting depth is 2.61 inches. Removing the motor cover reduces minimum mounting depth to 2.37 inches, providing installation flexibility in challenging locations while maintaining full magnetic motor structure performance and speaker capability without compromise.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Rockford Fosgate P1V2-69 Punch P1 6"x9" 3-Way Coaxial Speakers
Premium 6"x9" 3-way coaxial speakers engineered with VAST 2.0 technology and Auto Fit Architecture for seamless integration and relentless performance in modern vehicles.
Product Overview
The Rockford Fosgate P1V2-69 Punch P1 represents the next generation of automotive audio excellence, specifically engineered for vehicles featuring 6"x9" factory speaker locations and built to deliver commanding performance that puts you in control of your listening experience. Powered by advanced VAST 2.0 technology, these speakers provide a 25% increase in cone area compared to previous generations, resulting in maximum output and deeper, more impactful bass that transforms your driving experience with extended low-frequency response down to 45Hz and exceptional efficiency rating of 89dB sensitivity. The Auto Fit Architecture features redesigned frame geometry, precision-engineered mounting holes, removable motor cover, and optimized speaker dimensions ensuring seamless integration into today's modern vehicles without compromise or modification requirements in the popular 6"x9" format. The Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges provide precise alignment for drop-in integration into most factory mounting locations, making installation straightforward and adaptable regardless of your vehicle's configuration including rear deck and door panel applications. Built with class-leading construction including reinforced carbon fiber baskets, Santoprene surrounds, and Nomex spiders, every component and material was chosen for strength and engineered for the long haul, delivering relentless performance that lasts no matter how hard you drive them through demanding listening sessions. The Tru-Sight tweeter configuration ensures precise high-frequency alignment with exceptional clarity, while the 3-way array including inverted dome tweeter and piezo super tweeter reproduces every note with accuracy across the full frequency spectrum from 45Hz to 25kHz.
Features & Benefits
VAST 2.0 Technology: Advanced cone design delivers 25% increase in cone area compared to previous generation, resulting in maximum output capability and deeper, more impactful bass response with extended low-frequency extension down to 45Hz that significantly outperforms standard factory speakers and traditional coaxial designs in the popular 6"x9" format.
Auto Fit Architecture: Comprehensive engineering approach featuring redesigned frame geometry, updated mounting flanges, removable motor cover, and optimized 6"x9" oval dimensions ensuring seamless integration into modern vehicles with drop-in fitment that eliminates modification requirements and installation complications in challenging oval speaker locations commonly found in rear decks.
Tru-Sight Tweeter Alignment: Precision-engineered 3/4-inch Tetolon inverted dome tweeter with co-witnessed 3/8-inch polypropylene piezo super tweeter ensures accurate high-frequency reproduction and optimal sound staging, delivering crystal-clear vocals and detailed cymbal reproduction with exceptional imaging characteristics across the entire listening area for immersive audio experience.
Reinforced Carbon Fiber Basket: 15% glass-fiber reinforced PA66 injection-molded composite basket construction provides superior strength and rigidity compared to stamped steel baskets, eliminating resonance and flex while maintaining structural integrity under extreme output conditions for distortion-free performance and precise woofer control throughout the excursion range.
Santoprene Half-Roll Surround: Premium Santoprene surround material chemically bonded to mica-reinforced polypropylene cone delivers exceptional low distortion characteristics and unmatched fatigue resistance, maintaining consistent performance through temperature extremes and years of demanding use without deterioration, cracking, or performance degradation common with inferior rubber compounds.
Nomex Spider Assembly: Fatigue and tear-resistant linear Nomex spider with ultra-flexible braided tinsel leads securely stitched to spider ensures consistent excursion control and excellent durability, maintaining proper voice coil alignment throughout the speaker's operational life even under high-power conditions and extreme listening levels that would damage conventional spider materials.
ICC+ Concealed Crossover: Internal Concealed Crossover with 6dB/octave network seamlessly integrated into speaker assembly eliminates external mounting requirements while ensuring optimal frequency distribution to tweeter, super tweeter, and woofer for balanced, cohesive sound reproduction across the entire frequency range without external black boxes or additional installation complexity.
Removable Motor Cover: Innovative removable motor cover design accommodates tight mounting applications where rear clearance is limited, providing installation flexibility in challenging locations while maintaining full performance capability without compromising magnetic motor structure integrity, output potential, or thermal management characteristics.
CTA-2031 Compliant: Certified to industry-standard testing protocols ensuring published specifications for power handling and performance meet rigorous requirements, guaranteeing reliable operation and accurate performance claims backed by independent verification and truth-in-advertising compliance demonstrating commitment to honest specifications.
Technical Specifications
Specification
Details
Brand
Rockford Fosgate
Model Number
P1V2-69
Series
Punch P1
Speaker Type
3-Way Coaxial
Size
6" x 9" (152mm x 229mm)
Power Handling (RMS)
75 Watts
Power Handling (Peak)
150 Watts
Impedance
4 Ohm
Frequency Response
45 Hz - 25 kHz
Resonant Frequency (Fs)
60 Hz
Sensitivity (1W/1M)
89 dB
Sensitivity (2.83V/1M)
92 dB
Tweeter Size
3/4 inch (19mm) Inverted Dome
Tweeter Type
Tetolon Inverted Dome
Super Tweeter Size
3/8 inch (9mm) Co-Witnessed Convex
Super Tweeter Type
Polypropylene Piezo
Voice Coil Diameter
1 inch (25.4mm)
Woofer Cone Material
20-40% Mica Reinforced Polypropylene
Surround Material
Santoprene Half-Roll
Spider Material
Nomex Linear
Basket Material
15% Glass-Fiber Reinforced PA66 Composite
Voice Coil Former
Vented Kapton
Motor Structure
High-Strength Y35 Ferrite (5mm Larger)
Crossover Type
ICC+ Internal Concealed 6dB/Octave
Tweeter Crossover Point
9kHz @ 6dB/Octave High-Pass
Cutout Diameter
8.4" x 5.71" (213.5mm x 145mm)
Mounting Depth (With Cover)
3.13 inches (79.4mm)
Minimum Mounting Depth (No Cover)
2.76 inches (70mm)
Front Side Clearance
0.42 inches (10.6mm)
Removable Motor Cover
Yes
Grille Included
No (Sold Separately)
CTA-2031 Compliant
Yes
Warranty
2 Years
Quantity
2 Speakers (Pair)
Compatible With
The Rockford Fosgate P1V2-69 features universal 6"x9" fitment compatible with vehicles featuring 6"x9" factory speaker locations. The Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) and flexible mounting flanges accommodates various mounting configurations including rear deck installations and door panels where oval speaker locations are specified. The removable motor cover provides installation flexibility in tight mounting applications with limited rear clearance. Verify your factory speaker size is 6"x9", cutout dimensions accommodate 8.4" x 5.71", and mounting depth allows minimum 2.76 inches clearance (or 3.13 inches with motor cover installed).
Frequently Asked Questions
Q: Will these speakers fit my vehicle? A: The P1V2-69 fits most vehicles with 6"x9" oval speaker openings. Verify your factory speaker size is 6"x9", cutout dimensions accommodate 8.4" x 5.71", and mounting depth allows at least 2.76 inches clearance without motor cover or 3.13 inches with cover. The Auto Fit Architecture with F.L.W.R. technology accommodates various mounting configurations. Contact us with your vehicle year, make, and model for specific fitment confirmation.
Q: Do I need an external amplifier for these speakers? A: No external amplifier is required. The P1V2-69 performs excellently with factory head units and amplifiers rated at 75 watts RMS per channel. However, pairing with an aftermarket amplifier capable of delivering 75 watts RMS at 4 ohms per channel will maximize VAST 2.0 technology performance potential and unlock the full dynamic range and extended bass response these speakers are capable of delivering.
Q: What's the advantage of VAST 2.0 technology in this 6"x9" speaker? A: VAST 2.0 technology provides a 25% increase in cone area compared to previous generation speakers, resulting in significantly greater output capability and deeper bass response extending down to 45Hz. This advanced design maximizes the available 6"x9" oval speaker diameter to deliver performance typically associated with dedicated subwoofer systems while maintaining compatibility with standard factory mounting locations.
Q: Are speaker grilles included with these speakers? A: No, grilles are sold separately. The P1V2-69 package includes two speakers, cutout template, mounting hardware, speaker wire, crimp connectors, and butt connectors. Rockford Fosgate offers compatible grilles and trim rings as separate accessories allowing you to choose the aesthetic that best matches your vehicle's interior or personal preference.
Q: What does the removable motor cover feature provide? A: The removable motor cover allows installation in tight mounting applications where rear clearance is limited. With the motor cover installed, mounting depth is 3.13 inches. Removing the motor cover reduces minimum mounting depth to 2.76 inches, providing installation flexibility in challenging locations while maintaining full magnetic motor structure performance and speaker capability without compromise.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
