Description

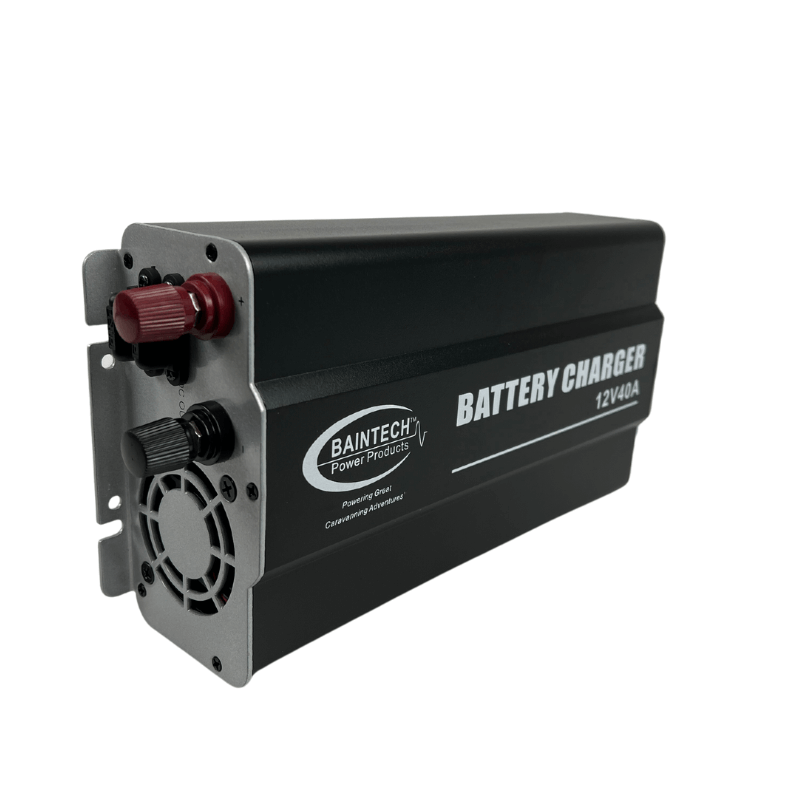

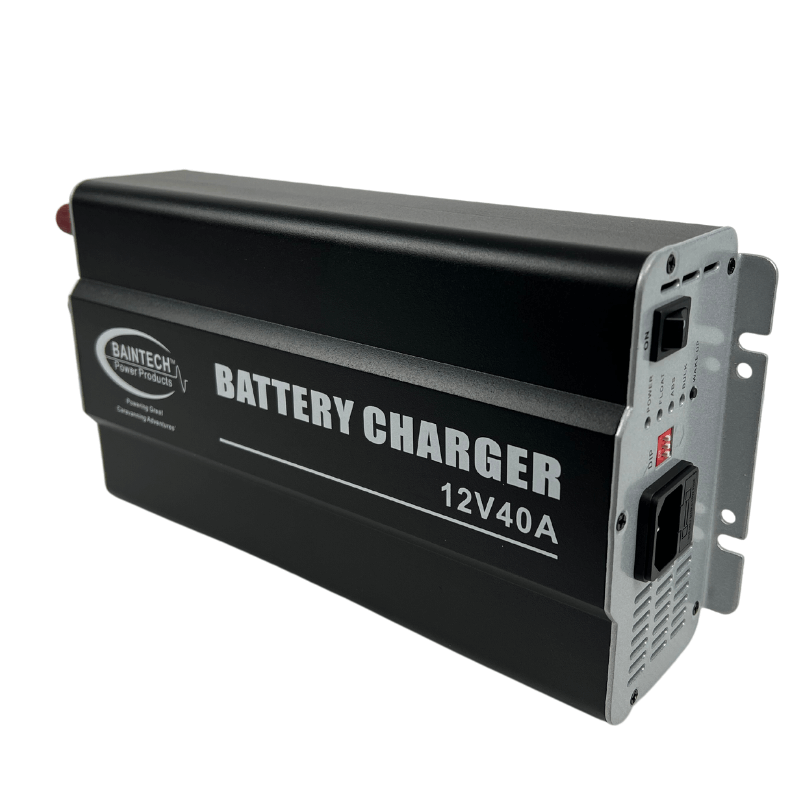

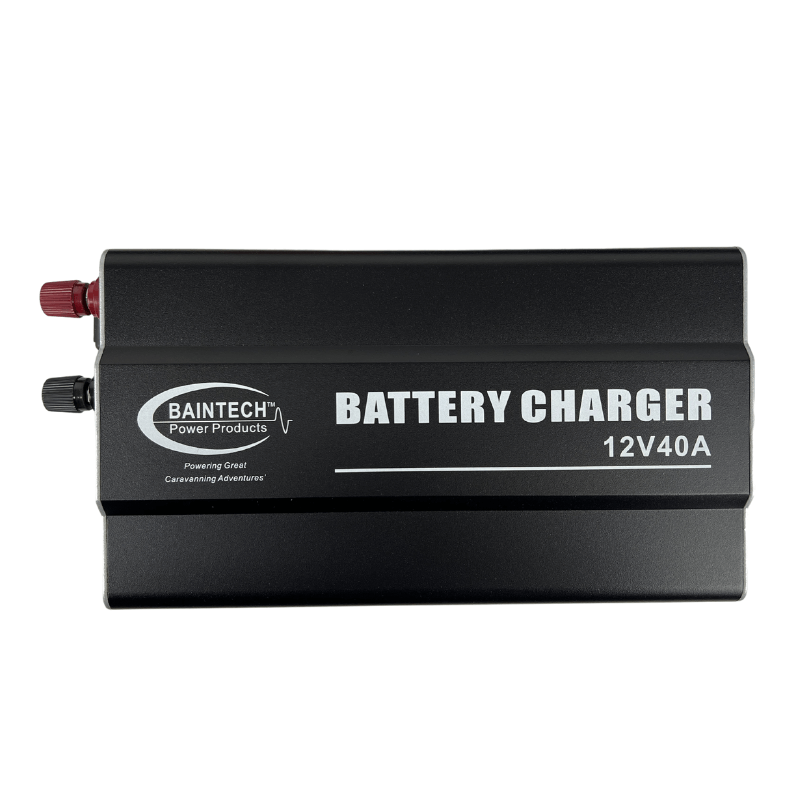

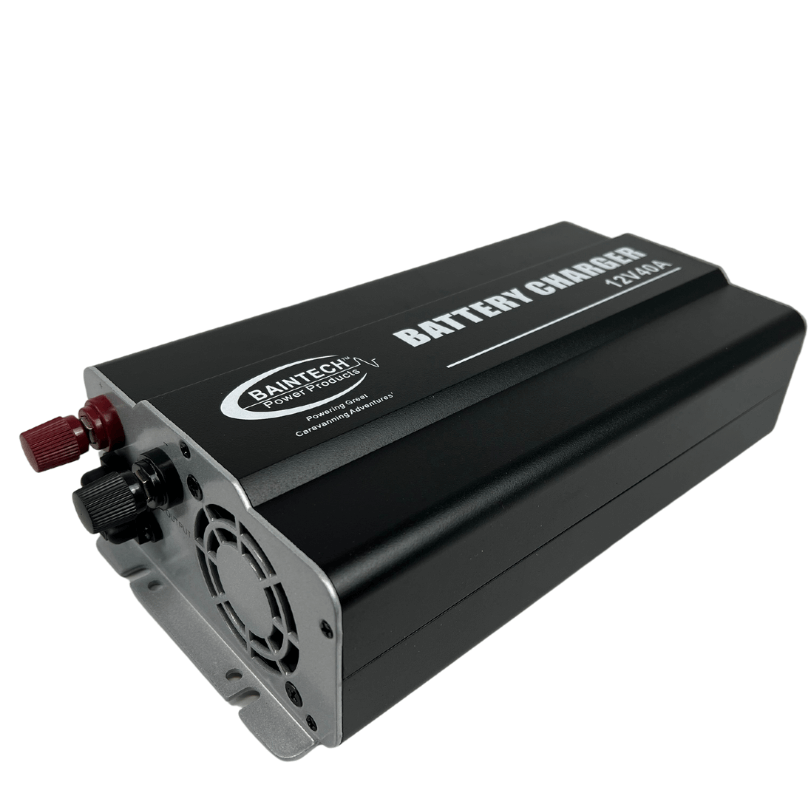

BAINTECH BT40AC 40amp AC Charger - Multi-Stage Smart Battery Charger with Switch-Mode Technology for Lead-Acid and LiFePO4 Batteries
Charge batteries efficiently and reliably with the Baintech BT40AC 40amp AC Charger—featuring advanced switch-mode technology delivering 40A charging current for rapid battery charging and recovery, intelligent multi-stage charging algorithm optimizing charge acceptance and battery longevity, boost-charging feature reviving deeply discharged or sulfated batteries unable to accept normal charge, universal battery compatibility supporting SLA, GEL, AGM, flooded, calcium lead-acid, and LiFePO4 lithium batteries through built-in selector switch, dual-function capability operating as battery charger or stable DC power supply for accessories and equipment, isolated input/output design preventing ground loops and electrical interference, comprehensive protection including overcharge protection, reverse polarity protection, short circuit protection, and over-temperature protection, thermal-controlled cooling fan maintaining optimal operating temperature during sustained high-current charging, compact robust construction suitable for workshop, marine, caravan, and mobile installations, and professional-grade charging solution for automotive workshops, battery service centres, caravan fitouts, boat electrical systems, off-grid solar installations, backup power systems, and applications requiring fast reliable charging of large-capacity 12V battery banks with advanced charging algorithms maintaining battery health and performance.
Product Overview
The Baintech BT40AC delivers professional 40-amp charging capability using advanced switch-mode technology—designed for rapid charging of large-capacity battery banks, recovery of deeply discharged batteries, and maintenance of premium battery installations in caravans, boats, workshops, and off-grid systems. Switch-mode design provides significant advantages over traditional transformer-based chargers including higher efficiency (typically 85-90% versus 60-70% for transformer chargers), reduced weight and size enabling portable applications, stable output voltage despite mains voltage fluctuations, and lower operating temperatures reducing cooling requirements. Multi-stage charging algorithm delivers optimal charging profile—bulk stage supplies maximum 40A current rapidly raising battery voltage from discharged state to approximately 80% capacity, absorption stage maintains constant voltage while current tapers allowing battery to reach full charge without overcharging, float stage provides maintenance voltage keeping battery at 100% charge without degradation, and equalization stage (if equipped) periodically applies controlled overcharge removing sulfation and balancing cell voltages in flooded batteries. Boost-charging feature addresses common problem of deeply discharged batteries rejecting normal charge—applies controlled voltage pulses breaking down surface sulfation and passivation layers enabling battery to accept charge current, particularly valuable for recovering batteries left discharged for extended periods or batteries exhibiting high internal resistance from sulfation. Built-in battery type selector accommodates diverse battery chemistries—SLA (sealed lead-acid), GEL, AGM (absorbed glass mat), flooded (wet cell), calcium, and LiFePO4 lithium batteries each require different charging voltages and profiles with selector ensuring appropriate charging parameters applied preventing undercharging or damaging overcharging. Dual-function capability extends utility beyond battery charging—stable regulated DC output enables use as power supply for 12V accessories, equipment testing, or operating DC devices during battery charging providing versatile workshop or mobile tool. Comprehensive protection systems ensure safe unattended operation—overcharge protection prevents battery damage from excessive charging, reverse polarity protection guards against incorrect connection, short circuit protection prevents damage if output accidentally shorted, over-temperature protection shuts down unit if cooling inadequate, and isolated input/output design eliminates ground loop problems in complex electrical systems. Thermal-controlled cooling fan activates automatically based on internal temperature—operates only when cooling required reducing noise during light-load charging, ensures adequate cooling during sustained 40A output preventing thermal shutdown, and extends component life by maintaining optimal operating temperature. Professional construction withstands demanding applications—robust metal housing provides mechanical protection and heat dissipation, sealed electronics resist moisture and contamination in marine or workshop environments, heavy-duty output terminals accommodate large cables required for 40A charging current, and quality components ensure reliable long-term operation in professional service.
Key Features
40A High-Current Charging Capability: Delivers substantial 40-amp charging current enabling rapid charging of large battery banks (200-800Ah capacity range). Charges 200Ah battery from 50% to 100% in approximately 2.5-3 hours, 400Ah in 5-6 hours depending on battery condition. High current particularly valuable for commercial applications—workshop battery service, mobile service operations, marine house bank charging, and caravan systems. Maintains full 40A output throughout bulk charge stage ensuring maximum charging speed. Also suitable for power supply applications operating inverters, lighting, pumps, or accessories up to 40A capacity.
Advanced Multi-Stage Charging Algorithm: Intelligent charging profile optimizes battery longevity through controlled stages. Bulk stage applies maximum 40A current rapidly elevating battery to 80% charge. Absorption stage maintains constant voltage while current tapers ensuring full charge without overcharging. Float stage reduces to maintenance voltage keeping battery at 100% without degradation. Equalization stage (if equipped) periodically removes sulfation and balances cell voltages in flooded batteries. Temperature compensation (if equipped) adjusts voltages based on battery temperature preventing undercharging in cold or overcharging in heat.
Boost-Charging Feature for Battery Recovery: Specialized mode revives deeply discharged or sulfated batteries unable to accept normal charging. Applies controlled voltage pulses breaking down sulfation layers restoring battery's ability to accept charge current. Particularly effective for batteries left discharged for extended periods—stored vehicles, caravan batteries from winter storage, or backup batteries from prolonged outages. Recovery success depends on sulfation severity—mild to moderate sulfation typically responds well, severe cases may require multiple cycles. Saves replacement costs by extending battery service life particularly for expensive deep-cycle or AGM batteries.
Universal Battery Type Compatibility: Built-in selector switch configures charger for different battery chemistries ensuring optimal charging. SLA mode for standard sealed batteries, GEL mode with lower voltages preventing pressure buildup, AGM mode optimized for absorbed glass mat characteristics, flooded mode for traditional wet cells with equalization, calcium mode with higher voltages for calcium-grid batteries, and LiFePO4 mode for lithium iron phosphate chemistry. Selector simplifies multi-battery operations—single charger handles diverse battery types eliminating need for multiple specialized chargers.
Isolated Input/Output Design: Complete electrical isolation between AC input and DC output prevents ground loops and interference. Particularly important in marine installations preventing galvanic corrosion from shore power connections. Prevents charging current from interfering with sensitive vehicle electronics through ground paths. Enables safe simultaneous connection of charger and other equipment without creating parallel current paths. Enhanced safety—electrical fault on either side doesn't propagate protecting both AC supply and DC equipment. Eliminates need for separate galvanic isolators in marine installations.
Dual-Function Charger and Power Supply: Operates as battery charger or regulated DC power supply providing versatile workshop capability. Power supply mode delivers stable 12V DC output for operating accessories, testing equipment, or running DC appliances without battery. Output regulation maintains steady voltage despite load variations. 40A capacity supports substantial loads—multiple accessories simultaneously, high-current devices, or extended equipment testing. Particularly valuable for workshops testing automotive components, operating diagnostic equipment, or providing temporary power during repairs.
Comprehensive Protection Systems: Multiple protections ensure safe unattended operation. Overcharge protection prevents excessive charging damage. Reverse polarity protection guards against incorrect connection. Short circuit protection responds instantly to output shorts. Over-temperature protection monitors internal temperature reducing output or shutting down if limits exceeded. Current limiting restricts output to 40A maximum. Protections automatic and self-resetting—charger resumes operation once fault resolved eliminating manual intervention for temporary faults.
Thermal-Controlled Cooling Fan: Automatic fan maintains optimal internal temperature extending component life. Fan activates when cooling required during high-current charging or elevated ambient temperatures, operates at variable speed matching thermal load, and shuts off when temperature acceptable reducing noise. Adequate cooling essential for sustained 40A output—high current generates substantial heat requiring active cooling. Thermal management extends charger lifespan preventing premature failure from thermal stress and maintains full output capacity regardless of ambient temperature.
Switch-Mode Technology Advantages: Modern design provides significant benefits over transformer-based chargers. High efficiency (85-90%) reduces energy consumption and operating costs. Compact lightweight construction (50-70% lighter than transformer equivalents) enhances portability. Wide input voltage tolerance (180-265V AC typical) accommodates fluctuations common in remote areas or generator power. Stable output regulation compensates for input variations delivering consistent charging voltage. Reduced electromagnetic interference and lower heat generation from improved efficiency.
Professional Workshop Construction: Robust metal housing provides mechanical protection and heat dissipation resisting workshop impacts. Sealed electronics resist moisture, salt spray, dust, and chemical exposure in marine and workshop environments. Heavy-duty output terminals accommodate 2AWG or larger cables required for 40A delivery with corrosion-resistant construction. Quality internal components—properly rated switches, high-grade capacitors, and robust circuit boards ensure reliable long-term operation. Accessible controls with clear labeling, LED status indicators, and convenient adjustment locations simplify operation.
Versatile Application Range: Suitable for caravan house battery systems (400-600Ah banks), boat electrical systems, workshop battery service, off-grid solar installations (rapid charging from generator), backup power systems, fleet vehicle maintenance, agricultural equipment, and emergency services. 40A capacity positions charger in professional category—sufficient for serious installations requiring rapid charging. Australian mains voltage compatible (230V AC 50Hz) designed for Australian electrical system ensuring compliance with local standards.
Technical Specifications
|
|
| SKU |
BT40AC |
| Product Type |
Battery Charger |
| Brand |
Baintech |
| Charger Technology |
Switch-Mode (SMPS) |
| Output Current |
40A Maximum |
| Output Voltage |
12V DC (nominal) |
| Charging Algorithm |
Multi-Stage (Bulk, Absorption, Float) |
| Input Voltage |
230V AC 50Hz (Australian Standard) |
| Input Voltage Range |
180-265V AC (typical tolerance) |
| Efficiency |
85-90% (typical for switch-mode) |
| Battery Compatibility |
SLA, GEL, AGM, Flooded, Calcium, LiFePO4 |
| Battery Type Selection |
Built-in Selector Switch |
| Boost Charging |
Yes - Battery Recovery Mode |
| Power Supply Mode |
Yes - Regulated DC Output |
| Isolation |
Isolated Input/Output |
| Protection Features |
Overcharge, Reverse Polarity, Short Circuit, Over-Temperature |
| Cooling |
Thermal-Controlled Fan |
| Operating Temperature |
0°C to +40°C (typical) |
| Storage Temperature |
-20°C to +70°C (typical) |
| Housing |
Metal Enclosure |
| Output Terminals |
Heavy-Duty Clamps or Permanent Terminal |
| Cable Length |
Adequate for typical installations |
| Suitable Battery Capacity |
200-800Ah (recommended range) |
| Applications |
Caravans, Marine, Workshops, Off-Grid, Backup Systems, Commercial |
Frequently Asked Questions
Q: What size battery bank can the 40A charger handle effectively?
A: Suitable for 200-800Ah battery banks. As general rule, charger current should be 10-20% of battery capacity—40A appropriate for 200-400Ah (20% to 10%) with acceptable performance up to 800Ah. Larger banks charge more slowly but still effectively. Smaller banks (under 200Ah) charge rapidly but ensure battery can handle 40A current rate.
Q: Can I use this to charge lithium LiFePO4 batteries or only lead-acid batteries?
A: Yes, supports LiFePO4 lithium batteries through built-in battery type selector. Select LiFePO4 mode before charging—applies appropriate voltage profile (typically 14.2-14.6V) preventing overcharge damage. Ensure your lithium battery has BMS (battery management system) providing additional protection. Works with both lead-acid and lithium using correct selector setting.
Q: What does the boost-charging feature do and when should I use it?
A: Boost mode revives deeply discharged or sulfated batteries unable to accept normal charge. Use when battery won't charge normally—applies controlled pulses breaking down sulfation enabling charge acceptance. Particularly useful for batteries left discharged for months or batteries with high internal resistance. Try boost mode before replacing apparently failed battery—often recovers batteries saving replacement cost.
Q: Can I leave the charger connected permanently as a battery maintainer?
A: Yes, designed for continuous connection. Float stage maintains battery at full charge without overcharging—safe for indefinite connection. Ideal for stored vehicles, backup batteries, or seasonal equipment. Charger automatically manages charging stages—bulk charges when needed, switches to float for maintenance, and compensates for self-discharge keeping battery ready for use.
Q: Does the charger work as a power supply to run 12V accessories while charging the battery?
A: Yes, dual-function capability provides regulated 12V DC power supply. Can operate 12V accessories up to 40A capacity while simultaneously charging battery (charger allocates current between charging and loads) or use as standalone power supply without battery. Stable voltage regulation suits sensitive electronics and provides reliable power for equipment testing or temporary DC supply needs.
