Description

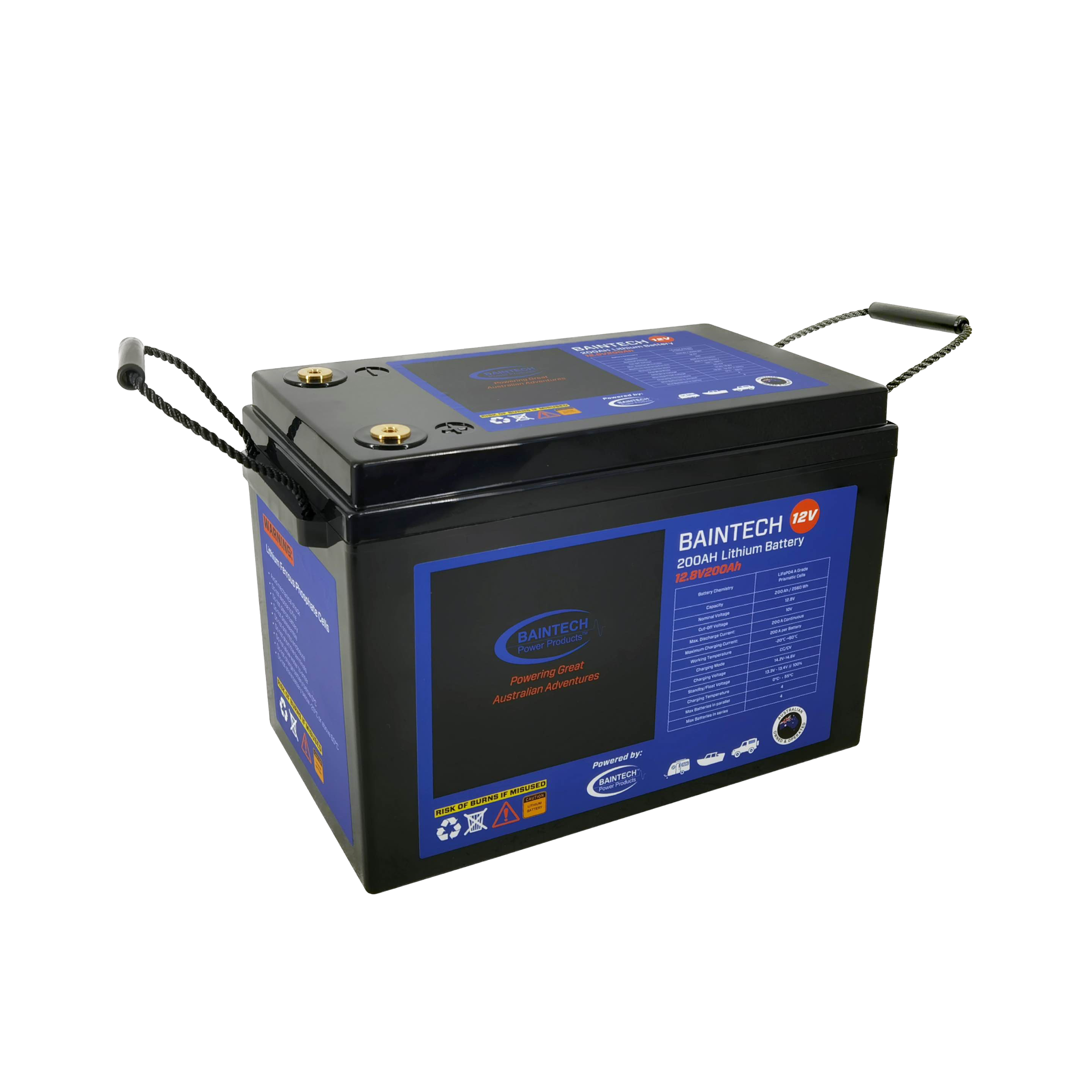

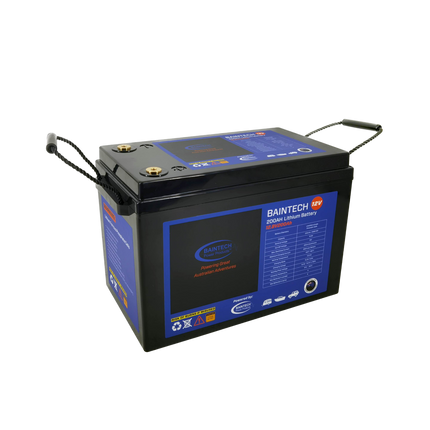

BAINTECH BTBLUELITH12/200 Lithium Battery 12.8v 200AH Bluetooth - High-Capacity LiFePO4 Deep-Cycle Battery with Bluetooth Monitoring and 200A Continuous Discharge
Power demanding applications reliably with the Baintech 12.8V 200Ah Lithium Battery—featuring advanced LiFePO4 (lithium iron phosphate) chemistry delivering superior performance and longevity over traditional lead-acid batteries, substantial 200Ah capacity providing extended runtime for large caravan house systems, boat electrical systems, and off-grid installations with high energy demands, integrated Bluetooth connectivity enabling real-time battery monitoring and management through smartphone app, intelligent Battery Management System (BMS) protecting against overcharge, over-discharge, over-current, short circuit, and temperature extremes, 200A maximum continuous discharge current suitable for powering large inverters, air conditioning, heavy-duty equipment, and multiple high-current accessories simultaneously (400A when paired), compact design with smallest footprint in market (345x190x245mm) optimizing installation space despite substantial capacity, IP67 waterproof rating providing protection against dust and water immersion suitable for marine and outdoor applications, wide operating temperature range (-20°C to +60°C) enabling year-round reliability in Australian conditions, efficient charging accepting up to 100A charge current for rapid battery recovery, A-grade prismatic cells ensuring premium quality and consistent performance, AS/NZS 3001.2:2022 compliant meeting current Australian safety standards, IEC 62619 accredited ensuring internationally recognized quality and safety, backed by comprehensive 5-year warranty providing long-term confidence, and premium high-capacity deep-cycle lithium solution for large caravans, motorhomes with air conditioning, expedition boats, off-grid cabins, solar energy storage systems, backup power installations, and mobile applications requiring substantial reliable lightweight high-performance battery power with advanced monitoring capabilities.
Product Overview
The Baintech 12.8V 200Ah Lithium Battery delivers professional-grade high-capacity LiFePO4 technology providing superior performance, longevity, and reliability for demanding applications requiring substantial energy storage—designed specifically for large Australian caravan installations, marine house banks, and off-grid systems where energy demands exceed capabilities of smaller batteries. LiFePO4 chemistry offers significant advantages including 3000-5000+ cycle life (versus 300-500 for lead-acid), consistent voltage delivery throughout discharge maintaining equipment performance until nearly depleted, 100% usable capacity (versus 50% for lead-acid) effectively doubling available energy, negligible self-discharge enabling long-term storage without maintenance charging, and 70% lighter weight reducing vehicle payload and improving fuel efficiency. 200Ah capacity provides substantial energy storage—2.56kWh total energy (200Ah x 12.8V) suitable for powering large caravan systems including refrigeration, air conditioning, lighting, water pumps, entertainment equipment, and multiple accessories through extended off-grid periods without recharging or enabling operation of high-demand equipment impossible with smaller batteries. Integrated Bluetooth connectivity transforms battery management—smartphone app displays real-time state of charge percentage, voltage, current (charging or discharging), individual cell voltages, temperature, cycle count, and alarm history enabling informed energy management decisions and early problem detection particularly valuable for complex systems where battery status critical to operational planning. Built-in BMS provides comprehensive protection—monitors and balances individual cell voltages maintaining optimal performance, prevents overcharge damage by disconnecting charging sources when full, protects from over-discharge by disconnecting loads at minimum voltage (10V cutoff), limits discharge current preventing damage from excessive loads or short circuits, and includes over-temperature protection shutting down battery if safe operating temperature exceeded. 200A continuous discharge capability supports substantial loads—2400W continuous at 12V enabling operation of large inverters powering air conditioning, microwaves, power tools, or multiple simultaneous high-current loads without voltage sag or performance degradation, particularly valuable for expedition vehicles, large motorhomes, or marine installations with significant electrical demands. Compact design despite substantial capacity (345x190x245mm) represents industry-smallest footprint for 200Ah lithium batteries—enables installation in standard battery boxes and confined spaces common in caravans and boats while providing double the capacity of smaller batteries. IP67 waterproof rating provides robust environmental protection—sealed construction withstands dust, dirt, and temporary water immersion (1 meter for 30 minutes) suitable for marine installations, under-vehicle mounting, outdoor applications, and harsh Australian conditions including dust, humidity, and occasional water exposure. Wide operating temperature range (-20°C to +60°C for discharge) accommodates extreme Australian conditions from alpine winter camping to outback summer heat maintaining reliable performance year-round though charging limited to 0°C to +55°C preventing lithium plating damage during cold-temperature charging. Fast charging capability accepts up to 100A charge current (0.5C rate) enabling rapid battery recovery—alternator charging through appropriate DC-DC charger, substantial solar array, or high-output mains charger can restore battery to full capacity in 2-3 hours compared to 12-20 hours for equivalent lead-acid. A-grade prismatic cells ensure premium quality—cells manufactured to highest quality standards providing consistent performance, reliable longevity, and minimal capacity degradation over service life compared to lower-grade cells exhibiting premature failures or accelerated capacity loss. AS/NZS 3001.2:2022 compliance ensures battery meets current Australian electrical safety standards for recreational vehicles and marine craft—critical for insurance, compliance certification, and safety assurance. IEC 62619 accreditation demonstrates internationally recognized quality and safety testing—batteries tested for electrical, mechanical, thermal, and environmental performance meeting stringent international standards. App-based reset button provides convenient battery reset capability—resolves minor BMS faults, clears protection triggers after fault resolution, or resets battery parameters without physical access to battery location particularly valuable for batteries installed in difficult-access locations. Five-year warranty demonstrates manufacturer confidence in battery quality and longevity—comprehensive warranty coverage protects substantial investment and provides recourse if manufacturing defects or premature failures occur within warranty period. Professional installation recommended ensuring proper BMS integration, appropriate charging equipment (high-output DC-DC charger or lithium-compatible solar controller), correct fusing and cable sizing for 200A capability, and system configuration optimized for lithium battery characteristics and high-current applications.
Key Features
200Ah High-Capacity LiFePO4: Substantial 200Ah capacity provides 2.56kWh total energy suitable for extended off-grid periods with high-demand equipment. Powers typical caravan refrigerator for 4-6 days, supports air conditioning operation, multiple LED lights, water pump, entertainment equipment, and accessories without recharging. 100% usable capacity (versus 50% for lead-acid) effectively provides energy equivalent to 400Ah lead-acid battery. Double the capacity of 100-110Ah batteries enabling longer independence or operation of equipment impossible with smaller batteries. LiFePO4 chemistry delivers consistent 12.8V throughout discharge maintaining equipment performance until nearly depleted.
200A Continuous Discharge Current: Exceptional 200A maximum continuous discharge supports substantial loads and high-demand applications. Adequate for powering 2400W inverter continuously enabling air conditioning, microwaves, power tools, or multiple high-current accessories simultaneously. 400A capability when two batteries paralleled supporting 4800W loads. Higher discharge capability than standard lithium batteries (typically 100A for 200Ah capacity) enabling operation of equipment requiring brief high currents without voltage sag. BMS current limiting protects battery from damage—automatically restricts current if loads exceed rating preventing overheating or cell damage.
Integrated Bluetooth Monitoring: Built-in Bluetooth enables real-time battery monitoring through smartphone app. Displays state of charge percentage, voltage, current, individual cell voltages, temperature, cycle count, and alarm history. App-based reset button provides convenient battery management and fault resolution. Remote monitoring eliminates guessing about battery condition—make informed decisions about energy usage and charging needs particularly critical for high-capacity systems where battery represents substantial investment. Early fault detection through alarm history and cell voltage monitoring prevents problems before failures occur.
Intelligent Battery Management System: Comprehensive BMS protects battery and connected equipment. Cell balancing maintains optimal individual cell voltages maximizing performance and longevity particularly important for high-capacity batteries where cell imbalance causes premature capacity loss. Overcharge protection disconnects charging at 14.6V preventing damage. Over-discharge protection disconnects loads at 10V cutoff protecting cells from damage. Over-current protection limits discharge to 200A continuous (400A brief peaks or paired batteries). Short circuit protection responds instantly. Over-temperature protection monitors battery temperature shutting down if safe limits exceeded. Automatic protection reset after fault resolution.
A-Grade Prismatic Cells: Premium A-grade cells ensure highest quality and consistent performance. A-grade designation indicates cells manufactured to strictest quality standards—uniform capacity, minimal internal resistance variation, consistent voltage characteristics, and reliable longevity. Superior to B-grade or lower cells exhibiting capacity variation, premature failures, or accelerated degradation. Prismatic cell format provides efficient packaging—rectangular cells maximize space utilization within battery case achieving compact dimensions despite substantial capacity. A-grade quality critical for high-capacity batteries where cell failures or degradation cause significant capacity loss affecting system performance.
100A Fast Charging Capability: Accepts up to 100A charge current (0.5C rate) enabling rapid battery recovery in 2-3 hours from 20% to 100%. Compatible with high-output DC-DC chargers (60-100A models), large solar arrays with appropriate MPPT controllers, and high-capacity mains chargers providing appropriate charging profile (14.2-14.6V). Fast charging reduces generator runtime, maximizes solar harvest during optimal sun hours, and minimizes time at powered sites. Higher charge acceptance than smaller batteries—200Ah capacity enables faster absolute charging without exceeding safe C-rate. Requires appropriate charging equipment—standard lead-acid chargers or alternator direct connection unsuitable for lithium batteries.
IP67 Waterproof Rating: Sealed construction provides robust environmental protection rated IP67—complete dust protection and withstands water immersion to 1 meter for 30 minutes. Suitable for marine installations, under-vehicle mounting, outdoor applications, and harsh Australian conditions. Protects internal electronics and cells from dust, dirt, humidity, rain, and accidental water exposure. Sealed terminals prevent corrosion in marine environments. Ruggedized construction withstands vibration, shock, and mechanical stress in mobile installations particularly important for high-capacity batteries where physical size increases vulnerability to damage.
Compact Design for Capacity: Industry-smallest footprint (345x190x245mm) for 200Ah lithium battery optimizes installation space. Despite substantial capacity, dimensions enable installation in standard large battery boxes and locations designed for dual lead-acid batteries. Weight approximately 22-26kg (70% lighter than equivalent 400Ah lead-acid) reduces vehicle payload substantially. Compact dimensions particularly valuable for retrofitting lithium into existing installations replacing multiple lead-acid batteries with single high-capacity lithium. Multiple batteries can parallel for massive capacity—two batteries provide 400Ah (5.12kWh), three provide 600Ah (7.68kWh) supporting off-grid cabins or extensive expedition requirements.
Wide Operating Temperature Range: Discharge operation -20°C to +60°C accommodates extreme Australian conditions from alpine cold to outback heat. Maintains consistent performance across temperature range—lithium batteries less affected by temperature than lead-acid particularly important for high-capacity installations where temperature-induced capacity loss significantly impacts available energy. Charge temperature limited 0°C to +55°C preventing lithium plating damage during cold charging. BMS temperature monitoring prevents operation outside safe limits. Internal heating (if equipped on some models) enables cold-weather charging. Consider installation location—avoid direct sun exposure causing excessive temperature or locations subject to extreme cold during charging.
AS/NZS 3001.2:2022 Compliance: Meets current Australian electrical safety standards for recreational vehicles and marine craft. Compliance critical for insurance coverage, vehicle compliance certification, and regulatory requirements particularly important for high-capacity installations where safety standards scrutinized more carefully. Updated standard (2022 revision) reflects current safety requirements—older batteries may not meet current standards. Compliance demonstrates appropriate testing for electrical safety, mechanical robustness, thermal management, and protection systems. Documentation available for compliance inspections or insurance requirements.
IEC 62619 Accreditation: Internationally recognized safety and performance standard for lithium batteries. Comprehensive testing includes electrical performance, mechanical strength, thermal abuse testing, environmental exposure, and safety validation particularly rigorous for high-capacity batteries where energy storage increases safety risks. Accreditation demonstrates battery meets rigorous international standards beyond basic compliance. Provides confidence in battery safety and quality—accredited batteries undergo extensive testing validating safe operation under normal and fault conditions critical for high-capacity installations.
5-Year Warranty Coverage: Comprehensive warranty provides long-term confidence and investment protection particularly valuable for high-capacity batteries representing substantial financial investment. Covers manufacturing defects, premature capacity loss, BMS failures, and component defects occurring within warranty period. Warranty registration required (typically online through manufacturer website) activating coverage. Excludes damage from misuse, improper installation, incorrect charging equipment, physical damage, or operation beyond specifications. Warranty demonstrates manufacturer confidence in product quality and longevity. Substantially longer than typical lead-acid battery warranty (1-2 years) reflecting superior lithium durability.
Technical Specifications
|
|
| SKU |
BTBLUELITH12/200 |
| Product Type |
Lithium Battery |
| Brand |
Baintech |
| Battery Chemistry |
LiFePO4 (Lithium Iron Phosphate) - A-Grade Prismatic Cells |
| Nominal Voltage |
12.8V |
| Capacity |
200Ah |
| Energy |
2.56kWh (200Ah x 12.8V) |
| Maximum Continuous Discharge |
200A (400A when paired) |
| Cut-Off Voltage |
10V (BMS over-discharge protection) |
| Charging Voltage |
14.2V to 14.6V (CC/CV mode) |
| Recommended Charge Current |
100A maximum (200A for two batteries) |
| Operating Temperature (Discharge) |
-20°C to +60°C |
| Operating Temperature (Charge) |
0°C to +55°C |
| Cycle Life |
3000-5000+ cycles (to 80% capacity) |
| Self-Discharge |
<3% per month |
| Bluetooth |
Yes - Smartphone App Monitoring |
| Battery Management System |
Integrated BMS with Protection |
| Protection Features |
Overcharge, Over-Discharge, Over-Current, Short Circuit, Over-Temperature |
| Cell Grade |
A-Grade Prismatic Cells |
| IP Rating |
IP67 (Dust and Water Resistant) |
| Dimensions |
345mm x 190mm x 245mm (L x W x H) |
| Weight |
Approximately 22-26kg |
| Terminals |
M8 Bolts (typical for lithium batteries) |
| Compliance |
AS/NZS 3001.2:2022, IEC 62619 |
| Warranty |
5 Years |
| Applications |
Large Caravans, Motorhomes with A/C, Marine House Banks, Off-Grid Cabins, Solar Storage, High-Demand Systems |
Frequently Asked Questions
Q: What size inverter can this 200Ah battery support and for how long?
A: Supports 2400W continuous inverter (200A x 12V). Runtime depends on load—2400W load runs approximately 1 hour on full battery, 1200W runs 2+ hours, 600W runs 4+ hours. Remember inverter efficiency losses (typically 10-15%) reduce actual runtime. For air conditioning (1500W typical), expect 1.5-2 hours runtime. Battery excels at high-current applications impossible with smaller batteries or lead-acid.
Q: How does 200Ah lithium compare to dual lead-acid batteries in my caravan?
A: 200Ah lithium provides usable energy equivalent to 400Ah lead-acid (100% versus 50% usable depth). Replaces two 200Ah lead-acid batteries while weighing 70% less and occupying less space. Voltage remains stable throughout discharge—equipment operates normally until battery depleted unlike lead-acid where voltage drop affects performance. Faster charging, longer lifespan (3000-5000 cycles versus 300-500), and no maintenance required. Initial cost higher but lower lifetime cost considering replacement frequency.
Q: What charging equipment do I need for this battery?
A: Requires lithium-compatible charging equipment. DC-DC charger: 60-100A models suitable (Redarc BCDC1240D, Enerdrive ePOWER, or similar). Solar: 60-100A MPPT controller handles 750-1200W solar array. Mains: 40-100A lithium charger for powered site charging. All chargers must provide lithium/LiFePO4 profile (14.2-14.6V). Standard lead-acid chargers unsuitable—may undercharge or damage battery. High charge current capability (100A) enables rapid recovery but requires appropriate equipment.
Q: Can I connect multiple 200Ah batteries in parallel and what capacity would that provide?
A: Yes, can parallel multiple batteries for massive capacity. Two batteries provide 400Ah (5.12kWh), three provide 600Ah (7.68kWh), four provide 800Ah (10.24kWh) suitable for off-grid cabins or extended expedition requirements. Discharge current also increases—two batteries support 400A maximum. Use identical batteries (same model, age, capacity). Connect with heavy cables (minimum 10mm² recommended, 16mm² preferred) and proper fusing on each battery. BMS in each battery provides independent protection. Bluetooth monitors each battery individually.
Q: Is this battery suitable for running caravan air conditioning off-grid?
A: Yes, excellent for air conditioning applications. Typical caravan A/C draws 1500W (125A at 12V through inverter) requiring high discharge capability—200A continuous rating provides adequate margin. Runtime approximately 1.5-2 hours per full battery. Consider pairing two batteries for 400Ah total providing 3-4 hours A/C runtime or enabling simultaneous A/C operation with other equipment. Requires 2000W+ inverter. Fast charging (100A) enables rapid battery recovery from solar during day for evening A/C use.
