Description

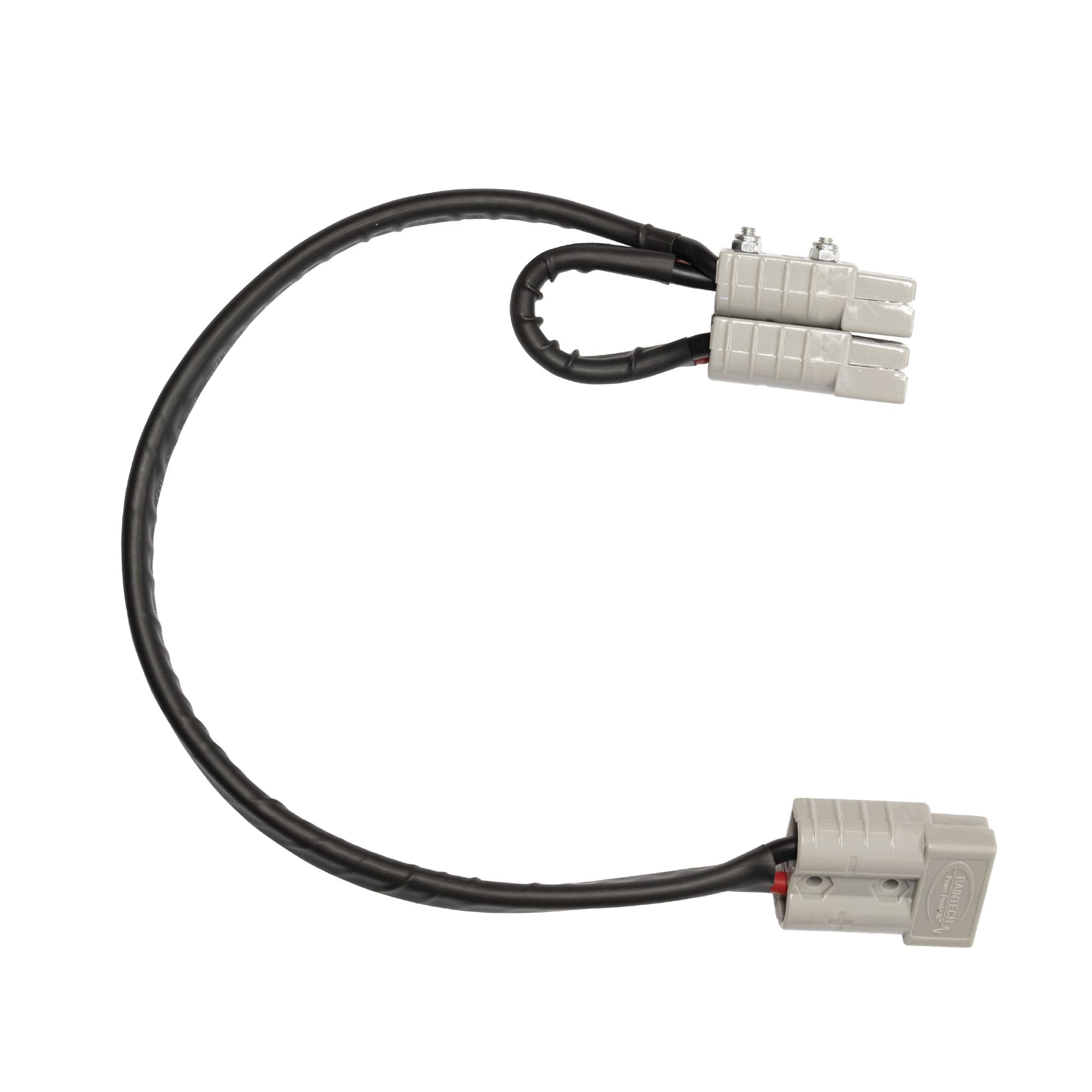

Baintech BTDAS-001 Anderson Plug Style 50 Amp Double Adaptor - Single to Dual Anderson Outlet Splitter for Multiple Appliances
Professional Anderson plug power splitter engineered for simultaneous operation of two Anderson-equipped appliances from single Anderson power source in caravans, 4WDs, boats, and camper trailers. The BTDAS-001 converts one Anderson plug outlet into two independent Anderson sockets enabling connection of multiple devices including portable fridges, solar panels, LED lighting systems, inverters, or battery chargers without requiring additional fixed Anderson outlets or complex wiring modifications. Features robust 50 amp rating ensuring safe reliable power distribution for high-draw 12V equipment combinations including dual fridge setups, fridge plus solar charging, or multiple accessories operating simultaneously from auxiliary battery systems. Plug-and-play design enables tool-free installation simply connecting input plug to existing Anderson power source then plugging devices into dual output sockets, making power distribution expansion accessible to all users regardless of electrical expertise. Heavy-duty construction with quality Anderson plug housings ensures reliable connections, proper contact pressure, and long-term durability appropriate for demanding mobile environments subjected to vibration, temperature variations, and frequent connection cycles. Perfect for expanding limited Anderson outlet availability in existing systems, enabling temporary multi-device configurations during camping trips, accommodating seasonal equipment changes, or testing new equipment installations before permanent wiring commitments. Backed by 12-month warranty providing confidence in product quality and reliability for recreational vehicle power distribution applications. Manufactured by Baintech, trusted name in Australian 12V power solutions ensuring professional-grade construction appropriate for serious touring and marine applications.
Product Overview
The Baintech BTDAS-001 addresses common power distribution limitations in Anderson-equipped recreational vehicles where number of available Anderson outlets is insufficient for all desired equipment connections. Many caravans and 4WDs feature one or two Anderson outlets installed during initial setup, yet users accumulate additional Anderson-equipped devices over time including multiple portable fridges, solar panel connections, portable lighting, inverters, and various accessories all competing for limited outlet access. Traditional solutions involve expensive electrical modifications adding fixed outlets throughout vehicle, complex wiring changes requiring professional installation, or inconvenient equipment disconnection and reconnection when different devices need power. The double adaptor provides immediate expansion capability transforming any single Anderson outlet into two independent sockets enabling simultaneous multi-device operation without permanent modifications, electrical expertise, or significant expense.
Key Features and Benefits
Single Input to Dual Output Configuration – Converts one Anderson plug power source into two independent Anderson sockets enabling simultaneous connection of two separate devices. Eliminates need for constantly connecting and disconnecting equipment when multiple devices require power, simplifies campsite setup by enabling all equipment connection at once, and provides power distribution flexibility accommodating various equipment combinations without system reconfiguration.
High 50 Amp Combined Rating – Robust 50 amp total current capacity supports high-draw 12V equipment combinations including dual portable fridges (typically 5-8A each), fridge plus inverter powering AC devices, multiple LED lighting systems, or combinations of accessories totaling up to 50 amps combined draw. Conservative rating with quality components ensures safe operation even during peak demand periods when multiple systems operate simultaneously under maximum load conditions.
Plug-and-Play Installation Simplicity – Tool-free installation requires no electrical knowledge, wiring skills, or specialized equipment. Simply plug adaptor input into existing Anderson power source, then connect devices to dual output sockets - complete installation in seconds without screwdrivers, crimpers, or electrical expertise. Plug-and-play functionality makes power distribution expansion accessible to all recreational vehicle users regardless of technical background or comfort with electrical work.
Quality Anderson Plug Construction – Features genuine Anderson-style plug housings with proper spring-loaded contacts ensuring reliable electrical connections, appropriate contact pressure maintaining low-resistance junctions preventing heat buildup, and robust mechanical latching preventing accidental disconnection during vehicle movement or equipment operation. Quality construction ensures long service life and reliable performance appropriate for demanding mobile applications.
Versatile Multi-Application Compatibility – Suitable for diverse equipment combinations including dual fridge setups (main fridge plus freezer or backup fridge), solar panel plus fridge connection (simultaneous charging and power draw), lighting plus accessory combinations, inverter plus device charging, or any two Anderson-equipped devices requiring simultaneous operation. Versatility accommodates various user needs and equipment configurations across different recreational vehicle types and usage patterns.
Compact Portable Design – Small lightweight form factor enables convenient storage when not needed and unobtrusive installation when in use. Compact size means adaptor doesn't create cable clutter or occupy excessive space in equipment compartments, while portability allows moving adaptor between different Anderson outlets throughout vehicle or between multiple vehicles as needed. Easily stored in electrical accessories bag, glove box, or equipment storage area ensuring availability when multi-device connections required.
Ideal for Temporary or Seasonal Configurations – Perfect for situations requiring temporary multi-device power distribution including seasonal equipment additions (winter heating or summer cooling equipment), temporary equipment testing before permanent installation, camping trips with extra equipment not used during regular travel, or guest accommodations requiring additional appliances. Adaptor enables equipment connection when needed without permanent system modifications, then easily removed and stored when additional capacity no longer required.
Cost-Effective System Expansion – Significantly more economical than installing additional fixed Anderson outlets throughout vehicle requiring professional electrical work, expensive cable runs, and permanent modifications to vehicle structure. Single adaptor provides equivalent functionality to installing second fixed outlet at fraction of cost and complexity, while maintaining system flexibility allowing adaptor relocation to different power sources as needs change.
Technical Specifications
| Specification |
Details |
| Model |
BTDAS-001 |
| SKU |
BTDAS-001 |
| Product Type |
Anderson Plug Double Adaptor / Splitter |
| Brand |
Baintech |
| Configuration |
Single Input to Dual Output |
| Input |
1x Anderson Plug (Male) |
| Outputs |
2x Anderson Sockets (Female) |
| Current Rating |
50 Amps Combined |
| Voltage |
12V DC Systems (suitable for up to 24V) |
| Connector Type |
Anderson Plug Style (50A Standard) |
| Installation Method |
Plug-and-Play (Tool-Free) |
| Construction |
Heavy-Duty Anderson Plug Housings |
| Contact Type |
Spring-Loaded (Anderson Style) |
| Design |
Compact Portable |
| Typical Applications |
Dual Fridges, Solar + Fridge, Lighting, Inverters, Multiple Accessories |
| Use Cases |
Caravans, 4WDs, Boats, Camper Trailers |
| Primary Benefits |
Multi-Device Operation, Easy Installation, Cost-Effective Expansion |
| Warranty |
12 Months |
| Manufacturer Country |
Australian Product |
Frequently Asked Questions
Q: Can I safely run two portable fridges simultaneously through this adaptor?
A: Yes, provided their combined current draw doesn't exceed 50 amps total. Typical portable fridges draw 5-8 amps each, so two fridges would draw approximately 10-16 amps combined, well within the 50 amp adaptor capacity. However, ensure your Anderson power source (auxiliary battery, solar system, or vehicle electrical system) can support the combined load. During peak startup when compressors engage, fridges may briefly draw higher current, but this is still manageable within normal operating margins. Monitor voltage to ensure it remains above 12V under load indicating adequate power supply capacity for your specific equipment combination.
Q: Will using this adaptor cause voltage drop affecting my equipment performance?
A: The adaptor introduces minimal additional resistance compared to direct connection, so voltage drop is negligible for typical recreational vehicle applications. The primary voltage drop concern is total cable length from power source to equipment and current draw through those cables. Short adaptor connection path adds insignificant resistance compared to several meters of extension cable. However, avoid excessive daisy-chaining of multiple adaptors or long extension cables which accumulates voltage drop. For best performance, position adaptor close to power source minimizing cable length to connected devices.
Q: Can I use this to run one device while charging batteries from solar simultaneously?
A: Yes, this is valid application - connect solar charge controller to one output socket while connecting fridge or other device to second socket. Solar charging and device operation can occur simultaneously. However, ensure your solar system is properly sized to both charge batteries and power connected devices simultaneously. If solar output is insufficient for both functions, batteries may discharge despite solar connection. Monitor battery voltage to verify solar input exceeds total load ensuring net positive charging rather than net discharge during simultaneous operation.
Q: What happens if I exceed the 50 amp rating?
A: Exceeding current ratings causes excessive heat generation in adaptor connections and conductors potentially leading to melted insulation, damaged connectors, or fire hazards. Modern Anderson connectors include high-temperature materials providing some safety margin, but sustained overload will eventually cause failure. Always calculate combined device current draw before connection ensuring total doesn't exceed 50 amps. Most recreational vehicle applications involve relatively modest loads (fridges, lights, small inverters) well within ratings, but high-draw equipment like large inverters powering multiple AC appliances could potentially exceed limits requiring careful load management.
Q: Is this adaptor weatherproof for external use or marine applications?
A: The adaptor uses standard Anderson plug construction which provides good weather resistance when properly connected, but it's not designed for submersion or continuous direct water exposure. For external mounting on vehicle exteriors or marine applications with regular water spray exposure, ensure adaptor and all connections are positioned in relatively protected locations minimizing direct weather exposure. Anderson plugs resist rain, splash, and general moisture when connections are properly seated, but exposed disconnected plugs should be capped or covered preventing water intrusion into pins. For harsh marine environments with regular saltwater exposure, periodic inspection and cleaning of connections prevents corrosion affecting performance.
