Description

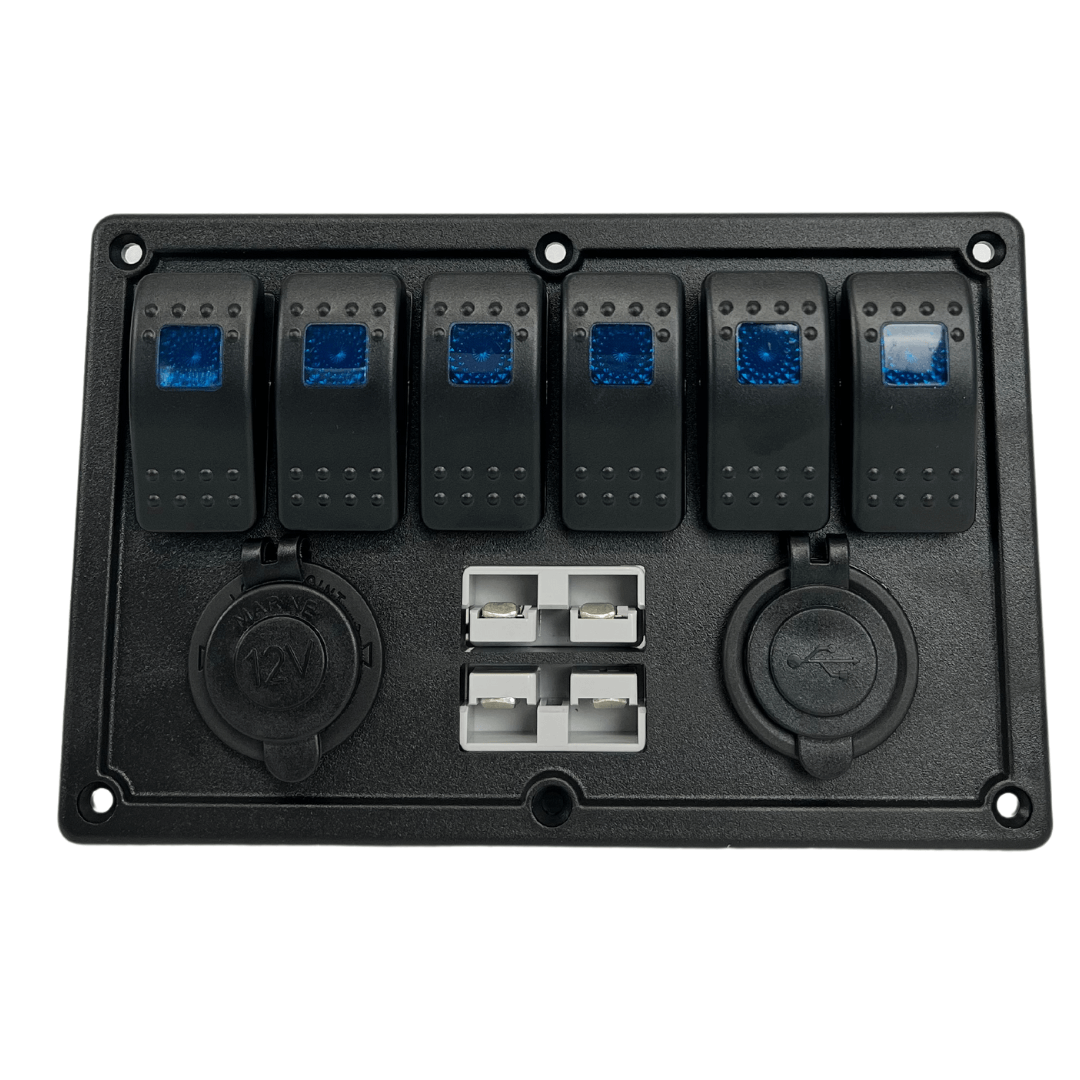

BAINTECH BTSWITCH6-DA 6-Way Switch Panel with Dual Anderson, USB, Ciga Socket & Voltmeter - Complete Electrical Control Center for 4WD, Caravan & Marine
Transform your electrical system control with the BAINTECH BTSWITCH6-DA 6-Way Switch Panel — a comprehensive all-in-one electrical command center combining six customizable rocker switches, dual Anderson plugs, USB charging, cigarette lighter socket, and digital voltmeter in one professional aluminum panel. This pre-wired switch panel features six bright blue LED rocker switches with 15 amp fuse protection for controlling lights, accessories, winches, pumps, and other 12V/24V equipment — includes dual Anderson plug connections for solar panel input, battery charging, or high-current accessory circuits — integrates Ciga socket for traditional 12V accessories and dual USB ports for modern device charging — features digital voltmeter providing real-time battery voltage monitoring for charge state assessment — and delivers IP68 waterproof rating ensuring reliable operation in harsh marine, off-road, and weather-exposed environments. Built from durable anodized aluminum with professional 180mm x 110mm dimensions and complete with customizable indicator labels for personalized switch identification, the BAINTECH 6-Way Switch Panel eliminates the complexity of separate components, tangled wiring, and multiple mounting locations by consolidating complete electrical control and connectivity into one space-efficient, professionally pre-wired panel that installs quickly in caravans, camper trailers, boats, 4WDs, or any application requiring centralized electrical system management.
Product Overview
The BAINTECH BTSWITCH6-DA represents the ultimate integrated electrical control solution for Australian tourers, marine operators, and off-road enthusiasts who demand professional-grade functionality without the installation complexity of separate components. This comprehensive panel consolidates six independently switched circuits, two Anderson plug connections, USB device charging, traditional Ciga socket power, and battery voltage monitoring into a single compact unit that replaces the clutter of multiple switches, scattered sockets, and flying leads with one organized command center. The pre-wired design with integrated 15 amp fuse holders eliminates hours of wiring work, reduces installation errors, and ensures professional circuit protection from the moment you connect power and accessories. Each of the six blue LED rocker switches features individual circuit control with illuminated status indication, allowing independent operation of accessories including camp lighting, water pumps, fridges, lighting bars, awning lights, and winches without affecting other circuits. The dual Anderson plug configuration provides versatile high-current connectivity for solar panel input and output circuits, battery charging connections, or portable equipment power access. The integrated digital voltmeter delivers continuous battery voltage monitoring without requiring separate gauge installation, enabling quick assessment of battery charge state and charging system performance. Australian caravan builders, 4WD retrofitters, boat owners, and camper trailer manufacturers choose the BAINTECH 6-Way Switch Panel for its combination of comprehensive functionality, professional construction quality, IP68 waterproof protection, and installation simplicity that transforms complex electrical projects into straightforward bolt-on installations.
Key Features
Six Customizable Blue LED Rocker Switches Features six independent rocker switches with bright blue LED illumination providing clear on/off status indication in all lighting conditions. Each switch includes customizable labeling using the supplied indicator labels (lights, winch, accessories, pump, etc.), allowing personalized identification matching your specific electrical system. The high-quality rocker switches deliver reliable tactile feedback, withstand millions of switching cycles, and handle 15 amp loads per circuit for controlling most 12V and 24V accessories without external relays.
Pre-Wired with Integrated 15A Fuse Protection Comes completely pre-wired with professional-grade wiring harness and integrated 15 amp fuse holders protecting each switched circuit independently. This factory pre-wiring eliminates hours of complex installation work, ensures correct wire sizing and routing, prevents installation errors that cause electrical fires, and provides immediate circuit protection without requiring separate fuse panel installation. Simply connect main power input and attach accessories to the labeled output wires for quick commissioning.
Dual Anderson Plug High-Current Connectivity Incorporates two independent 50 amp Anderson plug connections providing versatile high-current capability for solar panel input, battery charging circuits, DC-DC charger connections, inverter supply, or portable equipment power access. The dual Anderson configuration enables circuit separation (input/output) or multiple connection points without cable swapping, while maintaining the robust weather-resistant connection quality Anderson plugs are known for in demanding touring environments.
Integrated Ciga Socket and Dual USB Charging Includes standard 12V cigarette lighter socket for traditional 12V accessories alongside dual USB charging ports for modern smartphones, tablets, cameras, and GPS devices. This triple-output configuration provides comprehensive power access for both legacy cigarette lighter accessories and modern USB devices within one integrated panel, eliminating the need for separate socket installations, USB adapter clutter, and multiple mounting locations.
Digital Voltmeter Battery Monitoring Features built-in digital voltmeter providing continuous real-time battery voltage display accurate to 0.1V, enabling quick assessment of battery charge state, charging system performance, and load voltage under accessory operation. This integrated voltage monitoring eliminates the need for separate gauge installation while providing essential data for battery management decisions, charging optimization, and early detection of electrical system issues before they cause failures.
IP68 Waterproof Protection Rating Engineered with IP68 waterproof rating ensuring reliable operation in harsh marine environments, wet weather conditions, spray-exposed mounting locations, and dusty off-road applications. The sealed construction protects internal electronics, switch contacts, and connections from water immersion up to 1 meter depth, salt spray, mud, dust, and moisture ingress that destroys unprotected electrical components in touring and marine applications.
Durable Anodized Aluminum Construction Built from professional-grade anodized aluminum providing superior strength, corrosion resistance, heat dissipation, and electromagnetic shielding compared to plastic panels. The aluminum construction withstands physical impact, maintains structural integrity through temperature extremes from -20°C to +70°C, resists UV degradation, and provides excellent heat dissipation for sustained high-current operation without thermal derating or component overheating.
Compact 180mm x 110mm Professional Dimensions Designed with space-efficient 180mm x 110mm footprint that installs easily in crowded dashboards, caravan control panels, boat helm consoles, or camper trailer walls without consuming excessive space. The compact dimensions combined with comprehensive functionality maximize electrical capability per square centimeter of panel real estate, ideal for modern vehicles where mounting space is limited but electrical system complexity continues increasing.
12V and 24V System Compatibility Works seamlessly with both 12 volt and 24 volt electrical systems, making it suitable for light vehicles, heavy trucks, buses, boats, and commercial applications. The universal voltage compatibility eliminates the need to specify different panels for different voltage systems, while the digital voltmeter automatically displays correct voltage regardless of system voltage without requiring configuration or calibration.
Complete with Customizable Indicator Labels Includes comprehensive label set with common applications (lights, winch, accessories, pump, fridge, awning, etc.) enabling personalized switch identification matching your specific electrical system layout. The professional labels create clear switch identification preventing confusion and accidental activation, while the customizable approach ensures the panel adapts to your unique accessory configuration rather than forcing generic labeling that doesn't match your installation.
Simple Four-Point Mounting Installation Features four corner mounting holes with 4mm diameter countersunk screw accommodation providing secure, low-profile installation on any flat surface. The countersunk design creates flush mounting that won't snag clothing or equipment, while the four-point mounting ensures secure retention through vibration, physical impact, and the demanding conditions of off-road travel without panel flex or mounting failure.
Technical Specifications
| Specification |
Details |
| Part Number |
BTSWITCH6-DA |
| Number of Switches |
6 Independent Rocker Switches |
| Switch Current Rating |
15 Amps per Circuit |
| Switch Illumination |
Blue LED (On/Off Indication) |
| Fuse Protection |
15A Fuse Holders (Pre-Wired, Per Circuit) |
| Anderson Plugs |
Dual 50A Anderson Connections |
| Ciga Socket |
1 x 12V Cigarette Lighter Socket |
| USB Ports |
Dual USB-A Charging Ports |
| Voltmeter |
Digital Display (0.1V Resolution) |
| Voltage Compatibility |
12V & 24V DC Systems |
| Waterproof Rating |
IP68 (Water Immersion to 1 Meter) |
| Panel Material |
Anodized Aluminum |
| Panel Dimensions |
180mm x 110mm |
| Mounting Holes |
4 x 4mm Diameter (Countersunk) |
| Operating Temperature |
-20°C to +70°C |
| Indicator Labels |
Included (Lights, Winch, Accessories, Custom) |
| Pre-Wiring |
Complete Factory Harness with Fuse Holders |
| Warranty |
12 Months Manufacturer Warranty |
| Suitable Applications |
4WD, Caravan, Motorhome, Camper Trailer, Marine, Truck, Bus |
Frequently Asked Questions
Can I control high-draw accessories like winches and fridges with the 15A switches?
The 15 amp switch rating handles most 12V accessories directly including LED light bars, water pumps, interior lighting, and many fridges. However, electric winches, large inverters, and some high-draw accessories exceed 15 amps and require the switches to control external relays rather than direct load switching. For loads exceeding 15 amps, wire the switch to activate a heavy-duty relay that handles the actual high-current switching, protecting the panel switches from overload and extending their service life.
Are the Anderson plugs and switches on separate circuits or do they share power?
The six switches, Anderson plugs, Ciga socket, and USB ports all require main power input connection (typically to your battery positive and negative), but they operate as independent circuits. The switches control their individual accessory outputs, the Anderson plugs provide their own high-current connections, and the Ciga/USB outlets operate independently. Ensure your main power supply to the panel uses appropriately heavy gauge wire and fusing for the combined potential load.
Is the panel waterproof enough for exterior mounting on a boat or exposed locations?
The IP68 rating certifies protection against water immersion up to 1 meter depth, making it suitable for most marine applications and weather-exposed mounting. However, "waterproof" doesn't mean infinitely submersible — the rating covers temporary immersion and heavy spray rather than permanent underwater installation. For fully exposed exterior mounting, ensure cable entry points use proper IP68 glands, and consider additional weather protection for connections behind the panel to maintain long-term reliability.
Can I add more switches or modify the panel configuration?
The panel comes pre-wired with fixed configuration (6 switches, dual Anderson, Ciga, USB, voltmeter) and isn't designed for user modification. If you need different switch counts or configurations, Baintech offers various panel options. Attempting to modify the pre-wired harness or add components can compromise waterproofing, void warranty, and create electrical safety issues. Choose the panel configuration matching your needs rather than modifying this model.
How do I identify which output wire controls which switch?
The pre-wired harness includes labeled output wires corresponding to each switch position. During installation, refer to the included wiring diagram showing wire colors and switch positions, then connect your accessories to the appropriate labeled wires. Apply your chosen indicator labels to the panel switches matching the connected accessories, creating clear visual identification for daily use. Take photos during installation for future reference if accessories require disconnection.
