Description
OEX ACX0002 Battery Terminal End Entry Positive/Negative 10 Pce

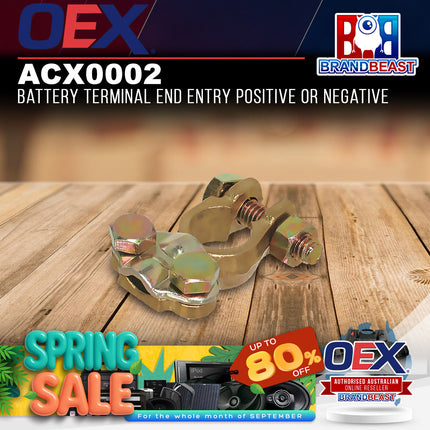

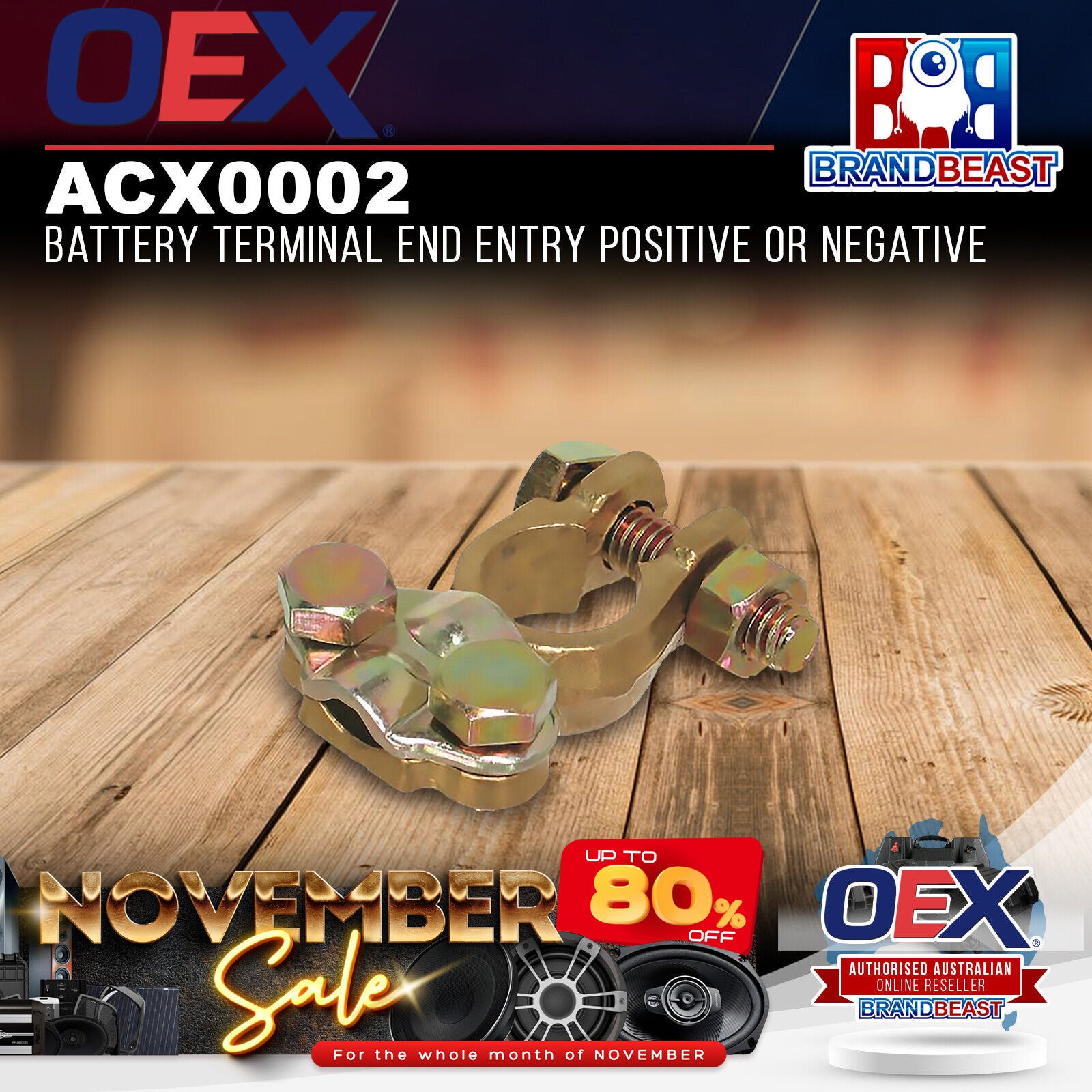

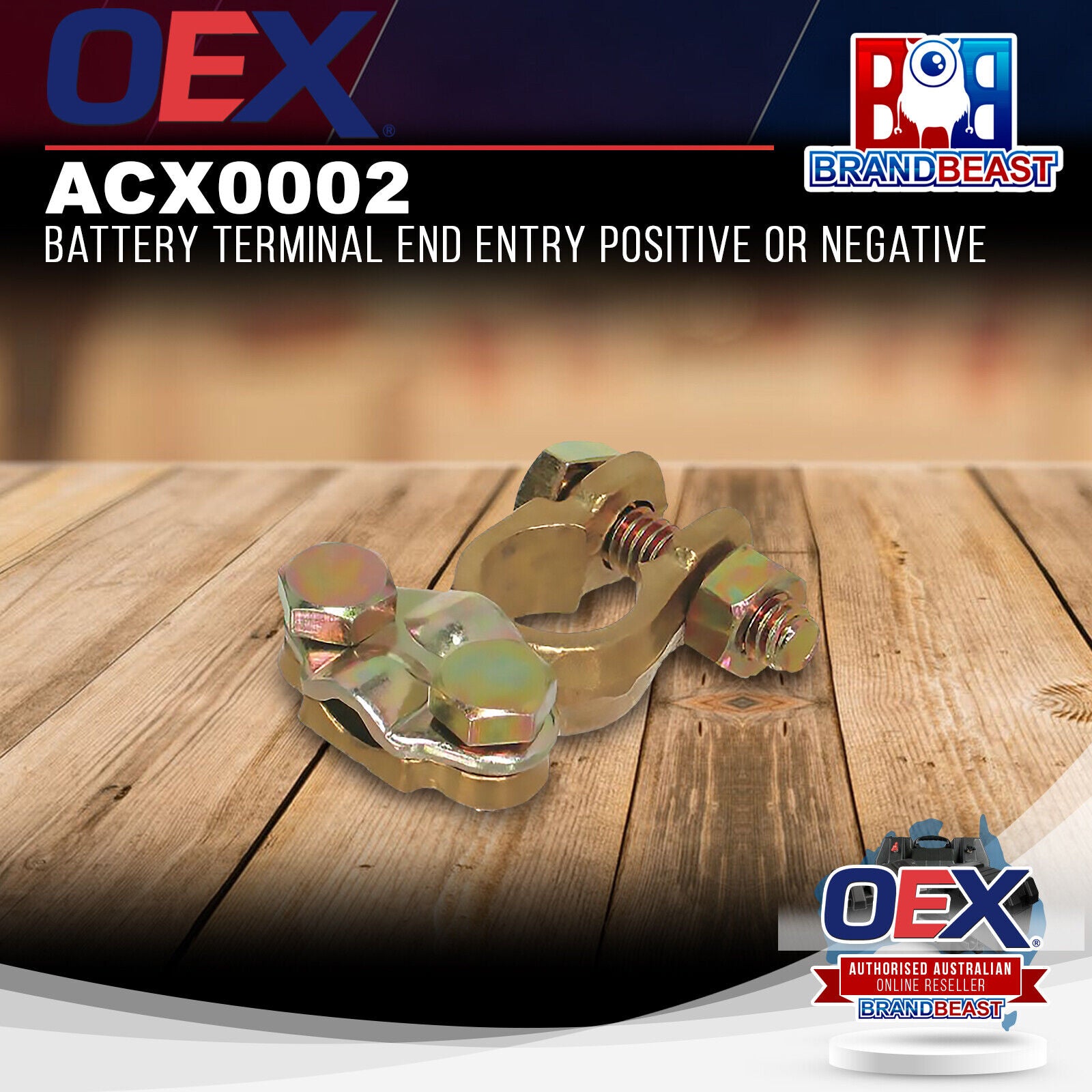

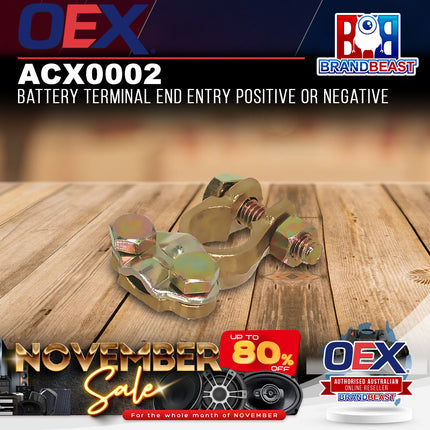

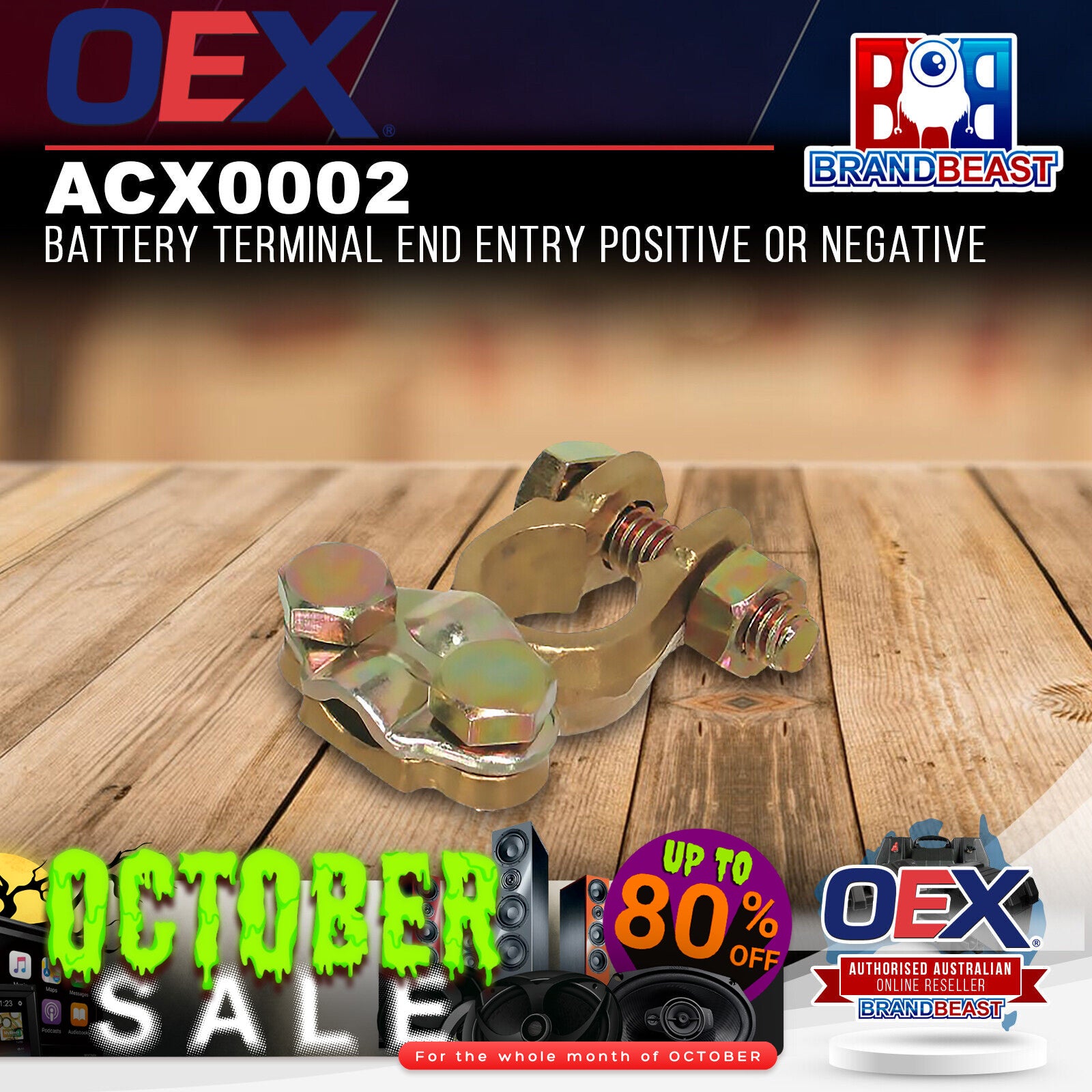

Solid brass end entry battery terminals from OEX, designed for saddle-bolt installation on standard positive or negative battery posts. Each pack contains 10 terminals, suitable for 6 to 1 B&S cable (15.0–40.6mm²).
Product overview
These OEX end entry terminals are built for reliable, corrosion-resistant connections at the battery post. Solid brass construction ensures good conductivity and long service life, while the saddle-bolt termination method delivers a secure mechanical grip on the cable without the need for crimping tools. The end entry design suits applications where the cable approaches the terminal from the end rather than the side, making them a practical choice in tighter battery compartments or custom wiring builds.
Polarity is not fixed, so the same terminal suits both positive and negative posts on a standard battery. Cable compatibility spans 6 to 1 B&S (15.0 to 40.6mm²), covering a wide range of automotive and accessory wiring gauges.
Features and benefits
Solid brass construction. Brass offers superior conductivity and resists the corrosion that commonly shortens the service life of battery connections in automotive environments.
End entry design. Cable enters from the end of the terminal body, which suits installations where routing space is limited or cable direction requires a straight-through approach.
Saddle-bolt termination. The saddle and bolt clamp the cable conductor firmly without requiring a crimped lug, simplifying installation and allowing the connection to be inspected or re-tightened over time.
Suits positive or negative posts. A single terminal type works on both battery poles, reducing the number of part numbers needed across a job.
Wide cable compatibility. Rated for 6 to 1 B&S cable (15.0–40.6mm²), covering common automotive power and accessory wiring sizes.
Pack of 10. Supplied in a 10-piece pack, well suited to trade, workshop, or multi-vehicle applications.
Technical specs
| Specification |
Detail |
| Part Number |
ACX0002 |
| Brand |
OEX |
| Terminal Style |
End Entry |
| Termination Type |
Saddle Bolt |
| Terminal Size |
Battery Post Standard |
| Polarity |
Positive or Negative |
| Suitable Cable Size |
6–1 B&S (15.0–40.6mm²) |
| Pack Size |
10 |
| Warranty |
1 Year |
| Weight |
0.783 kg |
Frequently asked questions
Can these terminals be used on both positive and negative battery posts?
Yes. The ACX0002 is designed to suit both positive and negative standard battery posts. There is no polarity-specific feature that restricts use to one or the other.
What cable sizes are compatible with the ACX0002?
These terminals are rated for 6 to 1 B&S cable, which corresponds to 15.0 to 40.6mm² in metric cross-section. Confirm your cable gauge falls within this range before installation.
Do these terminals require crimping tools to install?
No. The saddle-bolt termination method clamps the cable conductor mechanically using a bolt, so no crimp tool is required. A standard spanner or socket is all that is needed for installation.
What material are the terminals made from?
The terminals are constructed from solid brass, which provides good electrical conductivity and resistance to the corrosion typical in automotive battery environments.
How many terminals come in each pack?
Each pack contains 10 terminals. The pack size makes the ACX0002 practical for trade, workshop, or fleet applications where multiple connections are needed.
