Description
90-Degree Flared-End Cable Lug 8 B&S, REF 10-6, 6mm Stud, Solder or Crimp, 10-Pack
Product Overview

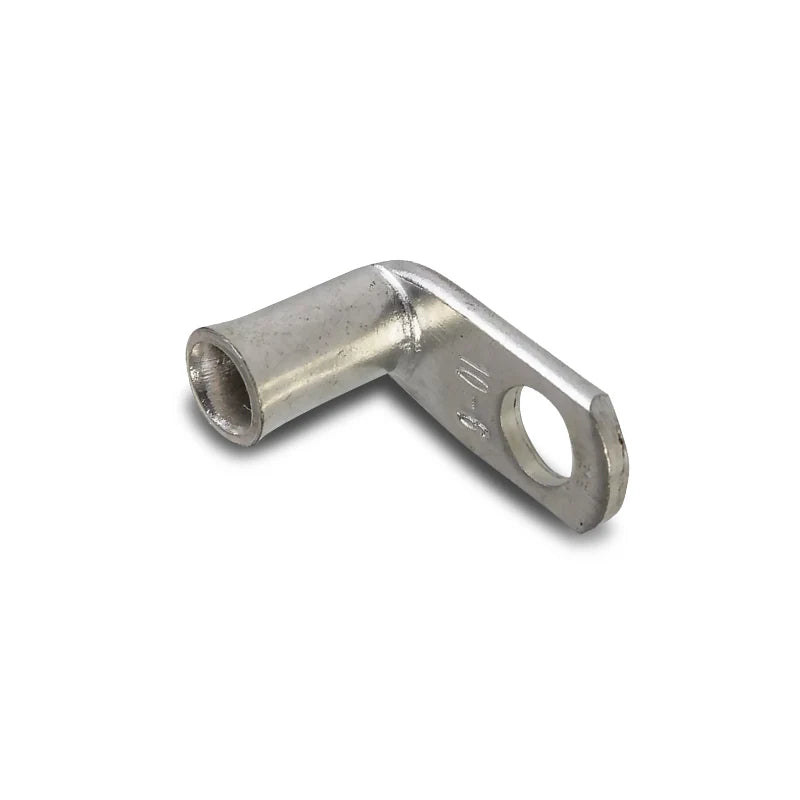

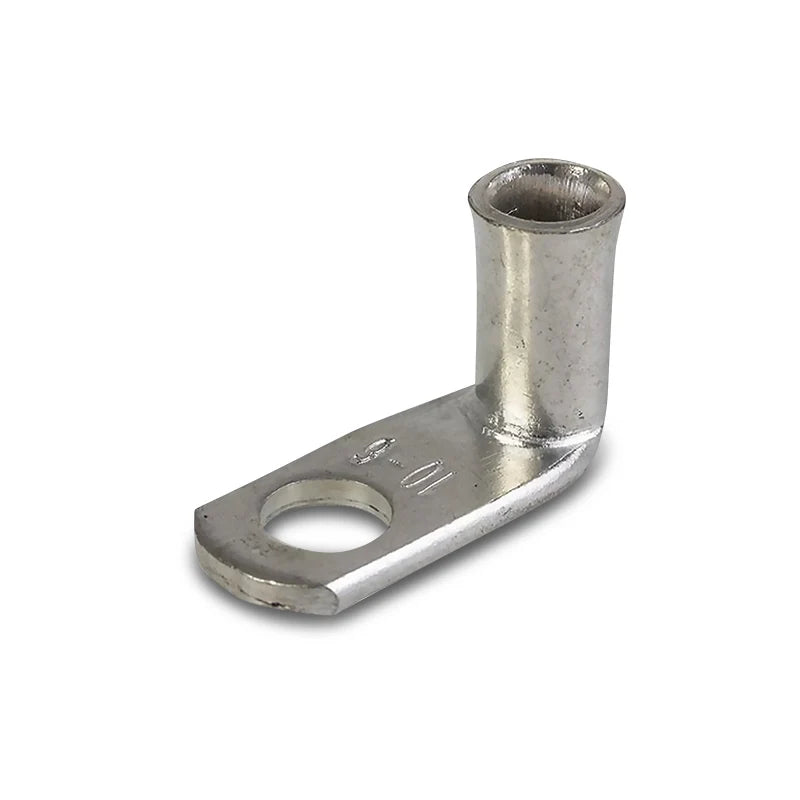

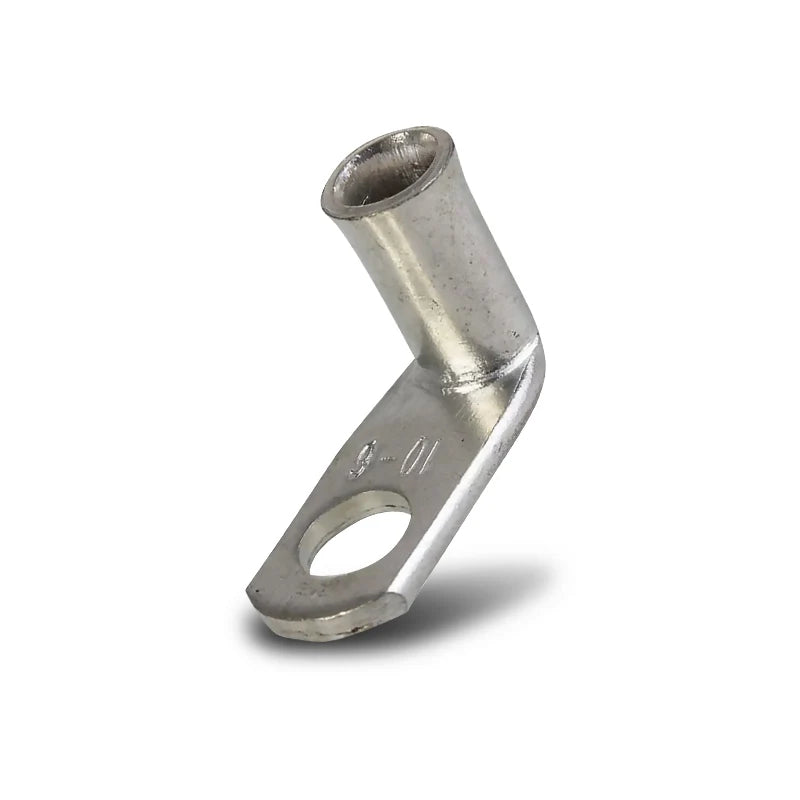

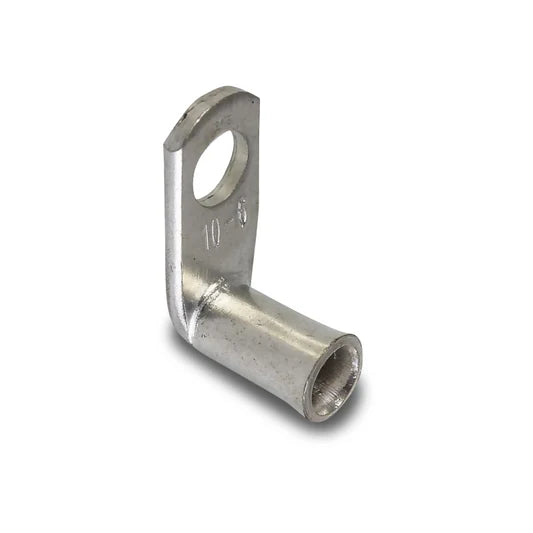

The OEX ACX0137FE is a 90-degree flared-end copper cable lug with zinc plating for 8 B&S wire. Reference number 10-6 indicates the 10mm barrel and 6mm stud hole. The 90-degree angle means the ring faces perpendicular to the cable run unlike a straight lug where the cable and ring are in line. This angled design suits installations where the connection bolt or stud is at a right angle to the cable routing, reducing cable stress and allowing a neater connection in confined or awkward spaces.
The flared barrel entry guides cable strands cleanly into the barrel for consistent crimping or soldering.
Ten pieces per pack.
Features & Benefits
-
90-degree angle — ring faces perpendicular to the cable; suits right-angle connections and confined installation spaces where a straight lug would cause cable stress
-
Flared-end barrel — guides cable strands smoothly into the barrel for a consistent, complete crimp or solder
-
8 B&S wire capacity — suits medium-current automotive and 4WD accessory wiring
-
REF 10-6 — 10mm barrel for 8 B&S wire; 6mm stud hole for M6 connections
-
Copper with zinc plating — conductivity and corrosion resistance
- Solder or crimp
- 10-piece pack
- One-year warranty
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| Part number |
ACX0137FE |
| Product type |
Cable lug — 90 degree, flared end |
| Reference number |
10-6 |
| Wire size |
8 B&S |
| Barrel size |
10mm |
| Stud hole |
6mm |
| Angle |
90 degrees |
| End type |
Flared |
| Material |
Copper with zinc plating |
| Termination |
Solder or crimp |
| Pack quantity |
10 pieces |
| Weight |
0.1kg (per pack of 10) |
| Warranty |
1 year |
Compatible With / Goes Well With
- 8 B&S wire at right-angle connection points
- M6 bolts and terminals where cable routing is perpendicular to the connection face
Weight
0.1kg (per pack of 10)
Frequently Asked Questions
Why would I use a 90-degree lug instead of a straight lug?
A straight lug has the cable and ring in the same line — the cable goes straight into the barrel and the ring exits from the same end. In a 90-degree lug, the barrel and ring are at right angles. This is useful when the terminal or bolt faces a direction perpendicular to where the cable must route — such as connecting to a vertical terminal stud when the cable runs horizontally along a panel, or routing cable through a bulkhead to a terminal on the other side. Using a 90-degree lug reduces the bend radius required from the cable itself and produces a neater installation.
Why does the title say 6 B&S when the specs say 8 B&S?
The product title contains a typo — "6B&S" should be "8 B&S." The description, specification fields, and reference number (10-6, with a 10mm barrel) all confirm 8 B&S. A 6 B&S lug would require a larger barrel (approximately 16mm). Treat this as an 8 B&S product.
How does the ACX0137FE compare to the ACX0100?
Both are REF 10-6 (8 B&S, 6mm stud) cable lugs with flared ends. The ACX0100 is a standard straight lug; the ACX0137FE has the 90-degree angle. Choose ACX0100 for standard straight-run connections; choose ACX0137FE for right-angle or perpendicular connections.
What does the flared end add to this lug?
The flared barrel entry acts as a guide funnel for cable strands during installation — reducing stray strands outside the crimp zone. The same flared-end benefit applies in the 90-degree format as in straight lugs.
Can these be used with the ACX0025/ACX0026 10mm stud battery terminals?
No — the ACX0137FE has a 6mm hole and will not fit over a 10mm stud. The OEX ACX0025 and ACX0026 battery terminals use 10mm studs. Use a lug with a 10mm hole (such as the ACX0116FE) for those terminals.
