Description

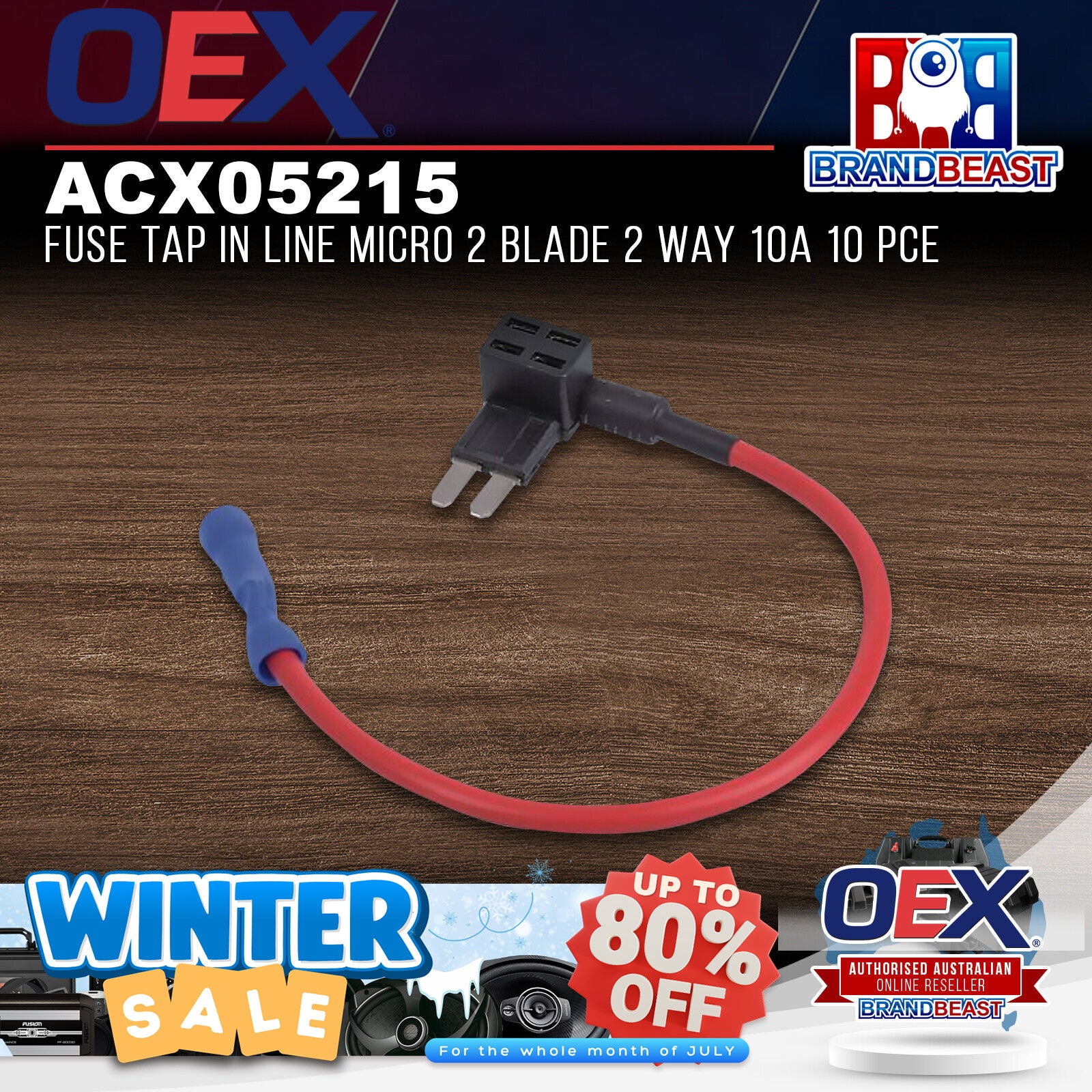

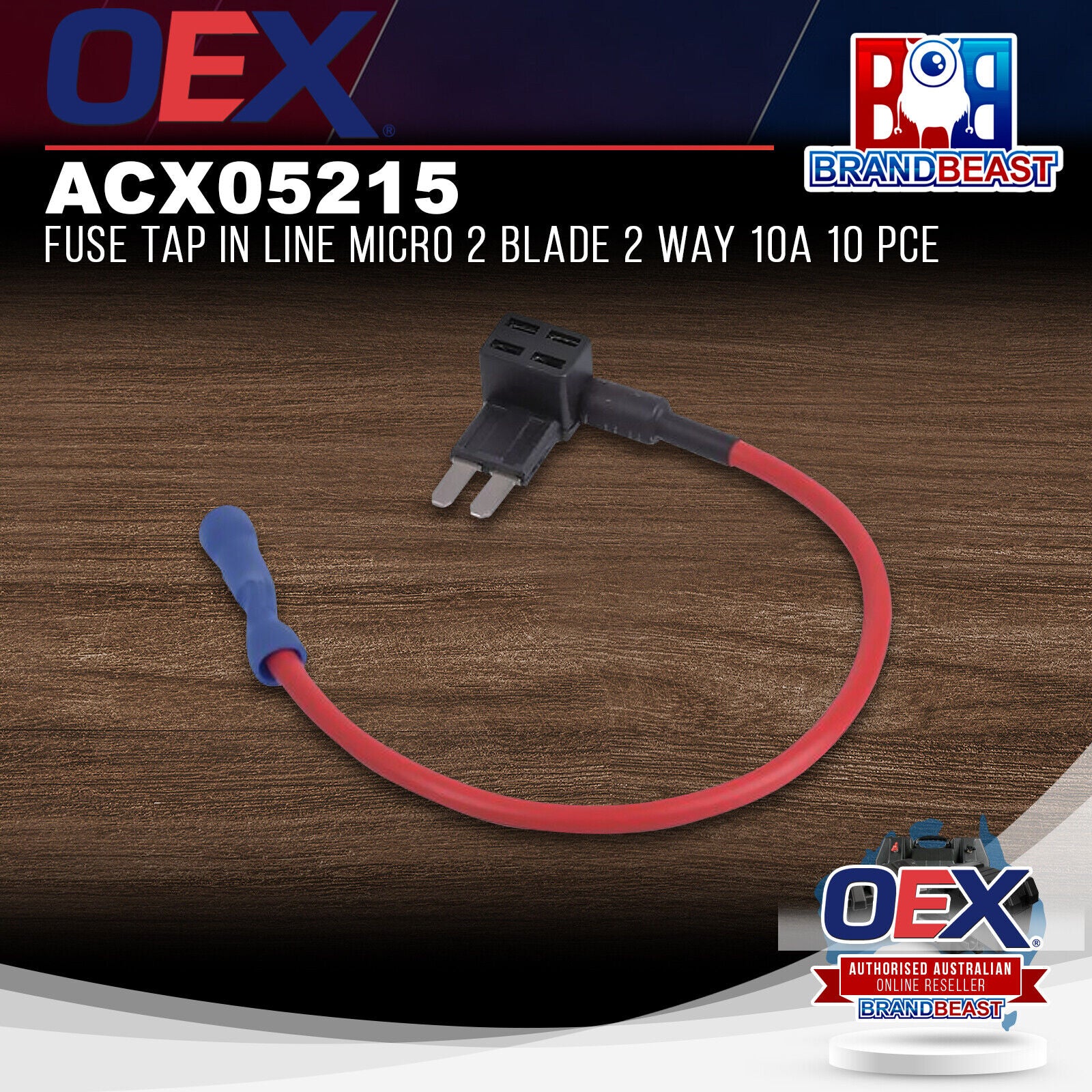

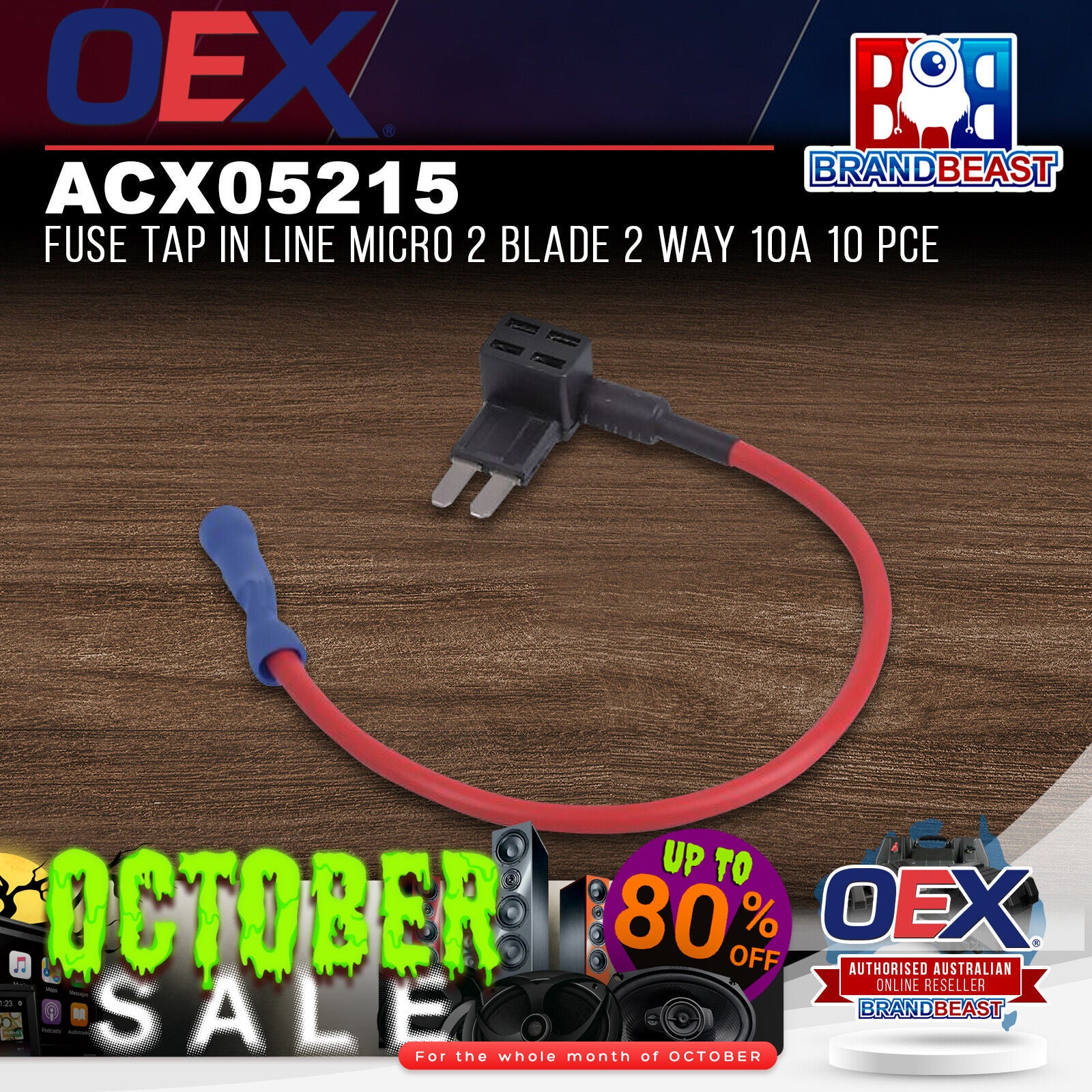

OEX ACX05215 Micro 2 Blade In-Line Fuse Tap 10A with 150mm 16AWG Lead Pack of 10
The OEX ACX05215 is a Micro 2 blade in-line fuse tap designed to add a second protected circuit to an existing Micro 2 fuse slot without disrupting the original circuit. Each tap piggybacks onto an existing blade fuse position and provides an auxiliary feed for an additional circuit. Rated at 10A per circuit with a 150mm 16AWG cable output terminating in an insulated joiner. Supplied in a pack of 10 with a one year warranty. Also available individually as the ACX05215BL.
Product overview
The ACX05215 is the Micro 2 blade variant in the OEX in-line fuse tap range, complementing the ACX05209 (mini blade) and ACX05210 (standard blade). The Micro 2 format, also called Mini Low Profile, is used in many modern passenger and light commercial vehicles and is smaller than the standard mini blade fuse. The tap fits over an existing Micro 2 fuse in its slot, retaining the original fuse in position so the original circuit is unaffected, while providing a second fuse position for the new accessory circuit.
A 150mm 16AWG cable exits the secondary fuse and connects to the new accessory wire via an insulated joiner, covering common low-draw accessory installations including dashcams, LED lighting, USB adaptors and hardwired radar detectors. The choice of fuse box slot determines whether the secondary circuit is always-on or ignition-on, so selecting the correct slot for the intended accessory behaviour is important before installation. The pack of 10 suits workshops and mobile auto electricians working across multiple installations.
Features and benefits
Micro 2 blade fuse tap: Compatible with the compact Micro 2 (Mini Low Profile) fuse format used in many modern passenger vehicles, light commercial vehicles and caravans.
2-way design retaining original fuse: The tap holds the original fuse in its existing position so the original circuit remains protected, while adding an auxiliary fuse position for the new accessory circuit.
10A per circuit rating: Suited to most low-draw 12V accessories including dashcams, GPS units, LED lighting accessories, USB power adaptors and hardwired radar detectors.
150mm 16AWG cable output: A short lead exits the auxiliary fuse position and terminates in an insulated joiner for secure connection to the new accessory wiring.
No-cut installation: Adds a new fused circuit without cutting into or splicing existing vehicle wiring.
Pack of 10: Trade-friendly quantity for workshop and fleet applications.
Single unit available: The ACX05215BL is the same fuse tap sold individually in a blister pack for single vehicle installations.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX05215 |
| OEM Number |
TDR05215 |
| Brand |
OEX |
| Type |
Fuse Tap, In-line 2-Way |
| Fuse Type |
Micro 2 blade (Mini Low Profile) |
| Power Rating |
10A per circuit |
| Number of Fuses |
2 (original and auxiliary) |
| Cable Length |
150mm |
| Cable Gauge |
16AWG |
| Termination |
Insulated joiner |
| Pack Quantity |
10 |
| Single Unit Option |
ACX05215BL |
| Warranty |
One year |
| Sold As |
Pack of 10 |
Frequently asked questions
What is a Micro 2 blade fuse? Micro 2 (also called Mini Low Profile) is a compact blade fuse format used in many modern vehicles. It is smaller than a standard mini blade fuse and is commonly found in newer passenger and light commercial vehicles. Confirm your vehicle's fuse type using the owner's manual or fuse box cover before purchasing.
How does the ACX05215 differ from the ACX05209 and ACX05210? All three are 2-way 10A in-line fuse taps with identical function and cable specifications. The ACX05209 suits mini blade fuses, the ACX05210 suits standard blade (ATO/ATC) fuses, and the ACX05215 suits Micro 2 (Mini Low Profile) fuses. Select the correct variant based on the fuse type in your vehicle's fuse box.
Does the original fuse remain in place after installation? Yes. The ACX05215 is a 2-way design. The original fuse occupies one position and the new secondary fuse is added in the auxiliary slot. The existing circuit remains protected and unaffected.
What is the 16AWG cable used for? The 150mm 16AWG cable leads from the auxiliary fuse position to an insulated joiner, providing a secure termination point to connect the new accessory wiring. The 16AWG wire is rated to handle up to the 10A fuse rating. Ensure the accessory being wired does not draw more than 10A.
Is there a single-unit option? Yes. The ACX05215BL is the same fuse tap sold individually in a blister pack, suited to single vehicle installations where a full pack of 10 is not required.
