Description

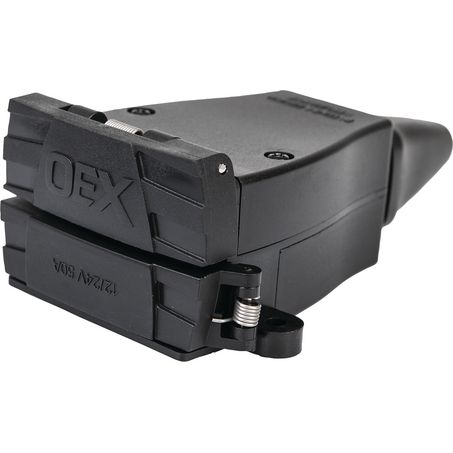

OEX ACX0690 7-Pin Flat Trailer Socket with Integrated 50A Anderson Style Plug Black Housing
The OEX ACX0690 combines a 7-pin flat trailer socket with an integrated 50A Anderson style plug in a single black plastic housing. The 7-pin flat socket handles trailer lighting and braking circuits while the Anderson style plug provides a high-current feed for auxiliary battery charging or accessory power. Rated at 15A for the 7-pin trailer circuits and 50A through the Anderson style plug. Compliant with AS4177.5-2004. Covered by a one year warranty.
Product overview
Vehicles that tow and also run an auxiliary battery or DC-DC charger often need two separate connection points at the tow bar a 7-pin flat for trailer circuits and an Anderson plug for the battery charging feed. The ACX0690 integrates both into a single housing, simplifying installation and reducing the number of separate sockets required on the vehicle's rear. The 7-pin flat connector covers the standard Australian trailer lighting, braking and auxiliary circuits, while the 50A Anderson style plug provides a high-current connection point suited to DC-DC charger feeds, auxiliary battery charging and similar high-draw applications.
A reed switch is included in the unit and can be used to trigger a circuit based on socket connection state, commonly used to activate a battery-to-battery charging circuit when an Anderson plug is connected. The reed switch state (normally open or normally closed) should be confirmed with OEX before wiring. Note that LED removal may be required for compatibility with some vehicle monitoring systems. The black plastic housing is suited to external rear-of-vehicle mounting in towing applications.
Features and benefits
7-pin flat trailer socket: Standard Australian 7-pin flat connector for trailer lighting, brake, reverse and auxiliary circuits, compatible with caravans, boat trailers, car trailers and box trailers.
Integrated 50A Anderson style plug: High-current connection point for auxiliary battery charging or accessory feeds built into the same housing as the 7-pin flat, rated at 50A for DC-DC charger feeds and similar applications.
Reed switch included: Can be used to trigger a circuit based on socket connection state, commonly used to activate a battery-to-battery charging circuit when a trailer or Anderson plug is connected. Confirm reed switch state with OEX before wiring.
15A rating on trailer circuits and 50A on Anderson plug: Appropriate current ratings for each connector type within the one housing.
AS4177.5-2004 compliant: Meets the Australian standard for trailer electrical connectors.
Black plastic housing: Suited to external vehicle mounting in towing applications.
Vehicle monitoring system note: LED removal may be required for compatibility with some vehicle monitoring systems. Check with your vehicle manufacturer or auto electrician before installation.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX0690 |
| Brand |
OEX |
| Item Type |
Socket |
| Connector Style |
7-pin flat and Anderson style |
| Pins |
7 |
| Voltage |
12V |
| Amp Rating (Trailer Circuits) |
15A |
| Amp Rating (Anderson Plug) |
50A |
| Reed Switch |
Included (confirm switch state with OEX) |
| Housing Material |
Black plastic |
| Compliance |
AS4177.5-2004 |
| Warranty |
One year |
| Sold As |
Each |
Frequently asked questions
What is the Anderson style plug used for in this socket? The integrated 50A Anderson style plug provides a high-current connection point for auxiliary battery charging between the tow vehicle and a caravan or camper trailer, or for connecting DC-DC chargers and other high-draw accessories at the rear of the vehicle. It is rated at 50A, suited to these applications.
What does the reed switch do and what state is it in? The reed switch detects whether the socket lid is open or closed and can be used to trigger a circuit, commonly used to activate a battery-to-battery charging circuit when an Anderson plug is connected. The reed switch state (normally open or normally closed) contains conflicting information in the current supplier data. Confirm the switch state with OEX before wiring to ensure the circuit behaviour matches your installation requirements.
Will this socket work with my vehicle's monitoring system? Compatibility with vehicle monitoring systems varies. OEX notes that the LED may need to be removed on some vehicles for compatibility. Check with your vehicle manufacturer or a qualified auto electrician before installation if your vehicle has an active trailer or electrical monitoring system.
What trailer types is the 7-pin flat socket compatible with? The 7-pin flat connector is the standard Australian trailer connector used on caravans, boat trailers, car trailers and box trailers. It carries circuits for left and right indicators, tail lights, brake lights, reverse lights, electric brakes and auxiliary power.
Is the ACX0690 compliant with Australian standards? Yes. The ACX0690 is compliant with AS4177.5-2004, the Australian standard for trailer electrical connectors.
