Description
Australian-Made OFHC Copper Auto Cable Built for the Long Haul
OEX ACX0731L Australian Made 4mm Single Core Automotive Cable Pink 100m Roll OFHC Copper 15A V90

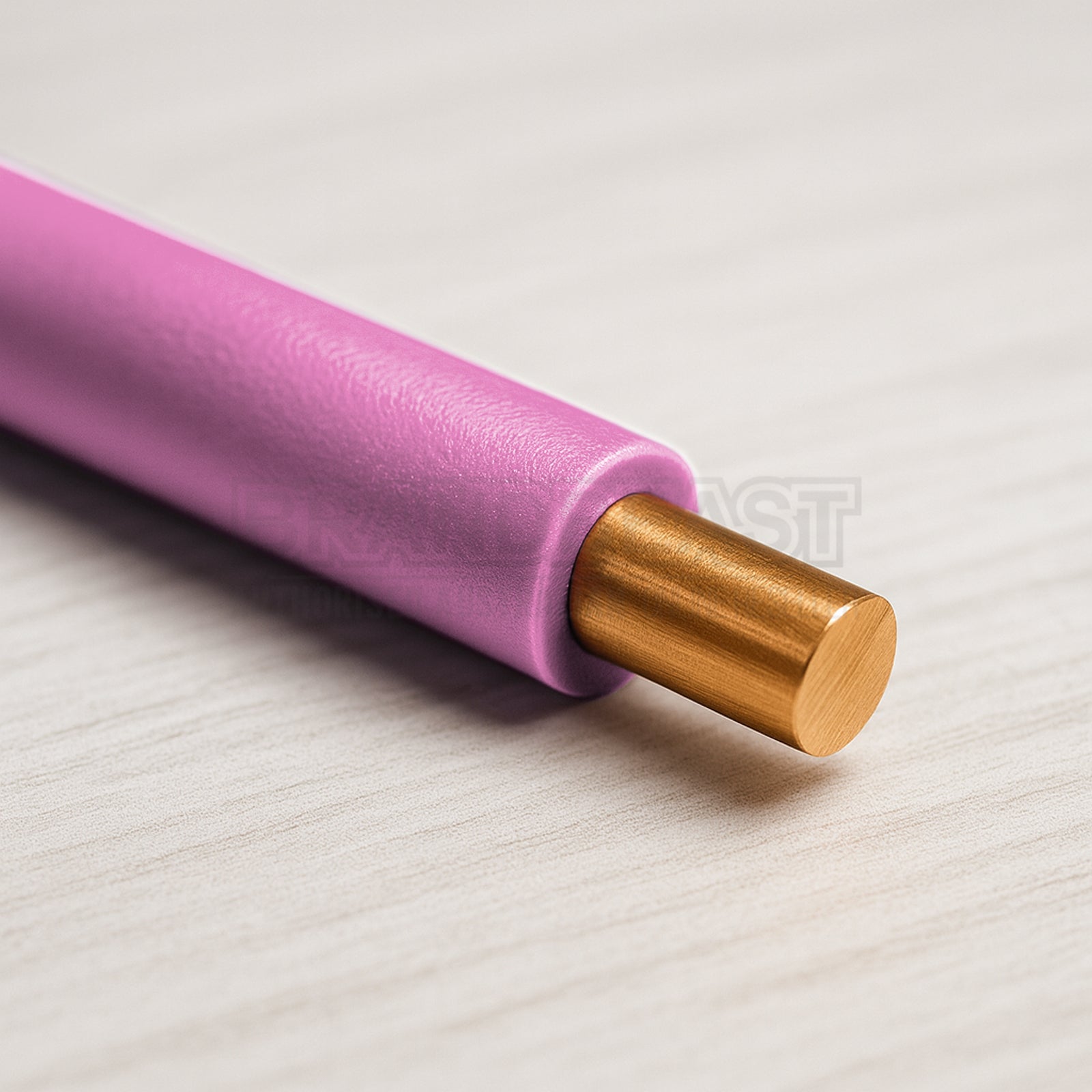

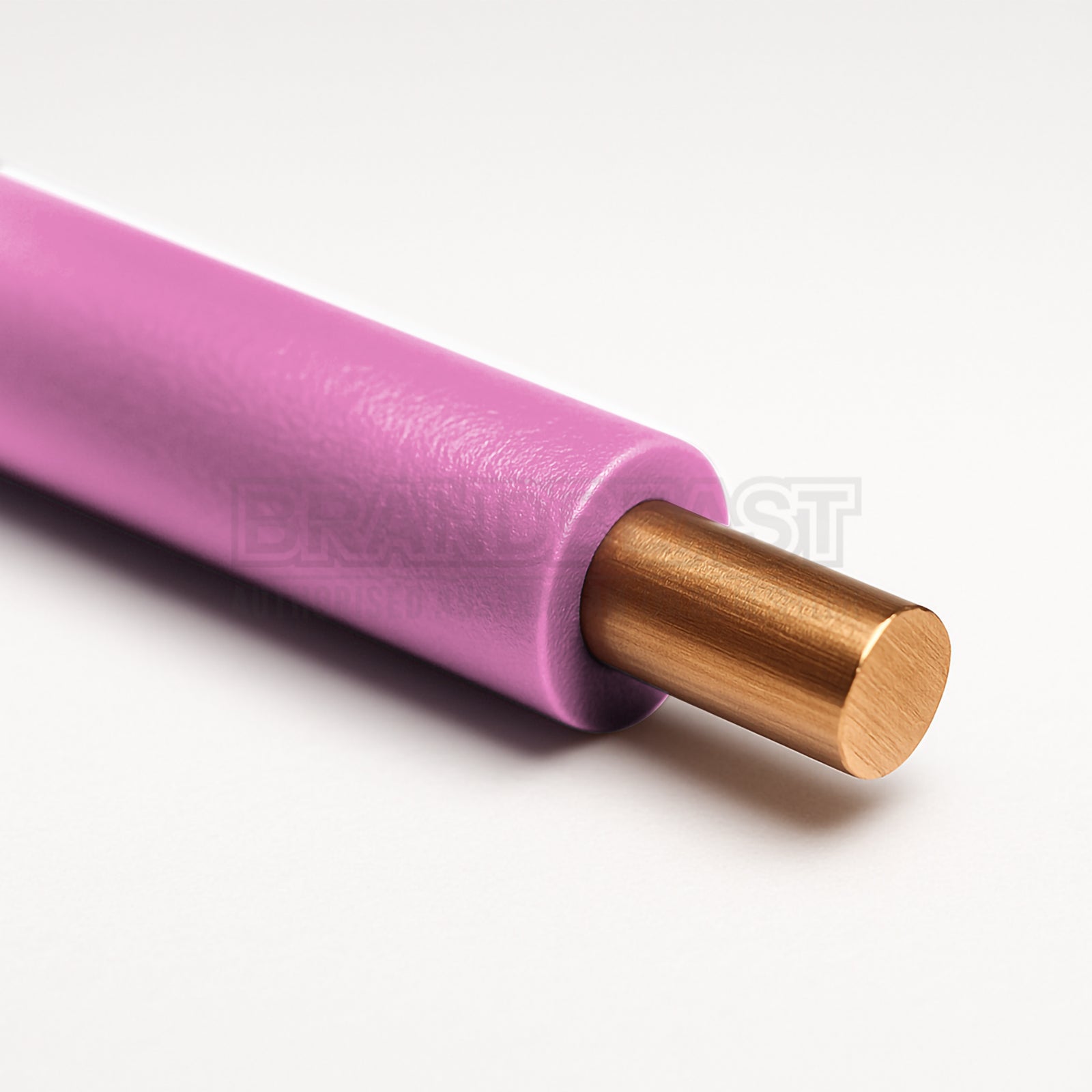

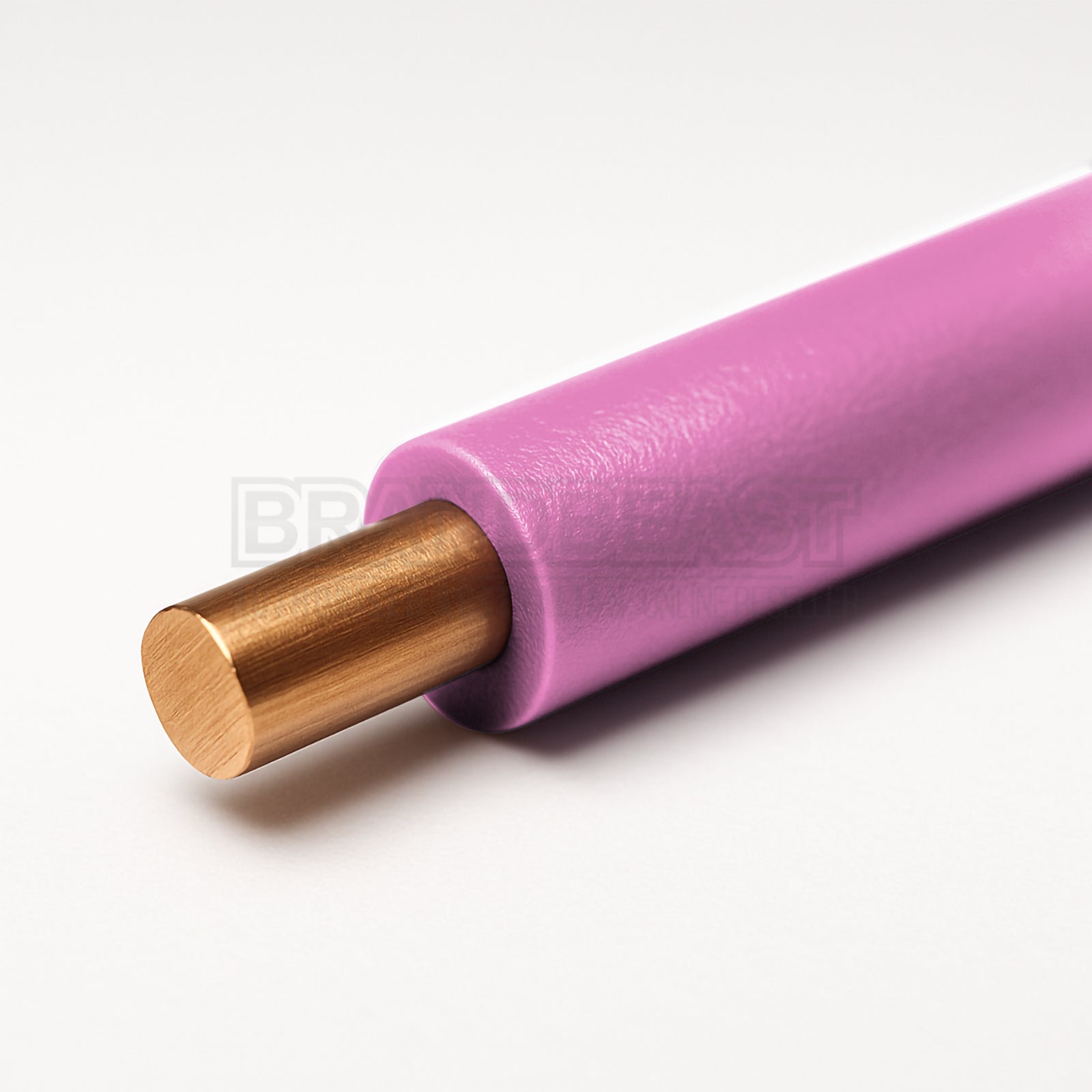

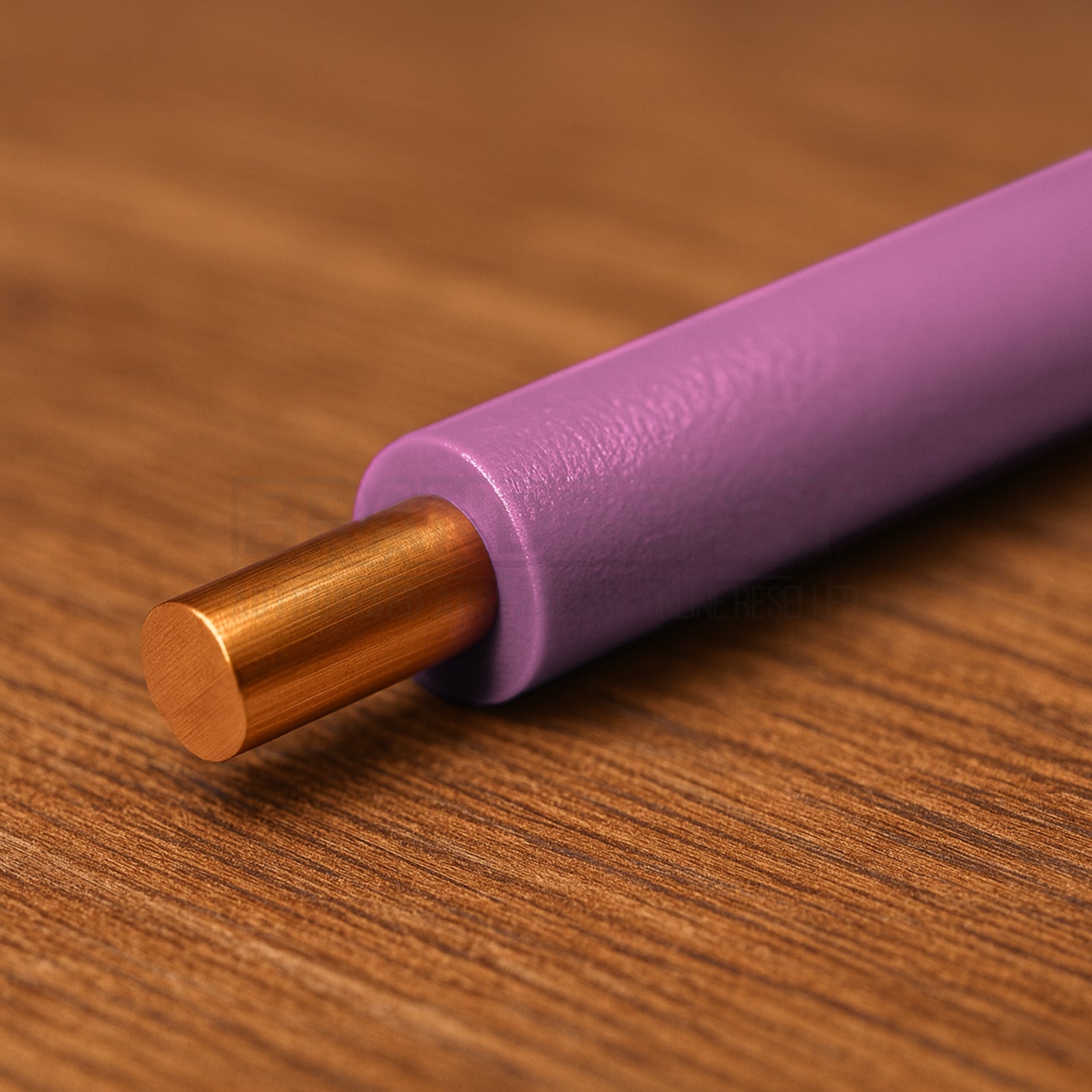

The OEX ACX0731L is a 4mm single core automotive cable in pink, supplied on a 100m roll. Manufactured in Australia from oxygen free high conductivity (OFHC) copper, it features a 1.84mm² conductor cross-section and a 15A continuous rating at 30°C, suited to higher-current lighting circuits, relay feeds, accessory wiring and general automotive applications where additional conductor capacity is required over the 3mm range. The pink PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS.
Product overview
The ACX0731L is the pink 100m roll variant in the OEX 4mm single core automotive cable range, sharing the same conductor specification and insulation rating as the other colours in the range. Pink cable is used in automotive and trailer wiring installations where an expanded colour palette is needed to differentiate circuits in complex multi-wire harness builds and custom vehicle electrical systems where the full standard colour set is already in use. It provides a distinctive identifier at the 4mm gauge for installations requiring a broad range of circuit colours. At 1.84mm² (15AWG) with a 15A continuous rating, the ACX0731L handles higher-current circuits where the 3mm 10A-rated cable would be undersized.

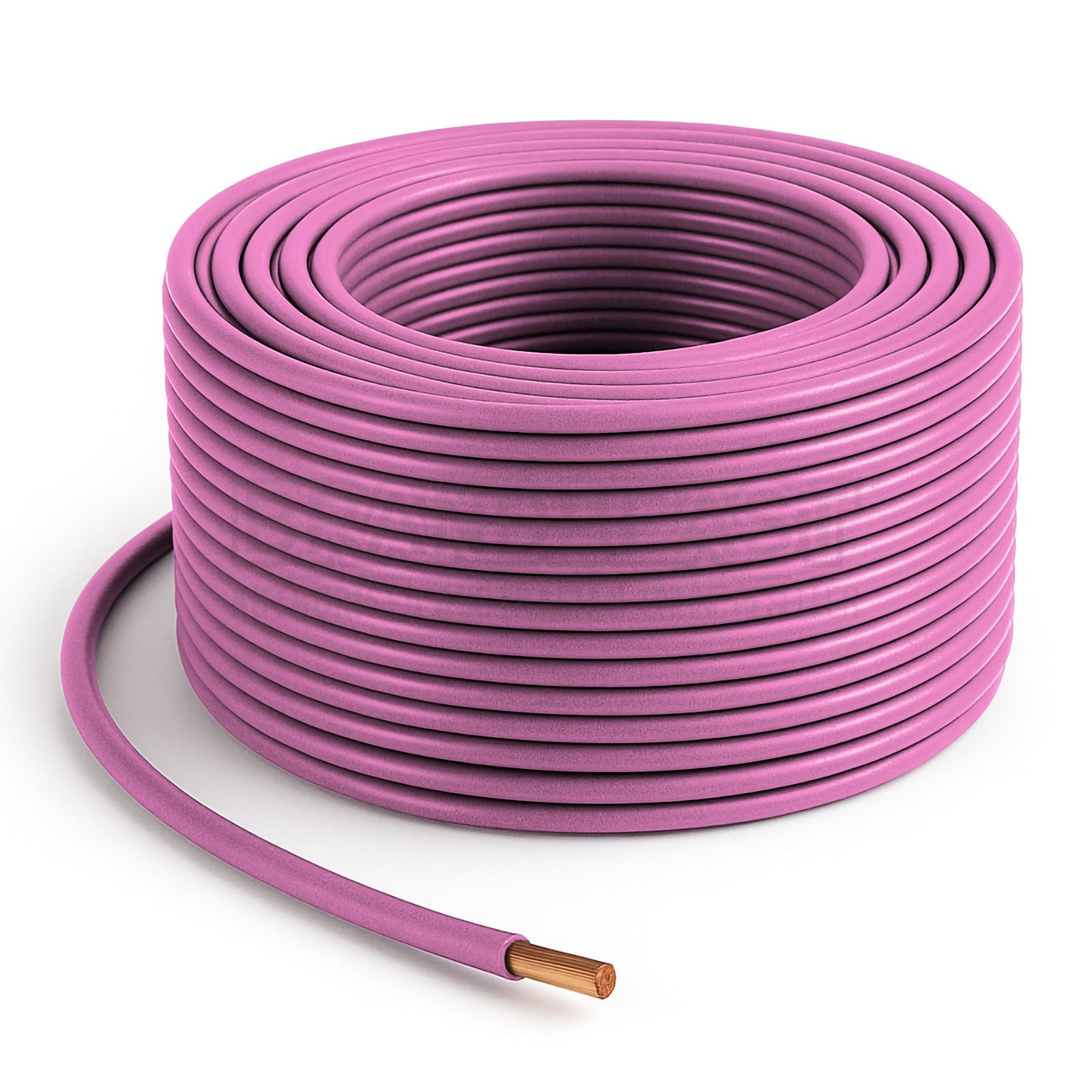

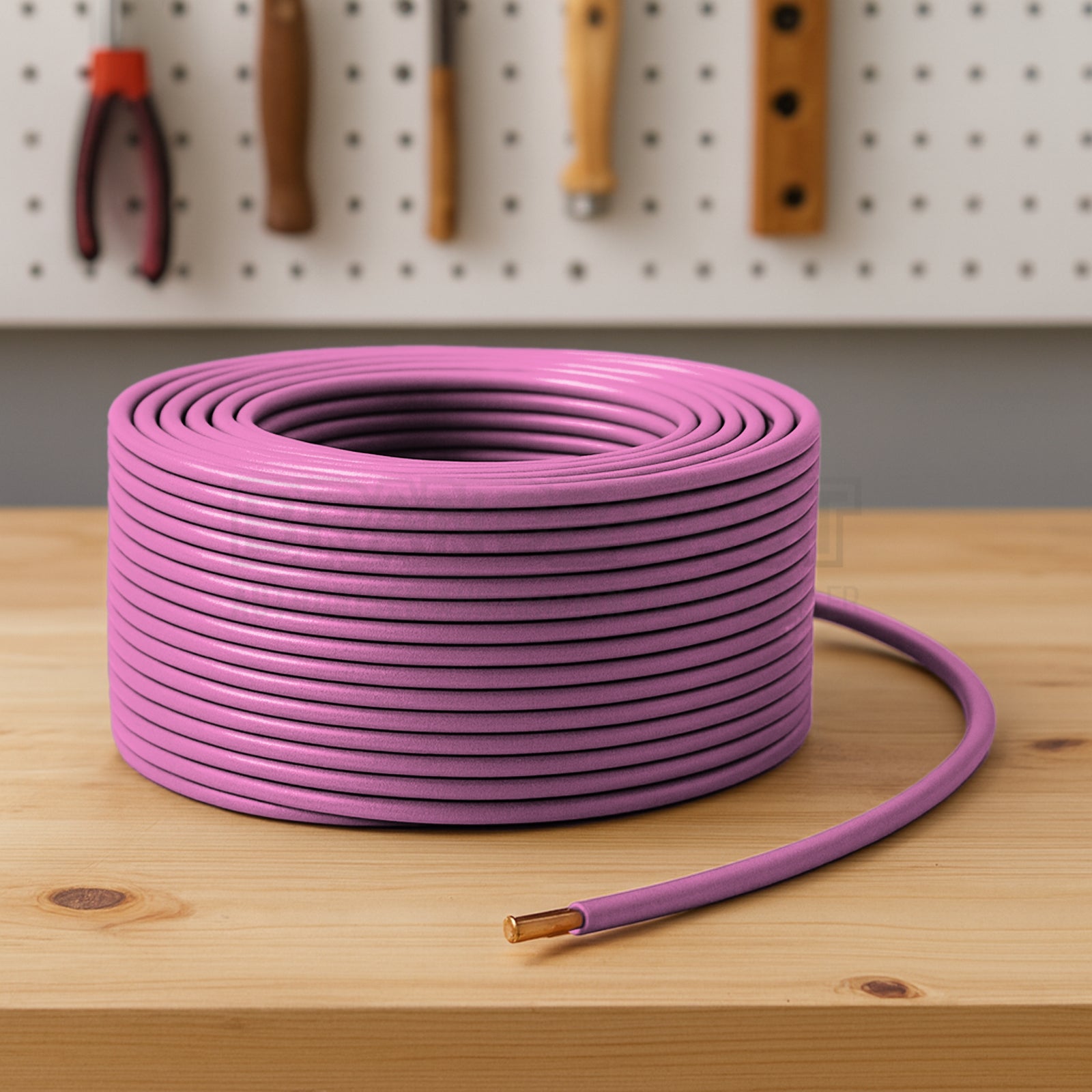

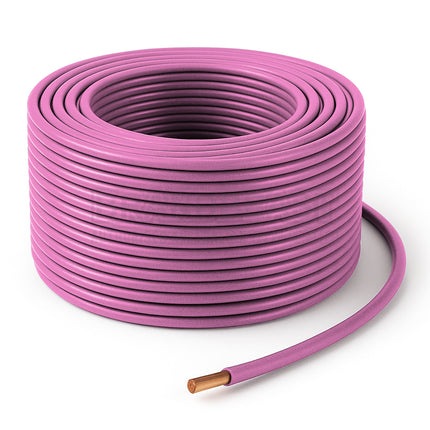

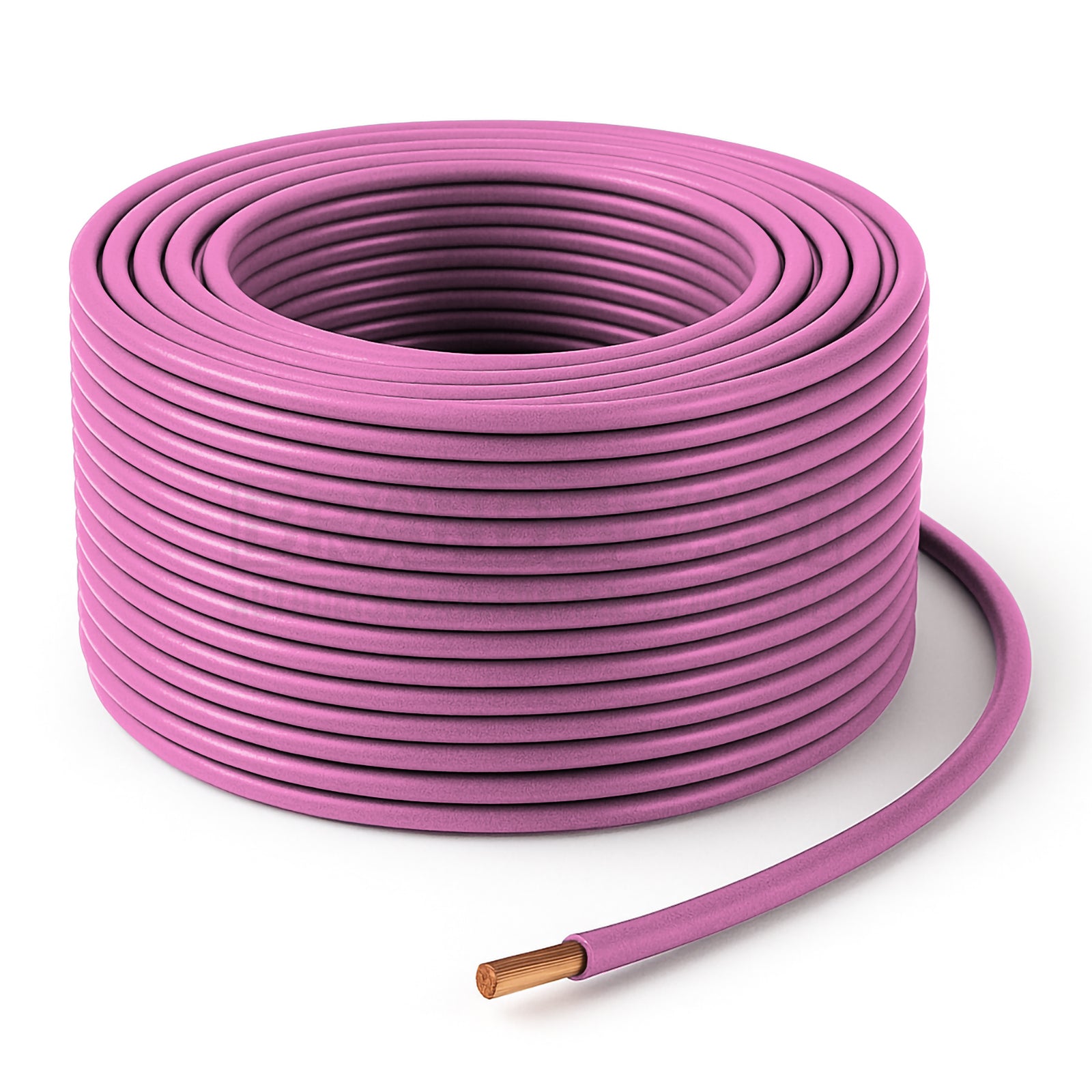

The 26-strand conductor construction provides flexibility for routing through tight spaces and around bends. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for underbonnet and outdoor-exposed installations. The 100m roll suits workshops and trade installers covering multiple jobs from a single roll.
Features and benefits
OFHC copper conductor: Oxygen free high conductivity copper minimises resistance and signal loss across the cable run, maintaining reliable electrical performance in automotive and marine applications.
Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.
Pink colour coding: Pink provides a distinctive additional circuit identifier for complex multi-wire harness builds and custom electrical installations where the standard colour set is already allocated, supporting clear differentiation across all circuits at the 4mm gauge.
15A rated at 30°C: Higher current capacity than the 3mm range, suited to higher-output lighting circuits, relay feeds and heavier accessory loads in 12V and 24V systems drawing up to 15A.
UV stabilised PVC insulation: Resists degradation in sun-exposed and underbonnet environments.
V90 temperature rating: PVC insulation rated for continuous operation at up to 90°C, the standard automotive-grade insulation specification in Australia.
26-strand construction: The 26-strand conductor provides flexibility and resistance to fatigue during installation and in service, suited to routing through tight spaces and around bends.
AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.
RoHS compliant: Meets hazardous substance restrictions.
100m roll: Trade-length supply for workshops and fleet installers covering multiple jobs from a single roll.
Technical specs
| Specification |
Detail |
| SKU |
ACX0731L |
| Brand |
OEX |
| Cable Type |
Single Core Automotive |
| Industry Known Size |
4mm |
| Conductor Cross Section |
1.84mm² |
| Gauge |
15AWG |
| Conductor Strands |
26 |
| Strand Diameter |
0.32mm |
| Conductor Material |
OFHC Copper |
| Amp Rating |
15A at 30°C |
| Voltage Rating |
Up to 110V |
| Insulation Type |
PVC |
| Temperature Rating |
V90 (90°C) |
| UV Stabilised |
Yes |
| Cable Colour |
Pink |
| Length |
100m |
| Weight |
2.1kg |
| Compliance |
AS/NZS 3808:2000, RoHS |
| Warranty |
One year |
| Sold As |
100m roll |
Frequently asked questions
How does 4mm cable compare to 3mm and 2mm in the OEX range? The 4mm cable has a larger conductor cross-section (1.84mm²) and higher amp rating (15A at 30°C) than the 3mm (1.13mm², 10A) and 2mm (0.5mm², 5A) cables. Select the 4mm where circuits draw up to 15A, such as higher-output lighting, relay feeds or heavier accessory loads that would exceed the capacity of the 3mm range.
What is the amp rating for this cable? This cable is rated at 15A continuous at 30°C. Ampacity decreases as ambient temperature rises, so applications in high-heat environments such as underbonnet installations should be assessed against the expected operating temperature before use.
What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for underbonnet and outdoor-exposed installation positions.
What does AS/NZS 3808:2000 compliance mean? AS/NZS 3808:2000 is the Australian and New Zealand standard covering insulated conductors and cables for internal wiring of equipment. Compliance confirms the cable meets defined requirements for conductor construction, insulation properties and performance.
Is this cable available in other colours or lengths? OEX produces single core automotive cable in a range of colours and roll lengths across the 2mm, 3mm and 4mm ranges. Contact us for available colour and length options to suit your specific wiring application.
Product Overview
The OEX ACX0731L is a 4mm single core automotive cable in pink, supplied on a 100m roll. Manufactured in Australia from oxygen free high conductivity (OFHC) copper, it features a 1.84mm² conductor cross-section and a 15A continuous rating at 30°C, making it suited to higher-current lighting circuits, relay feeds, accessory wiring, and general automotive applications where additional conductor capacity is required.
The pink PVC insulation is UV stabilised and rated to V90 (90°C), making it suitable for under-bonnet and outdoor-exposed installations. Compliant with AS/NZS 3808:2000 and RoHS, the 100m roll format gives workshops and trade installers the length needed to work through multiple jobs without restocking.
Features & Benefits
-
Oxygen free high conductivity copper — minimises resistance and signal loss across the run
-
Australian owned and made — premium quality copper produced locally
-
15A rated at 30°C — suited to higher-current lighting, relay, and accessory circuits
-
UV stabilised PVC insulation — resists degradation in sun-exposed and under-bonnet environments
-
V90 temperature rating — insulation rated to 90°C continuous
-
26-strand construction — flexible and easy to route through tight spaces
-
AS/NZS 3808:2000 compliant — meets the Australian and New Zealand standard for cables for internal wiring of equipment
-
RoHS compliant — meets hazardous substance restrictions
-
100m roll — trade-length supply for workshops and fleet installers
Technical Specs
| Specification |
Detail |
| Part Number |
ACX0731L |
| Brand |
OEX |
| Cable Type |
Single Core Automotive |
| Industry Known Size |
4mm |
| Conductor Cross Section |
1.84mm² |
| Gauge |
15 AWG |
| Conductor Strands |
26 |
| Strand Diameter |
0.32mm |
| Conductor Material |
OFHC Copper |
| Amp Rating |
15A at 30°C |
| Voltage Rating |
Up to 110V |
| Insulation Type |
PVC |
| Temperature Rating |
V90 (90°C) |
| UV Stabilised |
Yes |
| Trace Colour |
None |
| Cable Colour |
Pink |
| Length |
100m |
| Compliance |
AS/NZS 3808:2000, RoHS |
| Warranty |
1 Year |
Compatible With
Suitable for use in automotive, marine, caravan, and light commercial vehicle wiring. Common applications include:
- Higher-current automotive lighting circuits
- Relay and switch feed wiring
- Trailer and caravan wiring runs
- Auxiliary and accessory power feeds
- General 12V and 24V wiring where a 15A-rated conductor is required
Weight
2.1kg
Frequently Asked Questions
How does 4mm cable compare to 3mm and 2mm in the OEX range?
The 4mm cable has a larger conductor cross-section (1.84mm²) and higher amp rating (15A at 30°C) than the 3mm (1.13mm², 10A) and 2mm (0.5mm², 5A) cables. Choose the 4mm where circuits draw up to 15A, such as higher-output lighting, relay feeds, or heavier accessory loads.
What is the amp rating for this cable?
This cable is rated at 15A continuous at 30°C. Ampacity decreases as ambient temperature rises, so applications in high-heat environments such as under-bonnet should be assessed accordingly.
What does V90 mean?
V90 is an Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia.
What does AS/NZS 3808:2000 compliance mean?
AS/NZS 3808:2000 is the Australian and New Zealand standard covering insulated conductors and cables for internal wiring of equipment. Compliance confirms the cable meets defined requirements for conductor construction, insulation properties, and performance.
Is this cable available in other colours or lengths?
OEX produces single core automotive cable in a range of colours and roll lengths across the 2mm, 3mm, and 4mm ranges. Check the OEX cable range for other available options to suit your wiring job.
