Description

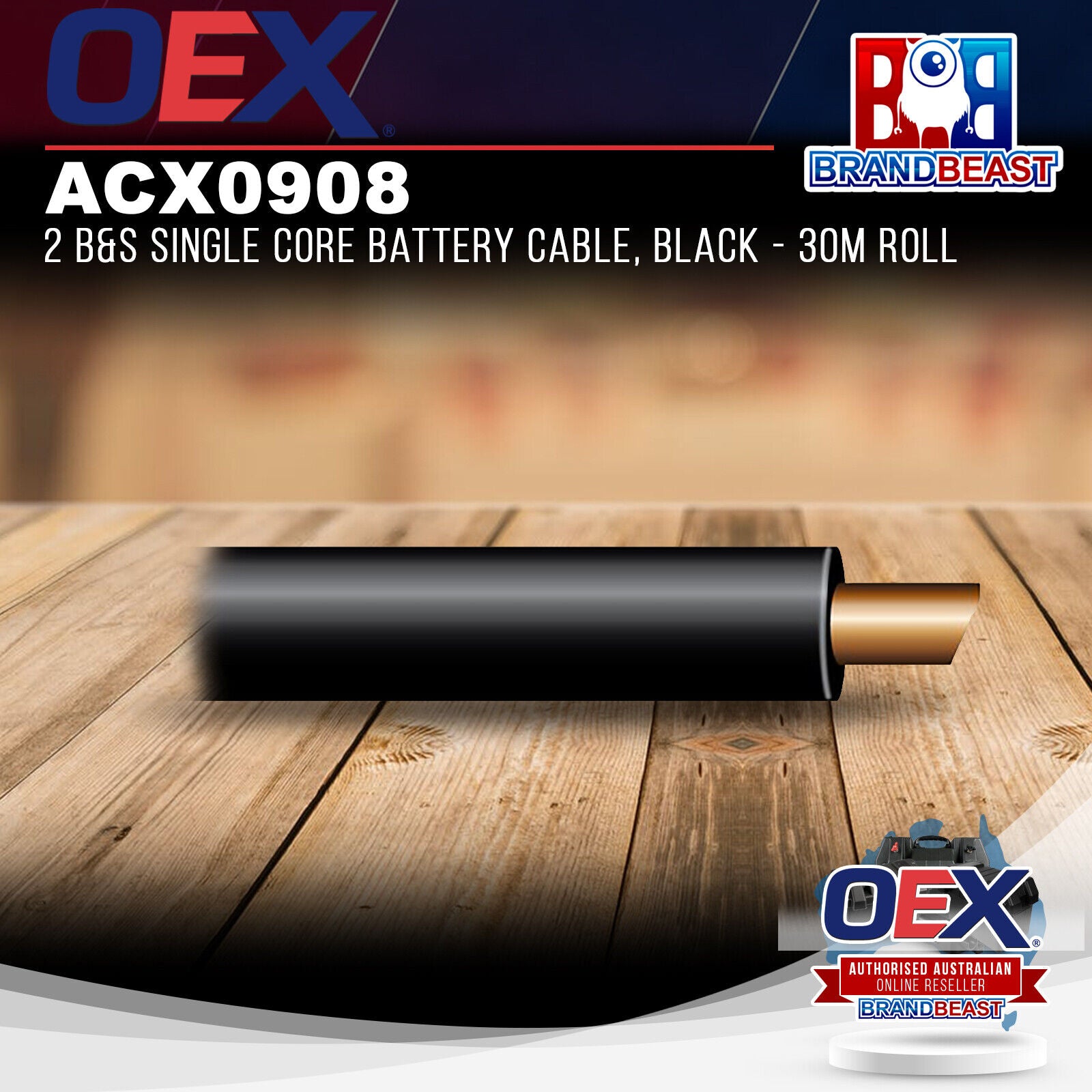

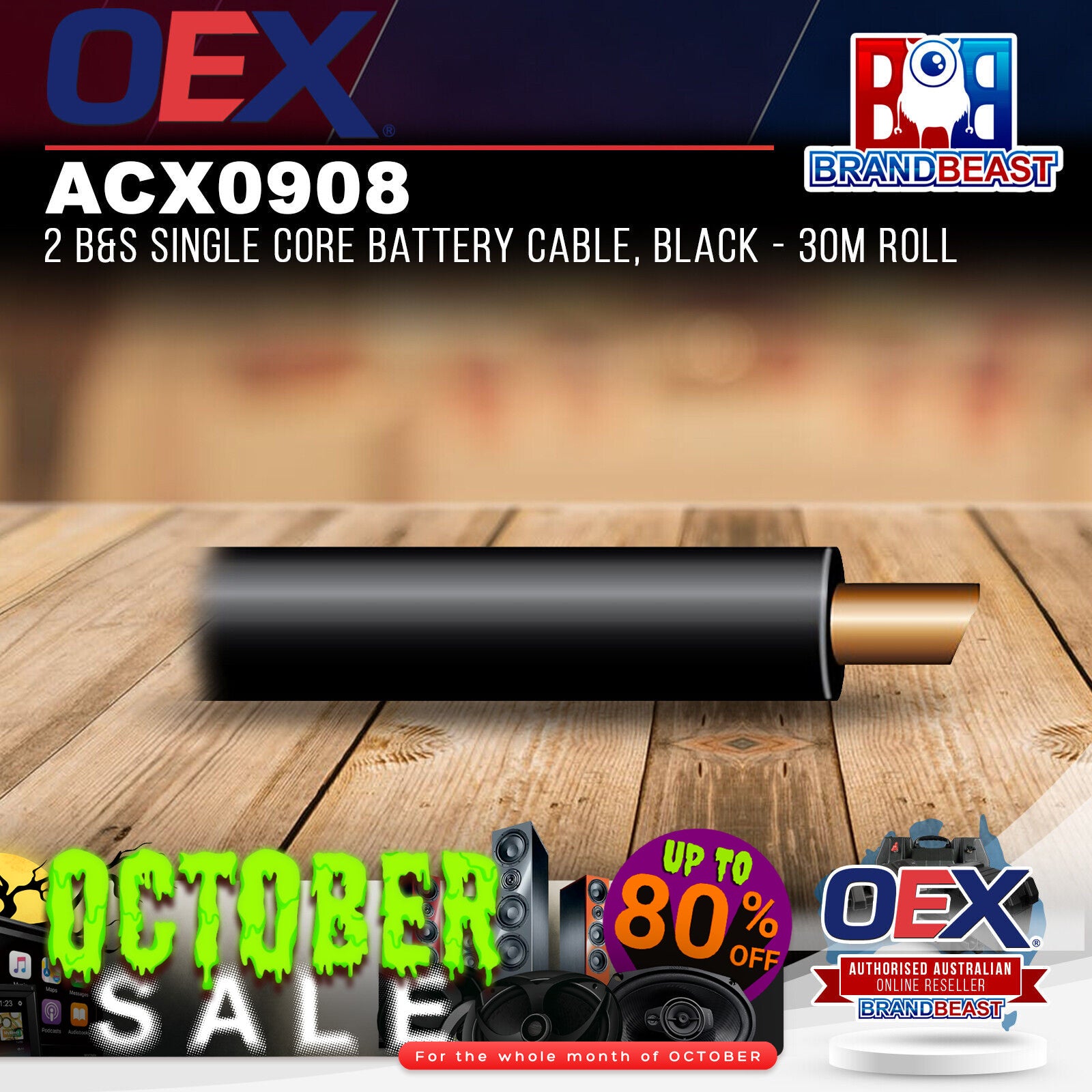

OEX ACX0908 Australian Made 2 B&S Single Core Battery Cable Black 30m Roll OFHC Copper 32.17mm² V90
The OEX ACX0908 is a 2 B&S single core battery cable in black, supplied on a 30m roll. With a 32.17mm² OFHC copper conductor across 455 strands, this is the largest cable in the OEX B&S battery cable range and is engineered for extreme high-current applications where maximum conductor cross-section, minimum resistance and outstanding flexibility are all required. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Weighs 10.71kg.
Product overview
At 32.17mm² with a 455-strand OFHC copper conductor, the ACX0908 delivers the lowest resistance and highest current-carrying capacity in the OEX B&S battery cable range, sitting above the 4 B&S (20.29mm²), 6 B&S (13.36mm²) and 8 B&S (7.91mm²) cables. This makes it suited to the most extreme high-current applications — heavy-duty battery interconnect and main supply cables, high-capacity winch and recovery equipment power feeds, commercial and heavy vehicle starter motor wiring, and high-current dual battery and auxiliary power system main feeds where no smaller cable in the range would be sufficient.
The 455-strand construction delivers exceptional flexibility for a cable of this cross-section, making it manageable to route through tight engine bay and battery compartment spaces despite the very large gauge. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for battery and engine bay installations. The 30m roll suits workshop jobs and single-vehicle heavy-duty installations. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length.
Features and benefits
2 B&S gauge — the largest in the OEX battery cable range: Maximum current-carrying capacity and minimum resistance for the most extreme high-current automotive and commercial vehicle applications.
32.17mm² conductor cross-section: Significantly larger than 4 B&S (20.29mm²), providing the lowest resistance and highest current-carrying capacity in the OEX B&S battery cable range.
455-strand construction: Exceptional flexibility for a cable of this cross-section, making the ACX0908 manageable to route through tight engine bay and battery compartment spaces despite the very large gauge.
OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across the most demanding extreme-current battery and supply circuit applications.
Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.
UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments.
V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments.
AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.
RoHS compliant: Meets hazardous substance restrictions.
30m roll: Workshop-friendly length for single-vehicle heavy-duty installations.
Technical specs
| Specification |
Detail |
| SKU |
ACX0908 |
| Brand |
OEX |
| Cable Type |
Single Core Battery Cable |
| Gauge |
2 B&S |
| Conductor Cross Section |
32.17mm² |
| Conductor Strands |
455 |
| Strand Diameter |
0.3mm |
| Conductor Material |
OFHC Copper |
| Voltage Rating |
Up to 110V |
| Insulation Type |
PVC |
| Temperature Rating |
V90 (90°C) |
| UV Stabilised |
Yes |
| Cable Colour |
Black |
| Length |
30m |
| Weight |
10.71kg |
| Compliance |
AS/NZS 3808:2000, RoHS |
| Warranty |
One year |
| Sold As |
30m roll |
Frequently asked questions
What is B&S gauge and how does it differ from AWG or metric sizing? B&S (Brown and Sharpe) is a wire gauge system commonly used in Australian battery and heavy-duty automotive cable. 2 B&S is equivalent to approximately 2 AWG and corresponds to a conductor cross-section of around 32.17mm². It is a standard sizing reference used by Australian auto electricians and suppliers for battery and starter cables.
How does 2 B&S compare to 4 B&S and 6 B&S? 2 B&S has the largest conductor cross-section in the OEX B&S range at 32.17mm², compared to 4 B&S (20.29mm²) and 6 B&S (13.36mm²). It delivers the lowest resistance and highest current-carrying capacity select 2 B&S for the most extreme current demands, longest runs or heaviest commercial vehicle applications where no smaller cable in the range is sufficient. Always verify the correct cable size with a licensed auto electrician for your specific application.
Is a red positive version of this cable available? Contact us to confirm availability of a matching red 2 B&S cable for positive supply runs. OEX produces battery cable in a range of B&S sizes and colours across the range.
What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions.
Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application.
