Description

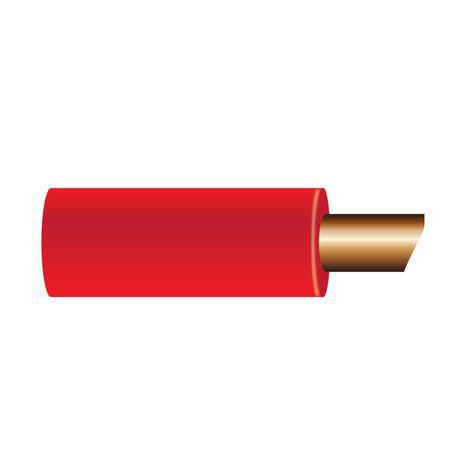

OEX ACX0915 Australian Made 0 B&S Single Core Battery Cable Red 10m Roll OFHC Copper 49.2mm² V90
The OEX ACX0915 is a 0 B&S single core battery cable in red, supplied on a 10m roll. With a 49.2mm² OFHC copper conductor across 696 strands, this is the largest cable in the OEX B&S battery cable range and is engineered for the most extreme high-current positive supply installations including commercial vehicle battery systems, heavy equipment starter motor feeds and high-capacity power distribution where no smaller gauge will suffice. The red insulation colour suits positive supply runs in conventional automotive wiring colour coding. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Weighs 5.26kg.
Product overview
The ACX0915 is the red 10m roll variant of the OEX 0 B&S single core battery cable, sharing the same conductor specification and insulation rating as the black ACX0912 (10m) and the red ACX0914 (30m). Red is the conventional positive wiring colour in automotive and marine electrical installations, making the ACX0915 the natural choice for battery positive supply cables on heavy commercial vehicles, high-capacity starter motor and alternator positive leads and industrial and marine main positive power distribution where maximum conductor cross-section is required.
At 49.2mm² with a 696-strand OFHC copper conductor, the ACX0915 delivers the lowest resistance and highest current-carrying capacity of any cable in the OEX B&S range. The 696-strand construction delivers remarkable flexibility for routing and termination in heavy commercial installation environments despite the very large gauge. The 10m roll reflects the shorter run lengths typical of heavy commercial installations where this gauge is employed most positive supply connections at this size require only a few metres per run. Always consult a qualified auto electrician or electrical engineer when specifying cable for extreme current applications.
Features and benefits
0 B&S gauge the largest in the OEX battery cable range: Maximum current-carrying capacity and minimum resistance for the most extreme high-current positive supply applications in commercial and industrial wiring.
Red colour coding for positive supply runs: Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification in extreme high-current commercial battery supply circuits.
49.2mm² conductor cross-section: Significantly larger than 2 B&S (32.17mm²), providing the lowest resistance and highest current-carrying capacity of any cable in the OEX B&S range.
696-strand construction: Remarkable flexibility for a cable of this cross-section, making the ACX0915 manageable to route and terminate in heavy commercial installation environments despite the very large gauge.
OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across the most extreme current commercial and industrial battery and positive supply circuit applications.
Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.
UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments.
V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments in commercial and heavy vehicle applications.
AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.
RoHS compliant: Meets hazardous substance restrictions.
10m roll: Short-run format suited to heavy commercial battery and starter motor positive supply installations where long roll lengths are not required for this gauge.
Technical specs
| Specification |
Detail |
| SKU |
ACX0915 |
| Brand |
OEX |
| Cable Type |
Single Core Battery Cable |
| Gauge |
0 B&S |
| Conductor Cross Section |
49.2mm² |
| Conductor Strands |
696 |
| Strand Diameter |
0.3mm |
| Conductor Material |
OFHC Copper |
| Voltage Rating |
Up to 110V |
| Insulation Type |
PVC |
| Temperature Rating |
V90 (90°C) |
| UV Stabilised |
Yes |
| Cable Colour |
Red |
| Length |
10m |
| Weight |
5.26kg |
| Compliance |
AS/NZS 3808:2000, RoHS |
| Warranty |
One year |
| Sold As |
10m roll |
Frequently asked questions
What is 0 B&S gauge? 0 B&S (Brown and Sharpe), also referred to as 1/0 AWG, corresponds to a conductor cross-section of around 49.2mm². It is the largest size in the OEX B&S battery cable range and is used in the most demanding heavy commercial and industrial high-current applications. Always consult a qualified auto electrician or electrical engineer when specifying cable for extreme current applications.
How does 0 B&S compare to 2 B&S and 4 B&S? 0 B&S has the largest conductor cross-section in the OEX B&S range at 49.2mm², compared to 2 B&S (32.17mm²) and 4 B&S (20.29mm²). It delivers the lowest resistance and highest current-carrying capacity of any cable in the range, suited to the most extreme commercial and industrial applications.
What is the difference between the ACX0915, ACX0914 and ACX0912? All three are 0 B&S single core battery cables with identical conductor and insulation specifications. The ACX0912 is black on a 10m roll for earth and negative runs. The ACX0914 is red on a 30m roll for positive supply runs where trade-length supply is required. The ACX0915 is red on a 10m roll for positive supply runs where a shorter quantity is sufficient. Select based on polarity and quantity requirements.
What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions.
Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application.
