Description

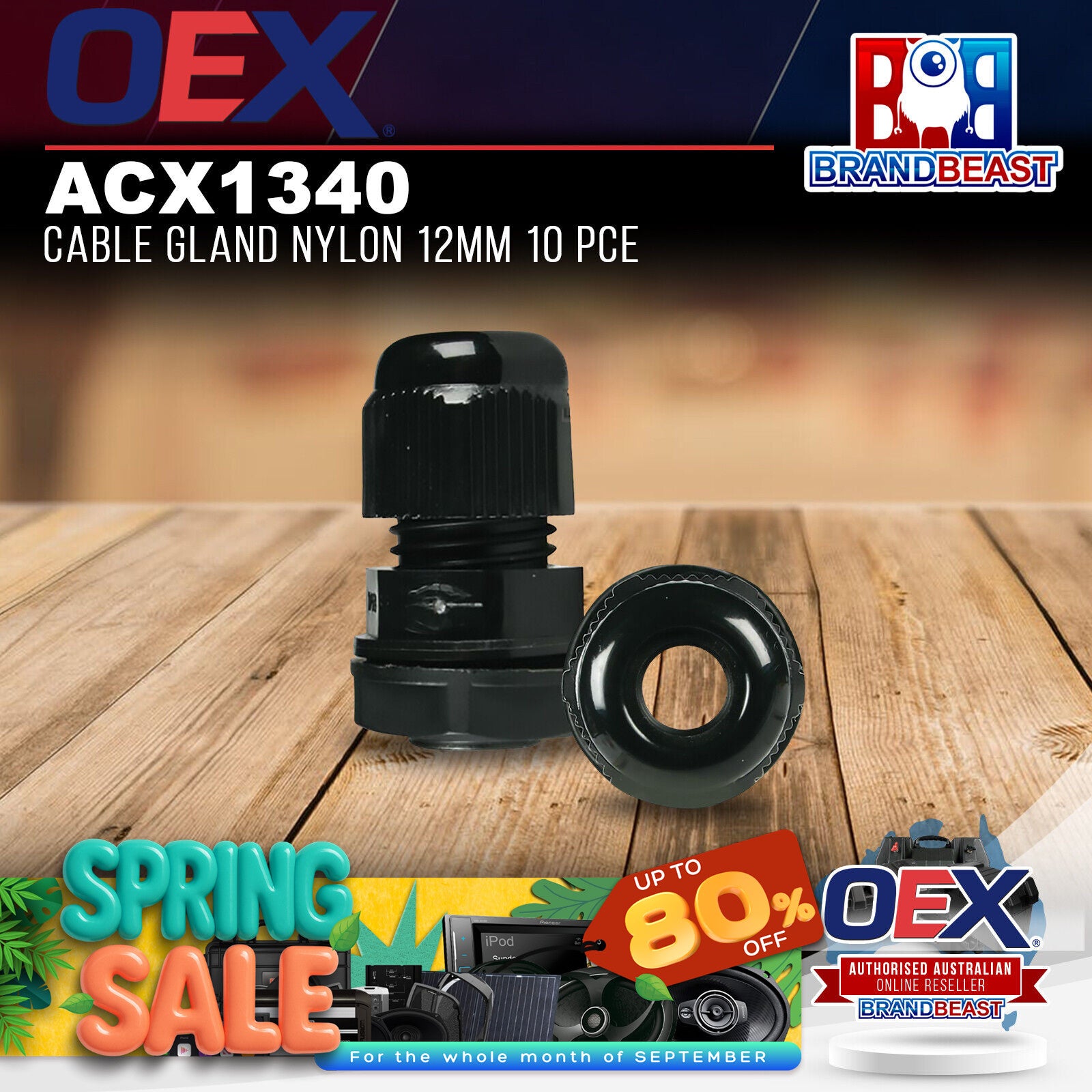

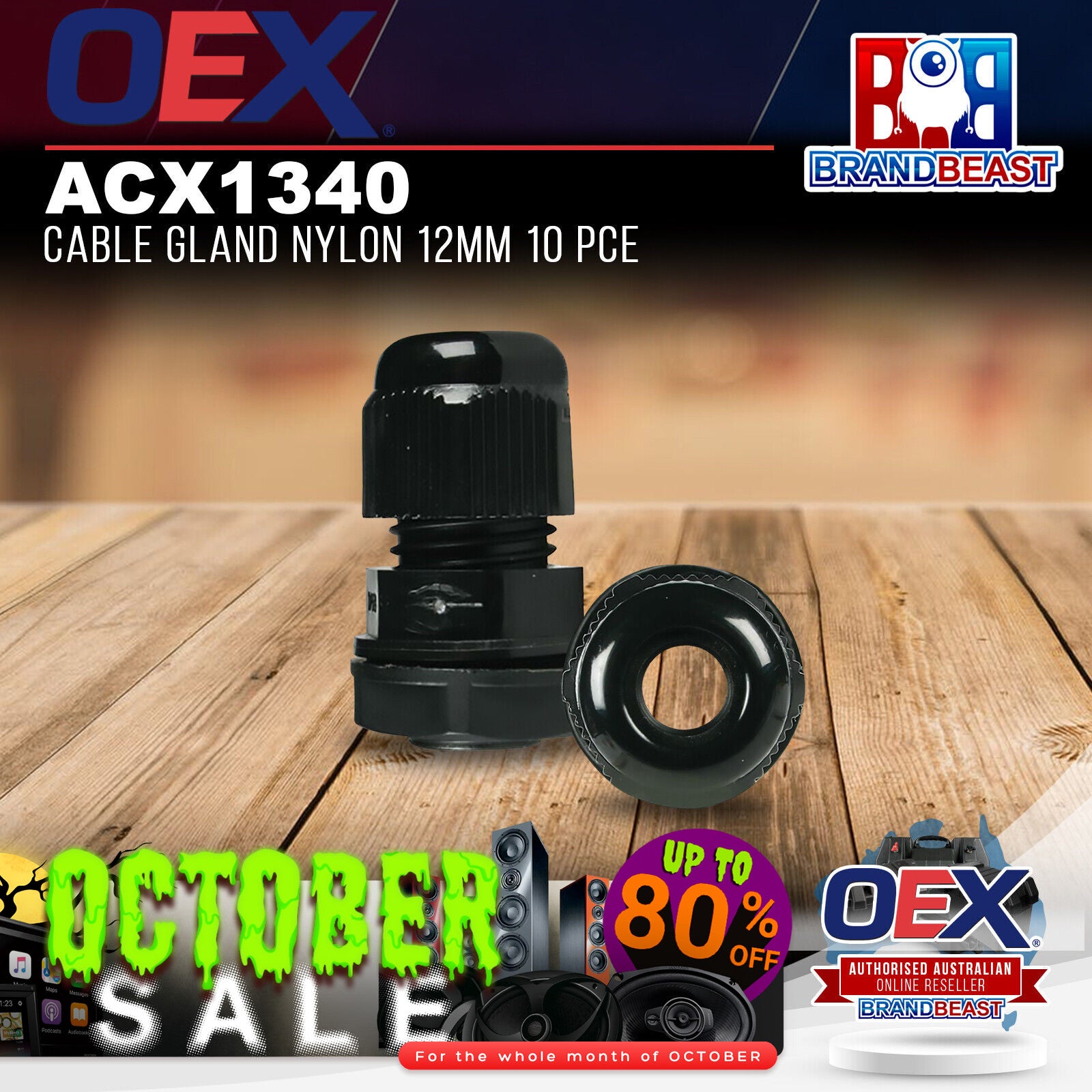

OEX ACX1340 IP68 Rated Nylon 66 Cable Gland 12mm Mounting Hole for 3 to 6.5mm Cable Pack of 10
The OEX ACX1340 is a nylon 66 cable gland supplied in a pack of 10, providing a waterproof and secure cable entry point through panels, enclosures and junction boxes. Rated IP68 for full submersion protection and UL approved. Suits conduit and cable diameters of 3 to 6.5mm with a 12mm mounting hole, 6.9mm internal diameter and 7.9mm thread length. Suited to automotive, marine, caravan and outdoor electrical installations. Covered by a one year warranty.
Product overview
Where a cable passes through a panel or enclosure wall, an unsealed hole allows moisture, dust, vibration and debris to enter or damage the cable insulation over time. A cable gland solves both problems simultaneously it seals the opening against the environment and clamps around the cable to prevent movement and chafing at the panel edge. The ACX1340 is rated IP68, the highest standard ingress protection rating, confirming it is fully sealed against dust and continuous water submersion under pressure, suited to marine, outdoor and automotive enclosure applications.
The gland suits cables and conduit with an outer diameter of 3 to 6.5mm, covering a wide range of light to medium gauge automotive cables. The 12mm mounting hole is a common panel drilling size for small cable glands. The 7.9mm thread length limits suitability to panels within that thickness confirm panel thickness before installation. The nylon 66 construction is UL approved for chemical resistance and dimensional stability. The pack of 10 suits workshops and panel builders running multiple cable entries.
Features and benefits
IP68 rated: Fully sealed against dust and continuous water submersion under pressure, the highest standard ingress protection rating and suited to marine, submerged and fully exposed outdoor applications.
UL approved nylon 66: High-strength, chemically resistant nylon 66 material meeting UL approval standards for cable gland applications.
Suits 3 to 6.5mm cable and conduit: Accommodates a range of light to medium gauge cables and conduit outer diameters within this range for a correct seal.
12mm mounting hole: Fits a standard 12mm panel hole, compatible with common panel drilling sizes for small cable glands.
6.9mm internal diameter: The cable passage bore through the gland body.
7.9mm thread length: Secure panel engagement confirm panel thickness is within this measurement before installation.
Pack of 10: Trade-friendly quantity for workshops and panel builders running multiple cable entries.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX1340 |
| Brand |
OEX |
| Type |
Cable Gland |
| Material |
Nylon 66 (UL Approved) |
| Outside Diameter |
12mm |
| Inside Diameter |
6.9mm |
| Thread |
M1.5 |
| Thread Length |
7.9mm |
| Mounting Hole |
12mm |
| Conduit and Cable Size |
3 to 6.5mm |
| Total Length |
39mm |
| IP Rating |
IP68 |
| Pack Quantity |
10 |
| Weight |
0.04kg |
| Warranty |
One year |
| Sold As |
Pack of 10 |
Frequently asked questions
What is a cable gland used for? A cable gland is a fitting that provides a secure, sealed entry point for a cable or conduit passing through a panel or enclosure wall. It clamps around the cable to prevent movement and chafing, while the sealing mechanism prevents moisture, dust and contaminants from entering through the cable opening.
What does IP68 mean? IP68 is an ingress protection rating indicating the fitting is fully sealed against dust (6) and protected against continuous immersion in water under pressure (8). It is the highest standard IP rating, suited to marine, submerged and fully exposed outdoor applications.
What cable or conduit sizes does this gland suit? This gland suits cables and conduit with an outer diameter of 3 to 6.5mm. Confirm the cable or conduit outer diameter falls within this range before purchasing to ensure a correct seal.
What size hole does this gland require and does panel thickness matter? The gland requires a 12mm mounting hole. The thread length is 7.9mm, so the panel must be thin enough for the thread to engage fully and the locknut to tighten against the back face. Confirm panel thickness is within this measurement before installation.
Is this gland available in other sizes? OEX produces cable glands in a range of sizes. Contact us for available options to suit larger or smaller cable and conduit diamet
