Description

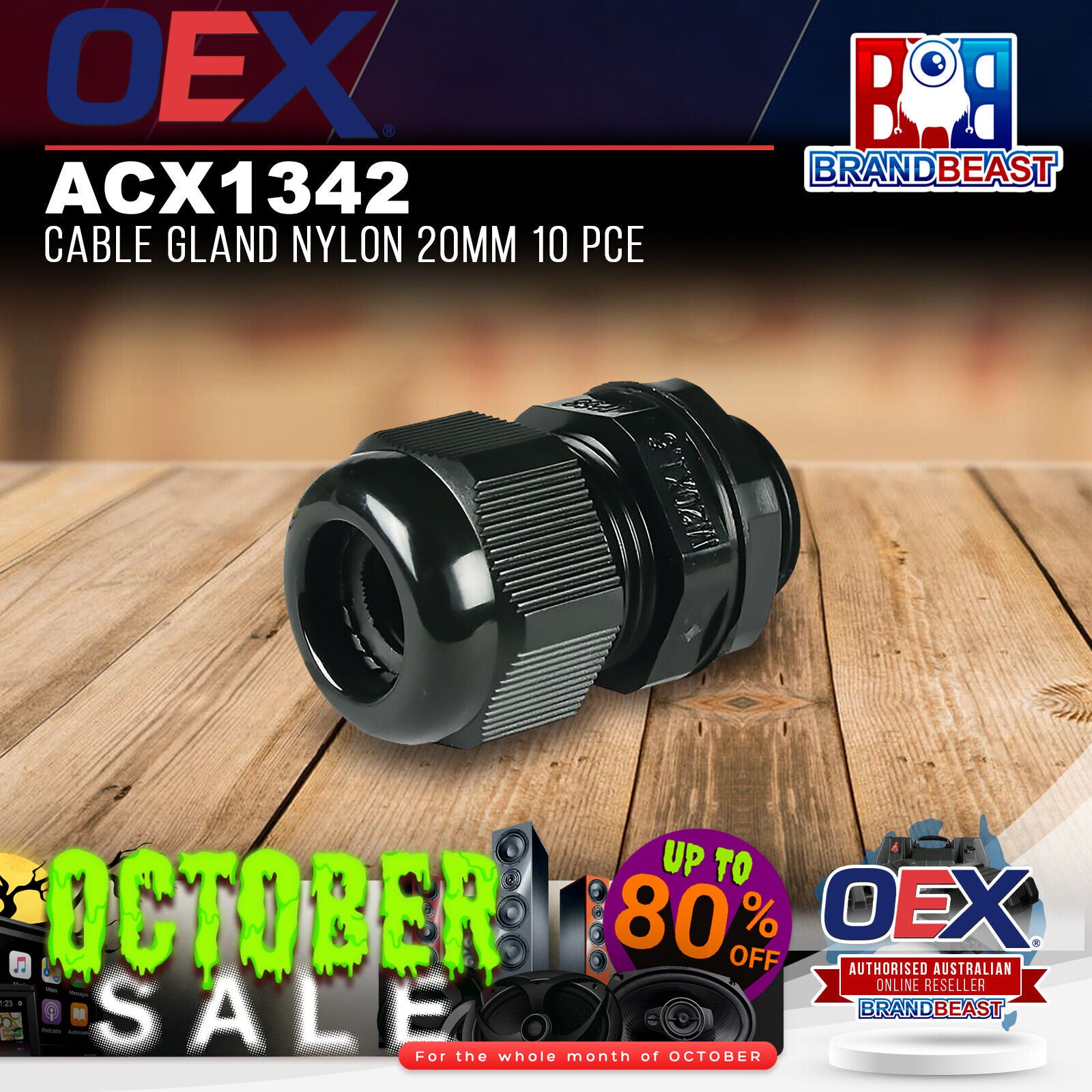

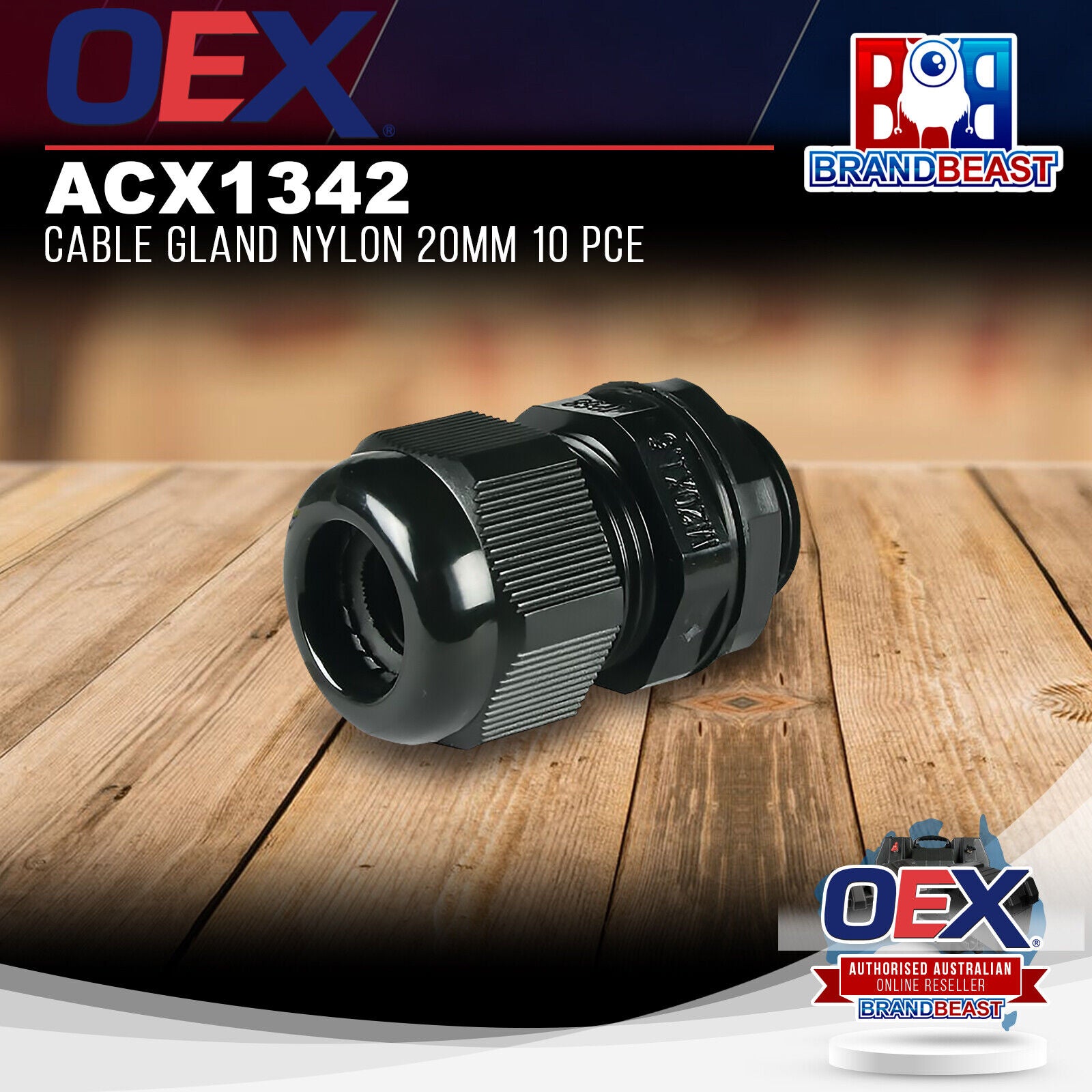

OEX ACX1342 IP68 Rated Nylon 66 Cable Gland 20mm Mounting Hole for 10 to 14mm Cable Pack of 10
The OEX ACX1342 is a nylon 66 cable gland supplied in a pack of 10, providing a waterproof and secure cable entry point through panels, enclosures and junction boxes. Rated IP68 for full submersion protection and UL approved. Suits conduit and cable diameters of 10 to 14mm with a 20mm mounting hole, 14mm internal diameter and 15mm thread length, suited to the larger cables and conduit used in heavier wiring applications. Suited to automotive, marine, caravan and outdoor electrical installations. Covered by a one year warranty.
Product overview
The ACX1342 is the largest gland in the OEX cable gland range, stepping up from the ACX1341 (5 to 10mm, 16mm hole) to a 20mm mounting hole and 10 to 14mm cable and conduit range. It is suited to heavier wiring applications where larger-diameter cable runs, multi-core cables, 9.7mm or 12.6mm convoluted tubing, or thick individual cables need to pass through a panel with an IP68 sealed entry. The 15mm thread length suits panels within that thickness confirm panel thickness before installation.
Like the other glands in the OEX range, the ACX1342 is rated IP68, confirming full sealing against dust and continuous water submersion under pressure. The nylon 66 construction is UL approved for chemical resistance and dimensional stability. The 20mm mounting hole is a common drilling size for larger cable entries in automotive, marine and caravan panel work. The pack of 10 suits workshops and panel builders running multiple cable entries.
Features and benefits
IP68 rated: Fully sealed against dust and continuous water submersion under pressure, the highest standard ingress protection rating, suited to marine, submerged and fully exposed outdoor applications.
UL approved nylon 66: High-strength, chemically resistant nylon 66 material meeting UL approval standards for cable gland applications.
Suits 10 to 14mm cable and conduit: The largest cable range in the OEX gland series, accommodating larger cables, multi-core runs and convoluted tubing up to 14mm outer diameter.
20mm mounting hole: Fits a standard 20mm panel hole, compatible with common panel drilling sizes for larger cable entries.
14mm internal diameter: The cable passage bore through the gland body.
15mm thread length: Provides secure panel engagement confirm panel thickness is within this measurement before installation.
Pack of 10: Trade-friendly quantity for workshops and panel builders running multiple cable entries.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX1342 |
| Brand |
OEX |
| Type |
Cable Gland |
| Material |
Nylon 66 (UL Approved) |
| Outside Diameter |
20mm |
| Inside Diameter |
14mm |
| Thread |
M1.5 |
| Thread Length |
15mm |
| Mounting Hole |
20mm |
| Conduit and Cable Size |
10 to 14mm |
| Total Length |
43.5mm |
| IP Rating |
IP68 |
| Pack Quantity |
10 |
| Weight |
0.16kg |
| Warranty |
One year |
| Sold As |
Pack of 10 |
Frequently asked questions
What is a cable gland used for? A cable gland is a fitting that provides a secure, sealed entry point for a cable or conduit passing through a panel or enclosure wall. It clamps around the cable to prevent movement and chafing, while the sealing mechanism prevents moisture, dust and contaminants from entering through the cable opening.
What does IP68 mean? IP68 is an ingress protection rating indicating the fitting is fully sealed against dust (6) and protected against continuous immersion in water under pressure (8). It is the highest standard IP rating, suited to marine, submerged and fully exposed outdoor applications.
What cable or conduit sizes does this gland suit? This gland suits cables and conduit with an outer diameter of 10 to 14mm. Confirm the cable or conduit outer diameter falls within this range before purchasing to ensure a correct seal.
What size hole does this gland require and does panel thickness matter? The gland requires a 20mm mounting hole. The thread length is 15mm, so the panel must be thin enough for the thread to engage fully and the locknut to tighten against the back face. Confirm panel thickness is within this measurement before installation.
How does the ACX1342 compare to the other glands in the OEX range? The OEX cable gland range covers three sizes. The ACX1340 suits 3 to 6.5mm cable with a 12mm mounting hole. The ACX1341 suits 5 to 10mm cable with a 16mm mounting hole. The ACX1342 suits 10 to 14mm cable with a 20mm mounting hole. Select the gland that matches your cable or conduit outer diameter and the available panel hole size.
