Description

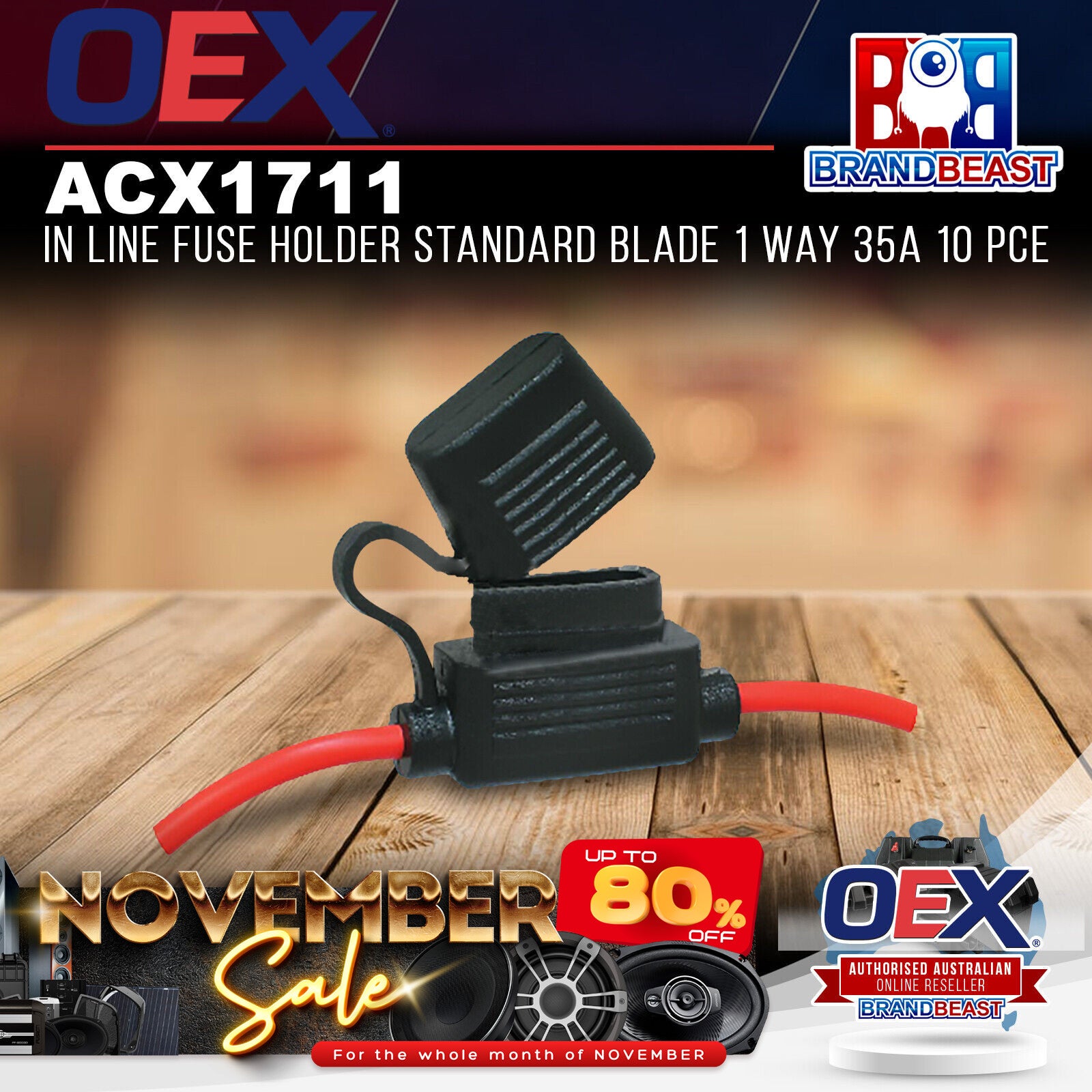

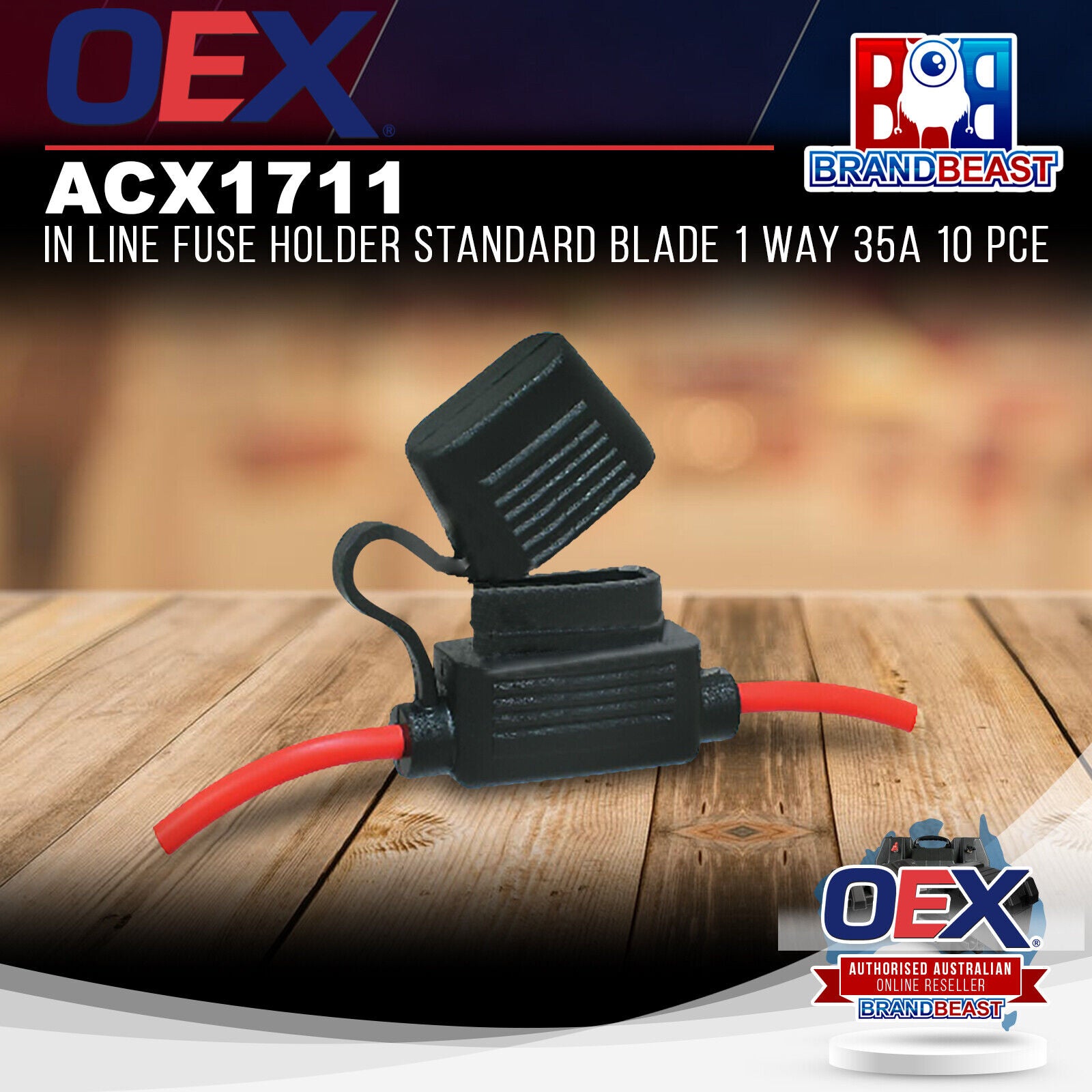

OEX ACX1711 Weatherproof Inline Standard Blade Fuse Holder 35A 12AWG Pre-Wired Leads Pack of 10
The OEX ACX1711 is a single-way standard blade inline fuse holder in black, rated at 35A, supplied in a pack of 10. It accepts a standard ATS/regular blade fuse and is fitted with a weatherproof cover to protect the fuse and connections from moisture, dust and vibration. Each holder comes pre-wired with 12AWG leads 150mm on each side, ready for inline installation into a power circuit. Also available as a single unit as ACX1711BL. Covered by a one year warranty.
Product overview
An inline fuse holder allows a standard blade fuse to be installed directly into a power cable run, providing circuit protection at the correct location without requiring a fuse box. The ACX1711 is rated to 35A maximum, covering a wide range of aftermarket accessory circuits including driving lights, LED light bars, caravan and trailer accessory feeds and marine and 4WD auxiliary wiring. The weatherproof cover protects the fuse and connection from moisture, dust and vibration, making it suited to outdoor, underbonnet and exposed wiring positions.
Each holder is pre-wired with 12AWG leads at 150mm on each side of the fuse housing, providing sufficient length for most inline installation applications. The fuse is not included select the appropriate standard blade fuse rating for the circuit being protected, up to the 35A maximum rating of the holder. OEX produces standard blade fuses in a range of ratings to suit. The pack of 10 suits workshops and installers running multiple accessory wiring jobs.
Features and benefits
35A maximum current rating: Suited to a wide range of aftermarket accessory circuits up to 35A including driving lights, LED light bars and auxiliary wiring feeds.
Accepts standard blade ATS fuses: The most common automotive fuse format, compatible with the full OEX standard blade fuse range.
Weatherproof cover: Protects the fuse and connections from moisture, dust and vibration, suited to outdoor, underbonnet and exposed wiring positions.
12AWG pre-wired leads, 150mm each side: Ready for direct inline installation without additional wiring preparation.
Black: Standard colour for automotive wiring installations.
Pack of 10: Trade-friendly quantity for workshops and installers running multiple accessory wiring jobs.
Also available as single unit: The ACX1711BL is the same inline fuse holder in a single blister pack.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX1711 |
| Brand |
OEX |
| Type |
Inline Fuse Holder |
| Fuse Type |
Standard Blade (ATS) |
| Ways |
1 |
| Maximum Current |
35A |
| Colour |
Black |
| Lead Wire Gauge |
12AWG |
| Lead Length |
150mm each side |
| Weatherproof |
Yes (with cover) |
| Pack Quantity |
10 |
| Weight |
0.282kg |
| Warranty |
One year |
| Sold As |
Pack of 10 |
Frequently asked questions
What fuse does this holder accept? This holder accepts a standard blade fuse (ATS/regular blade), the most common automotive fuse format measuring 19x19mm. Select the appropriate fuse rating for your circuit the holder is rated to a maximum of 35A.
Is this holder weatherproof? Yes. The holder includes a cover that protects the fuse and connections from moisture and dust, making it suitable for outdoor, underbonnet and exposed wiring installations.
What is the wire gauge and lead length? Each holder is pre-wired with 12AWG leads, with 150mm on each side of the fuse housing, providing sufficient length for most inline installation applications.
Do I need to supply my own fuse? Yes. The fuse is not included select the appropriate standard blade fuse rating for the circuit being protected, up to the 35A maximum. OEX produces standard blade fuses in a range of ratings.
Is this product available as a single unit? Yes. The ACX1711BL is the same inline fuse holder available in a single blister pack.
