Description

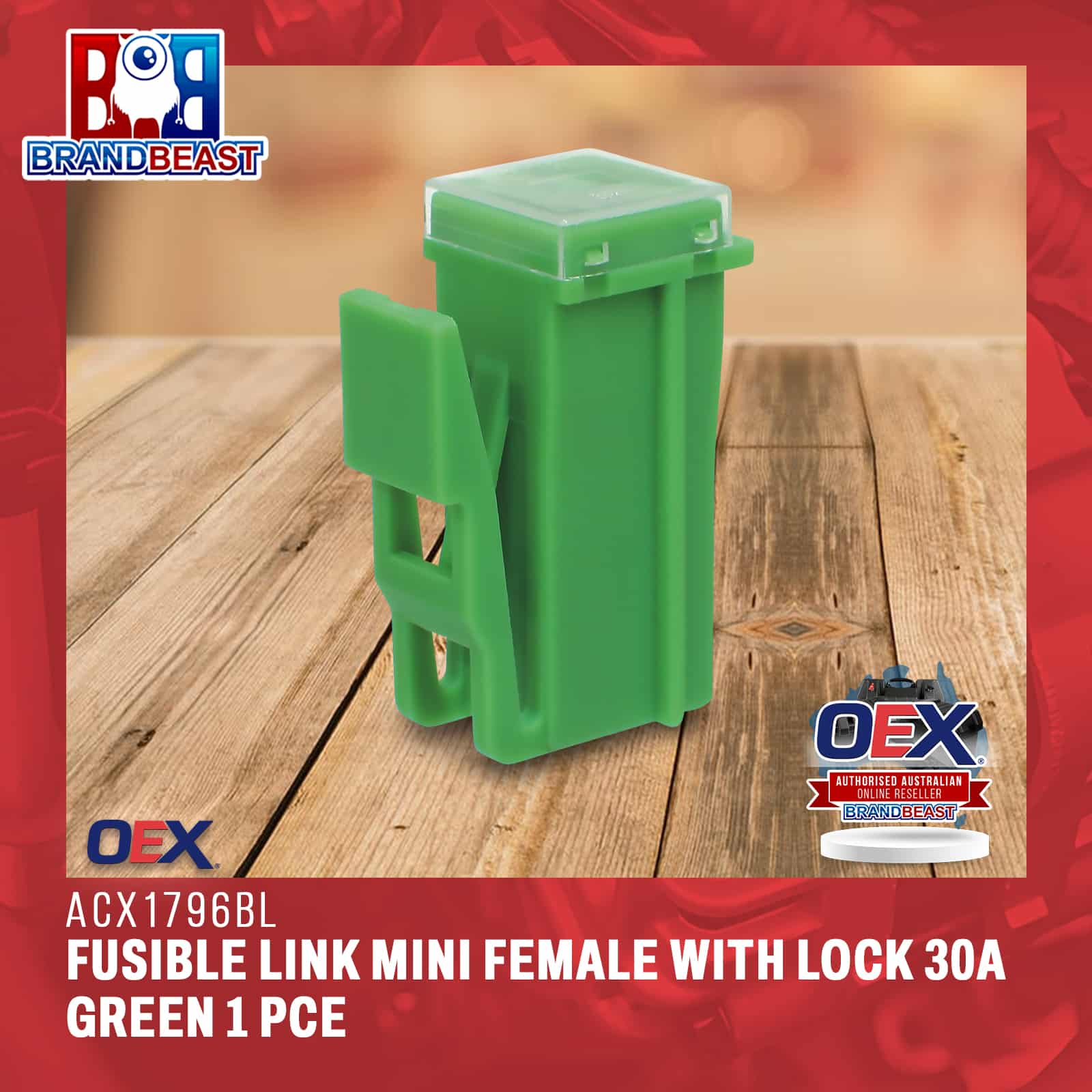

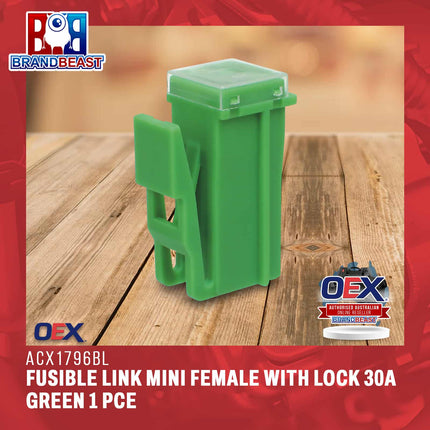

OEX ACX1796BL 30A Mini Female Fusible Link with Locking Retention Green 17x13x27mm Single Unit
The OEX ACX1796BL is a 30A mini female fusible link with locking retention, supplied as a single unit. A compact, colour-coded fusible link for automotive wiring protection where a standard blade fuse holder is not suitable. The green colour coding identifies the 30A rating at a glance. Measuring 17x13x27mm, this mini format fusible link suits tight wiring installations in engine bays and automotive electrical systems. Covered by a one year warranty.
Product overview
The ACX1796BL is a mini format fusible link with a female terminal and a locking retention mechanism. The female terminal connects to the corresponding male terminal on the wiring harness, and the locking mechanism provides additional retention to prevent the connection from loosening due to vibration in automotive use important in engine bay and chassis wiring where sustained vibration is a constant factor.
At 30A, the ACX1796BL suits engine bay wiring protection, aftermarket accessory wiring including dual batteries, inverters and winches, and automotive wiring harness replacement and repair where the existing fusible link needs to be matched in both format and amperage. The compact 17x13x27mm mini form factor suits tight wiring installations where the larger standard fusible link format would not fit. Supplied as a single unit for individual replacement or new installation.
Features and benefits
Female with locking retention: The female terminal connects to a male terminal on the wiring harness, with the locking mechanism preventing accidental disconnection from vibration in automotive environments.
30A rating: Suitable for 30A automotive circuit protection applications including aftermarket accessory wiring, dual battery feeds and high-current accessory circuits.
Green colour coding: Industry-standard green identifies the 30A rating for fast visual identification during installation and servicing.
Mini format 17x13x27mm: Compact form factor suited to tight wiring runs and confined engine bay installations where the larger standard fusible link format would not fit.
Single unit: Purchase the exact quantity required for individual replacement or new installation.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX1796BL |
| Brand |
OEX |
| Type |
Fusible Link |
| Fuse Style |
Mini Female with Lock |
| Amp Rating |
30A |
| Colour |
Green |
| Dimensions |
17x13x27mm |
| Pack Quantity |
1 |
| Weight |
0.02kg |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
What does "female with lock" mean for this fusible link? The female terminal type connects to a male terminal on the wiring harness. The locking mechanism provides additional retention to prevent the connection from loosening due to vibration in automotive use.
How does this differ from a standard-size fusible link? The ACX1796BL is a mini format fusible link at 17x13x27mm, suited to tight installations where the larger standard fusible link format would not fit. Select based on the format and dimensions of the existing fusible link being replaced, or the available space in the installation.
What amperage does this fusible link protect? This fusible link is rated at 30A, confirmed by the green colour coding and supplier specifications.
What circuits is a 30A fusible link suited to? A 30A fusible link is suited to circuits drawing up to 30A including aftermarket accessory wiring, dual battery feeds, winch circuits on lighter loads and general high-current automotive circuit protection. Always match the fusible link rating to the circuit's protection requirements.
Is this available in other amp ratings? OEX produces fusible links in a range of amp ratings and formats. Contact us for available options to suit your application.
