Description

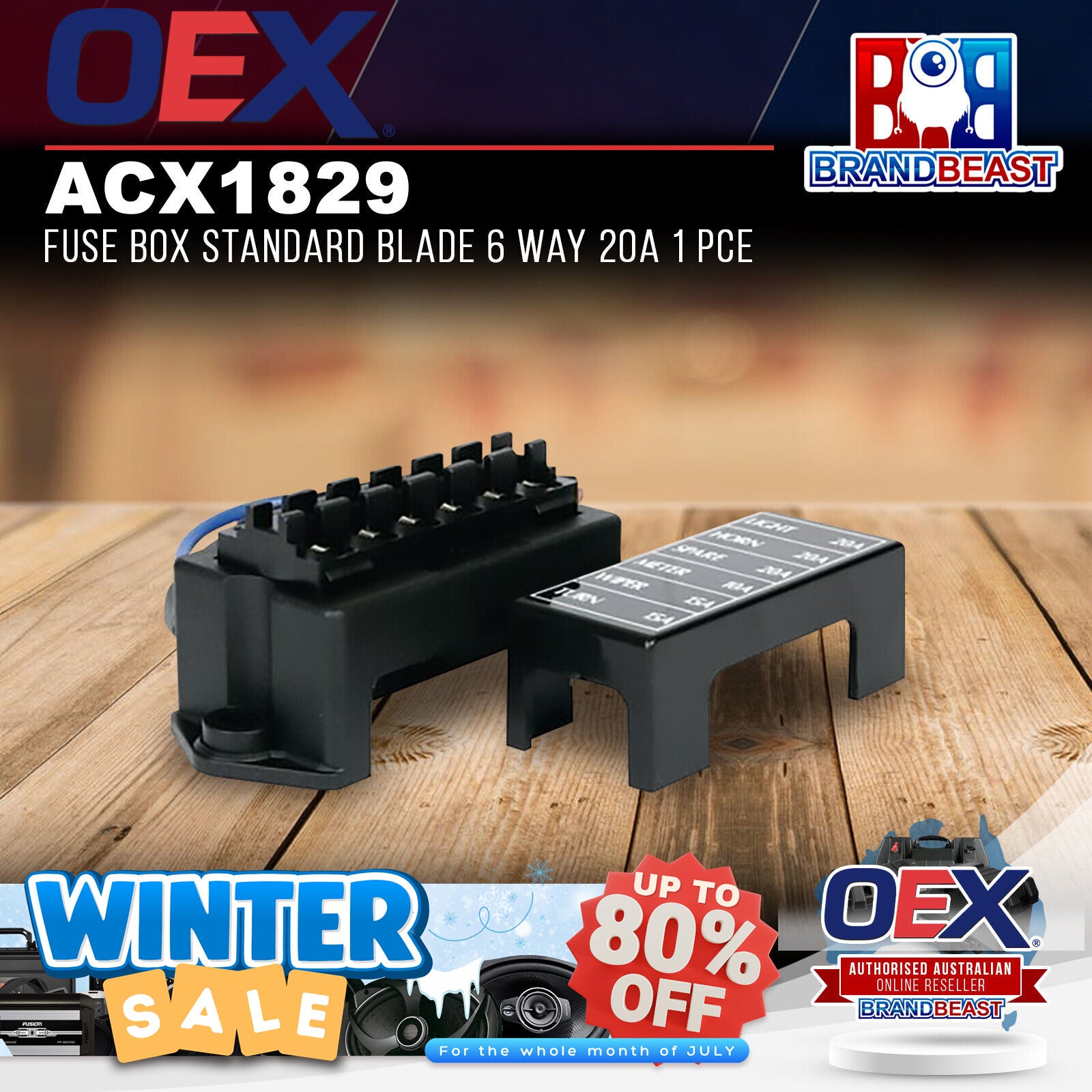

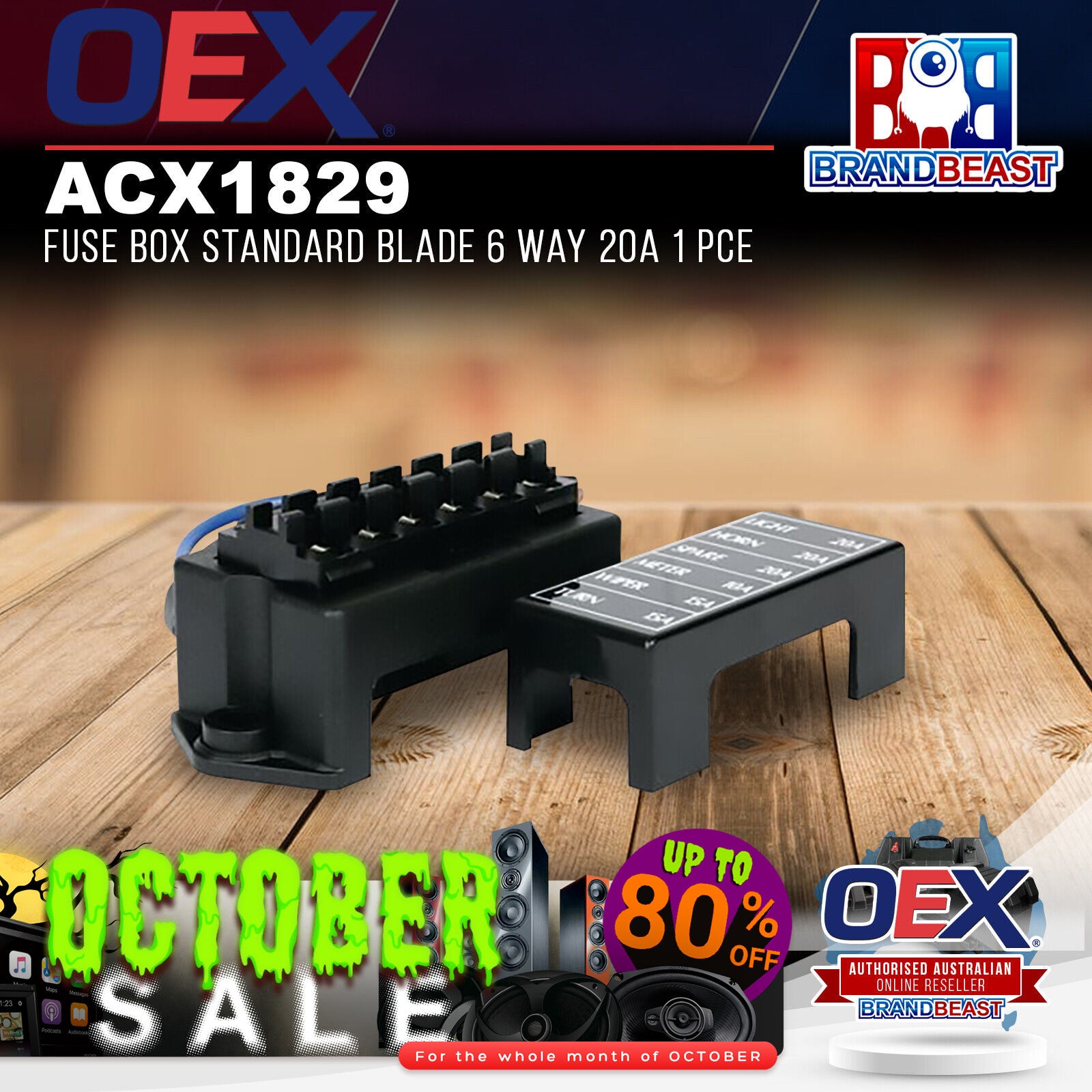

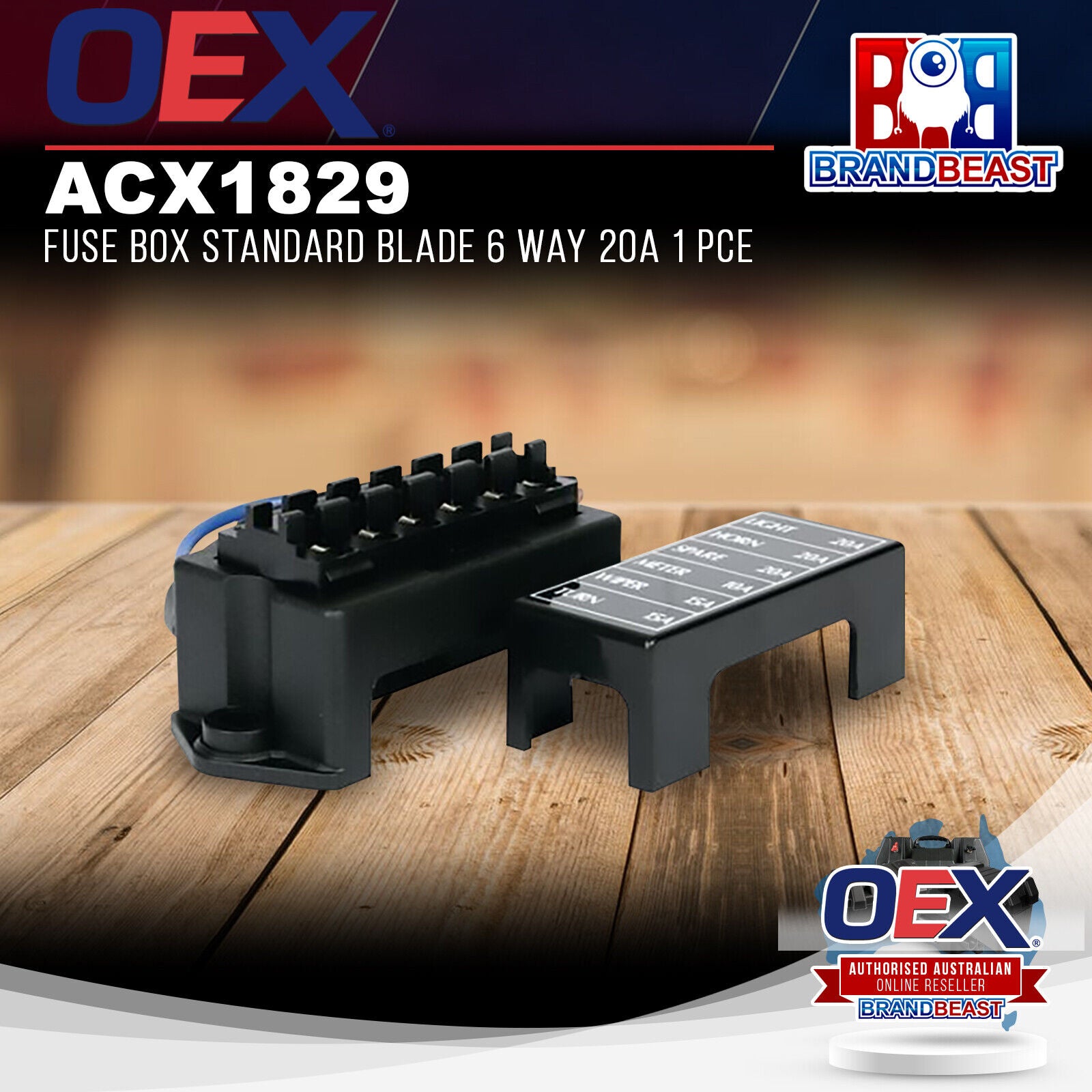

OEX ACX1829 6-Way Pre-Wired Standard Blade Fuse Box 20A Per Circuit with Clip-On Cover and U-Shaped Base
The OEX ACX1829 is a 6-way standard blade automotive fuse box that is pre-wired and ready to install. Designed for organising and protecting up to six independent 12V circuits, it features a clip-on cover with fuse identification markings, a U-shaped base that provides clearance for wiring routing underneath, and a 20A maximum current rating per circuit. Supplied as a single unit. Covered by a one year warranty.
Product overview
A dedicated fuse box allows multiple aftermarket accessory circuits to be protected and organised from a single mounting point, replacing individual inline fuse holders with a cleaner, more professional installation. The ACX1829 provides six independent fused circuit positions each accepting a standard blade ATC/ATO fuse for distributing power to auxiliary lighting, compressors, fridges, dual battery systems, caravan accessories and other 12V loads up to 20A per circuit.
The pre-wired design saves installation time with no additional terminal work required. The clip-on cover protects the fuses from moisture and debris, and the fuse identification markings on the cover allow each circuit to be labelled for fast future reference during servicing. The U-shaped base design provides clearance for wiring to run underneath the box, simplifying routing and reducing strain on cables at the connection points.
Features and benefits
Pre-wired: Ready to connect without additional terminal work, saving installation time.
6-way: Supports up to six independent fused circuits from a single mounting point.
Clip-on cover with fuse identification: Protects fuses from moisture and debris, with identification markings allowing circuits to be labelled for fast future reference.
U-shaped base for wire clearance: Provides clearance for wiring to route underneath the box, simplifying cable management and reducing strain on cable entry points.
20A maximum current per circuit: Suits a wide range of standard 12V automotive accessories drawing up to 20A per circuit.
Standard blade ATC/ATO fuse format: Compatible with widely available standard blade fuses.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX1829 |
| Brand |
OEX |
| Type |
Fuse Box |
| Fuse Type |
Standard Blade (ATC/ATO) |
| Number of Ways |
6 |
| Maximum Current |
20A per circuit |
| Wiring |
Pre-wired |
| Cover |
Clip-on with fuse identification |
| Base |
U-shaped for wire clearance |
| Pack Quantity |
1 |
| Weight |
0.137kg |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
Is this fuse box pre-wired? Yes. The ACX1829 is pre-wired and ready to install without additional terminal work.
What fuse type does this box accept? Standard blade ATC/ATO fuses the most widely available automotive fuse format. Select the appropriate amp rating for each circuit up to the 20A maximum per position.
How many circuits does this fuse box support? Six independent fused circuits, one per way.
What is the maximum current rating per circuit? 20A maximum per circuit. Ensure each fuse installed in the box is rated appropriately for the circuit it protects and does not exceed 20A.
Can this fuse box be used in a caravan or marine application? Yes. The ACX1829 suits 12V automotive, caravan and marine applications. The clip-on cover provides protection against moisture and debris, making it suited to installations in these environments.
