Description

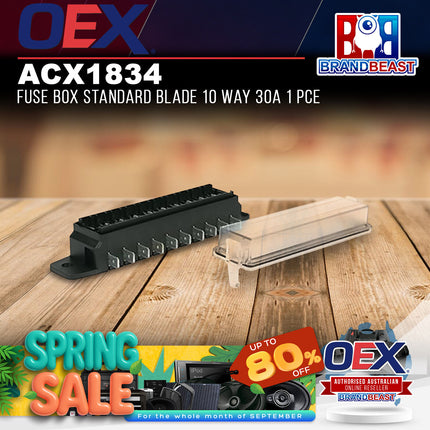

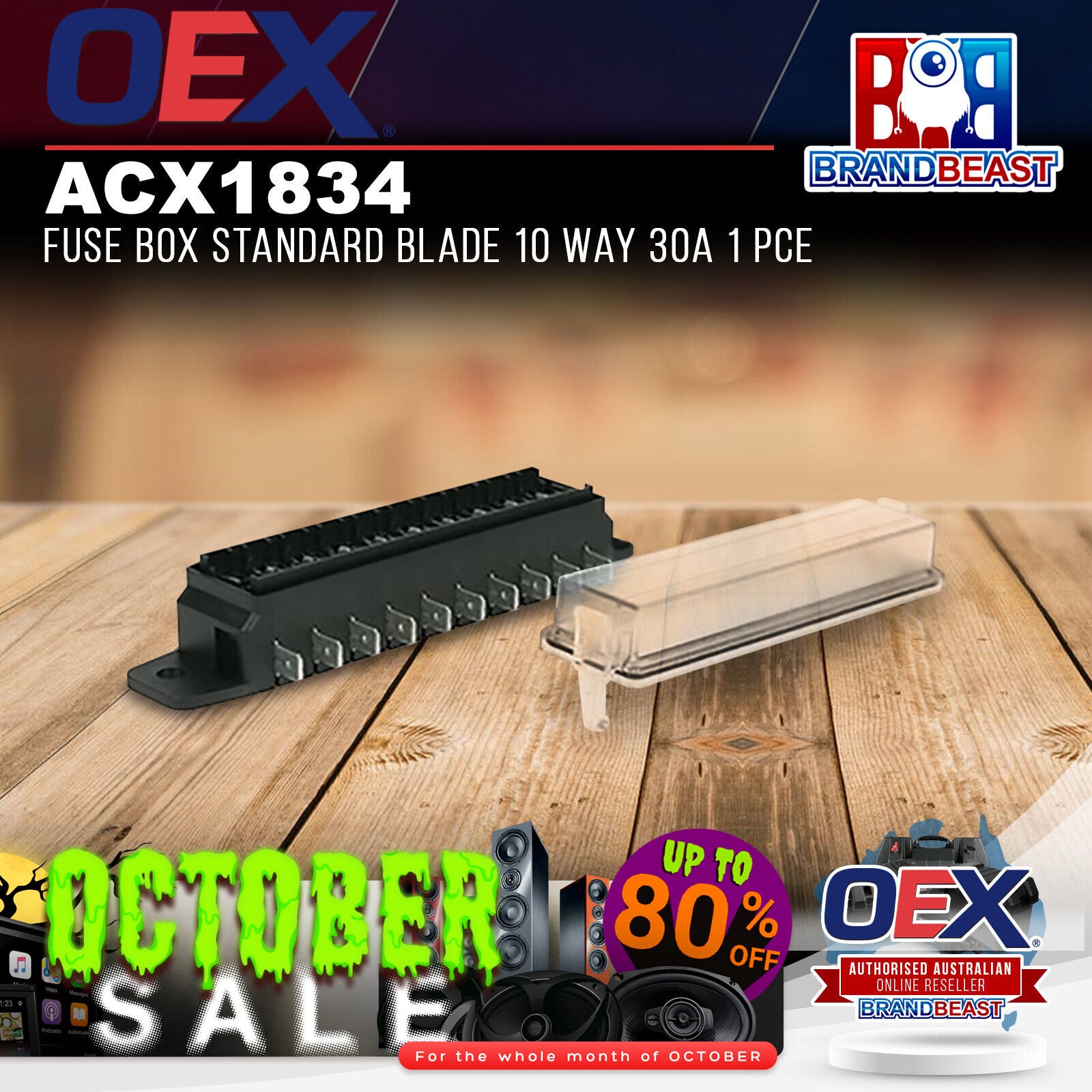

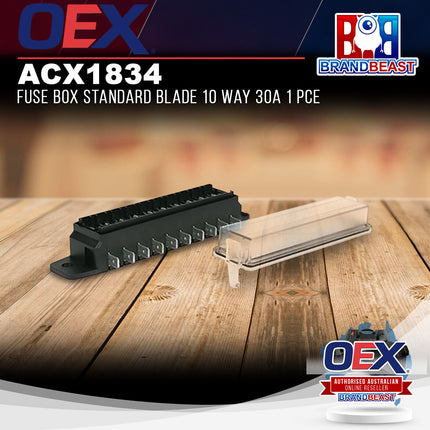

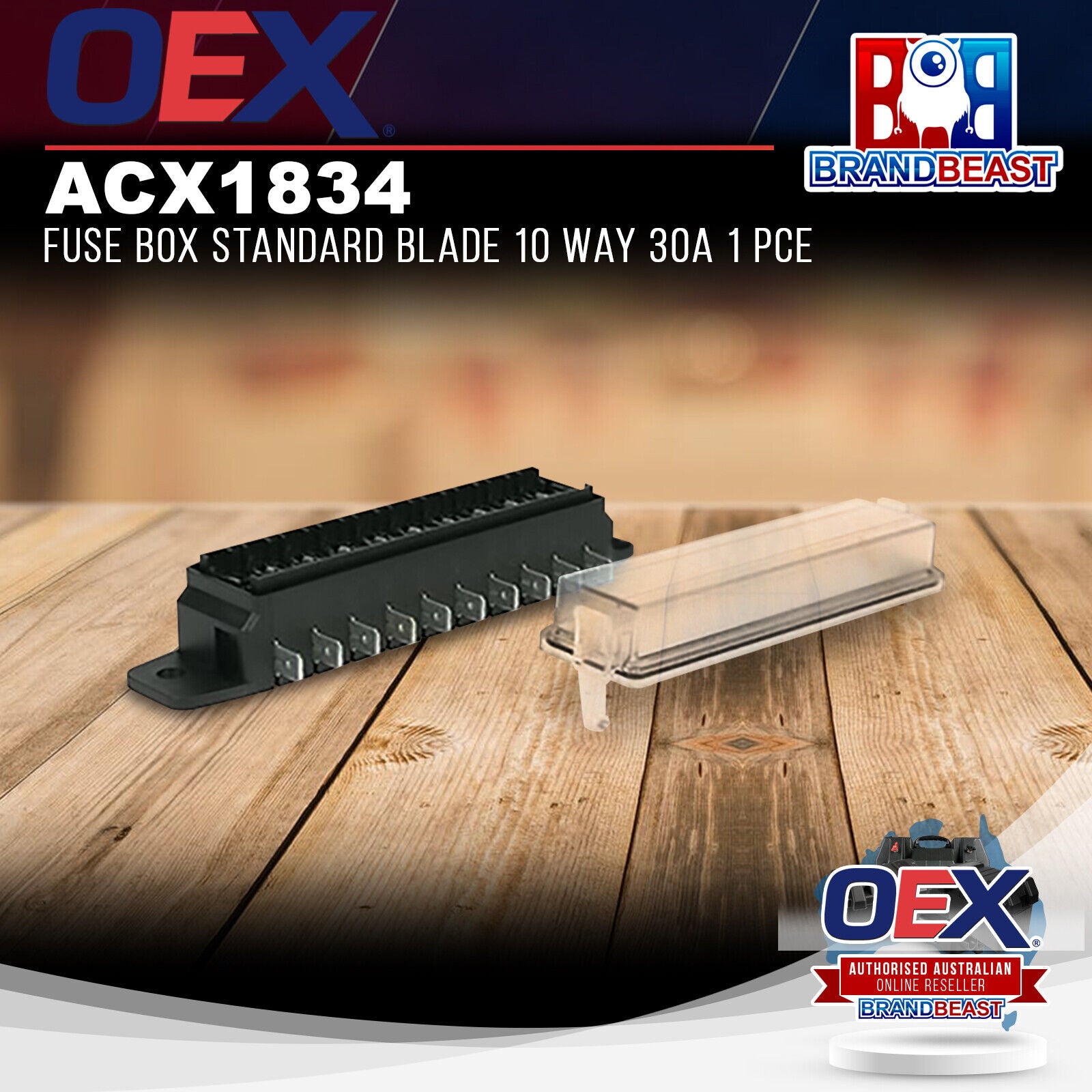

OEX ACX1834 10-Way Standard Blade Fuse Box 30A Per Circuit Male Spade Terminals Clear Clip-On Cover 2-Hole Flush Mount
The OEX ACX1834 is a 10-way standard blade automotive fuse box the largest in the OEX spade terminal fuse box range, adding two additional circuits over the ACX1833 (8-way, 30A). Shares the same 30A rating per circuit, male spade terminals, clear clip-on cover and 2-hole flush mount configuration. Full dimensions are 142.2mm (L) x 44.1mm (H) x 45.5mm (W). Supplied as a single unit. Covered by a one year warranty.
Product overview
The ACX1834 is the top of the OEX spade terminal fuse box range with ten independent circuit positions at 30A per circuit. It suits large custom vehicle builds, touring rigs, caravan switchboards, marine electrical panels and commercial vehicle auxiliary wiring where eight circuits (ACX1833) are insufficient. All other specifications are identical to the ACX1832 and ACX1833 male spade terminals for direct wire termination with custom wire gauge selection, clear clip-on cover for fuse status visibility without removing the cover, and 2-hole flush mount for clean panel installation.
The confirmed dimensions of 142.2mm (L) x 44.1mm (H) x 45.5mm (W) allow accurate panel cutout planning for flush-mount installations. Standard screws or bolts (not supplied) are required for mounting.
Features and benefits
10-way largest in the OEX spade terminal fuse box range: Supports up to ten independent fused circuits, two more than the ACX1833 (8-way), suited to large builds requiring maximum circuit capacity.
30A per circuit: High-current circuit protection for automotive accessories drawing up to 30A per circuit.
Male spade terminal connections: Direct wire termination via spade connectors — not pre-wired allows custom wire gauge selection for each circuit.
Clear clip-on cover: Allows visual inspection of fuse status without removing the cover for faster fault diagnosis.
2-hole flush mount: Two mounting holes for a clean, secure flush-panel installation. Standard screws or bolts required (not supplied).
Full confirmed dimensions 142.2mm x 44.1mm x 45.5mm: Accurate dimensions for panel cutout planning and space assessment before installation.
Standard blade ATC/ATO fuse format: Compatible with widely available standard blade fuses.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX1834 |
| Brand |
OEX |
| Type |
Fuse Box |
| Fuse Type |
Standard Blade (ATC/ATO) |
| Number of Ways |
10 |
| Maximum Current |
30A per circuit |
| Terminals |
Male spade |
| Cover |
Clear clip-on |
| Mounting |
2-hole flush mount |
| Dimensions |
142.2mm (L) x 44.1mm (H) x 45.5mm (W) |
| Pack Quantity |
1 |
| Weight |
0.1kg |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
What is the difference between the ACX1834 and the ACX1833? Both are 30A standard blade fuse boxes with male spade terminals and a clear clip-on cover. The ACX1833 has 8 ways and the ACX1834 has 10 ways. Select the ACX1834 where more than eight independent circuits are required.
Is this fuse box pre-wired? No. The ACX1834 uses male spade terminal connections for direct wire termination, allowing custom wire sizes to be used for each circuit.
What are the dimensions? The ACX1834 measures 142.2mm (L) x 44.1mm (H) x 45.5mm (W), confirmed from supplier specifications. These dimensions allow accurate panel cutout planning for flush-mount installations.
What fuse type does this box accept? Standard blade ATC/ATO fuses the most widely available automotive fuse format. Select the appropriate amp rating for each circuit up to the 30A maximum per position.
Can this fuse box be used in a caravan or marine application? Yes. The ACX1834 suits 12V automotive, caravan and marine applications requiring up to ten independent fused circuits. The clear clip-on cover allows fuse status to be checked at a glance for panel-mount installations in these environments.
