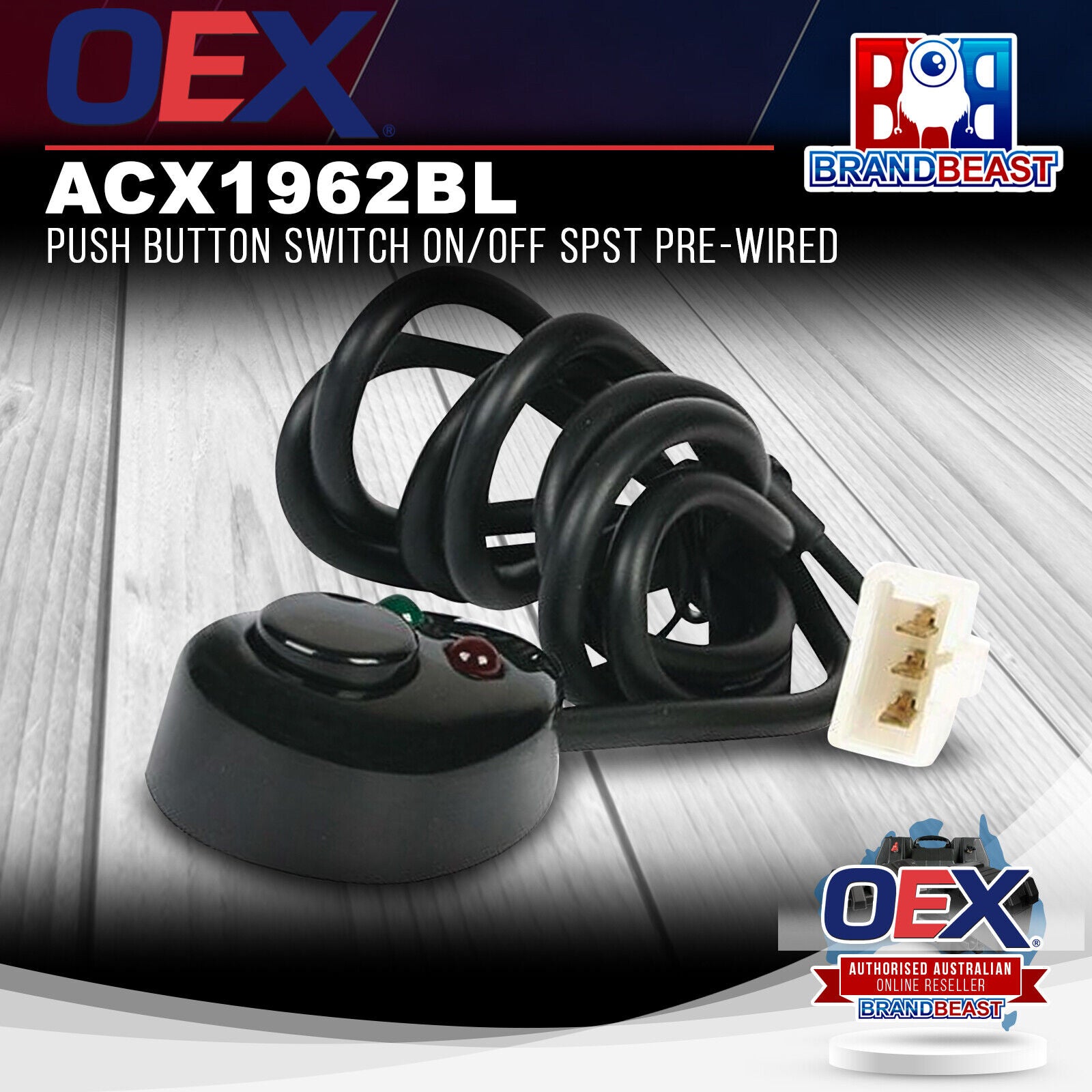

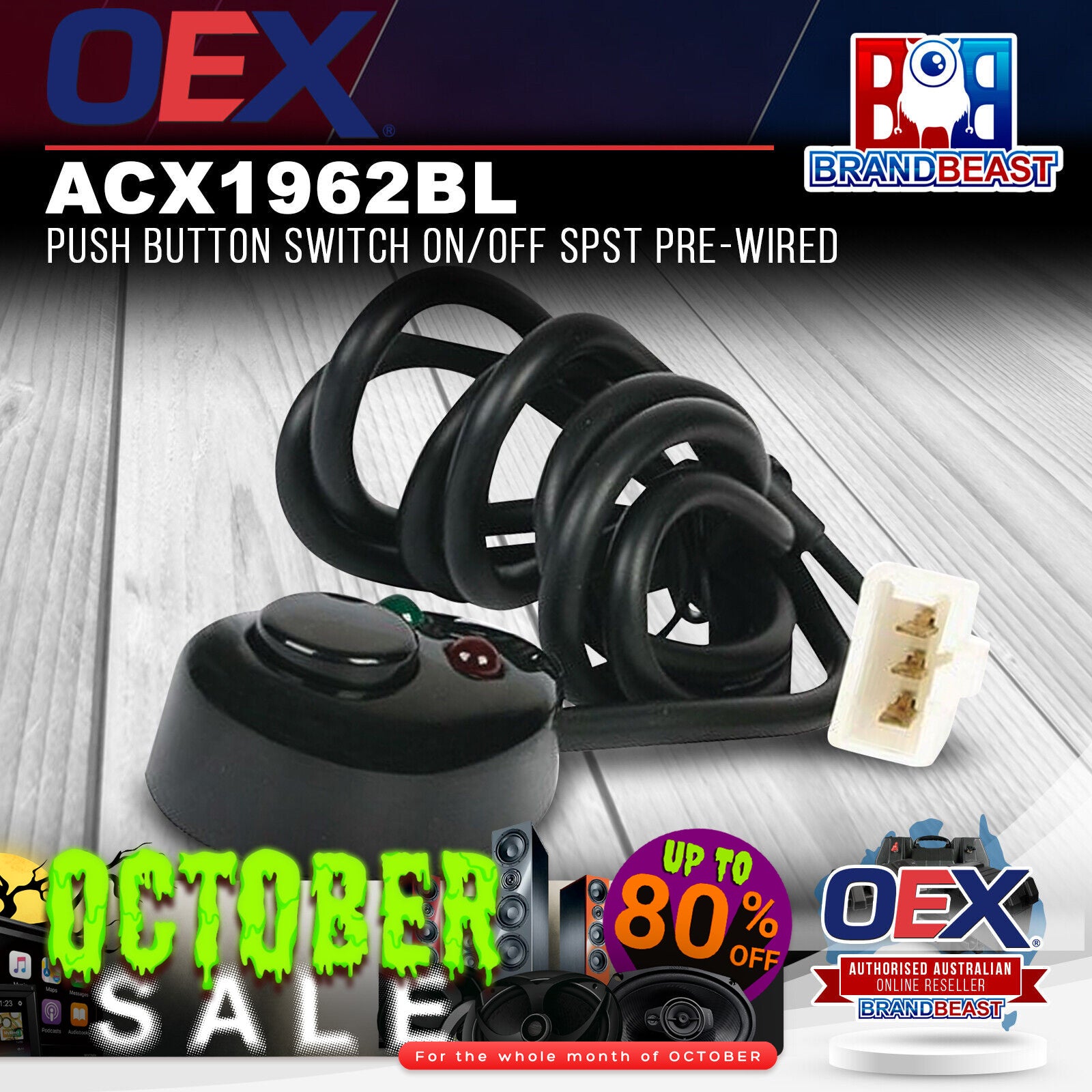

OEX ACX1962BL 12V 10A SPST Pre-Wired Push Button Switch Green and Red Dual LED Adhesive Surface Mount
The OEX ACX1962BL is a pre-wired 12V mouse-style push button switch in an On/Off SPST (Single Pole Single Throw) configuration, rated at 10A. Designed for simple surface mounting with an adhesive backing, it requires no panel cutout a practical solution for adding a switch to a dash, console or trim surface without modification. Dual-colour LED illumination provides clear status indication: green when on and red when off. Pre-wired leads eliminate the need for separate terminal connections. Supplied as a single unit. Covered by a one year warranty.
Product overview
Most rocker and toggle switches require a rectangular or round panel cutout and terminal connections, adding installation time and requiring panel modification. The ACX1962BL eliminates both requirements the adhesive backing attaches the switch directly to a flat surface without drilling or cutting, and the pre-wired leads connect directly to the circuit without crimping connectors onto individual blade terminals. This makes it a practical choice for adding a switch to a finished dash, console or trim piece where modification is not desirable.
The dual-colour LED provides clear, unambiguous status indication green when the circuit is active and red when it is inactive allowing instant visual confirmation at a glance even in low-light conditions. At 10A the switch handles lighting circuits, LED strips and general accessory switching directly. For loads exceeding 10A, the switch should be used to trigger a relay rather than wiring the load directly through the switch.
Features and benefits
Pre-wired: Leads are already attached, connecting directly to the circuit without crimping connectors onto individual blade terminals. Faster installation, particularly in tight spaces.
Adhesive surface mount no panel cutout required: Attaches directly to a flat surface such as a dash, console or trim piece without drilling or cutting.
SPST On/Off: Single pole single throw switching for straightforward accessory circuit on/off control.
10A at 12V: Suited to lighting circuits, LED strips and general 12V accessory switching up to 10A. For loads exceeding 10A, use the switch to trigger a relay.
Green (On) and red (Off) dual LED: Green illuminates when the circuit is active and red when inactive unambiguous status indication in any lighting condition.
Mouse-style compact form factor: Low-profile design for discreet installation on dash panels, consoles and trim surfaces.
Single unit: For individual installation.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX1962BL |
| Brand |
OEX |
| Switch Type |
Push Button |
| Switch Action |
On/Off (SPST) |
| Poles |
1 |
| Positions |
1 |
| Current Rating |
10A |
| Voltage |
12V |
| Illumination |
Green (On) and Red (Off) LED |
| Wiring |
Pre-wired |
| Mounting |
Surface mount, adhesive backing |
| Pack Quantity |
1 |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
What does pre-wired mean? Pre-wired means the switch comes with leads already attached to its terminals, so it can be connected directly to the circuit without crimping connectors onto individual blade terminals. This makes installation faster and simpler, particularly in tight spaces or on finished surfaces.
Does this switch require a panel cutout? No. The ACX1962BL uses adhesive backing for surface mounting it attaches directly to a flat surface such as a dash panel, console or trim piece without any drilling or cutting.
What do the green and red LEDs indicate? Green illuminates when the switch is in the On position (circuit active). Red illuminates when the switch is in the Off position (circuit inactive). This dual-colour indication allows instant confirmation of circuit state at a glance, even in low-light conditions.
What is SPST? SPST stands for Single Pole Single Throw the simplest switch configuration with one input and one output. It either connects or disconnects a single circuit conductor. Most basic On/Off accessory switches are SPST.
What is the maximum current this switch can handle? This switch is rated at 10A at 12V. For loads exceeding 10A, use the switch to trigger a relay rather than wiring the load directly through the switch.
