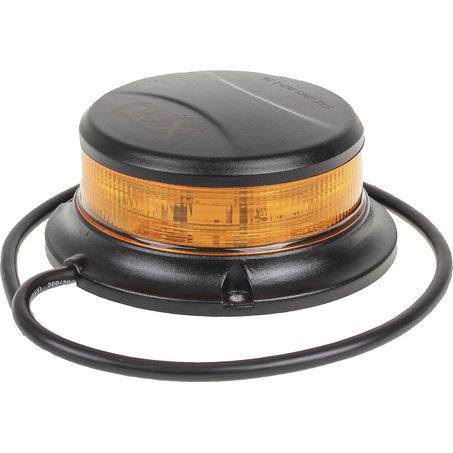

OEX ACX2367 Slimline Amber LED Beacon Fixed Mount Class 1
Make your presence known with the OEX ACX2367 Slimline Amber LED Beacon, a permanently mounted Class 1 warning light built to SAE J845, ECE R65, and ECE R10 standards for reliable, compliant emergency and safety signalling on vehicles operating in demanding environments.
Product Overview
The OEX ACX2367 is a low-profile amber LED beacon designed for permanent fixed mounting on a wide range of vehicles including emergency response, roadside maintenance, construction, mining, and agricultural equipment. Built around 32 high-brightness LEDs in a compact 112 x 112 x 48mm slimline housing, it delivers powerful Class 1 warning visibility without the bulk of traditional rotating beacon units.
With 10 selectable flash patterns including a simulated rotation mode, the ACX2367 gives operators the flexibility to match the flash pattern to the application or local regulatory requirements. Pattern selection is achieved by momentarily touching the green wire to a positive feed, making configuration straightforward without additional controllers or switches.
Rated IP67 waterproof and compliant with ECE R10 electromagnetic compatibility standards, the ACX2367 is engineered for long-term outdoor and off-road use across 10 to 30V systems, covering both 12V and 24V vehicle platforms.
Wiring Note: Blue wire is Earth. Red wire is Positive. Green wire momentarily touched to positive feed changes the flash pattern. Where the light is not insulated or above ground, the Blue wire must also be grounded.
Features & Benefits
-
SAE J845 Class 1 certified meeting the highest SAE warning light performance standard for maximum visibility
-
ECE R65 and ECE R10 compliant satisfying European standard requirements for warning lights and electromagnetic compatibility
-
32 high-brightness LEDs delivering powerful amber warning output across the full 360° slimline lens
-
10 selectable flash patterns including a simulated rotation mode to suit different applications and regulatory requirements
-
Permanent fixed mount for secure, vibration-resistant installation on vehicles and equipment
-
IP67 waterproof rating fully protected against dust ingress and temporary submersion for harsh environment use
-
10 to 30V operating range compatible with both 12V and 24V vehicle electrical systems
-
Compact slimline profile at just 48mm tall, reducing wind resistance and drag compared to traditional dome beacons
-
Two year warranty backed by OEX for professional and commercial confidence
Technical Specs
| Specification |
Details |
| Part Number |
ACX2367 |
| Brand |
OEX |
| Type |
Slimline Amber LED Beacon |
| Beacon Style |
LED |
| Beacon Mounting |
Permanent Fixed Mount |
| Lens Colour |
Amber |
| Number of LEDs |
32 |
| Flash Patterns |
10 (including Simulated Rotation) |
| Voltage |
12V or 24V |
| Voltage Rating |
10 to 30V |
| Environmental Rating |
IP67 |
| Compliance |
SAE J845 Class 1, ECE R65, ECE R10 |
| Insulated Return |
No |
| Length |
112mm |
| Width |
112mm |
| Height |
48mm |
| Weight |
0.3kg |
| Warranty |
2 Years |
| Unit of Measure |
Each |
| Product Group |
Lighting / Emergency Lighting |
Compatible With / Goes Well With
The OEX ACX2367 Slimline Amber LED Beacon is suited for permanent mounting across a wide range of vehicles and equipment including:
-
Emergency and first response vehicles requiring Class 1 certified amber warning lighting
-
Roadside maintenance and council vehicles requiring compliant amber beacons for worker safety
-
Construction and earthmoving equipment including excavators, graders, and site vehicles operating in shared traffic zones
-
Mining and resources vehicles requiring durable, waterproof warning lighting rated for harsh site conditions
-
Agricultural machinery including tractors, harvesters, and slow-moving vehicles requiring road-legal amber warning lighting
-
Tow trucks and breakdown vehicles requiring permanent high-visibility amber signalling
Goes well with:
- OEX Emergency Lighting and Strobe range (for full vehicle warning light setups)
- OEX Wiring Harnesses and Switches (for clean in-cab pattern selection wiring)
- OEX ACX series Beacons (for multi-unit emergency lighting configurations)
Frequently Asked Questions
Q: What compliance certifications does the OEX ACX2367 hold?
A: The ACX2367 is certified to SAE J845 Class 1, ECE R65, and ECE R10 standards. SAE J845 Class 1 is the highest SAE warning light performance rating. ECE R65 is the European standard for warning lights, and ECE R10 covers electromagnetic compatibility. Always verify which certifications are required in your state or territory before installation on road-registered vehicles.
Q: How do I change the flash pattern on the ACX2367?
A: Flash patterns are changed by momentarily touching the green wire to a positive feed. Each touch cycles through to the next of the 10 available patterns, including the simulated rotation mode. No additional controller or switch module is required, though a dedicated momentary push button switch can be wired in for convenient in-cab pattern changes.
Q: Does the ACX2367 require an insulated earth return?
A: No. The ACX2367 does not use an insulated return. However, where the light is mounted in a location that is not insulated or above ground, the Blue earth wire must be physically grounded. Always refer to the wiring note when installing to ensure correct earth connection for reliable operation.
Q: Is the ACX2367 suitable for both 12V and 24V vehicles?
A: Yes. The ACX2367 operates across a 10 to 30V range, making it fully compatible with both 12V passenger, 4WD, and light commercial vehicles, and 24V trucks, buses, and heavy machinery without any modification.
Q: Can the ACX2367 be used as a temporary or magnetic mount beacon?
A: No. The ACX2367 is designed exclusively for permanent fixed mounting. For temporary or magnetic mount applications, refer to the OEX magnetic mount beacon range available at F.A.E.
