Description

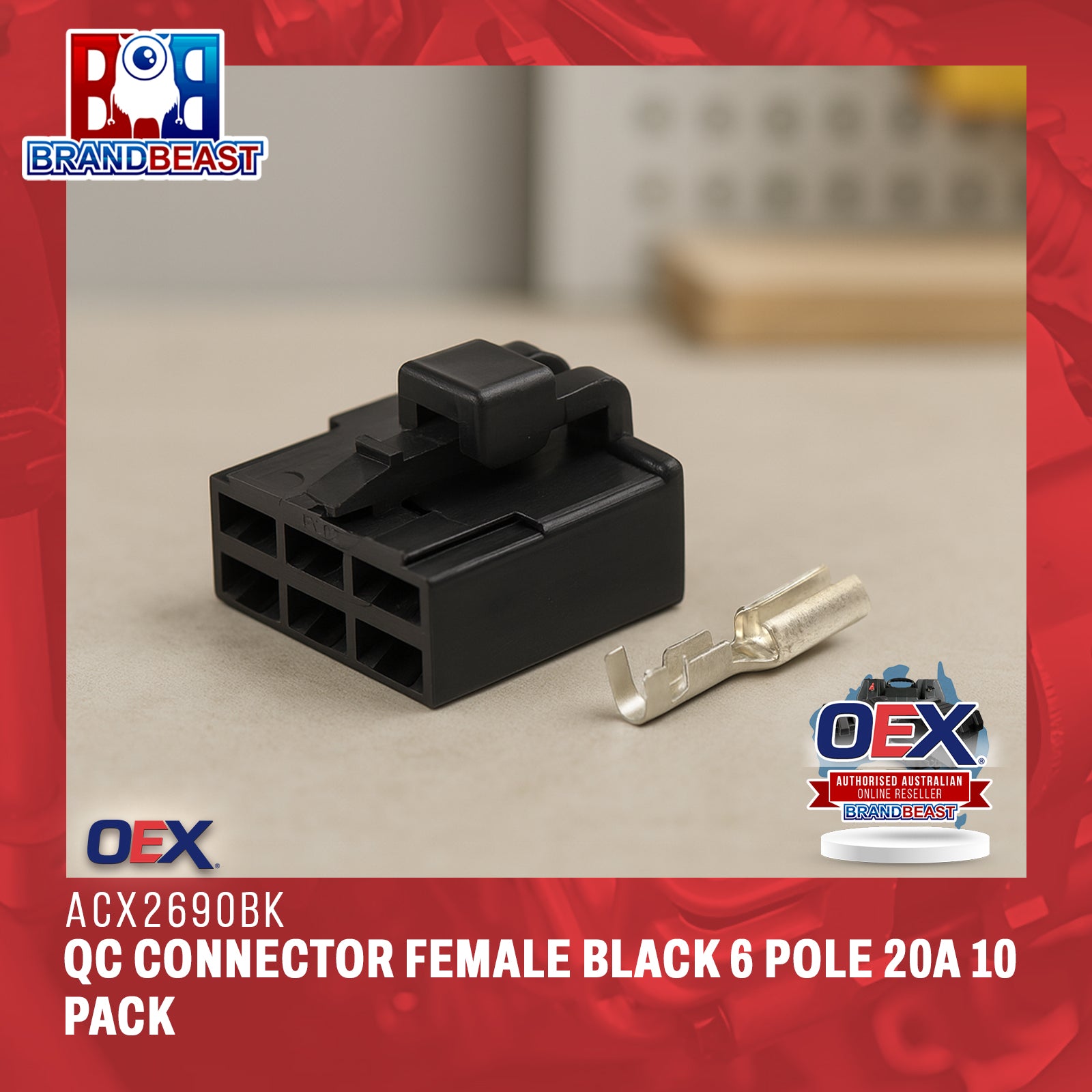

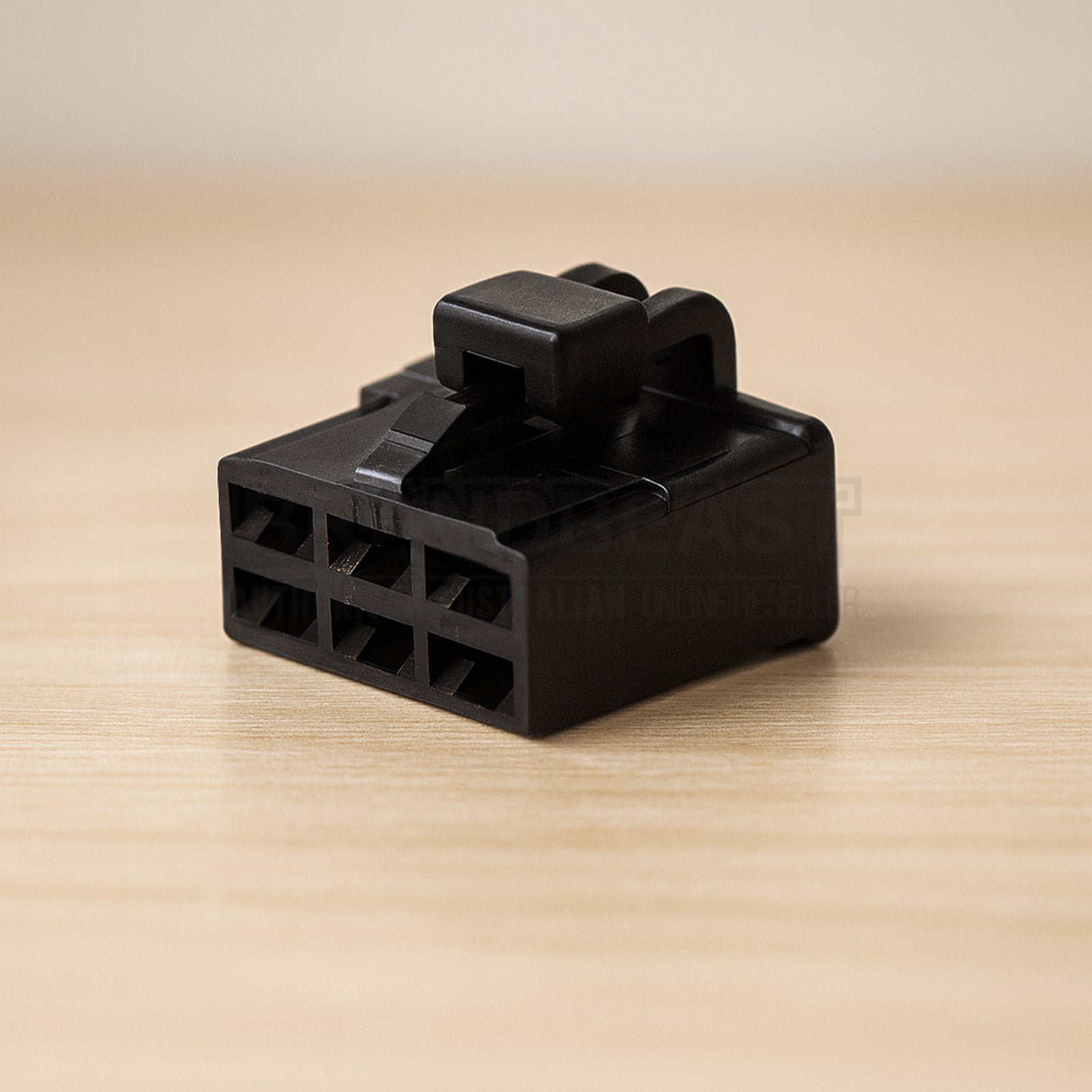

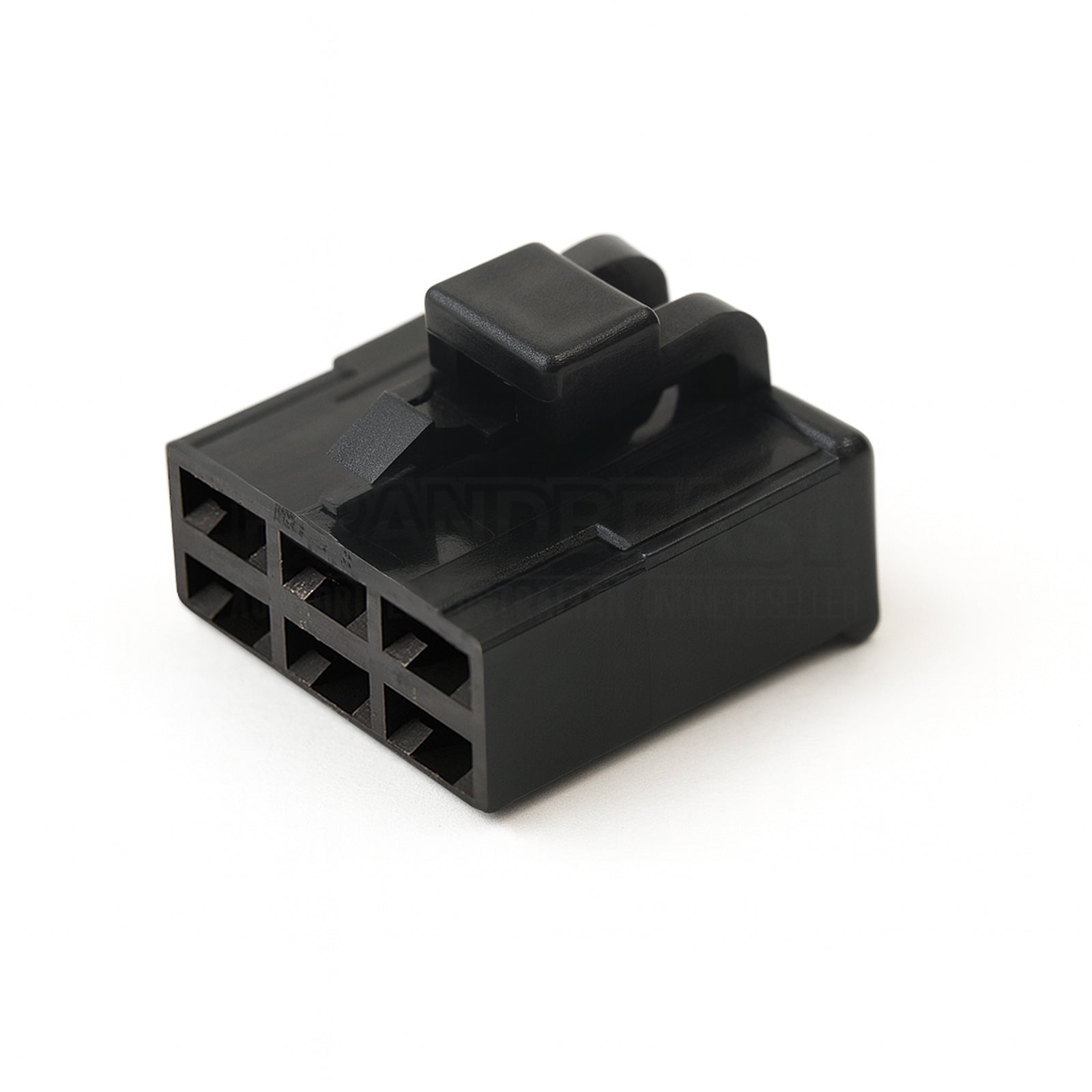

OEX ACX2690BK 6-Pole Quick Connect Female Connector Housing Black 20A 2 to 4mm² with Tin Plated Brass Terminals Pack of 10

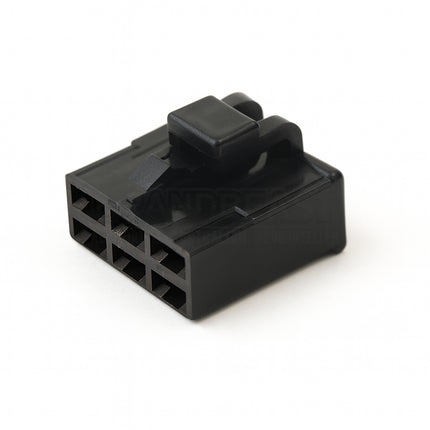

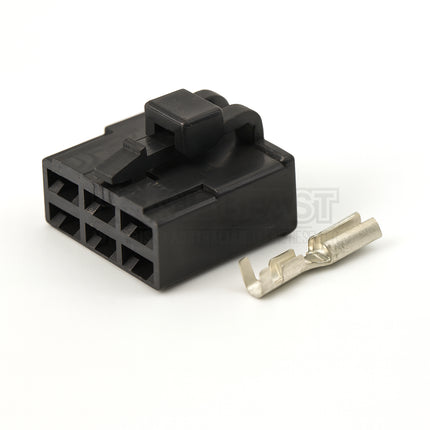

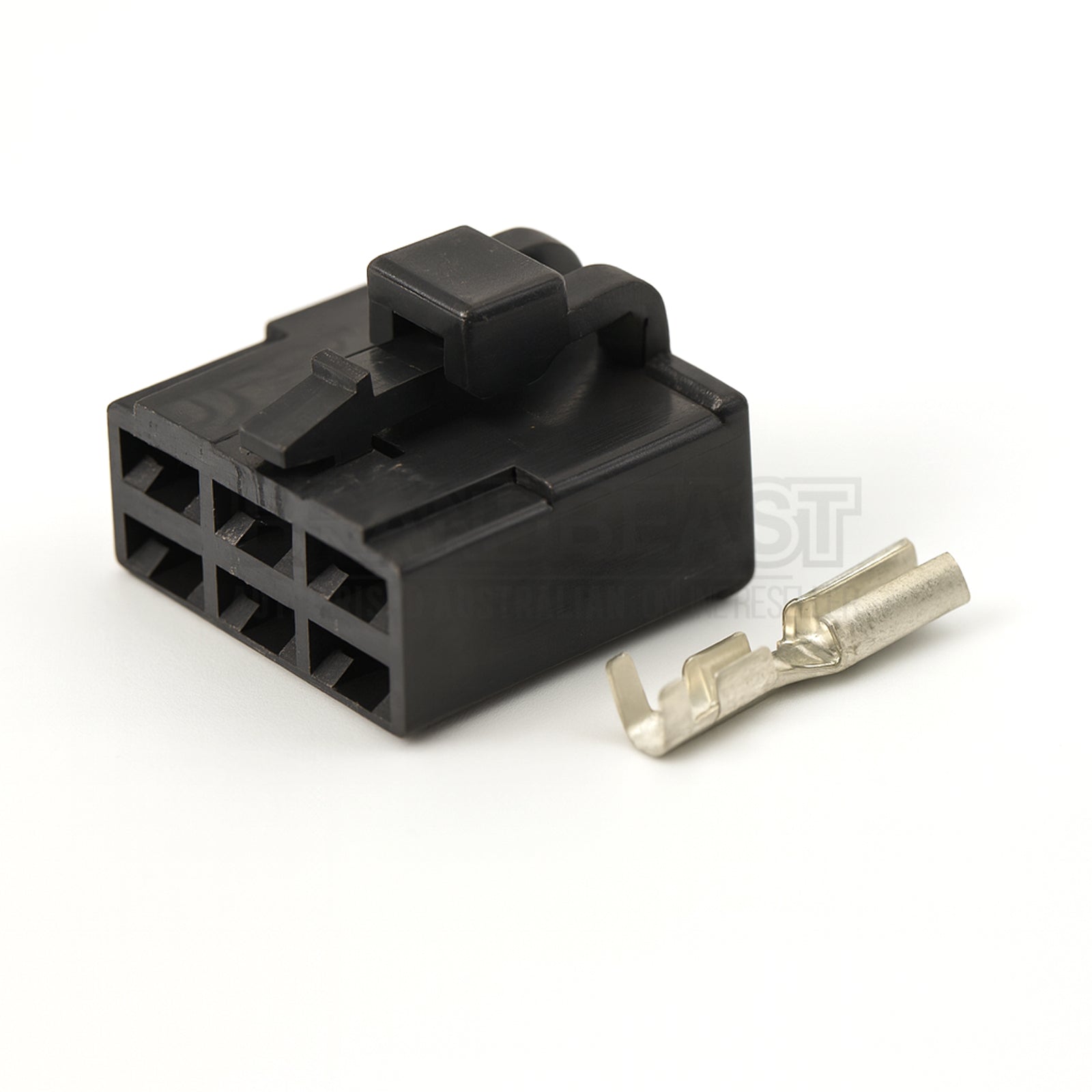

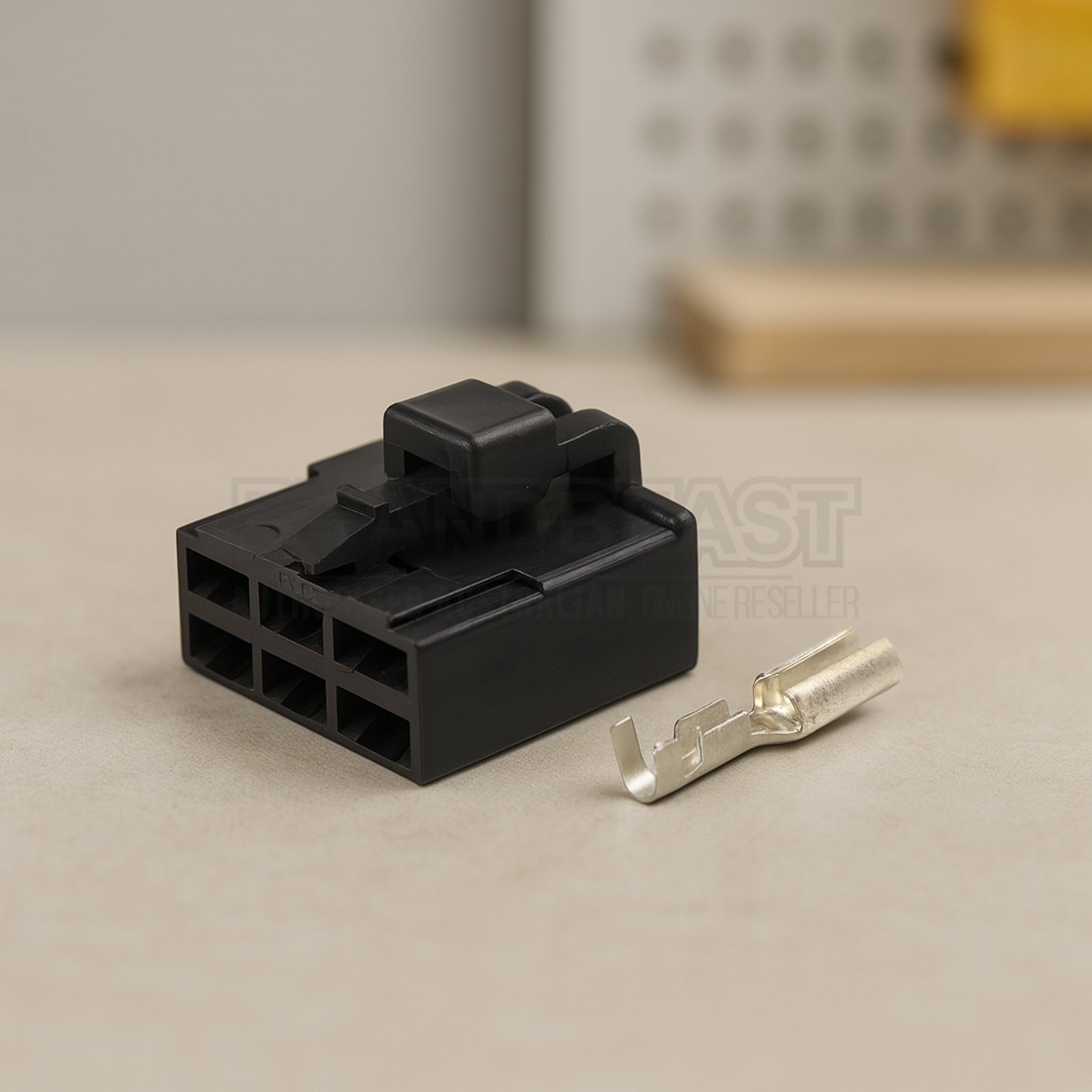

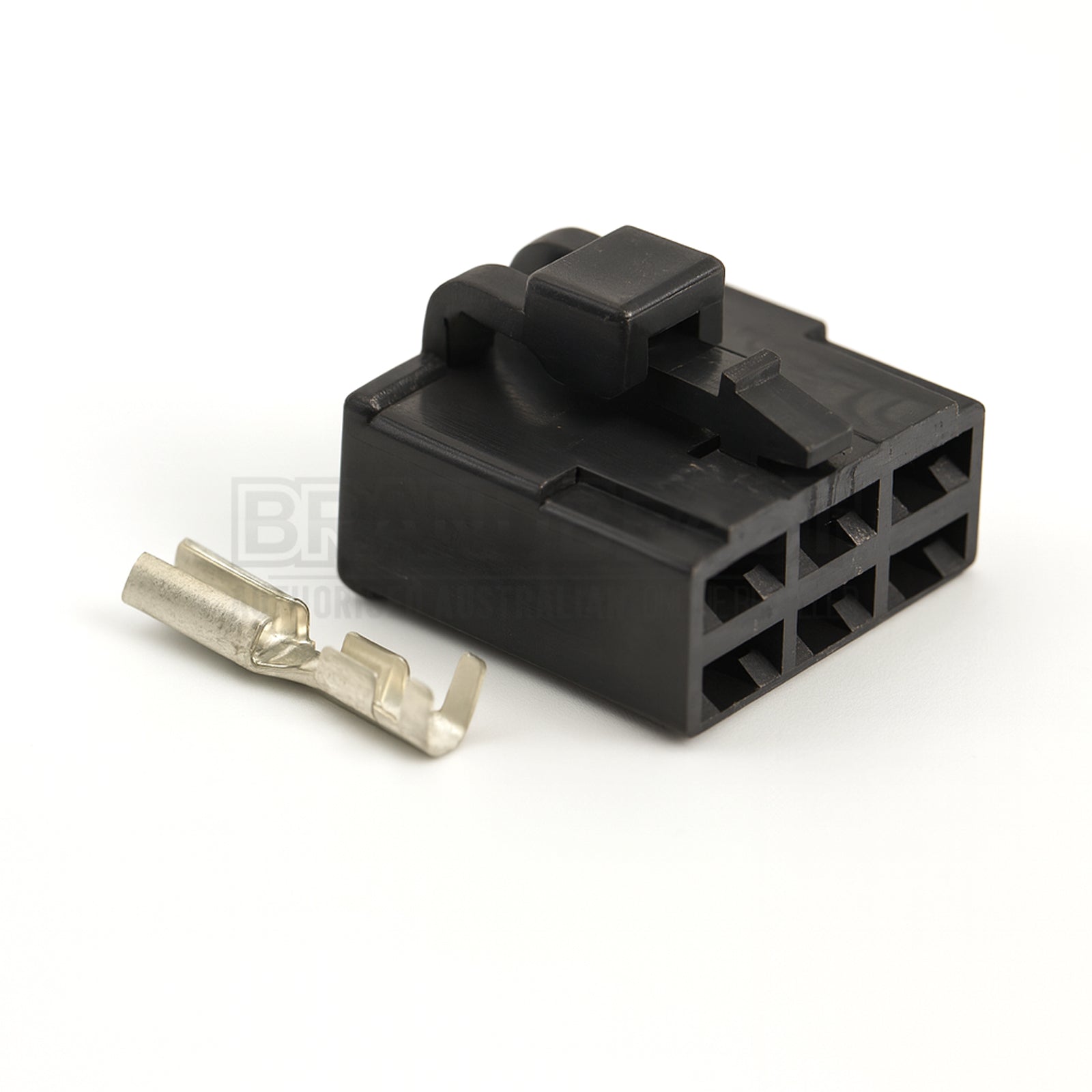

The OEX ACX2690BK is a 6-pole quick connect (QC) female connector housing in black, supplied in a pack of 10 with tin plated brass terminals. The mounting tab design provides a secure, vibration-resistant connection when mated with a corresponding male housing. Rated at 20A with a cable range of 2 to 4mm², it suits a broad range of automotive wiring applications requiring a compact, six-circuit inline connection. Covered by a one year warranty.
Product overview
The ACX2690BK is the black version of the 6-pole QC female connector, sharing the same 20A rating, 6-pole configuration and 2 to 4mm² cable range as the white ACX2690. The black colour suits installations where a darker connector is preferred for aesthetics or colour-coding purposes for example, distinguishing different harness assemblies in a multi-connector wiring system. The mounting tab design provides secure, vibration-resistant mating with the corresponding male housing.
Each pack of 10 includes the housings and tin plated brass terminals. The corresponding male housing is required to complete the connection and is not included. A ratchet crimping tool suitable for open barrel or insulated terminals in the 2 to 4mm² range is recommended for reliable terminal crimps.
Features and benefits
6-pole configuration: Six circuits in a single compact connector housing for multi-wire inline connections.
Quick connect (QC) design: Push-in, mounting tab retention system for fast, tool-free mating with secure, vibration-resistant connection.
20A rated: Suited to accessory, lighting and general auxiliary wiring up to 20A per circuit.

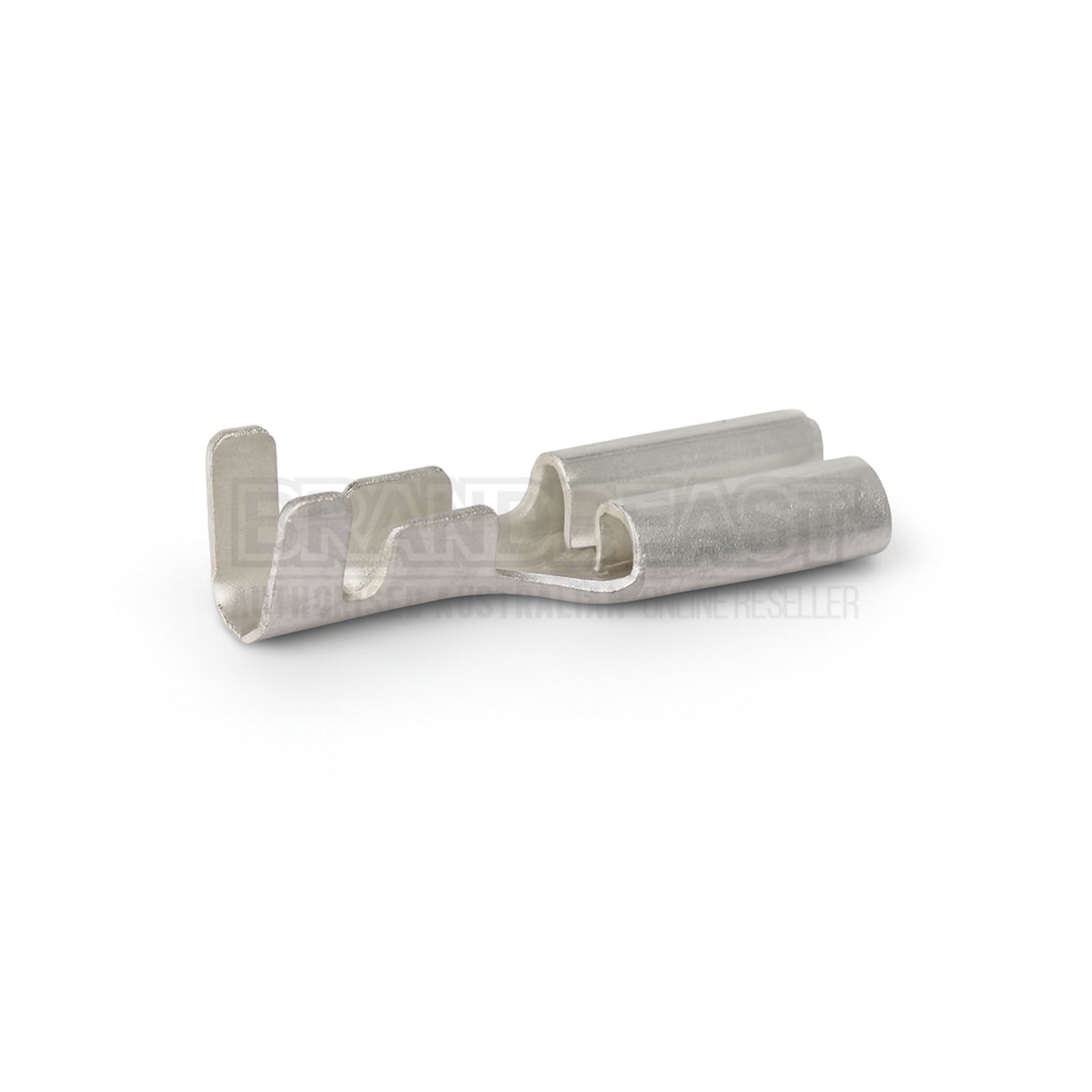

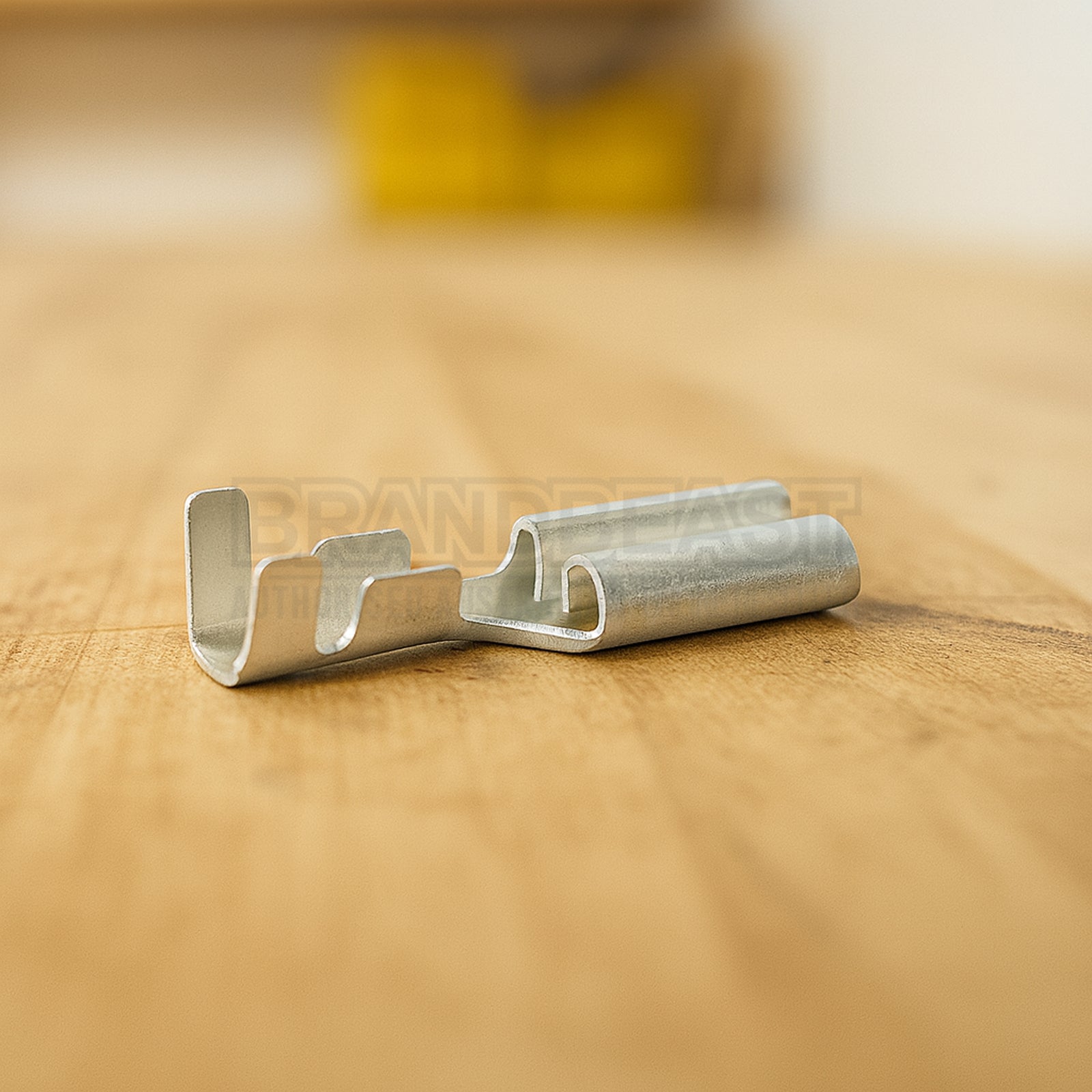

Tin plated brass terminals included: Terminals supplied with each housing crimping tool not included.
Mounting tabs: Secure mating with the corresponding male housing, resisting vibration and accidental disconnection.
2 to 4mm² cable range: Suits a range of automotive cable gauges. Confirm cable size falls within this range before purchasing.
Black: Colour-coded for easy identification or harness differentiation in multi-connector wiring systems.
Pack of 10: Workshop-friendly quantity 10 female housings with terminals.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX2690BK |
| Brand |
OEX |
| Connector Type |
QC (Quick Connect) |
| Gender |
Female |
| Poles and Pins |
6 |
| Current Rating |
20A |
| Terminal Material |
Tin Plated Brass |
| Cable Range |
2 to 4mm² |
| Colour |
Black |
| Includes |
10 housings with tin plated brass terminals |
| Pack Quantity |
10 |
| Weight |
0.06kg |
| Warranty |
One year |
| Sold As |
Pack of 10 housings with terminals |
Frequently asked questions
What is a QC connector? A QC (quick connect) connector is a push-in, locking automotive connector used to join multi-wire harnesses inline. The terminal crimps onto the cable end, inserts into the housing and locks in place. The two halves mate together and are retained by mounting tabs, providing a secure connection that resists vibration and accidental disconnection.
Does the male half come with this pack? No. This pack contains 10 female housings with tin plated brass terminals. A corresponding male housing is required to complete the connection check the OEX connector range for the matching male counterpart.
What cable sizes are compatible? The connector accepts cables in the 2 to 4mm² range. Outside this range the terminals may not crimp correctly confirm your cable size before purchasing.
What tool is needed to crimp the terminals? A ratchet crimping tool suitable for open barrel or insulated terminals in the appropriate cable range is recommended for reliable terminal crimps. Confirm the correct crimp tool for tin plated brass QC terminals with your tool supplier.
Is this connector waterproof? Waterproofing is not specified in the supplier data for this SKU. For waterproof or sealed connector requirements, check the OEX sealed connector range.
