Description

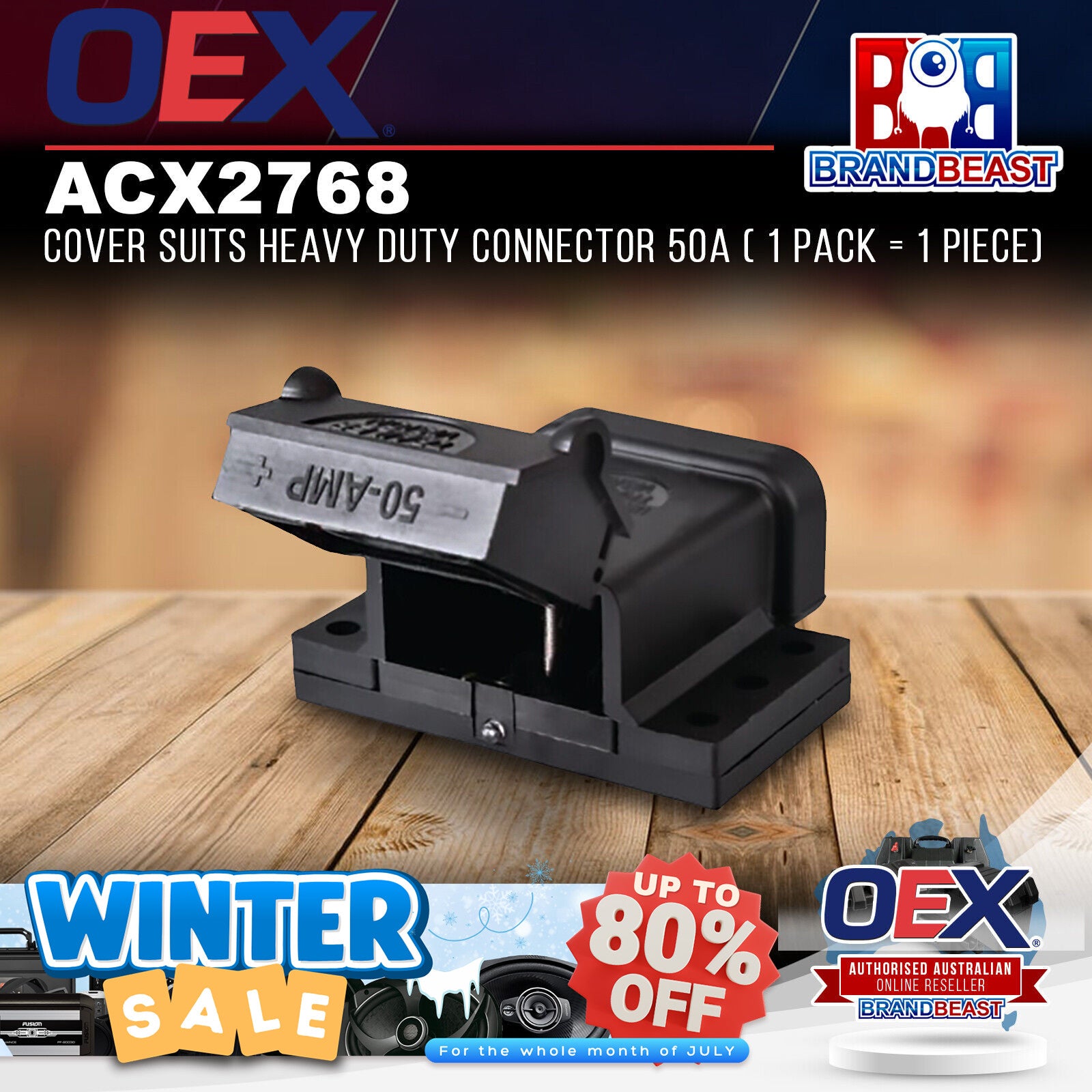

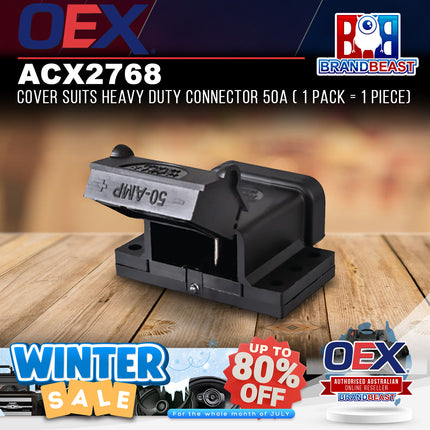

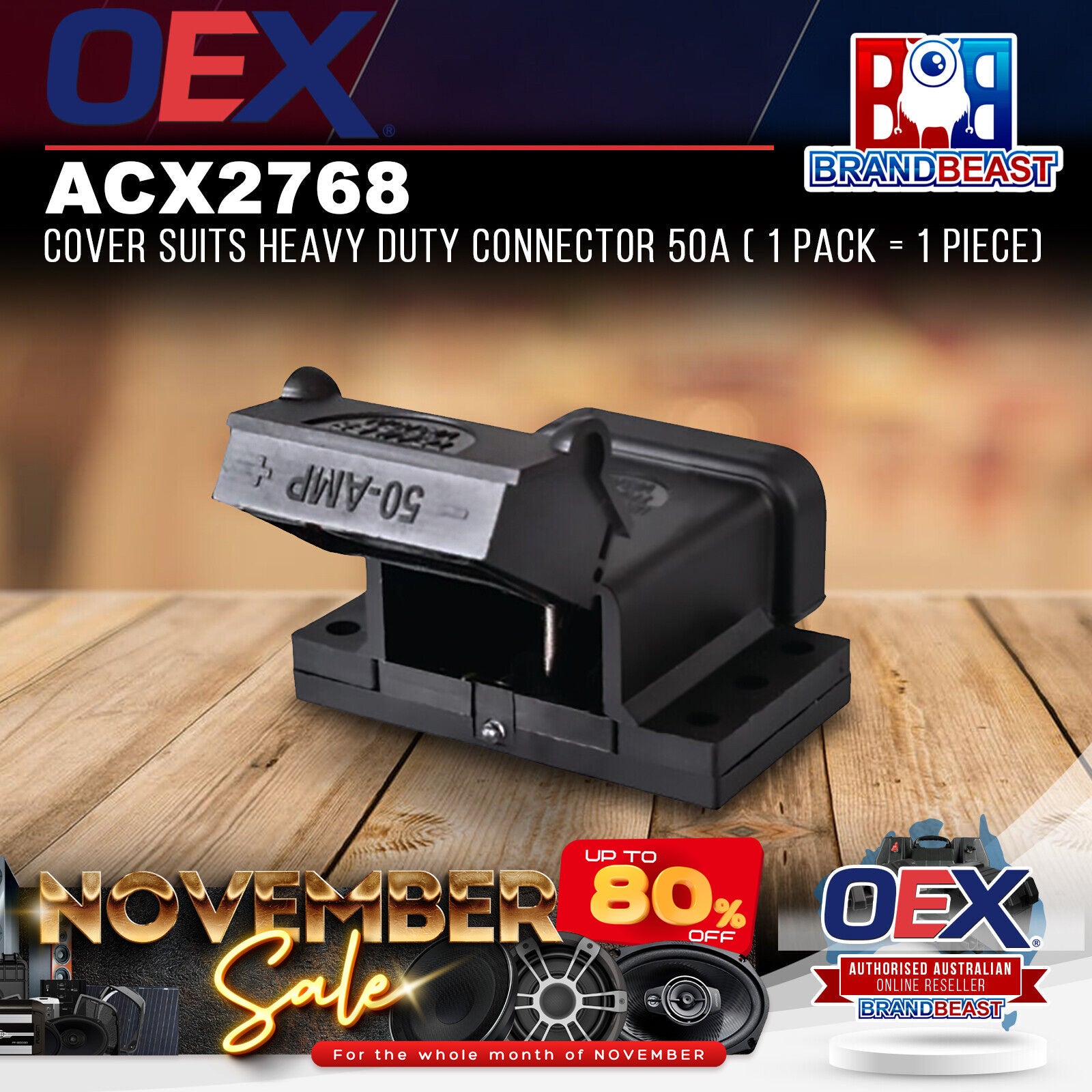

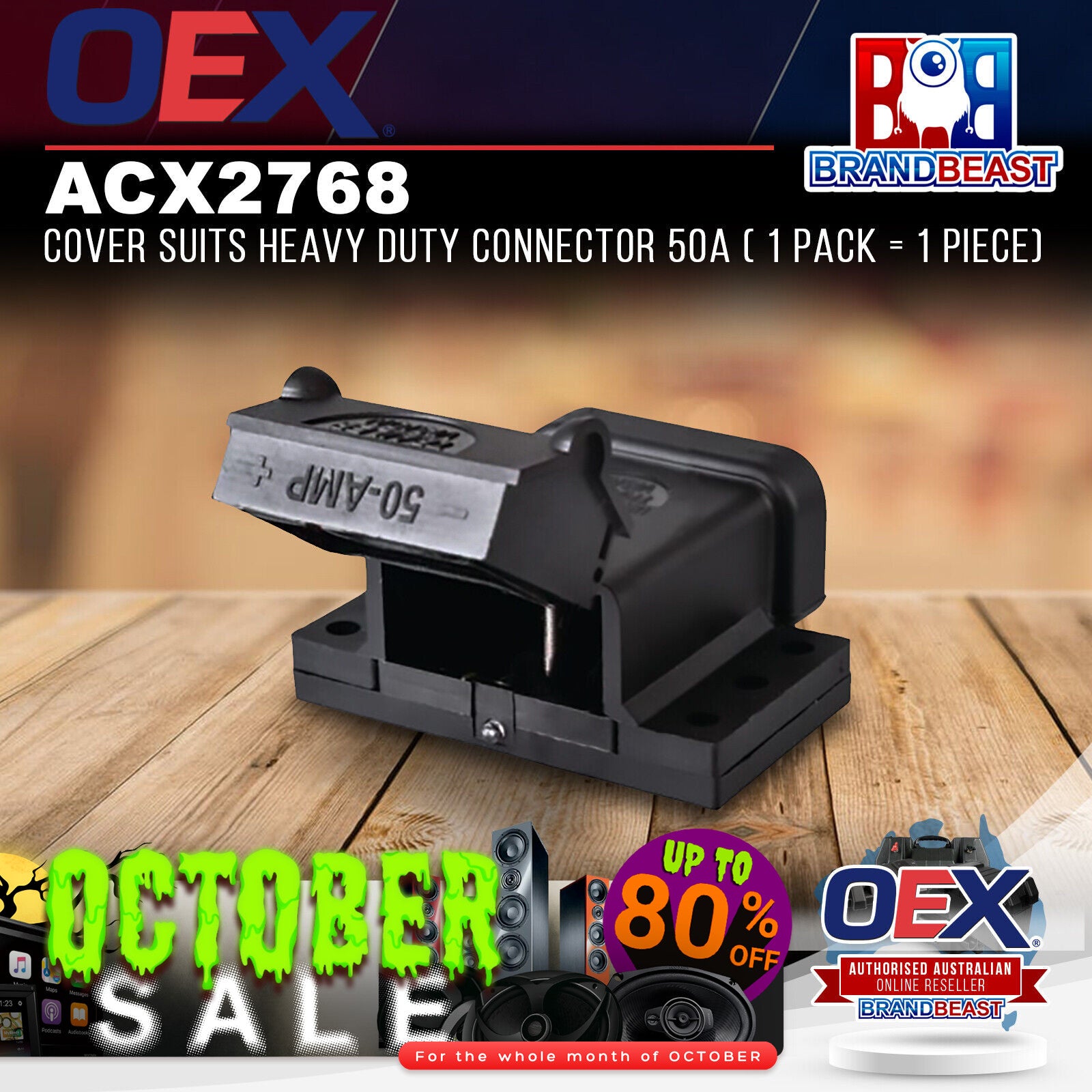

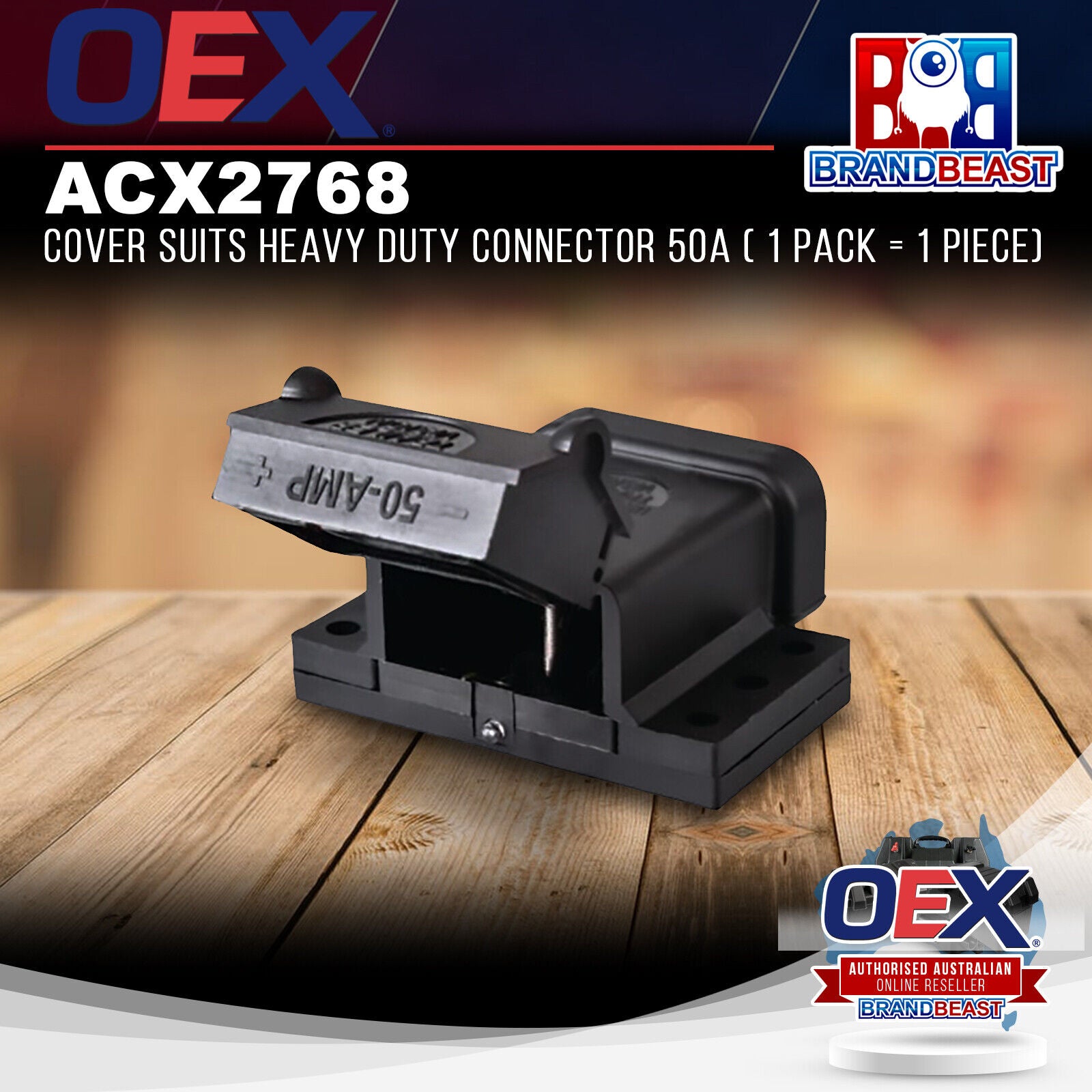

OEX ACX2768 Surface Mount Casing Cover for Anderson 50A Connectors with Retractable Spring Cover and Red LED Indicator
The OEX ACX2768 is a durable surface mount casing cover for 50A Anderson style connectors, supplied in black as a single unit. It accepts all Anderson style 50A connectors and provides a permanent, flush-mount installation point on a vehicle, caravan or panel with a retractable cover that protects the connector face when not in use. A red LED provides a visual connection indicator. PA Nylon 66 housing with stainless steel hardware. Cable input accepts up to 6AWG. 58mm surface mount hole spacing. Anderson 50A plug not included. Covered by a one year warranty.
Product overview
Where an Anderson plug needs to be permanently mounted to a vehicle bulkhead, panel or console, a surface mount casing provides a secure, professional installation point. The ACX2768 holds the Anderson plug in a fixed position and protects the connector face with a retractable cover that uses a spring tab locking system to stay open during connection and lock closed when not in use. This is a more permanent and purpose-built solution than the ACX2760C cap cover, which is suited to protecting loose connectors and cable ends rather than panel-mounted installations.
The red LED provides a visual connection status indicator. The PA Nylon 66 housing provides durability and heat resistance for automotive environments, and the stainless steel hardware resists corrosion in exposed and marine-adjacent installations. The casing accepts all Anderson style 50A connectors including genuine Anderson SB50 and OEX ACX2760 and ACX2761. The Anderson plug itself is not included and must be sourced separately.
Features and benefits
Surface mount design: Permanent flush-mount installation on vehicle panels, bulkheads or consoles, providing a fixed, professional-looking Anderson plug connection point.
Retractable cover with spring tab lock: Stays open during connection and locks closed when the connector is not in use, protecting the contact face from moisture and debris.
Red LED connection indicator: Visual indicator for connection status.
Accepts all Anderson style 50A connectors: Compatible with genuine Anderson SB50 and OEX ACX2760, ACX2760B and ACX2761 connectors.
PA Nylon 66 housing: Durable, heat-resistant material suited to demanding automotive environments.
Stainless steel hardware: Corrosion-resistant fasteners for long-term reliability in exposed and marine-adjacent installations.
Cable input up to 6AWG: Suits heavy gauge cable for 50A applications.
58mm surface mount spacing: Standard mounting centre distance for panel installation.
Black: Standard colour for automotive accessories.
Anderson plug not included: An Anderson 50A plug such as OEX ACX2760 or ACX2761 is required separately.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX2768 |
| Brand |
OEX |
| Type |
Connector Surface Mount Cover |
| Suits |
50A Anderson style connectors |
| Colour |
Black |
| Housing Material |
PA Nylon 66 |
| Hardware |
Stainless steel |
| Cover Mechanism |
Retractable, spring tab locking |
| LED Indicator |
Red LED |
| Cable Input |
Up to 6AWG |
| Surface Mount Spacing |
58mm |
| Plug Included |
No |
| Pack Quantity |
1 |
| Weight |
0.12kg |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
What is the difference between this cover and the ACX2760C cap? The ACX2760C is a simple cap that fits over an unconnected Anderson plug to protect the contact face. The ACX2768 is a permanent surface mount housing that mounts to a panel or bulkhead, holds the Anderson plug in a fixed position, and provides a retractable spring-locking cover and LED indicator. The ACX2768 suits permanent vehicle installations; the ACX2760C suits protecting loose connectors or cable ends.
Is the Anderson plug included? No. The ACX2768 is the surface mount cover and housing only. An Anderson 50A plug such as OEX ACX2760 or ACX2761 is required separately.
What cable size does this housing accept? The cable input accepts up to 6AWG. Confirm your cable gauge before installing.
What is the red LED indicator for? The red LED provides a visual indication of connection status. Confirm the specific LED behaviour (power presence, active connection or other) with OEX if this is a critical requirement for your application.
What is the mounting hole spacing? The surface mount uses 58mm centre-to-centre hole spacing. Mark and drill accordingly when installing on a panel or bulkhead.
