Description

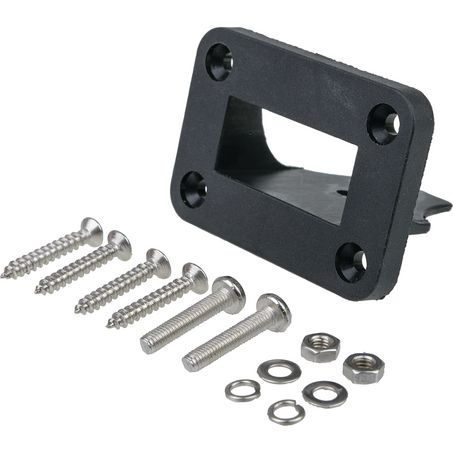

OEX ACX2772 Flush Mount Face Plate for Anderson 50A SB50 Connector Black Nylon 60x41mm with Full Mounting Hardware
The OEX ACX2772 is a black nylon flush mount face plate for Anderson 50A plug connectors, providing a clean, factory-style panel installation. Measuring 60x41mm, it mounts to a vehicle panel, bulkhead or console and secures the Anderson plug in a fixed, flush-mounted position using the included hardware: 4 mounting screws, 2 bolts, 2 nuts, 2 split washers and 2 flat washers. The Anderson 50A connector is not included and is sold separately. Covered by a one year warranty.
Product overview
Where an Anderson plug needs to be fixed to a vehicle panel, bulkhead or console, a flush mount face plate provides a clean, integrated appearance compared to leaving the connector loose or cable-tied in place. The ACX2772 secures the Anderson plug flat against a panel surface without a cover, giving a minimal, low-profile installation suited to locations where a retractable cover is not required.
The black nylon construction is lightweight, durable and corrosion-resistant. Full mounting hardware is included so no additional fasteners are needed. Compatible with genuine Anderson SB50 50A connectors and OEX ACX2760, ACX2760B and ACX2761. The Anderson plug itself is not included and must be sourced separately.
Features and benefits
Flush mount design: Provides a clean, integrated panel appearance for Anderson plug installations without cables or housings left loose on the vehicle.
Black nylon construction: Lightweight, durable and corrosion-resistant for automotive and caravan panel installations.
60x41mm face plate: Compact footprint suited to dash, bulkhead and console mounting.
Full mounting hardware included: 4 mounting screws, 2 bolts, 2 nuts, 2 split washers and 2 flat washers. No additional fasteners required.
Suits Anderson 50A SB50 connectors: Compatible with genuine Anderson SB50, OEX ACX2760, ACX2760B and ACX2761 connectors.
Anderson connector sold separately: Face plate and hardware only. ACX2760 (grey) or ACX2761 (red) Anderson plug purchased separately.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX2772 |
| Brand |
OEX |
| Type |
Flush Mount Face Plate |
| Suits |
Anderson 50A (SB50) connector |
| Colour |
Black |
| Body Material |
Black nylon |
| Face Plate Dimensions |
60mm x 41mm |
| Included Hardware |
4 mounting screws, 2 bolts, 2 nuts, 2 split washers, 2 flat washers |
| Connector Included |
No |
| Pack Quantity |
1 |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
Is the Anderson connector included? No. The ACX2772 is the face plate and mounting hardware only. The Anderson 50A connector, ACX2760 (grey) or ACX2761 (red), is sold separately.
What is the face plate size? The face plate measures 60x41mm. Confirm this fits your panel mounting location before purchasing.
How does this differ from the ACX2768 surface mount cover? The ACX2768 is a complete surface mount housing with a retractable spring-lock cover and red LED indicator. The ACX2772 is a simpler flush mount face plate that mounts the Anderson plug flat against a panel without a cover. Select the ACX2768 for a covered, protected installation with an LED indicator; select the ACX2772 for a minimal, low-profile flush fit.
What hardware is included? The pack includes 4 mounting screws, 2 bolts, 2 nuts, 2 split washers and 2 flat washers, providing everything needed to mount the face plate to the panel and secure the Anderson connector.
What panel thickness does this face plate suit? Panel thickness range is not confirmed in the current product data. Contact us if panel thickness is a specific consideration for your installation.
