Description

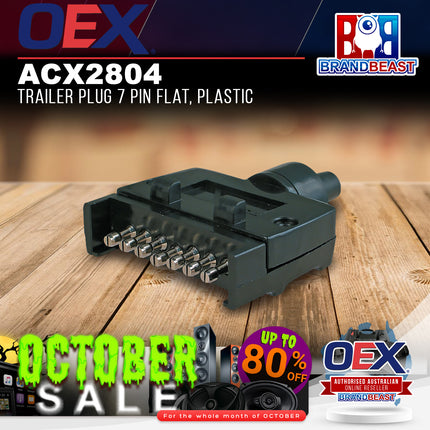

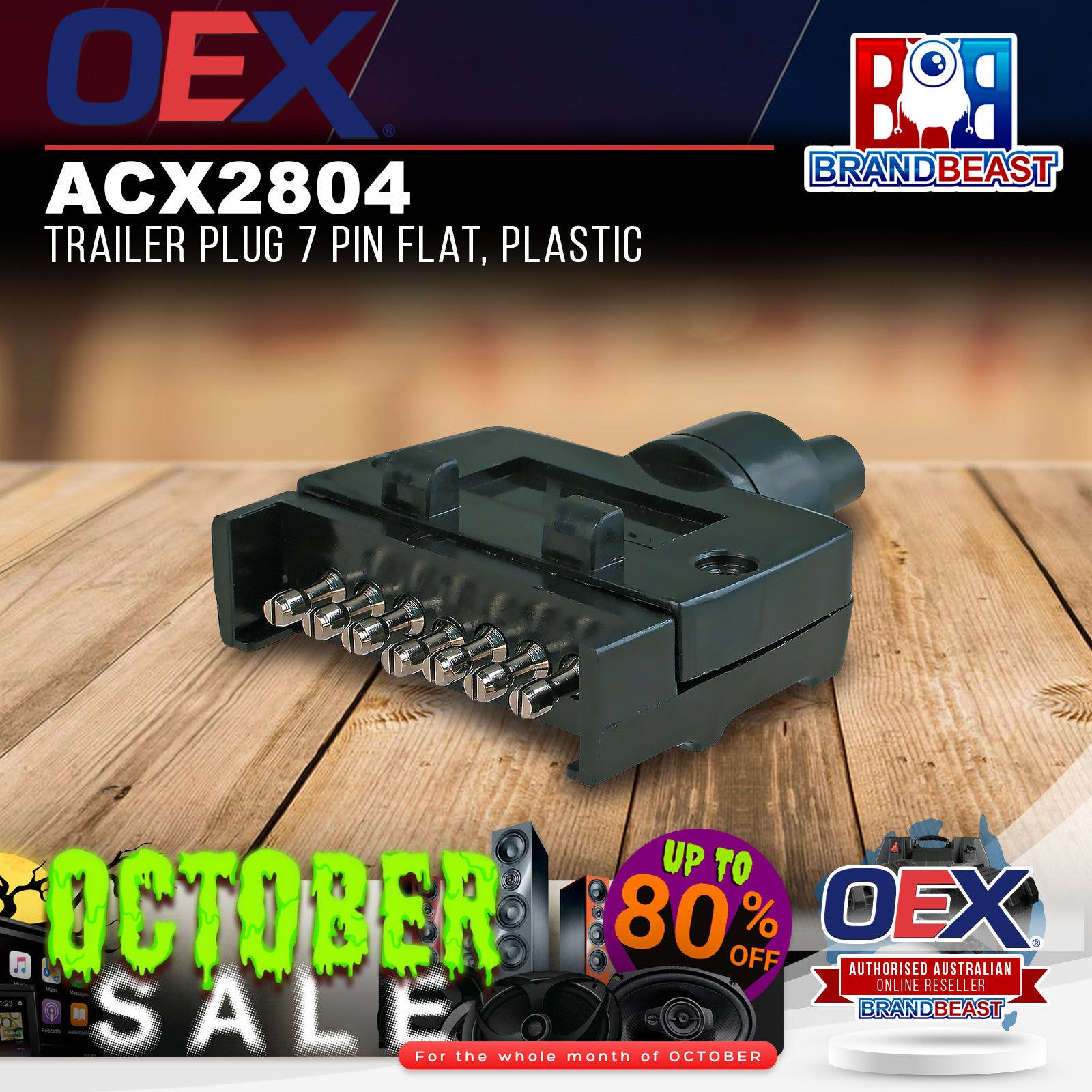

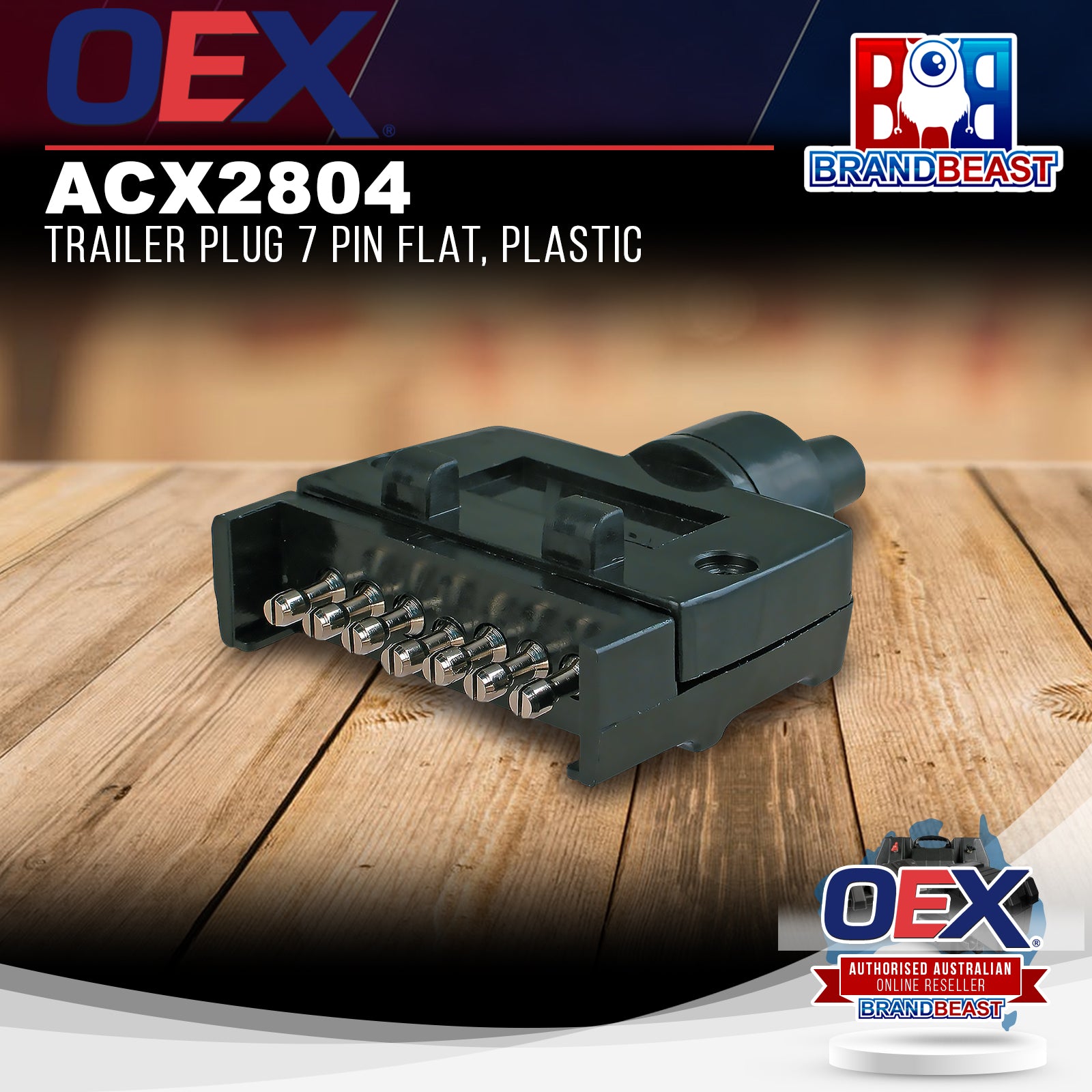

OEX ACX2804 7 Pin Flat Trailer Plug 15A 12V Brass Chrome Plated Terminals Australian Standard
The OEX ACX2804 is a 7-pin flat trailer plug rated at 15A and 12V, with a plastic housing and brass chrome plated terminals. The 7-pin flat connector is the standard trailer plug format used across Australia for caravans, trailers, horse floats and boat trailers, providing connections for brake lights, indicators, tail lights, reverse lights and electric brake control. Supplied as a single unit. Covered by a one year warranty.
Product overview
The 7-pin flat is the Australian standard trailer connector, carrying seven circuits between the towing vehicle and the trailer including left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit. Pin assignments follow the Australian standard AS4177. The ACX2804 is the plug (male, vehicle side), compatible with any standard 7-pin flat socket on a tow bar or trailer.
The brass chrome plated terminals provide reliable conductivity and corrosion resistance for the multiple circuits carried by the connector. At 15A the plug suits standard trailer lighting and electric brake controller circuits. For circuits with higher current requirements, verify the circuit current does not exceed the 15A plug rating.
Features and benefits
7-pin flat format: Australian standard trailer plug format for caravans, trailers, horse floats and boat trailers.
15A at 12V: Suited to standard trailer lighting and electric brake controller circuits.
Brass chrome plated terminals: Reliable conductivity and corrosion resistance across all seven circuits.
Plastic housing: Lightweight and durable for trailer applications.
Single unit: For new installation or replacement of a damaged 7-pin flat plug.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX2804 |
| Brand |
OEX |
| Connector Type |
7 Pin Flat |
| Style |
Plug (vehicle side) |
| Current Rating |
15A |
| Voltage |
12V |
| Housing Material |
Plastic |
| Terminal Material |
Brass chrome plated |
| Pack Quantity |
1 |
| Weight |
0.06kg |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
What is a 7-pin flat trailer plug? The 7-pin flat is the standard Australian trailer connector format. It has seven flat blade pins arranged in a flat configuration and connects the towing vehicle's electrical system to the trailer, carrying circuits for left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charge circuit.
What is the difference between a plug and a socket? The plug is the male connector and fits on the towing vehicle's wiring harness or trailer cable. The socket is the female connector and fits on the vehicle tow bar or trailer. The ACX2804 is the plug (male). A matching 7-pin flat socket is required on the other end of the connection.
What circuits does a 7-pin flat connector carry? A standard 7-pin flat connector carries left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit. Pin assignments follow the Australian standard AS4177.
Is this connector weatherproof? Weatherproofing is not specified for this SKU. For exposed or demanding installations, consider a heavy duty or sealed trailer plug from the OEX range.
What is the amp rating per circuit? This plug is rated at 15A. For circuits with higher current requirements such as electric brake controllers or battery chargers, verify the circuit current does not exceed the 15A rating before use.
