Description

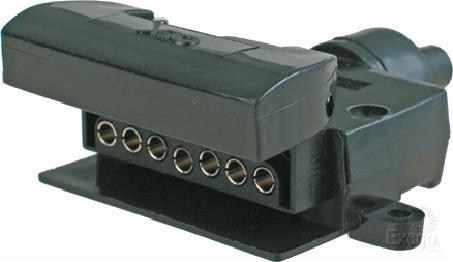

OEX ACX2805 7 Pin Flat Trailer Socket 15A 12V Surface Mount Chrome Plated Brass Terminals Australian Standard
The OEX ACX2805 is a 7-pin flat trailer socket rated at 15A and 12V, with a plastic surface mount housing and chrome plated brass terminals. The 7-pin flat connector is the standard trailer socket format used across Australia for caravans, trailers, horse floats and boat trailers. The surface mount design allows the socket to be fitted to a tow bar, chassis rail or body panel. The matching plug for this socket is the OEX ACX2804. Supplied as a single unit. Covered by a one year warranty.
Product overview
The 7-pin flat socket is the female, vehicle-side connector in the Australian standard trailer connection system. It mounts to the tow bar, chassis rail or body panel and accepts the 7-pin flat plug from the trailer wiring harness. The ACX2805 carries seven circuits following the Australian standard AS4177, including left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit.
The chrome plated brass terminals provide reliable conductivity and corrosion resistance across all seven circuits. The surface mount housing attaches directly to a flat surface using screws through the housing. At 15A the socket suits standard trailer lighting and electric brake controller circuits.
Features and benefits
7-pin flat format: Australian standard trailer socket format for caravans, trailers, horse floats and boat trailers.
Surface mount: Mounts directly to a tow bar, chassis rail or body panel using screws through the housing.
15A at 12V: Suited to standard trailer lighting and electric brake controller circuits.
Chrome plated brass terminals: Reliable conductivity and corrosion resistance across all seven circuits.
Plastic housing: Lightweight and durable for automotive and trailer applications.
Matches OEX ACX2804 plug: The ACX2804 7-pin flat plug is the direct counterpart for this socket.
Single unit: For new installation or replacement of a damaged 7-pin flat socket.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX2805 |
| Brand |
OEX |
| Connector Type |
7 Pin Flat |
| Style |
Socket (vehicle and tow bar side) |
| Mount Type |
Surface mount |
| Current Rating |
15A |
| Voltage |
12V |
| Housing Material |
Plastic |
| Terminal Material |
Chrome plated brass |
| Pack Quantity |
1 |
| Weight |
0.08kg |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
What is the difference between a trailer plug and socket? The socket is the female connector, typically mounted on the vehicle tow bar or chassis. The plug is the male connector, typically on the trailer cable or wiring harness. The ACX2805 is the socket (female, vehicle side). The matching plug is the ACX2804.
What circuits does a 7-pin flat connector carry? A standard 7-pin flat connector carries left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit, following the Australian standard AS4177.
How is this socket mounted? The ACX2805 is a surface mount socket that mounts directly to a flat surface such as a tow bar, chassis rail or body panel using screws through the housing.
Is this socket weatherproof? Weatherproofing is not specified for this SKU. For exposed or demanding installations, consider a heavy duty or sealed trailer socket from the OEX range.
What plug does this socket accept? The ACX2805 accepts a standard 7-pin flat trailer plug such as the OEX ACX2804, and any other Australian standard 7-pin flat plug.
